Water capacity (excl. calorifier)
285 gal/342 US gal/1,295l
Engines
Twin MAN V12-1900 (2 x 1,900mhp)
TOP SPEED: 30-32 knots†
* Displacements are calculated with 50% fuel and water with liferaft but with no optional equipment fitted or other gear.
† Maximum speeds will vary depending on cleanliness of hull, condition of sterngear, loading of craft, water and air temperatures, sea conditions and other factors. Speed estimates are therefore given in good faith but without warranty or liability on the part of Princess Yachts Limited. Craft illustrated in this brochure may be fitted with certain optional equipment. Specifications may be changed at any time without notice or liability. USA Specification
‡ Certain specifications, which vary by model, are upgraded on Princess yachts built for use in North America. Thus, specifications and equipment will vary from the information listed in the brochure for North American Princess yachts (e.g. air-conditioning and an upgraded generator will be included as standard for all North American models and electric cooking facilities will be supplied in place of gas systems). Please consult the USA Specification Brochure for full details regarding the North American specifications for individual models.
Deck fittings
Teak-laid transom platform, cockpit deck, flybridge, flybridge stairway, side decks and foredeck walkthrough
Reversible hydraulic anchor winches with foredeck, main helm and flybridge controls
Stemhead roller with automatic anchor launch and retrieve
Twin anchor system incorporating a primary - 80kg galvanised claw anchor with 100m of 14mm galvanised chain and a secondary – 50kg galvanised claw anchor with 70m of 14mm galvanised chain
Twin electric sternline mooring winches
Deck hatch access to chain locker
Bow rope stowage locker
Freshwater deck/anchor wash (with both fore and aft deck outlets)
Stainless steel bow and stern fairleads
Stainless-steel bow, stern and spring cleats (2 pairs)
Stainless-steel pulpit and guard rails
Stainless steel coachroof and flybridge handrails
Foredeck escape hatch
Foredeck U-shaped seating area
Foredeck sunbathing area with integrated adjustable teak headrests and storage
Twin coachroof lockers for storage of fenders, ropes and cushions
PVC rubbing band with stainless-steel insert
LED deck level lighting
Full set of IMCO navigation lights
Riding light
Twin beam searchlight with dual station remote controls
Loudhailer
Stern docking lights
Twin electric horns
Fuel and water fillers

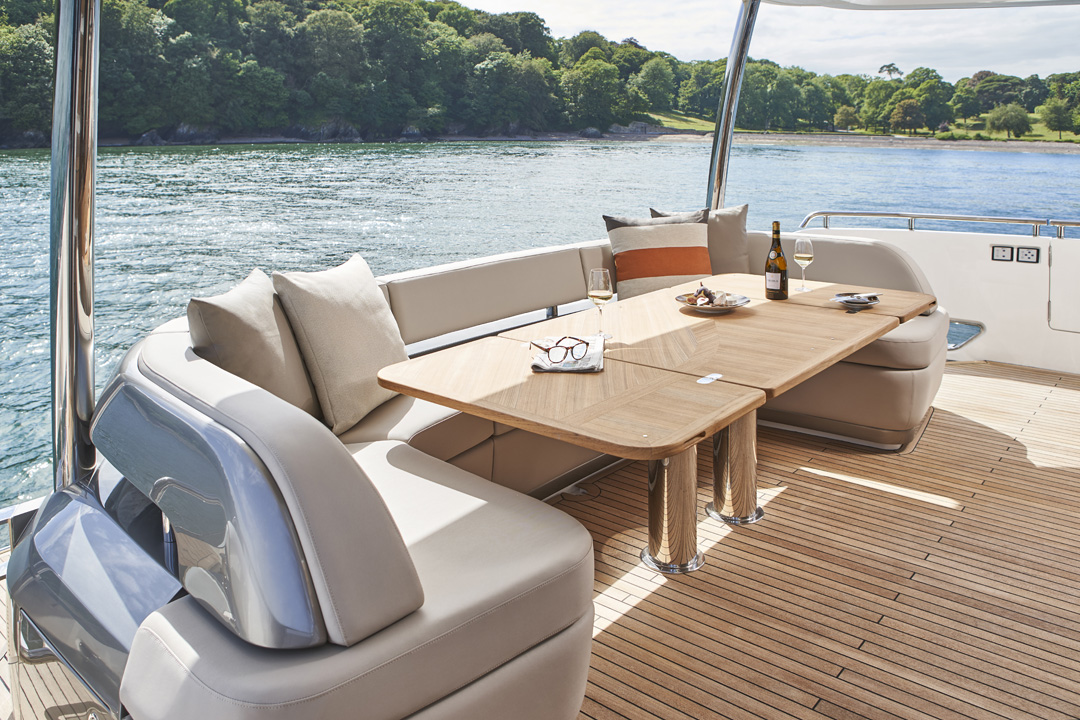

Cockpit and bathing platform
Self-draining
Upholstered U-shaped seating
Folding teak dining table
LED overhead and deck level lighting
Stainless steel handrails
Remote control 4.4m telescopic passarelle with folding handrails
Watertight pantograph doors giving direct access from starboard side deck and transom to crew cabin /engine room
Rope storage lockers
Locker containing remote fuel cocks, manual bilge pump with valve chest and manual controls for automatic fire extinguishers
Integral stairway to flybridge with teak step treads
Twin transom gates leading to bathing platform
Electro-hydraulic raise/lower teak laid bathing platform (550kg SWL)
Retractable bathing ladder (manual) in side of hydraulic platform
Transom access to lazarette
Transom steps to access stern from bathing platform when in lowered position
Dinghy chock system
Hot and cold transom shower
220/240v shore support inlets
Cockpit canvas cover

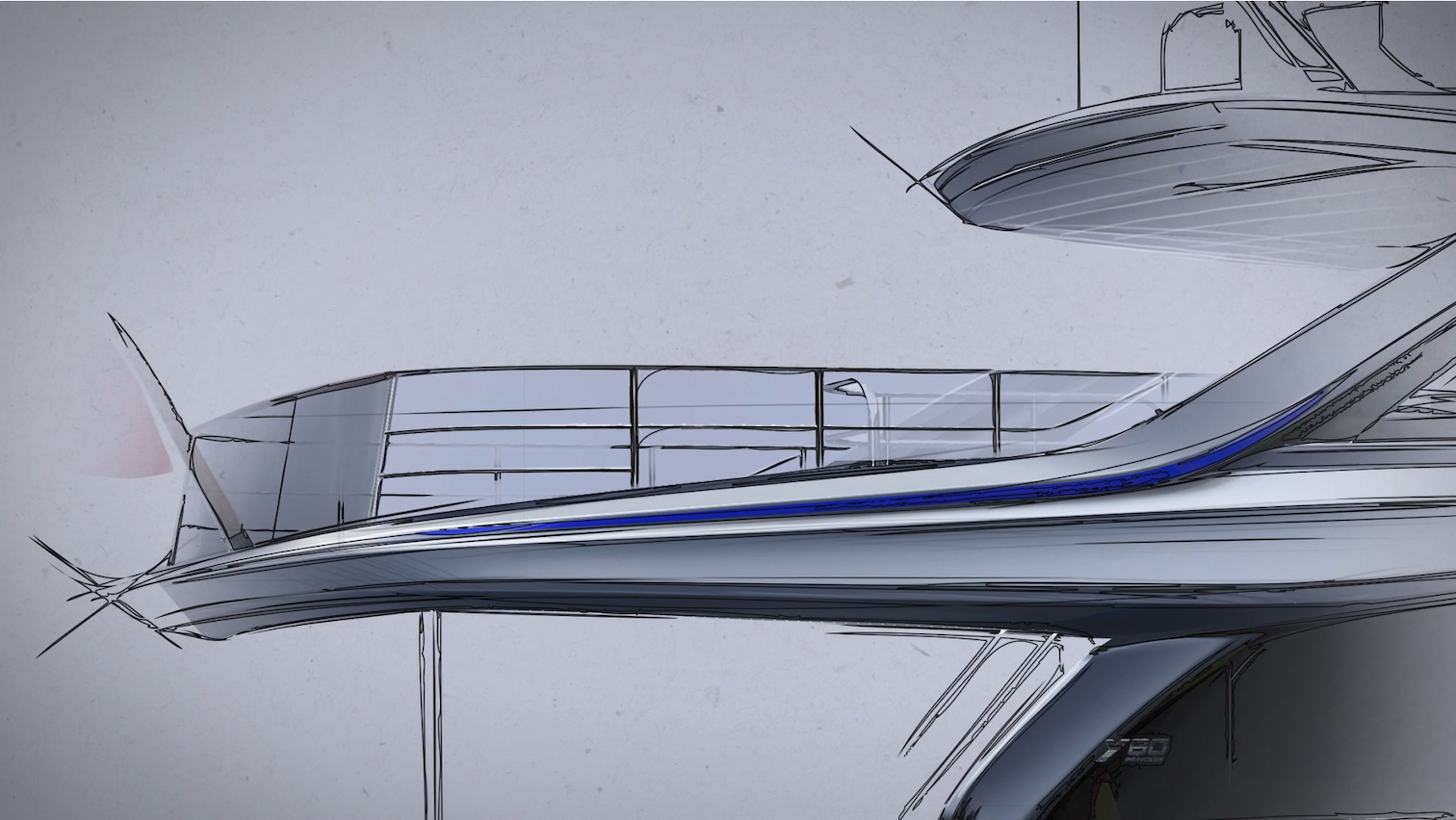

Flybridge
Instrument consoles with dual station controls and LED display incorporating engine instruments, fuel gauges, alarms and rudder position indicator (see Lower Helm Position)
Twin adjustable helm seats
Port and starboard forward-facing L shaped seating
Large U-shaped upholstered seating
Wetbar with double barbecue, sink, drawer refrigerator, waste bin and storage
Sunpad aft with storage below
Naim Uniti Atom audio system with waterproof speakers (2)
Clear view hatch to aft cockpit
Wind deflector screens
Stainless-steel handrails with glass balustrade and teak capping to aft end of flybridge
Liferaft stowage
LED deck level lighting
GRP radar arch
Twin matching whip aerials for VHF R/T and radio
Console and seat covers
Optional crane (550kg SWL)
Optional GRP hardtop with/without electric rotating louvered opening section or glass panels (or optional folding bimini with electro-hydraulic operation)
Wheelhouse
Leather upholstered helm seats with electric fore and aft adjustment for helmsman
Leather upholstered navigator’s seat with manual fore and aft adjustment
U-Shaped seating area to port with table
Instrument console with LED display incorporating engine instruments, fuel gauges, alarms and rudder position indicator
Dual station instruments and controls at Flybridge and Lower Helm Positions: - power-assisted electro-hydraulic steering - adjustable steering wheel - high-speed magnetic compass - electronic engine controls - trim tab controls with indicators - bow thruster control - hydraulic anchor winch remote control - colour radar (with scanner) and GPS/chartploter (twin displays at lower helm) - autopilot - speed and distance log - echo sounder with alarm - VHF with DSC R/T with intercom - remote control searchlight - horn button
Intercom to flybridge
Automatic fog horn with loudhailer
Chart storage
Drinks holders
Toughened glass screen (clear for night vision) with windscreen de-mist system
Windscreen wipers with freshwater windscreen wash
Black mesh sunscreens
Bilge pump controls with visual pump running warnings
24v and 240v electrical control panel
Riding light, helm and navigation light control switches
USB charging points (2)
LED overhead lighting (24v) and night lighting
Pantograph helmsman’s door to starboard side deck
Electric drop window to port
Timber flooring (V groove planked)
Saloon
Twin L-shaped sofas to port with storage below
Coffee table
Bruton pouf
Sofa to starboard
Storage units
55" UHD LED TV on rise and fall
Naim Uniti Atom audio system with ceiling mounted speakers (4)
Triple stainless steel framed sliding door to aft cockpit
Electric roller sheer blinds to outboard windows
Manual curtains on wave track to doors
LED overhead and concealed lighting (24v)
Fitted carpet
Dining area
Expandable dining table
Dining chairs (8)
Furniture unit with bookcase, bottle and glass storage
Refrigerator
Full height panoramic window
Electric roller sheer blinds to forward starboard window
Manual curtains on wave track to panoramic window
LED overhead and concealed lighting (24v)
Stairway to lower accommodation
Day head
Fitted carpet
Galley
Galley unit worktops in choice of granite or quartz
Open bar/servery layout with powered electric screen to fully enclose galley and sliding door
4-zone induction hob
Extractor fan
Combination microwave/ convection oven with grill
Twin-bowl stainless-steel sink with mixer tap
Chopping board
Full height refrigerator/deep freezer
Dishwasher
Icemaker
Waste bin
Drawers and storage cupboards
Electric roller blinds to window
Pantograph door to port side deck
LED overhead and task lighting (24v)
220/240v outlets (4)
Timber flooring (V groove planked)
Accommodation
All cabins and bathrooms feature opening portholes and air conditioning
All cabins feature 220/240v power points
All bathrooms feature electric freshwater toilets and 240v shaver points
Owners stateroom
Large double bed with drawers below
Twin bedside tables
Dressing area with wardrobes and storage
Built-in safe
Dressing table with chair (doubles as additional dining chair)
Mirror
Occasional table with seats fore and aft
Storage lockers and drawers
55” UHD LED TV
Naim Uniti Atom audio system with speakers (2) and subwoofer
Electric roman blinds and manual sheer roller blinds to hull windows
Panoramic windows including opening portholes
LED overhead and concealed lighting (24v)
Individual berth lights
220/240v outlets (2)
USB charging points (2)
Fitted carpet
En-Suite Bathroom
Twin washbasins with marble/granite/quartz worktop
Mirror
Storage lockers
Separate compartment with toilet and option of bidet
Shower compartment with automatic pump out
Extractor fan
Heated towel rail
Window with opening porthole
Manual tension venetian blind
LED overhead and concealed lighting (24v)
Bathroom accessories
Marble/granite /quartz to floor and specified bulkheads
Forward stateroom
Large double bed with drawers below
Walk-in wardrobe with shelves
Dressing table with stool
Mirror
Storage lockers
32" HD LED TV
Bluray CD/DVD player connected to Naim Uniti Atom sound system paired with ceiling mounted speakers (2)
Windows with opening portholes
Electric roman blinds
Deck hatch
LED overhead and concealed lighting (24v)
Individual berth lights
220/240v outlets (2)
USB charging points (2)
Fitted carpet
En-Suite Bathroom
Washbasin with marble/granite/quartz worktop
Mirror
Storage lockers
Shower compartment with automatic pump out
Extractor fan
Window with opening porthole
Manual tension venetian blind
LED overhead and concealed lighting (24v)
Bathroom accessories
Marble/granite/quartz flooring and specified bulkhead
Close

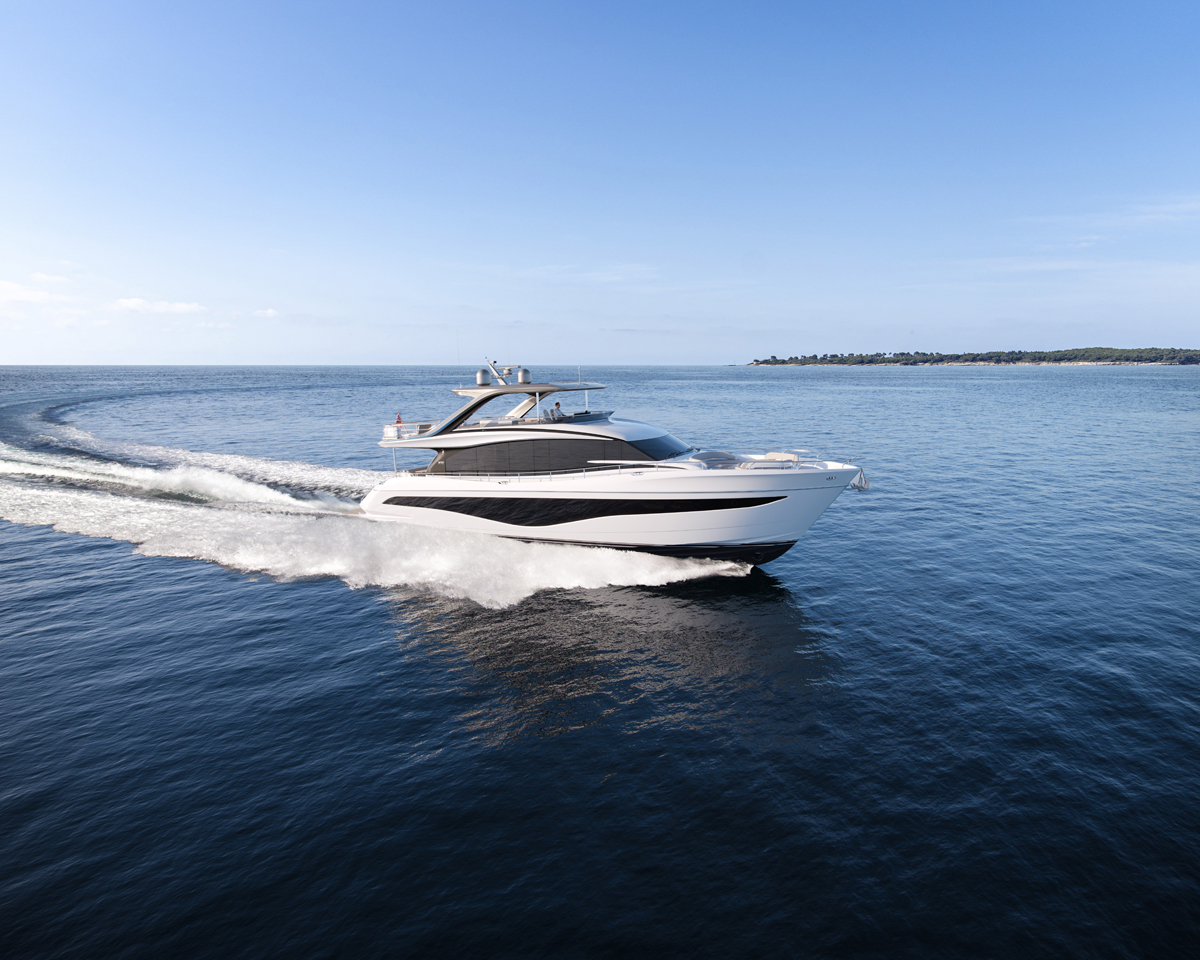

Princess Y80
Principal Dimensions
Details
Specification
Disclaimer
Length overall (incl. pulpit)
86ft 0in (26.2m)
Length overall (excl. pulpit)
84ft 6in (25.75m)
Beam
20ft 8in (6.03m)
Draft
5ft 10in (1.77m)
Displacement approx.
78,000kg (171,961lbs)*
Fuel capacity
2,420 gal/ 2,905 US gal/ 11,000l
Water capacity (excl. calorifier)
285 gal/342 US gal/1,295l
Engines
Twin MAN V12-1900 (2 x 1,900mhp)
TOP SPEED: 30-32 knots†
* Displacements are calculated with 50% fuel and water with liferaft but with no optional equipment fitted or other gear.
† Maximum speeds will vary depending on cleanliness of hull, condition of sterngear, loading of craft, water and air temperatures, sea conditions and other factors. Speed estimates are therefore given in good faith but without warranty or liability on the part of Princess Yachts Limited. Craft illustrated in this brochure may be fitted with certain optional equipment. Specifications may be changed at any time without notice or liability. USA Specification
‡ Certain specifications, which vary by model, are upgraded on Princess yachts built for use in North America. Thus, specifications and equipment will vary from the information listed in the brochure for North American Princess yachts (e.g. air-conditioning and an upgraded generator will be included as standard for all North American models and electric cooking facilities will be supplied in place of gas systems). Please consult the USA Specification Brochure for full details regarding the North American specifications for individual models.
Principal Dimensions
Details
Deck fittings
Teak-laid transom platform, cockpit deck, flybridge, flybridge stairway, side decks and foredeck walkthrough
Reversible hydraulic anchor winches with foredeck, main helm and flybridge controls
Stemhead roller with automatic anchor launch and retrieve
Twin anchor system incorporating a primary - 80kg galvanised claw anchor with 100m of 14mm galvanised chain and a secondary – 50kg galvanised claw anchor with 70m of 14mm galvanised chain
Twin electric sternline mooring winches
Deck hatch access to chain locker
Bow rope stowage locker
Freshwater deck/anchor wash (with both fore and aft deck outlets)
Stainless steel bow and stern fairleads
Stainless-steel bow, stern and spring cleats (2 pairs)
Stainless-steel pulpit and guard rails
Stainless steel coachroof and flybridge handrails
Foredeck escape hatch
Foredeck U-shaped seating area
Foredeck sunbathing area with integrated adjustable teak headrests and storage
Twin coachroof lockers for storage of fenders, ropes and cushions
PVC rubbing band with stainless-steel insert
LED deck level lighting
Full set of IMCO navigation lights
Riding light
Twin beam searchlight with dual station remote controls
Loudhailer
Stern docking lights
Twin electric horns
Fuel and water fillers
Cockpit and bathing platform
Self-draining
Upholstered U-shaped seating
Folding teak dining table
LED overhead and deck level lighting
Stainless steel handrails
Remote control 4.4m telescopic passarelle with folding handrails
Watertight pantograph doors giving direct access from starboard side deck and transom to crew cabin /engine room
Rope storage lockers
Locker containing remote fuel cocks, manual bilge pump with valve chest and manual controls for automatic fire extinguishers
Integral stairway to flybridge with teak step treads
Twin transom gates leading to bathing platform
Electro-hydraulic raise/lower teak laid bathing platform (550kg SWL)
Retractable bathing ladder (manual) in side of hydraulic platform
Transom access to lazarette
Transom steps to access stern from bathing platform when in lowered position
Dinghy chock system
Hot and cold transom shower
220/240v shore support inlets
Cockpit canvas cover
Flybridge
Instrument consoles with dual station controls and LED display incorporating engine instruments, fuel gauges, alarms and rudder position indicator (see Lower Helm Position)
Twin adjustable helm seats
Port and starboard forward-facing L shaped seating
Large U-shaped upholstered seating
Wetbar with double barbecue, sink, drawer refrigerator, waste bin and storage
Sunpad aft with storage below
Naim Uniti Atom audio system with waterproof speakers (2)
Clear view hatch to aft cockpit
Wind deflector screens
Stainless-steel handrails with glass balustrade and teak capping to aft end of flybridge
Liferaft stowage
LED deck level lighting
GRP radar arch
Twin matching whip aerials for VHF R/T and radio
Console and seat covers
Optional crane (550kg SWL)
Optional GRP hardtop with/without electric rotating louvered opening section or glass panels (or optional folding bimini with electro-hydraulic operation)
Wheelhouse
Leather upholstered helm seats with electric fore and aft adjustment for helmsman
Leather upholstered navigator’s seat with manual fore and aft adjustment
U-Shaped seating area to port with table
Instrument console with LED display incorporating engine instruments, fuel gauges, alarms and rudder position indicator
Dual station instruments and controls at Flybridge and Lower Helm Positions: - power-assisted electro-hydraulic steering - adjustable steering wheel - high-speed magnetic compass - electronic engine controls - trim tab controls with indicators - bow thruster control - hydraulic anchor winch remote control - colour radar (with scanner) and GPS/chartploter (twin displays at lower helm) - autopilot - speed and distance log - echo sounder with alarm - VHF with DSC R/T with intercom - remote control searchlight - horn button
Intercom to flybridge
Automatic fog horn with loudhailer
Chart storage
Drinks holders
Toughened glass screen (clear for night vision) with windscreen de-mist system
Windscreen wipers with freshwater windscreen wash
Black mesh sunscreens
Bilge pump controls with visual pump running warnings
24v and 240v electrical control panel
Riding light, helm and navigation light control switches
USB charging points (2)
LED overhead lighting (24v) and night lighting
Pantograph helmsman’s door to starboard side deck
Electric drop window to port
Timber flooring (V groove planked)

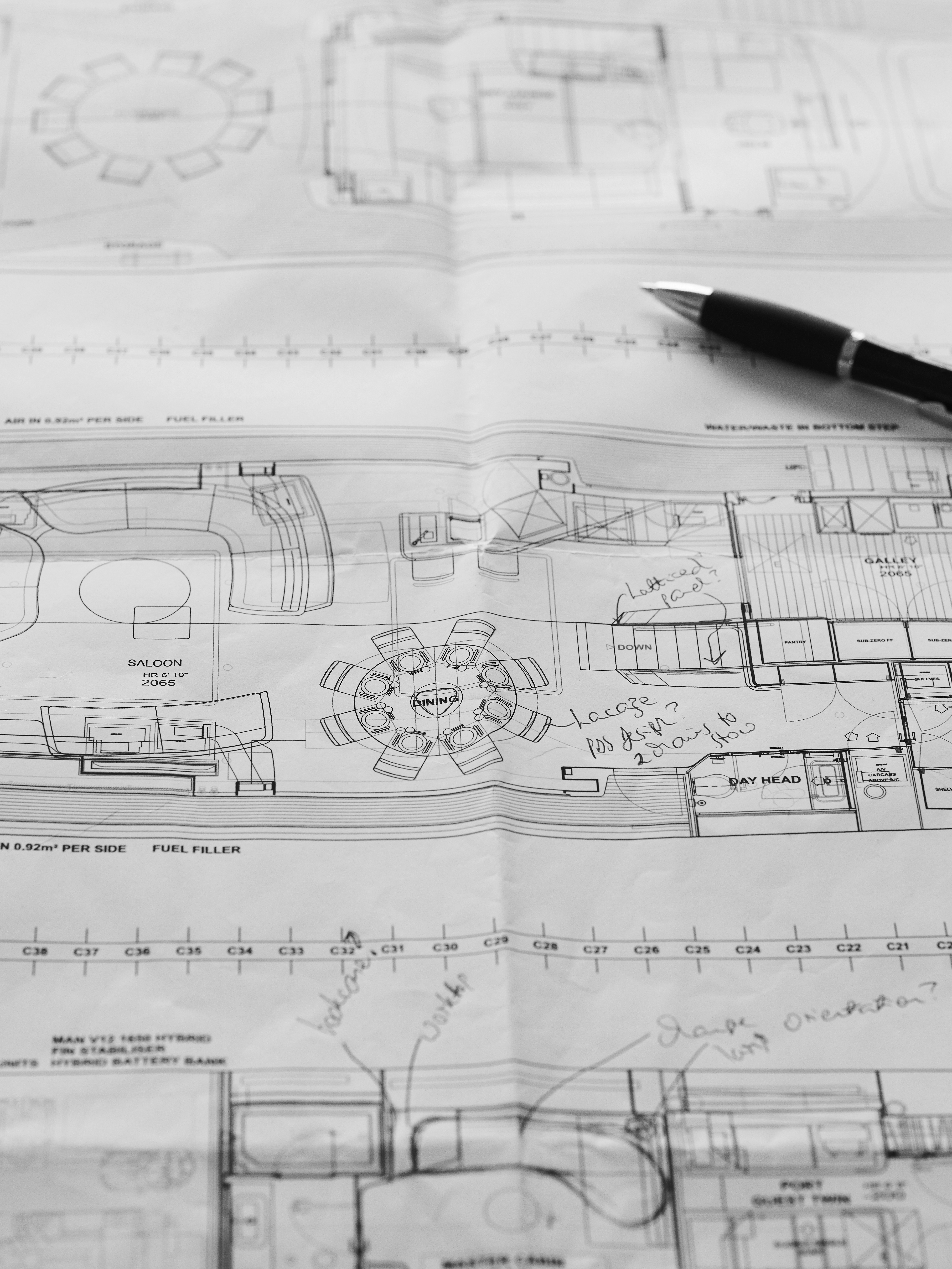

Saloon
Twin L-shaped sofas to port with storage below
Coffee table
Bruton pouf
Sofa to starboard
Storage units
55" UHD LED TV on rise and fall
Naim Uniti Atom audio system with ceiling mounted speakers (4)
Triple stainless steel framed sliding door to aft cockpit
Electric roller sheer blinds to outboard windows
Manual curtains on wave track to doors
LED overhead and concealed lighting (24v)
Fitted carpet
Dining area
Expandable dining table
Dining chairs (8)
Furniture unit with bookcase, bottle and glass storage
Refrigerator
Full height panoramic window
Electric roller sheer blinds to forward starboard window
Manual curtains on wave track to panoramic window
LED overhead and concealed lighting (24v)
Stairway to lower accommodation
Day head
Fitted carpet
Galley
Galley unit worktops in choice of granite or quartz
Open bar/servery layout with powered electric screen to fully enclose galley and sliding door
4-zone induction hob
Extractor fan
Combination microwave/ convection oven with grill
Twin-bowl stainless-steel sink with mixer tap
Chopping board
Full height refrigerator/deep freezer
Dishwasher
Icemaker
Waste bin
Drawers and storage cupboards
Electric roller blinds to window
Pantograph door to port side deck
LED overhead and task lighting (24v)
220/240v outlets (4)
Timber flooring (V groove planked)
Accommodation
All cabins and bathrooms feature opening portholes and air conditioning
All cabins feature 220/240v power points
All bathrooms feature electric freshwater toilets and 240v shaver points
Owners stateroom
Large double bed with drawers below
Twin bedside tables
Dressing area with wardrobes and storage
Built-in safe
Dressing table with chair (doubles as additional dining chair)
Mirror
Occasional table with seats fore and aft
Storage lockers and drawers
55” UHD LED TV
Naim Uniti Atom audio system with speakers (2) and subwoofer
Electric roman blinds and manual sheer roller blinds to hull windows
Panoramic windows including opening portholes
LED overhead and concealed lighting (24v)
Individual berth lights
220/240v outlets (2)
USB charging points (2)
Fitted carpet
En-Suite Bathroom
Twin washbasins with marble/granite/quartz worktop
Mirror
Storage lockers
Separate compartment with toilet and option of bidet
Shower compartment with automatic pump out
Extractor fan
Heated towel rail
Window with opening porthole
Manual tension venetian blind
LED overhead and concealed lighting (24v)
Bathroom accessories
Marble/granite /quartz to floor and specified bulkheads
Forward stateroom
Large double bed with drawers below
Walk-in wardrobe with shelves
Dressing table with stool
Mirror
Storage lockers
32" HD LED TV
Bluray CD/DVD player connected to Naim Uniti Atom sound system paired with ceiling mounted speakers (2)
Windows with opening portholes
Electric roman blinds
Deck hatch
LED overhead and concealed lighting (24v)
Individual berth lights
220/240v outlets (2)
USB charging points (2)
Fitted carpet
En-Suite Bathroom
Washbasin with marble/granite/quartz worktop
Mirror
Storage lockers
Shower compartment with automatic pump out
Extractor fan
Window with opening porthole
Manual tension venetian blind
LED overhead and concealed lighting (24v)
Bathroom accessories
Marble/granite/quartz flooring and specified bulkhead
The all-new Y80 realises innovative layout solutions for an 80 foot motor yacht. Configurable cockpit options, an open or closed main deck layout with wheelhouse and a newly designed foredeck area, the Y80 offers choice without compromise.
