Water capacity (excl. calorifier)
235 gal/304 US gal/1,150l
Engines
Twin MAN V12-1800 (2 x 1,800mhp)
TOP SPEED: 34-36 knots†
* Displacements are calculated with 50% fuel and water with liferaft but with no optional equipment fitted or other gear.
† Maximum speeds will vary depending on cleanliness of hull, condition of sterngear, loading of craft, water and air temperatures, sea conditions and other factors. Speed estimates are therefore given in good faith but without warranty or liability on the part of Princess Yachts Limited. Craft illustrated in this brochure may be fitted with certain optional equipment. Specifications may be changed at any time without notice or liability. USA Specification
‡ Certain specifications, which vary by model, are upgraded on Princess yachts built for use in North America. Thus, specifications and equipment will vary from the information listed in the brochure for North American Princess yachts (e.g. air-conditioning and an upgraded generator will be included as standard for all North American models and electric cooking facilities will be supplied in place of gas systems). Please consult the USA Specification Brochure for full details regarding the North American specifications for individual models.

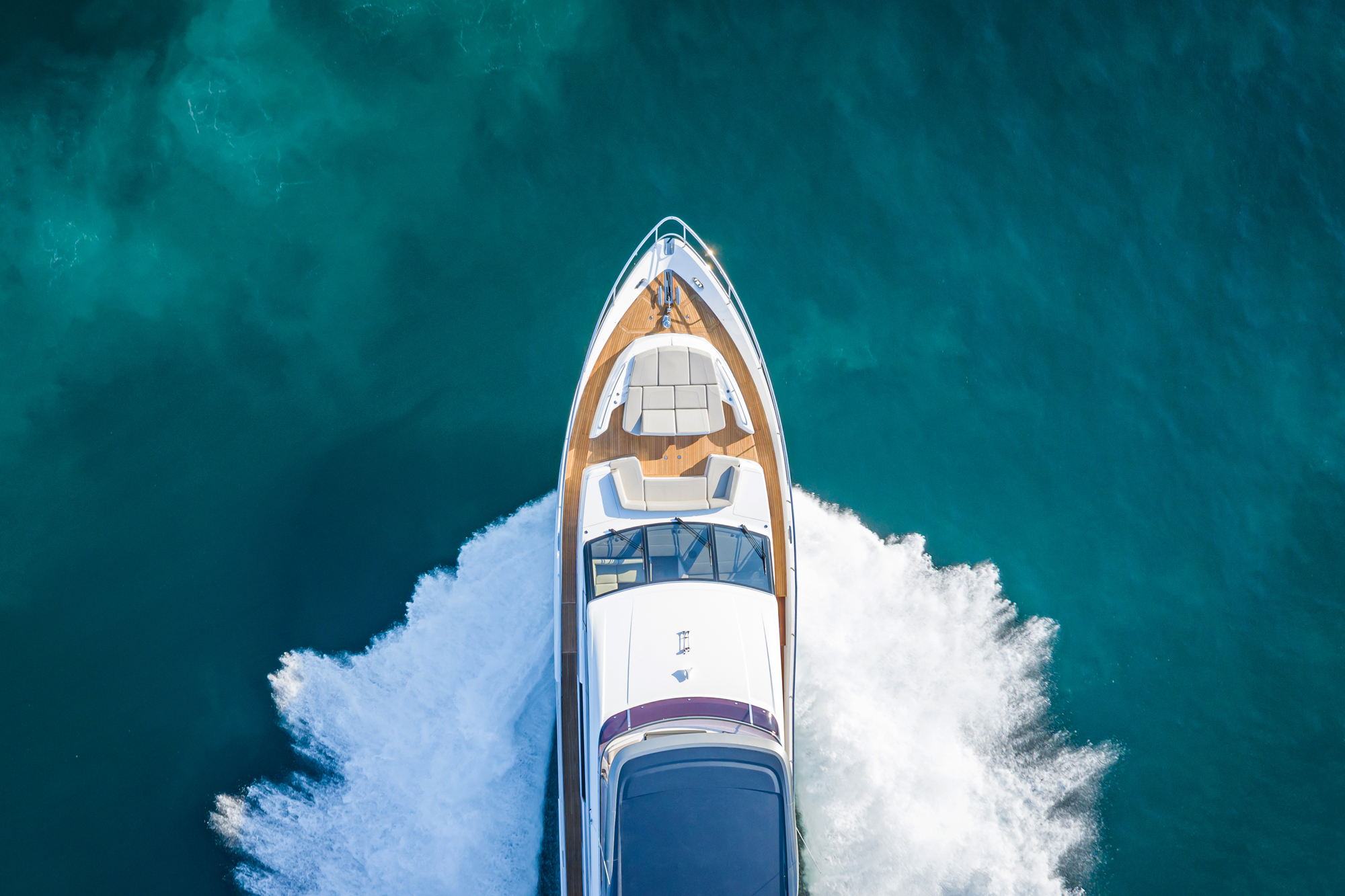

Deck fittings
Teak-laid transom platform, cockpit deck, flybridge, flybridge stairway and steps to side decks.
Lewmar V6 24v DC windlass
Stemhead roller with automatic anchor launch and retrieve
Self-stowing 50kg/110lbs Delta anchor with 100m of chain

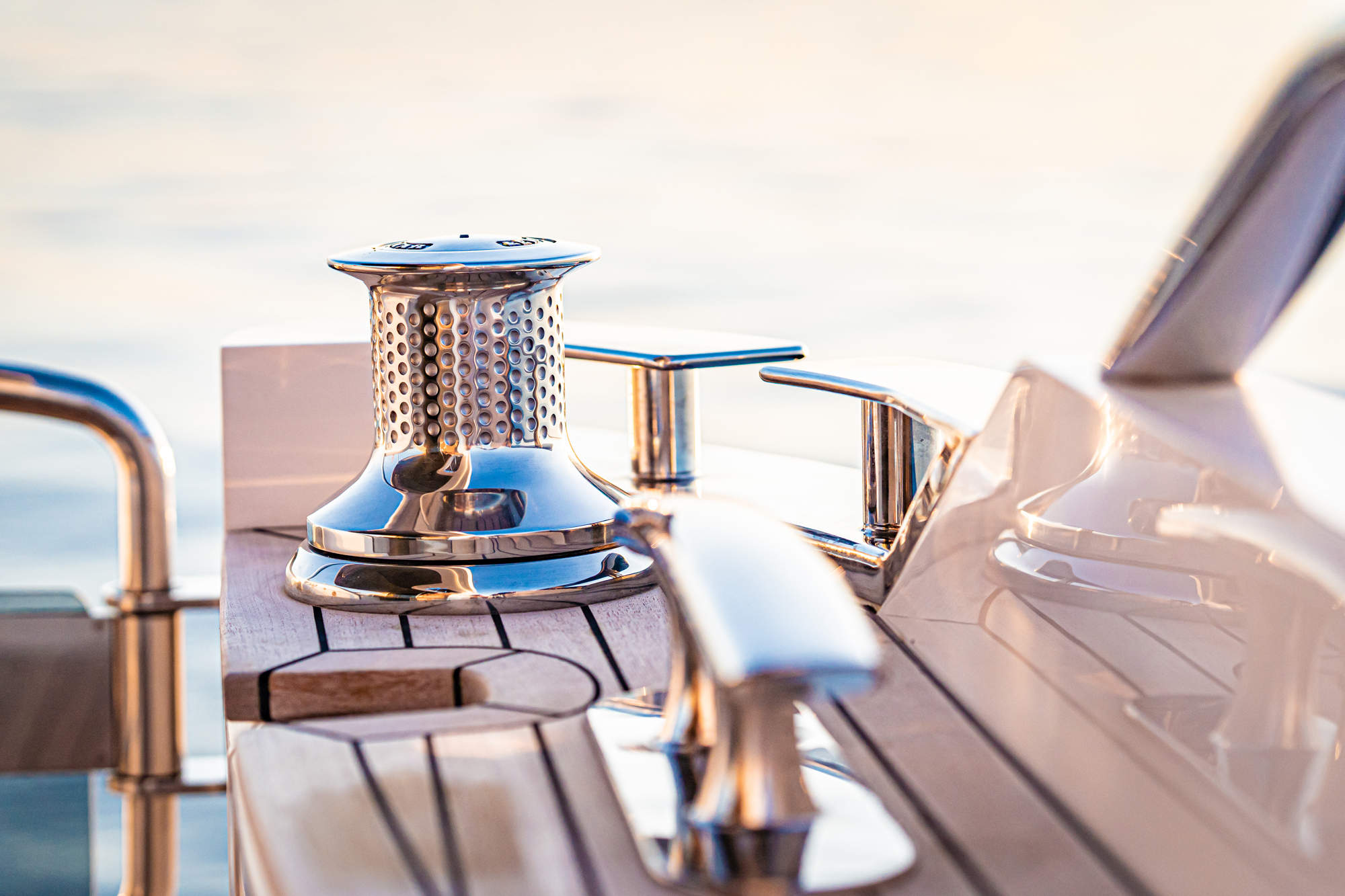

Twin electric sternline mooring winches
Deck hatch access to chain locker
Bow rope stowage locker
Freshwater deck/anchor wash (with both fore and aft deck outlets)
Stainless steel bow and stern fairleads
Stainless steel bow, stern and spring cleats (2 pairs)
Stainless steel pulpit and guard rails
Stainless steel coachroof and flybridge handrails
Foredeck escape hatch
Foredeck U-shaped seating area
Foredeck sunbathing area with integrated adjustable headrests and storage
Twin coachroof lockers for storage of fenders, ropes and cushions
PVC rubbing band with stainless steel insert
LED deck level lighting
Full set of IMCO navigation lights
Riding light
Twin beam searchlight with dual station remote controls
Stern docking lights
Twin electric horns
Fuel and water fillers

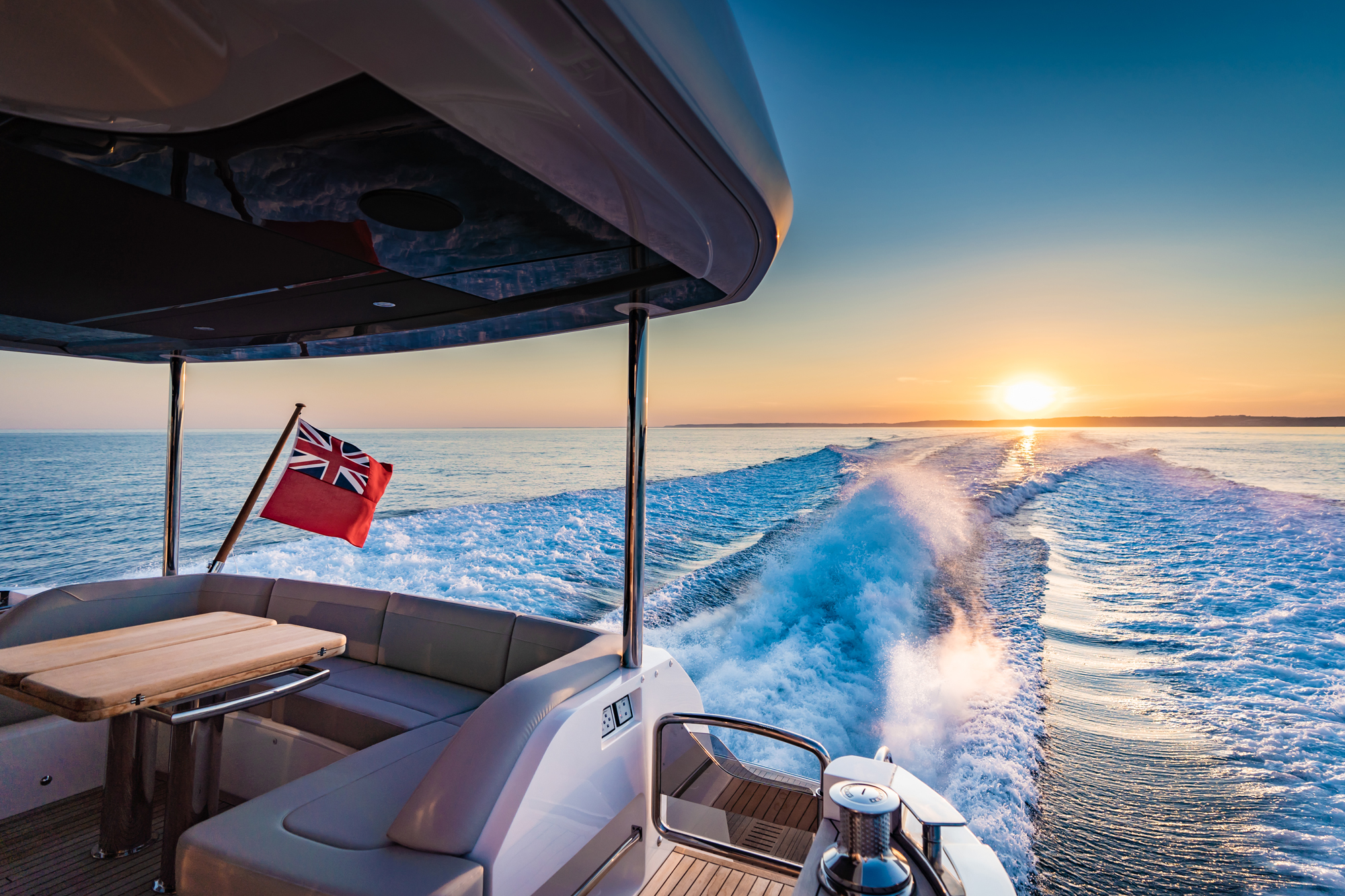

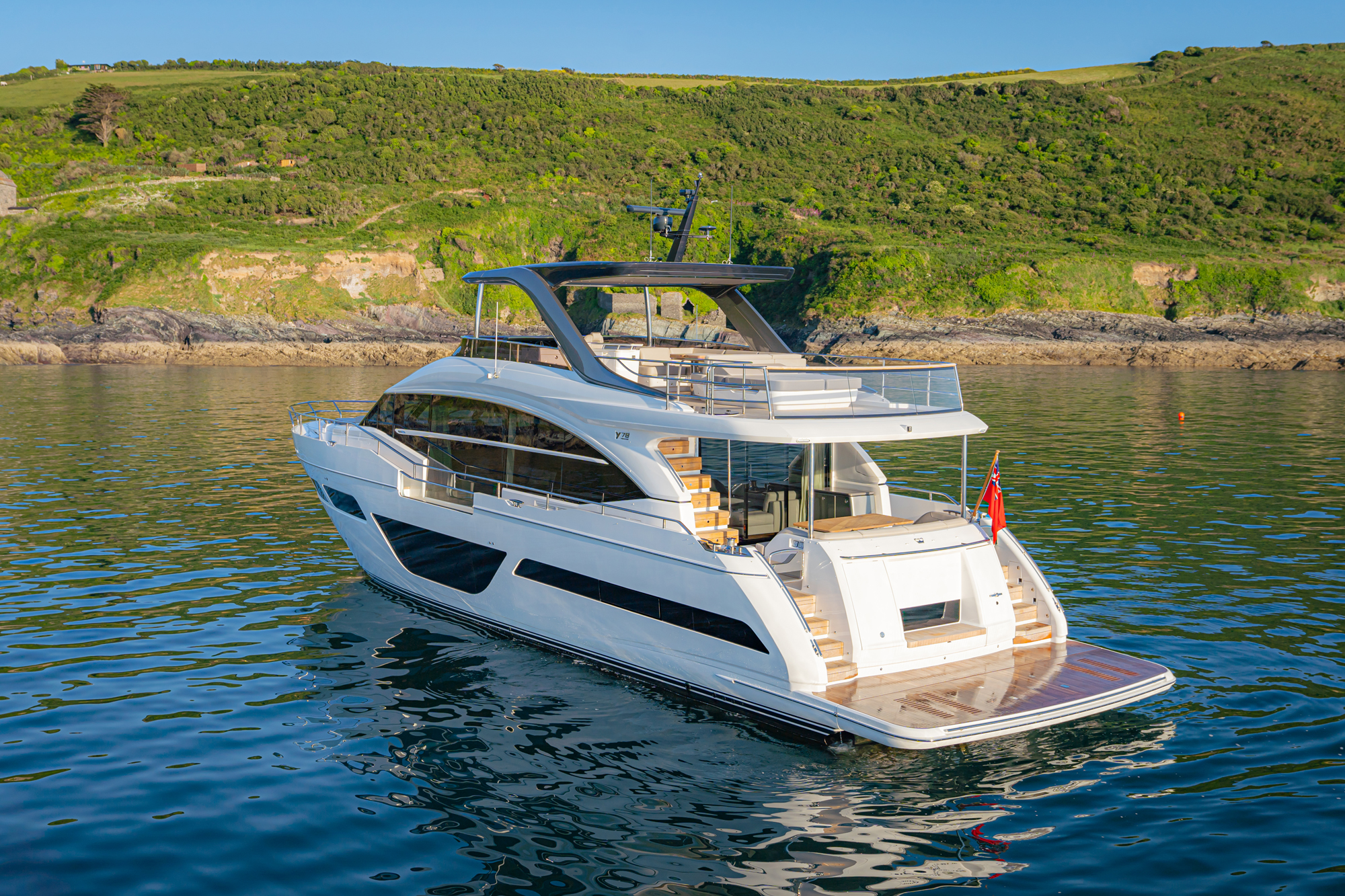

Cockpit and bathing platform
Self-draining
Upholstered U-shaped seating
Folding teak dining table
LED overhead and deck level lighting
Stainless-steel handrails
Remote control 4.0m telescopic passarelle with folding handrails
Watertight pantograph door giving direct access from bathing platform to crew cabin/utility area/engine room
Lockable gas strut assisted hatch to engine room
Liferaft stowage lockers
Rope storage lockers
Locker containing remote fuel cocks, manual bilge pump with valve chest and manual controls for automatic fire extinguishers
Integral stairway to flybridge with teak step treads
Twin transom gates leading to bathing platform
Electro-hydraulic raise/lower teak laid bathing platform (550kg SWL)
Retractable bathing ladder (manual) in side of hydraulic platform
Swim platform transom seat in teak
Transom access to lazarette
Transom steps to access stern from bathing platform when in lowered position
Dinghy chock system
Hot and cold transom shower
220/240v shore support inlet
Cockpit canvas cover

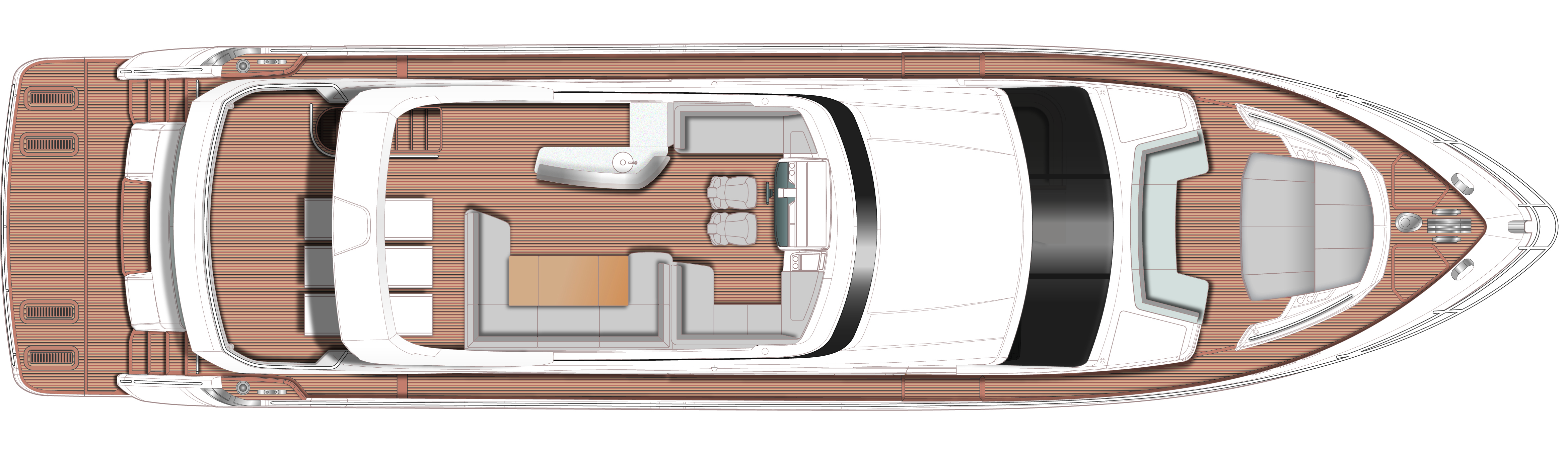

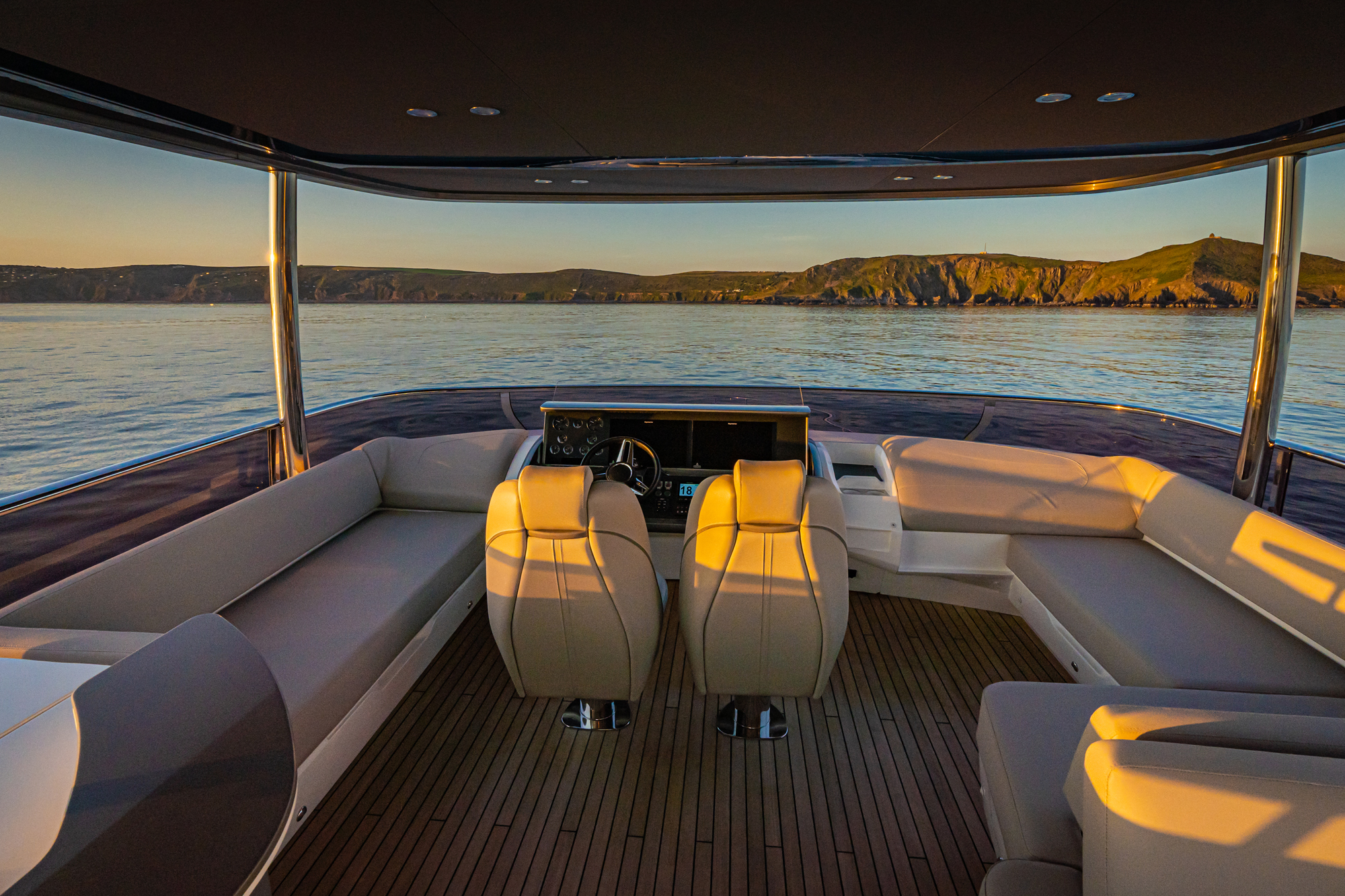

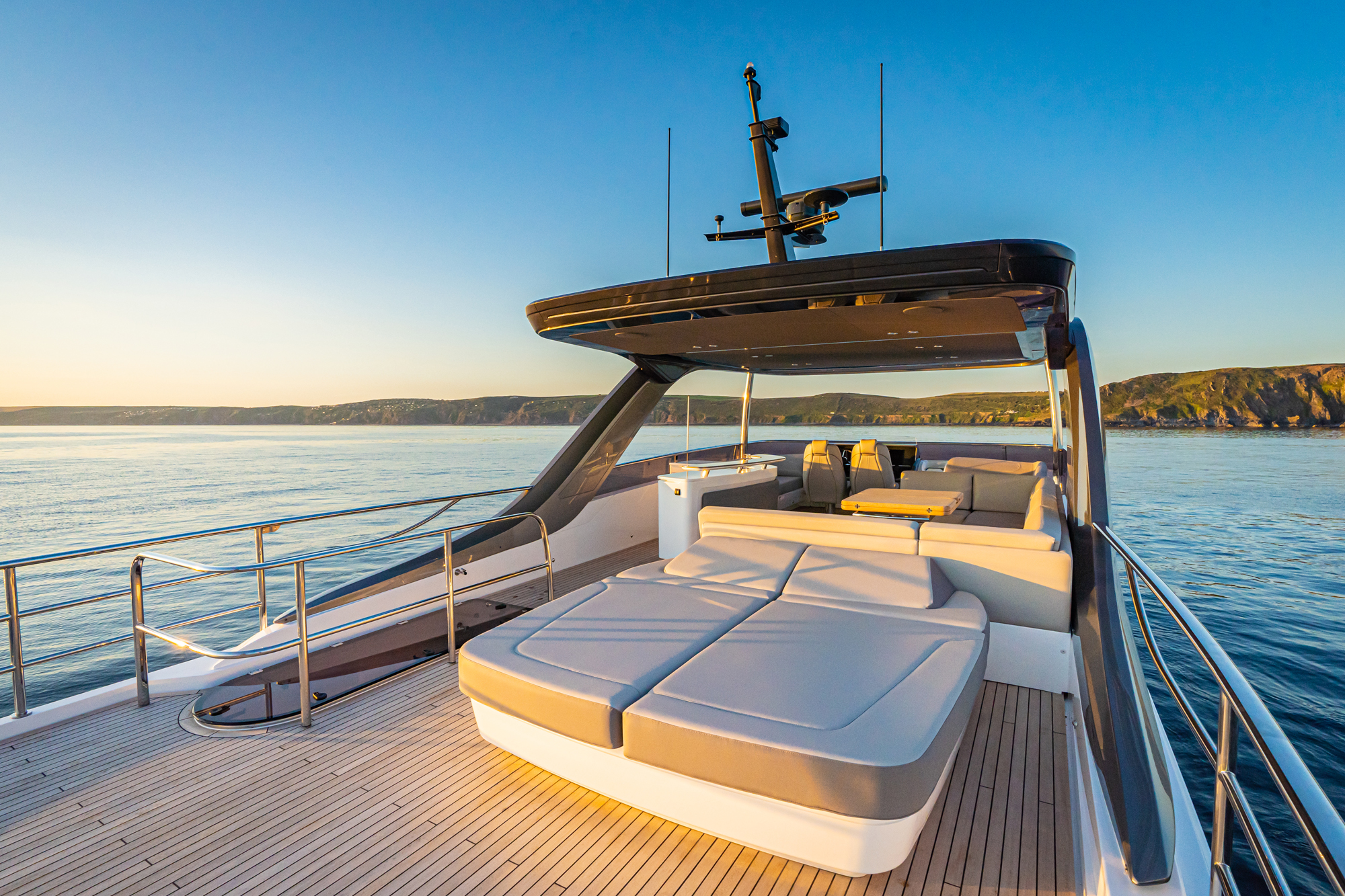

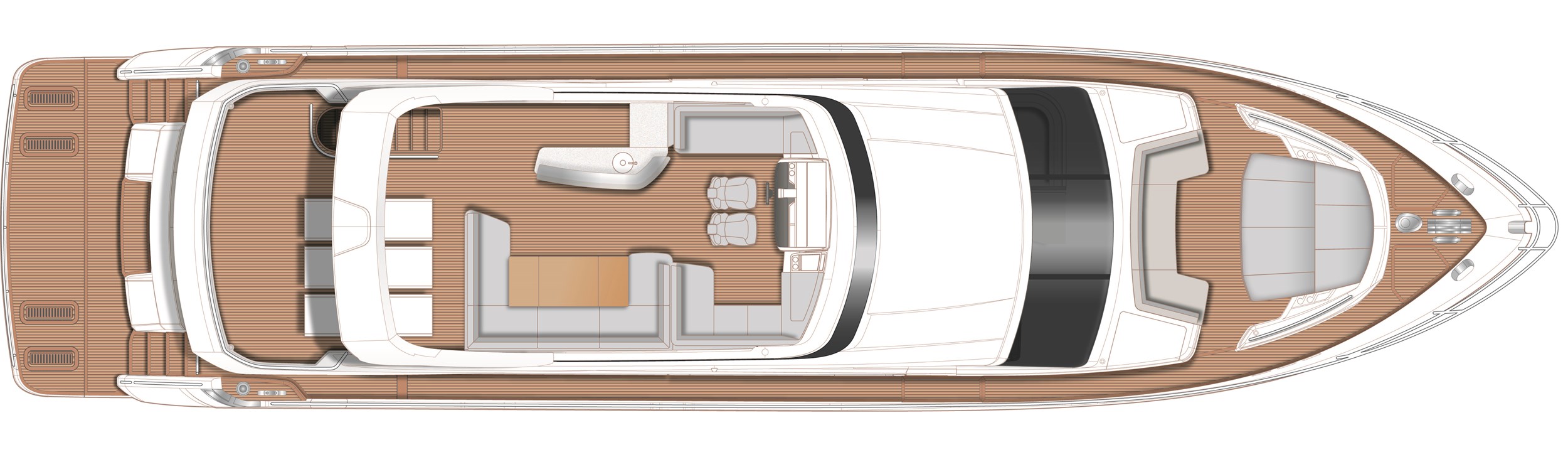

Flybridge
Instrument console with dual station controls and LED display incorporating engine instruments, fuel gauges, alarms and rudder position indicator (see Lower Helm Position)

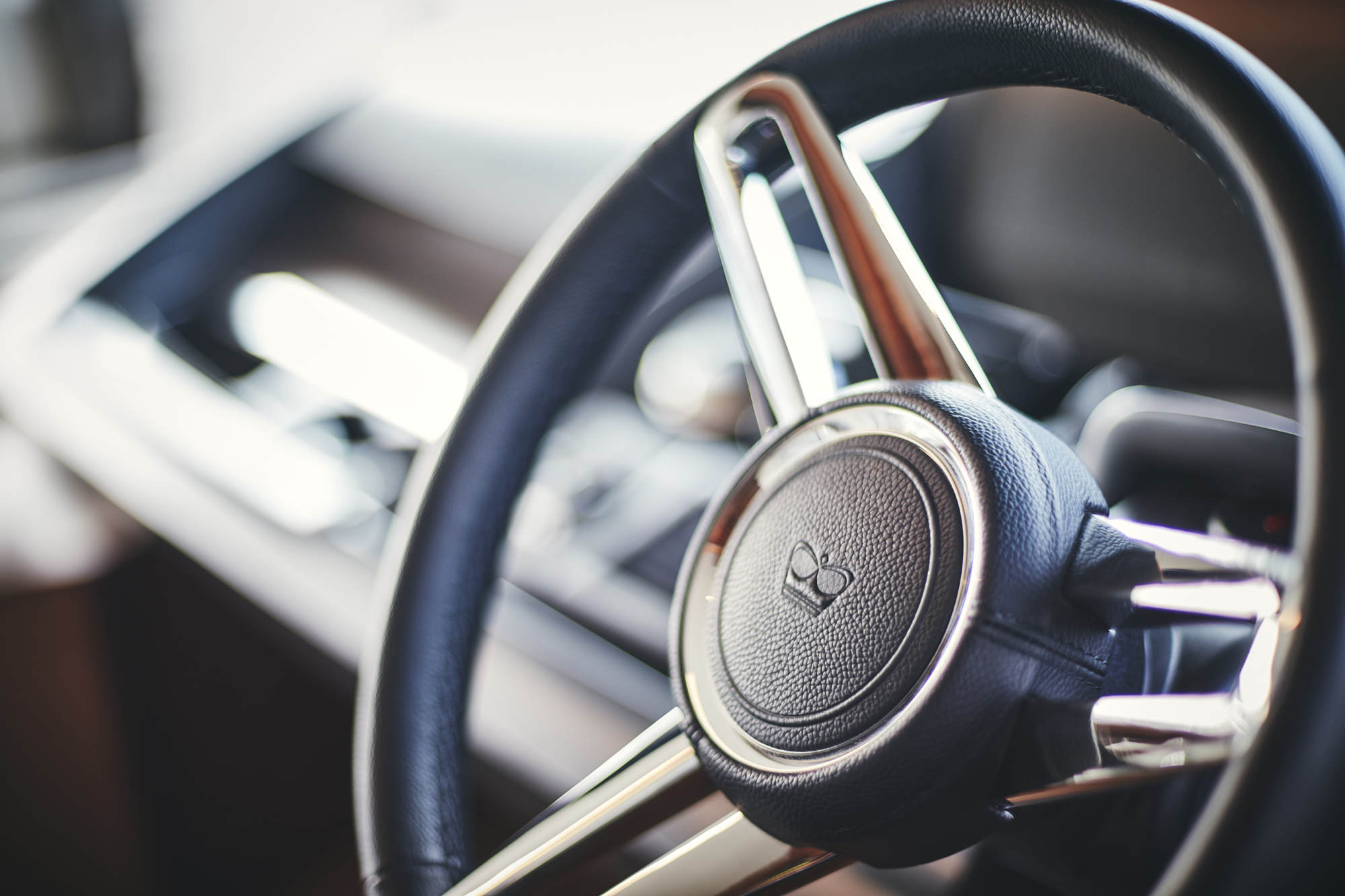

Power assisted electro-hydraulic steering with adjustable wheel
Twin adjustable helm seats with honeycomb quilting and contrast panelling
Port seating/sunpad
Starboard forward-facing L shaped seating (converts to sunpad)
Large U-shaped upholstered seating
Folding leaf teak table
Wetbar with barbecue, sink, drawer refrigerator, waste bin and storage
Sunpad aft with storage below
Naim Uniti Atom audio system with waterproof speakers (2)
Clear view hatch to aft cockpit
Wind deflector screens
Stainless steel handrails with glass balustrade and partial teak capping to aft end of flybridge
LED deck level lighting
GRP radar arch
Twin matching whip aerials for VHF R/T and radio
Console and seat covers
Optional crane (450kg SWL)
Optional GRP hardtop with/without electric opening section (or optional folding bimini with electro-hydraulic operation)

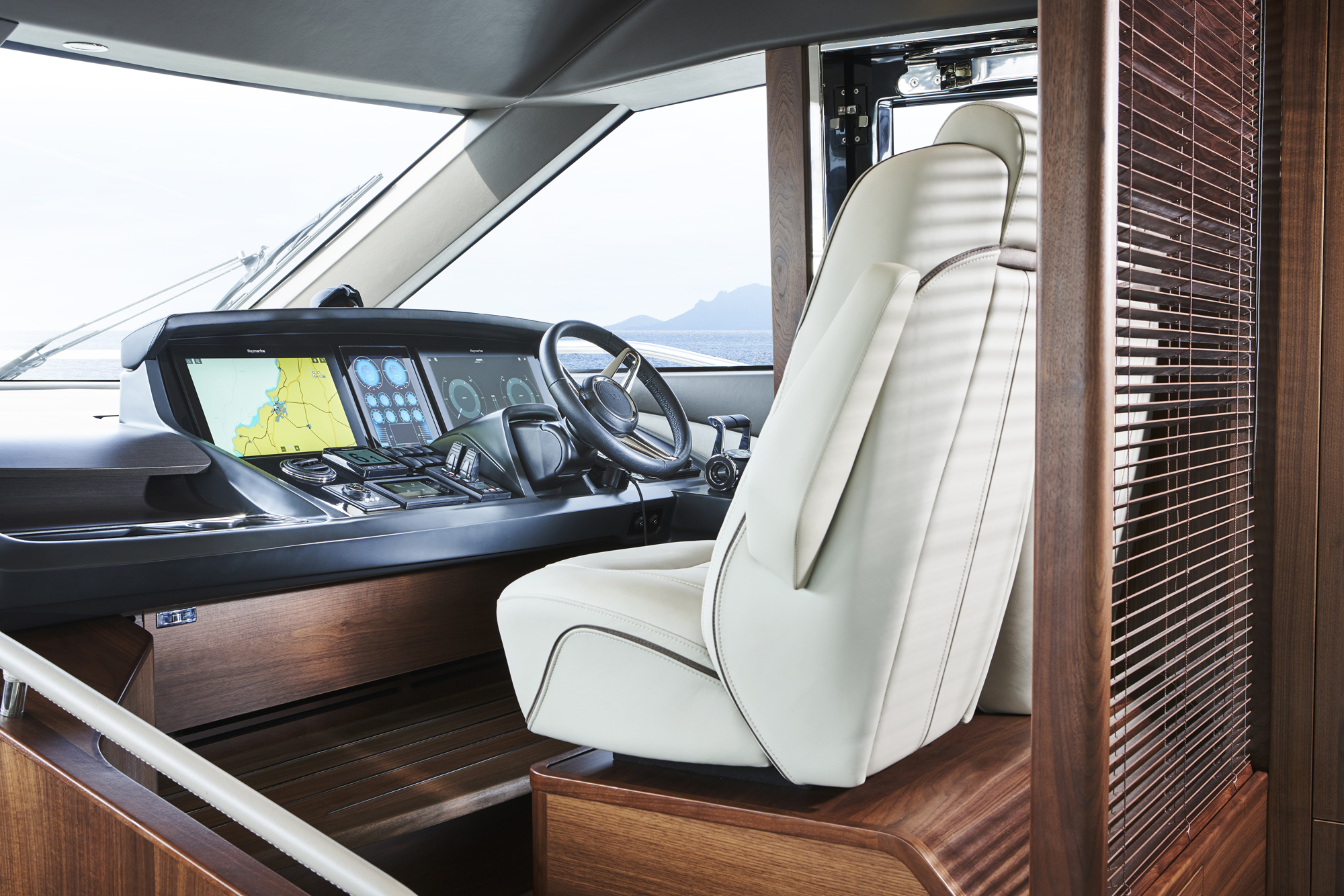

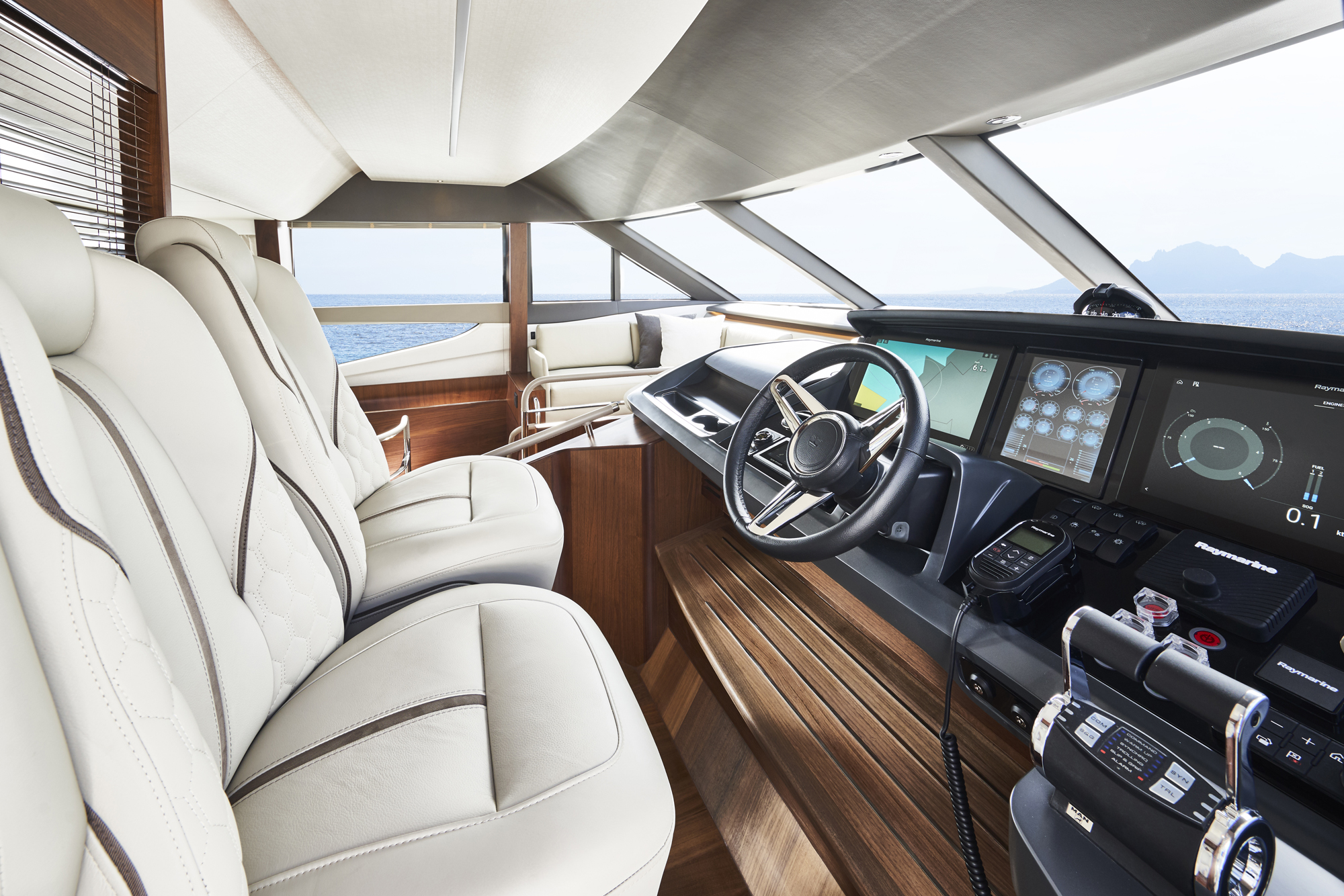

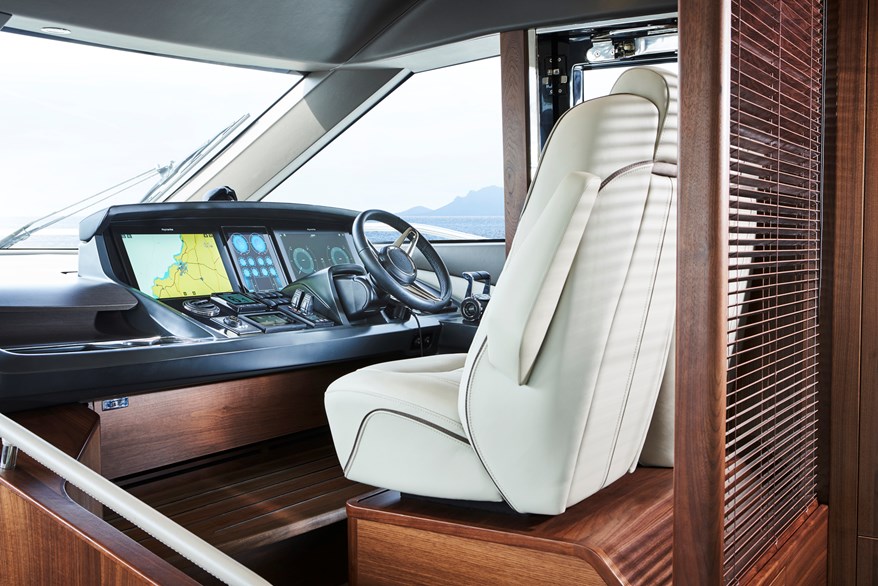

Helm
Twin leather upholstered helm seats with honeycomb quilting, contrast panelling and fore/aft adjustment for helmsman. Y logo to outboard helmseat.
Instrument console with LED display incorporating engine instruments, fuel gauges, alarms and rudder position indicator
Dual station instruments and controls at Flybridge and Lower Helm Positions: -power-assisted electro-hydraulic steering - adjustable steering wheel - high-speed magnetic compass - electronic engine controls - trim tab controls with indicators - bow thruster control - electric anchor winch remote control - colour radar (with scanner) and GPS/chartploter (twin displays at lower helm) - autopilot - speed and distance log - echo sounder with alarm - VHF with DSC R/T with intercom - remote control searchlight - horn button
Intercom to flybridge
Automatic fog horn with loudhailer
Chart table
Drinks holders
Toughened glass screen (clear for night vision) with windscreen de-mist system
Windscreen wipers with freshwater windscreen wash
Black mesh windscreen covers
Bilge pump controls with visual pump running warnings
24v and 240v electrical control panel
Riding light, helm and navigation light control switches
USB charging point
LED overhead lighting (24v) and night lighting
Pantograph helmsman’s door to starboard side deck
Timber flooring (V groove planked)

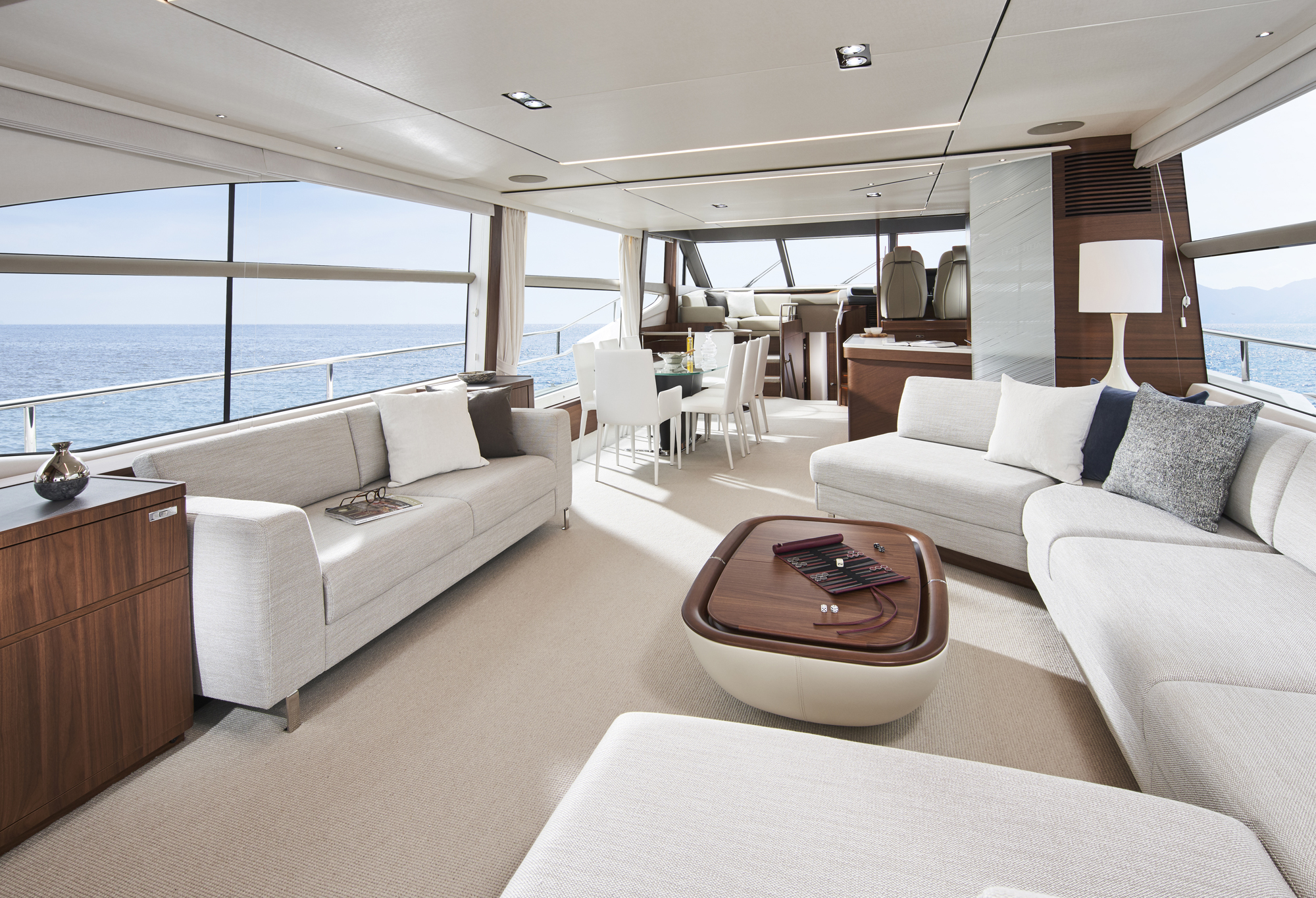

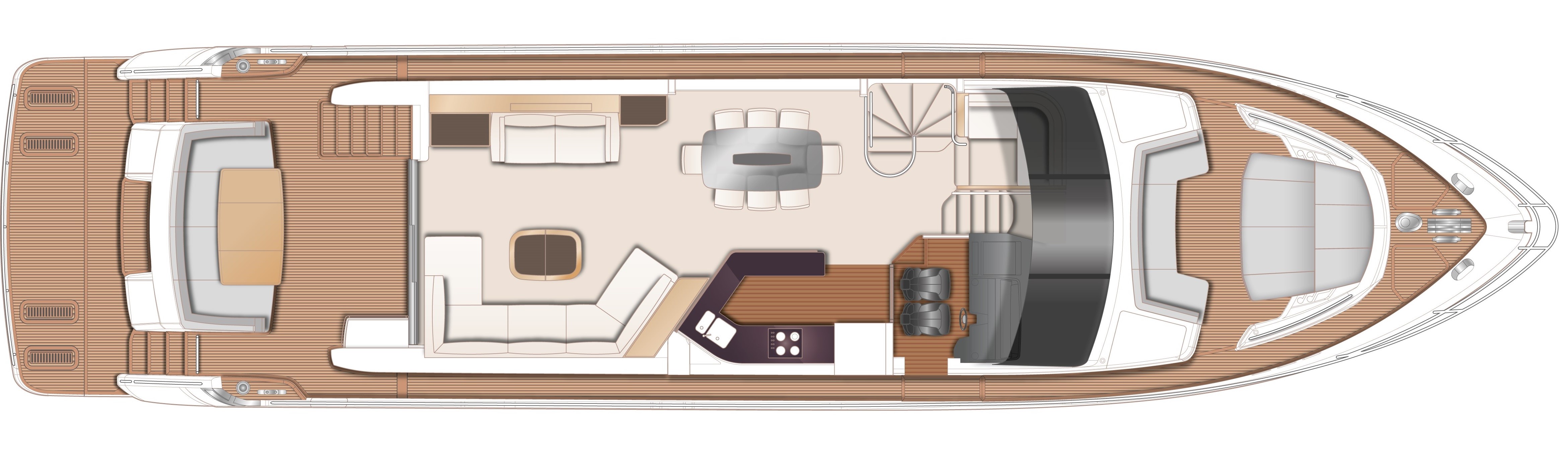

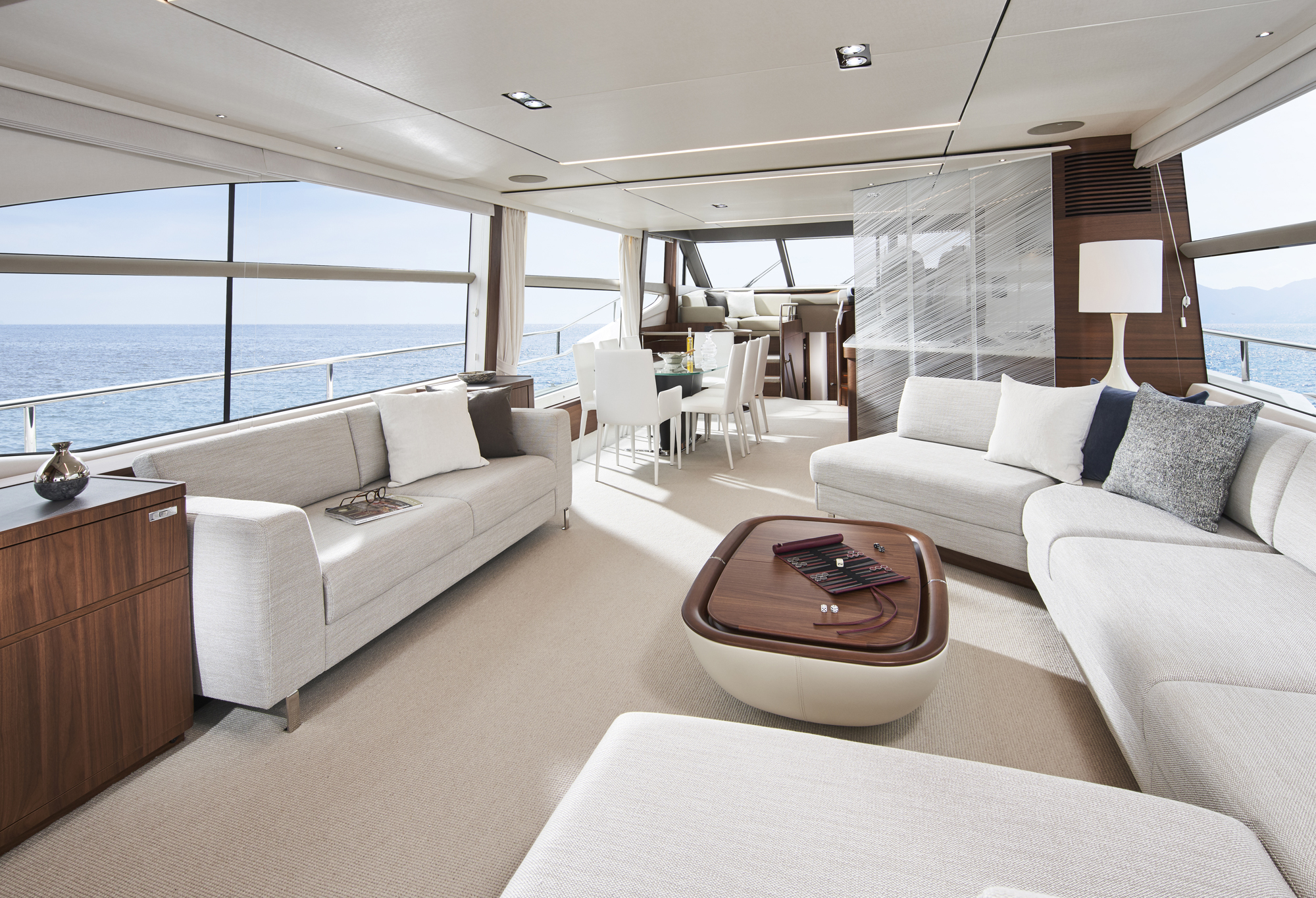

Saloon

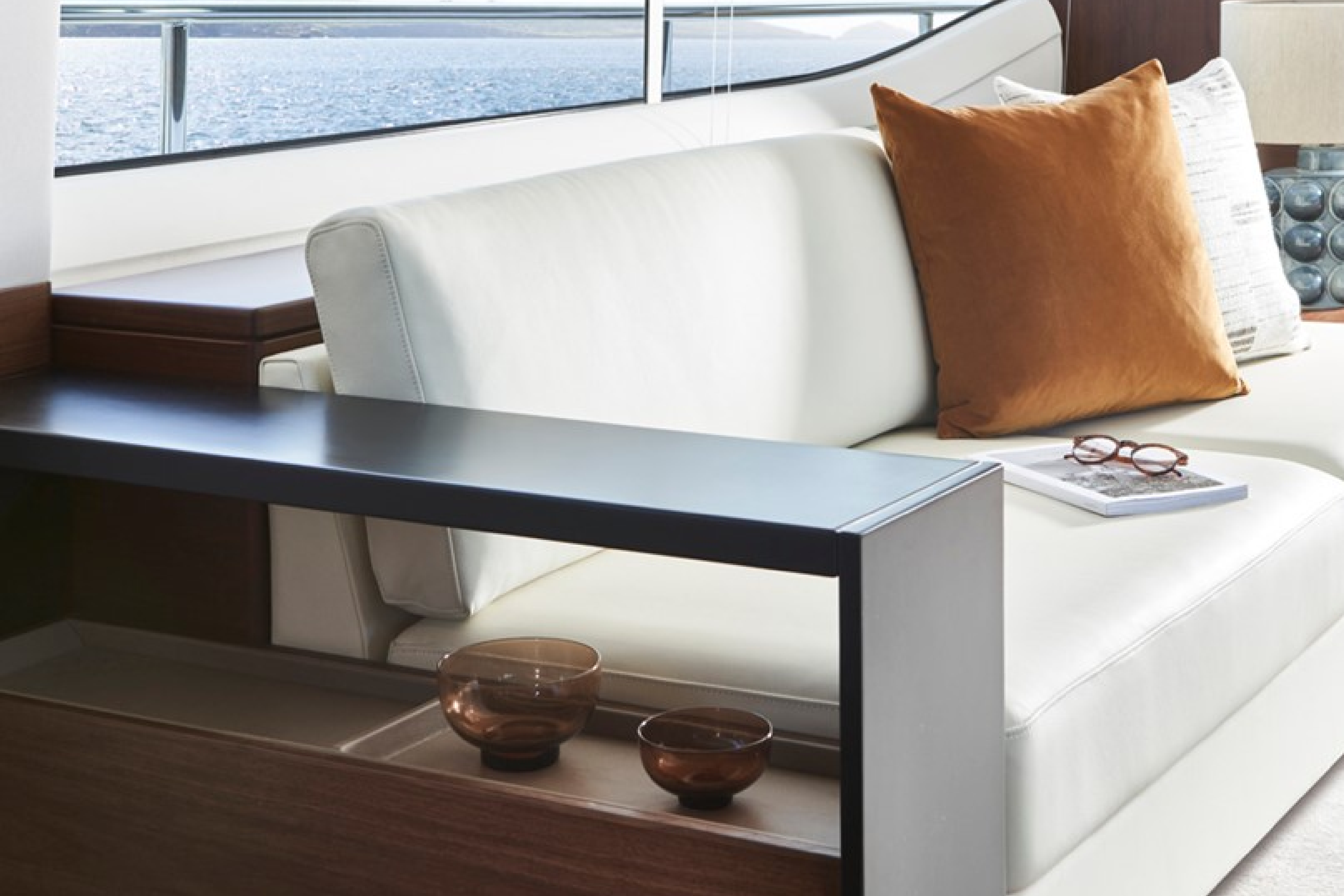

U-shaped sofa

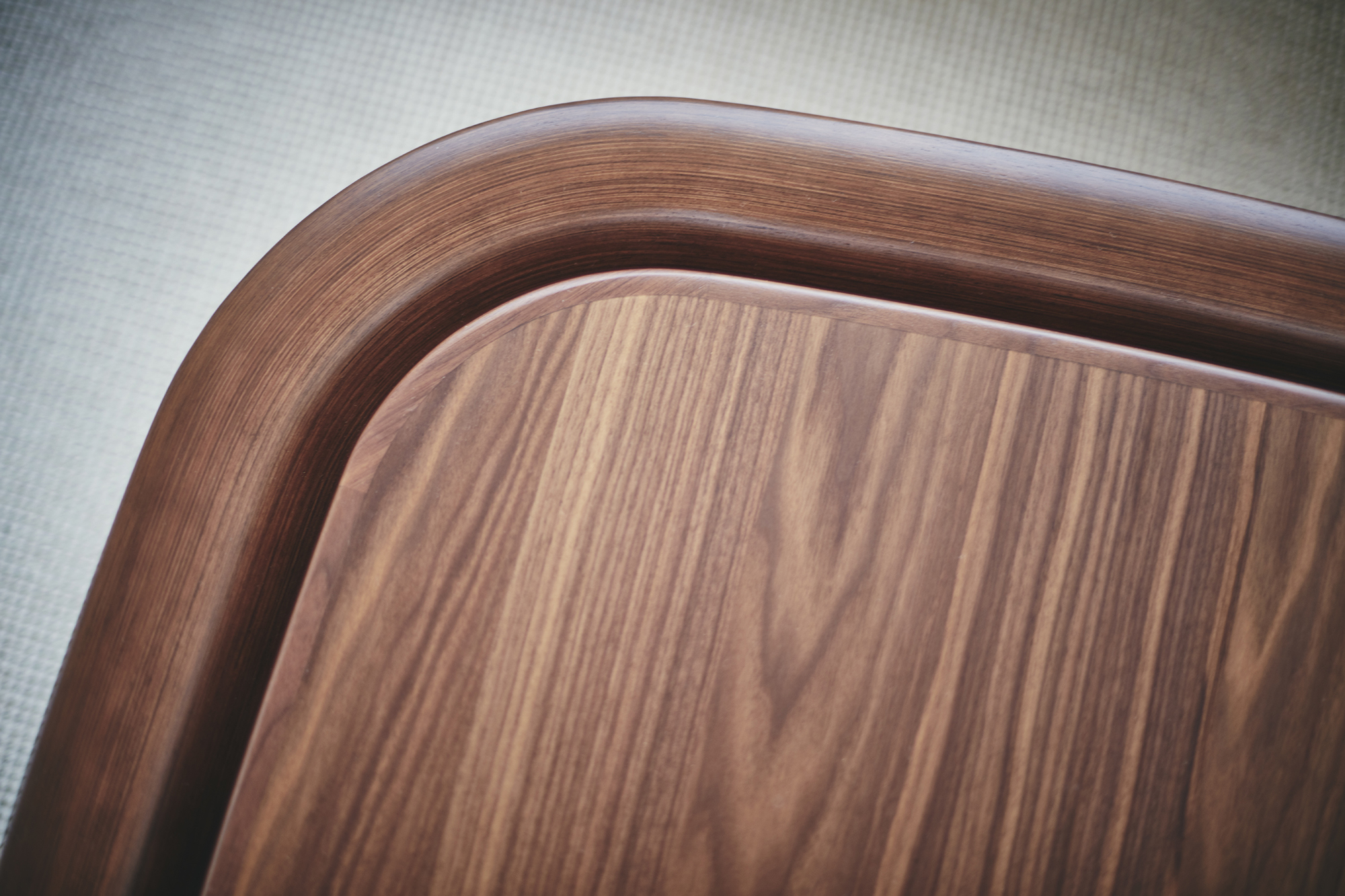

Coffee table
Two-seater sofa to port
Sideboard unit with bottle and glass storage
Refrigerator
55" UHD LED TV on rise and fall with Blu-ray player
Naim Uniti Atom audio system connected to Focal 100 ICW6 speakers (2) with Focal Cub Evo subwoofer
Onboard ethernet and 4G internet.
Triple stainless steel framed sliding door to aft cockpit
Roman blinds or curtains to all windows and doors
LED overhead and concealed lighting (24v)
Fitted carpet

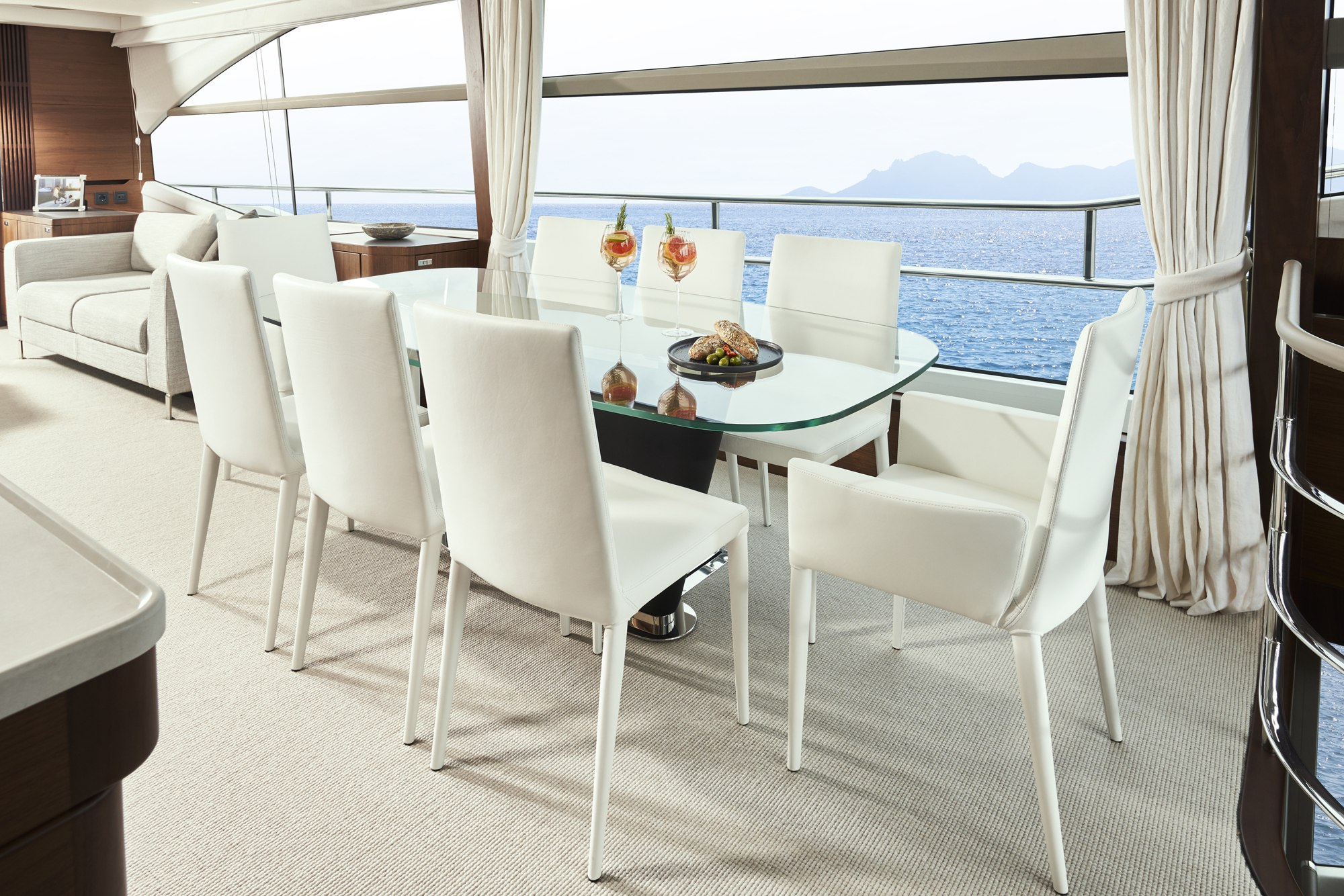

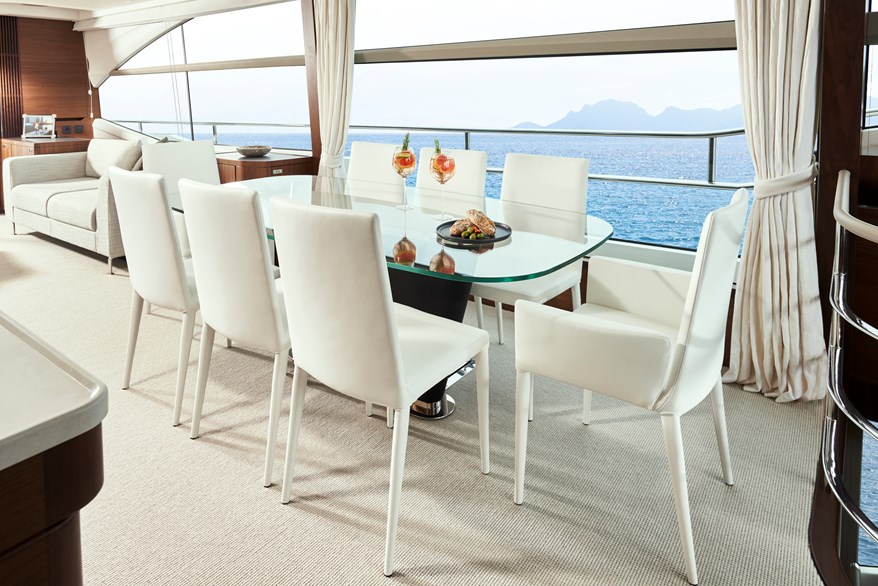

Dining area
Glass dining table
Dining chairs (8)
Full height panoramic window
L-shaped sofa opposite helm area
Electric drop window to port
Roman blinds or curtains to all windows
LED overhead and concealed lighting (24v)
Access stairway to lower accommodation
Separate access stairway to master stateroom
Fitted carpet

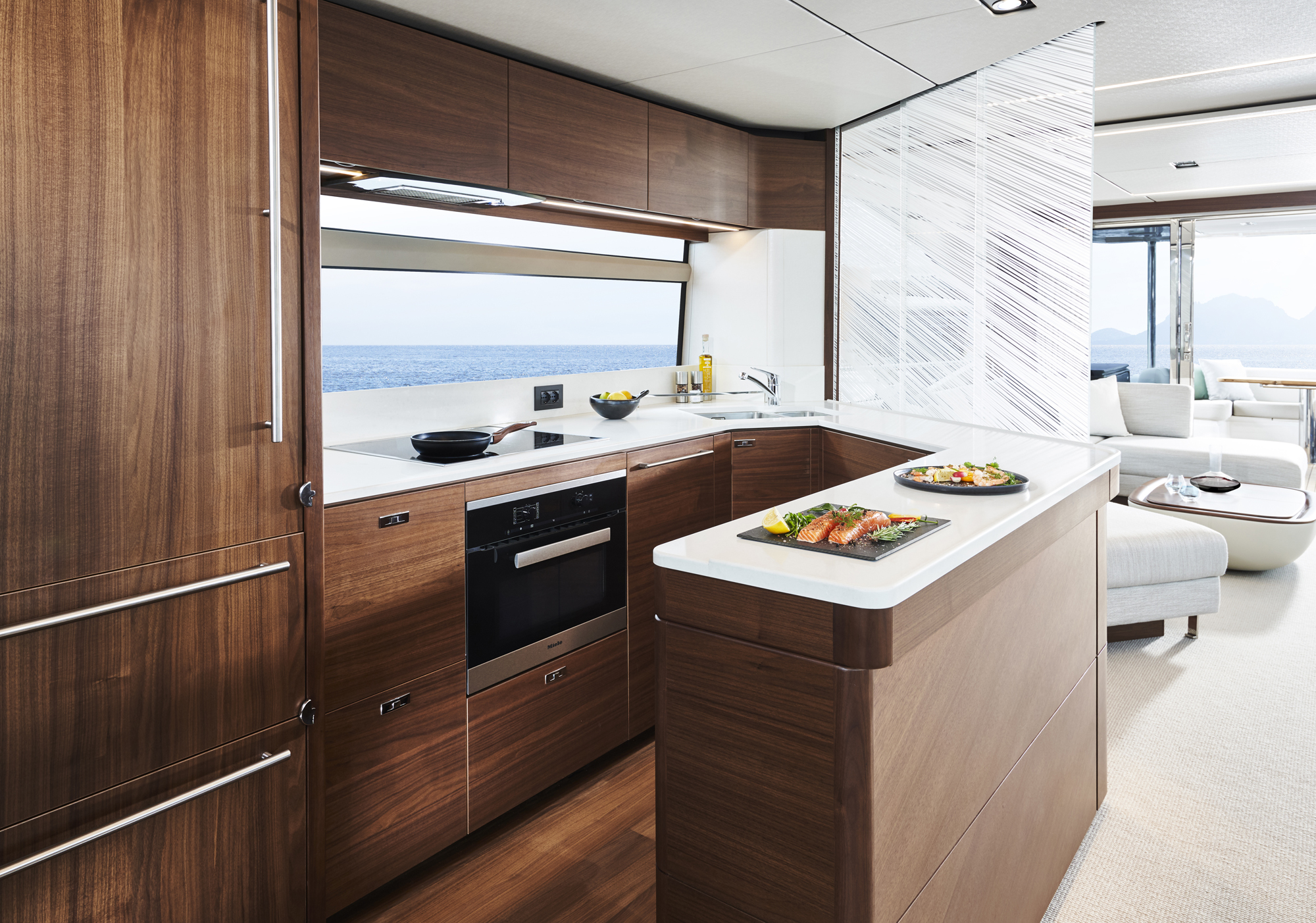

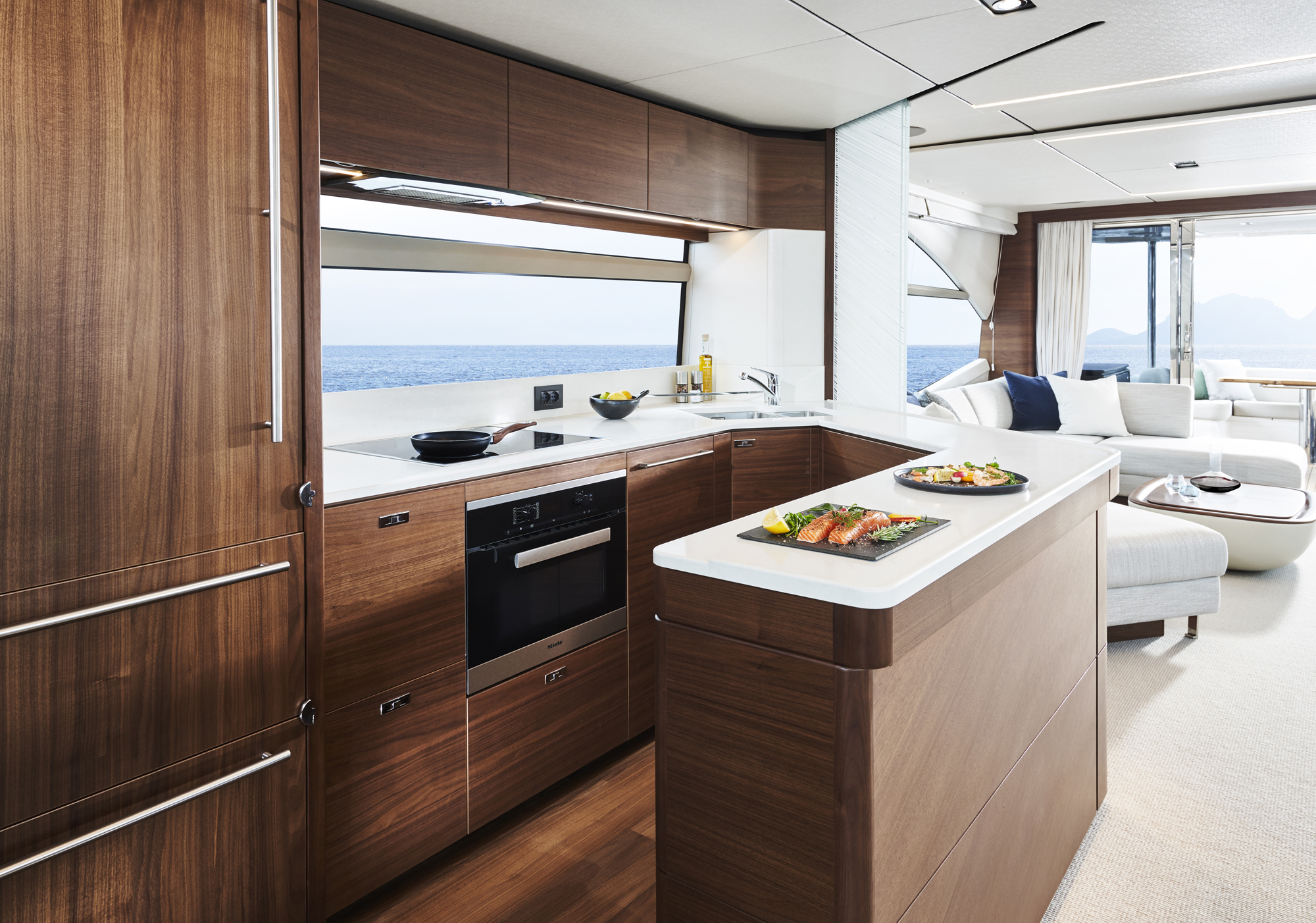

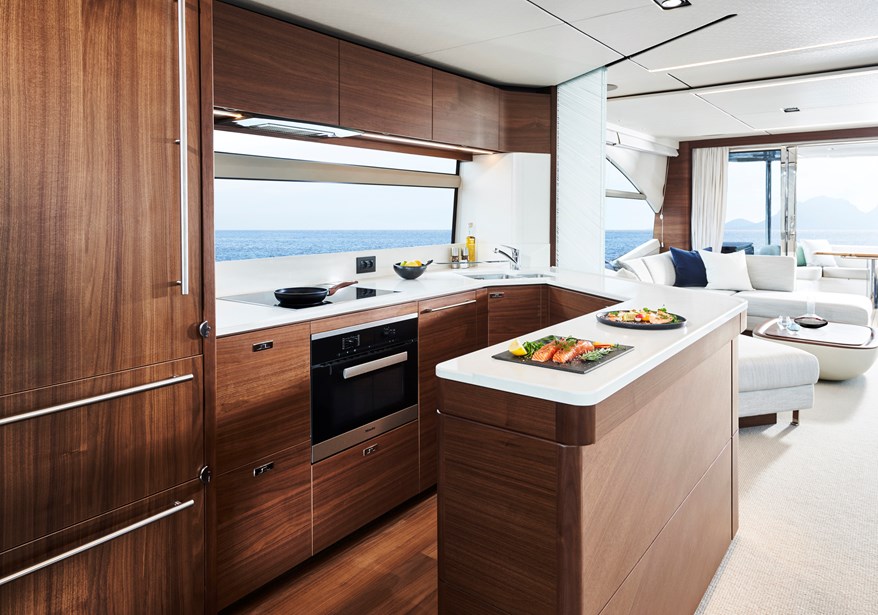

Galley
Galley worktop in choice of granite or quartz
4-zone ceramic hob
Extractor fan
Combination convection oven with grill/microwave
Twin-bowl stainless steel sink with mixer tap
Chopping board
Full height refrigerator/deep freeze
Icemaker
Dishwasher
Waste bin
Drawers and storage cupboards
Manual tension venetian blind to window

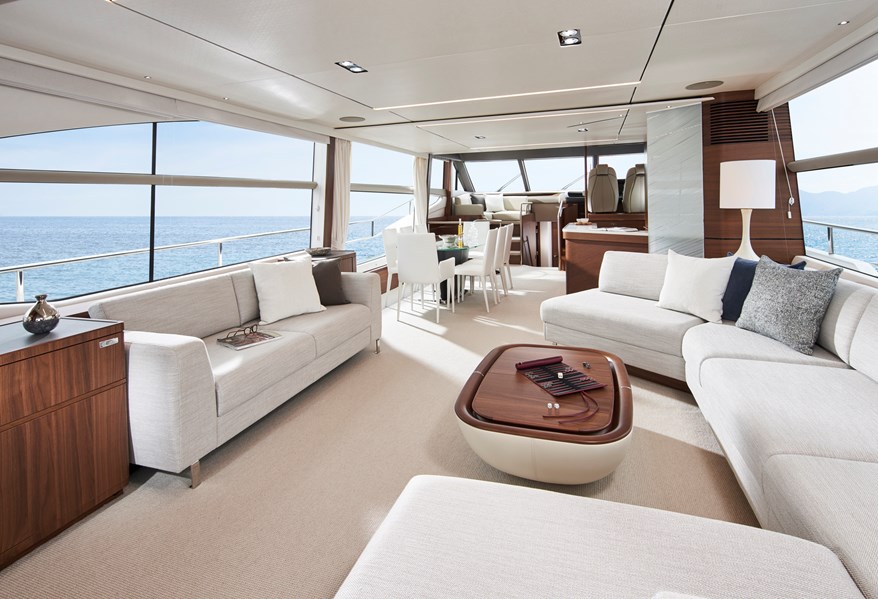

Electrically operated sliding partition
LED overhead and task lighting (24v)
220/240v outlets (4)
Timber flooring (planked)

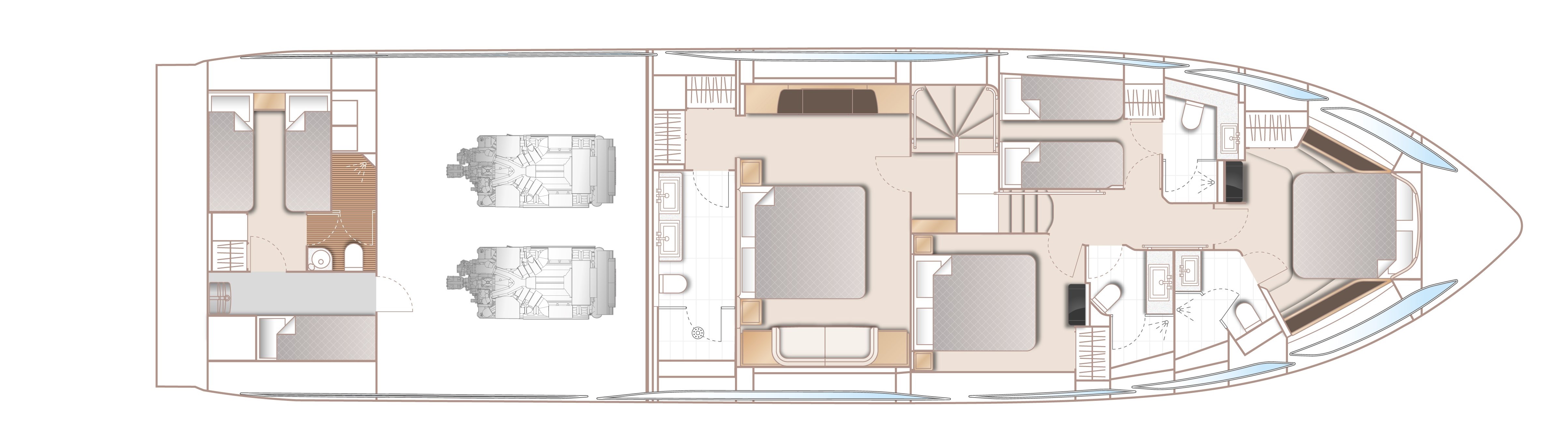

Accommodation
All cabins and bathrooms feature opening portholes and air conditioning
All cabins feature 220/240v power points
All bathrooms feature electric freshwater toilets and 240v shaver points
Owner’s stateroom lobby

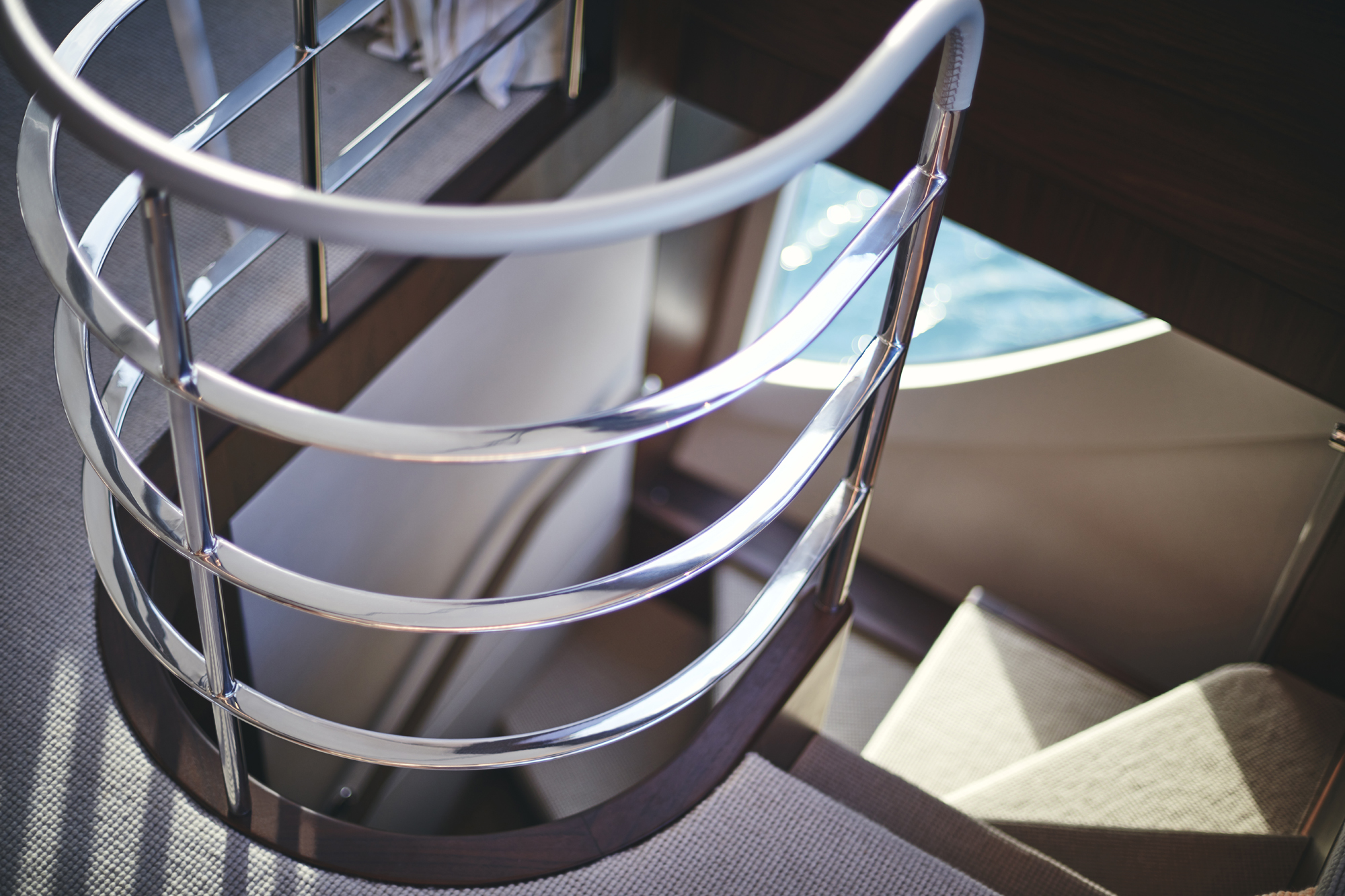

Access stairway to owner's stateroom
Panoramic window
Manual tension venetian blind
LED overhead and concealed lighting (24v)
Fitted carpet

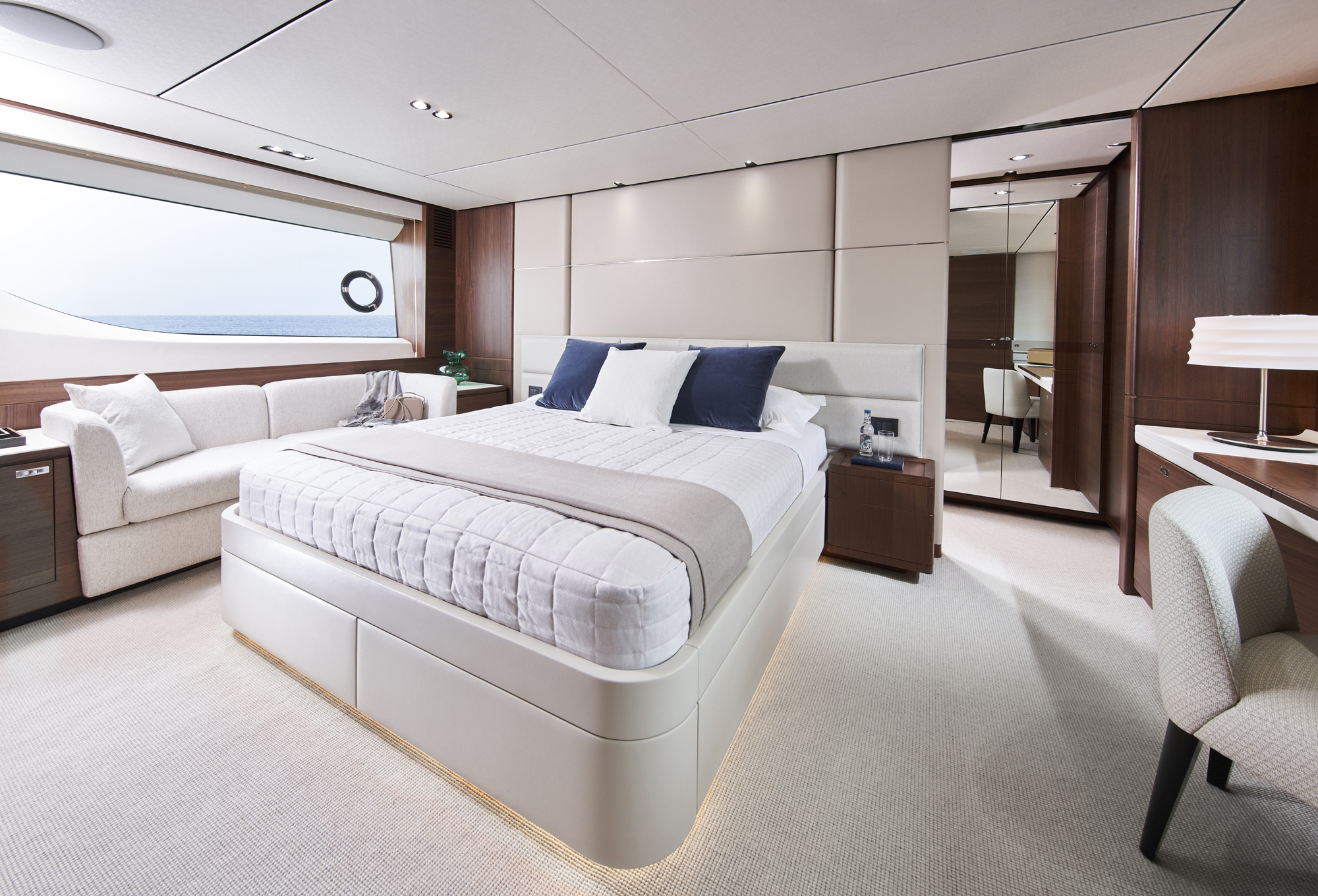

Owners stateroom
Large double bed with drawers below
Twin bedside tables
Dressing area with wardrobes and storage
Built-in safe

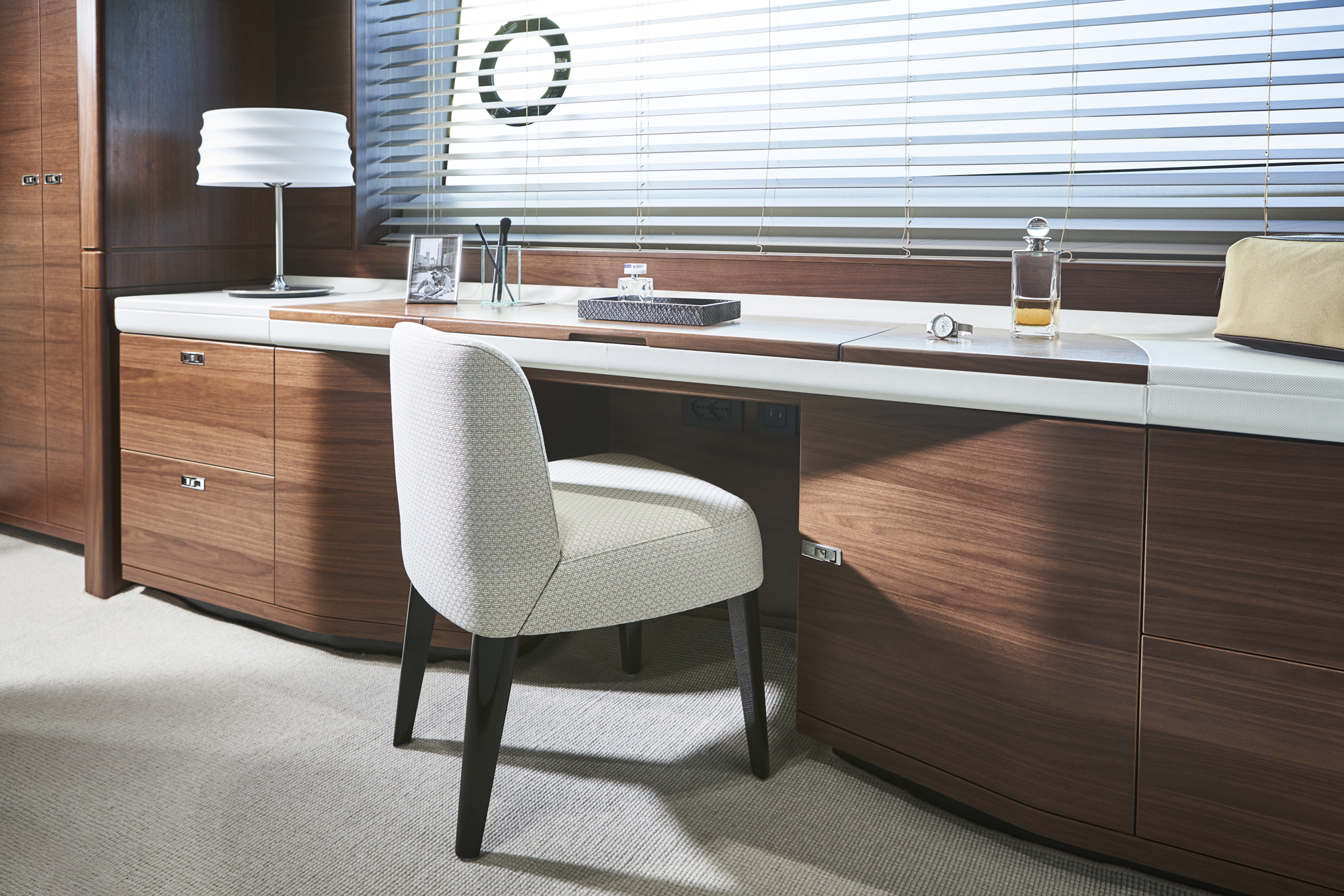

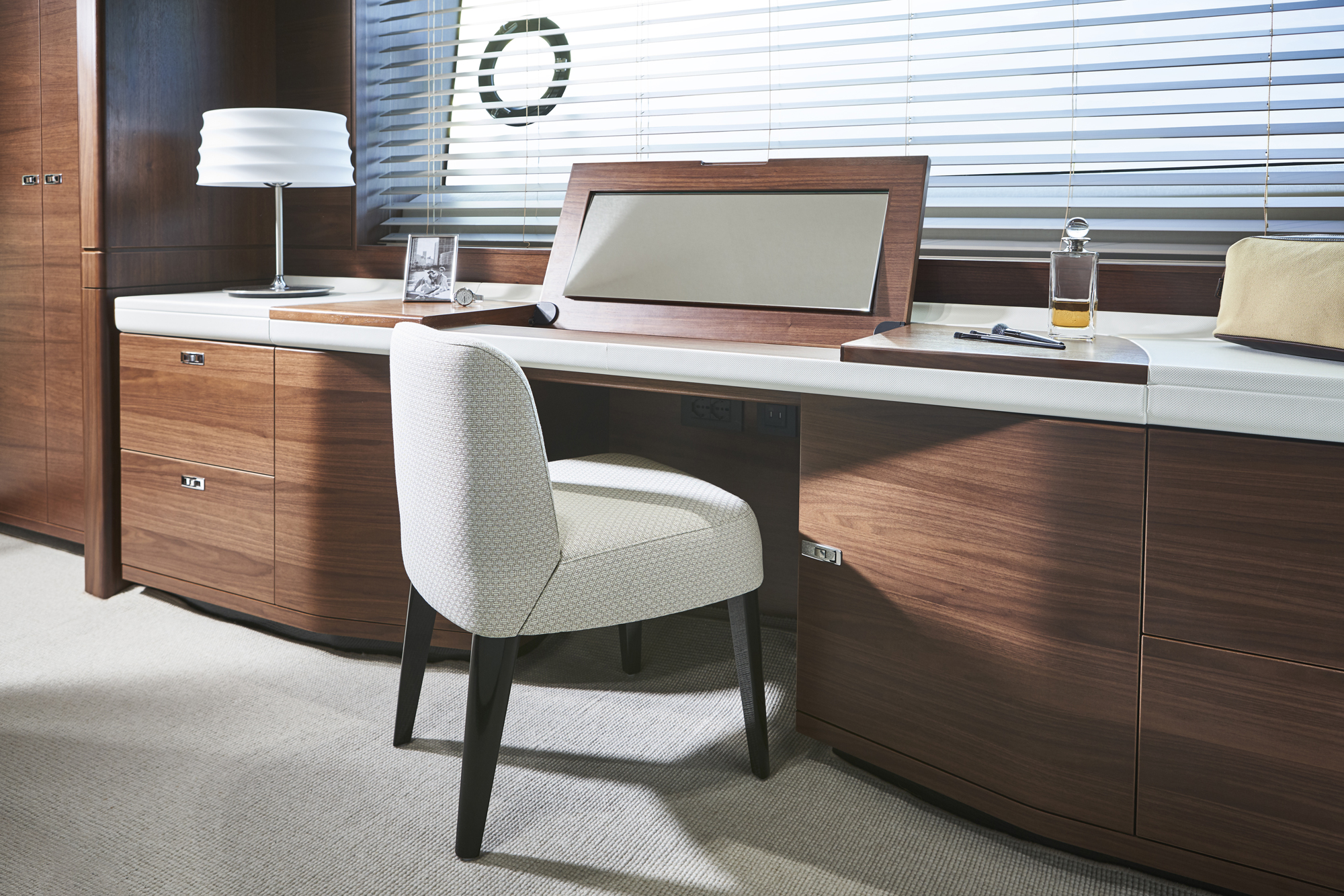

Dressing table with chair
Mirror

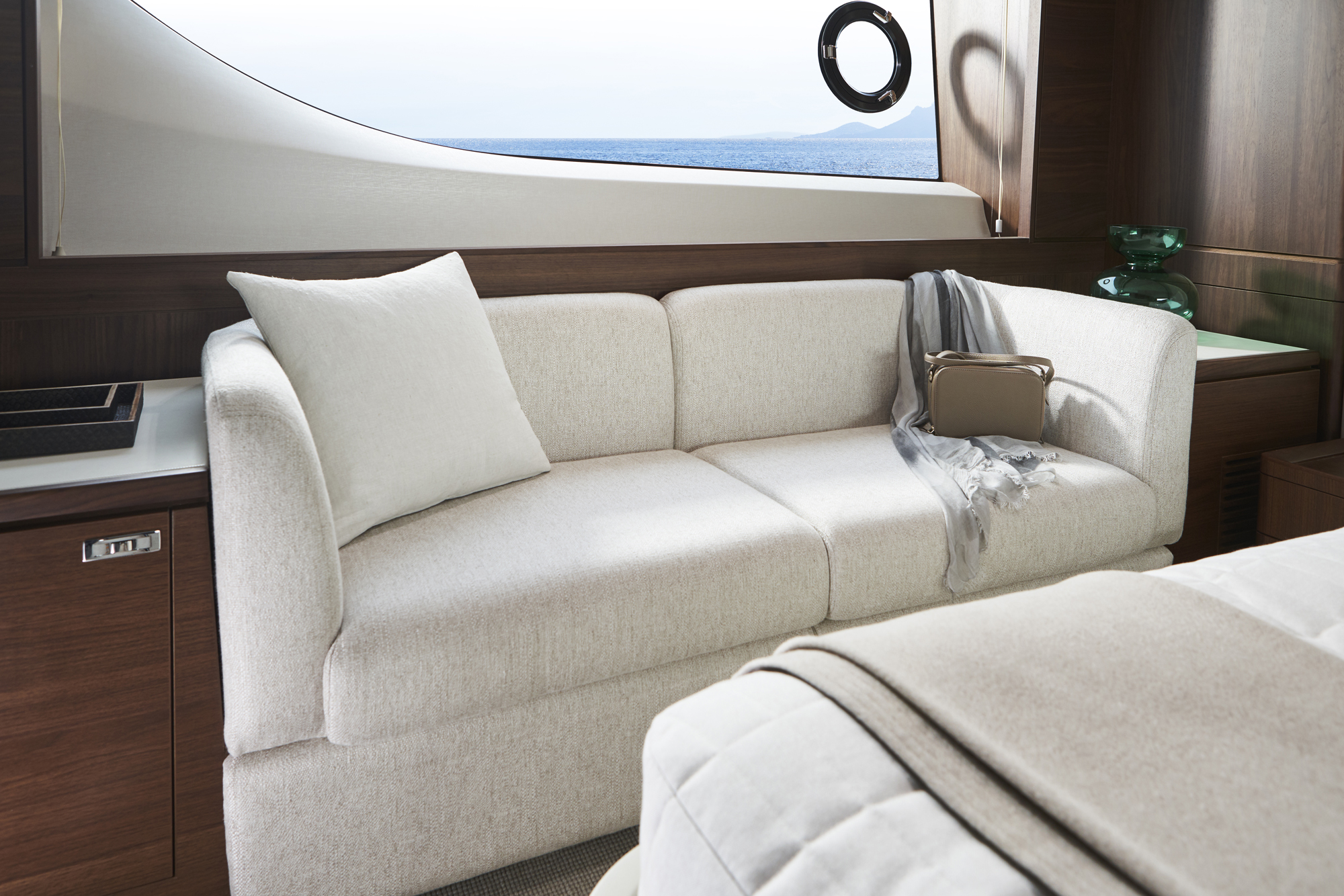

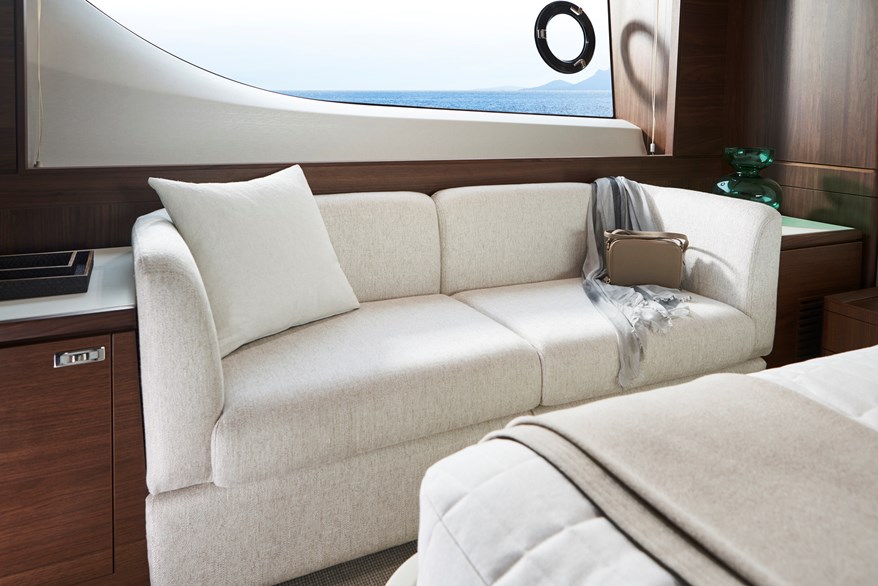

Sofa
Storage lockers and drawers
43" UHD LED TV with Blu-ray player
Naim Unit Atom audio system connected to Focal 100 ICW6 speakers (2) with Focal Cub Evo subwoofer
Panoramic windows including opening portholes
Manual tension venetian blinds
LED overhead and concealed lighting (24v)
Individual berth lights
220/240v outlets (2)
USB charging point
Fitted carpet

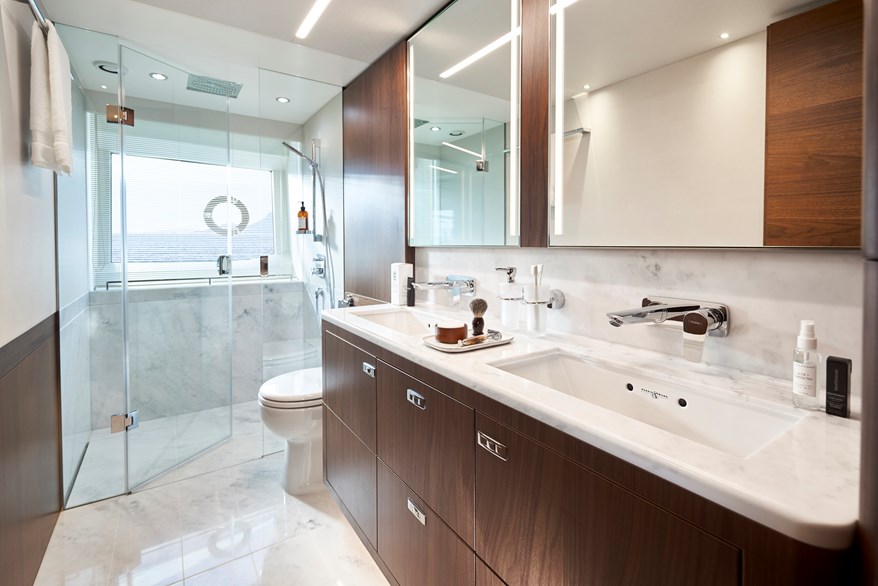

En-Suite Bathroom
Twin washbasins with solid surface worktop
Mirror
Storage lockers
Shower compartment with automatic pump out
Extractor fan
Window with opening porthole
Manual tension venetian blind
LED overhead and concealed lighting (24v)
Bathroom accessories
Solid surface flooring

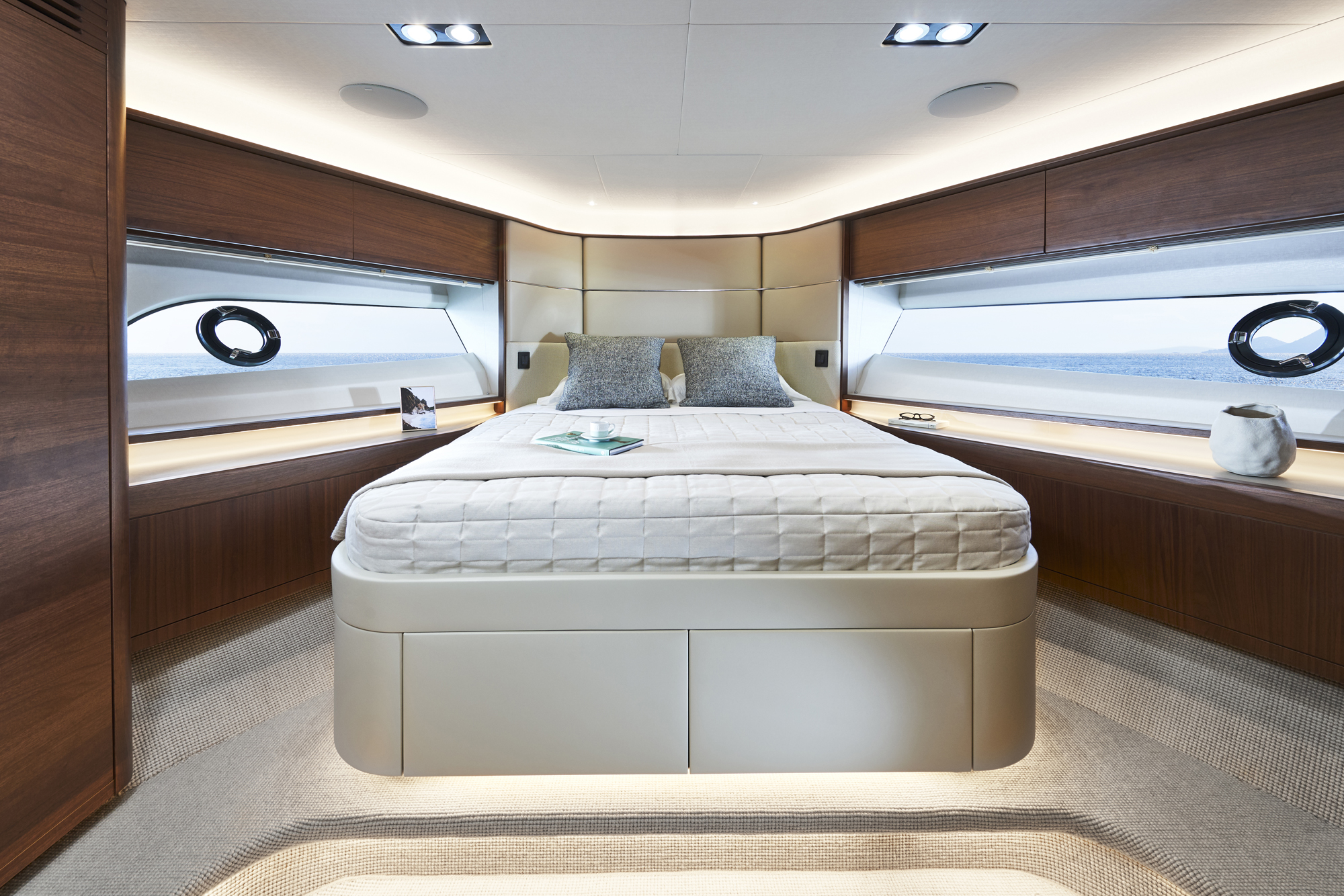

Forward guest cabin
Large double bed with drawers below
Wardrobe with shelves

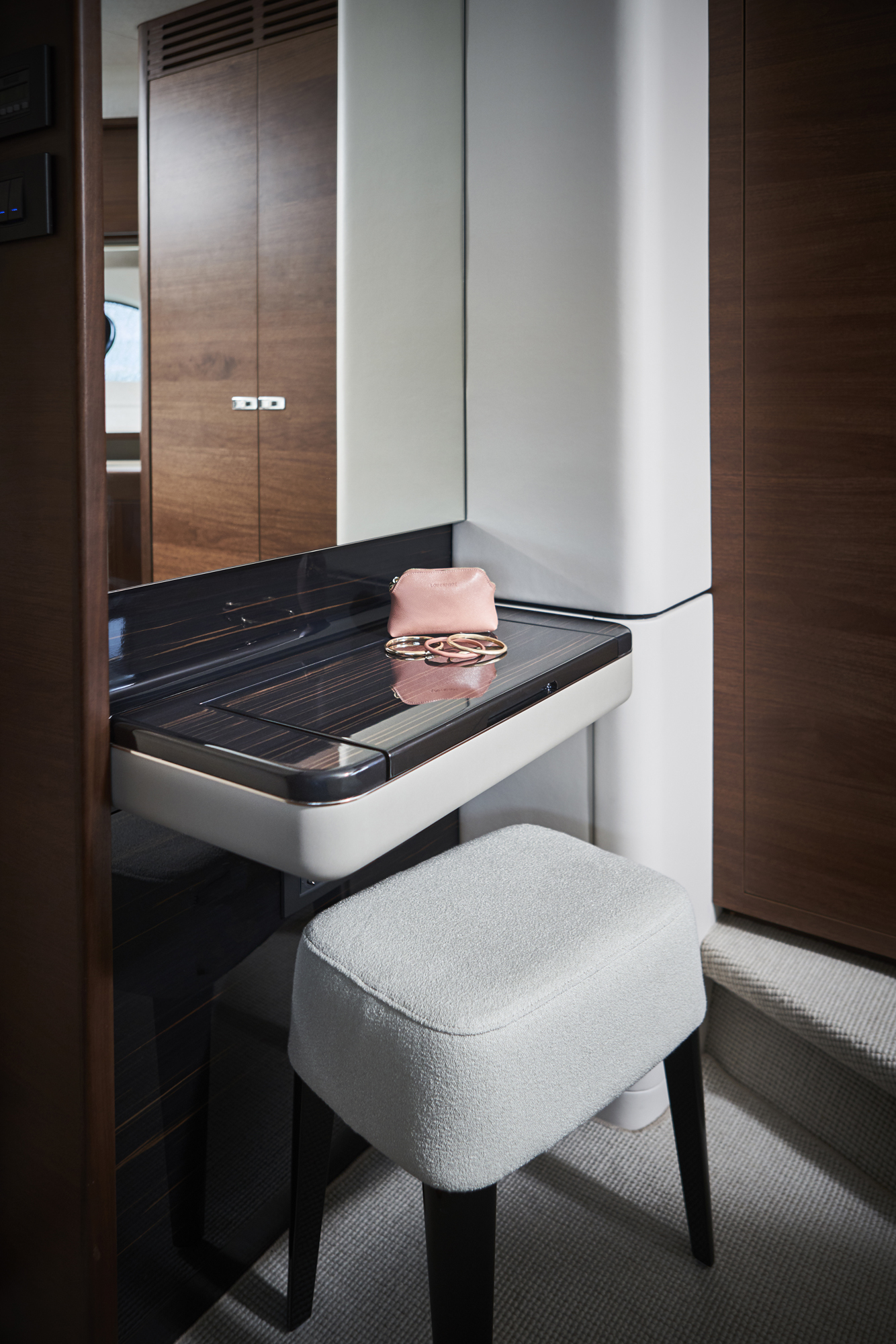

Dressing table with stool
Mirror
Storage lockers
Naim Uniti Atom audio system connected to Focal 100 ICW6 speakers (2)
Windows with opening portholes
Manual tension venetian blinds
Deck hatch
LED overhead and concealed lighting (24v)
Individual berth lights
220/240v outlets (2)
USB charging point
Fitted carpet

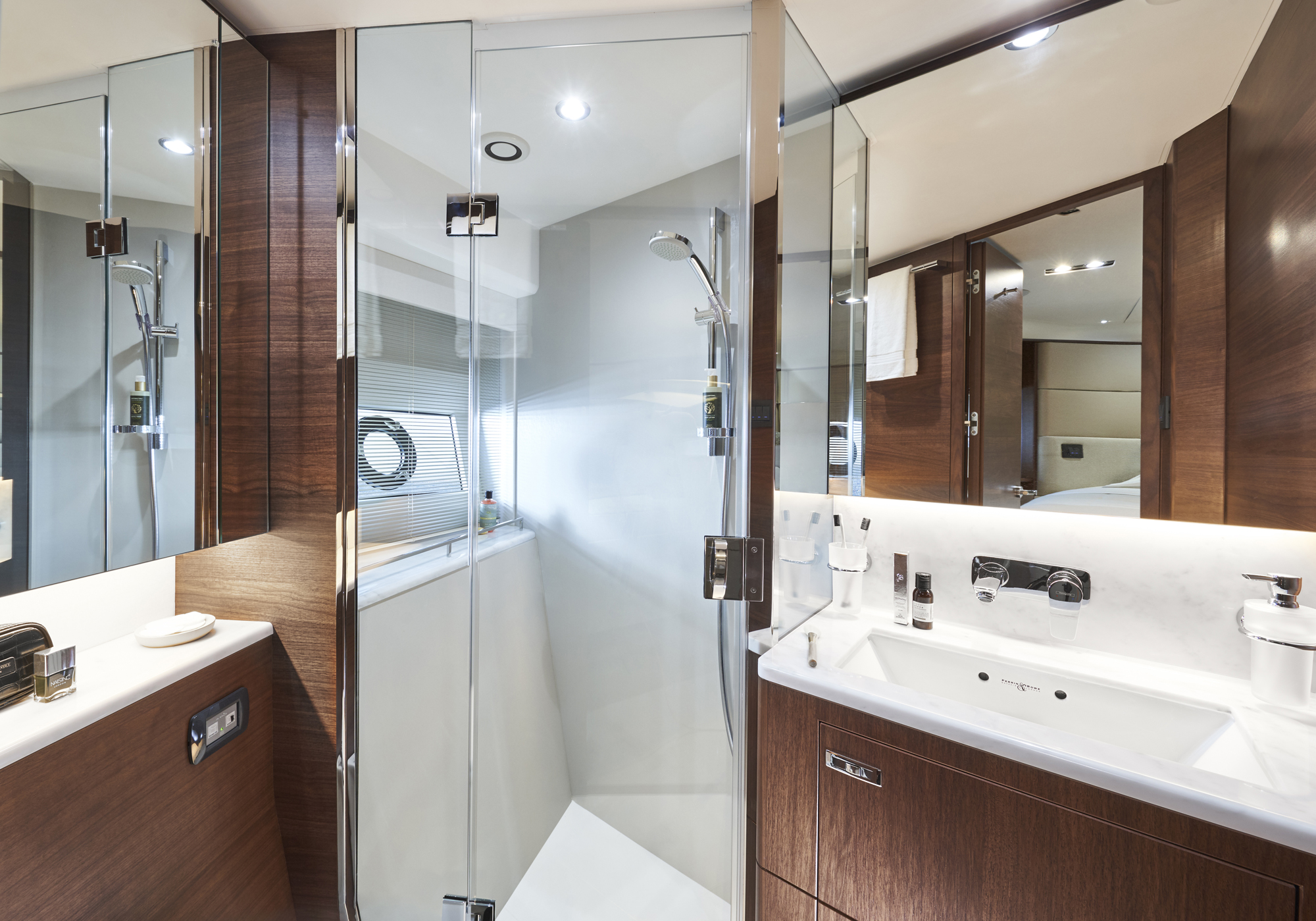

En-Suite Bathroom
Washbasin with solid surface worktop
Mirror
Storage lockers
Shower compartment with automatic pump out
Extractor fan
Window with opening porthole
Manual tension venetian blind
LED overhead and concealed lighting (24v)
Bathroom accessories
Solid surface flooring

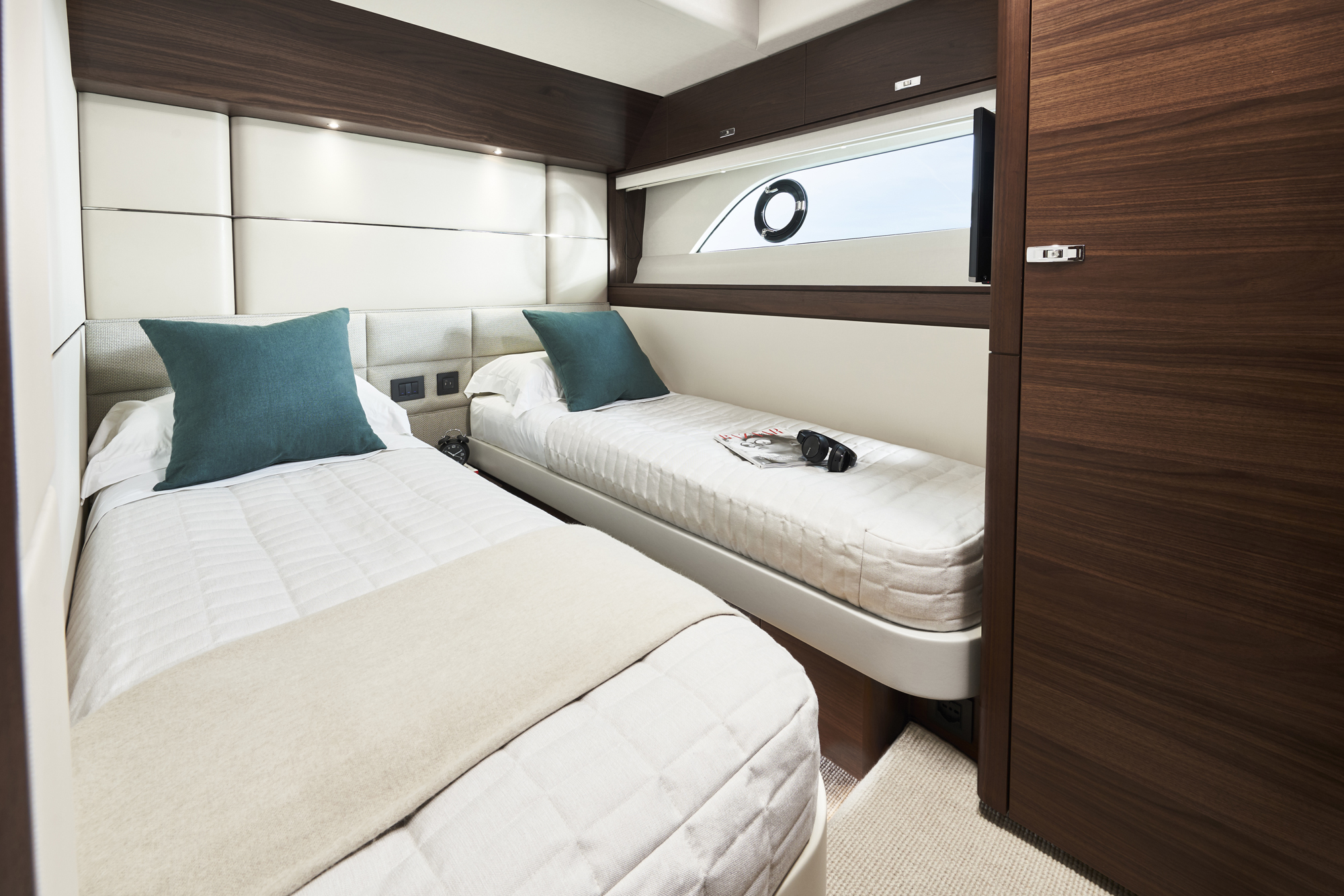

Port guest cabin
Two single beds with drawers below (with option of double bed conversion)
Bedside table
Wardrobe with shelves
Mirror
Storage lockers
Windows with opening portholes
Manual tension venetian blinds
LED overhead and concealed lighting (24v)
Individual berth lights
220/240v outlets (2)
USB charging point
Fitted carpet

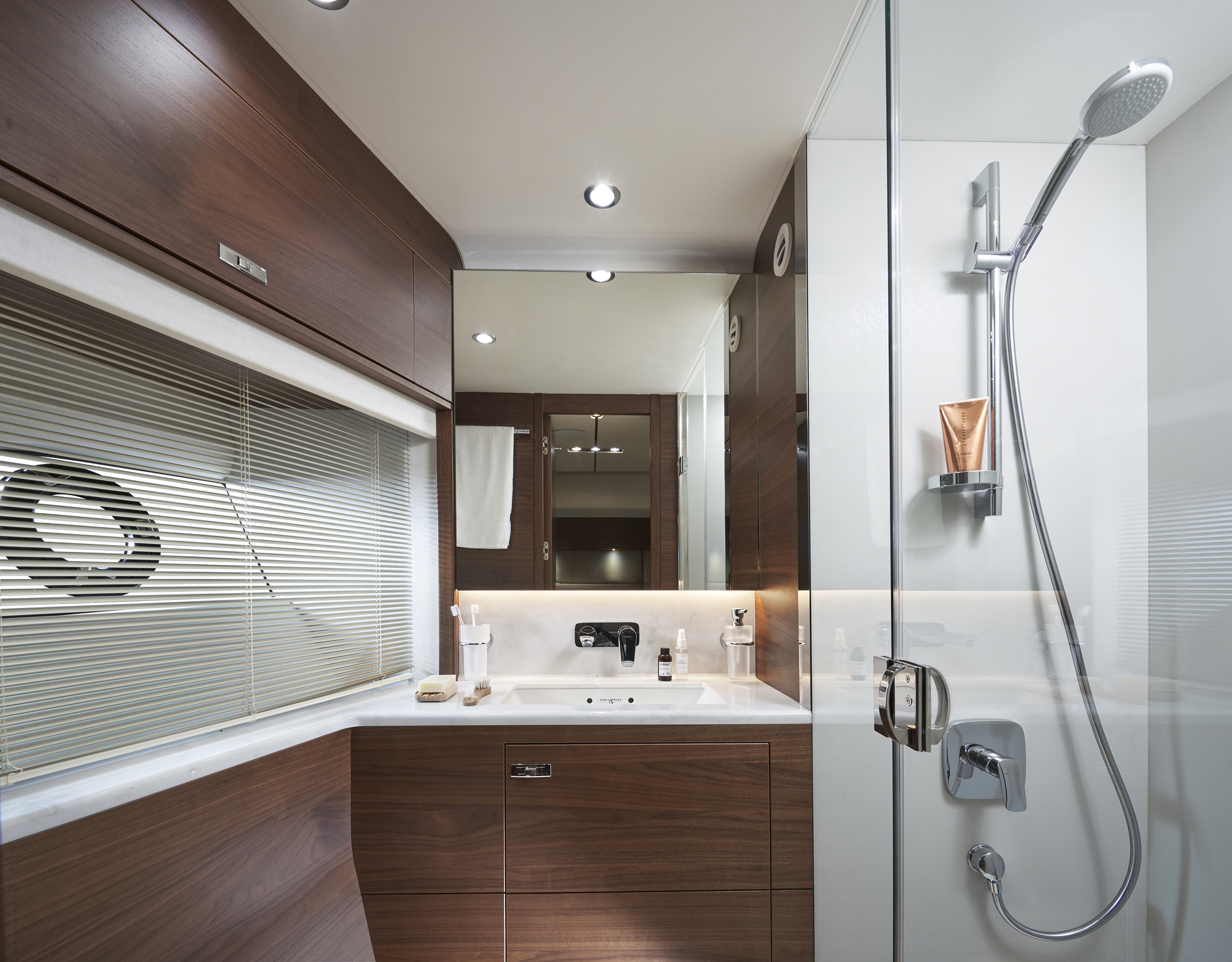

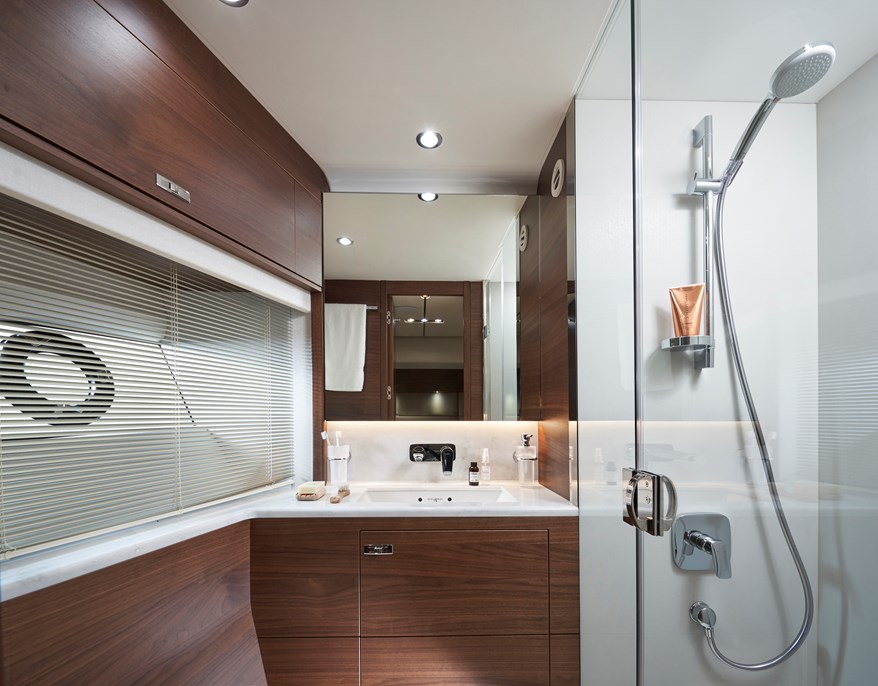

En-Suite Bathroom
Washbasin with solid surface worktop
Mirror
Storage lockers
Shower compartment with automatic pump out
Extractor fan
Window with opening porthole
Manual tension venetian blind
LED overhead and concealed lighting (24v)
Bathroom accessories
Solid surface flooring

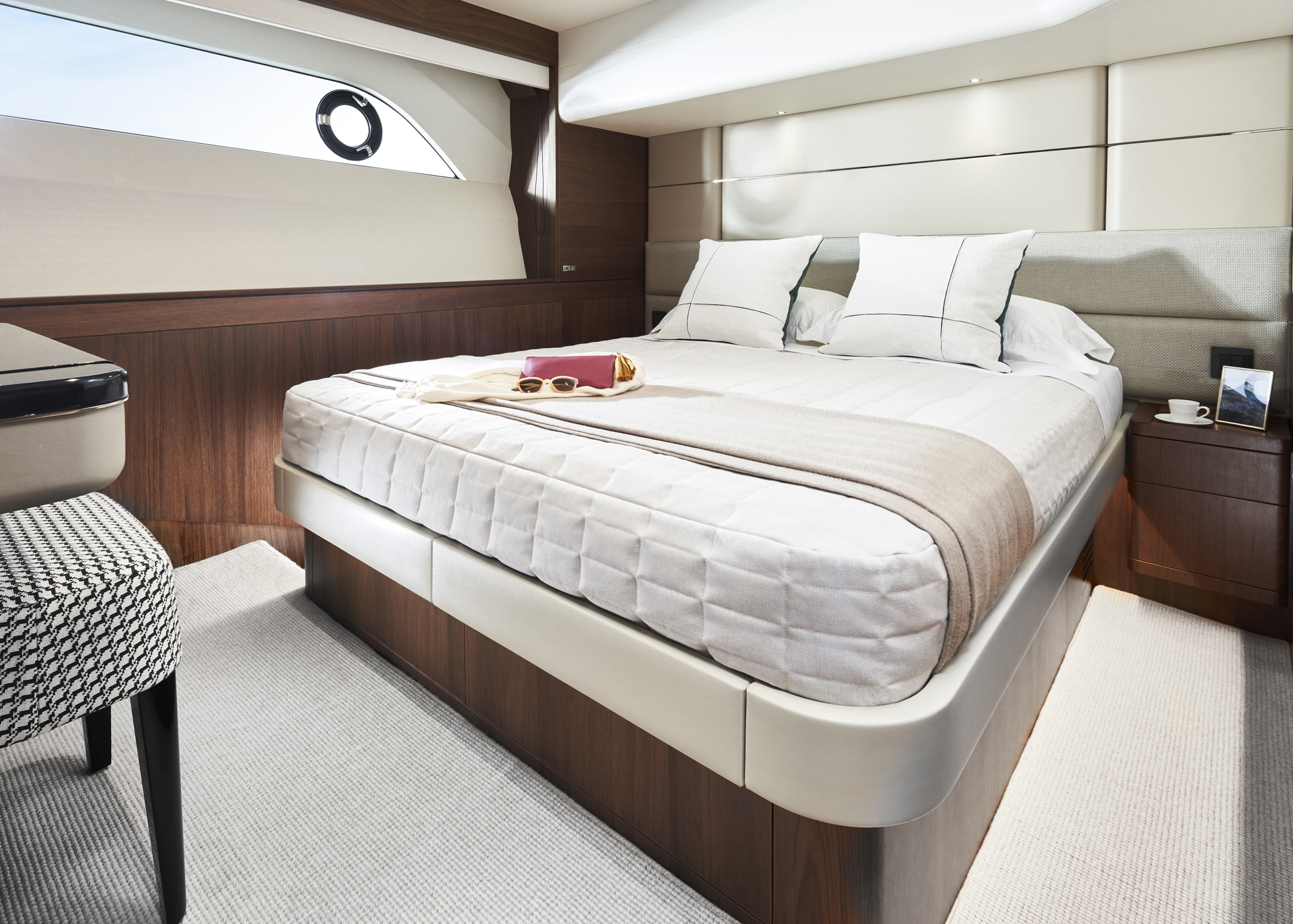

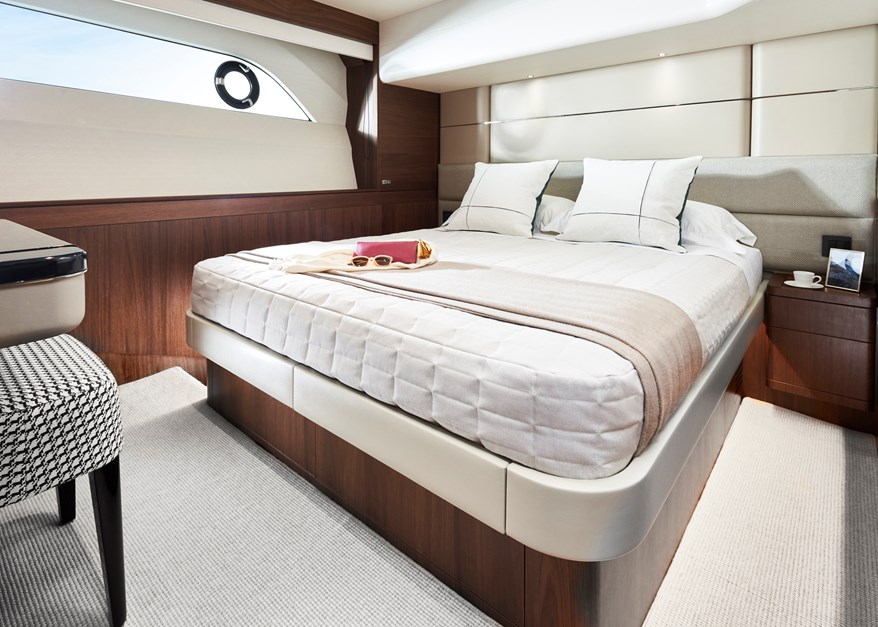

Starboard guest cabin
Large double bed with drawers below (with option of two single beds which slide to form a double as required)
Twin bedside tables
Wardrobe with shelves
Dressing table with stool
Mirror
Storage lockers
Windows with opening portholes
Manual tension venetian blinds
LED overhead and concealed lighting (24v)
Individual berth lights
220/240v outlets (2)
USB charging point
Fitted carpet

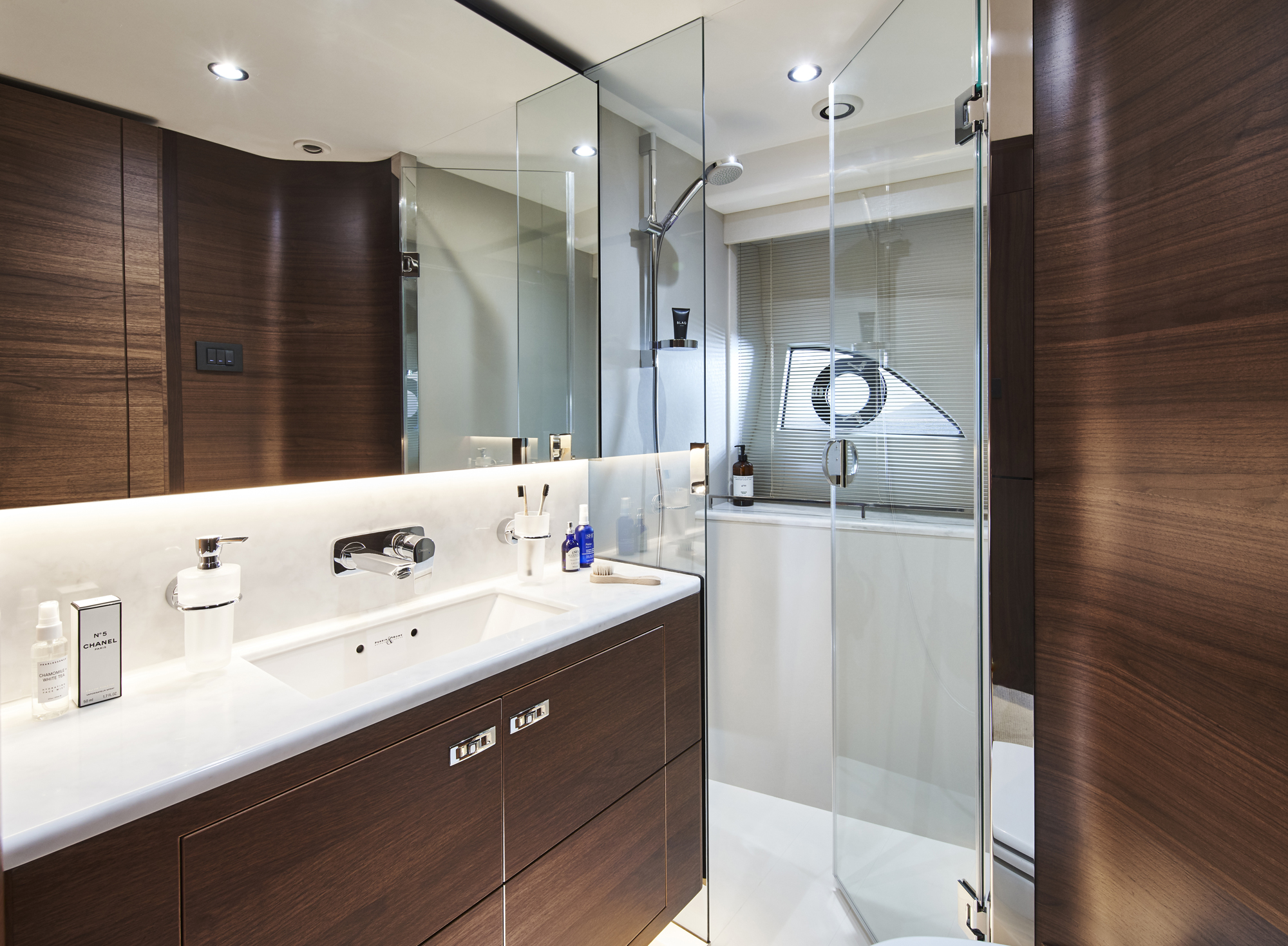

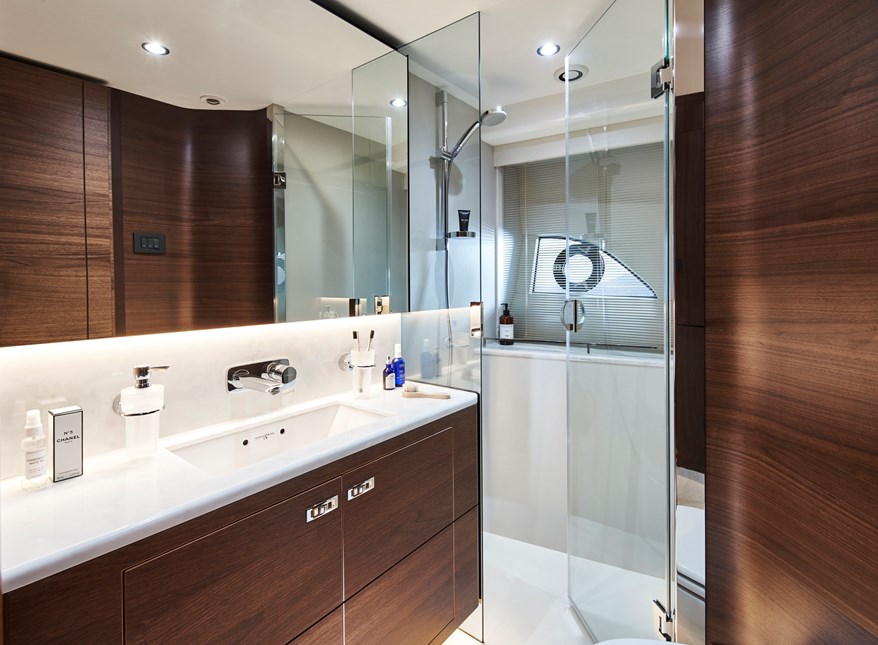

En-Suite Bathroom
Washbasin with solid surface worktop
Mirror
Storage lockers
Shower compartment with automatic pump out
Extractor fan
Window with opening porthole
Manual tension venetian blind
LED overhead and concealed lighting (24v)
Bathroom accessories
Solid surface flooring
Day access door from passageway

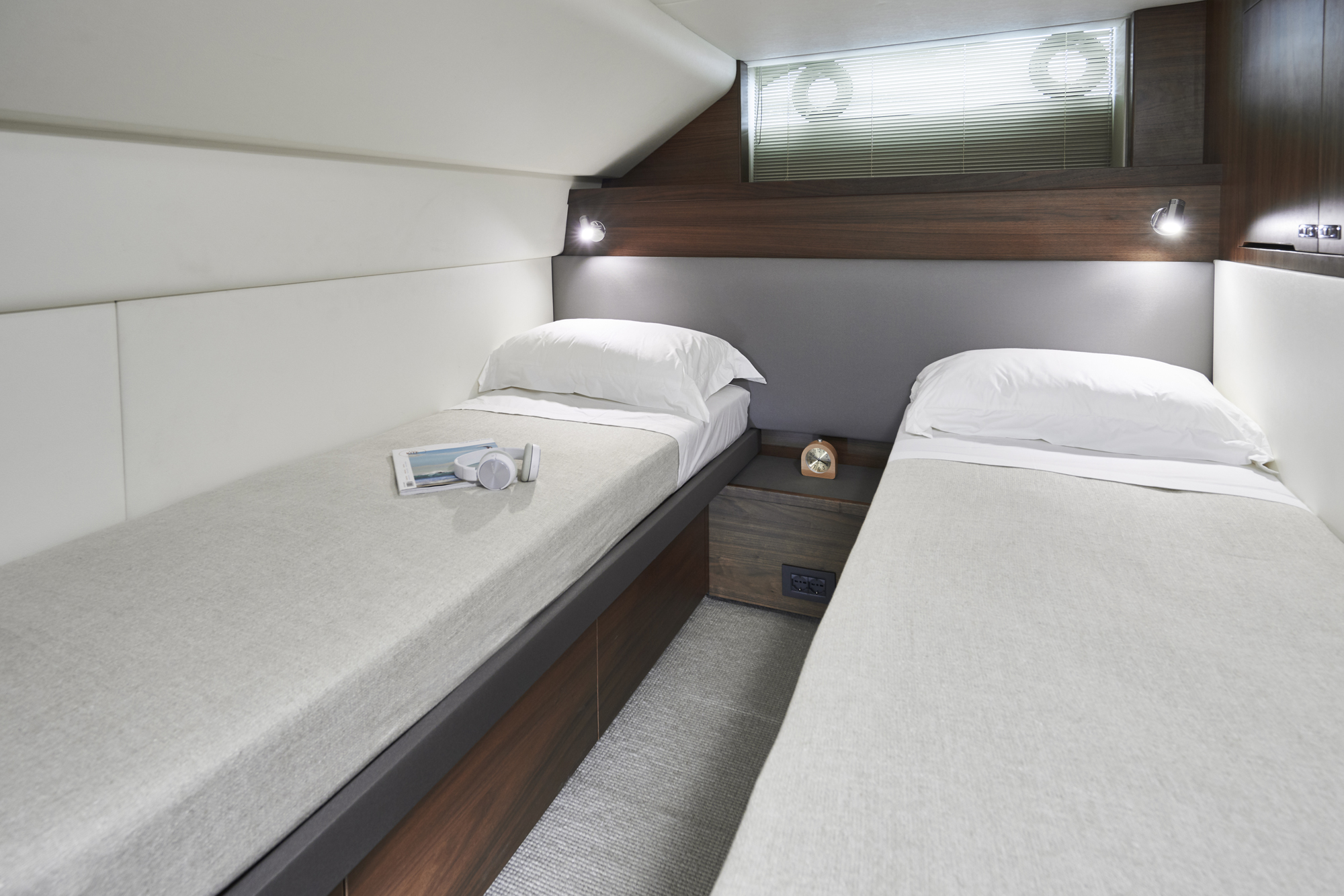

Crew cabin
Two single beds with storage below
Bedside table
Wardrobe with shelf
Mirror
Storage lockers
Window with opening porthole and venetian blind
LED overhead lighting (24v)
Individual berth lights
220/240v outlets (2)
USB charging point
Fitted carpet
En-Suite Bathroom
Washbasin with solid surface worktop
Mirror
Storage lockers
Shower compartment with automatic pump out
Extractor fan
LED overhead lighting (24v)
Bathroom accessories
Solid surface flooring

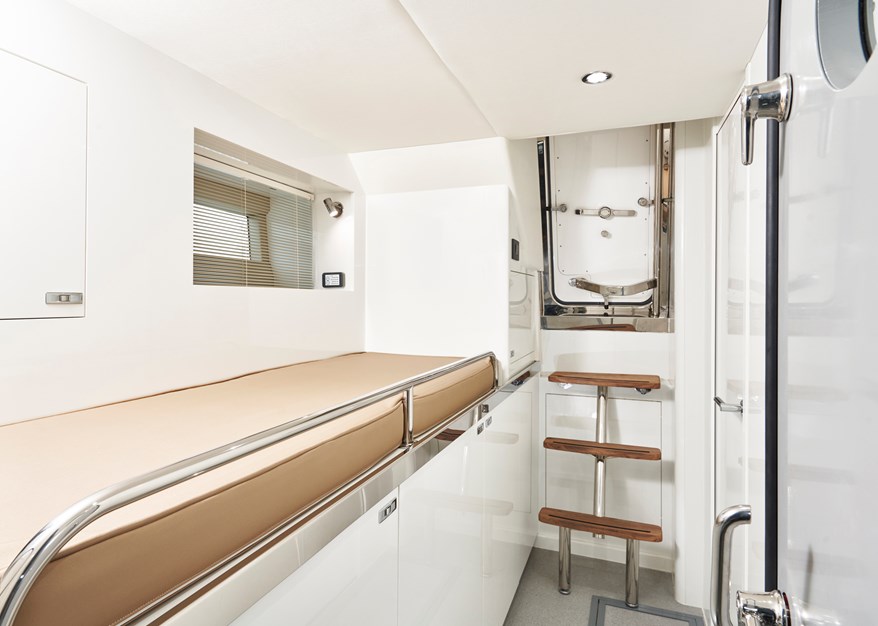

Crew area
Access from transom door
Access to engine room
Storage space, cupboards and lockers
Washer/dryer fitted in crew utility space (a separate washer and dryer may be optionally installed in place of the standard unit)
Option of single berth as required
Window with opening porthole and venetian blind
LED overhead lighting (24v)
Non-slip safety flooring

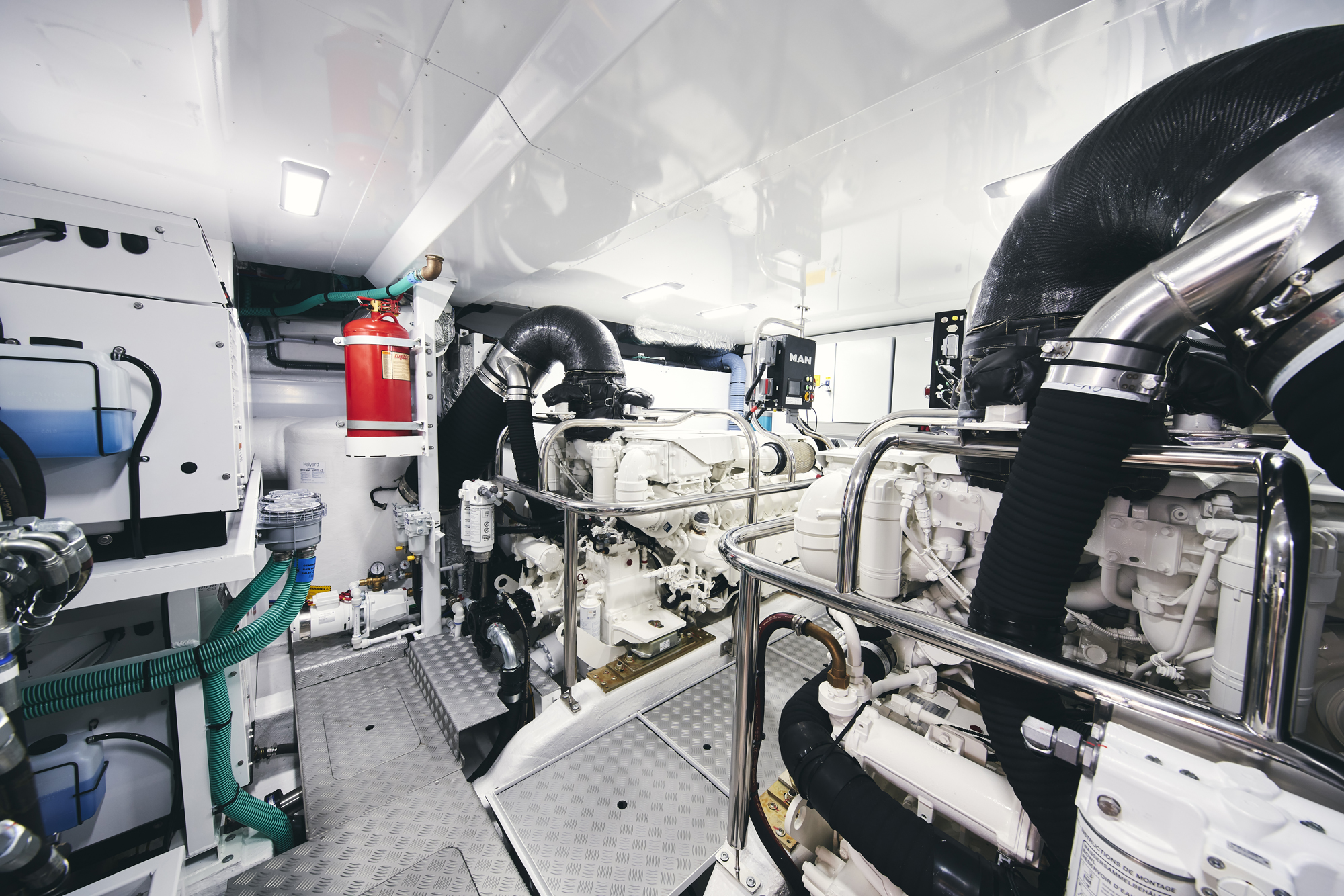

Power and drive systems
Engine room soundproofed
High volume air intakes
Engine room extractor fan with electronic time delay
Engine exhaust silencers and water-cooled exhausts
Engine beds integrally moulded with hull for strength and vibration absorption
Forward and aft engine room bulkheads integrally bonded
Engines flexibly mounted
Automatic fire extinguisher with remote override control
Automatic and manual bilge pumps
Propeller shafts in Marinemet
5-bladed propellers in nickel aluminum bronze
High speed balanced rudders
Cathodic protection for sterngear
Sterngear, engines, fuel tank fillers, etc all electrically bonded
Engine room lighting
Engine room access from transom door and from cockpit deck
Power-assisted electro-hydraulic steering system
Trim tabs with indicators
Electronic engine and gear shift controls
Bow thruster (250kgf/551lbf) with dual-station controls
Fresh water supply point in engine room
Dripless self-aligning shaft seals
Electrical ststem
24 Volt:
4 x heavy-duty batteries for engine starting and windlass operation
6 x heavy-duty auxiliary batteries
Battery link facility with remote control at helm position
Both battery banks are charged using a voltage sensitive relay that parallels both battery banks when a charging source is present
1 x 60-amp 24v battery chargers and 1x combination 3.5kW inverter/100-amp charger
Remote battery master switches with control switch at main switch panel
Circuit breakers on all circuits
12v voltage dropper for certain navigation and radio circuits
220/240 Volt:
22.5kW generator in own sound shield with water-cooled and specially silenced exhaust
2 x 63-amp shore support inlet
Generator/shore support change-over switch
Polarity check system
Earth leakage safety trip
Circuit breakers on all circuits
Power points (240v) in: owner’s stateroom, guest cabins, galley and saloon area
Shaver points in all bathrooms
Fuel system
Fuel tanks (in NS8 marine grade alloy) with interconnection system giving 1,320 gal / 1,585 US gal / 6,000l capacity
Fuel fillers on port and starboard side decks
High-capacity duplex fuel filters with water traps and change-over valves, water warning sensors connected to warning lights at lower helm
Remote fuel cocks in cockpit locker
Dual station fuel gauges on helm consoles
Water system
Water tanks totalling 253 gal / 304 US gal / 1,150l plus 44 gal / 53 US gal / 200l hot water calorifier
Water heated by engines and 240v immersion heater
Automatic water pump with filter
Main circuit breaker at switch panel
Water level gauge
Deck filler
Electric toilet system with 99 gal / 119 US gal / 450l holding tank, content gauge and low noise electric overboard discharge, with macerator backup system as well as dockside discharge system
Air conditioning system
Air conditioning/heating reverse cycle (165,000 BTU) suitable for temperature of 40˚C (tropical) is fitted as standard. With controls in all cabins and outlets in all areas (including bathrooms)
Standard generator is suitable
Fire extinguishers
Automatic/manual override fire extinguishers in engine room with warning system at both helm positions and incorporating engine air vent closure system
Hand operated fire extinguishers (8) in master stateroom, forward stateroom, port and starboard guest cabins, crew cabin, utility area, galley and lower helm position
Separate automatic fire extinguisher fitted in electrical space
Bilge pumps
Automatic/manual override electric bilge pumps in engine room (2), rudder area and forward accommodation (7 in all)
High-capacity manual bilge pump with valve system and suction points in same areas
Electric bilge pumps have controls and warning lights at main helm and warning light with audible alarm at flybridge helm
Other standard equipment
Ensign staff
Fenders (8)
Mooring warps (4)
Boathook
First-aid kit
Tool kit
Owner’s manual and engine manual
Quilted bedspreads supplied to all cabins (except crew cabin)
Set of towels (8 large, 8 hand)
Set of crystal glassware (8 settings consisting of tumbler, highball and wine glasses)
Set of Princess china (8 settings consisting of plate, side plate, bowl, cup & saucer)
Set of cutlery (8 settings of David Mellor “Paris” cutlery 7 pieces)
Ship’s document case
Anchor winch back up handle
Finishes
Teak-laid decks to transom platform, cockpit deck, steps to side decks, steps to flybridge and flybridge
Timber (planked) floor to galley and helm
Furniture in choice of Rovere Oak or Alba Oak in satin lacquer finish as standard. Silver Oak or Walnut in satin or gloss lacquer finishes available as an option
Solid surface floors in all bathroom suites
Solid surface counter tops in all bathroom suites
Galley worktop in granite/quartz
Choice of high-quality carpet and upholstery fabric from extensive range
Curtains, blinds or sunscreens to all windows and portholes
Crew cabin has fitted carpet
Crew bathroom has solid surface flooring with white solid surface countertops
Close

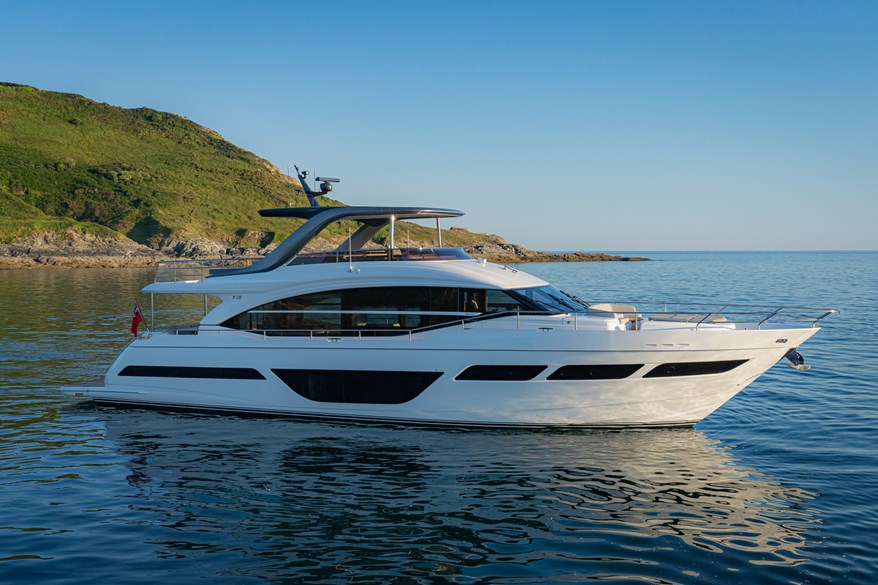

Princess Y78
Principal Dimensions
Details
Specification
Disclaimer
Length overall (incl. pulpit)
80ft 9in (24.67m)
Length overall (excl. pulpit)
79ft 7in (24.25m)
Beam
18ft 11in (5.76m)
Draft
5ft 8in (1.72m)
Displacement approx.
54,085kg (119,237lbs)*
Fuel capacity
1,320 gal/1,585 US gal/6,000l
Water capacity (excl. calorifier)
235 gal/304 US gal/1,150l
Engines
Twin MAN V12-1800 (2 x 1,800mhp)
TOP SPEED: 34-36 knots†
* Displacements are calculated with 50% fuel and water with liferaft but with no optional equipment fitted or other gear.
† Maximum speeds will vary depending on cleanliness of hull, condition of sterngear, loading of craft, water and air temperatures, sea conditions and other factors. Speed estimates are therefore given in good faith but without warranty or liability on the part of Princess Yachts Limited. Craft illustrated in this brochure may be fitted with certain optional equipment. Specifications may be changed at any time without notice or liability. USA Specification
‡ Certain specifications, which vary by model, are upgraded on Princess yachts built for use in North America. Thus, specifications and equipment will vary from the information listed in the brochure for North American Princess yachts (e.g. air-conditioning and an upgraded generator will be included as standard for all North American models and electric cooking facilities will be supplied in place of gas systems). Please consult the USA Specification Brochure for full details regarding the North American specifications for individual models.
Principal Dimensions
Details
Deck fittings
Teak-laid transom platform, cockpit deck, flybridge, flybridge stairway and steps to side decks.
Lewmar V6 24v DC windlass
Stemhead roller with automatic anchor launch and retrieve
Self-stowing 50kg/110lbs Delta anchor with 100m of chain
Twin electric sternline mooring winches
Deck hatch access to chain locker
Bow rope stowage locker
Freshwater deck/anchor wash (with both fore and aft deck outlets)
Stainless steel bow and stern fairleads
Stainless steel bow, stern and spring cleats (2 pairs)
Stainless steel pulpit and guard rails
Stainless steel coachroof and flybridge handrails
Foredeck escape hatch
Foredeck U-shaped seating area
Foredeck sunbathing area with integrated adjustable headrests and storage
Twin coachroof lockers for storage of fenders, ropes and cushions
PVC rubbing band with stainless steel insert
LED deck level lighting
Full set of IMCO navigation lights
Riding light
Twin beam searchlight with dual station remote controls
Stern docking lights
Twin electric horns
Fuel and water fillers
Cockpit and bathing platform
Self-draining
Upholstered U-shaped seating
Folding teak dining table
LED overhead and deck level lighting
Stainless-steel handrails
Remote control 4.0m telescopic passarelle with folding handrails
Watertight pantograph door giving direct access from bathing platform to crew cabin/utility area/engine room
Lockable gas strut assisted hatch to engine room
Liferaft stowage lockers
Rope storage lockers
Locker containing remote fuel cocks, manual bilge pump with valve chest and manual controls for automatic fire extinguishers
Integral stairway to flybridge with teak step treads
Twin transom gates leading to bathing platform
Electro-hydraulic raise/lower teak laid bathing platform (550kg SWL)
Retractable bathing ladder (manual) in side of hydraulic platform
Swim platform transom seat in teak
Transom access to lazarette
Transom steps to access stern from bathing platform when in lowered position
Dinghy chock system
Hot and cold transom shower
220/240v shore support inlet
Cockpit canvas cover
Flybridge
Instrument console with dual station controls and LED display incorporating engine instruments, fuel gauges, alarms and rudder position indicator (see Lower Helm Position)
Power assisted electro-hydraulic steering with adjustable wheel
Twin adjustable helm seats with honeycomb quilting and contrast panelling
Port seating/sunpad
Starboard forward-facing L shaped seating (converts to sunpad)
Large U-shaped upholstered seating
Folding leaf teak table
Wetbar with barbecue, sink, drawer refrigerator, waste bin and storage
Sunpad aft with storage below
Naim Uniti Atom audio system with waterproof speakers (2)
Clear view hatch to aft cockpit
Wind deflector screens
Stainless steel handrails with glass balustrade and partial teak capping to aft end of flybridge
LED deck level lighting
GRP radar arch
Twin matching whip aerials for VHF R/T and radio
Console and seat covers
Optional crane (450kg SWL)
Optional GRP hardtop with/without electric opening section (or optional folding bimini with electro-hydraulic operation)
Helm
Twin leather upholstered helm seats with honeycomb quilting, contrast panelling and fore/aft adjustment for helmsman. Y logo to outboard helmseat.
Instrument console with LED display incorporating engine instruments, fuel gauges, alarms and rudder position indicator
Dual station instruments and controls at Flybridge and Lower Helm Positions: -power-assisted electro-hydraulic steering - adjustable steering wheel - high-speed magnetic compass - electronic engine controls - trim tab controls with indicators - bow thruster control - electric anchor winch remote control - colour radar (with scanner) and GPS/chartploter (twin displays at lower helm) - autopilot - speed and distance log - echo sounder with alarm - VHF with DSC R/T with intercom - remote control searchlight - horn button
Intercom to flybridge
Automatic fog horn with loudhailer
Chart table
Drinks holders
Toughened glass screen (clear for night vision) with windscreen de-mist system
Windscreen wipers with freshwater windscreen wash
Black mesh windscreen covers
Bilge pump controls with visual pump running warnings
24v and 240v electrical control panel
Riding light, helm and navigation light control switches
USB charging point
LED overhead lighting (24v) and night lighting
Pantograph helmsman’s door to starboard side deck
Timber flooring (V groove planked)
Saloon
U-shaped sofa
Coffee table
Two-seater sofa to port
Sideboard unit with bottle and glass storage
Refrigerator
55" UHD LED TV on rise and fall with Blu-ray player
Naim Uniti Atom audio system connected to Focal 100 ICW6 speakers (2) with Focal Cub Evo subwoofer
Onboard ethernet and 4G internet.
Triple stainless steel framed sliding door to aft cockpit
Roman blinds or curtains to all windows and doors
LED overhead and concealed lighting (24v)
Fitted carpet
Dining area
Glass dining table
Dining chairs (8)
Full height panoramic window
L-shaped sofa opposite helm area
Electric drop window to port
Roman blinds or curtains to all windows
LED overhead and concealed lighting (24v)
Access stairway to lower accommodation
Separate access stairway to master stateroom
Fitted carpet
Galley
Galley worktop in choice of granite or quartz
4-zone ceramic hob
Extractor fan
Combination convection oven with grill/microwave
Twin-bowl stainless steel sink with mixer tap
Chopping board
Full height refrigerator/deep freeze
Icemaker
Dishwasher
Waste bin
Drawers and storage cupboards
Manual tension venetian blind to window
Electrically operated sliding partition
LED overhead and task lighting (24v)
220/240v outlets (4)
Timber flooring (planked)
Accommodation
All cabins and bathrooms feature opening portholes and air conditioning
All cabins feature 220/240v power points
All bathrooms feature electric freshwater toilets and 240v shaver points
Owner’s stateroom lobby
Access stairway to owner's stateroom
Panoramic window
Manual tension venetian blind
LED overhead and concealed lighting (24v)
Fitted carpet
Owners stateroom
Large double bed with drawers below
Twin bedside tables
Dressing area with wardrobes and storage
Built-in safe
Dressing table with chair
Mirror
Sofa
Storage lockers and drawers
43" UHD LED TV with Blu-ray player
Naim Unit Atom audio system connected to Focal 100 ICW6 speakers (2) with Focal Cub Evo subwoofer
Panoramic windows including opening portholes
Manual tension venetian blinds
LED overhead and concealed lighting (24v)
Individual berth lights
220/240v outlets (2)
USB charging point
Fitted carpet
En-Suite Bathroom
Twin washbasins with solid surface worktop
Mirror
Storage lockers
Shower compartment with automatic pump out
Extractor fan
Window with opening porthole
Manual tension venetian blind
LED overhead and concealed lighting (24v)
Bathroom accessories
Solid surface flooring
Forward guest cabin
Large double bed with drawers below
Wardrobe with shelves
Dressing table with stool
Mirror
Storage lockers
Naim Uniti Atom audio system connected to Focal 100 ICW6 speakers (2)
Windows with opening portholes
Manual tension venetian blinds
Deck hatch
LED overhead and concealed lighting (24v)
Individual berth lights
220/240v outlets (2)
USB charging point
Fitted carpet
En-Suite Bathroom
Washbasin with solid surface worktop
Mirror
Storage lockers
Shower compartment with automatic pump out
Extractor fan
Window with opening porthole
Manual tension venetian blind
LED overhead and concealed lighting (24v)
Bathroom accessories
Solid surface flooring
Port guest cabin
Two single beds with drawers below (with option of double bed conversion)
Bedside table
Wardrobe with shelves
Mirror
Storage lockers
Windows with opening portholes
Manual tension venetian blinds
LED overhead and concealed lighting (24v)
Individual berth lights
220/240v outlets (2)
USB charging point
Fitted carpet
En-Suite Bathroom
Washbasin with solid surface worktop
Mirror
Storage lockers
Shower compartment with automatic pump out
Extractor fan
Window with opening porthole
Manual tension venetian blind
LED overhead and concealed lighting (24v)
Bathroom accessories
Solid surface flooring
Starboard guest cabin
Large double bed with drawers below (with option of two single beds which slide to form a double as required)
Twin bedside tables
Wardrobe with shelves
Dressing table with stool
Mirror
Storage lockers
Windows with opening portholes
Manual tension venetian blinds
LED overhead and concealed lighting (24v)
Individual berth lights
220/240v outlets (2)
USB charging point
Fitted carpet
En-Suite Bathroom
Washbasin with solid surface worktop
Mirror
Storage lockers
Shower compartment with automatic pump out
Extractor fan
Window with opening porthole
Manual tension venetian blind
LED overhead and concealed lighting (24v)
Bathroom accessories
Solid surface flooring
Day access door from passageway
Crew cabin
Two single beds with storage below
Bedside table
Wardrobe with shelf
Mirror
Storage lockers
Window with opening porthole and venetian blind
LED overhead lighting (24v)
Individual berth lights
220/240v outlets (2)
USB charging point
Fitted carpet
En-Suite Bathroom
Washbasin with solid surface worktop
Mirror
Storage lockers
Shower compartment with automatic pump out
Extractor fan
LED overhead lighting (24v)
Bathroom accessories
Solid surface flooring
Crew area
Access from transom door
Access to engine room
Storage space, cupboards and lockers
Washer/dryer fitted in crew utility space (a separate washer and dryer may be optionally installed in place of the standard unit)
Option of single berth as required
Window with opening porthole and venetian blind
LED overhead lighting (24v)
Non-slip safety flooring
Power and drive systems
Engine room soundproofed
High volume air intakes
Engine room extractor fan with electronic time delay
Engine exhaust silencers and water-cooled exhausts
Engine beds integrally moulded with hull for strength and vibration absorption
Forward and aft engine room bulkheads integrally bonded
Engines flexibly mounted
Automatic fire extinguisher with remote override control
Automatic and manual bilge pumps
Propeller shafts in Marinemet
5-bladed propellers in nickel aluminum bronze
High speed balanced rudders
Cathodic protection for sterngear
Sterngear, engines, fuel tank fillers, etc all electrically bonded
Engine room lighting
Engine room access from transom door and from cockpit deck
Power-assisted electro-hydraulic steering system
Trim tabs with indicators
Electronic engine and gear shift controls
Bow thruster (250kgf/551lbf) with dual-station controls
Fresh water supply point in engine room
Dripless self-aligning shaft seals
Electrical ststem
24 Volt:
4 x heavy-duty batteries for engine starting and windlass operation
6 x heavy-duty auxiliary batteries
Battery link facility with remote control at helm position
Both battery banks are charged using a voltage sensitive relay that parallels both battery banks when a charging source is present
1 x 60-amp 24v battery chargers and 1x combination 3.5kW inverter/100-amp charger
Remote battery master switches with control switch at main switch panel
Circuit breakers on all circuits
12v voltage dropper for certain navigation and radio circuits
220/240 Volt:
22.5kW generator in own sound shield with water-cooled and specially silenced exhaust
2 x 63-amp shore support inlet
Generator/shore support change-over switch
Polarity check system
Earth leakage safety trip
Circuit breakers on all circuits
Power points (240v) in: owner’s stateroom, guest cabins, galley and saloon area
Shaver points in all bathrooms
Fuel system
Fuel tanks (in NS8 marine grade alloy) with interconnection system giving 1,320 gal / 1,585 US gal / 6,000l capacity
Fuel fillers on port and starboard side decks
High-capacity duplex fuel filters with water traps and change-over valves, water warning sensors connected to warning lights at lower helm
Remote fuel cocks in cockpit locker
Dual station fuel gauges on helm consoles
Water system
Water tanks totalling 253 gal / 304 US gal / 1,150l plus 44 gal / 53 US gal / 200l hot water calorifier
Water heated by engines and 240v immersion heater
Automatic water pump with filter
Main circuit breaker at switch panel
Water level gauge
Deck filler
Electric toilet system with 99 gal / 119 US gal / 450l holding tank, content gauge and low noise electric overboard discharge, with macerator backup system as well as dockside discharge system
Air conditioning system
Air conditioning/heating reverse cycle (165,000 BTU) suitable for temperature of 40˚C (tropical) is fitted as standard. With controls in all cabins and outlets in all areas (including bathrooms)
Standard generator is suitable
Fire extinguishers
Automatic/manual override fire extinguishers in engine room with warning system at both helm positions and incorporating engine air vent closure system
Hand operated fire extinguishers (8) in master stateroom, forward stateroom, port and starboard guest cabins, crew cabin, utility area, galley and lower helm position
Separate automatic fire extinguisher fitted in electrical space
Bilge pumps
Automatic/manual override electric bilge pumps in engine room (2), rudder area and forward accommodation (7 in all)
High-capacity manual bilge pump with valve system and suction points in same areas
Electric bilge pumps have controls and warning lights at main helm and warning light with audible alarm at flybridge helm
Other standard equipment
Ensign staff
Fenders (8)
Mooring warps (4)
Boathook
First-aid kit
Tool kit
Owner’s manual and engine manual
Quilted bedspreads supplied to all cabins (except crew cabin)
Set of towels (8 large, 8 hand)
Set of crystal glassware (8 settings consisting of tumbler, highball and wine glasses)
Set of Princess china (8 settings consisting of plate, side plate, bowl, cup & saucer)
Set of cutlery (8 settings of David Mellor “Paris” cutlery 7 pieces)
Ship’s document case
Anchor winch back up handle
Finishes
Teak-laid decks to transom platform, cockpit deck, steps to side decks, steps to flybridge and flybridge
Timber (planked) floor to galley and helm
Furniture in choice of Rovere Oak or Alba Oak in satin lacquer finish as standard. Silver Oak or Walnut in satin or gloss lacquer finishes available as an option
Solid surface floors in all bathroom suites
Solid surface counter tops in all bathroom suites
Galley worktop in granite/quartz
Choice of high-quality carpet and upholstery fabric from extensive range
Curtains, blinds or sunscreens to all windows and portholes
Crew cabin has fitted carpet
Crew bathroom has solid surface flooring with white solid surface countertops
Flybridge Layout
Main Deck Layout
Lower Deck Layout
A spectacular place to entertain
Her flexible deck layout features a walkthrough foredeck with U-shaped seating and sunbathing area, whilst her flybridge aft has space for free standing furniture or can accommodate a crane and a tender.
Forward on the lower deck, all three guest cabins are en suite whilst a dedicated staircase leads to the owner’s stateroom amidships via a private lobby area.
