Water capacity (excl. calorifier)
410 gal/492 US gal/1,865l
Engines

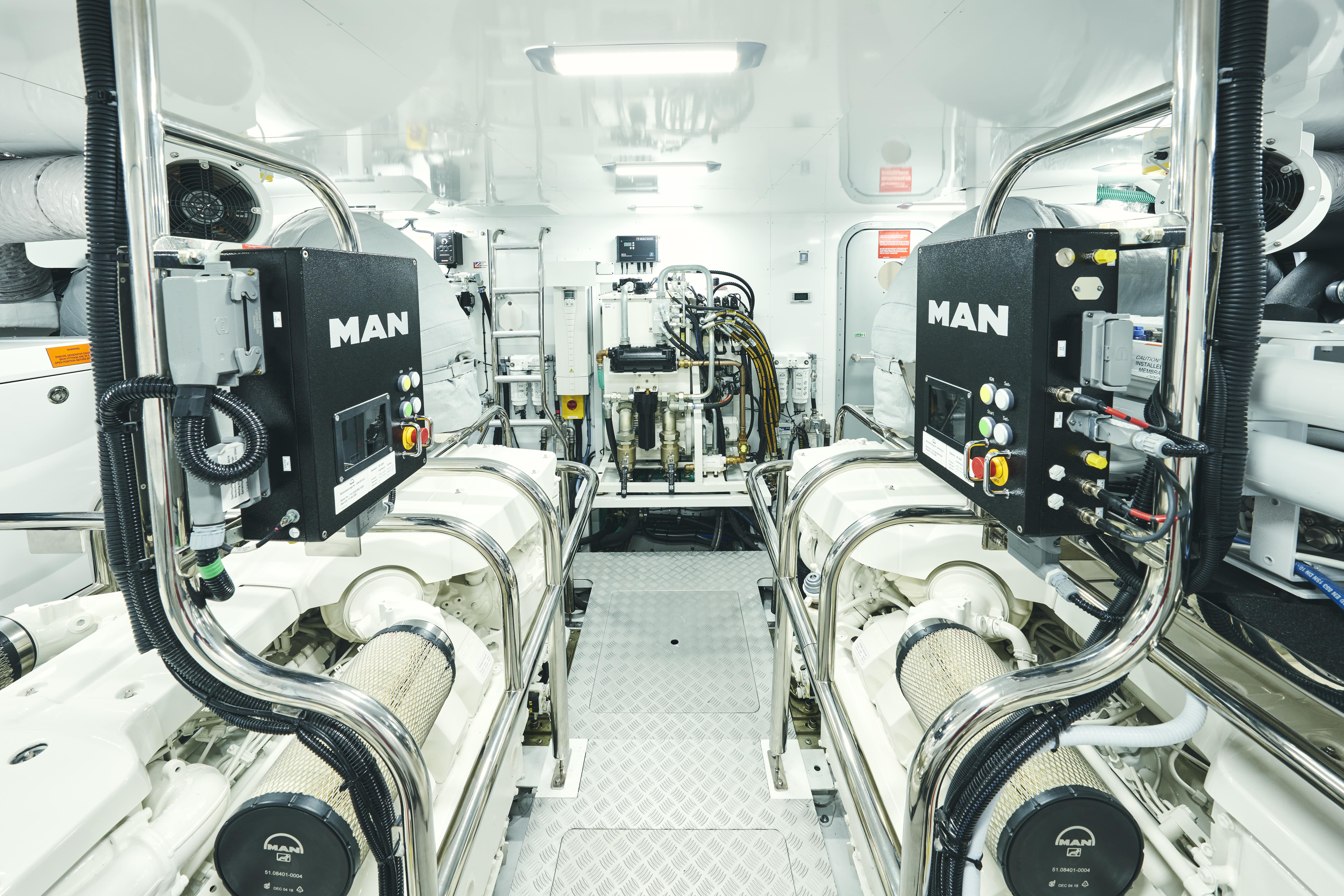

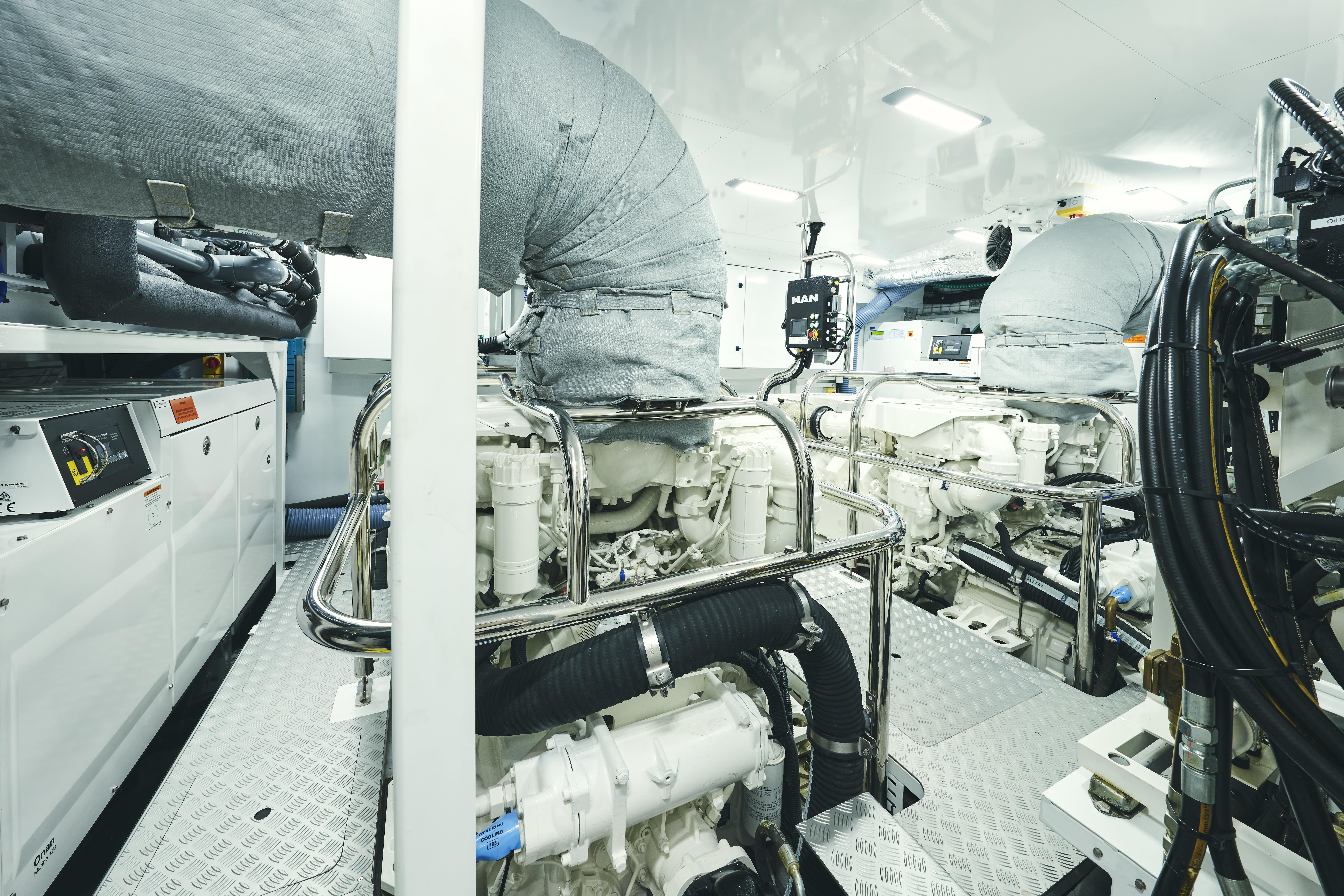

Twin MAN V12-1900 (2 x 1,900mhp)
TOP SPEED: 21-23 knots†
* Displacements are calculated with 50% fuel and water with liferaft but with no optional equipment fitted or other gear.
† Maximum speeds will vary depending on cleanliness of hull, condition of sterngear, loading of craft, water and air temperatures, sea conditions and other factors. Speed estimates are therefore given in good faith but without warranty or liability on the part of Princess Yachts Limited. Craft illustrated in this brochure may be fitted with certain optional equipment. Specifications may be changed at any time without notice or liability. USA Specification
‡ Certain specifications, which vary by model, are upgraded on Princess yachts built for use in North America. Thus, specifications and equipment will vary from the information listed in the brochure for North American Princess yachts (e.g. air-conditioning and an upgraded generator will be included as standard for all North American models and electric cooking facilities will be supplied in place of gas systems). Please consult the USA Specification Brochure for full details regarding the North American specifications for individual models.
Deck fittings
6mm teak-laid transom platform, transom steps, cockpit deck, stairway to flybridge, side decks, steps to foredeck, flybridge aft sun deck and foredeck lounge walkthrough areas
Reversible hydraulic anchor winches with bridge controls (Lewmar V8)
Anchor pockets with anchor launch and retrieve
Twin anchor system incorporating two 125kg galvanised kedge anchor with 100m of 14mm galvanised chain
Deck chain stoppers (2)
Mooring bollards forward (4)
Mooring bollards aft (4)
Mooring bollards on platform cheeks (2)
Mooring bollards mid-ship (1 per side)
Twin electric sternline mooring winches (Lewmar C6)
Deck hatch access to chain, Bosuns and fender storage locker (non-locking, with access ladder)
Freshwater deck/anchor wash (with both fore and aft deck outlets) (under bow seat, starboard side outboard of transom steps) (quick release bayonet fitting)
Stainless steel bow and stern fairleads
Stainless-steel foredeck guard rails
Stainless steel flybridge handrails
Stainless gates (with glazing) to restrict access to the foredeck area
PVC rubbing band with stainless-steel insert
LED deck level lighting
Full set of IMCO navigation lights
Riding light
Twin beam searchlight with remote controls (located on mast)
Loudhailer (located on hardtop)
Stern docking lights (on underside of canopy/flybridge overhang)
Twin electric horns (located on mast)
Fuel and water fillers (fuel: main deck, port and starboard, water: port side)

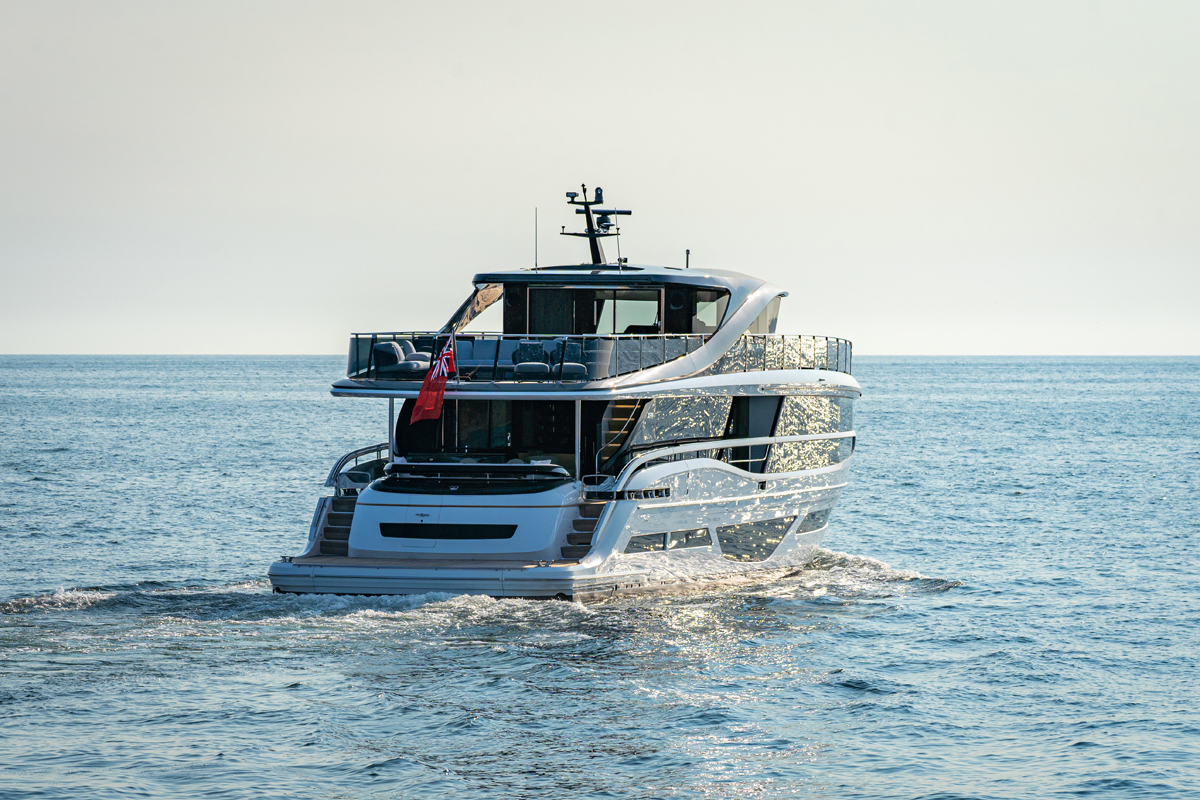

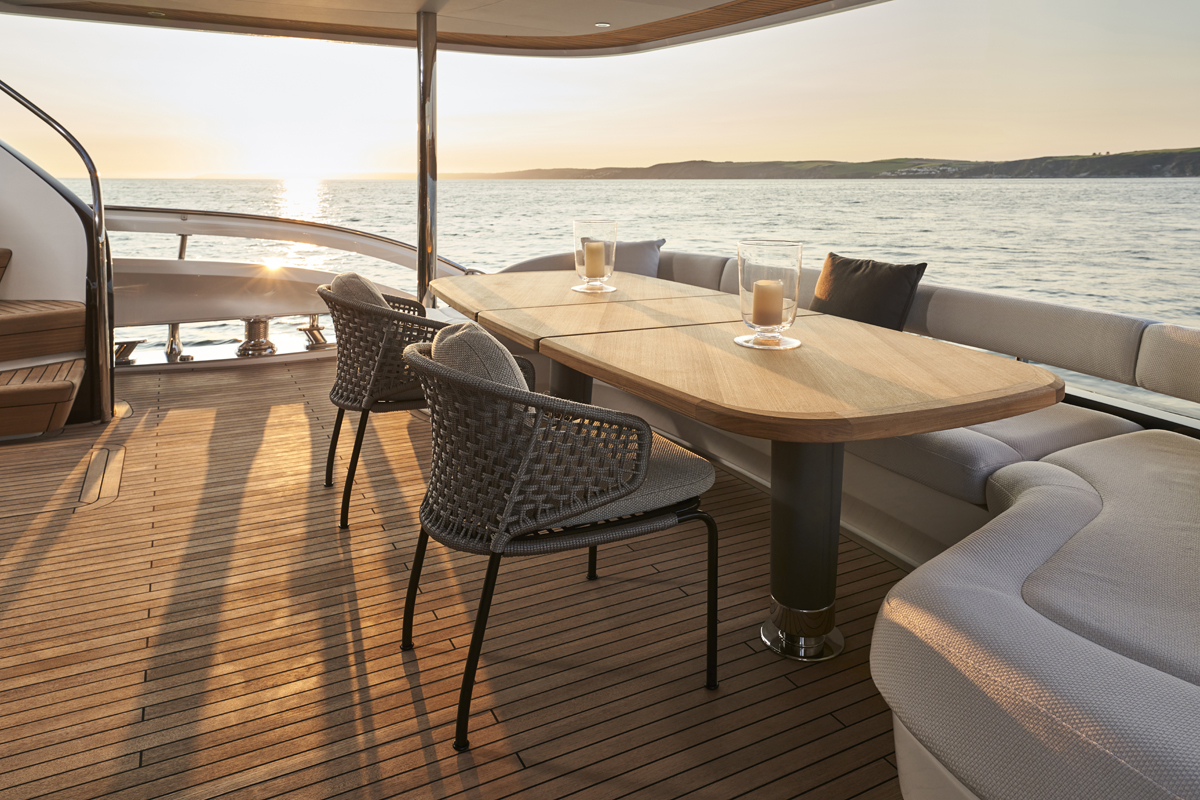

Cockpit and bathing platform
Self-draining
Upholstered U-shaped seating with storage below (non-locking)
Teak dining table with removable central leaf section paired with 2 dining chairs
LED overhead and deck level lighting
Stainless-steel handrails (round top profile)
Stern docking station controls portside including thruster controls and emergency engine stop, Rexroth control as standard
Remote control 5.47m telescopic passarelle with folding handrails
Watertight (double D sealed) hinged locking door giving access from transom into garage / optional beach club area
Engine room to cockpit escape hatch
Crew area escape hatch to cockpit
Garage (to take wetbike up to 3.05m) with electro-hydraulic door with additional storage for optional SEABOBs (2 max, starboard bulkhead mounted rack)
Rope storage locker (non-locking)
Wash basin with mixer tap to portside
Starboard locker containing remote fuel cocks, manual bilge pump with valve chest and manual controls for automatic fire extinguishers
Integral stairway to flybridge with teak step treads
Twin glazed transom gates leading to bathing platform
Retractable bathing ladder (manual) in side of bathing platform
Hot and cold transom shower
Three phase shore support inlet (380v-415v / 42kVa @50Hz) with Glendinning cablemaster (15m/50ft) and a single phase shore power inlet (220-240v / 15kVa @ 50Hz. Both shore supports with isolation transformers. (US Spec single phase 2 x 100A)
Seat and table covers
Port side deck lockable access and stairway to crew accommodation

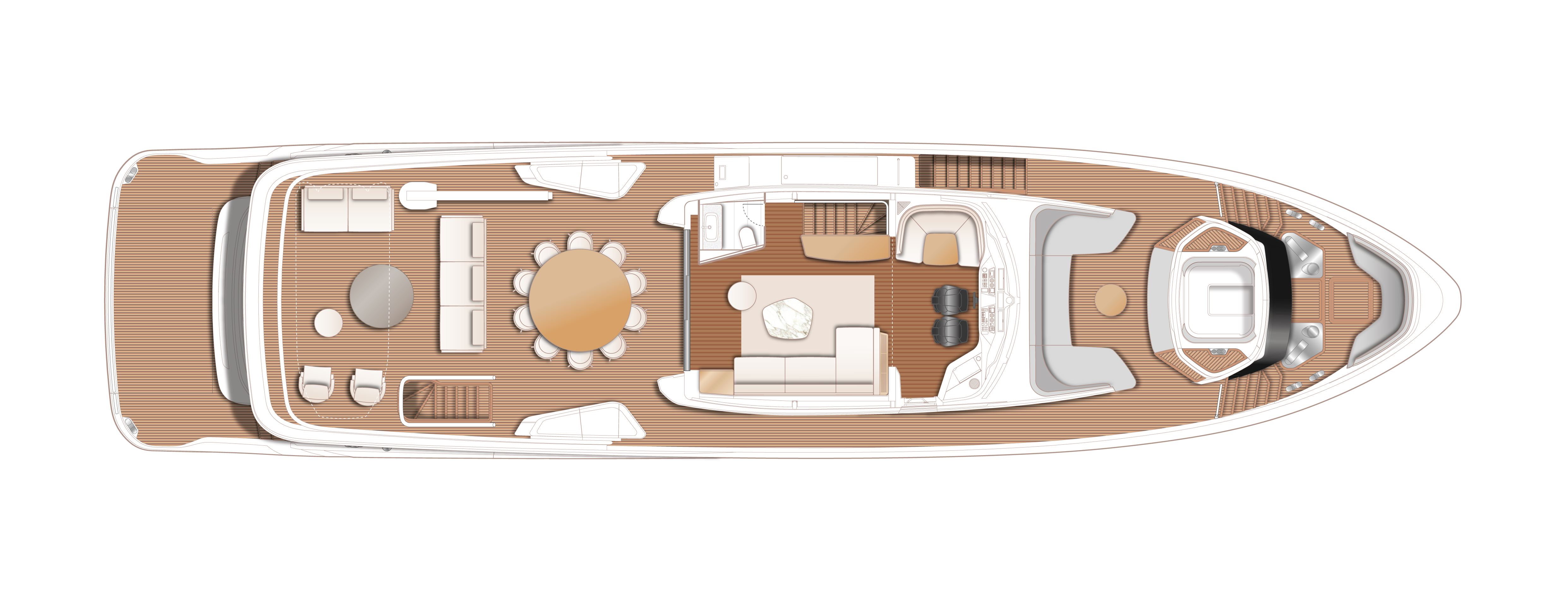

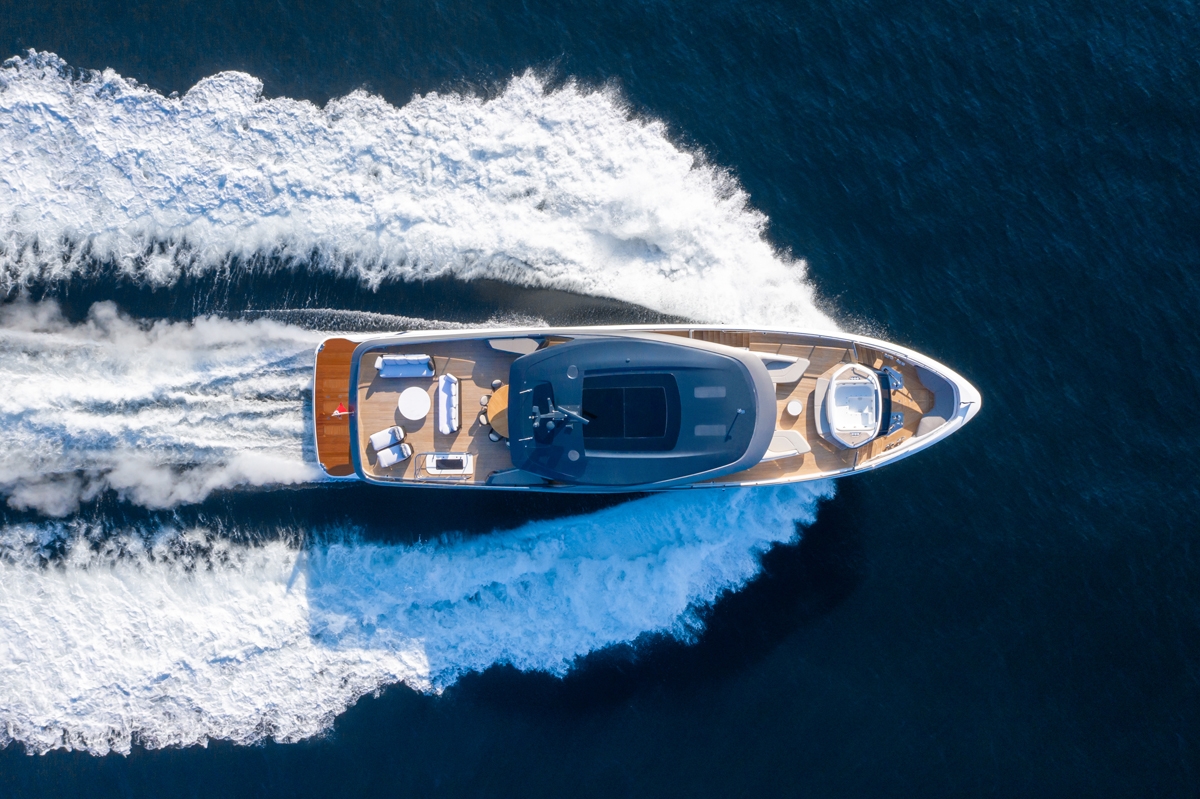

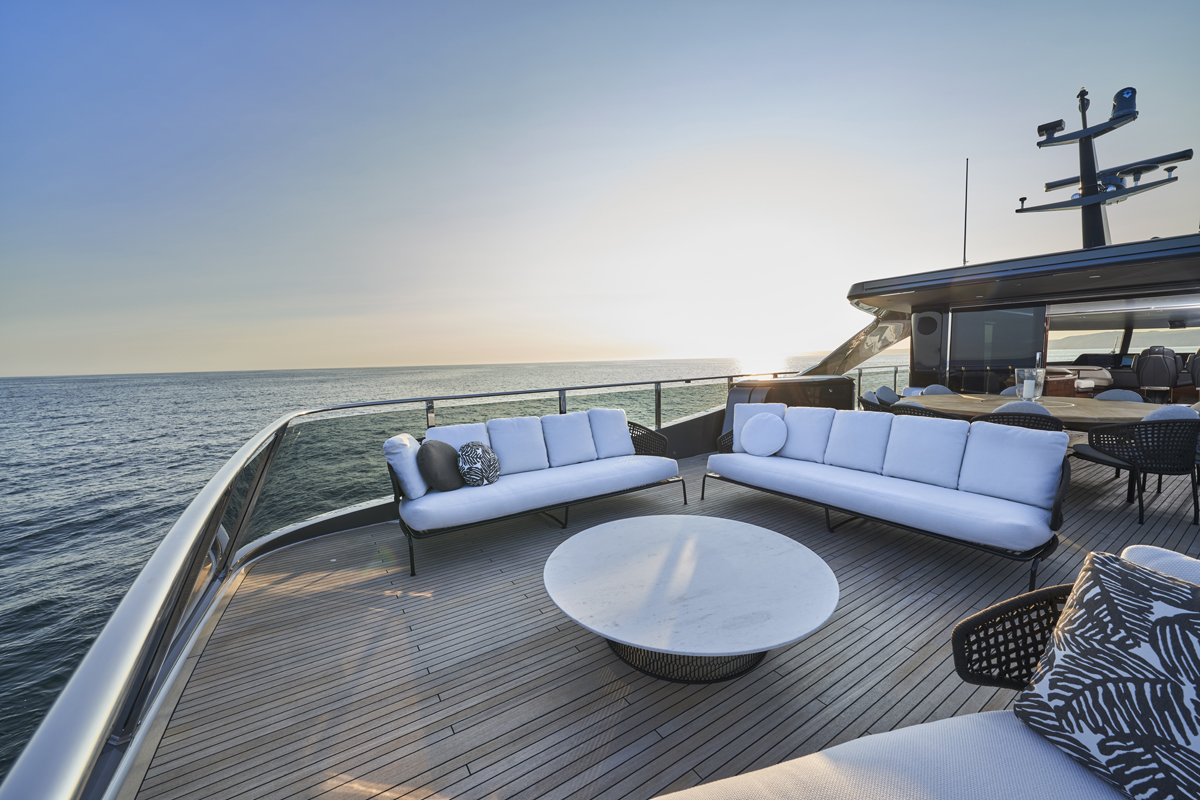

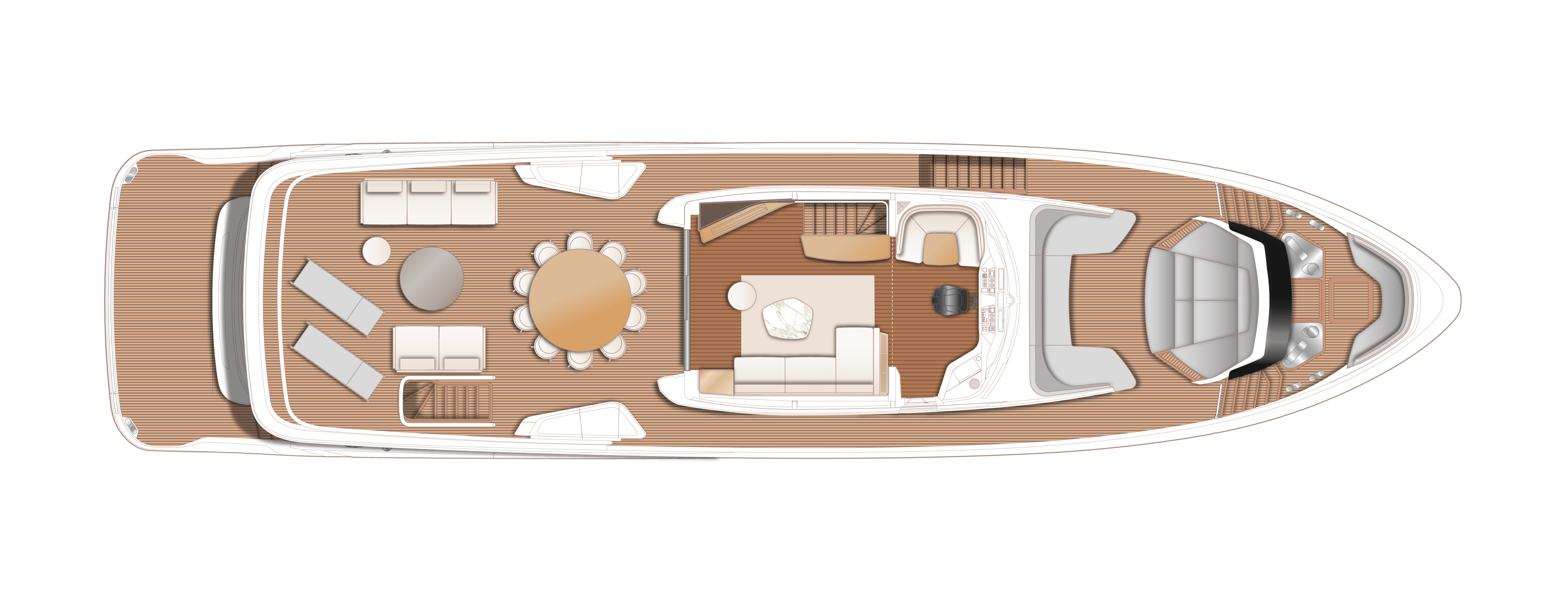

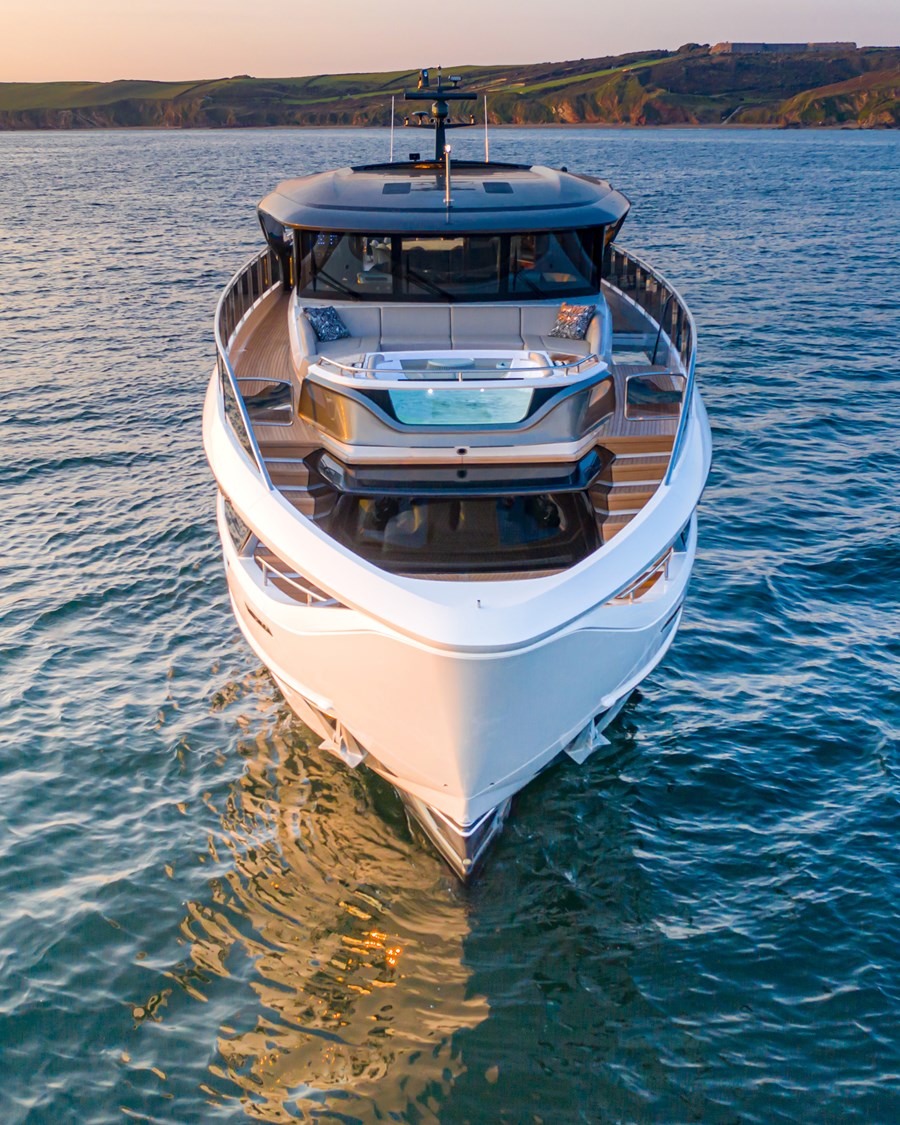

Flybridge and foredeck

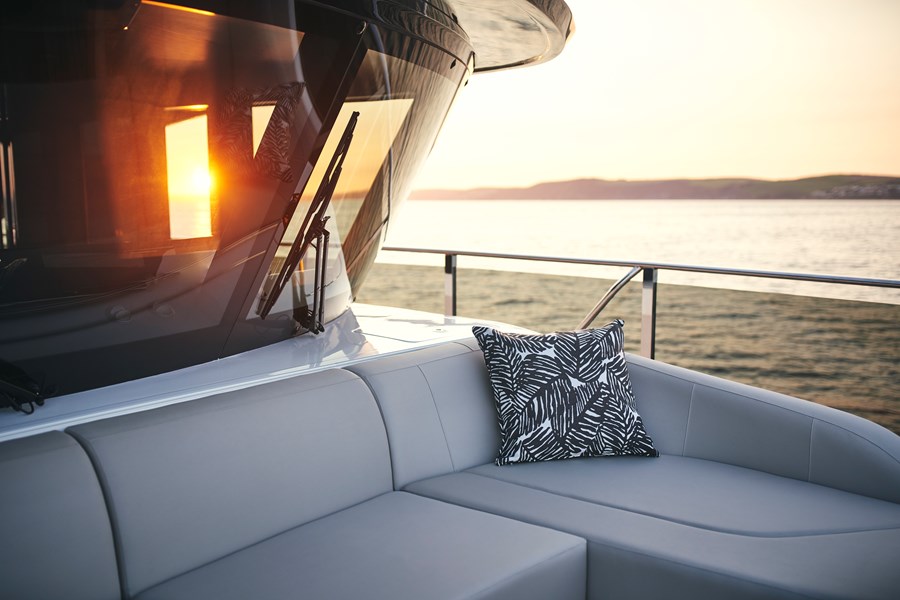

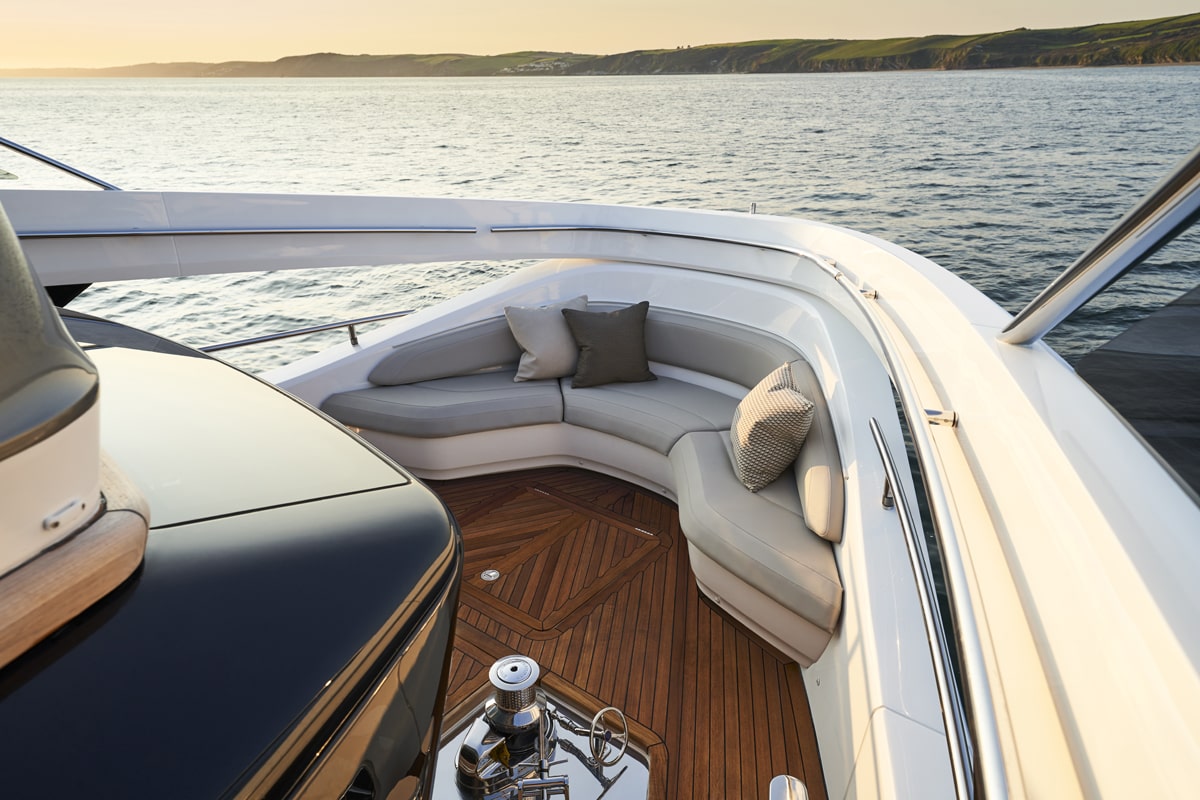

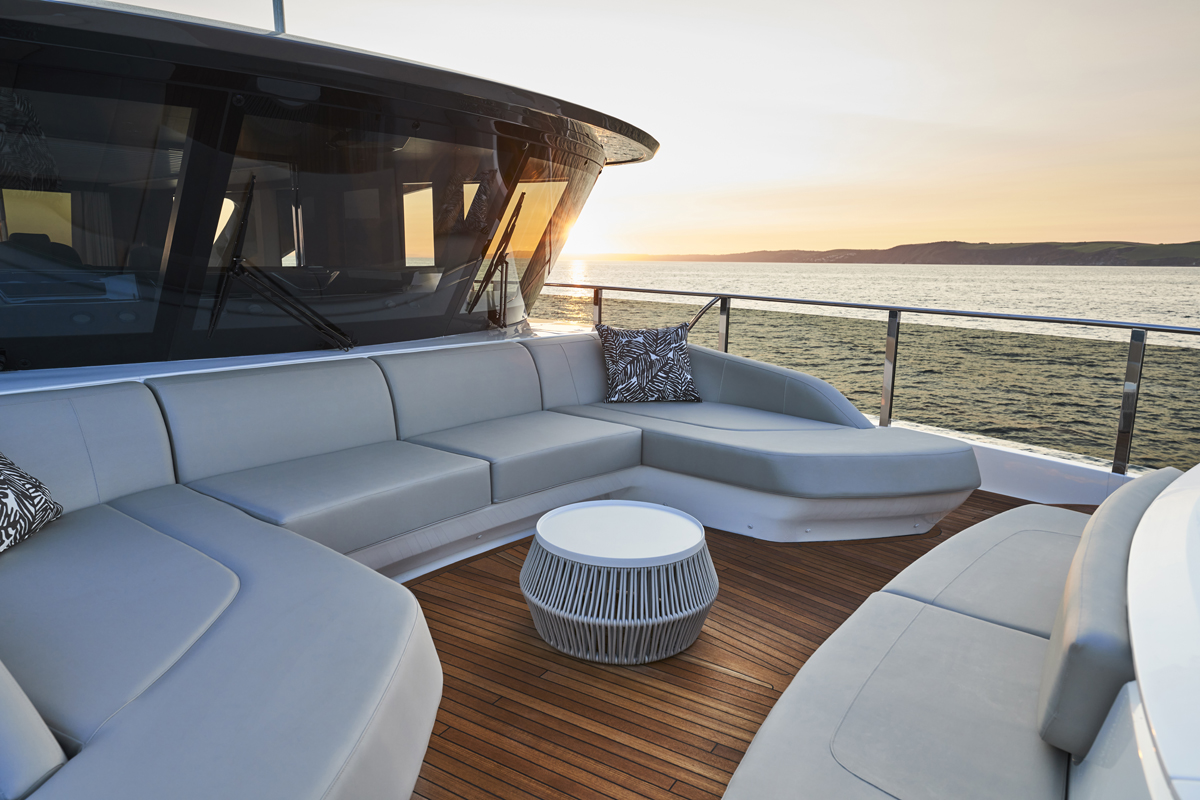

Foredeck area with U-shaped seating, and storage locker
Foredeck to incorporate glazed panels to allow light through to galley / dining area or optional main deck owner's stateroom below
Sunbathing area with integrated adjustable teak headrests and storage, converts to aft facing u-shaped seating area.

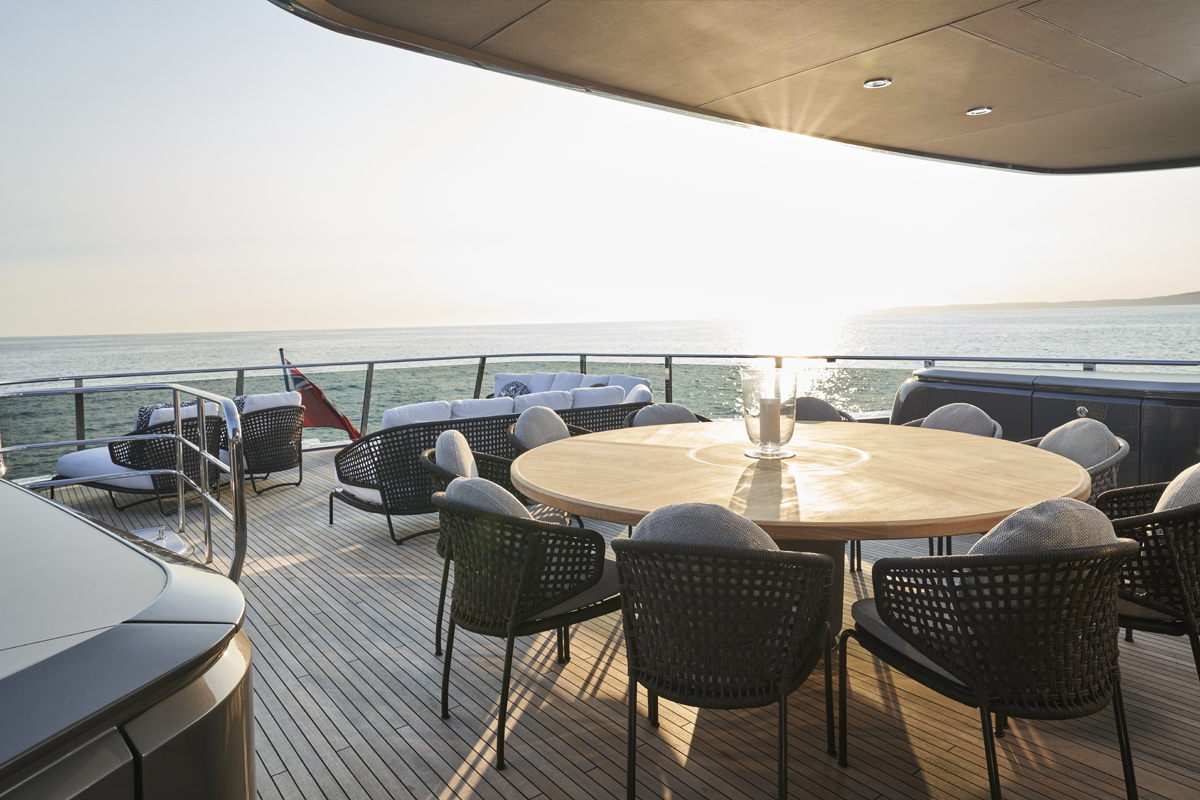

Flybridge aft deck area with free standing furniture
Dining table with chairs to accommodate 8 persons (10 for optional 5 cabin layout)
Naim Uniti Atom audio system with waterproof speakers (2) to flybridge
Clear view hatch to aft cockpit
Access stairway to aft cockpit
Stainless-steel handrails with glass balustrade to aft and sides of flybridge deck
Starboard storage/servery unit, incorporating liferaft stowage and deck wash outlet
Port storage/servery unit with sink and tap, incorporating liferaft stowage
LED overhead and deck level lighting
Radar mast
Twin matching whip aerials for VHF R/T and radio
Covers to exterior furniture

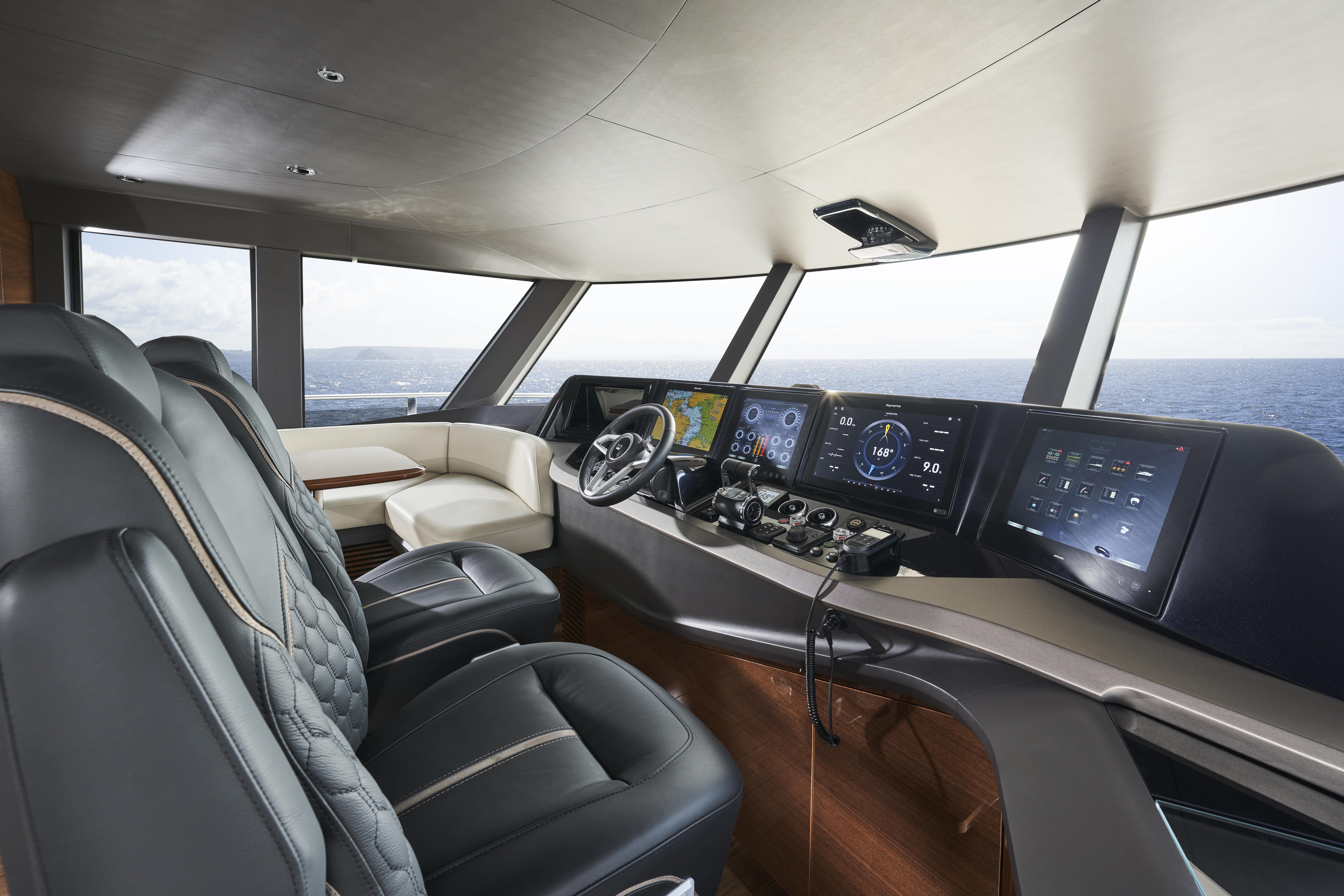

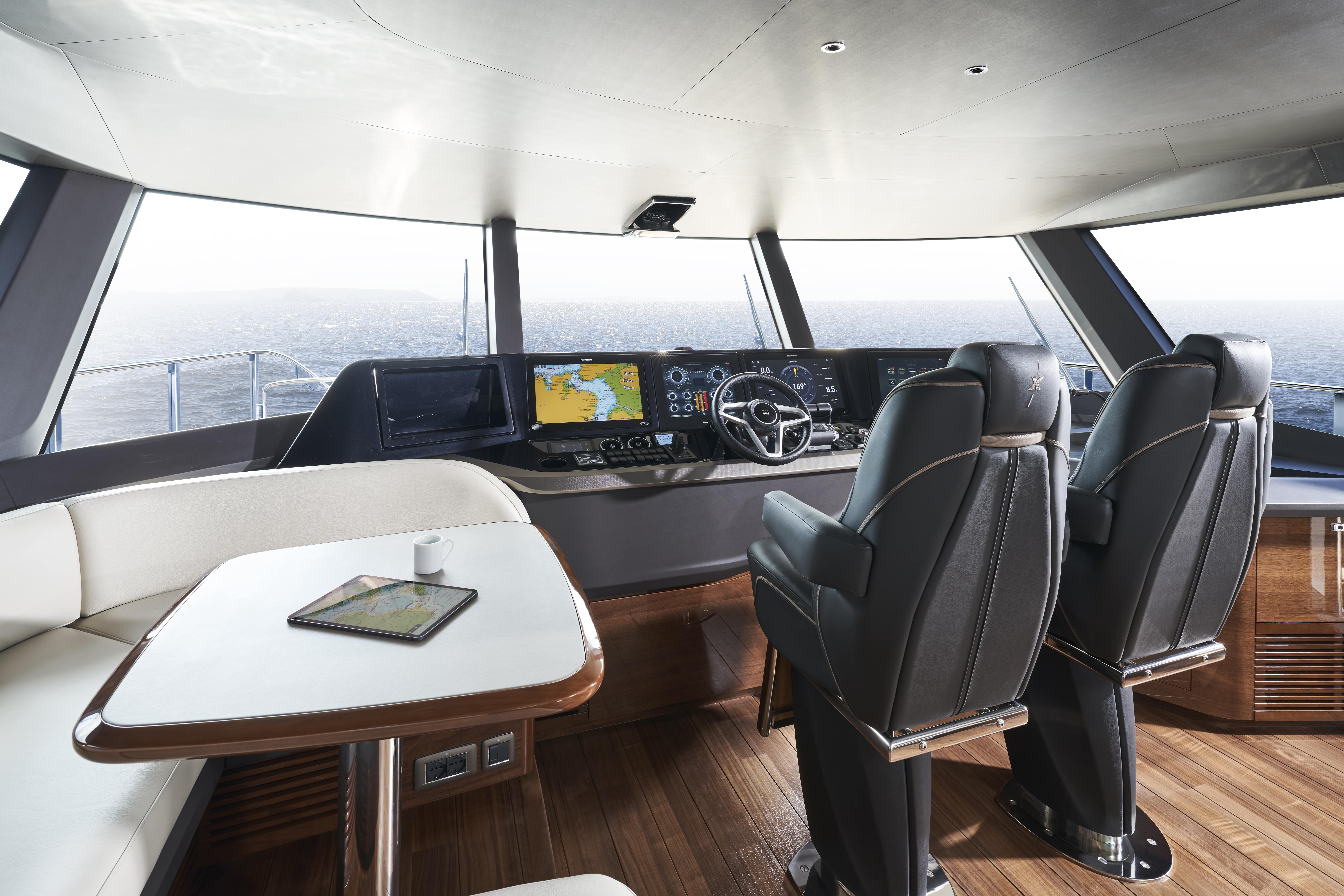

Helm
Enclosed pilot house with central leather upholstered electric seat with fore, aft and height adjustment
U-shaped companion seating to port with table
Sliding doors to fully enclose or open helm to skylounge area
Instrument console with LED display incorporating engine instruments, CCTV linked to Böning screens, fuel gauges, alarms and rudder position indicator
Helm position instrument and controls console including: - power-assisted electro-hydraulic steering (SeaStar) - adjustable steering wheel - high-speed magnetic compass - electronic engine controls - bow thruster control - hydraulic anchor winch remote control - colour radar (with scanner) and GPS/chart plotter (twin 19” displays) -autopilot - speed and distance log -echo sounder with alarm - VHF with DSC R/T with intercom - remote control dual searchlight - horn button (to operate twin electric horns) - audible and visual alarm for bilge pumps - engine room fire extinguisher warning system
Automatic fog horn with loudhailer
Chart storage
Drink holders
Toughened glass screen (clear for night vision) with windscreen de-mist system
Windscreen wipers with freshwater windscreen wash
Exterior black mesh windscreen covers
Bilge pump controls with visual pump running warnings
24v and 240v electrical control panel
Riding light, helm and navigation light control switches
USB charging points (2)
Dimmable LED overhead, concealed (24v) and night lighting with scene selection
Watertight pantograph door giving direct access from starboard side deck
Electric drop window to port
Timber flooring (V groove planked)

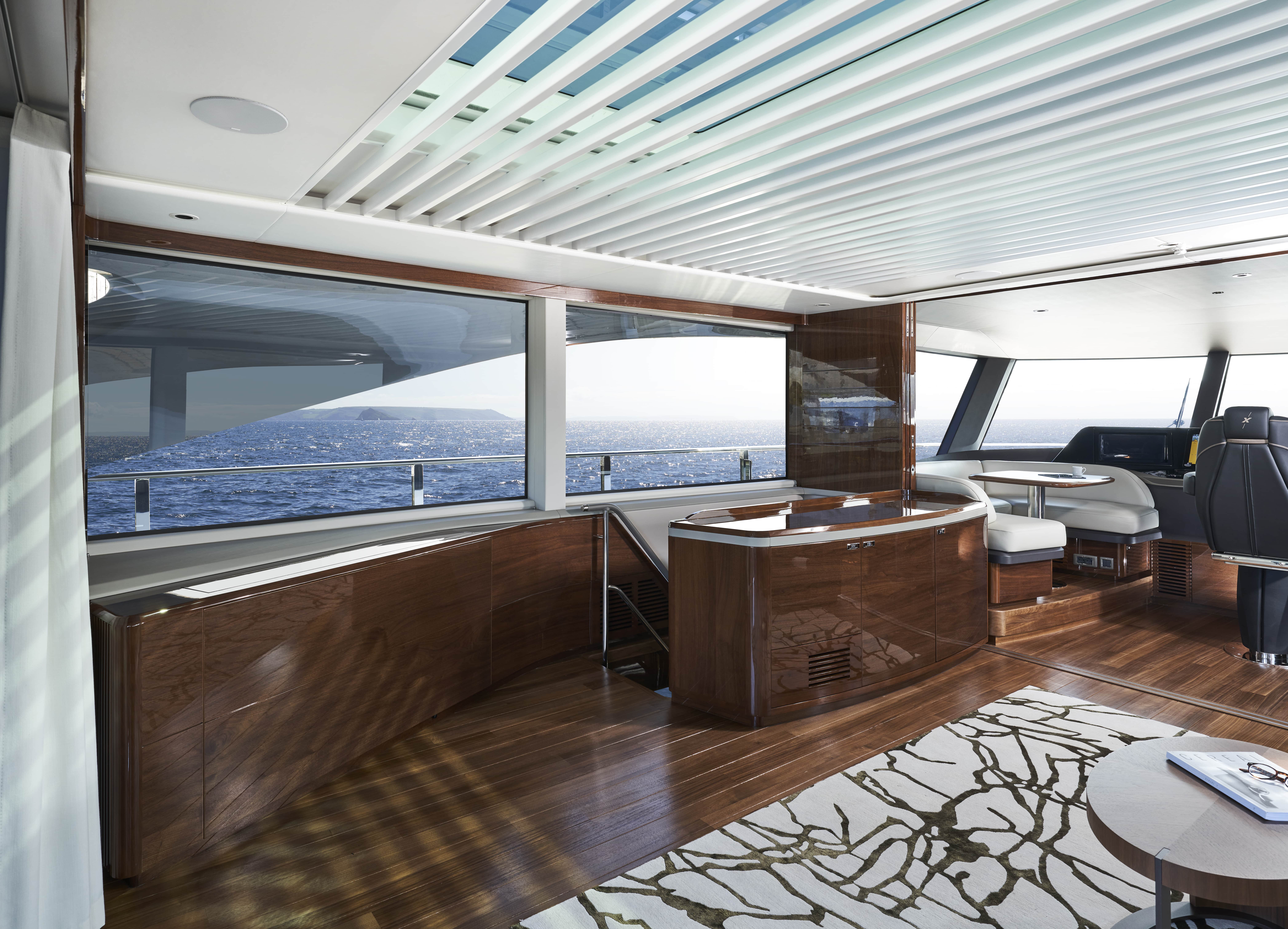

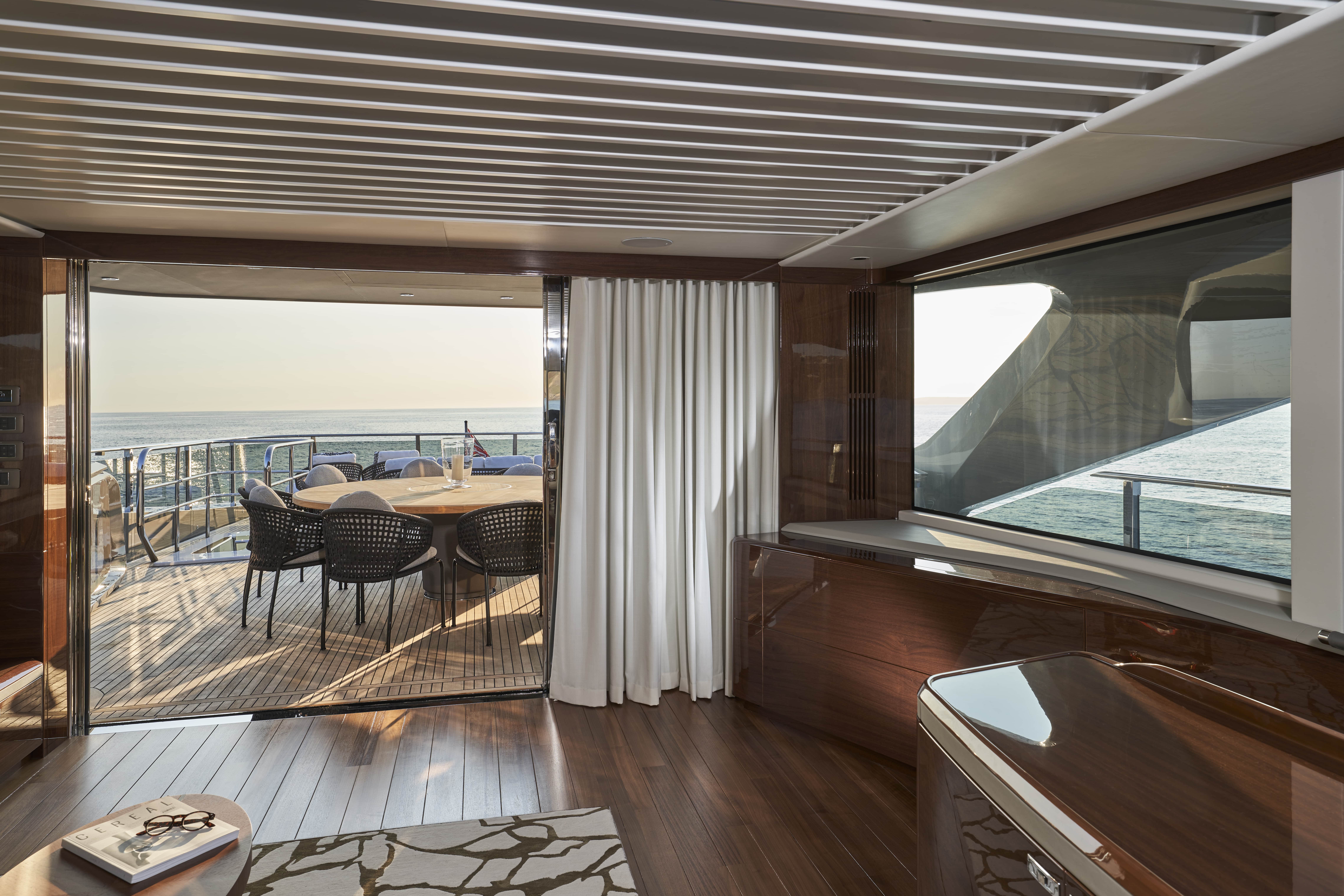

Sky lounge
L-shaped sofa, coffee table and pouf
55” 4K UHD LED TV on rise and fall
DVD Blu-ray system with Naim Uniti Atom audio system speakers (2)
Sideboard with fridge and storage
Access stairway to main deck
Stainless steel opening glass doors to aft deck area
USB charging points (2)
Dimmable LED overhead and concealed lighting (24v) with scene selection
Tinted panoramic toughened side windows
Glazed roof panels with powered blinds
Electric blinds to all side windows
Timber flooring (V groove planked) with rug inlay

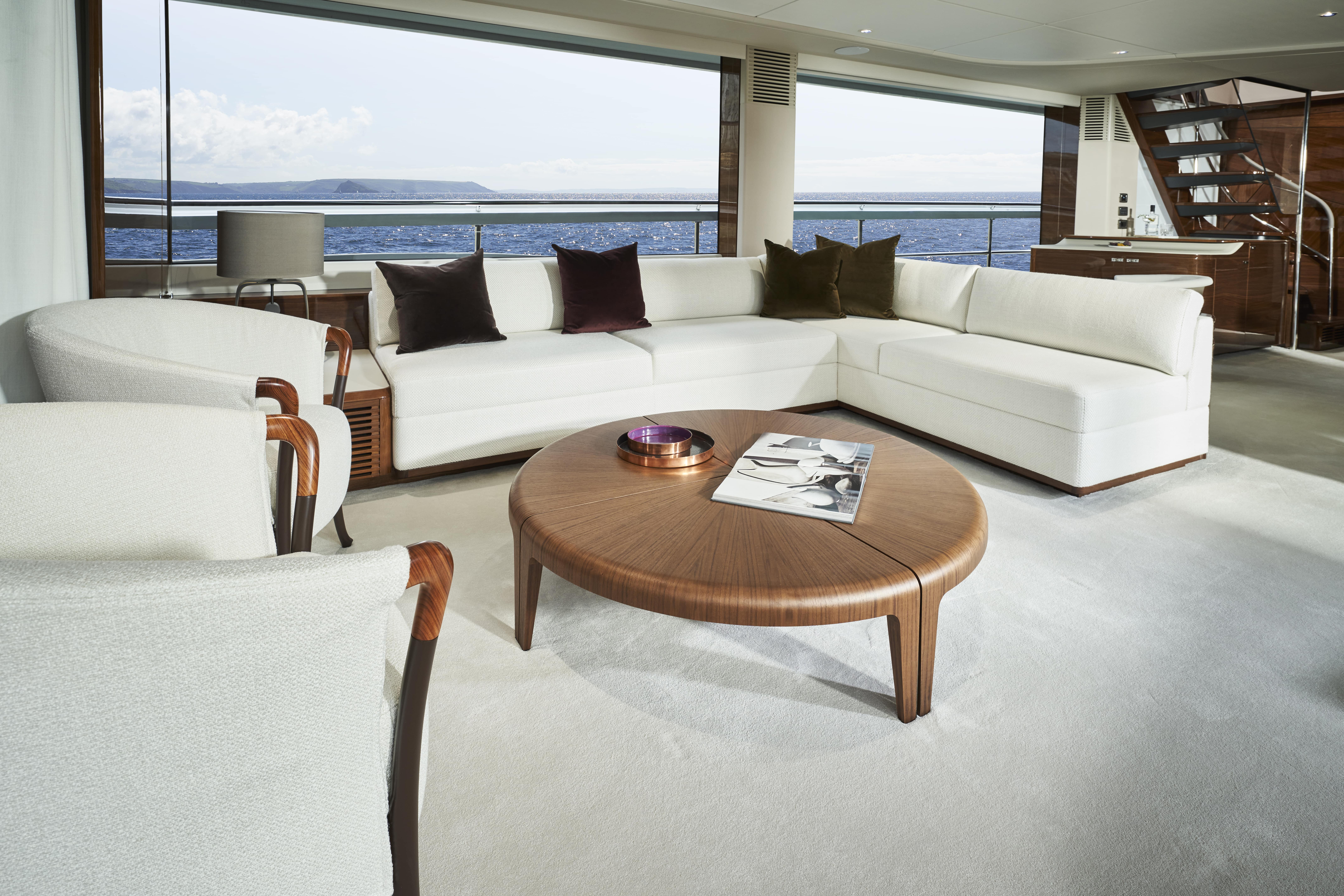

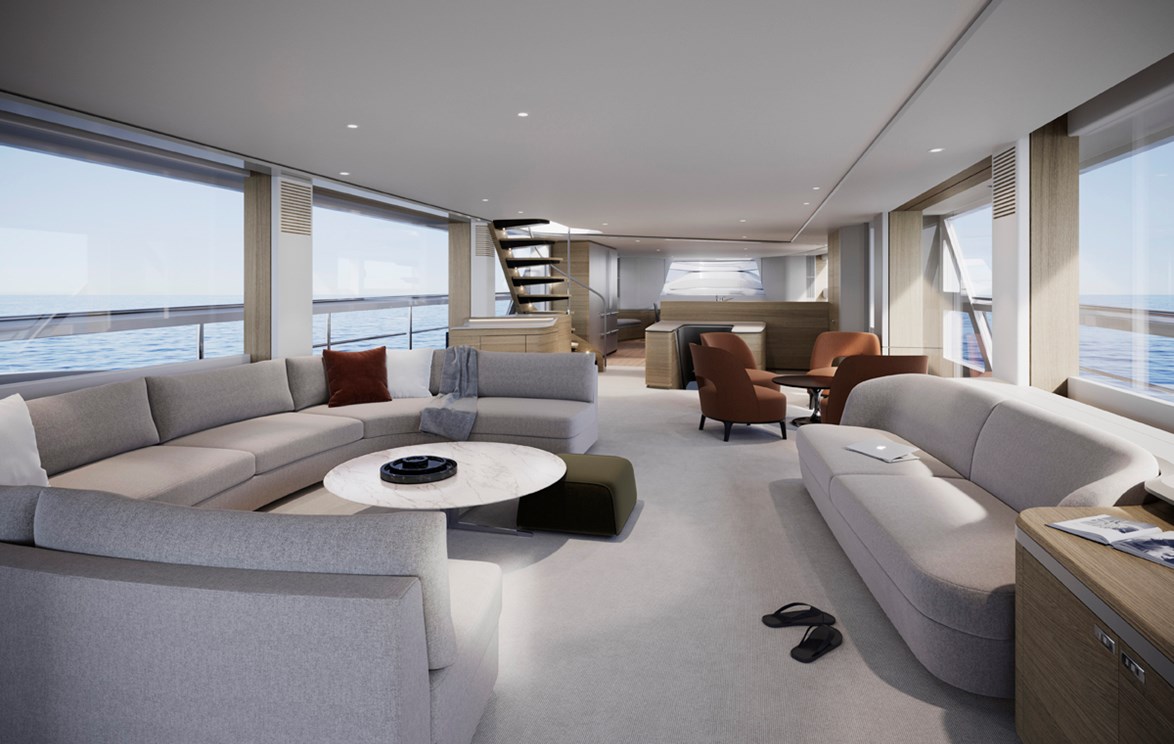

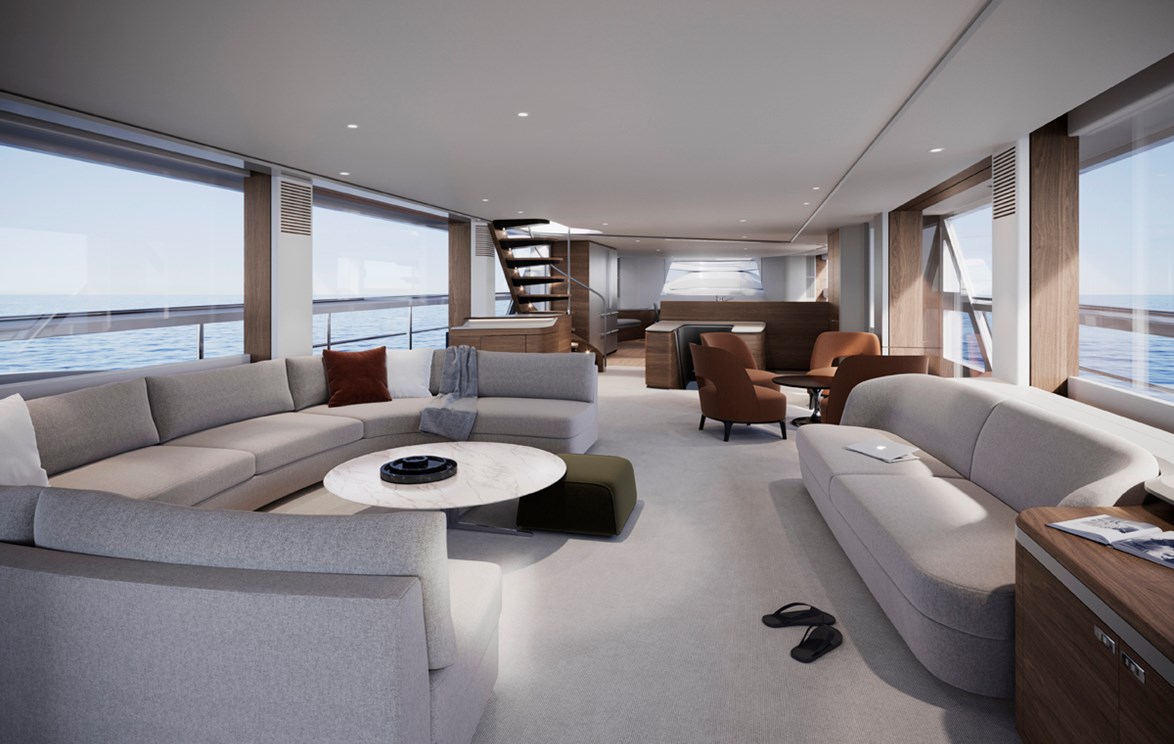

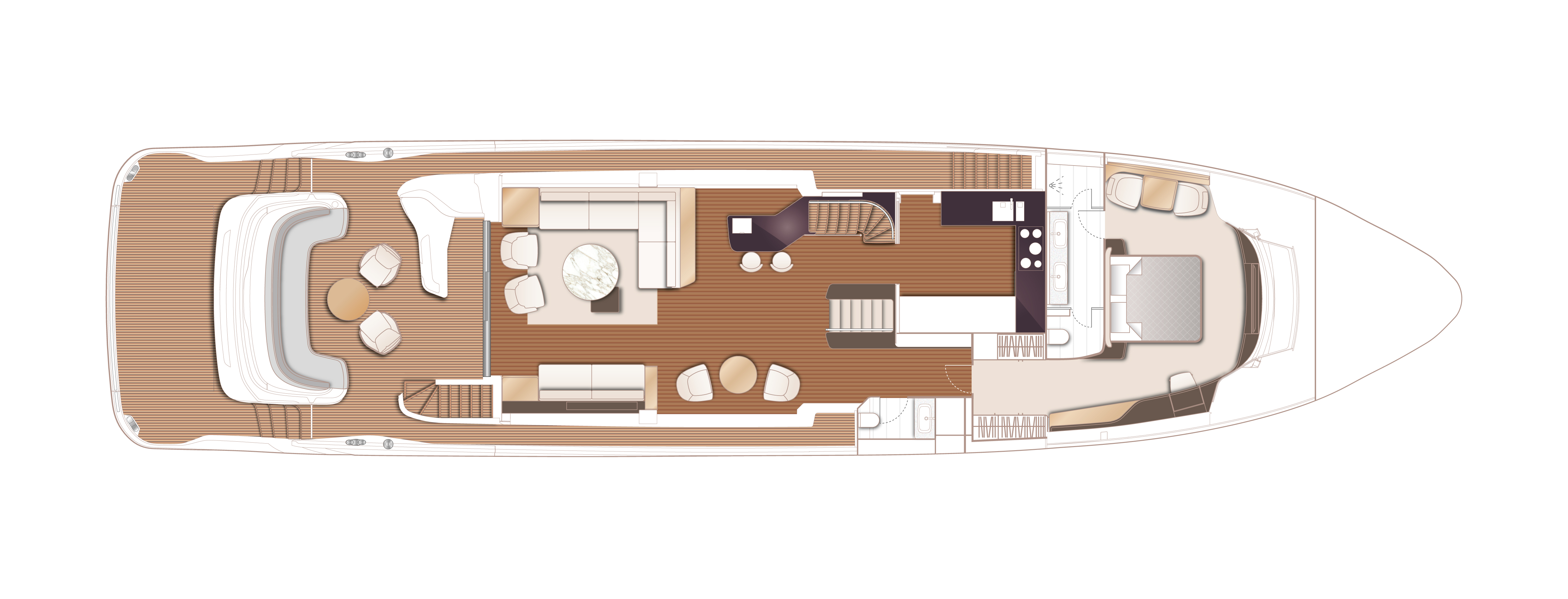

Saloon
Large curved sofa to port with storage below
Curved sofa to starboard with storage below

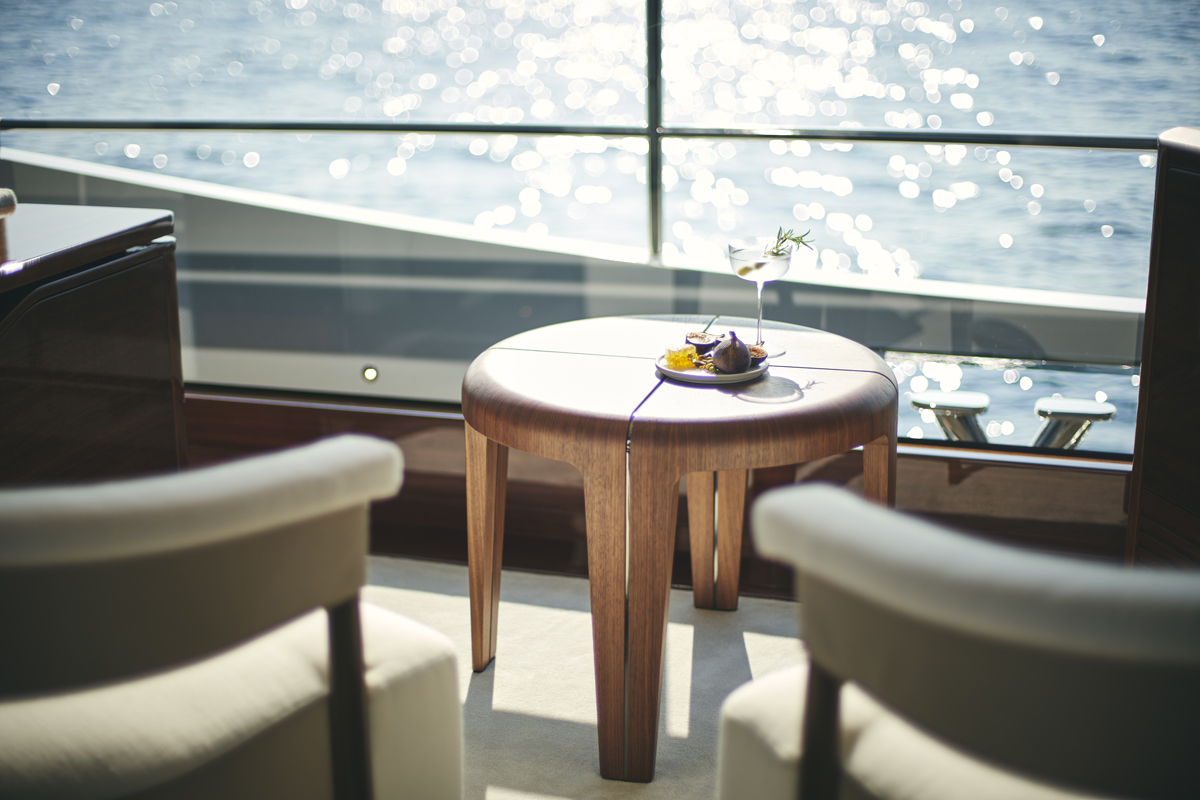

Coffee table with pouf
65” 4K UHD LED TV on rise and fall.
Naim audio system with speakers (4) and subwoofer
Servery unit with integrated drinks refrigerator, bottle storage and icemaker (located on port side forward of saloon)

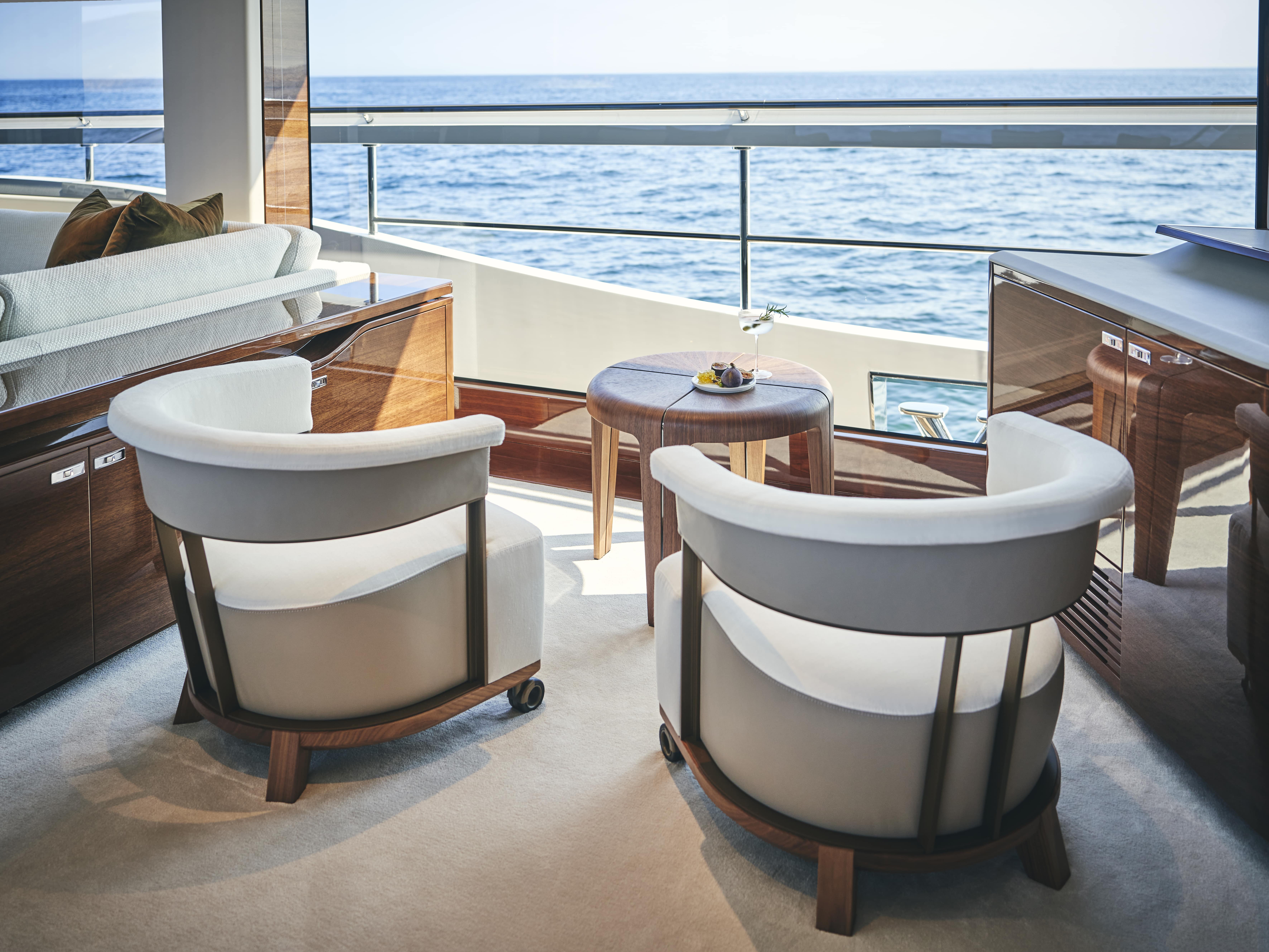

Occasional coffee table with four armchairs to starboard
Full height glazing port and starboard in way of servery unit/bar and starboard free standing seating areas
Panoramic tinted toughened glass windows port and starboard
Triple stainless steel framed cockpit doors
Watertight side hinge door to starboard side deck

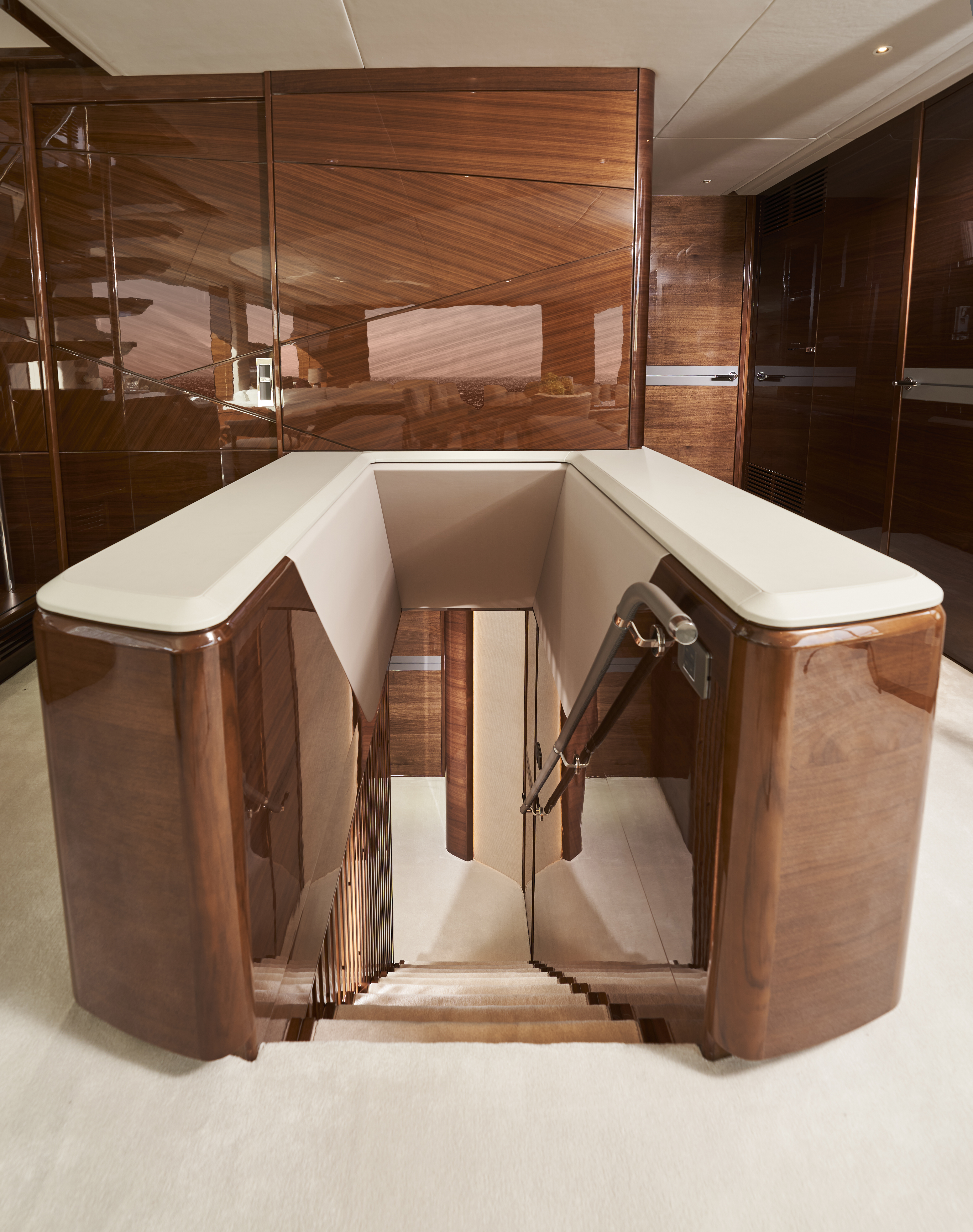

Access stairway to lower accommodation

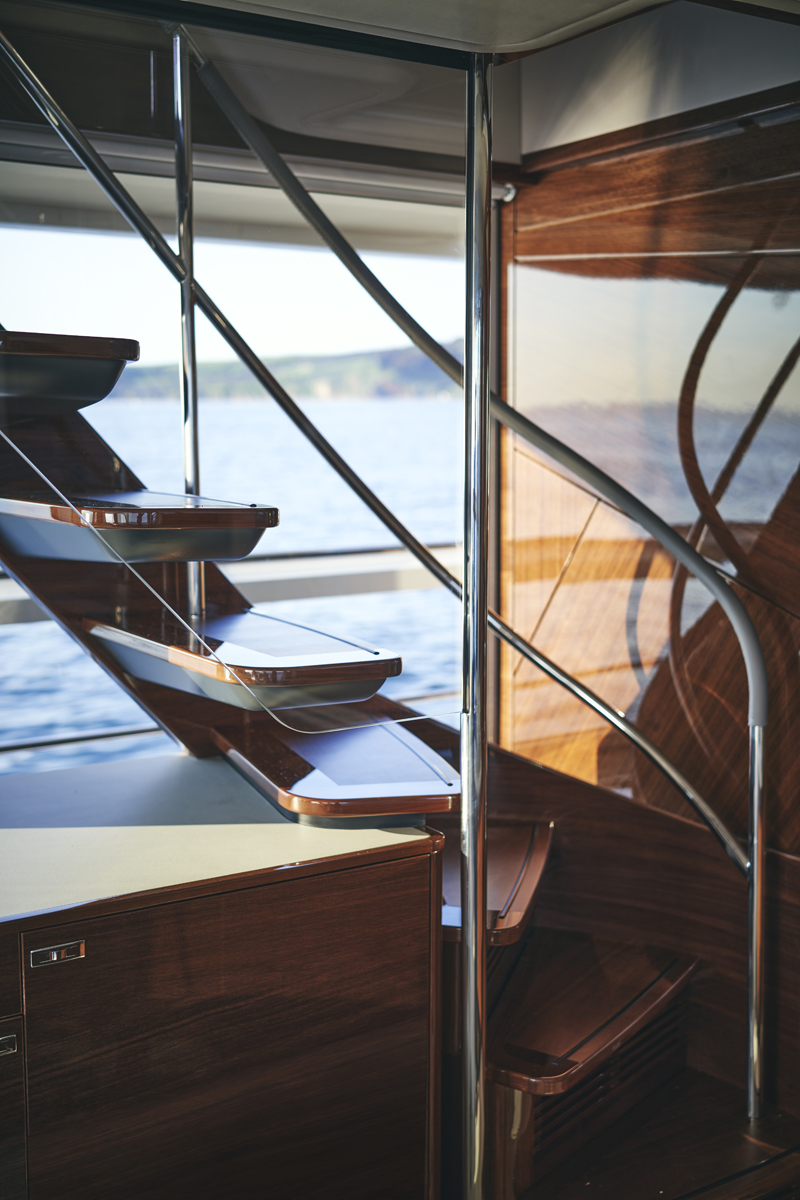

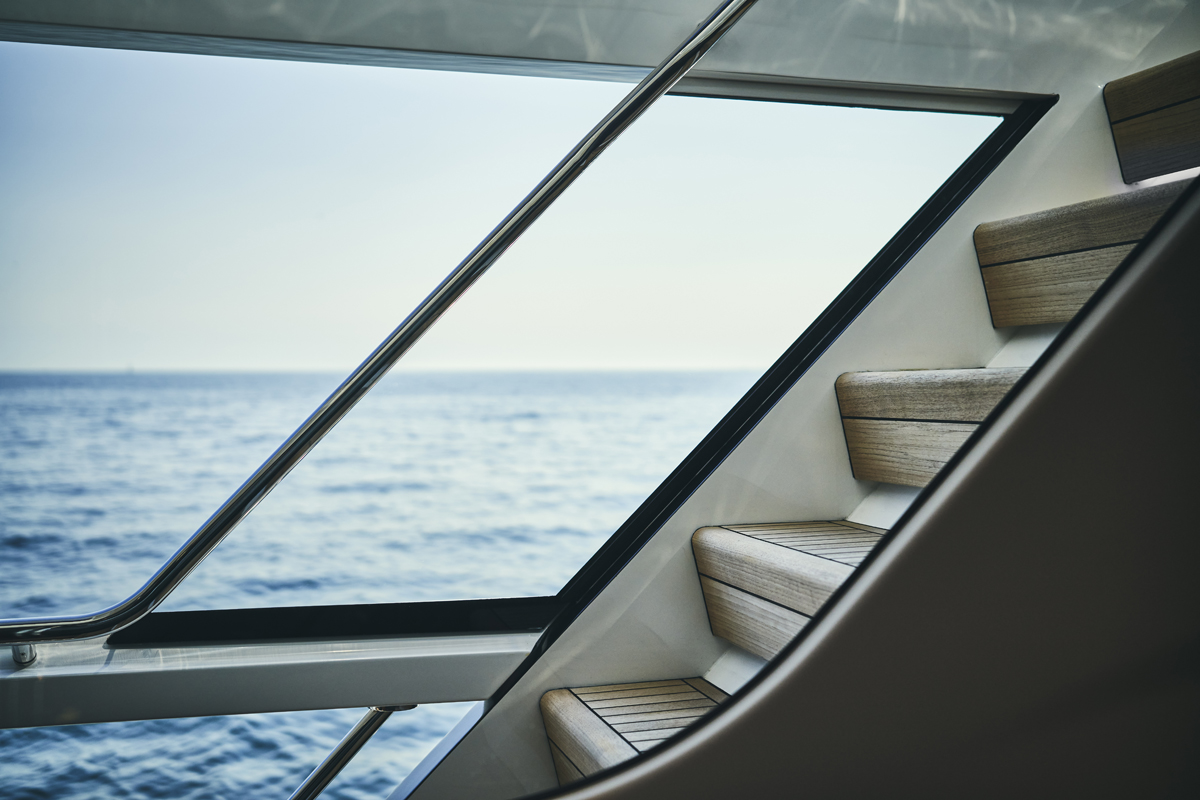

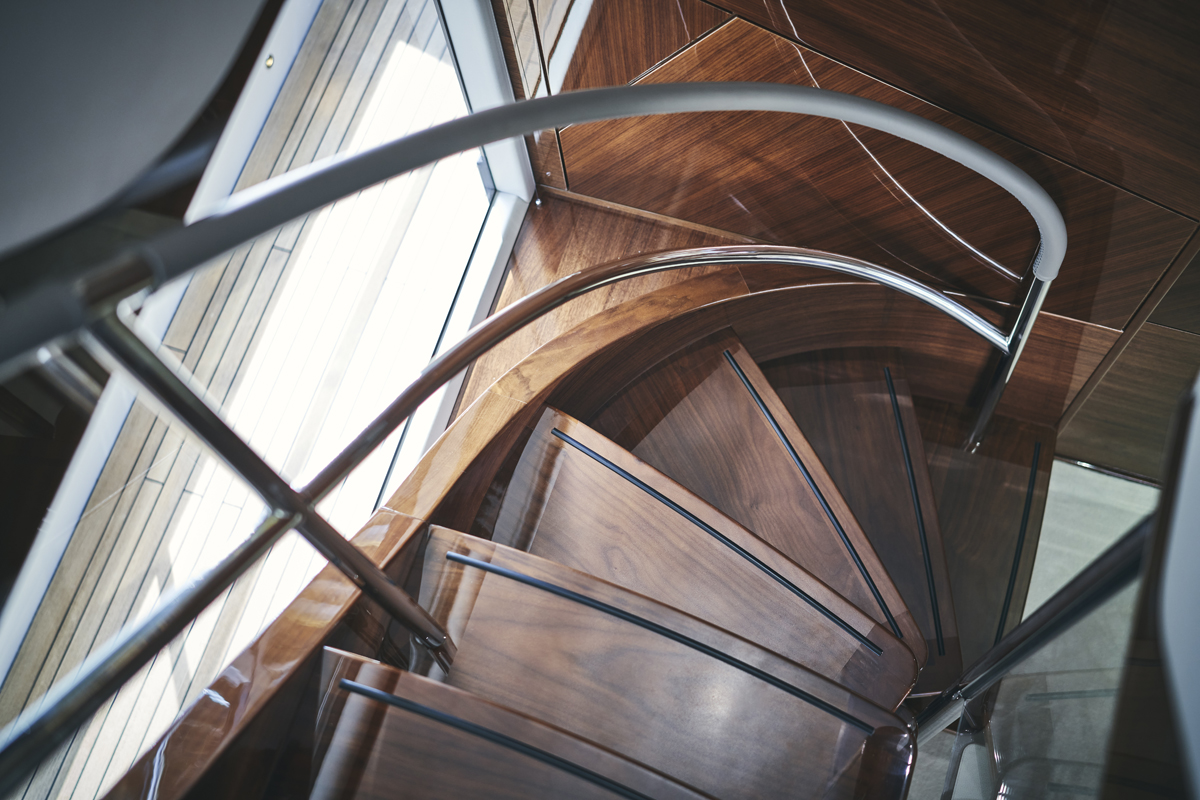

Access stairway to skylounge
Dimmable LED overhead and concealed lighting with scene selection
220/240v outlets (4)
USB charging points (2)
Electric roller blinds to outboard windows
Manual curtains on wave track to aft patio doors
Fitted carpet

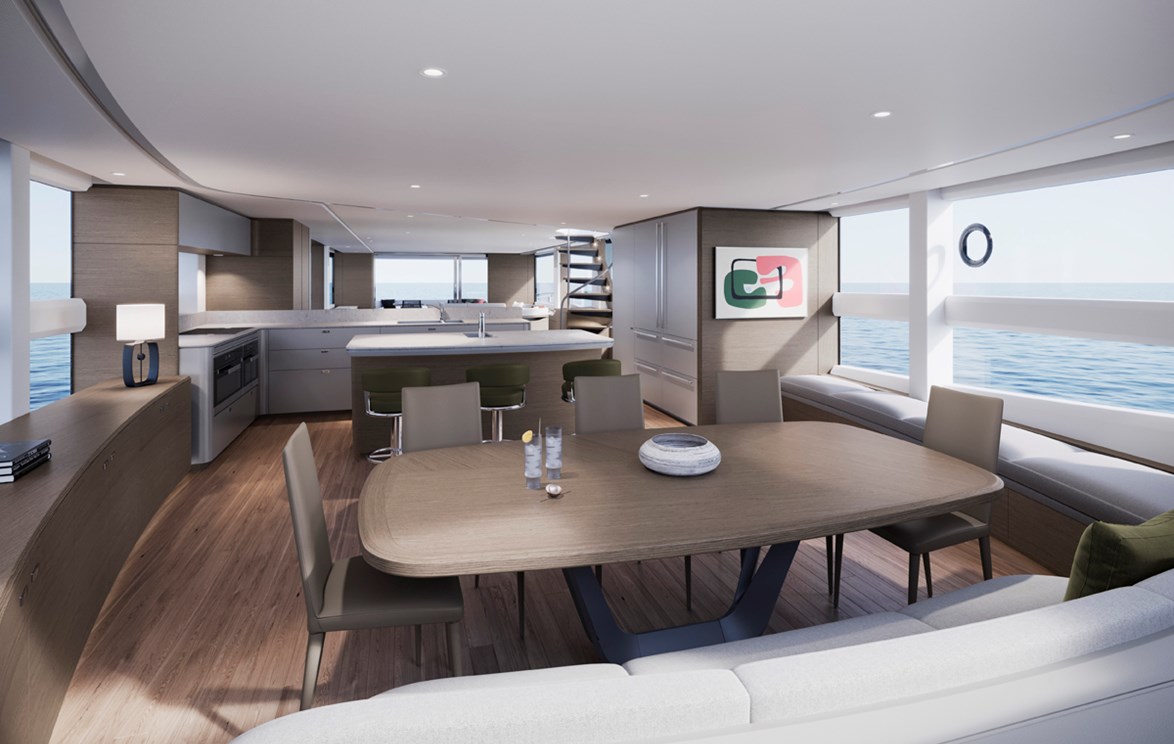

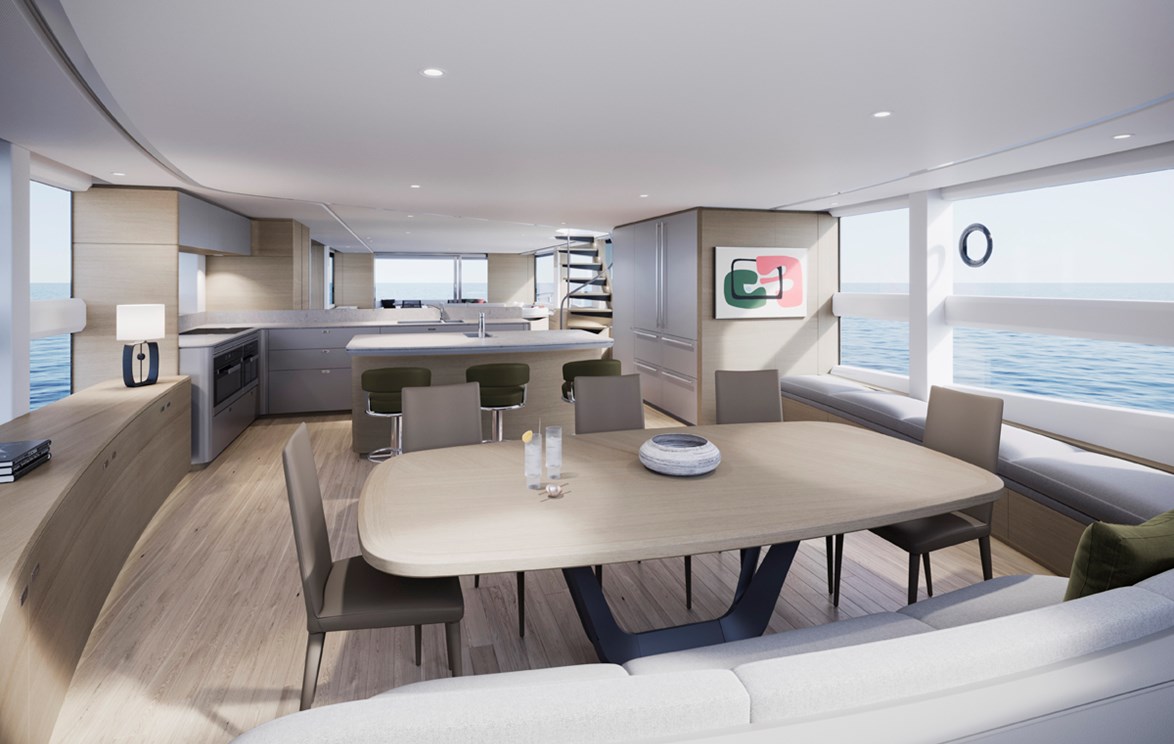

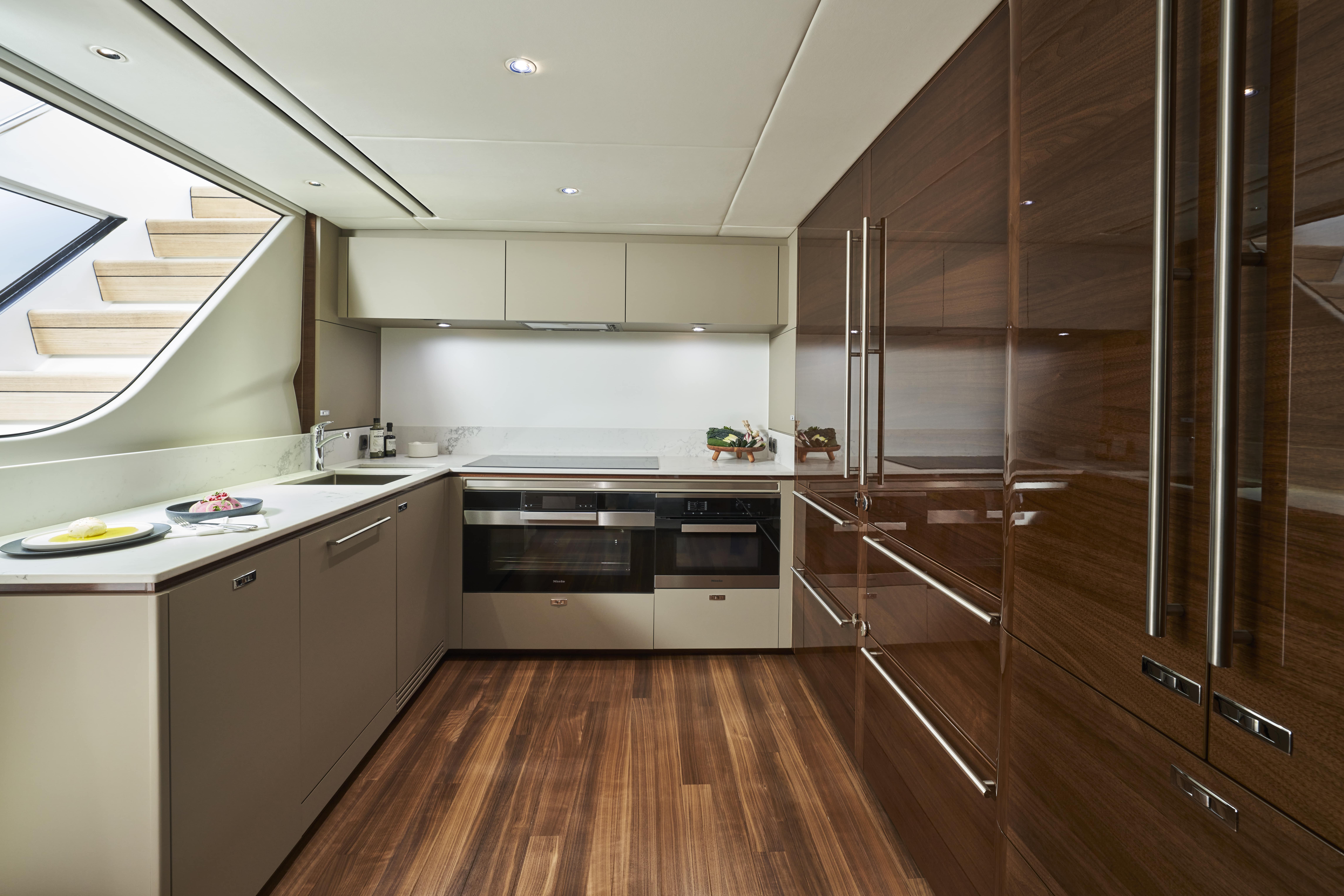

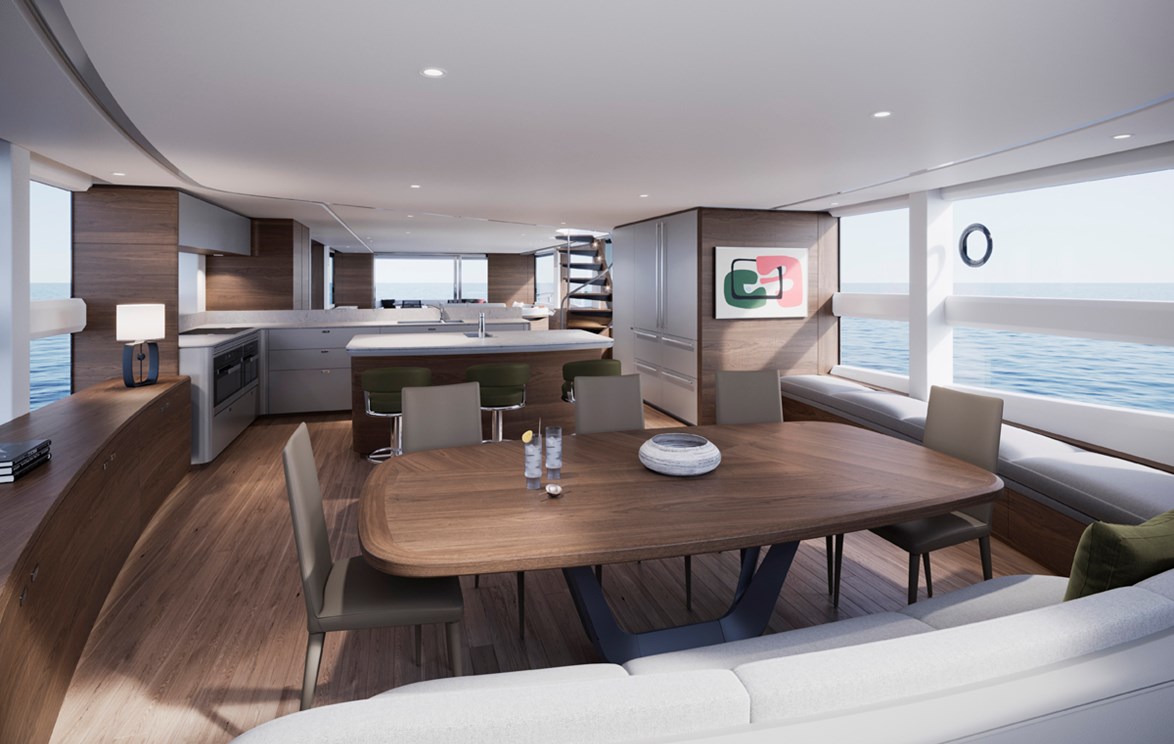

Galley
Open layout / country kitchen with forward dining area
Galley and island unit counter top in choice of granite or quartz
Miele 5 zone induction hob
900mm wide conventional oven
Miele Combination convection/microwave oven with grill
Twin full height refrigeration units with deep freeze drawers
Island unit/breakfast bar with triple stainless steel sinks, 12 place dishwasher, storage and space for optional drawer fridge

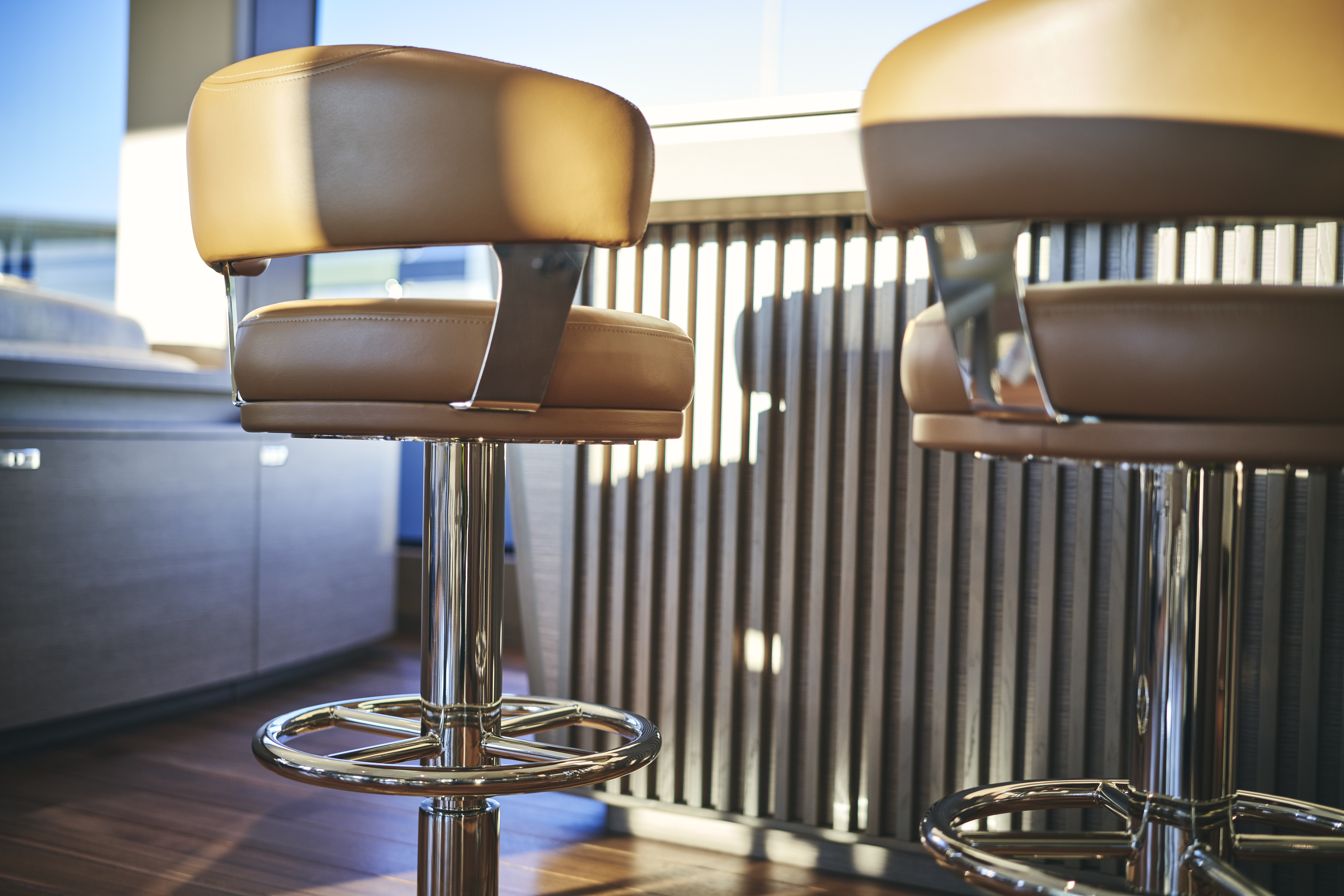

Barstools (3)
Waste bin
High and low level storage cupboards and drawers
Extractor fan
Space for optional wine cooler
Access to deck saloon
Watertight pantograph access door to port side deck (in forward saloon)
220/240v power outlets (4)
Dimmable LED overhead and concealed lighting with scene selection
Electric blinds to windows
Timber flooring (V groove planked)

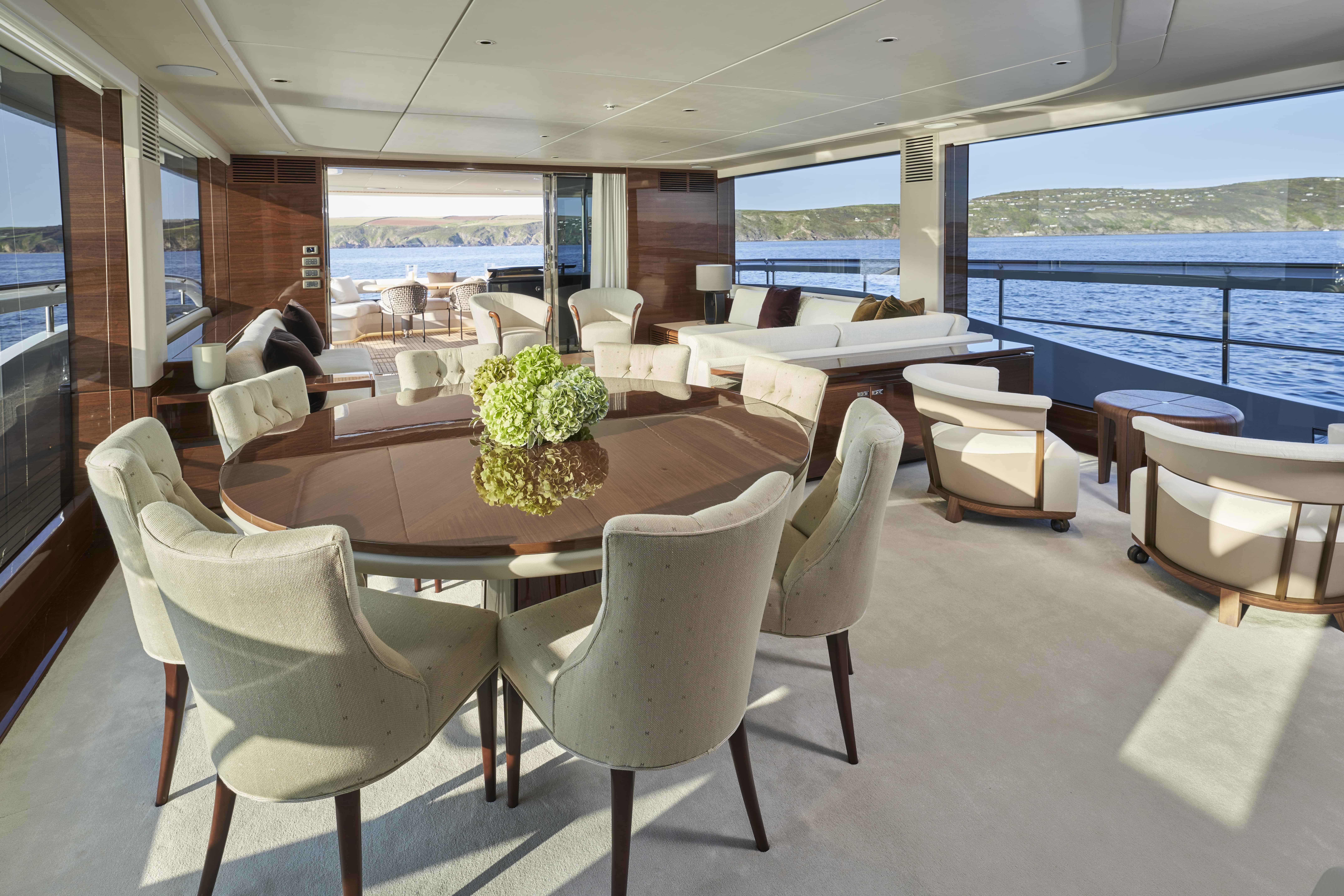

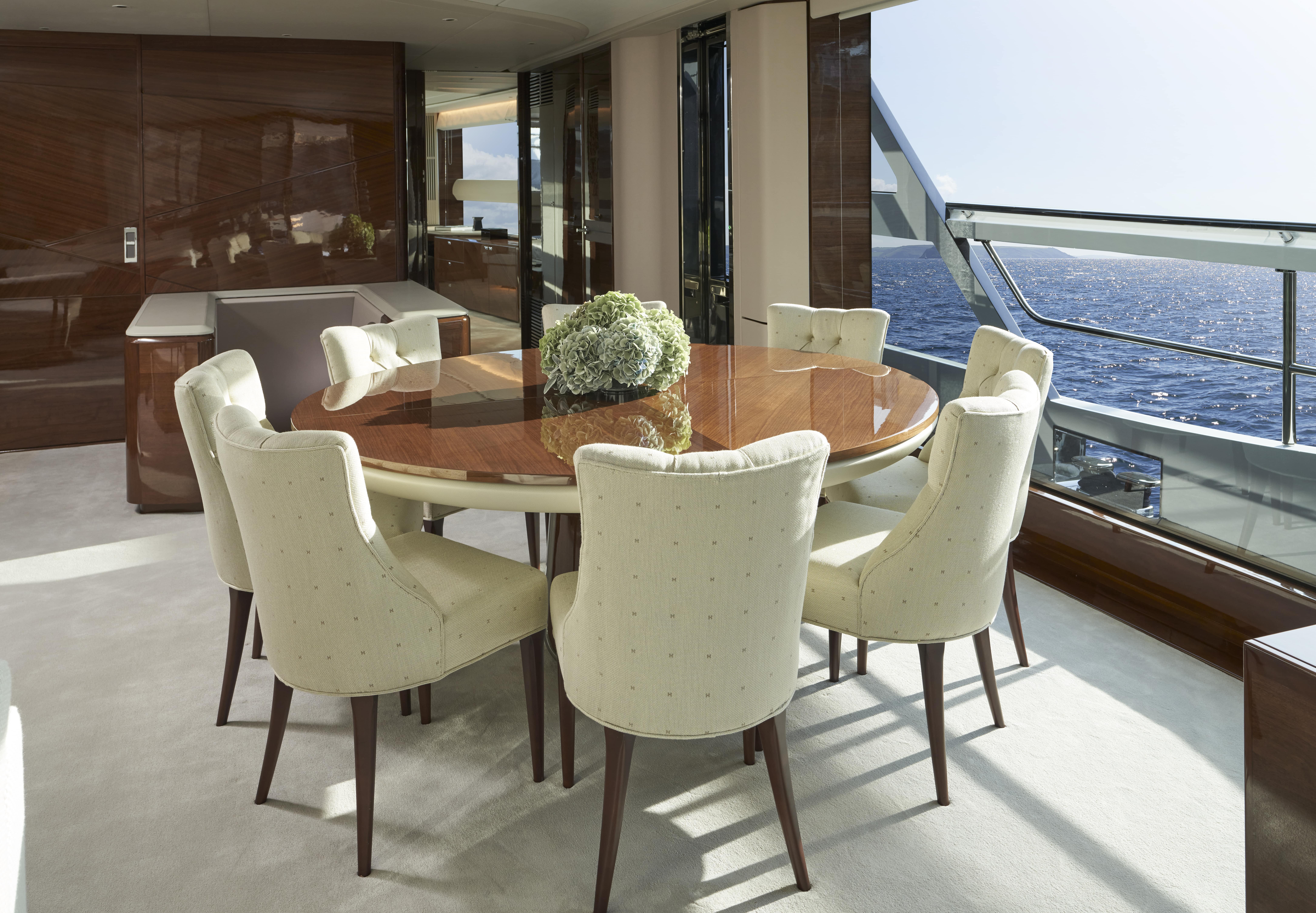

Dining area
Dining table with aft facing fixed seating and dining chairs (5)
Port sideboard bench unit with upholstered top
Sideboard units (2) with crockery, glassware and general storage
Entertainment unit with Naim Uniti Atom audio system and speakers (2)
Ice maker
Cutlery and crockery storage (in port side staircase unit)
220/240v power outlets (2)
USB charging points (4)
Dimmable LED overhead and concealed lighting (24v) with scene selection
Panoramic tinted toughened glass windows port and starboard
Powered blind to forward glazing
Electric roller blinds to windows
Timber flooring (V groove planked)
Day head
Electric freshwater toilet
Wash hand basin and counter top in thermoformed solid surface
Storage cupboard
Manual tension venetian blind
Marble/granite/quartz floor

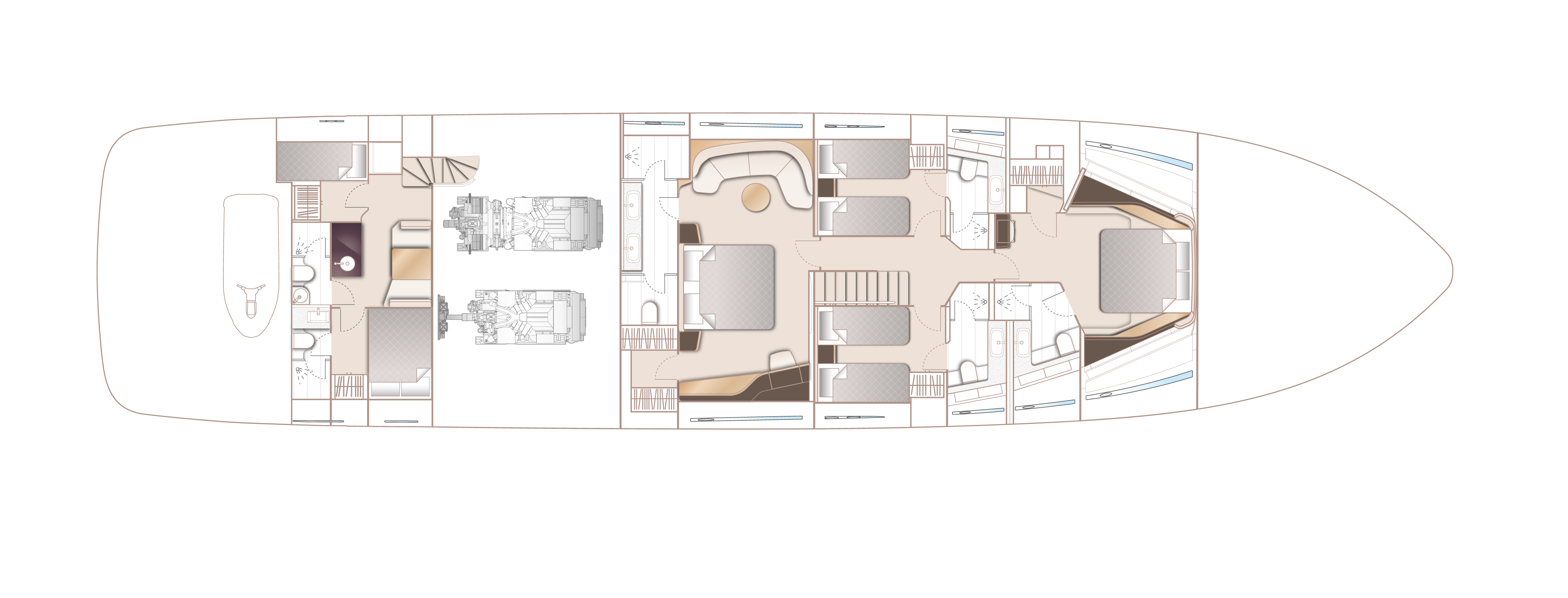

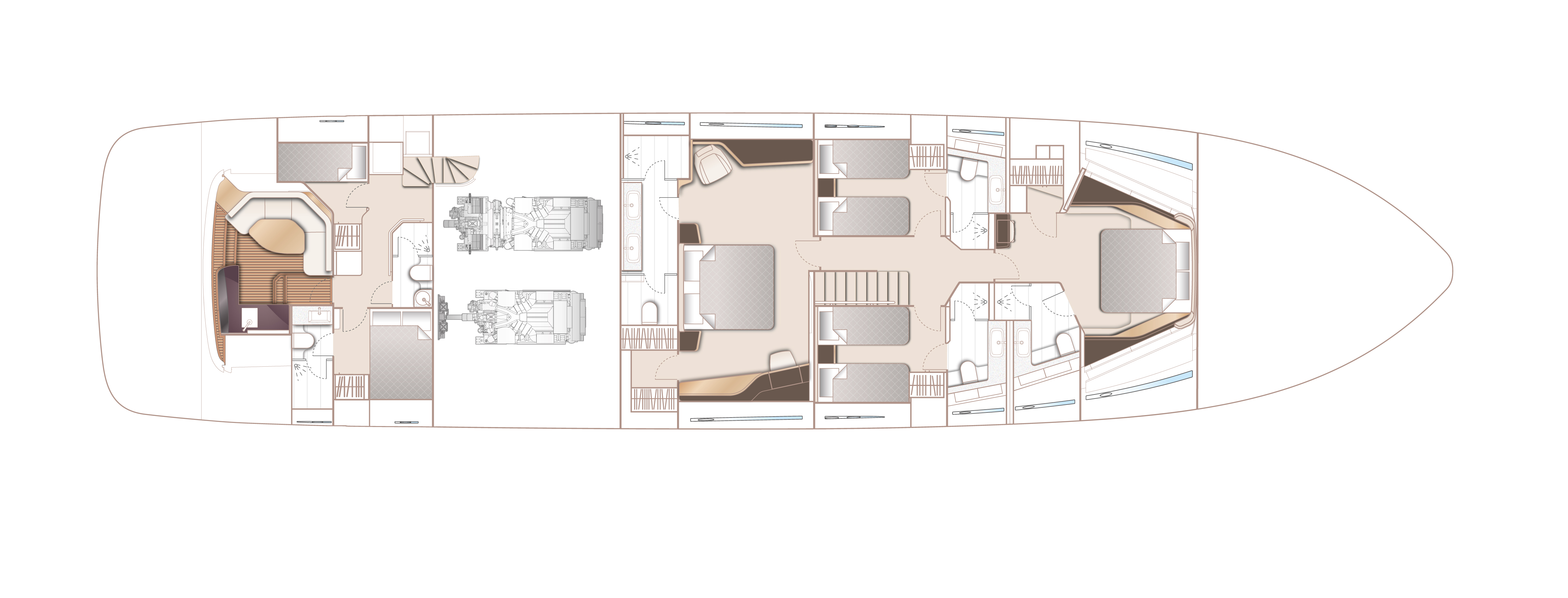

Accommodation
All cabins and bathrooms feature opening portholes and air conditioning
All cabins feature 220/240v powerpoints
All en-suites feature 240v shaver points

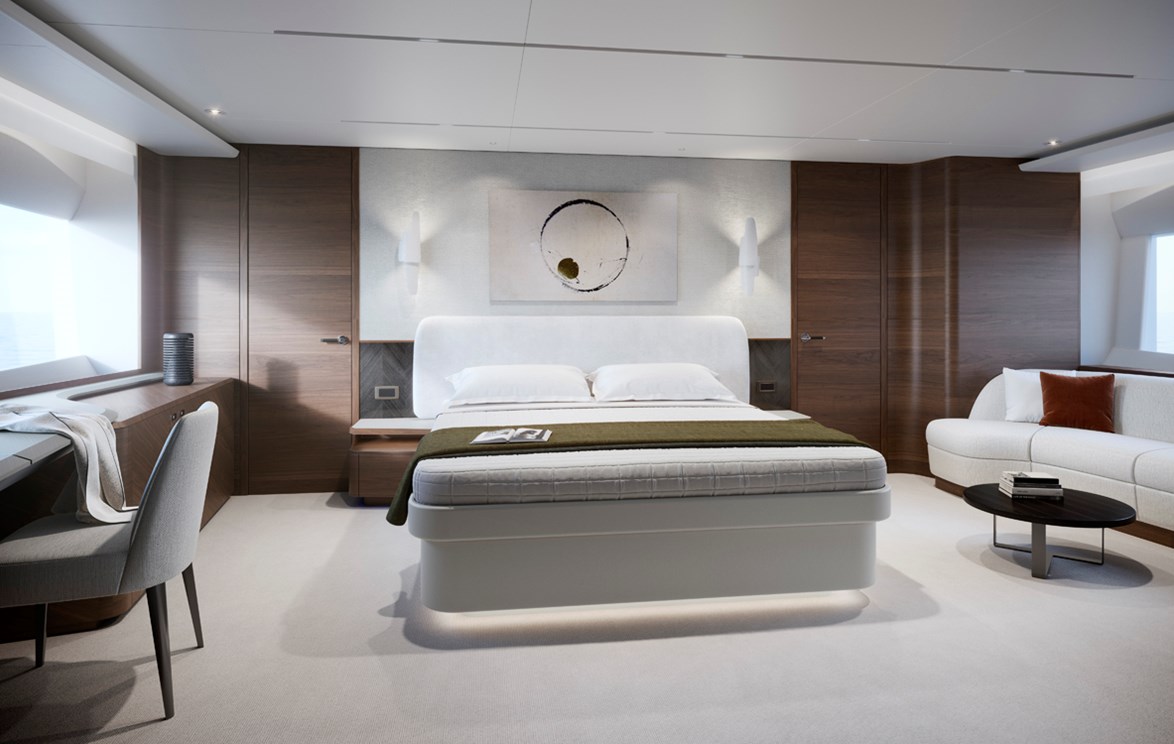

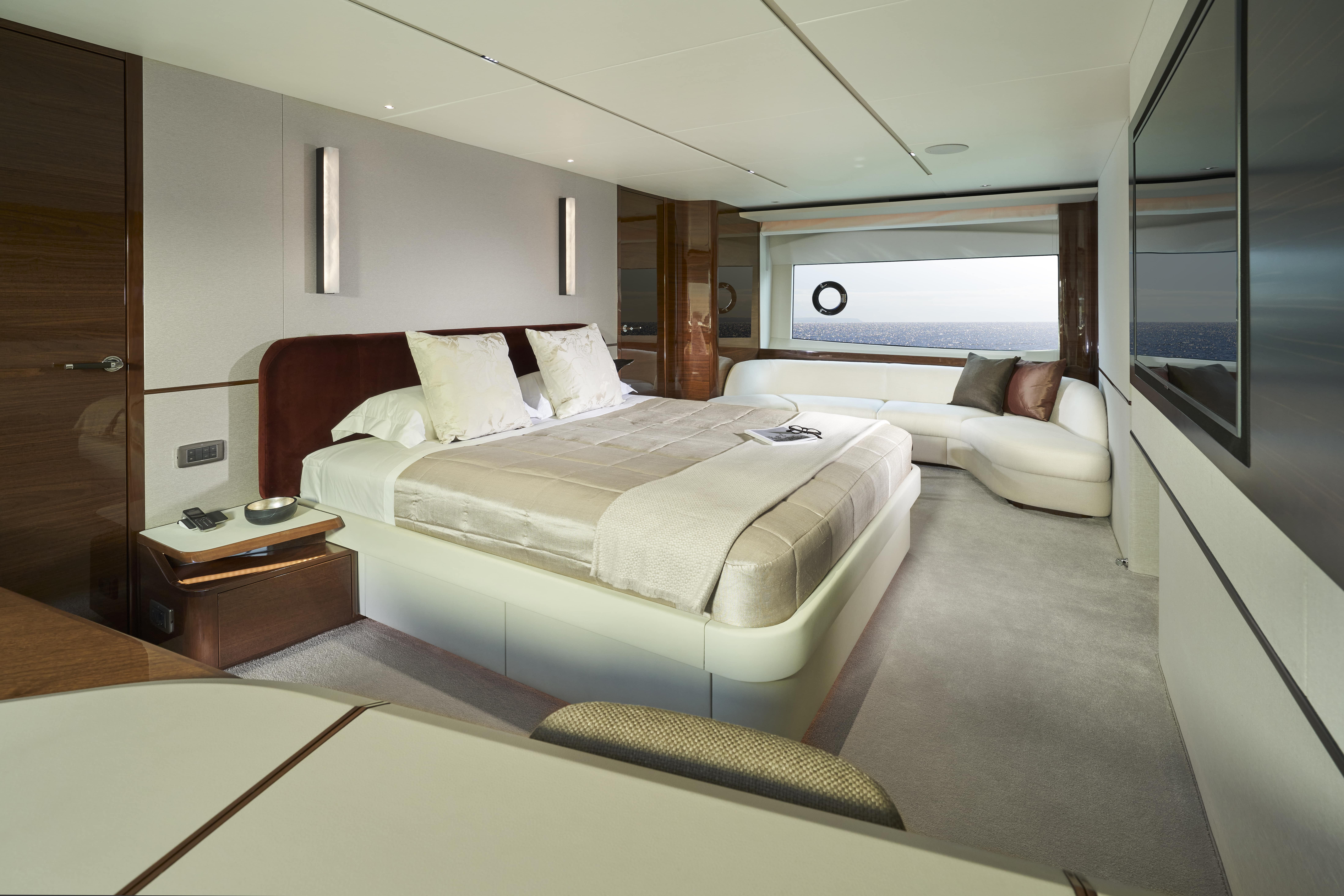

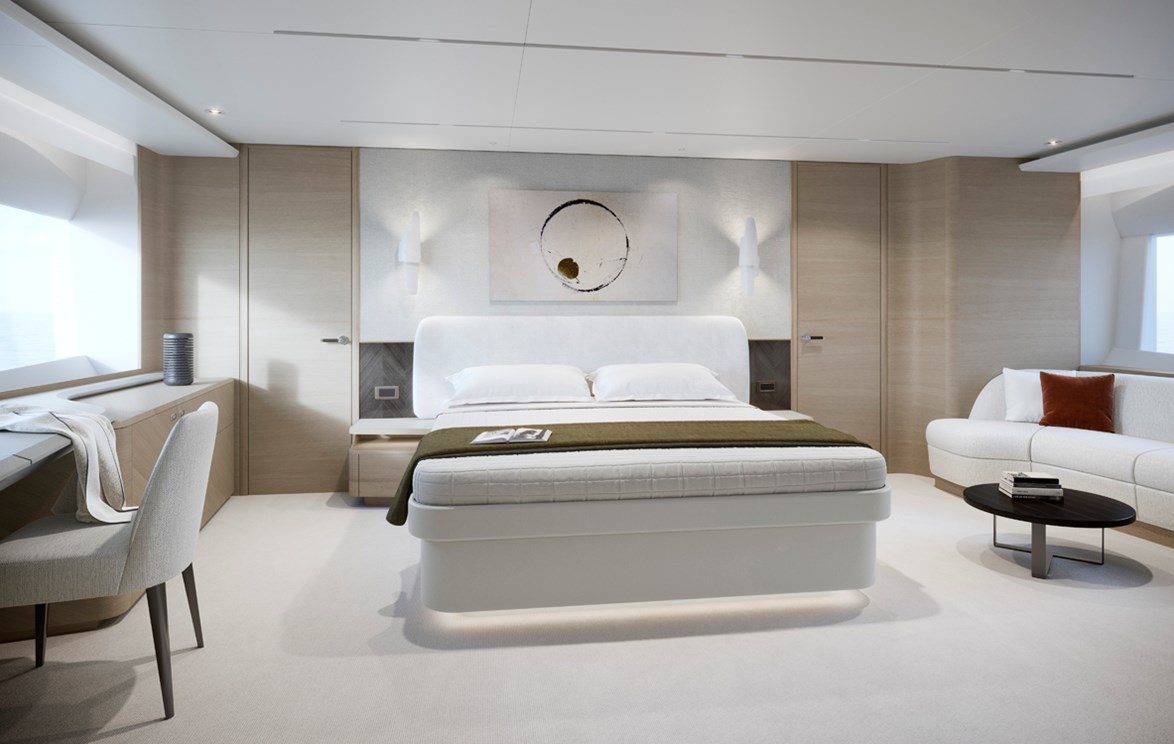

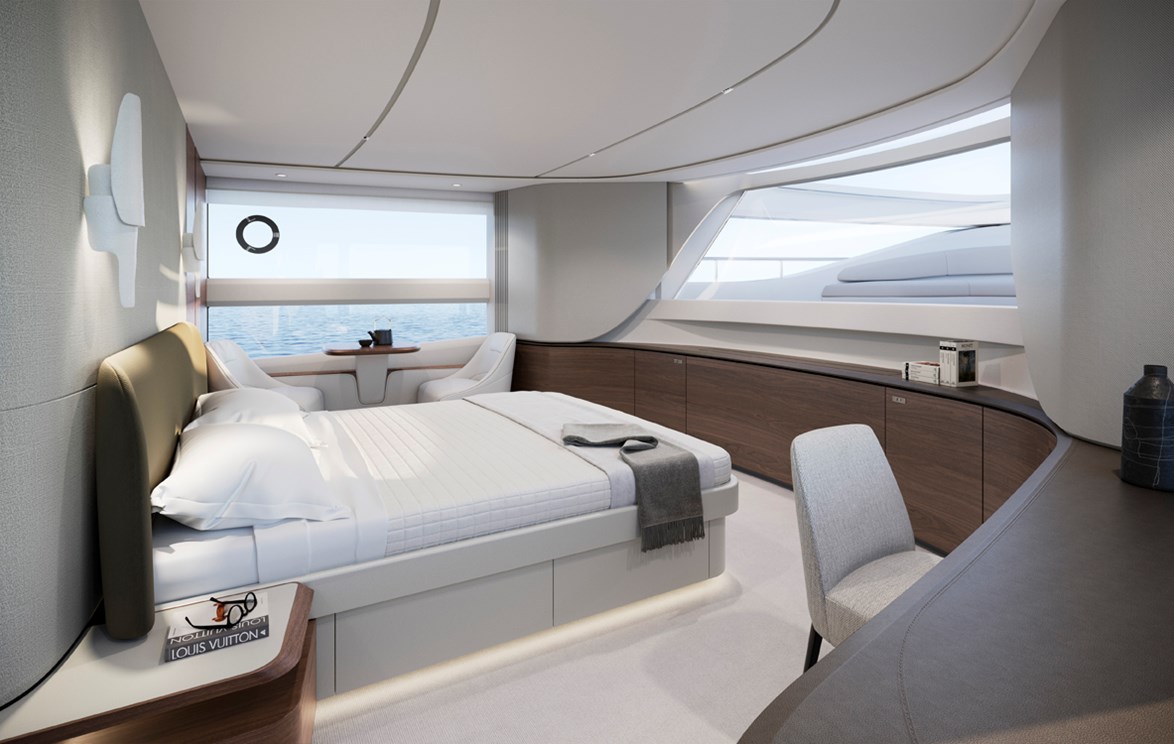

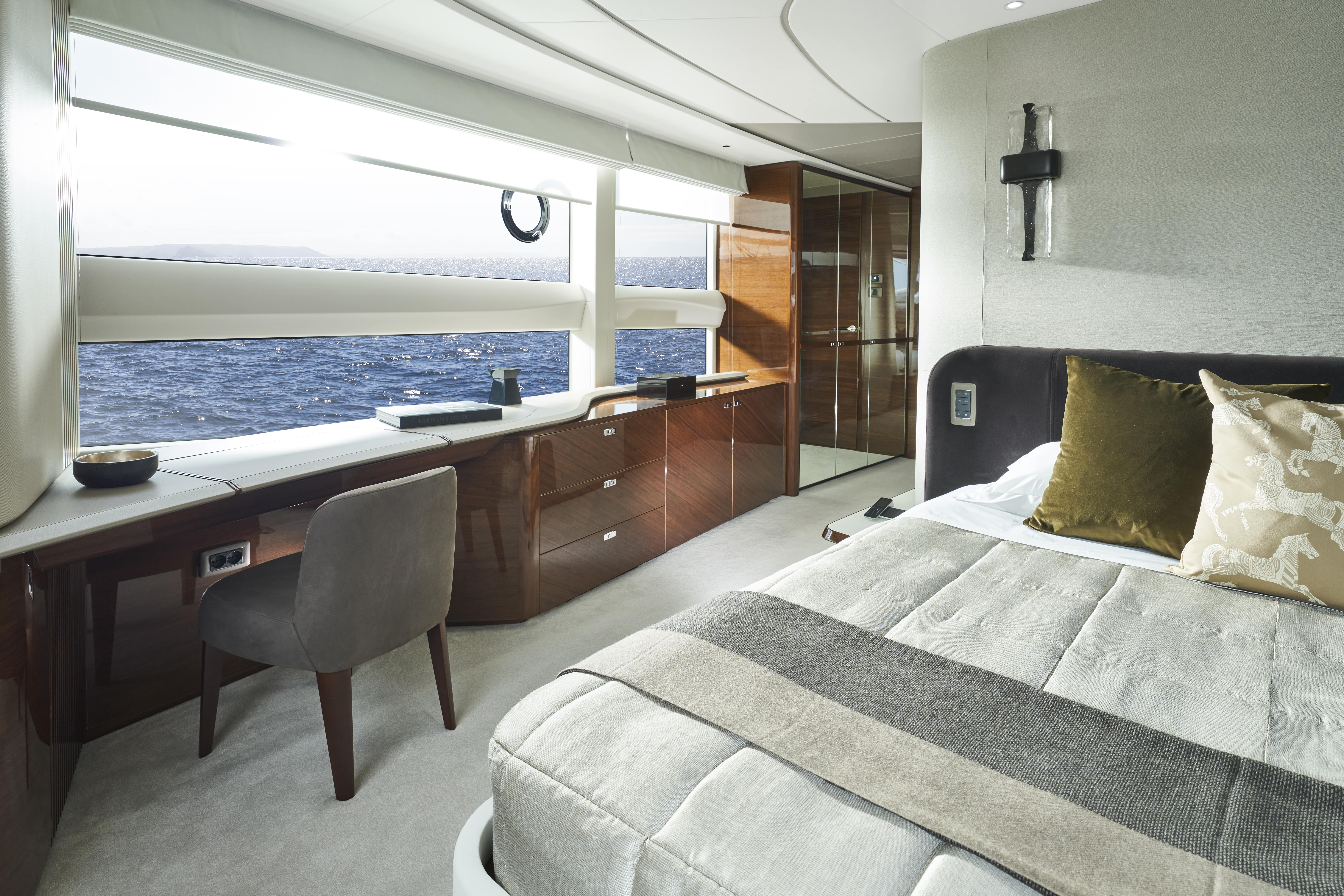

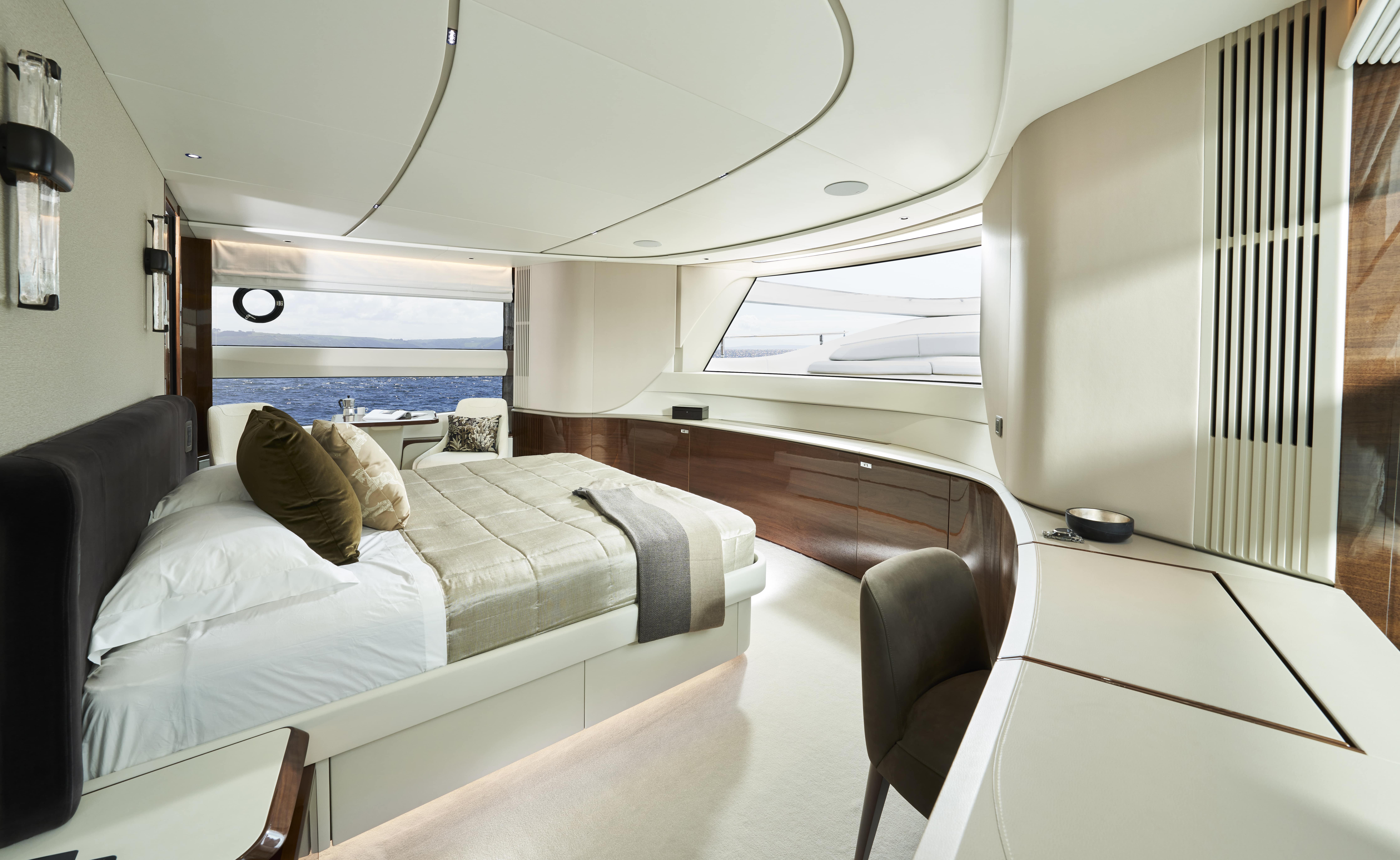

Owners stateroom
Large double bed with bedside tables and drawers below

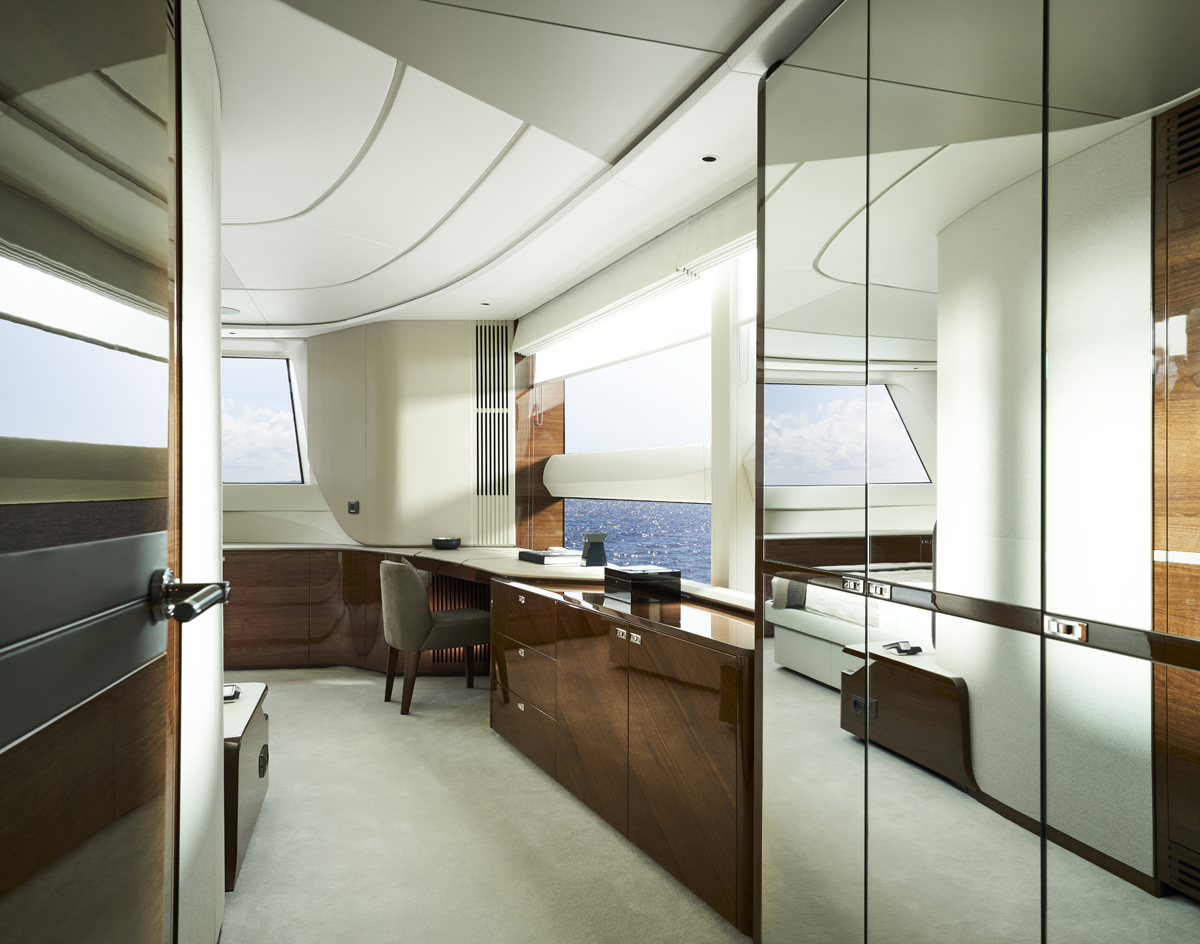

Dressing area with full length mirror, hanging, shelf and drawer storage
Built-in safe

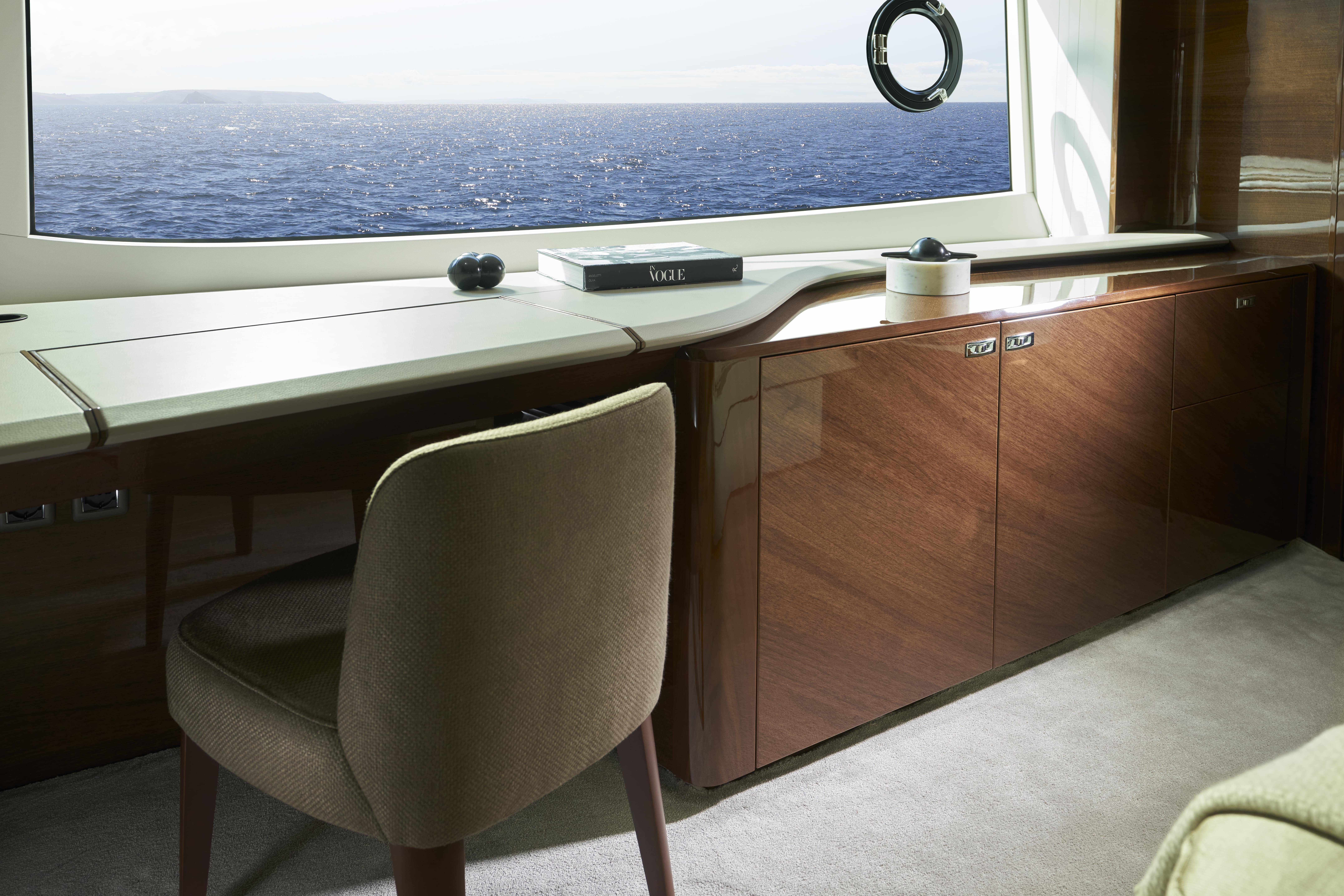

Starboard dressing table with integrated mirror, chair, storage drawers and cupboards

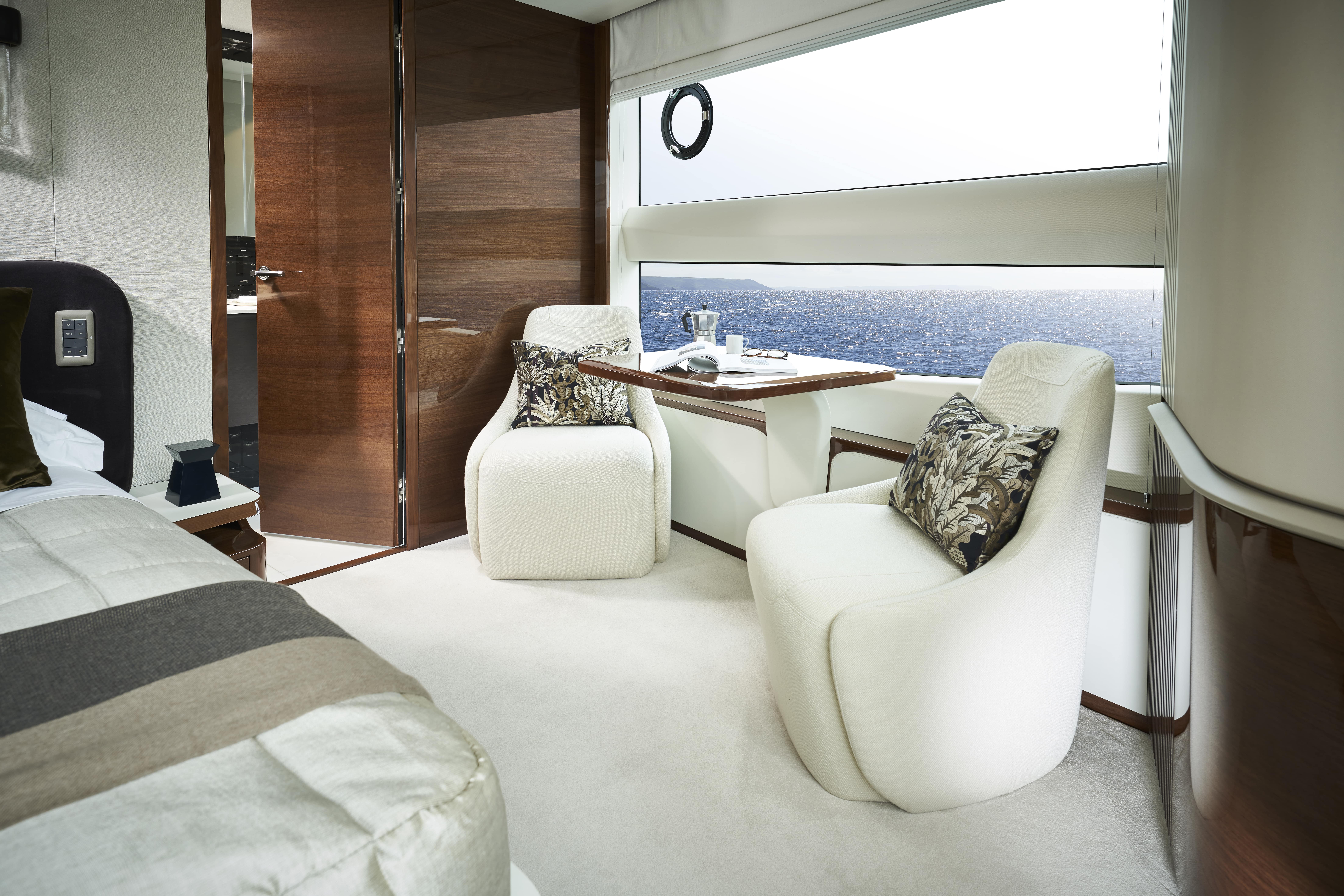

Portside sofa with storage below and coffee table
55” 4K UHD LED TV
Naim audio system with speakers (2) and subwoofer

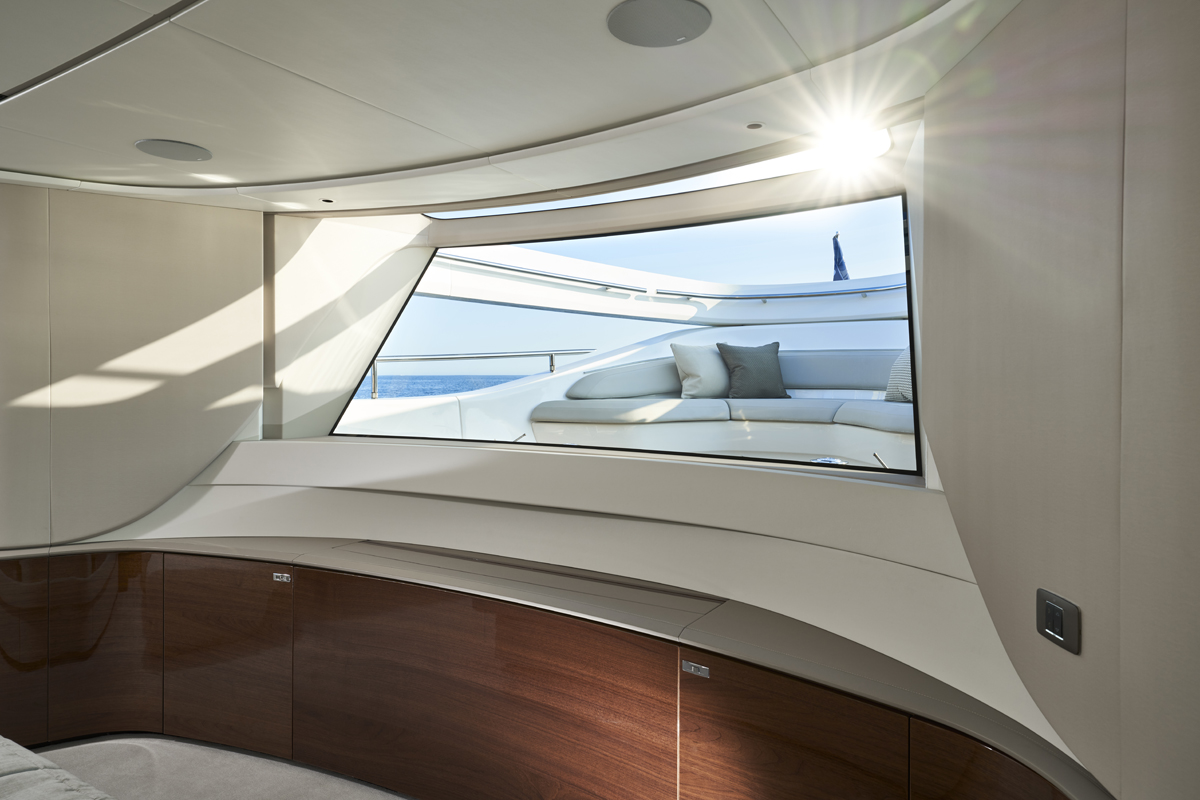

Panoramic windows including opening portholes
Electric roman blinds to hull windows, with out-board manual sheer roller blind
Dimmable LED overhead and concealed lighting (24v) with scene selection
Wall lights (2)
220/240v outlets (4)
USB connection points (4)
Fitted carpet

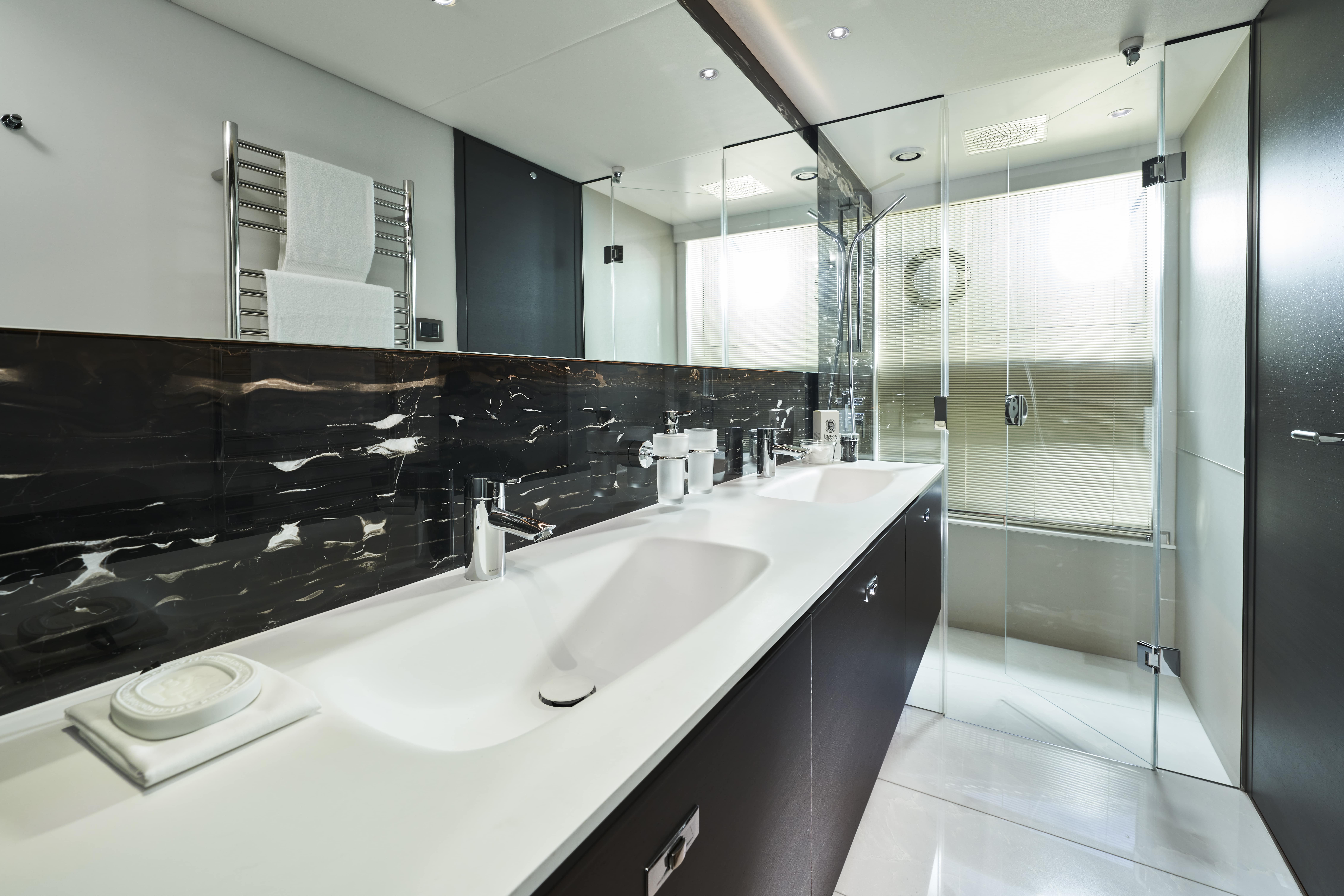

En-Suite Bathroom
Twin washbasins and counter top in thermoformed solid surface
Mirror
Storage lockers
Separate compartment with toilet and option of combination toilet/bidet
Shower compartment with automatic pump out
Extractor fan
Window with opening porthole
Manual tension venetian blind
LED overhead and concealed lighting (24v)
Bathroom accessories
Marble/granite/quartz to floor and specified bulkheads

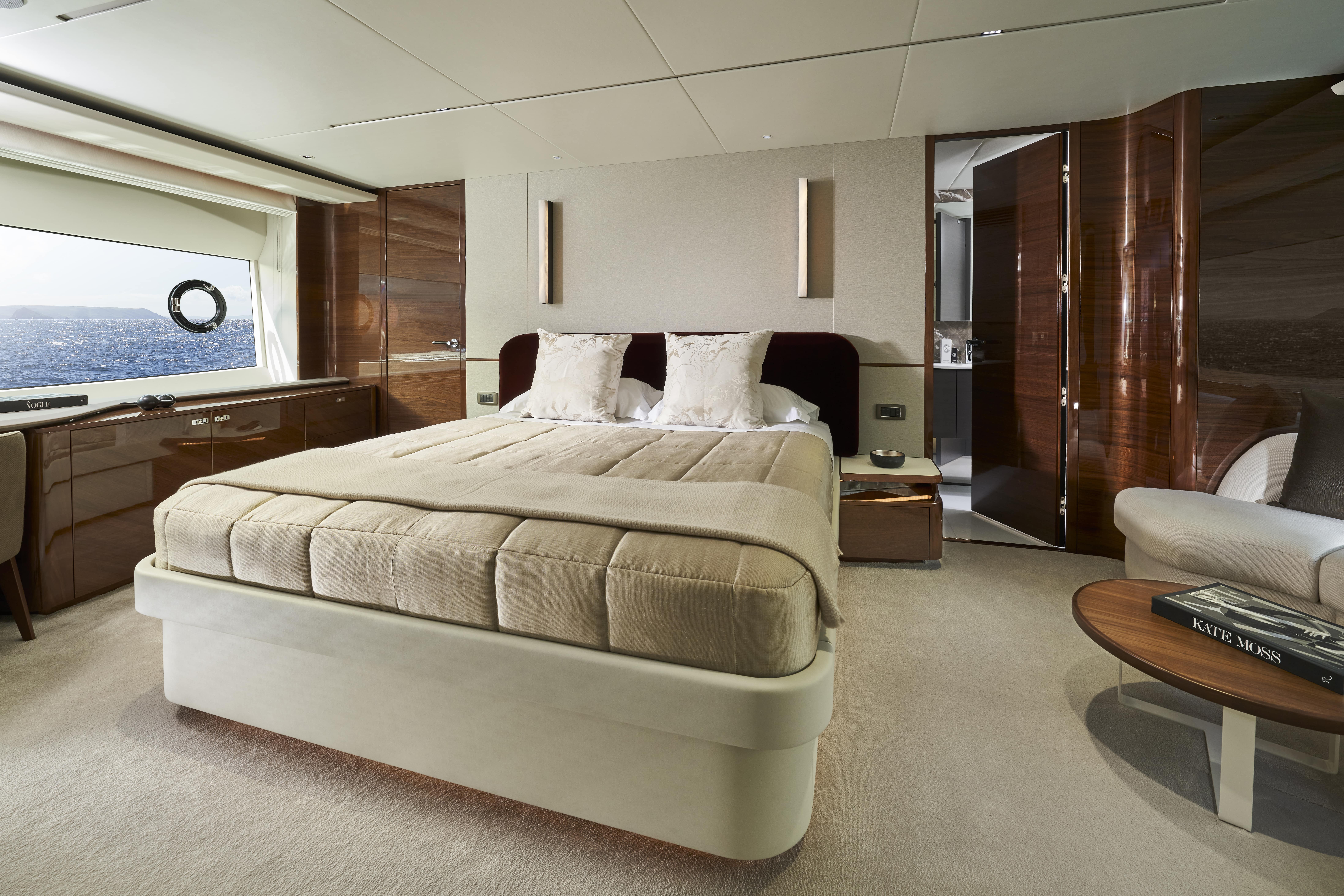

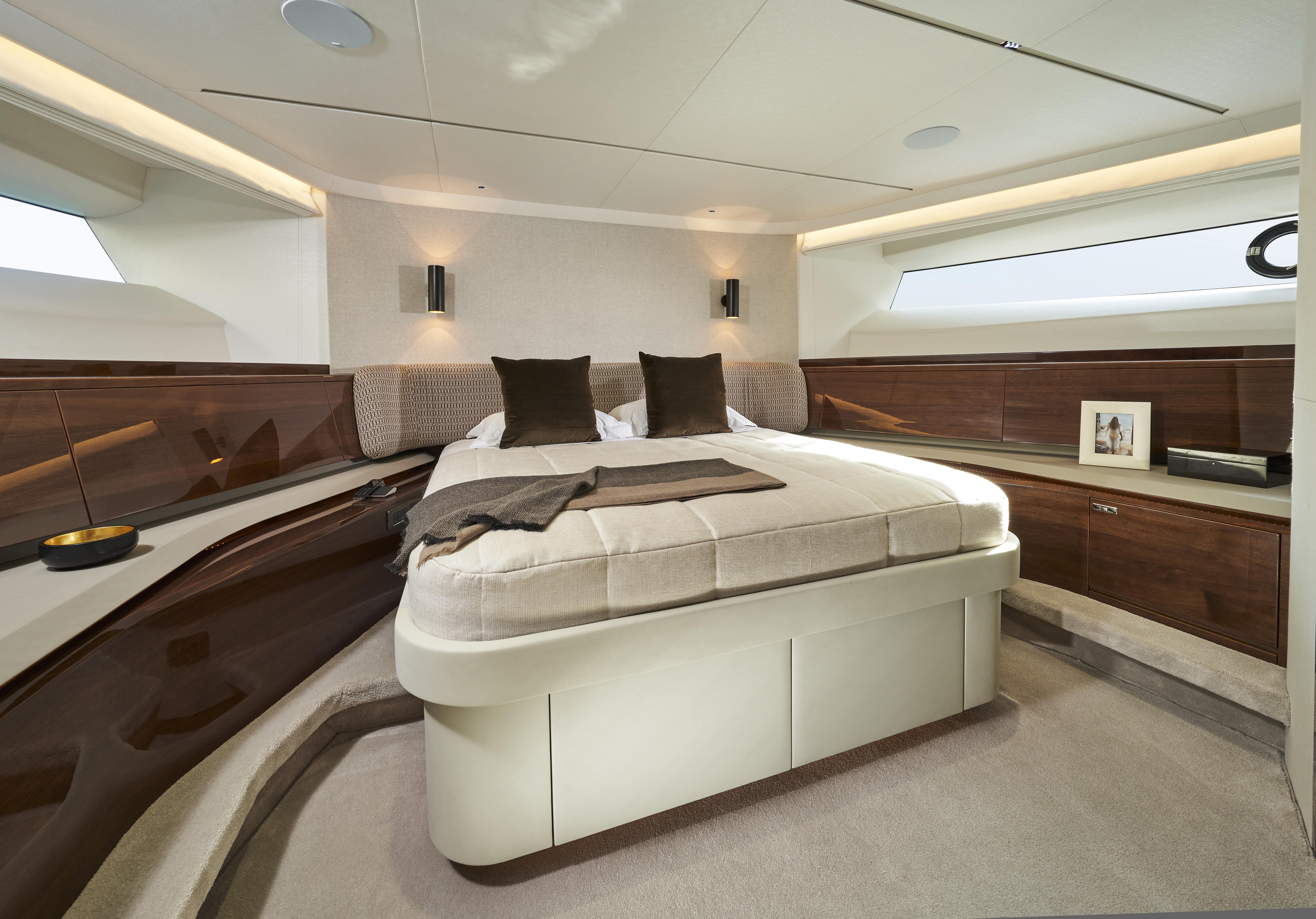

Forward stateroom
Large double bed with drawers below
Walk-in wardrobe with shelves

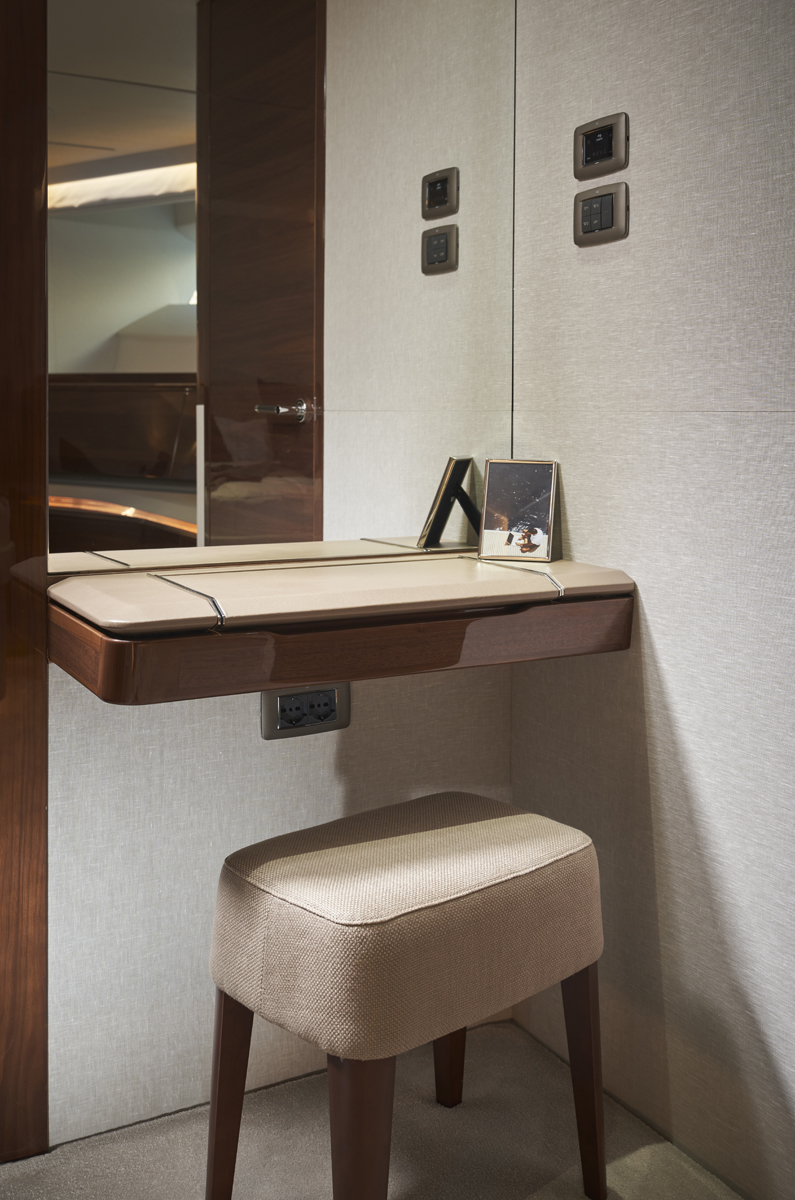

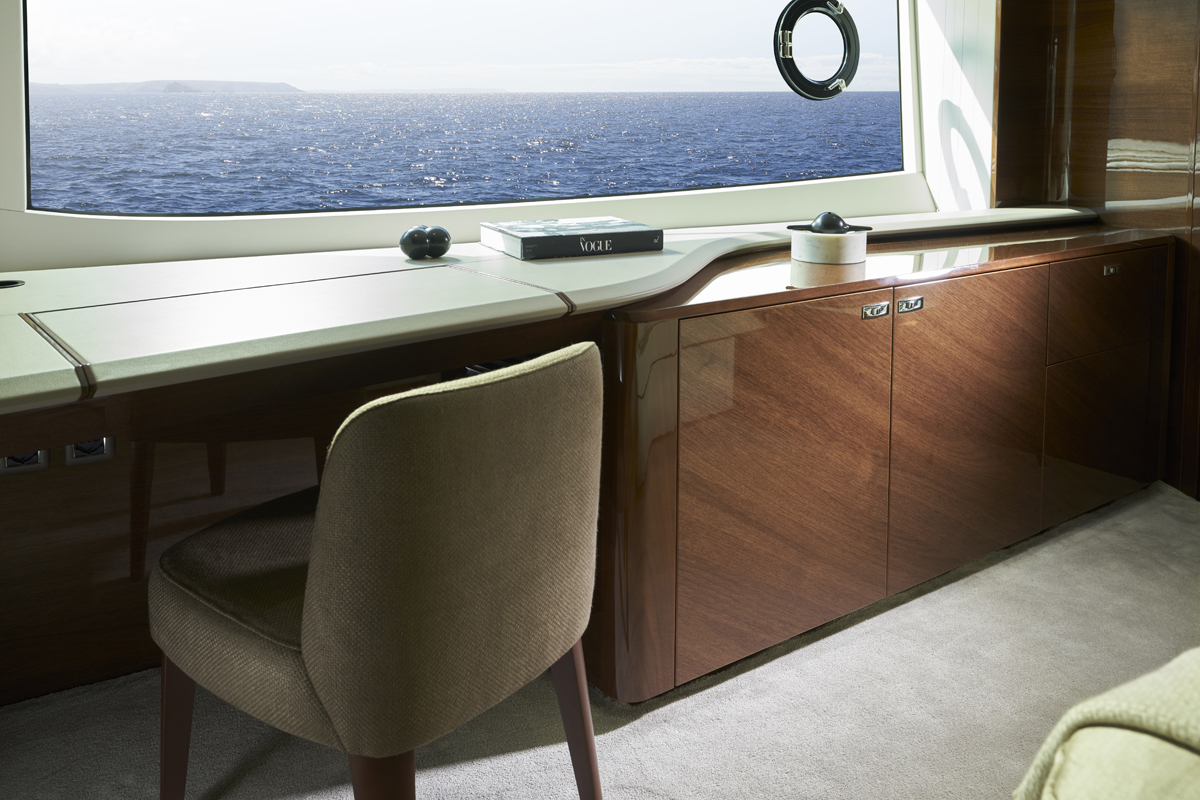

Dressing table with stool
Mirror
Storage lockers
43” UHD LED TV
Naim Atom audio system with ceiling mounted speakers (2)
Windows with opening portholes
Electric roman blinds to hull windows
LED overhead and concealed lighting (24v) with scene selection
Wall lights (2)
220/240v outlets (2)
USB charging points (4)
Fitted carpet
En-Suite Bathroom
Washbasin and counter top in thermoformed solid surface
Mirror
Storage lockers
Shower compartment with automatic pump out
Extractor fan
Window with opening porthole
Manual tension venetian blind
LED overhead and concealed lighting (24v)
Bathroom accessories
Marble/qranite/quartz flooring

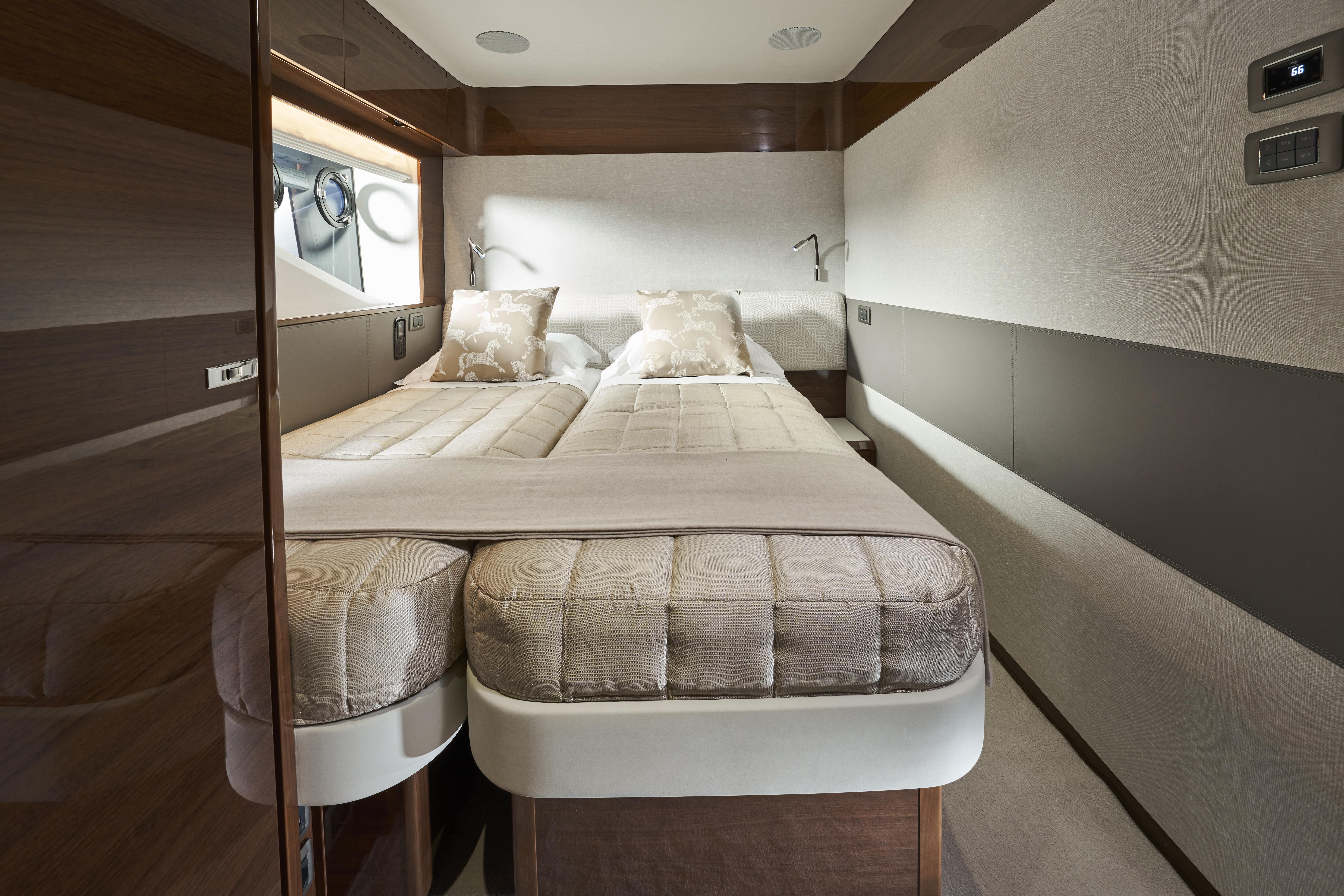

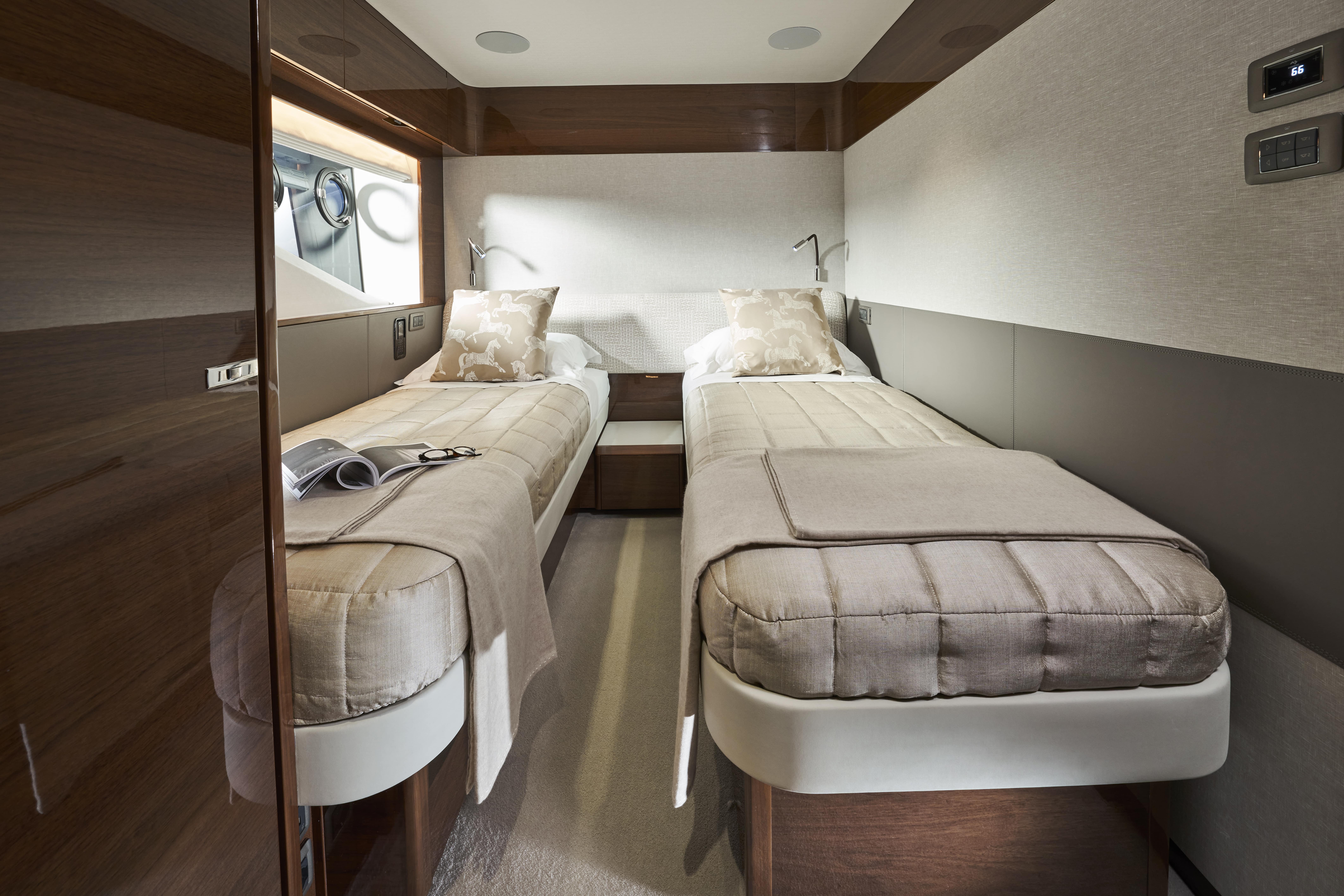

Starboard guest cabin
Two single beds with drawers below (with option of double bed conversion)
Bedside table
Wardrobe with lower shelves
Mirror
Storage lockers
Window with opening portholes
Electric roman blinds to hull windows
Dimmable LED overhead and concealed lighting (24v) with scene selection
Individual berth lights
220/240v outlets (1)
USB charging point (2)
Fitted carpet

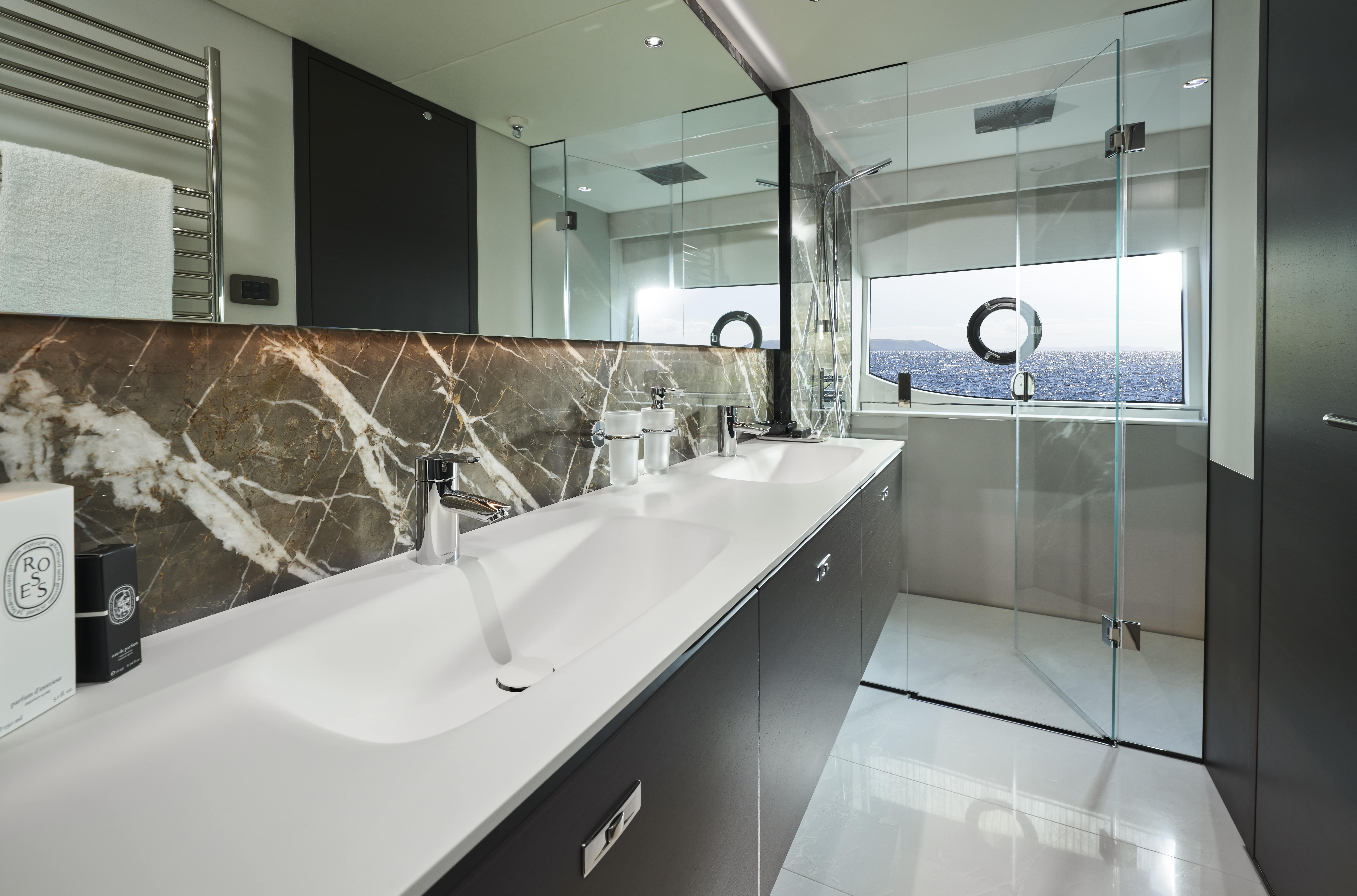

En-Suite Bathroom
Washbasin and counter top in thermoformed solid surface
Mirror
Storage lockers
Shower compartment with automatic pump out
Extractor fan
Windows with opening porthole
Manual tension venetian blind
LED overhead and concealed lighting (24v)
Bathroom accessories
Marble/granite/quartz flooring

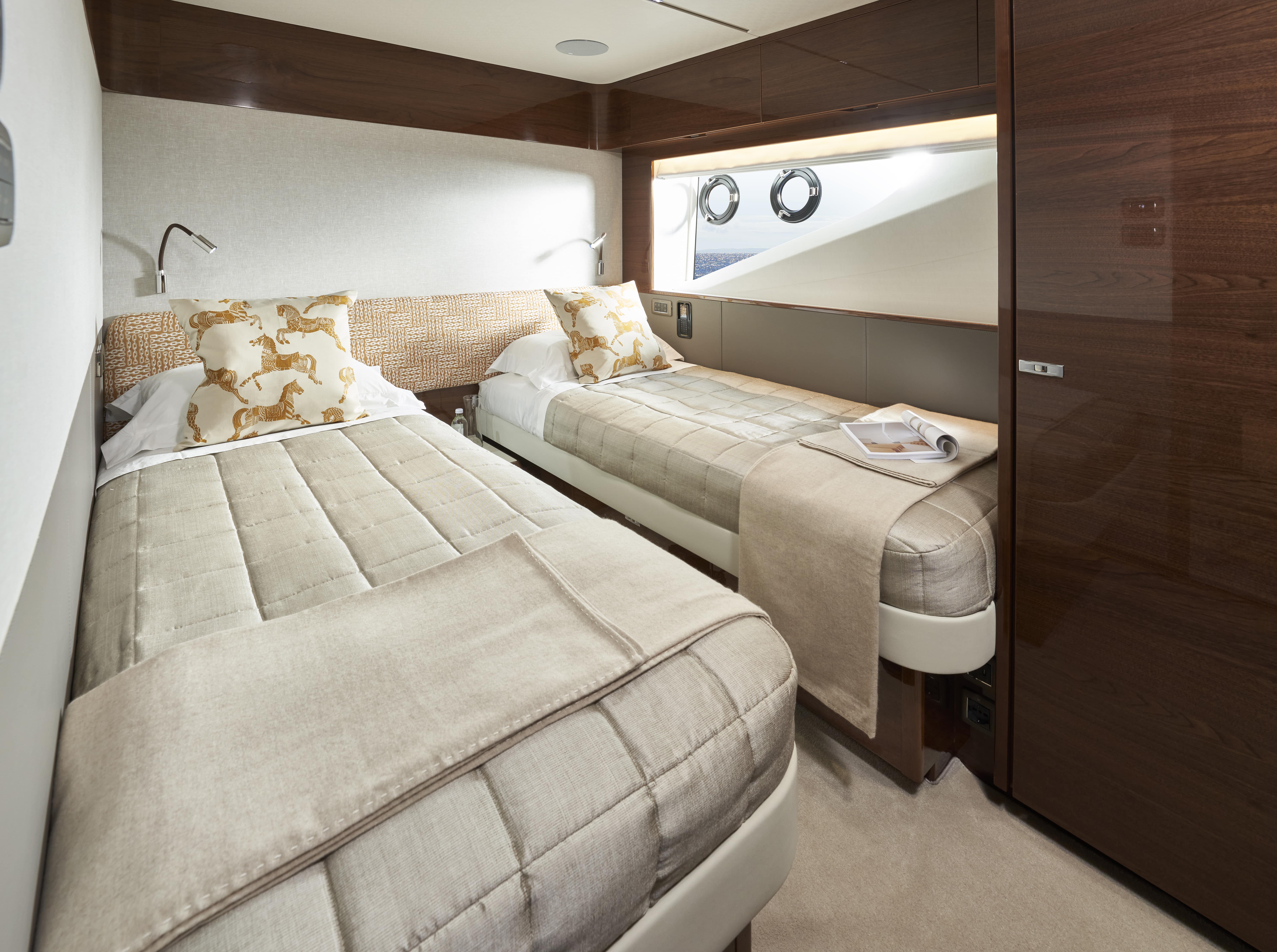

Port guest cabin
Two single beds with drawers below (with option of double bed conversion)
Bedside table
Wardrobe with shelves
Mirror
Storage lockers
Window with opening portholes
Electric roman blinds to hull windows
Dimmable LED overhead and concealed lighting (24v) with scene selection
Individual berth lights
220/240v outlets (1)
USB charging point (2)
Fitted carpet

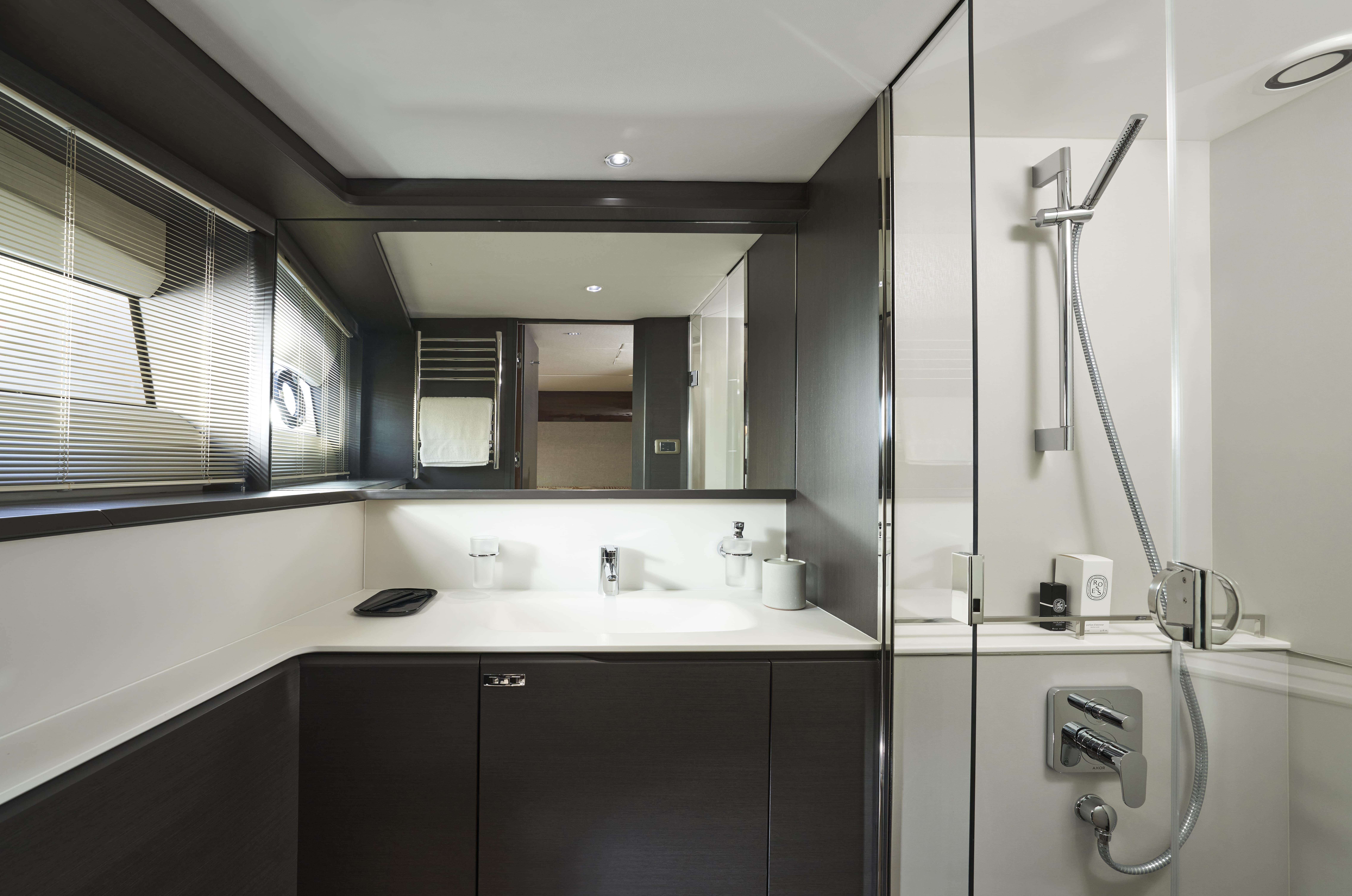

En-Suite Bathroom
Washbasin and counter top in thermoformed solid surface
Mirror
Storage lockers
Shower compartment with automatic pump out
Extractor fan
Windows with opening porthole
Manual tension venetian blind
LED overhead and concealed lighting (24v)
Bathroom accessories
Marble/granite/quartz flooring

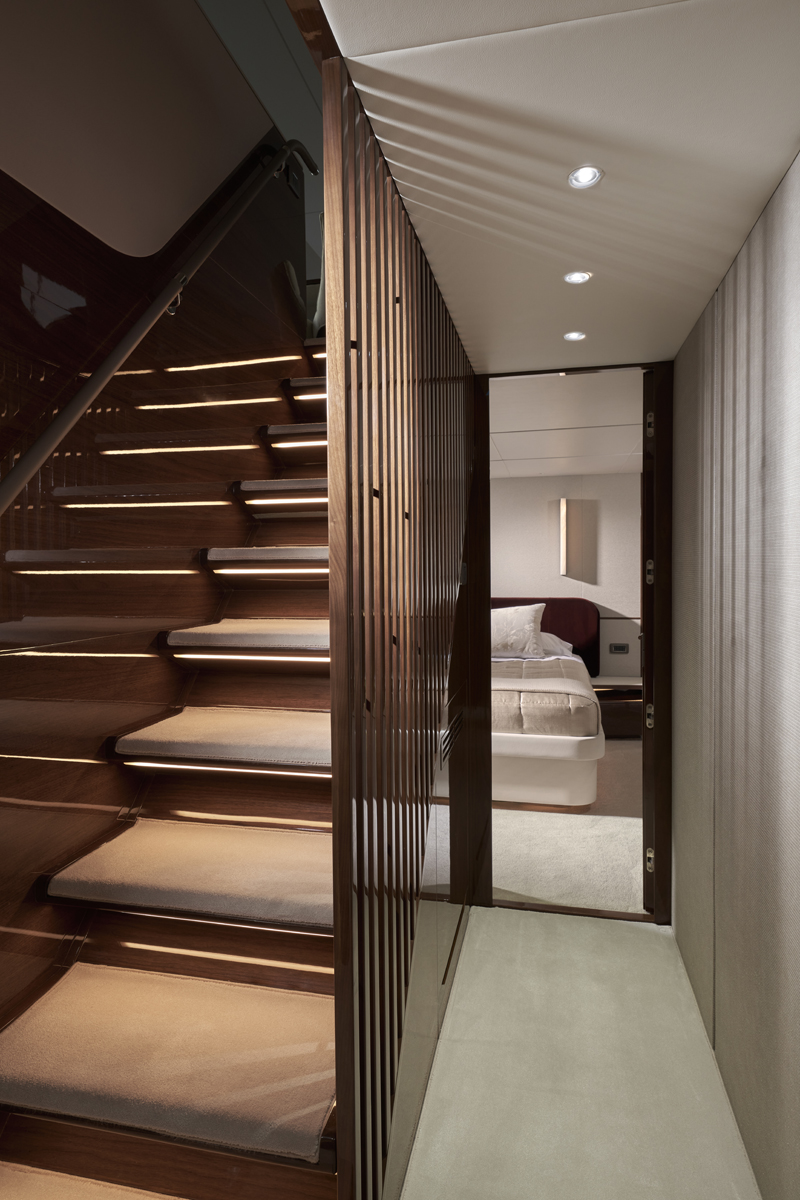

Lower accommodation lobby
Linen cupboard below companionway stairs
Space for optional washer/dryer below companionway stairs
Dimmable LED overhead and concealed lighting (24v) with scene selection
Fitted carpet

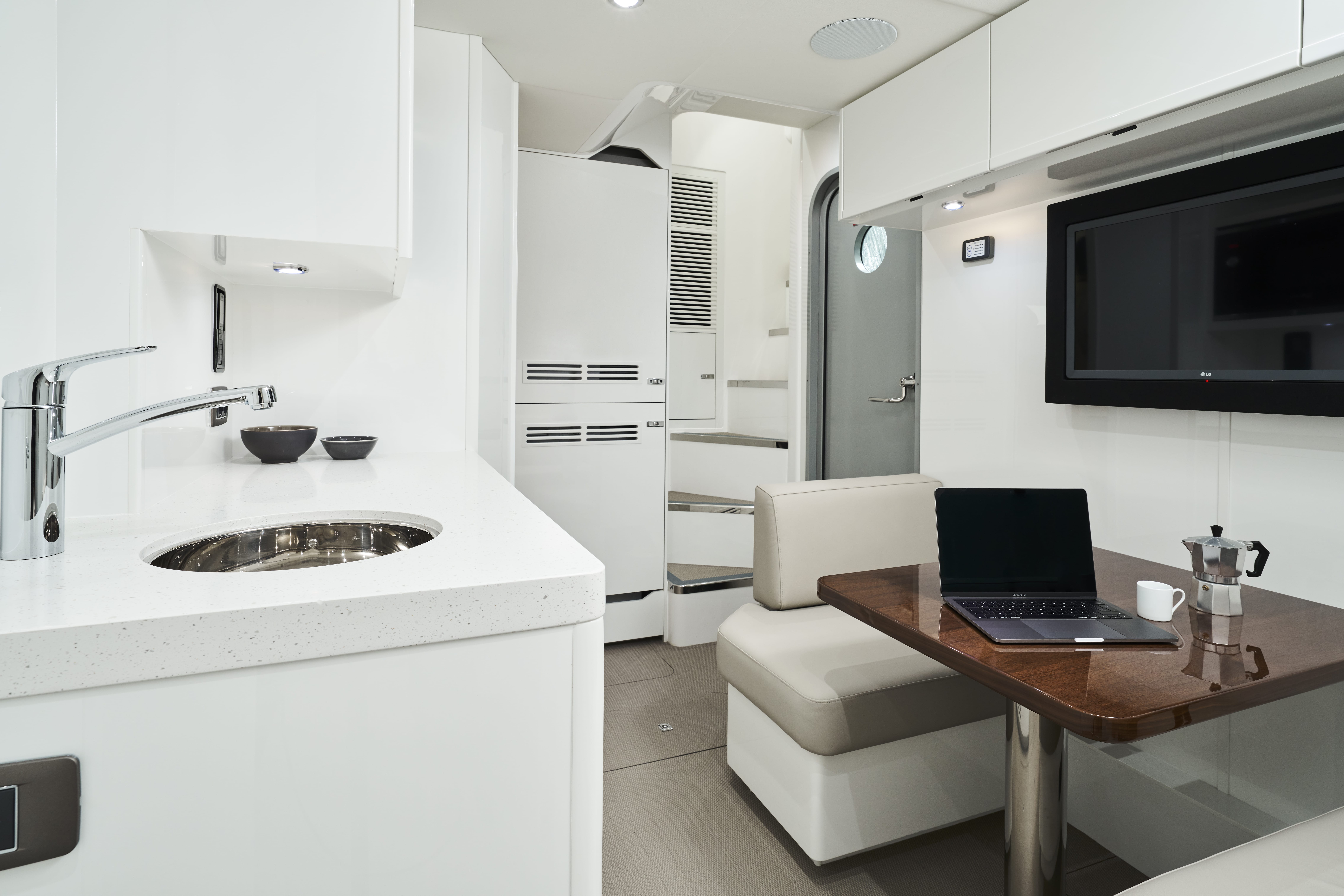

Crew quarters
Standard transom configuration is a transom garage with Captain’s double cabin with en-suite, crew bunk cabin, aft bathroom, crew mess and dining area.
Optional transom configuration is a beach club with Captain’s double cabin - with en-suite, crew bunk cabin, central bathroom and aft beach club/ dining area.
All lower crew furniture is in white finish, with solid surface Carrera White (gloss finish) bathroom vanity unit tops and solid surface Koko White (satin finish) bathroom floors and non-slip flooring

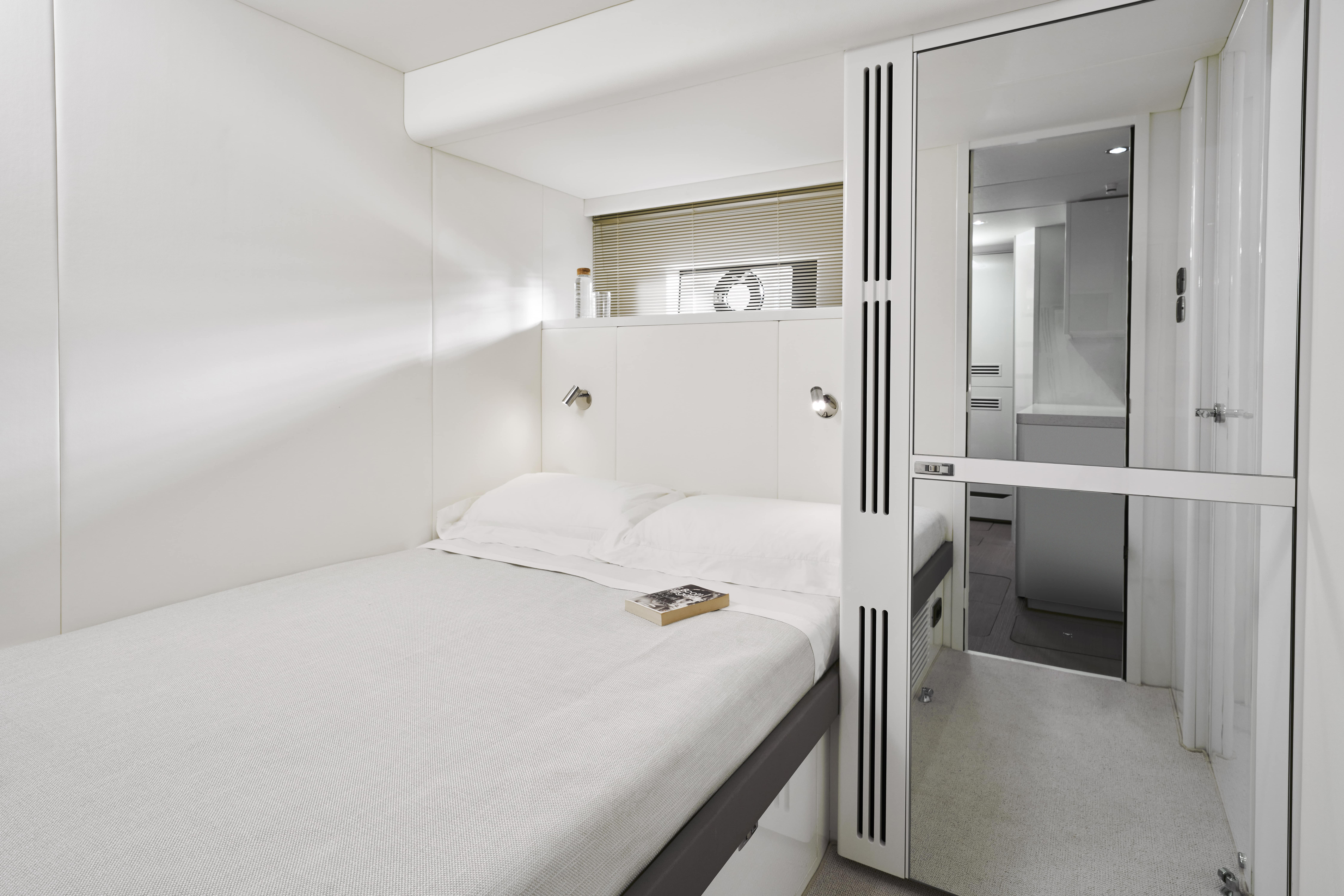

Captain’s cabin
Double berth with storage below
Wardrobe with shelf
Mirror
Storage drawers under bunk
Opening porthole and venetian blind
Emergency deck hatch access to cockpit
LED overhead lighting (24v)
Individual berth light
220/240v outlets (1)
USB charging points (2)
Fitted carpet
En-Suite Bathroom
Washbasin with Carrera White (gloss finish) solid surface counter top
Mirror
Storage lockers
Shower compartment with automatic pump out
Extractor fan
Porthole with venetian blind
LED overhead lighting (24v)
Bathroom accessories
Solid surface flooring in Koko white (satin finish)
Port crew cabin
Single bunk beds (2)
Wardrobe with shelf
Mirror
Storage lockers
Opening porthole and venetian blind
LED overhead lighting (24v)
Individual berth lights
220/240v outlets (2)
USB charging points (2)
Fitted carpet
Crew bathroom
Washbasin with Carrera White (gloss finish) solid surface counter top
Mirror
Storage lockers
Shower compartment with automatic pump out
Extractor fan
Porthole with venetian blind
LED overhead lighting (24v)
Bathroom accessories
Solid Surface flooring in Koko White (satin finish)
Crew area
Access from port side deck (also transom door with optional beach club)
Access to engine room
Storage space, cupboards and lockers
Dining area with table
Crew mess with microwave with grill, sink, refrigerator and waste bin
Solid surface counter top in Ice Crystal (satin finish)
Washing machine and separate tumble dryer
LED overhead lighting (24v)
Non-slip flooring
Power and drive systems
Engine room soundproofed
High volume air intakes
Engine room extractor fan with electronic time delay
Engine exhaust silencers and water-cooled exhausts
Engine beds integrally moulded with hull for strength and vibration absorption
Forward and aft engine room bulkheads integrally bonded including acoustafoam layers
Engines flexibly mounted
Automatic fire extinguisher with remote override control
Automatic and manual bilge pumps
Propeller shafts in Marinemet
5-bladed propellers in nickel aluminium bronze
High speed balanced rudders
Cathodic protection for sterngear
Sterngear, engines, fuel tank fillers, all electrically bonded
LED engine room lighting
Engine room access from port side deck via crew area and from cockpit deck
Power-assisted electro-hydraulic steering system
Electronic engine and gear shift controls
Bow thruster with dual-station controls ( 550kgF)
Fresh water supply point in engine room
Dripless self-aligning shaft seals
Electrical systems
24 Volt:
4 x heavy duty batteries for engine starting
6 x heavy duty auxiliary batteries
Battery link facility with remote control at helm position
Both battery banks are charged using a voltage sensitive relay that parallels both battery banks when a charging source is present
Remote battery isolator control switches at main switch panel position
Circuit breakers on all circuits
24v to 12v converters for certain navigation and radio circuits
Galvanic isolation system
CCTV system with camera in aft cockpit and two fixed cameras in engine room linked to Böning system
220/240 Volt:
European specification: 2 x 40kW @ 50Hz Onan diesel generators in own sound shields, water cooled and with specially silenced exhaust systems and with remote operation from main control panel
USA specification: 2 x 40kW @ 60Hz Onan diesel generators in own sound shields, water cooled and with specially silenced exhaust systems and with remote operation from main control panel
Three phase shore inlet (380v-415v / 42kvA @50Hz) with Glendinning cablemaster (15m/50ft) and a single phase shore power inlet (220-240v / 15kvA @ 50Hz. Both shore supports with isolation transformers. (US Spec single phase 2 x 100 amp)
Shore power/generator change over control operated from main control panel
Polarity check system
Earth leakage safety trip, circuit breakers on all circuits
Power points (240v) in all cabins and living areas, helm position and galley
240v shaver points in washrooms
3kW immersion heater for fresh water (2)
Fuel system
Main fuel tank with fuel polishing transfer system to day tank giving a total 13,818 l of fuel capacity (forward fuel bunker tank 4,866l and main fuel bunker tank 8,008l plus day fuel tank 944l)
Fuel fillers to port and starboard
High capacity duplex fuel filters/water traps with integral changeover valves and water sensors connected to alarms at helm position
Remote fuel isolation controls in cockpit locker for main engines and generators
Fuel gauges at helm position
Water system
Water tanks giving 1,865l capacity plus 205l hot water calorifier
Automatic water pump with filter
Water level gauge
Deck filler
Pump circuit breaker at main switch panel
Electric freshwater toilet system linked to 720l holding tank, content gauge and low noise electric overboard discharge, with macerator backup system as well as dockside discharge system
Grey water to take waste water from sinks/shower, washing machine(s) and dishwasher
Air conditioning system
Air conditioning/heating reverse cycle 336,000 BTU fan capacity with 288,000 BTU chiller capacity suitable for temperatures to 40°C (tropical)
Windscreen demist facility
Outlets in all areas
Fire extinguishers
Automatic engine room fire extinguisher system (with manual override) and warning system at helm position providing automatic shutdown of engines, generators and ventilation fans
Manually operated engine room air shutoff system
Hand operated fire extinguishers in all guest cabins, galley, crew quarters and flybridge
Bilge pumps
Automatic/manual override electric bilge pumps in engine room, rudder area, forward accommodation, crew area and anchor chain locker (10 in total)
High capacity manual bilge system with suction points in the same areas
Electric bilge pumps have controls and warning lights with audible alarm at helm position
Other standard equipment
Ensign staff
Fenders (8)
Mooring warps (4)
First aid kit
Set of towels (8 large, 8 hand) (10 sets for optional 5 cabin layout)
Quilted bed covers supplied to all cabins (except crew cabin)
Complete set of Lucrezia crystal glassware (8 settings consisting of tumbler, highball and wine glasses) (10 settings for optional 5 cabin layout)
Set of Sous Le Soleil crockery (8 settings consisting of plate, cake plate, dessert plate, bowl, cup and saucer) (10 settings for optional 5 cabin layout)
Set of stainless steel cutlery (8 settings of David Mellor “Paris” cutlery 7 pieces) (10 settings for optional 5 cabin layout)
Tool kit
Boat hook
Owner’s manual and engine manual
Ship’s document case
Dynamat applied in the following locations
Crews aft engine room bulkhead
Crew deck head
Forward main deck owner's stateroom/dining area deck head
Finishes
Teak-laid decks to all external deck areas (including flybridge)
Timber flooring (V groove planked) to galley, skylounge, wheelhouse and forward dining area (wheelhouse in Newport oak as standard)
Furniture in choice of Alba Oak, Rovere Oak in satin lacquer finish as standard. Silver Oak or Walnut with satin or gloss lacquer finishes available as an option
Marble, quartz or granite floors in all bathroom suites in guest accommodation (including day head)
Thermo-formed solid surface wash hand basin counter-tops in all bathroom suites and day head
Galley counter top in granite or quartz as standard (some options carry additional premiums)
Choice of high quality carpets and fabrics from extensive range
Curtains, blinds or sunscreens to all windows and portholes (excludes pantograph doors and wheelhouse)
Crew cabins have fitted carpet
Crew bathrooms have solid surface floors and countertops
Non-slip safety flooring to crew mess and passageway
Close

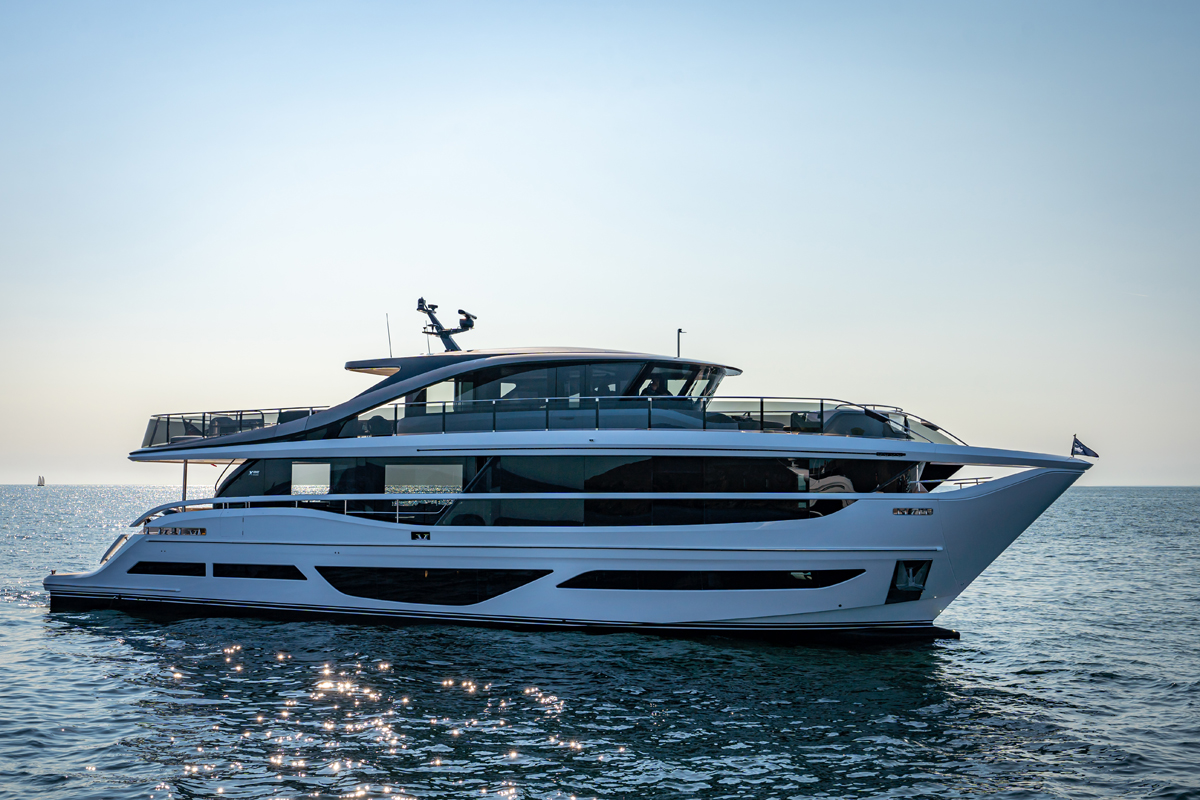

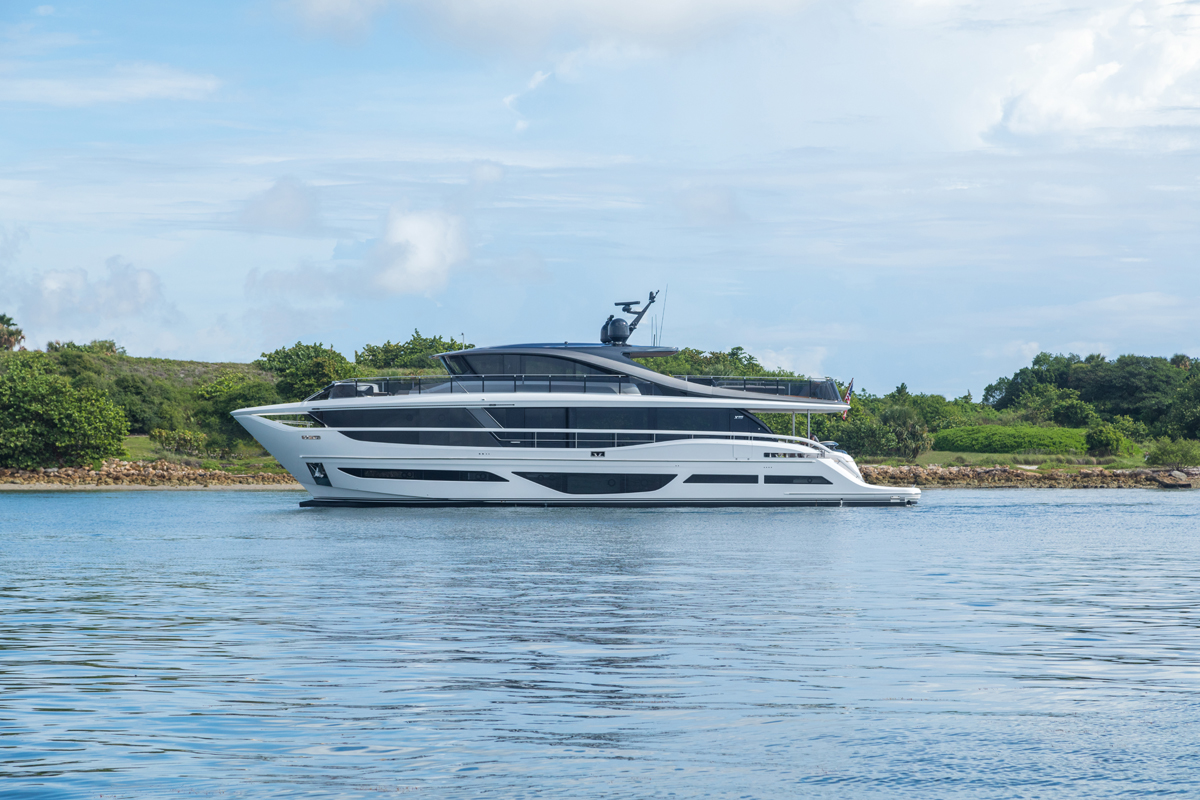

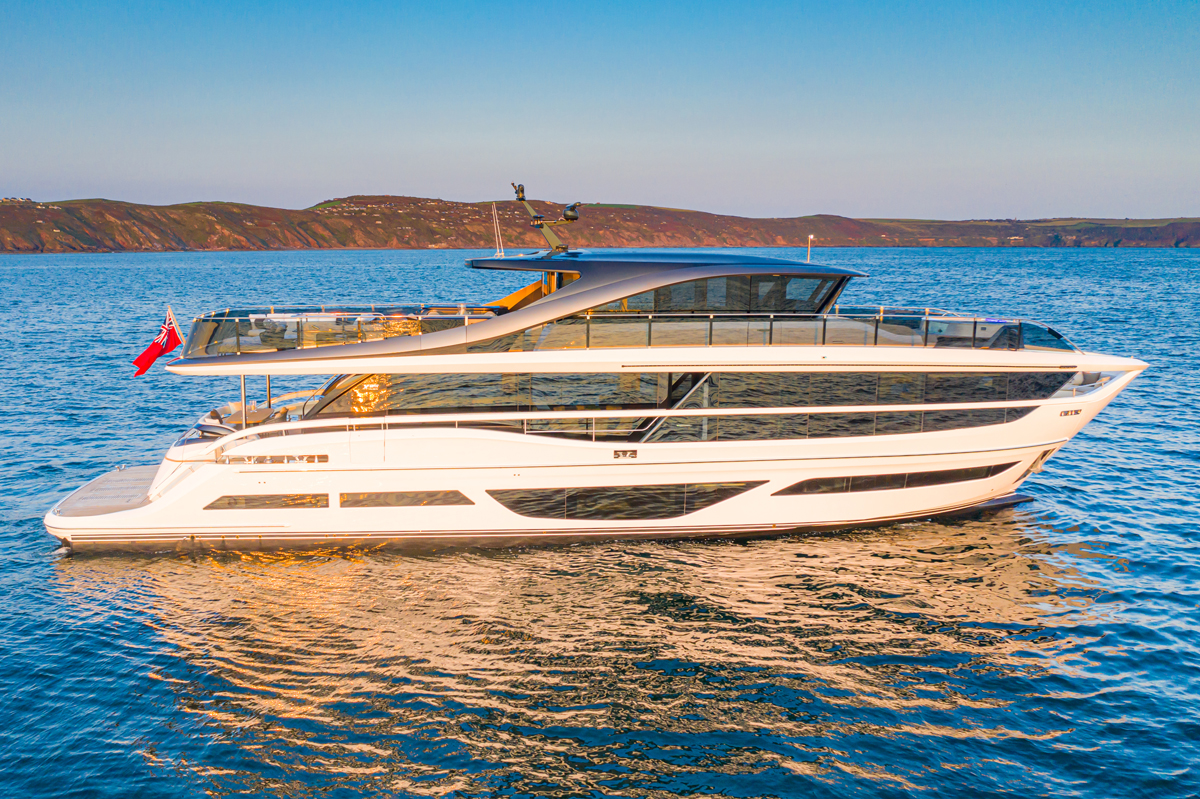

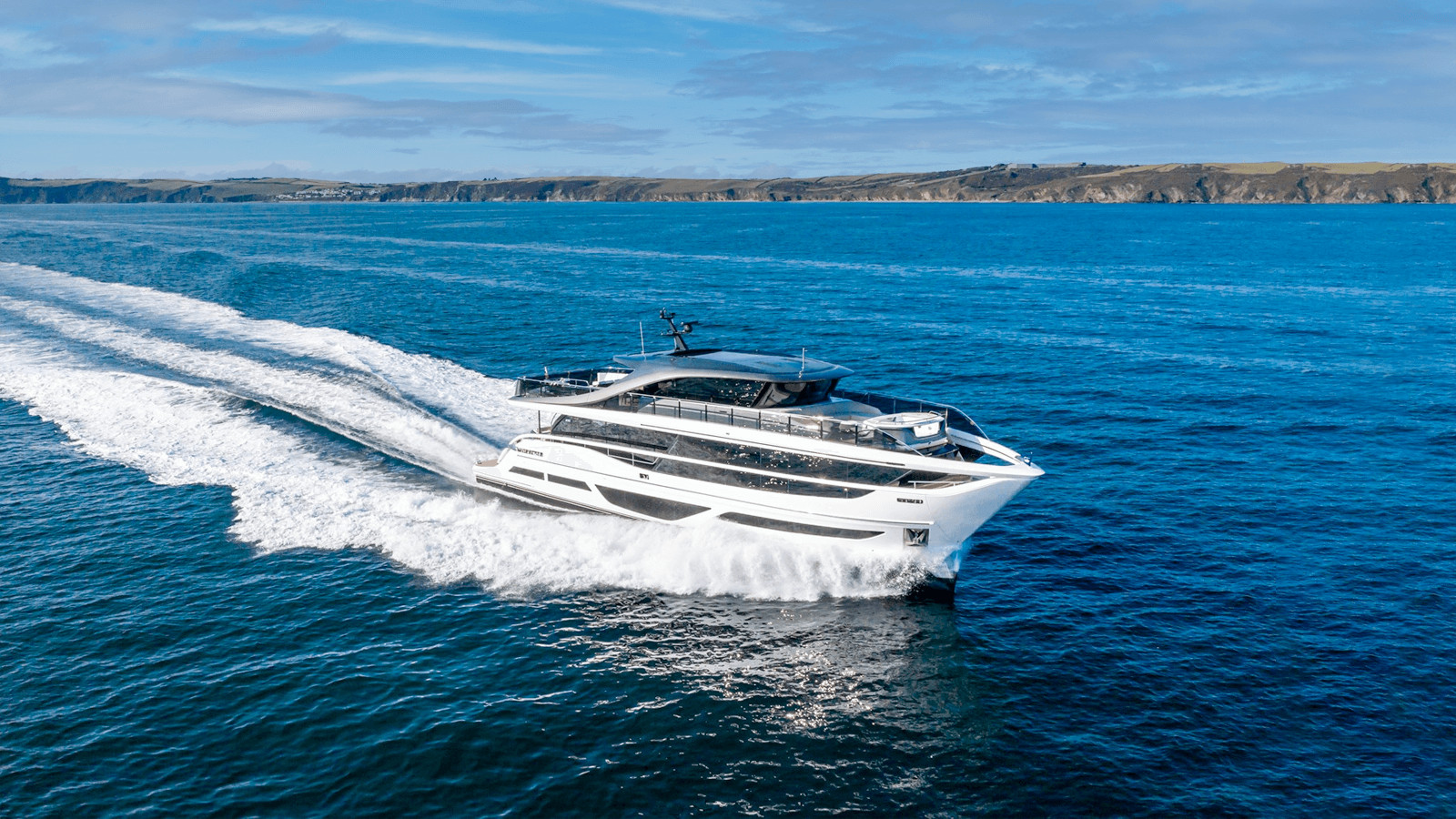

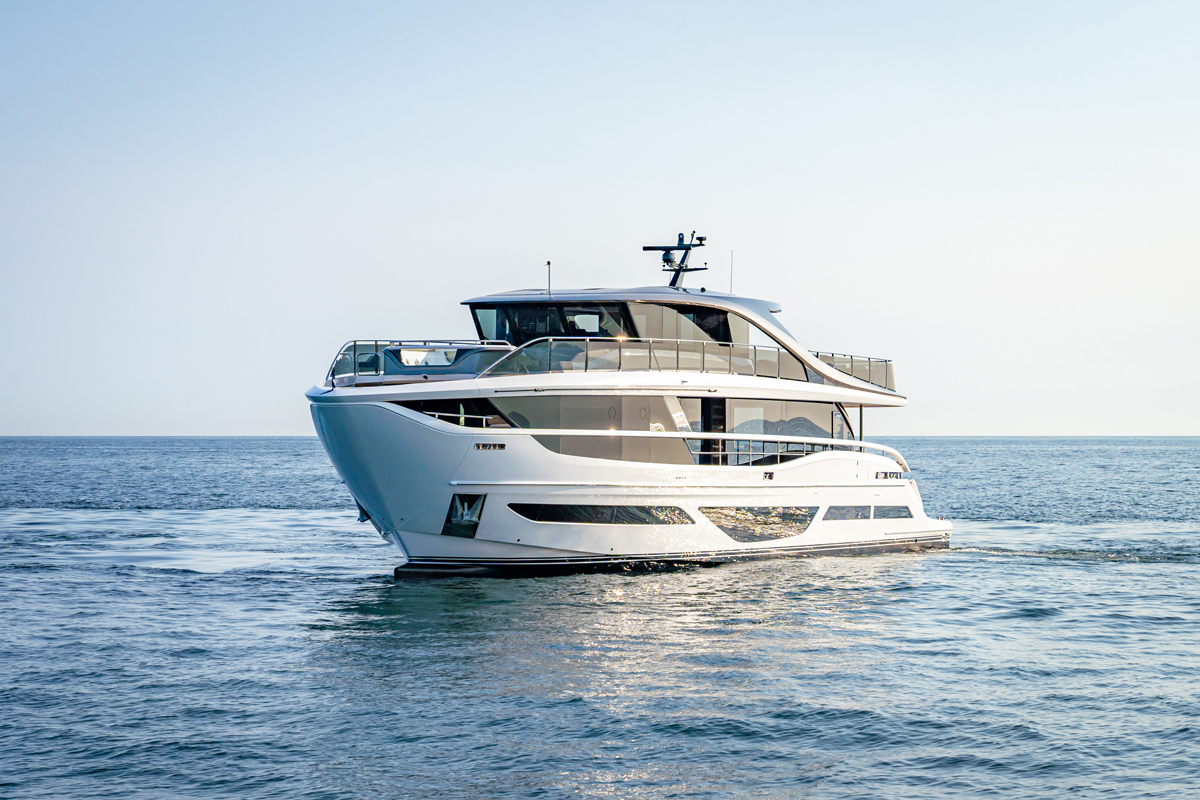

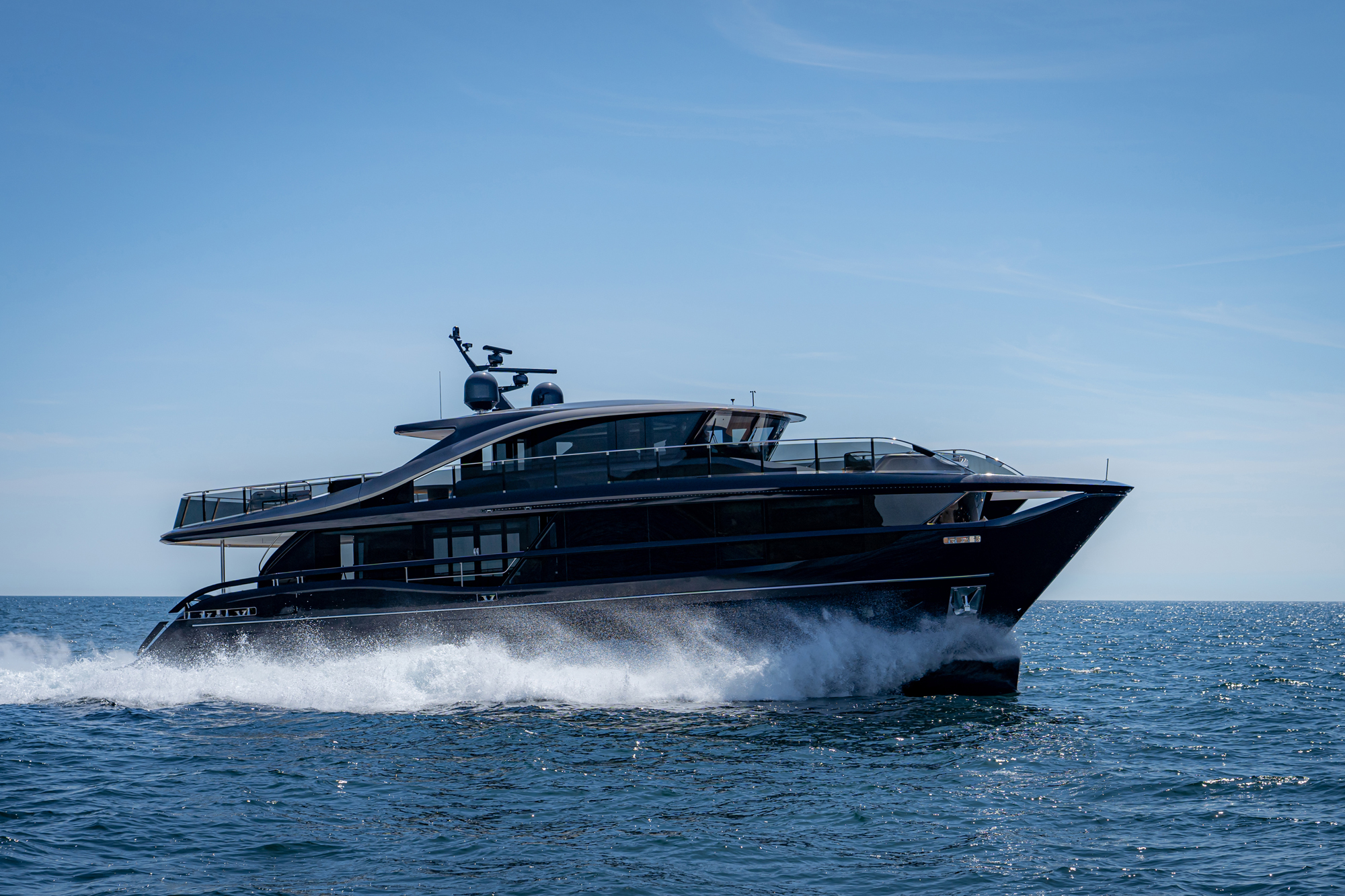

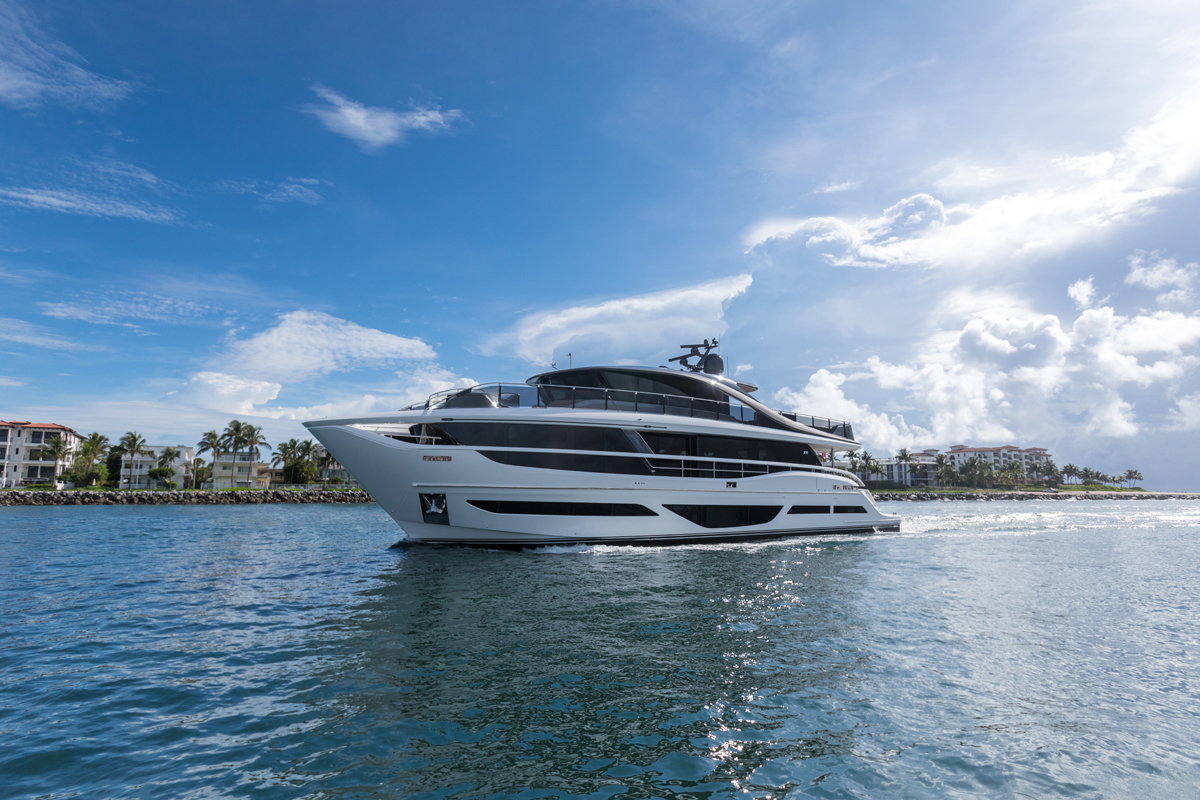

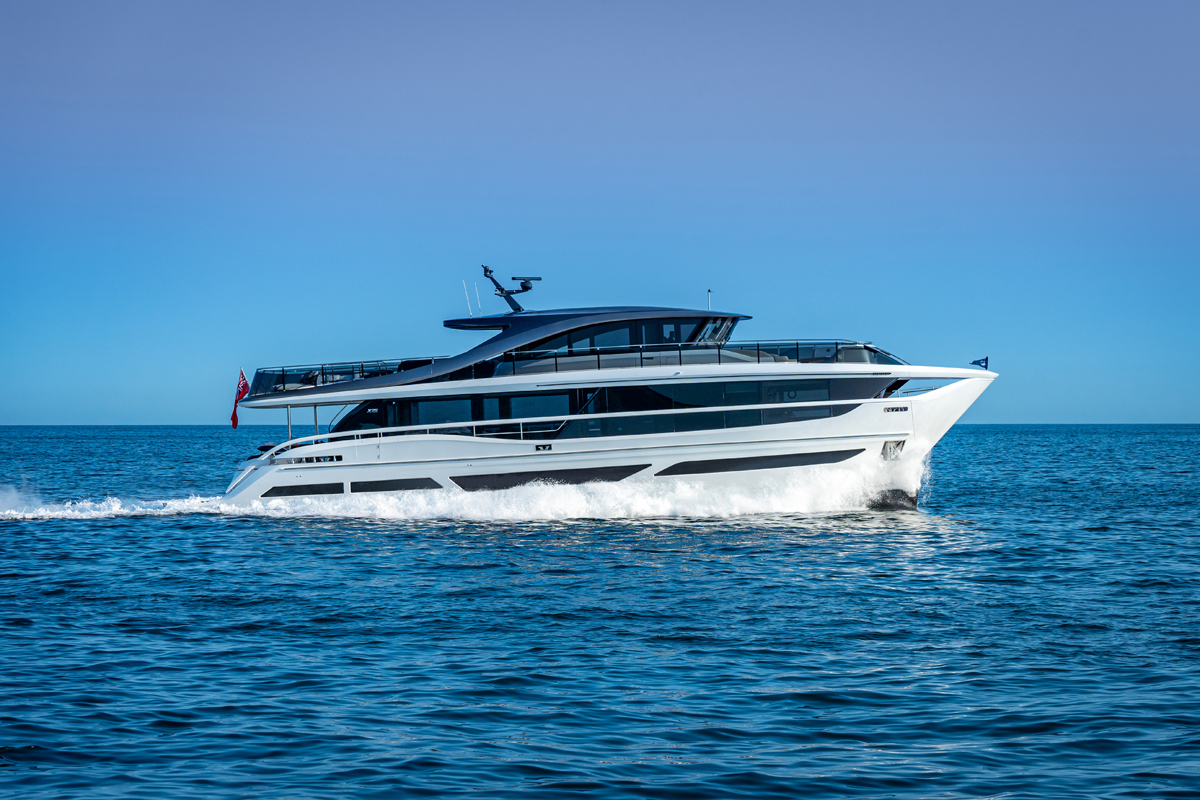

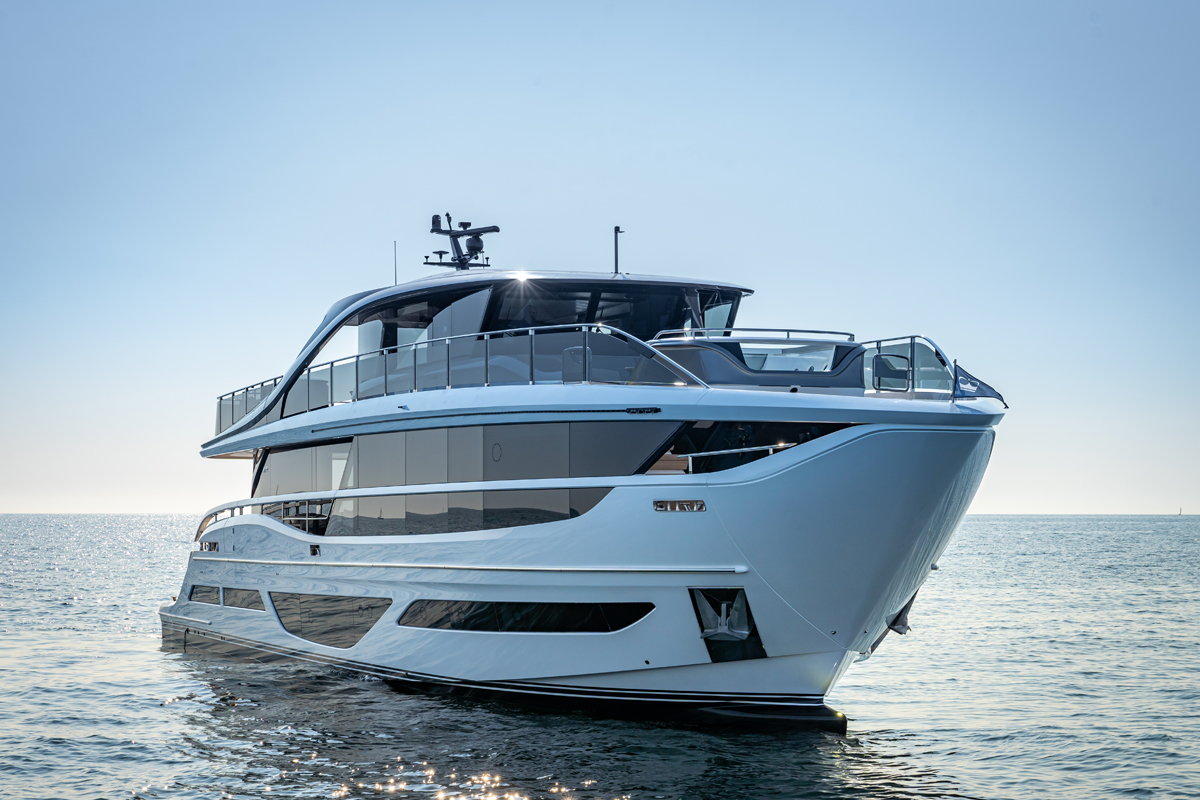

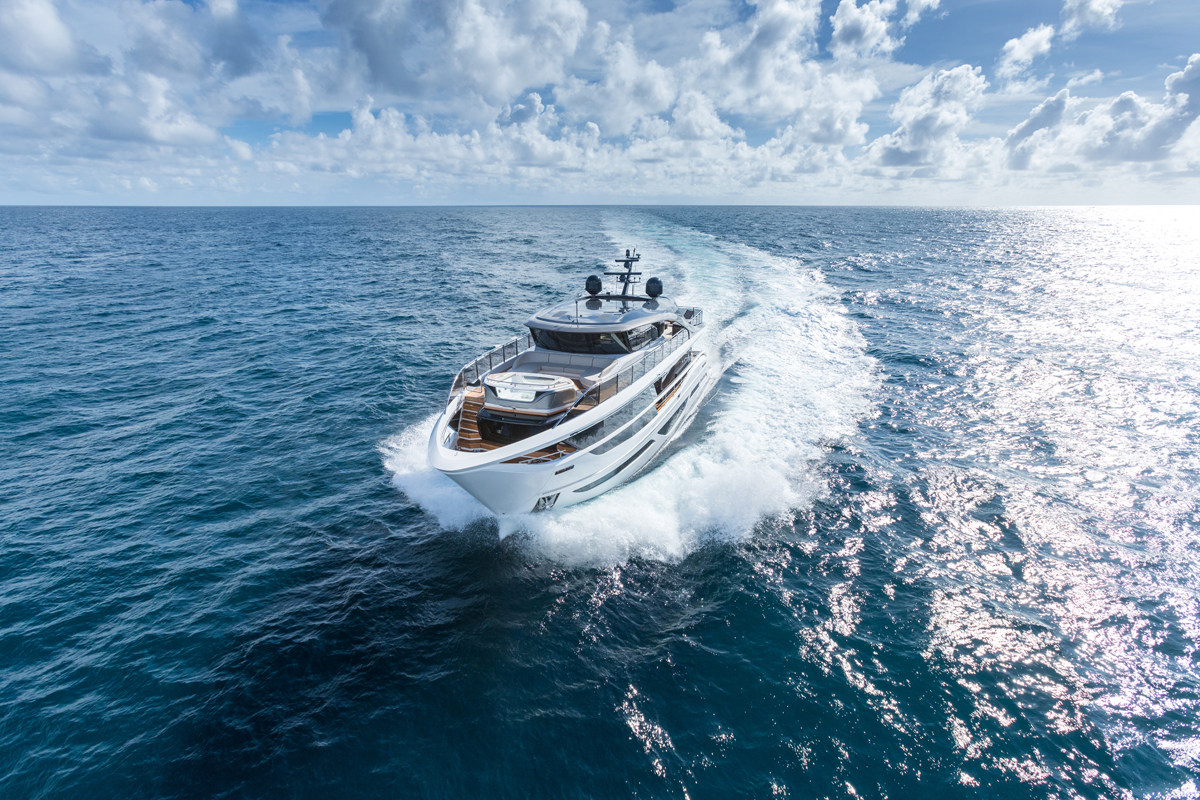

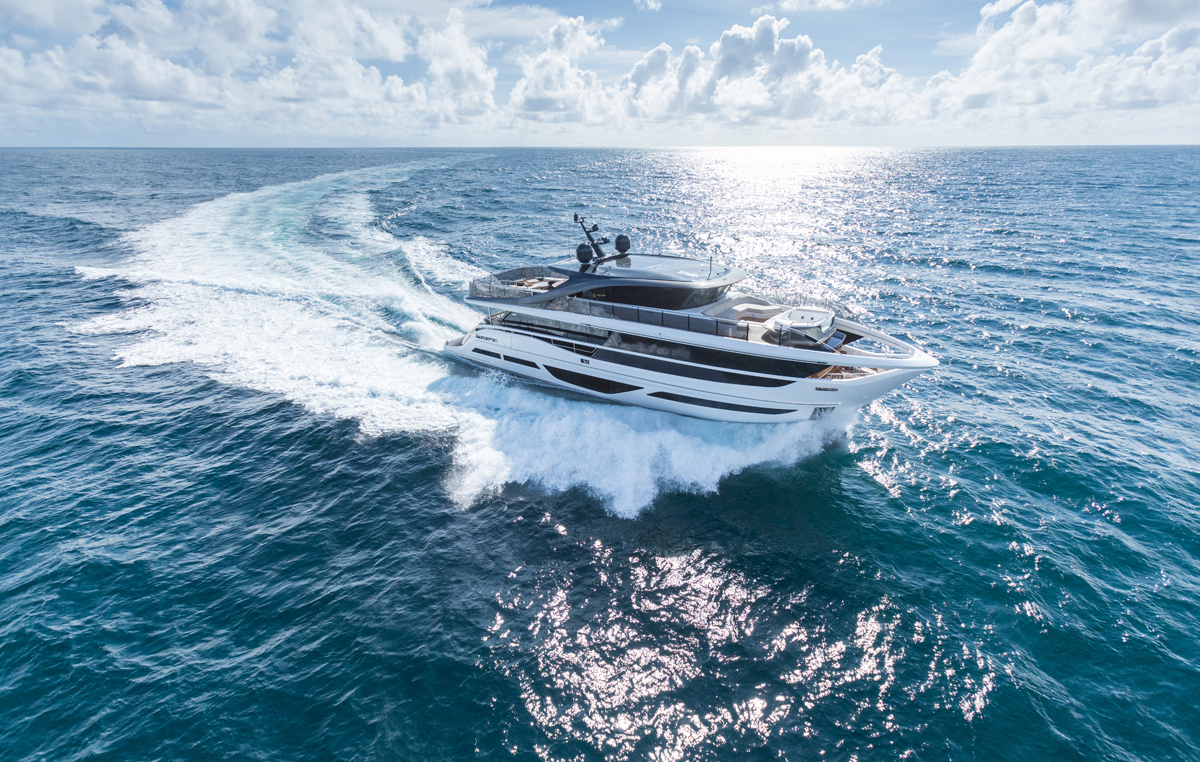

Princess X95
Principal Dimensions
Details
Specification
Disclaimer
Length overall (incl. pulpit)
95ft 4in (29.0m)
Length overall (excl. pulpit)
95ft 4in (29.0m)
Beam
21ft 10in (6.65m)
Draft
6ft 7in (2.01m)
Displacement approx.
112,409kg (247,819lbs)*
Fuel capacity
3,040 gal/3,650 US gal/13,818l
Water capacity (excl. calorifier)
410 gal/492 US gal/1,865l
Engines
Twin MAN V12-1900 (2 x 1,900mhp)
TOP SPEED: 21-23 knots†
* Displacements are calculated with 50% fuel and water with liferaft but with no optional equipment fitted or other gear.
† Maximum speeds will vary depending on cleanliness of hull, condition of sterngear, loading of craft, water and air temperatures, sea conditions and other factors. Speed estimates are therefore given in good faith but without warranty or liability on the part of Princess Yachts Limited. Craft illustrated in this brochure may be fitted with certain optional equipment. Specifications may be changed at any time without notice or liability. USA Specification
‡ Certain specifications, which vary by model, are upgraded on Princess yachts built for use in North America. Thus, specifications and equipment will vary from the information listed in the brochure for North American Princess yachts (e.g. air-conditioning and an upgraded generator will be included as standard for all North American models and electric cooking facilities will be supplied in place of gas systems). Please consult the USA Specification Brochure for full details regarding the North American specifications for individual models.
Principal Dimensions
Details
Deck fittings
6mm teak-laid transom platform, transom steps, cockpit deck, stairway to flybridge, side decks, steps to foredeck, flybridge aft sun deck and foredeck lounge walkthrough areas
Reversible hydraulic anchor winches with bridge controls (Lewmar V8)
Anchor pockets with anchor launch and retrieve
Twin anchor system incorporating two 125kg galvanised kedge anchor with 100m of 14mm galvanised chain
Deck chain stoppers (2)
Mooring bollards forward (4)
Mooring bollards aft (4)
Mooring bollards on platform cheeks (2)
Mooring bollards mid-ship (1 per side)
Twin electric sternline mooring winches (Lewmar C6)
Deck hatch access to chain, Bosuns and fender storage locker (non-locking, with access ladder)
Freshwater deck/anchor wash (with both fore and aft deck outlets) (under bow seat, starboard side outboard of transom steps) (quick release bayonet fitting)
Stainless steel bow and stern fairleads
Stainless-steel foredeck guard rails
Stainless steel flybridge handrails
Stainless gates (with glazing) to restrict access to the foredeck area
PVC rubbing band with stainless-steel insert
LED deck level lighting
Full set of IMCO navigation lights
Riding light
Twin beam searchlight with remote controls (located on mast)
Loudhailer (located on hardtop)
Stern docking lights (on underside of canopy/flybridge overhang)
Twin electric horns (located on mast)
Fuel and water fillers (fuel: main deck, port and starboard, water: port side)
Cockpit and bathing platform
Self-draining
Upholstered U-shaped seating with storage below (non-locking)
Teak dining table with removable central leaf section paired with 2 dining chairs
LED overhead and deck level lighting
Stainless-steel handrails (round top profile)
Stern docking station controls portside including thruster controls and emergency engine stop, Rexroth control as standard
Remote control 5.47m telescopic passarelle with folding handrails
Watertight (double D sealed) hinged locking door giving access from transom into garage / optional beach club area
Engine room to cockpit escape hatch
Crew area escape hatch to cockpit
Garage (to take wetbike up to 3.05m) with electro-hydraulic door with additional storage for optional SEABOBs (2 max, starboard bulkhead mounted rack)
Rope storage locker (non-locking)
Wash basin with mixer tap to portside
Starboard locker containing remote fuel cocks, manual bilge pump with valve chest and manual controls for automatic fire extinguishers
Integral stairway to flybridge with teak step treads
Twin glazed transom gates leading to bathing platform
Retractable bathing ladder (manual) in side of bathing platform
Hot and cold transom shower
Three phase shore support inlet (380v-415v / 42kVa @50Hz) with Glendinning cablemaster (15m/50ft) and a single phase shore power inlet (220-240v / 15kVa @ 50Hz. Both shore supports with isolation transformers. (US Spec single phase 2 x 100A)
Seat and table covers
Port side deck lockable access and stairway to crew accommodation
Flybridge and foredeck
Foredeck area with U-shaped seating, and storage locker
Foredeck to incorporate glazed panels to allow light through to galley / dining area or optional main deck owner's stateroom below
Sunbathing area with integrated adjustable teak headrests and storage, converts to aft facing u-shaped seating area.
Flybridge aft deck area with free standing furniture
Dining table with chairs to accommodate 8 persons (10 for optional 5 cabin layout)
Naim Uniti Atom audio system with waterproof speakers (2) to flybridge
Clear view hatch to aft cockpit
Access stairway to aft cockpit
Stainless-steel handrails with glass balustrade to aft and sides of flybridge deck
Starboard storage/servery unit, incorporating liferaft stowage and deck wash outlet
Port storage/servery unit with sink and tap, incorporating liferaft stowage
LED overhead and deck level lighting
Radar mast
Twin matching whip aerials for VHF R/T and radio
Covers to exterior furniture
Helm
Enclosed pilot house with central leather upholstered electric seat with fore, aft and height adjustment
U-shaped companion seating to port with table
Sliding doors to fully enclose or open helm to skylounge area
Instrument console with LED display incorporating engine instruments, CCTV linked to Böning screens, fuel gauges, alarms and rudder position indicator
Helm position instrument and controls console including: - power-assisted electro-hydraulic steering (SeaStar) - adjustable steering wheel - high-speed magnetic compass - electronic engine controls - bow thruster control - hydraulic anchor winch remote control - colour radar (with scanner) and GPS/chart plotter (twin 19” displays) -autopilot - speed and distance log -echo sounder with alarm - VHF with DSC R/T with intercom - remote control dual searchlight - horn button (to operate twin electric horns) - audible and visual alarm for bilge pumps - engine room fire extinguisher warning system
Automatic fog horn with loudhailer
Chart storage
Drink holders
Toughened glass screen (clear for night vision) with windscreen de-mist system
Windscreen wipers with freshwater windscreen wash
Exterior black mesh windscreen covers
Bilge pump controls with visual pump running warnings
24v and 240v electrical control panel
Riding light, helm and navigation light control switches
USB charging points (2)
Dimmable LED overhead, concealed (24v) and night lighting with scene selection
Watertight pantograph door giving direct access from starboard side deck
Electric drop window to port
Timber flooring (V groove planked)
Sky lounge
L-shaped sofa, coffee table and pouf
55” 4K UHD LED TV on rise and fall
DVD Blu-ray system with Naim Uniti Atom audio system speakers (2)
Sideboard with fridge and storage
Access stairway to main deck
Stainless steel opening glass doors to aft deck area
USB charging points (2)
Dimmable LED overhead and concealed lighting (24v) with scene selection
Tinted panoramic toughened side windows
Glazed roof panels with powered blinds
Electric blinds to all side windows
Timber flooring (V groove planked) with rug inlay

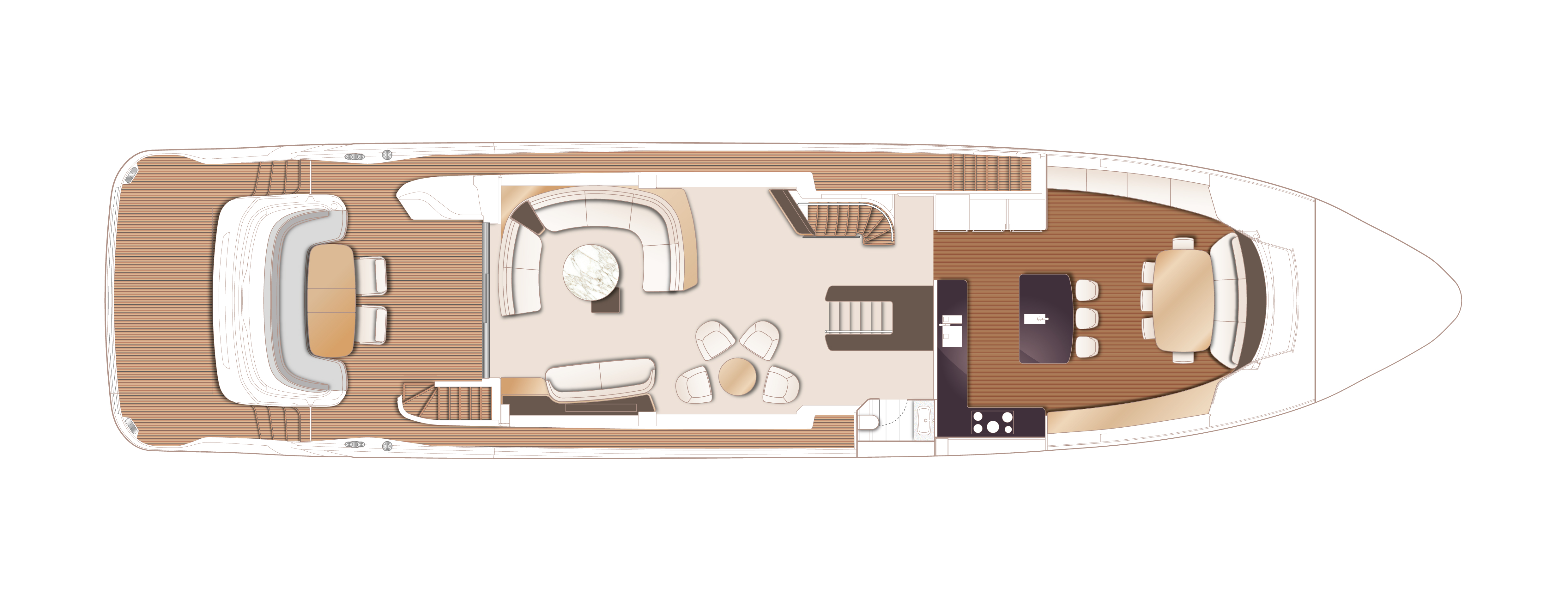

Saloon
Large curved sofa to port with storage below
Curved sofa to starboard with storage below
Coffee table with pouf
65” 4K UHD LED TV on rise and fall.
Naim audio system with speakers (4) and subwoofer
Servery unit with integrated drinks refrigerator, bottle storage and icemaker (located on port side forward of saloon)
Occasional coffee table with four armchairs to starboard
Full height glazing port and starboard in way of servery unit/bar and starboard free standing seating areas
Panoramic tinted toughened glass windows port and starboard
Triple stainless steel framed cockpit doors
Watertight side hinge door to starboard side deck
Access stairway to lower accommodation
Access stairway to skylounge
Dimmable LED overhead and concealed lighting with scene selection
220/240v outlets (4)
USB charging points (2)
Electric roller blinds to outboard windows
Manual curtains on wave track to aft patio doors
Fitted carpet
Galley
Open layout / country kitchen with forward dining area
Galley and island unit counter top in choice of granite or quartz
Miele 5 zone induction hob
900mm wide conventional oven
Miele Combination convection/microwave oven with grill
Twin full height refrigeration units with deep freeze drawers
Island unit/breakfast bar with triple stainless steel sinks, 12 place dishwasher, storage and space for optional drawer fridge
Barstools (3)
Waste bin
High and low level storage cupboards and drawers
Extractor fan
Space for optional wine cooler
Access to deck saloon
Watertight pantograph access door to port side deck (in forward saloon)
220/240v power outlets (4)
Dimmable LED overhead and concealed lighting with scene selection
Electric blinds to windows
Timber flooring (V groove planked)
Dining area
Dining table with aft facing fixed seating and dining chairs (5)
Port sideboard bench unit with upholstered top
Sideboard units (2) with crockery, glassware and general storage
Entertainment unit with Naim Uniti Atom audio system and speakers (2)
Ice maker
Cutlery and crockery storage (in port side staircase unit)
220/240v power outlets (2)
USB charging points (4)
Dimmable LED overhead and concealed lighting (24v) with scene selection
Panoramic tinted toughened glass windows port and starboard
Powered blind to forward glazing
Electric roller blinds to windows
Timber flooring (V groove planked)
Day head
Electric freshwater toilet
Wash hand basin and counter top in thermoformed solid surface
Storage cupboard
Manual tension venetian blind
Marble/granite/quartz floor
Accommodation
All cabins and bathrooms feature opening portholes and air conditioning
All cabins feature 220/240v powerpoints
All en-suites feature 240v shaver points
Owners stateroom
Large double bed with bedside tables and drawers below
Dressing area with full length mirror, hanging, shelf and drawer storage
Built-in safe
Starboard dressing table with integrated mirror, chair, storage drawers and cupboards
Portside sofa with storage below and coffee table
55” 4K UHD LED TV
Naim audio system with speakers (2) and subwoofer
Panoramic windows including opening portholes
Electric roman blinds to hull windows, with out-board manual sheer roller blind
Dimmable LED overhead and concealed lighting (24v) with scene selection
Wall lights (2)
220/240v outlets (4)
USB connection points (4)
Fitted carpet
En-Suite Bathroom
Twin washbasins and counter top in thermoformed solid surface
Mirror
Storage lockers
Separate compartment with toilet and option of combination toilet/bidet
Shower compartment with automatic pump out
Extractor fan
Window with opening porthole
Manual tension venetian blind
LED overhead and concealed lighting (24v)
Bathroom accessories
Marble/granite/quartz to floor and specified bulkheads
Forward stateroom
Large double bed with drawers below
Walk-in wardrobe with shelves
Dressing table with stool
Mirror
Storage lockers
43” UHD LED TV
Naim Atom audio system with ceiling mounted speakers (2)
Windows with opening portholes
Electric roman blinds to hull windows
LED overhead and concealed lighting (24v) with scene selection
Wall lights (2)
220/240v outlets (2)
USB charging points (4)
Fitted carpet
En-Suite Bathroom
Washbasin and counter top in thermoformed solid surface
Mirror
Storage lockers
Shower compartment with automatic pump out
Extractor fan
Window with opening porthole
Manual tension venetian blind
LED overhead and concealed lighting (24v)
Bathroom accessories
Marble/qranite/quartz flooring
Starboard guest cabin
Two single beds with drawers below (with option of double bed conversion)
Bedside table
Wardrobe with lower shelves
Mirror
Storage lockers
Window with opening portholes
Electric roman blinds to hull windows
Dimmable LED overhead and concealed lighting (24v) with scene selection
Individual berth lights
220/240v outlets (1)
USB charging point (2)
Fitted carpet
En-Suite Bathroom
Washbasin and counter top in thermoformed solid surface
Mirror
Storage lockers
Shower compartment with automatic pump out
Extractor fan
Windows with opening porthole
Manual tension venetian blind
LED overhead and concealed lighting (24v)
Bathroom accessories
Marble/granite/quartz flooring
Port guest cabin
Two single beds with drawers below (with option of double bed conversion)
Bedside table
Wardrobe with shelves
Mirror
Storage lockers
Window with opening portholes
Electric roman blinds to hull windows
Dimmable LED overhead and concealed lighting (24v) with scene selection
Individual berth lights
220/240v outlets (1)
USB charging point (2)
Fitted carpet
En-Suite Bathroom
Washbasin and counter top in thermoformed solid surface
Mirror
Storage lockers
Shower compartment with automatic pump out
Extractor fan
Windows with opening porthole
Manual tension venetian blind
LED overhead and concealed lighting (24v)
Bathroom accessories
Marble/granite/quartz flooring
Lower accommodation lobby
Linen cupboard below companionway stairs
Space for optional washer/dryer below companionway stairs
Dimmable LED overhead and concealed lighting (24v) with scene selection
Fitted carpet
Crew quarters
Standard transom configuration is a transom garage with Captain’s double cabin with en-suite, crew bunk cabin, aft bathroom, crew mess and dining area.
Optional transom configuration is a beach club with Captain’s double cabin - with en-suite, crew bunk cabin, central bathroom and aft beach club/ dining area.
All lower crew furniture is in white finish, with solid surface Carrera White (gloss finish) bathroom vanity unit tops and solid surface Koko White (satin finish) bathroom floors and non-slip flooring
Captain’s cabin
Double berth with storage below
Wardrobe with shelf
Mirror
Storage drawers under bunk
Opening porthole and venetian blind
Emergency deck hatch access to cockpit
LED overhead lighting (24v)
Individual berth light
220/240v outlets (1)
USB charging points (2)
Fitted carpet
En-Suite Bathroom
Washbasin with Carrera White (gloss finish) solid surface counter top
Mirror
Storage lockers
Shower compartment with automatic pump out
Extractor fan
Porthole with venetian blind
LED overhead lighting (24v)
Bathroom accessories
Solid surface flooring in Koko white (satin finish)
Port crew cabin
Single bunk beds (2)
Wardrobe with shelf
Mirror
Storage lockers
Opening porthole and venetian blind
LED overhead lighting (24v)
Individual berth lights
220/240v outlets (2)
USB charging points (2)
Fitted carpet
Crew bathroom
Washbasin with Carrera White (gloss finish) solid surface counter top
Mirror
Storage lockers
Shower compartment with automatic pump out
Extractor fan
Porthole with venetian blind
LED overhead lighting (24v)
Bathroom accessories
Solid Surface flooring in Koko White (satin finish)
Crew area
Access from port side deck (also transom door with optional beach club)
Access to engine room
Storage space, cupboards and lockers
Dining area with table
Crew mess with microwave with grill, sink, refrigerator and waste bin
Solid surface counter top in Ice Crystal (satin finish)
Washing machine and separate tumble dryer
LED overhead lighting (24v)
Non-slip flooring
Power and drive systems
Engine room soundproofed
High volume air intakes
Engine room extractor fan with electronic time delay
Engine exhaust silencers and water-cooled exhausts
Engine beds integrally moulded with hull for strength and vibration absorption
Forward and aft engine room bulkheads integrally bonded including acoustafoam layers
Engines flexibly mounted
Automatic fire extinguisher with remote override control
Automatic and manual bilge pumps
Propeller shafts in Marinemet
5-bladed propellers in nickel aluminium bronze
High speed balanced rudders
Cathodic protection for sterngear
Sterngear, engines, fuel tank fillers, all electrically bonded
LED engine room lighting
Engine room access from port side deck via crew area and from cockpit deck
Power-assisted electro-hydraulic steering system
Electronic engine and gear shift controls
Bow thruster with dual-station controls ( 550kgF)
Fresh water supply point in engine room
Dripless self-aligning shaft seals
Electrical systems
24 Volt:
4 x heavy duty batteries for engine starting
6 x heavy duty auxiliary batteries
Battery link facility with remote control at helm position
Both battery banks are charged using a voltage sensitive relay that parallels both battery banks when a charging source is present
Remote battery isolator control switches at main switch panel position
Circuit breakers on all circuits
24v to 12v converters for certain navigation and radio circuits
Galvanic isolation system
CCTV system with camera in aft cockpit and two fixed cameras in engine room linked to Böning system
220/240 Volt:
European specification: 2 x 40kW @ 50Hz Onan diesel generators in own sound shields, water cooled and with specially silenced exhaust systems and with remote operation from main control panel
USA specification: 2 x 40kW @ 60Hz Onan diesel generators in own sound shields, water cooled and with specially silenced exhaust systems and with remote operation from main control panel
Three phase shore inlet (380v-415v / 42kvA @50Hz) with Glendinning cablemaster (15m/50ft) and a single phase shore power inlet (220-240v / 15kvA @ 50Hz. Both shore supports with isolation transformers. (US Spec single phase 2 x 100 amp)
Shore power/generator change over control operated from main control panel
Polarity check system
Earth leakage safety trip, circuit breakers on all circuits
Power points (240v) in all cabins and living areas, helm position and galley
240v shaver points in washrooms
3kW immersion heater for fresh water (2)
Fuel system
Main fuel tank with fuel polishing transfer system to day tank giving a total 13,818 l of fuel capacity (forward fuel bunker tank 4,866l and main fuel bunker tank 8,008l plus day fuel tank 944l)
Fuel fillers to port and starboard
High capacity duplex fuel filters/water traps with integral changeover valves and water sensors connected to alarms at helm position
Remote fuel isolation controls in cockpit locker for main engines and generators
Fuel gauges at helm position
Water system
Water tanks giving 1,865l capacity plus 205l hot water calorifier
Automatic water pump with filter
Water level gauge
Deck filler
Pump circuit breaker at main switch panel
Electric freshwater toilet system linked to 720l holding tank, content gauge and low noise electric overboard discharge, with macerator backup system as well as dockside discharge system
Grey water to take waste water from sinks/shower, washing machine(s) and dishwasher
Air conditioning system
Air conditioning/heating reverse cycle 336,000 BTU fan capacity with 288,000 BTU chiller capacity suitable for temperatures to 40°C (tropical)
Windscreen demist facility
Outlets in all areas
Fire extinguishers
Automatic engine room fire extinguisher system (with manual override) and warning system at helm position providing automatic shutdown of engines, generators and ventilation fans
Manually operated engine room air shutoff system
Hand operated fire extinguishers in all guest cabins, galley, crew quarters and flybridge
Bilge pumps
Automatic/manual override electric bilge pumps in engine room, rudder area, forward accommodation, crew area and anchor chain locker (10 in total)
High capacity manual bilge system with suction points in the same areas
Electric bilge pumps have controls and warning lights with audible alarm at helm position
Other standard equipment
Ensign staff
Fenders (8)
Mooring warps (4)
First aid kit
Set of towels (8 large, 8 hand) (10 sets for optional 5 cabin layout)
Quilted bed covers supplied to all cabins (except crew cabin)
Complete set of Lucrezia crystal glassware (8 settings consisting of tumbler, highball and wine glasses) (10 settings for optional 5 cabin layout)
Set of Sous Le Soleil crockery (8 settings consisting of plate, cake plate, dessert plate, bowl, cup and saucer) (10 settings for optional 5 cabin layout)
Set of stainless steel cutlery (8 settings of David Mellor “Paris” cutlery 7 pieces) (10 settings for optional 5 cabin layout)
Tool kit
Boat hook
Owner’s manual and engine manual
Ship’s document case
Dynamat applied in the following locations
Crews aft engine room bulkhead
Crew deck head
Forward main deck owner's stateroom/dining area deck head
Finishes
Teak-laid decks to all external deck areas (including flybridge)
Timber flooring (V groove planked) to galley, skylounge, wheelhouse and forward dining area (wheelhouse in Newport oak as standard)
Furniture in choice of Alba Oak, Rovere Oak in satin lacquer finish as standard. Silver Oak or Walnut with satin or gloss lacquer finishes available as an option
Marble, quartz or granite floors in all bathroom suites in guest accommodation (including day head)
Thermo-formed solid surface wash hand basin counter-tops in all bathroom suites and day head
Galley counter top in granite or quartz as standard (some options carry additional premiums)
Choice of high quality carpets and fabrics from extensive range
Curtains, blinds or sunscreens to all windows and portholes (excludes pantograph doors and wheelhouse)
Crew cabins have fitted carpet
Crew bathrooms have solid surface floors and countertops
Non-slip safety flooring to crew mess and passageway

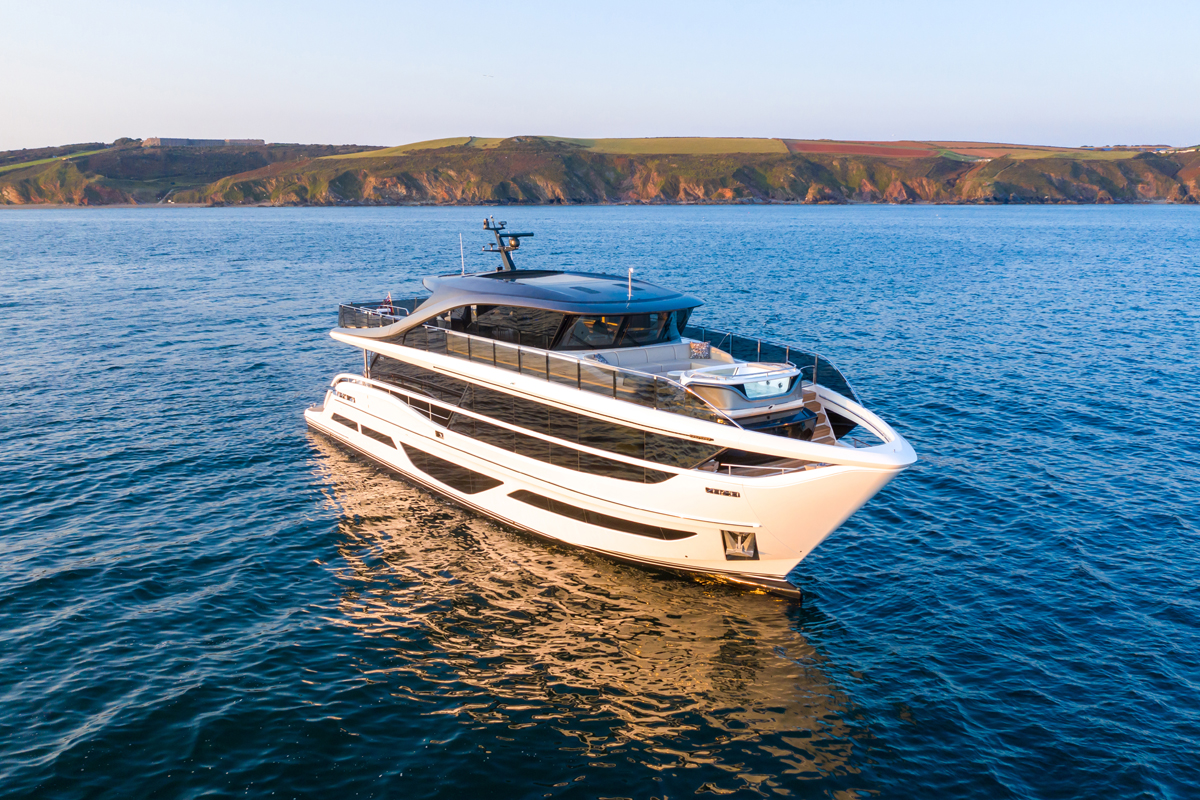

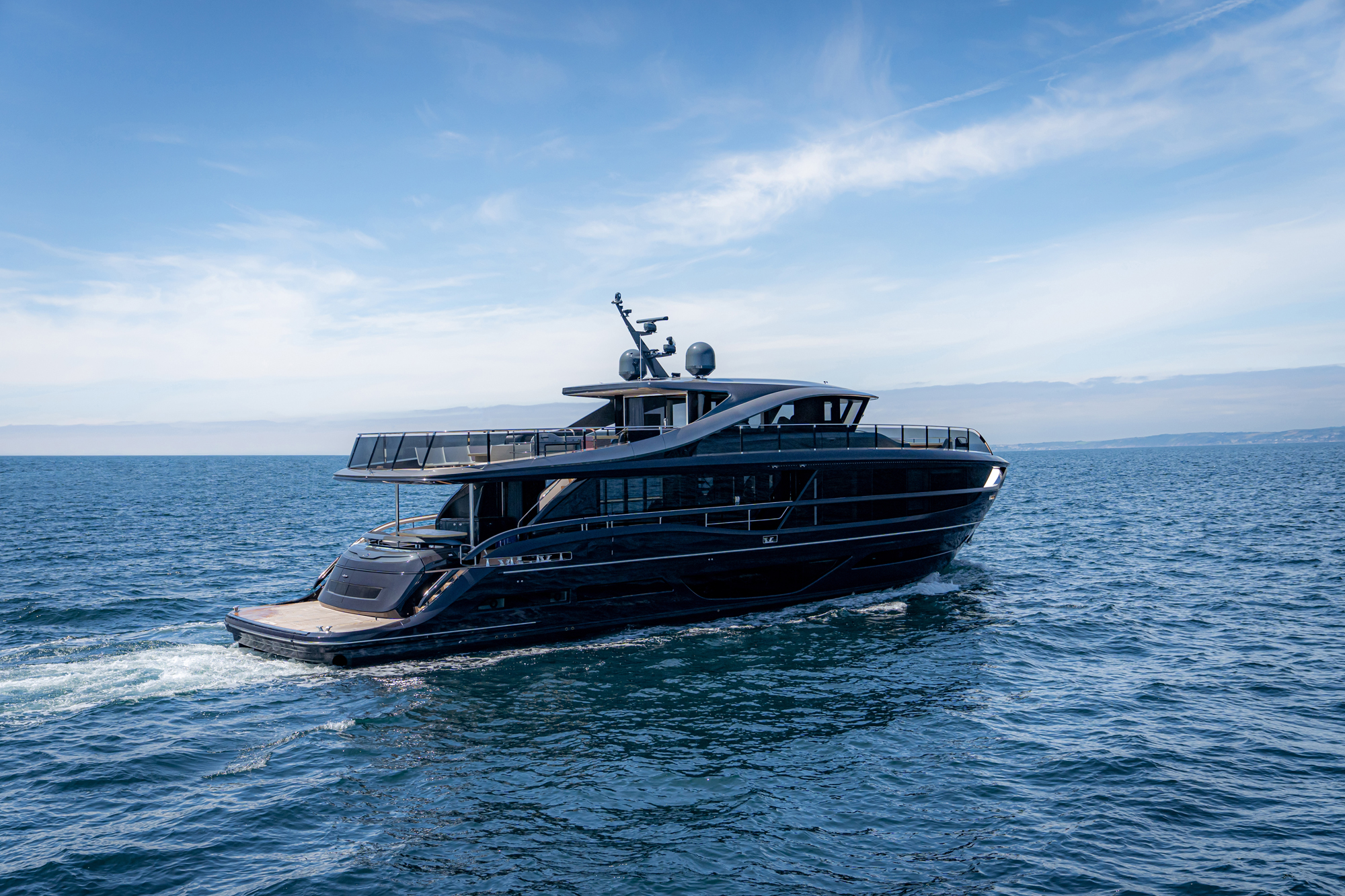

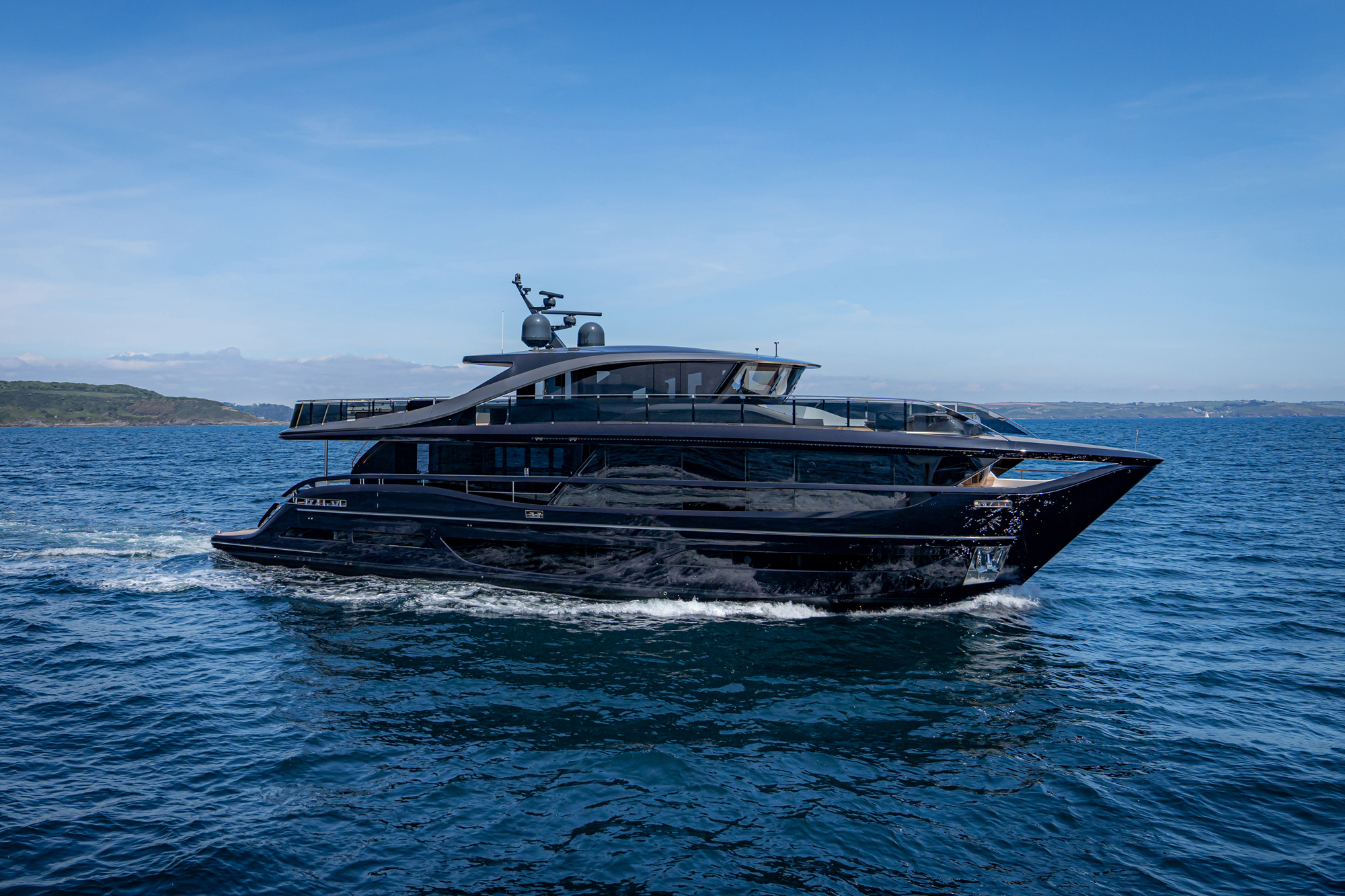

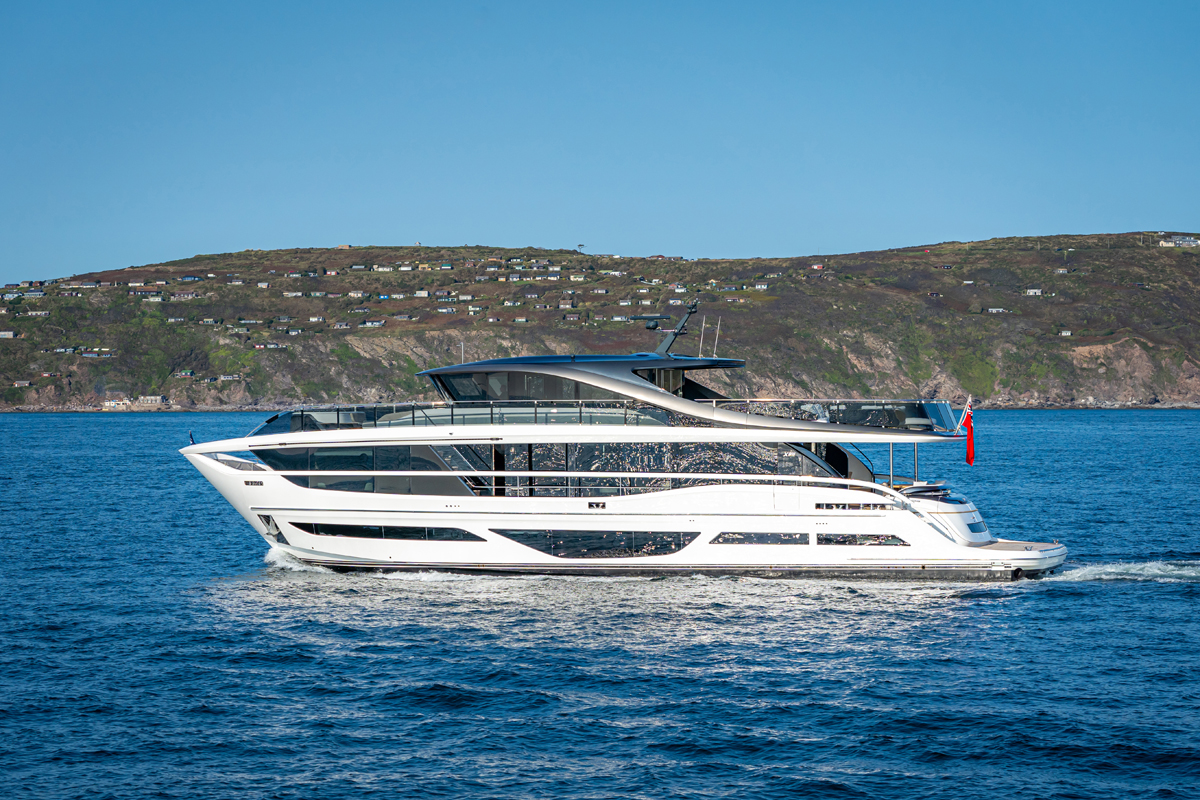

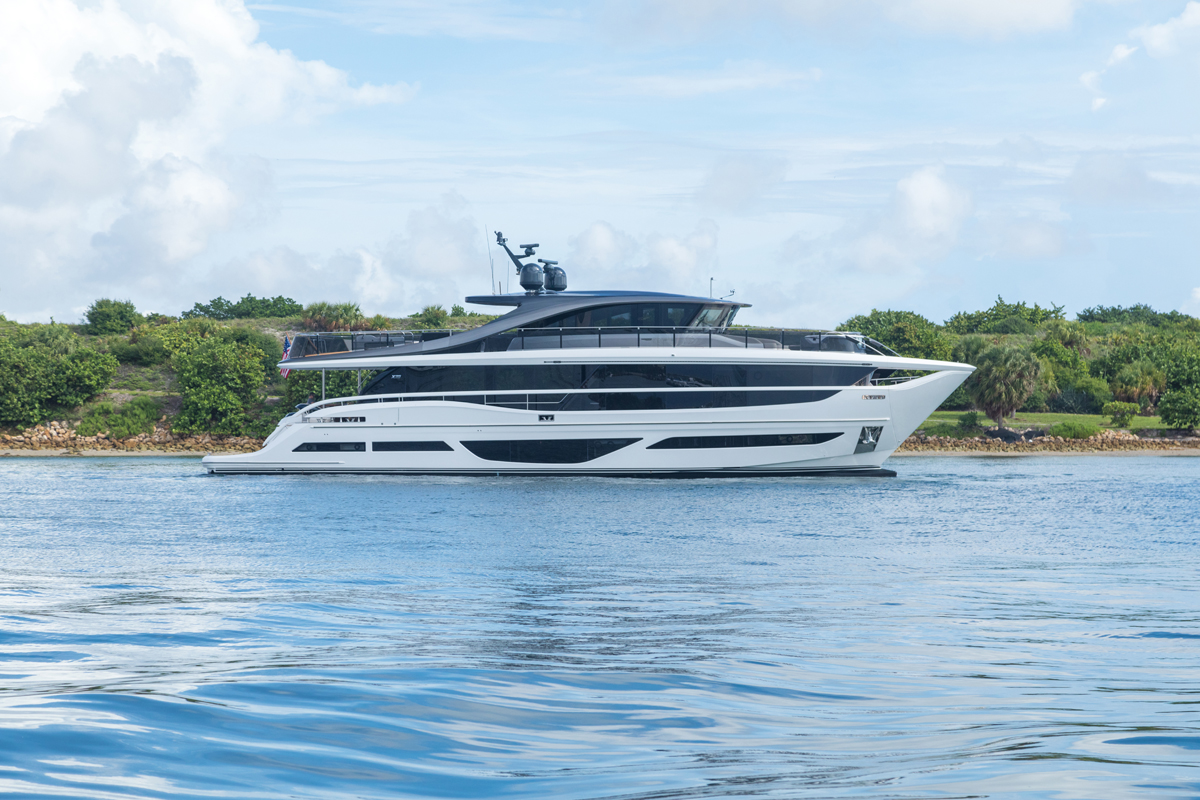

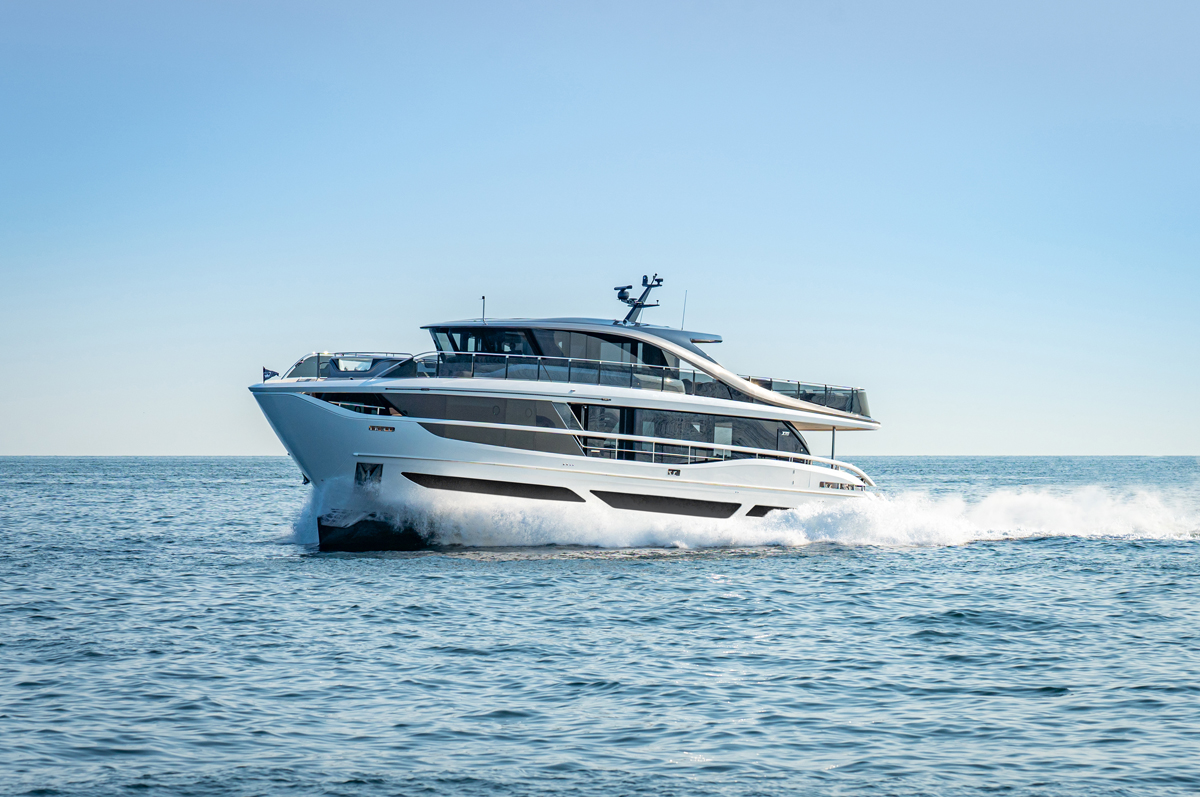

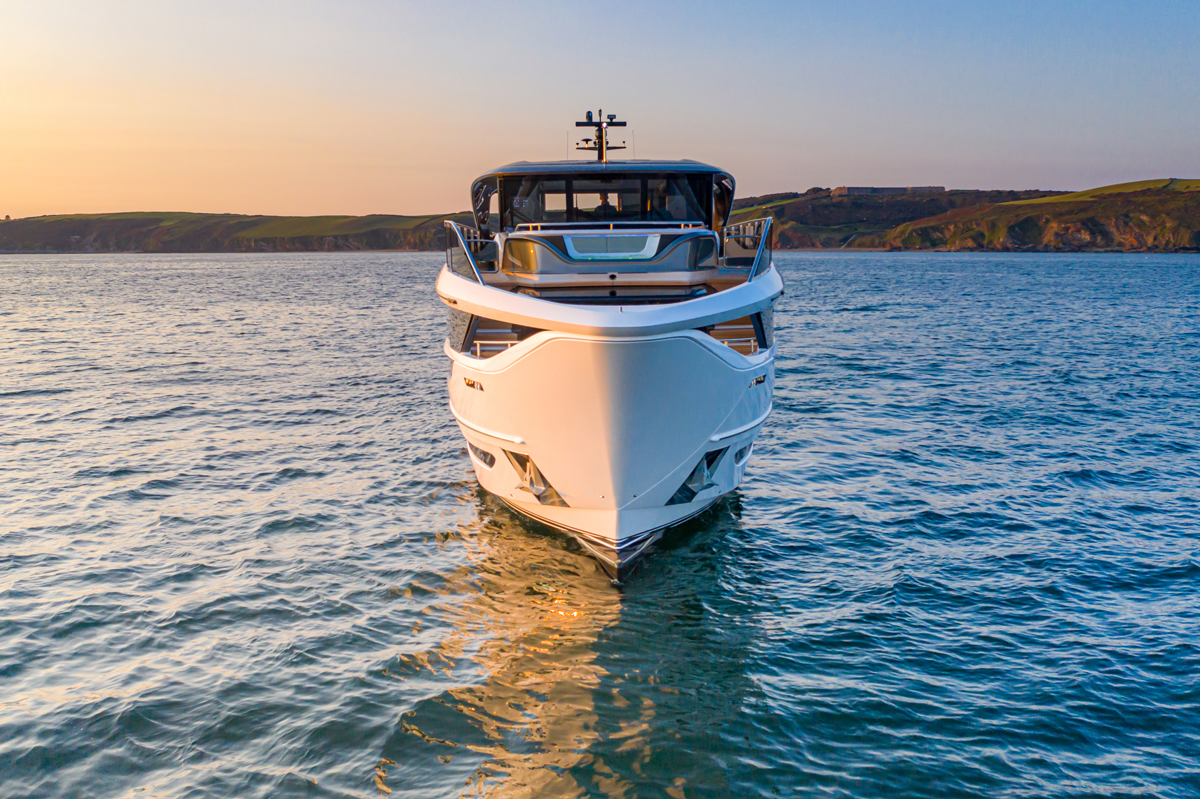

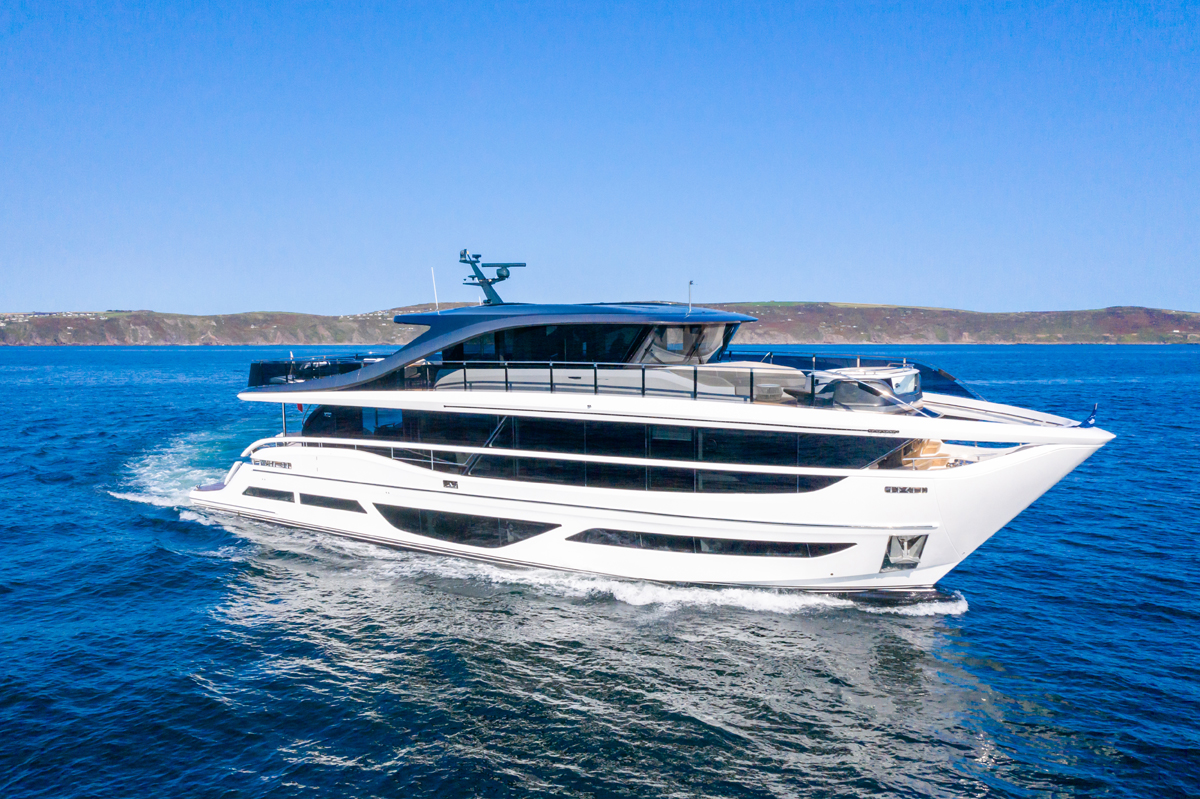

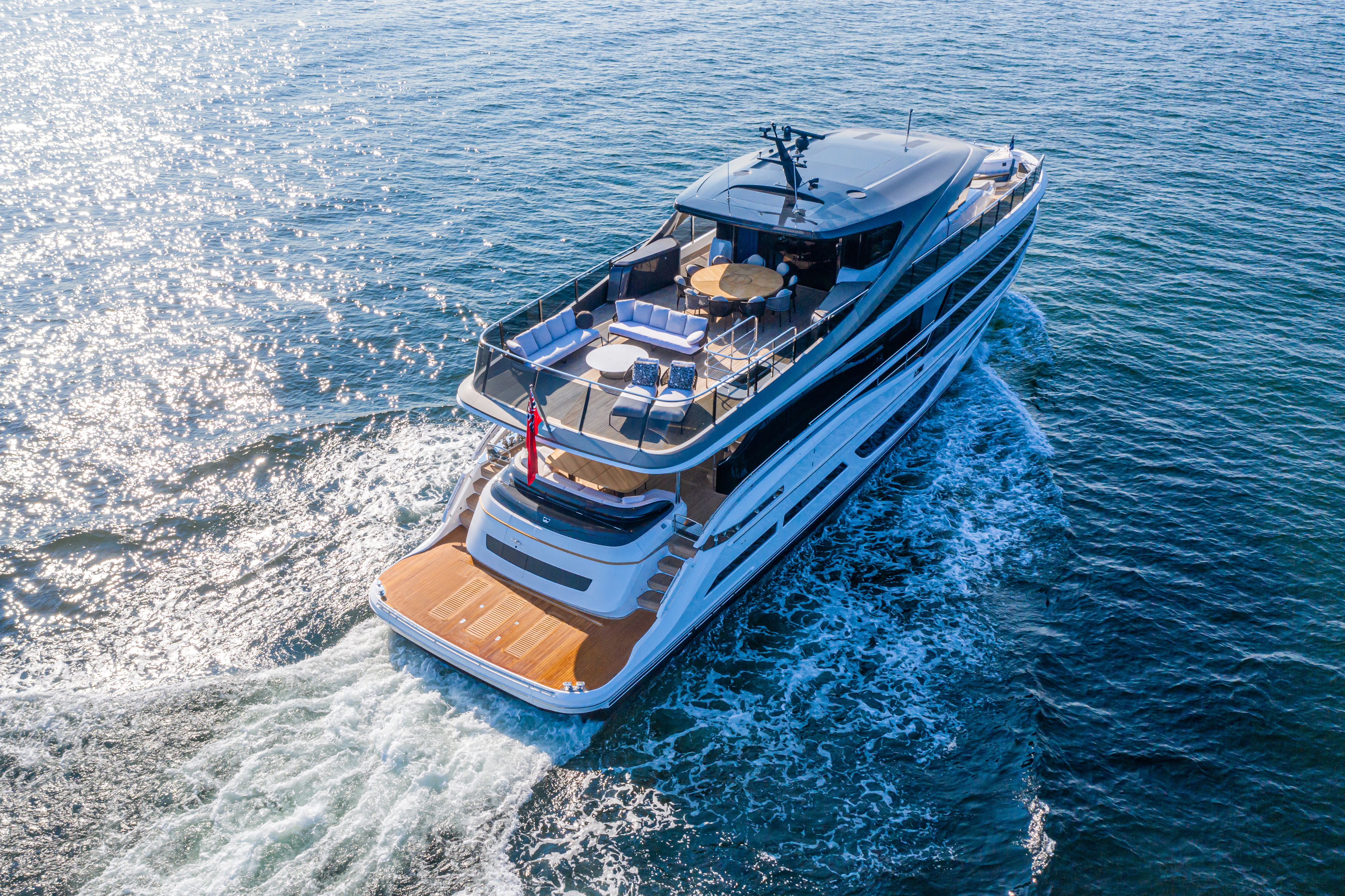

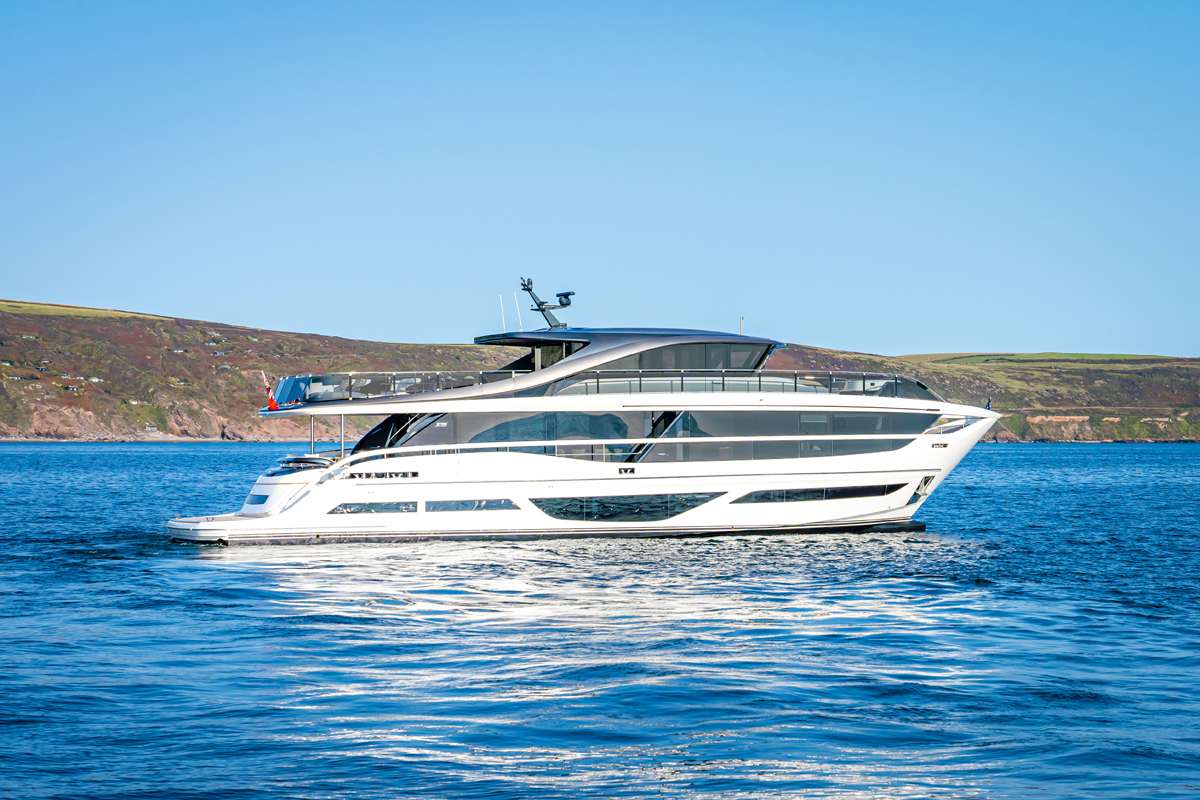

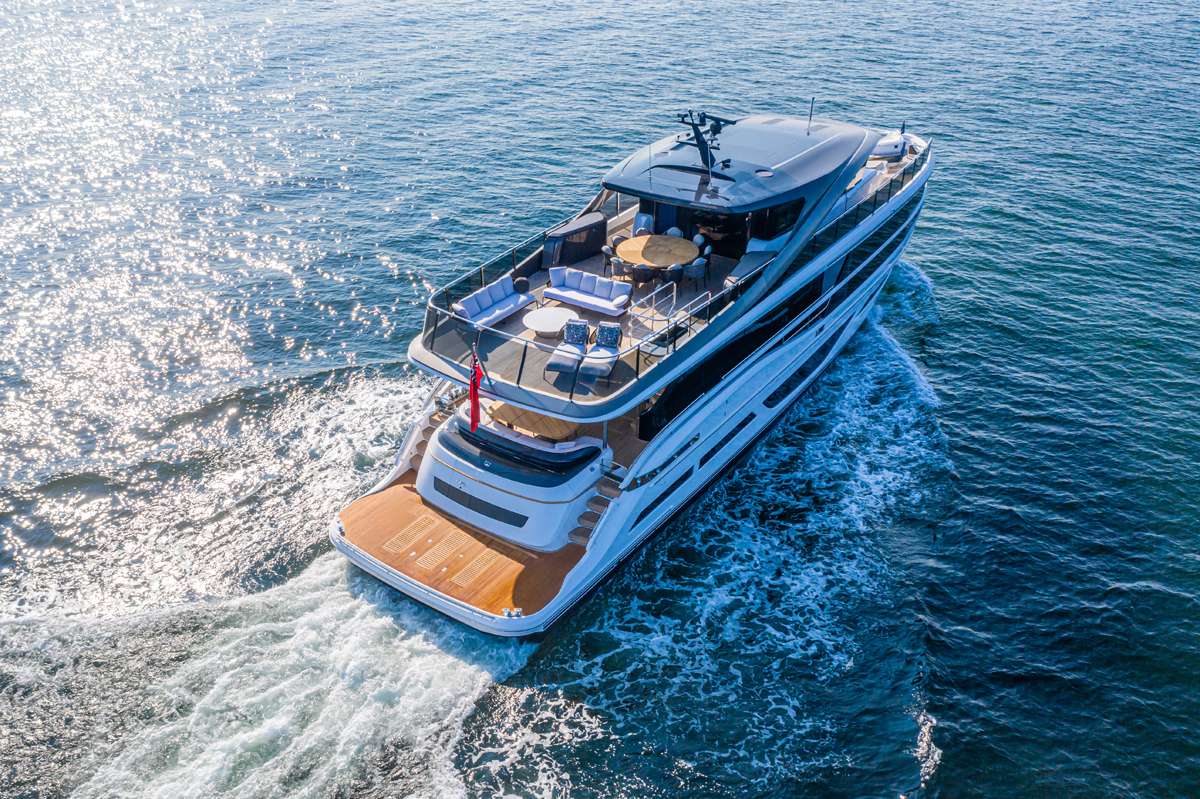

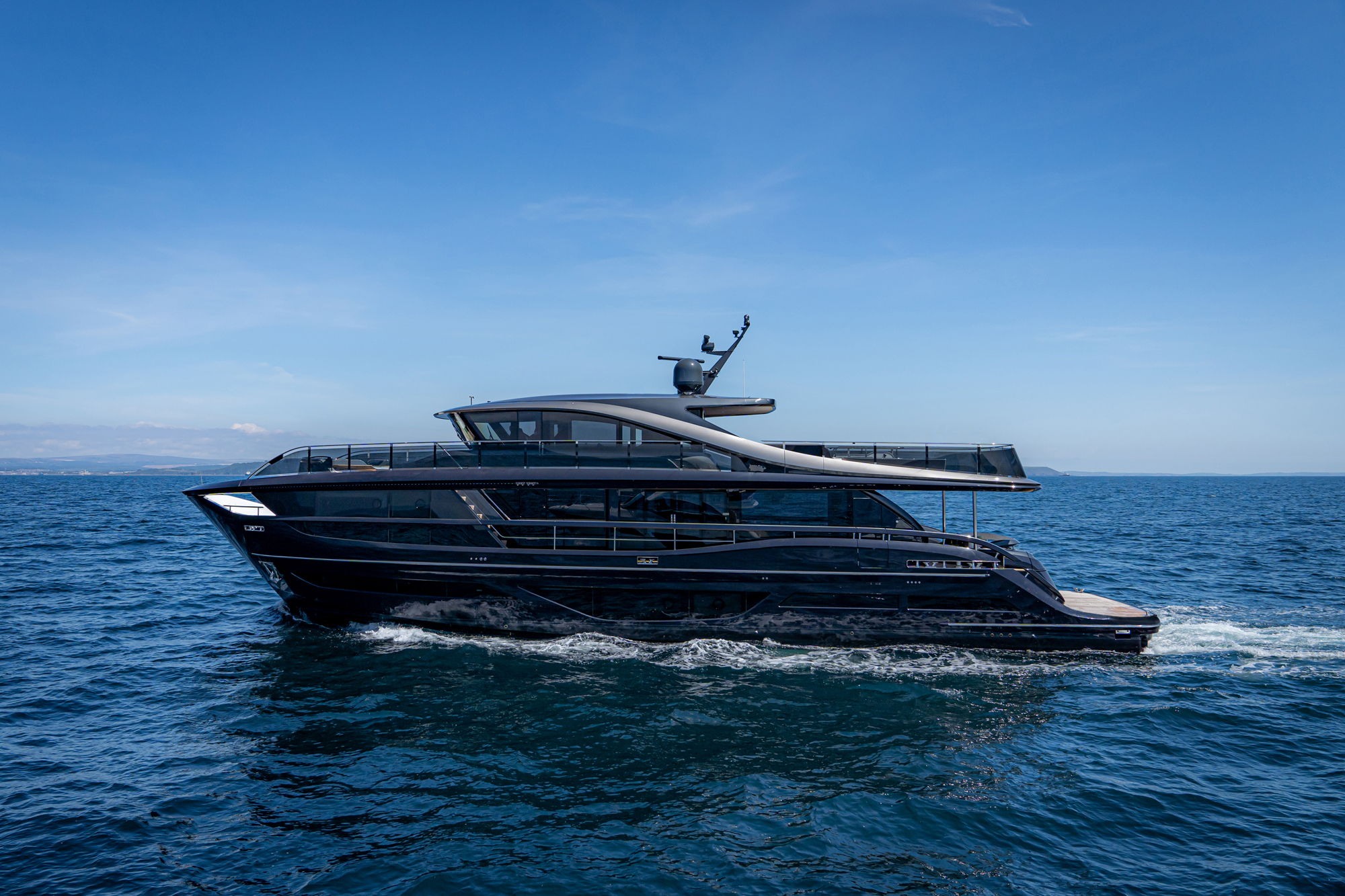

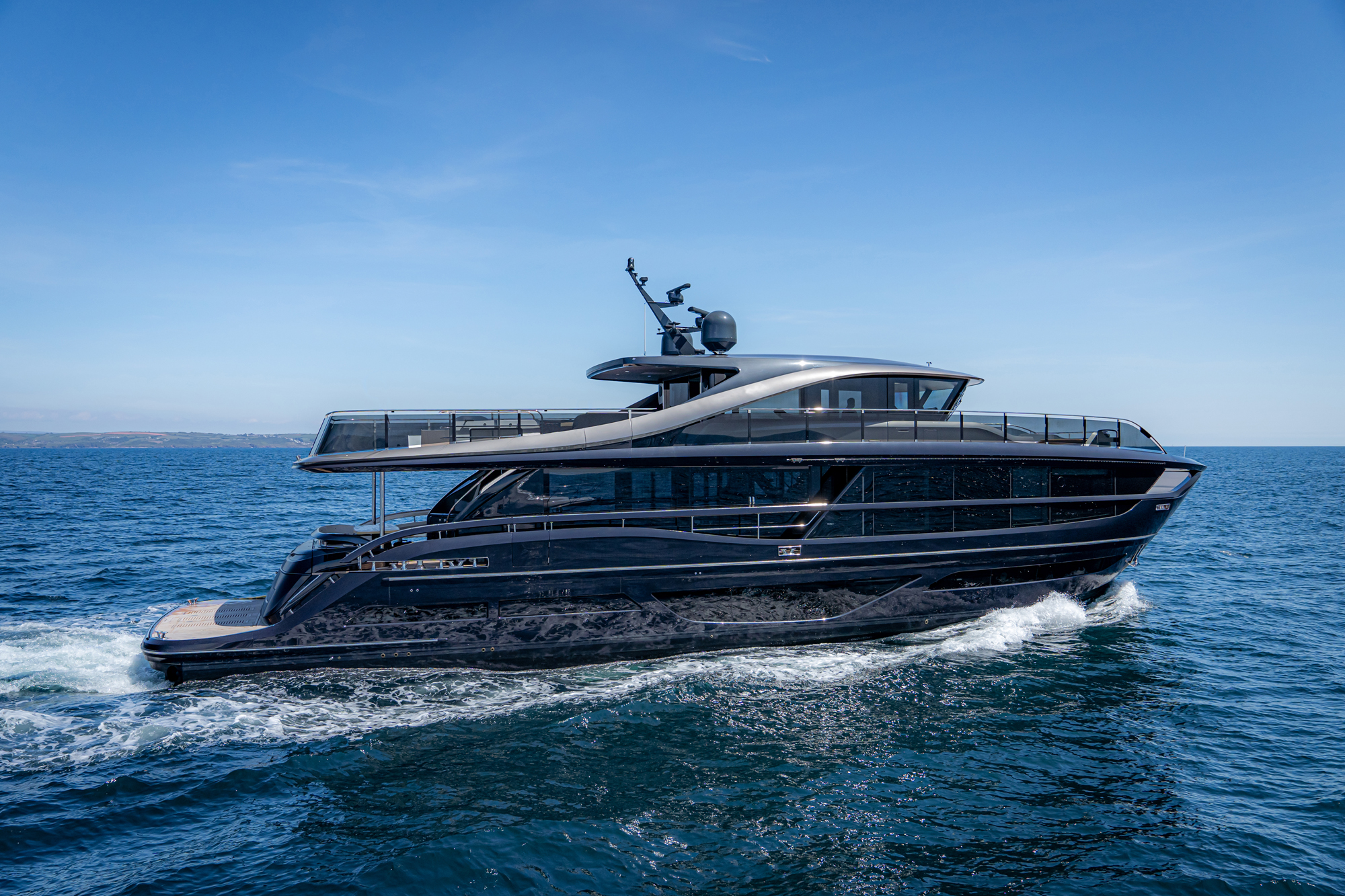

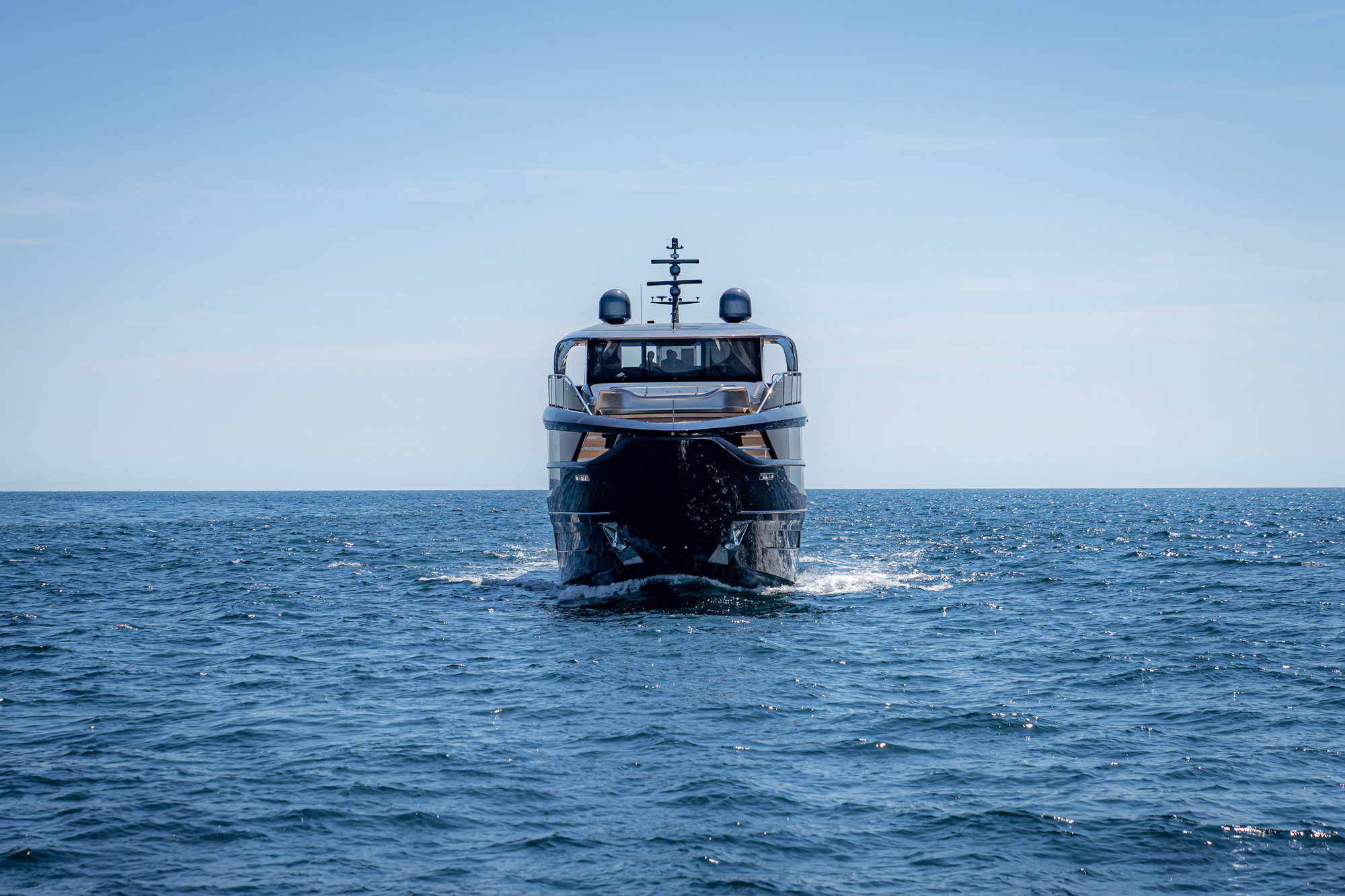

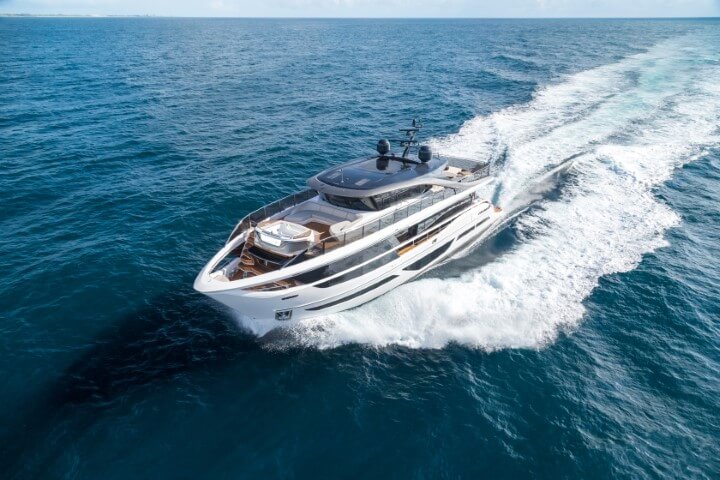

Characterised by beautifully sculpted surfaces and long flowing lines, the X95 defines a striking design language. Both her flybridge and main deck cover almost the full length of the yacht, delivering expansive spaces with flexibility.
A new standard of layout excellence, offering a uniquely flexible boating lifestyle.
A breathtaking perspective
A breathtaking perspective
Exterior Interior
X95
The flagship of our X Class range
A new standard of layout excellence, offering a uniquely flexible boating lifestyle.
A breathtaking perspective
Take a 360 virtual tour
Take an in-depth tour through the Princess X95 using our 360 tour.
At its core is a unique concept for the flybridge and main deck interior space, both of which cover almost the full length of the yacht, creating the Super Flybridge – the X Class’s defining characteristic. The layout provides 10% more outdoor space and 40% more indoor space than a traditional motor yacht.
Customise your yacht with a choice of 4 timber finishes. Choose from Alba Oak or Rovere Oak in a satin finish as standard. Alternatively you can select Silver Oak or Walnut in a choice of satin or gloss finishes as an option.
Flybridge Deck
Flybridge Deck Layout (Optional)
Main Deck Layout

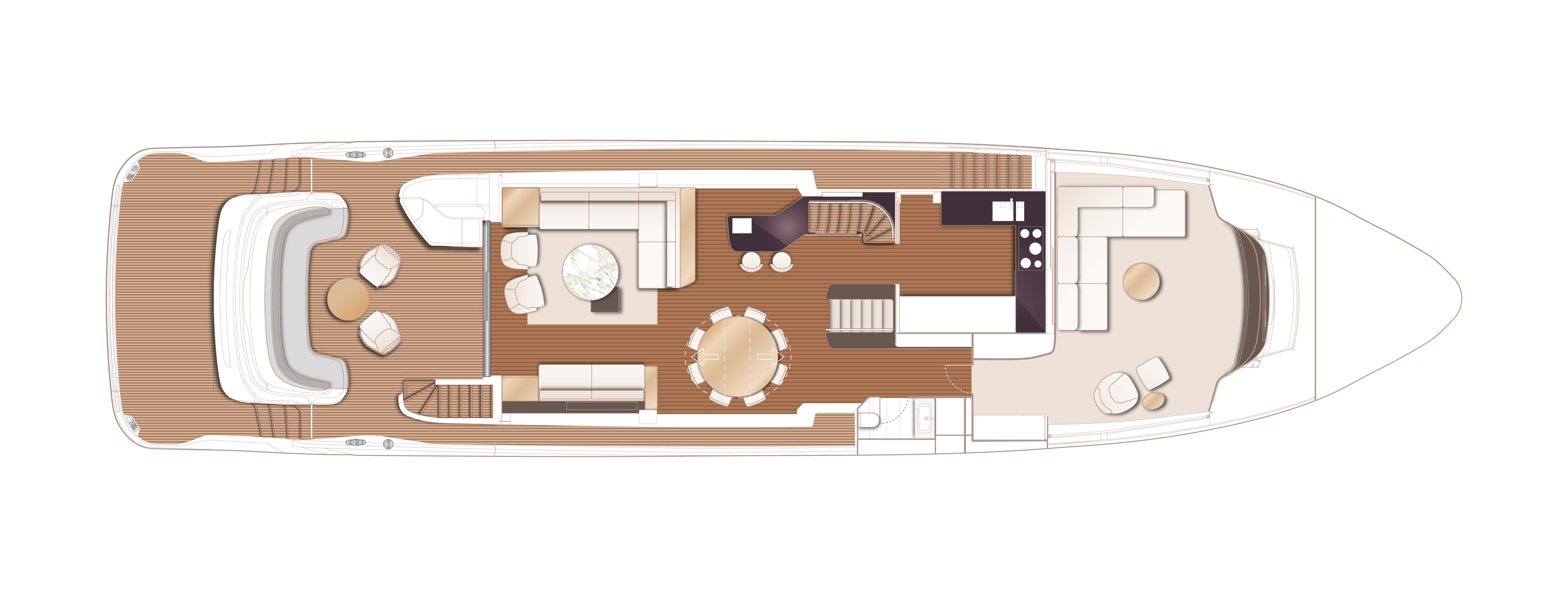

Main Deck Layout (Optional)
Main Deck Layout (Optional 2)
Lower Deck Layout
Lower Deck Layout (Optional)
Lower Deck Layout (Optional Alt)
Explore far-reaching,
adventurous voyages.

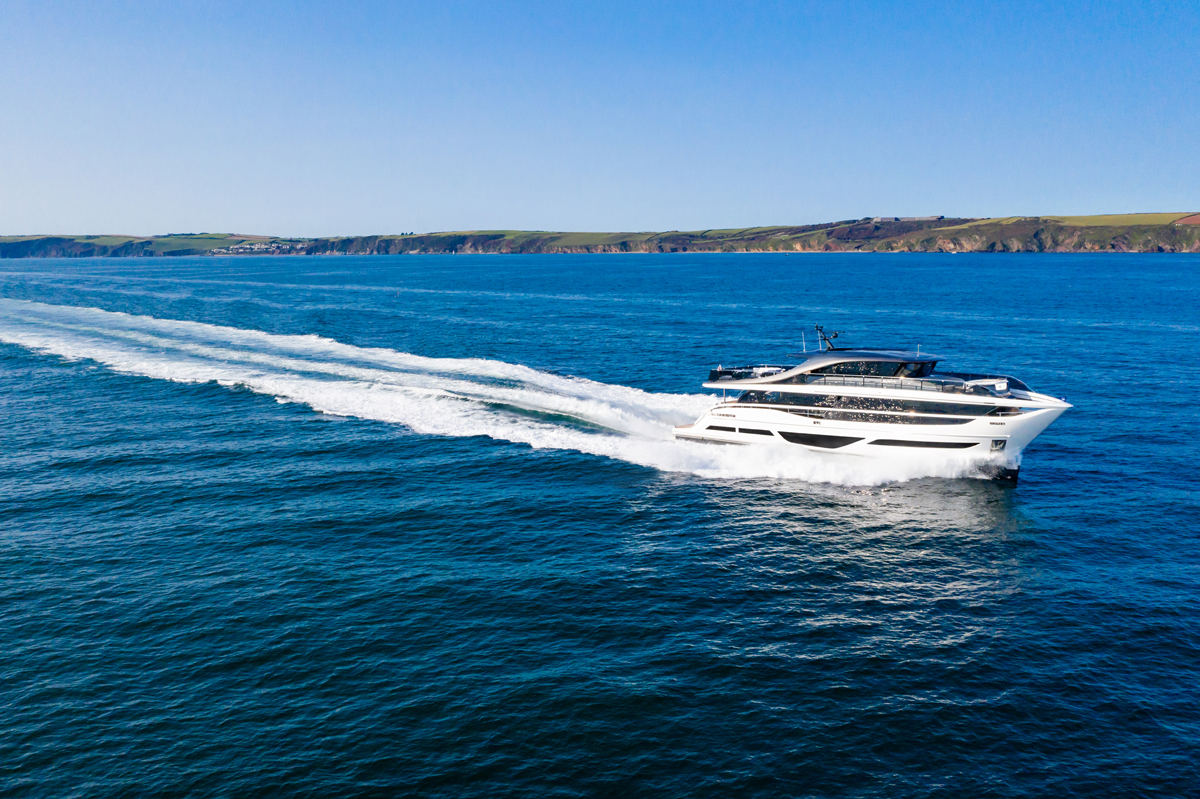

With a fuel capacity of 13,400 litres, the X95 has the range for far-reaching, adventurous voyages.
Experience space akin to a megayacht as you enter her main deck saloon and witness a line of sight right through to the forward window. Ascend the internal staircase to the upper deck and another unique experience awaits: a fully enclosed and climate-controlled Sky Lounge. Taking pride of place on her lower deck is the full beam Master Stateroom with en suite, complemented by her Forward Stateroom with walk-in wardrobe and en suite bathroom. Additional port and starboard guest cabins can each be configured with two single beds or one double bed, whilst generous crew quarters complete her extensive accommodation.
