Water capacity (incl. calorifier)
91 gal/109 US gal/414l
Engines
Twin Volvo IPS 600 (2 x 440mhp)
TOP SPEED: 29-31 knots†
Length overall (incl. pulpit)
52ft 7in (16.02m)
Length overall (excl. pulpit)
50ft 4in (15.35m)
Beam
13ft 4in (4.08m)
Draft
3ft 7in (1.09m)
Displacement approx.
15,919kg (35,095lbs)*
Fuel capacity
341 gal/410 US gal/1,550 l
Water capacity (incl. calorifier)
91 gal/109 US gal/414 l
Engines
Twin Volvo IPS 650 (2 x 480mhp)
TOP SPEED: 30-32 knots†
* Displacements are calculated with 50% fuel and water with liferaft but with no optional equipment fitted or other gear.
† Maximum speeds will vary depending on cleanliness of hull, condition of sterngear, loading of craft, water and air temperatures, sea conditions and other factors. Speed estimates are therefore given in good faith but without warranty or liability on the part of Princess Yachts Limited. Craft illustrated in this brochure may be fitted with certain optional equipment. Specifications may be changed at any time without notice or liability. USA Specification
‡ Certain specifications, which vary by model, are upgraded on Princess yachts built for use in North America. Thus, specifications and equipment will vary from the information listed in the brochure for North American Princess yachts (e.g. air-conditioning and an upgraded generator will be included as standard for all North American models and electric cooking facilities will be supplied in place of gas systems). Please consult the USA Specification Brochure for full details regarding the North American specifications for individual models.
Deck fittings
6mm Teak-laid transom platform, transom steps, cockpit deck and steps to side deck
Lewmar reversible electric anchor winch with foredeck and helm position controls
Self-stowing anchor system incorporating one 20kg/44lb Lewmar Delta galvanised steel anchor with flush pin shackle fitted and 40m galvanised 9.5mm chain
Stemhead roller with automatic anchor launch and retrieve
Stainless steel bow, stern and spring cleats
Stainless steel bow fairleads
Stainless steel pulpit and guardrails
Stainless steel coach roof handrails
PVC rubbing band with stainless steel insert
Illuminated crown logo to transom
Full set of IMCO navigation lights
Riding light
Remote control searchlight
Single electric horn
Fuel and water fillers
Holding tank dockside discharge connection
Deck hatch access to chain locker with fender stowage rack
Foredeck escape hatch
Foredeck drinks holders (4)
Ensign socket

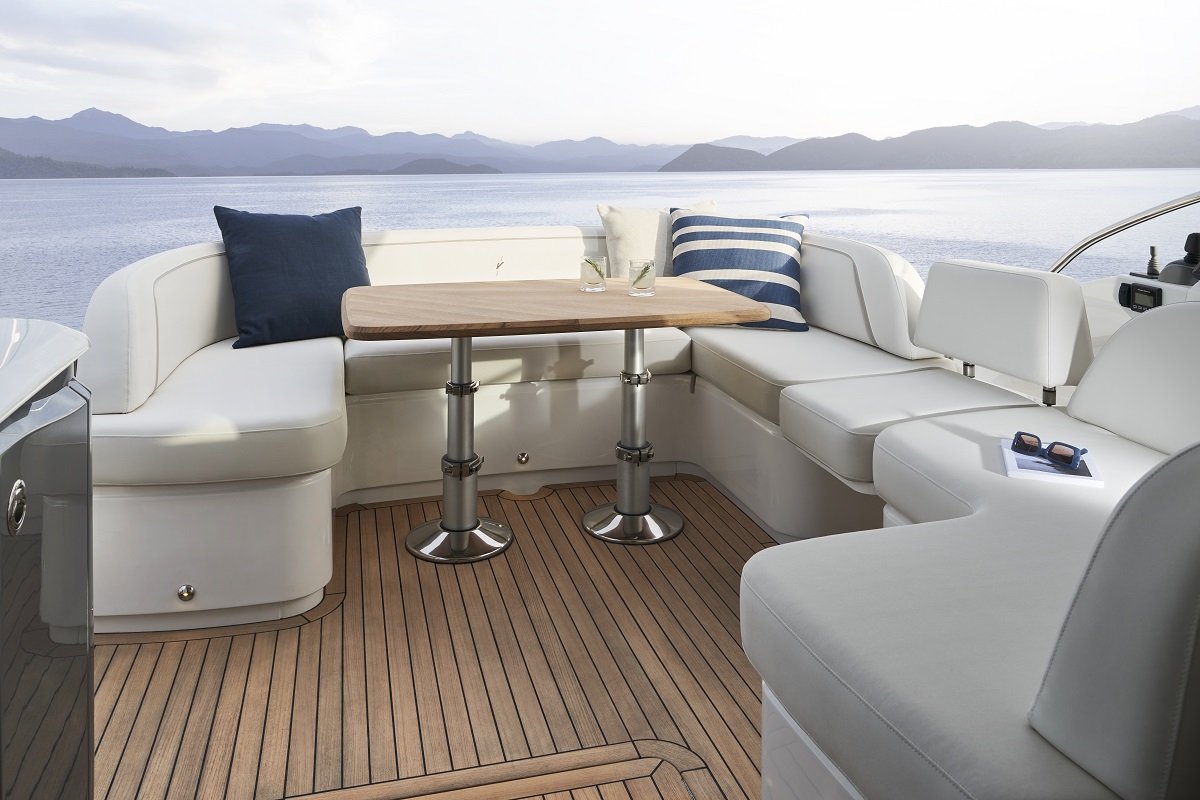

Cockpit and bathing platform
Self-draining
Upholstered aft U-shaped
Forward L-shaped seating/dining area (optional seat infill)
Cup holders to L-shaped seating (2)
Folding teak dining table
LED overhead and low deck level lighting
Cockpit cover
Stainless steel handrails
Lockable transom hatch to stern lazarette with gas strut assistance
Lockable access hatch to engine room
220/240v shore support inlet in locker
Life raft stowage locker
Transom bathing platform with integrated foldaway swimming ladder (with optional electro-hydraulic raise/lower mechanism – note when this option is selected it includes transom steps to access stern from bathing platform when in lowered position)
Port and starboard transom gates leading to bathing platform
Hot and cold transom shower
Storage lockers
Waterproof speakers linked to saloon sound system
Fender stowage rack in engine room/lazarette
Seat locker containing remote fuel cocks, manual bilge pump with valve chest and manual controls for automatic fire extinguisher

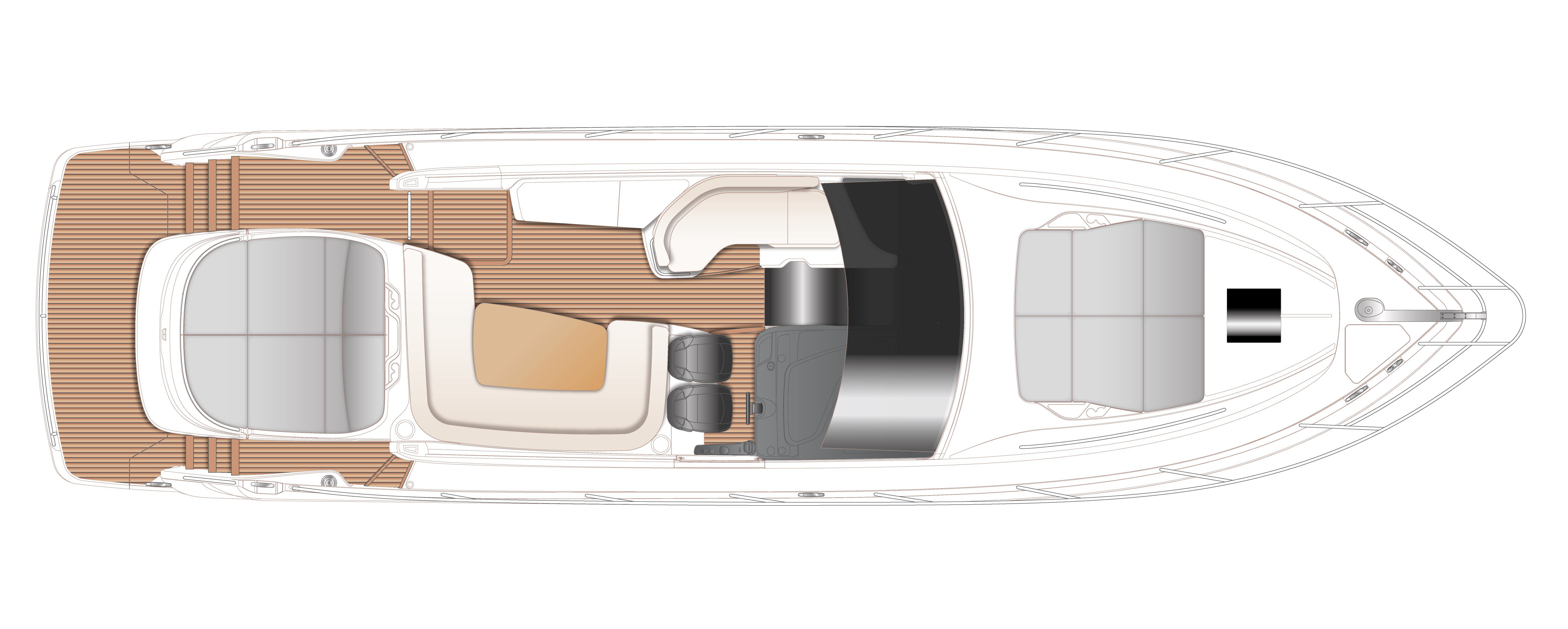

Cockpit and bathing platform (open)
Self-draining
Upholstered U-shaped seating/dining area
Folding teak dining table
LED Overhead and deck level lighting
Cockpit cover
Stainless steel handrails
Wet bar with sink, storage, refrigerated coolbox
Lockable access hatch to engine room
220/240v shore support inlet in locker
Life raft stowage locker
Transom platform with integrated swimming ladder (with electro-hydraulic raise/lower mechanism)
Transom steps to access stern from bathing platform when in lowered position
Aft sunbed with drinks holders (4)
Tender garage with electro-hydraulic door and electric winch for tender up to 3.25m
Transom door leading to bathing platform
Hot and cold transom shower
Storage lockers
Waterproof speakers linked to saloon Fusion Apollo MS-RA670 sound system
Fender stowage rack in engine room/lazarette
Cockpit locker containing remote fuel cocks, manual bilge pump with valve chest and manual controls for automatic fire extinguisher

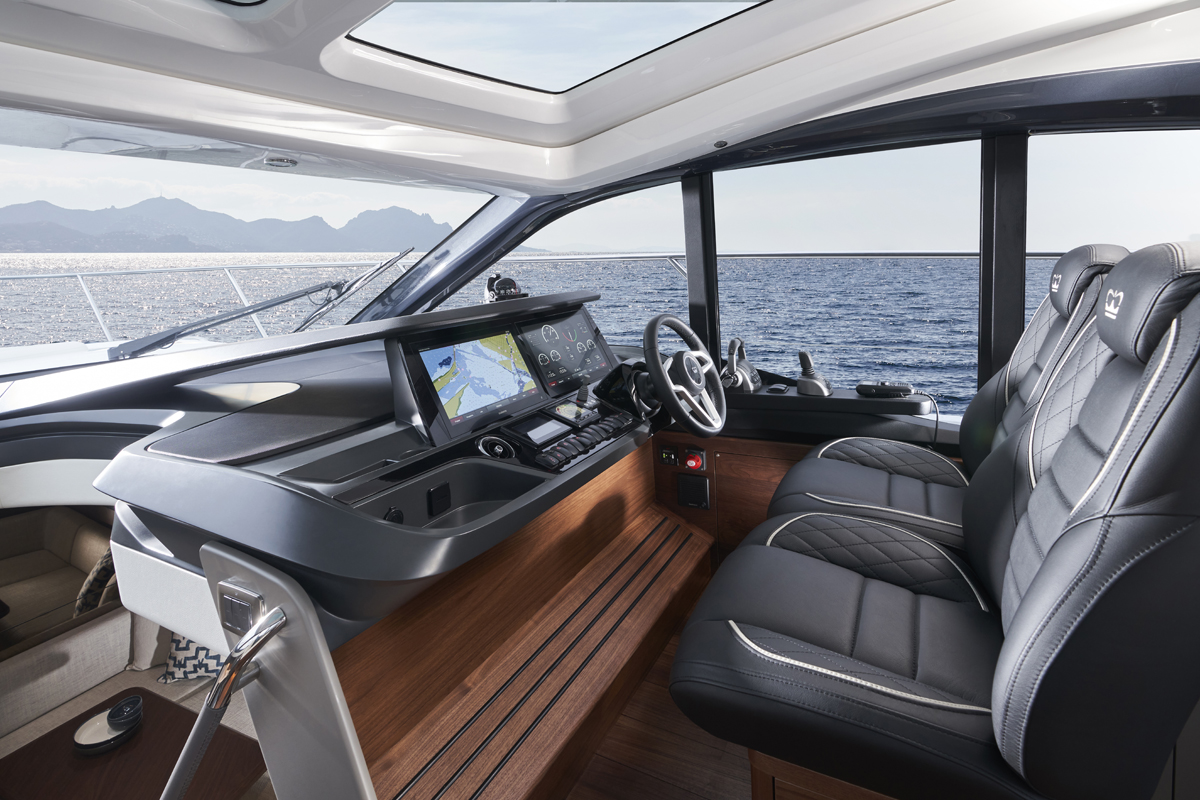

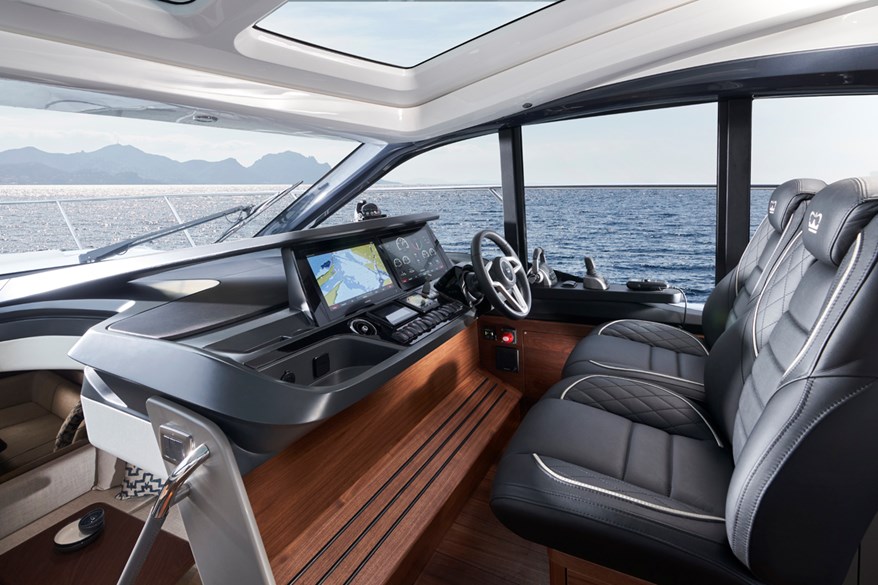

Instrument console incorporating engine instruments and fuel gauges
Instruments and controls at helm position include: - Power-assisted electric steering system - Adjustable steering wheel - High speed magnetic compass - Electronic engine controls with integrated trim control - Joystick manoeuvring control - Electric anchor winch with remote control - Volvo/Garmin 16” MFD, incorporating GPS chart plotter, engine instrumentation, alarm warning system, autopilot control, fuel gauges, speed and distance log, echo sounder and steering angle indicator - VHF with DSC R/T with intercom - Single remote-control searchlight - Horn button to operate single electric horn
Twin windscreen wipers
Windscreen freshwater pressure wash
Bilge pump controls with audible and visual alarm for bilge pumps (3)
Electric drop window to starboard side
Engine room fire extinguisher warning system
Drinks holder (2) at console, with additional drink holder (1) at base of navigator seat
Toughened un-tinted glass screen
Black mesh sunscreens for exterior use
USB charging points
Riding light, helm and nav light control switches
Timber-laid flooring
Helm position (open)
Twin upholstered seats, manually adjustable helm seat (fore/aft) with sit/stand facility, fixed position navigator seat
J-shaped companionway seating with drinks holders (2)
Instrument console incorporating engine instruments and fuel gauges
Instruments and controls at helm position include: - Power-assisted steering - Adjustable steering wheel - High speed magnetic compass - Electronic engine controls with integrated trim control - Joystick manoeuvring control - Electric anchor winch with remote control - Volvo/Garmin 16” MFD, incorporating GPS chart plotter, engine instrumentation, alarm warning system, autopilot control, fuel gauges, speed and distance log, echo sounder and steering angle indicator - VHF with DSC R/T with intercom - Single remote-control searchlight - Horn button to operate single electric horn
Twin windscreen wipers
Windscreen freshwater pressure wash
Bilge pump controls with audible and visual alarm for bilge pumps (3)
Electric drop window to starboard side
Engine room fire extinguisher warning system
Drinks holder (2) at console, with additional drink holder (1) at base of navigator seat
Toughened un-tinted glass screen
Black mesh sunscreens for exterior use
USB charging points
Riding light, helm and nav light control switches
6mm teak-laid flooring

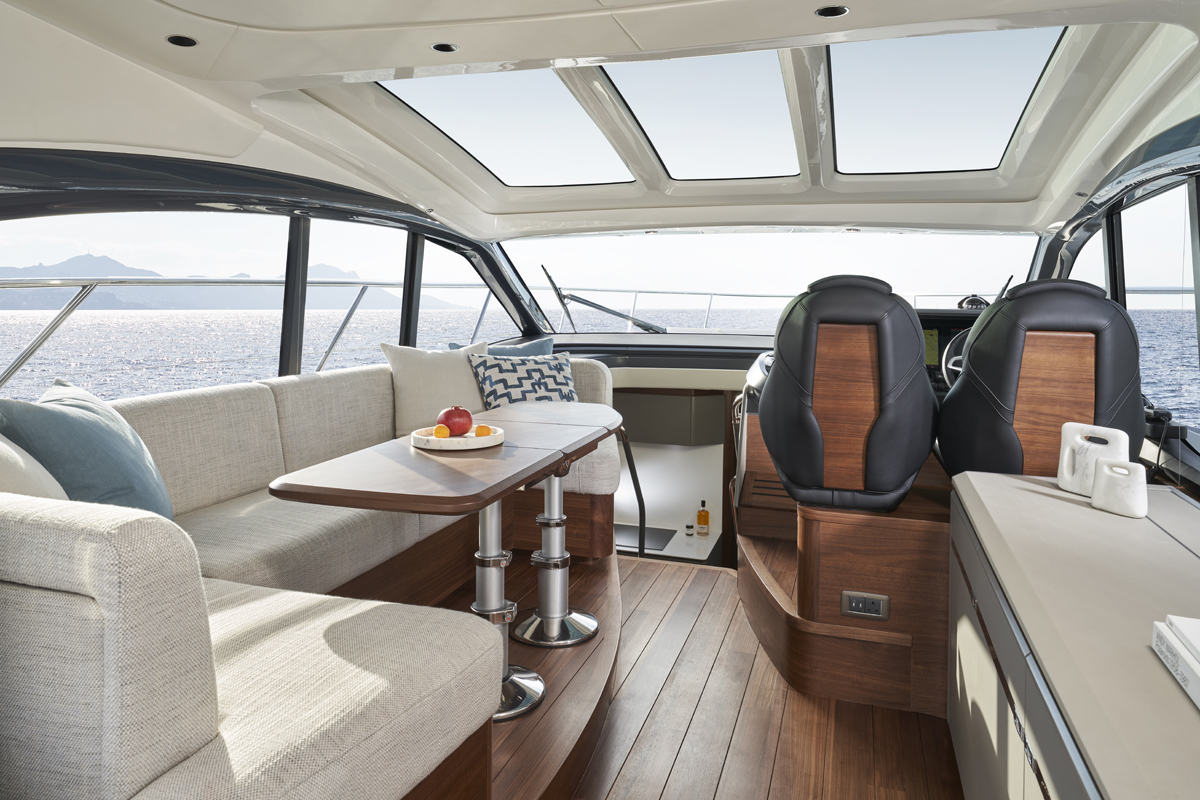

Deck saloon
U-shaped sofa with drawers
Dining table
Sideboard
Refrigerator
Curtains, blinds or sunscreens to all windows and doors
LED overhead downlighters
Access stairway to lower accommodation
Electric opening roof
Triple stainless steel framed sliding doors to cockpit
Fusion Apollo MS-RA670 audio unit (with external USB connection) with Wi-Fi and Bluetooth connected to saloon Fusion 6" CL602 speakers (2) and cockpit speakers
Timber flooring
220/240v outlets (2)
USB charging points (2)
Lower saloon
U-shaped sofa with single drawer and top loading storage (top loading storage is occupied by air conditioning unit when option is specified)
Table
Storage lockers
LED overhead downlighters
24/240v main electrical control panel with battery isolation switches
Fusion Apollo MS-RA670 audio unit (with external USB connection) with Fusion 6" CL602 speakers (2)
Window with opening portlight (1)
Manual tension venetian blinds
Thermal heat alarm
220/240v outlets (1)
USB charging points (2)
Lower saloon (open)
U-shaped sofa with single drawer and top loading storage (top loading storage is occupied by A/C unit when option is specified)
Table
Storage lockers
LED overhead downlighters
24/240v main electrical control panel with battery isolation switches
Skylight
Fusion Apollo MS-RA670 audio unit (with external USB connection) with Fusion 6” CL602 speakers (2)
Window with opening portlight (1)
Manual tension venetian blinds
Thermal heat alarm
220/240v outlets (1)
USB charging points (2)

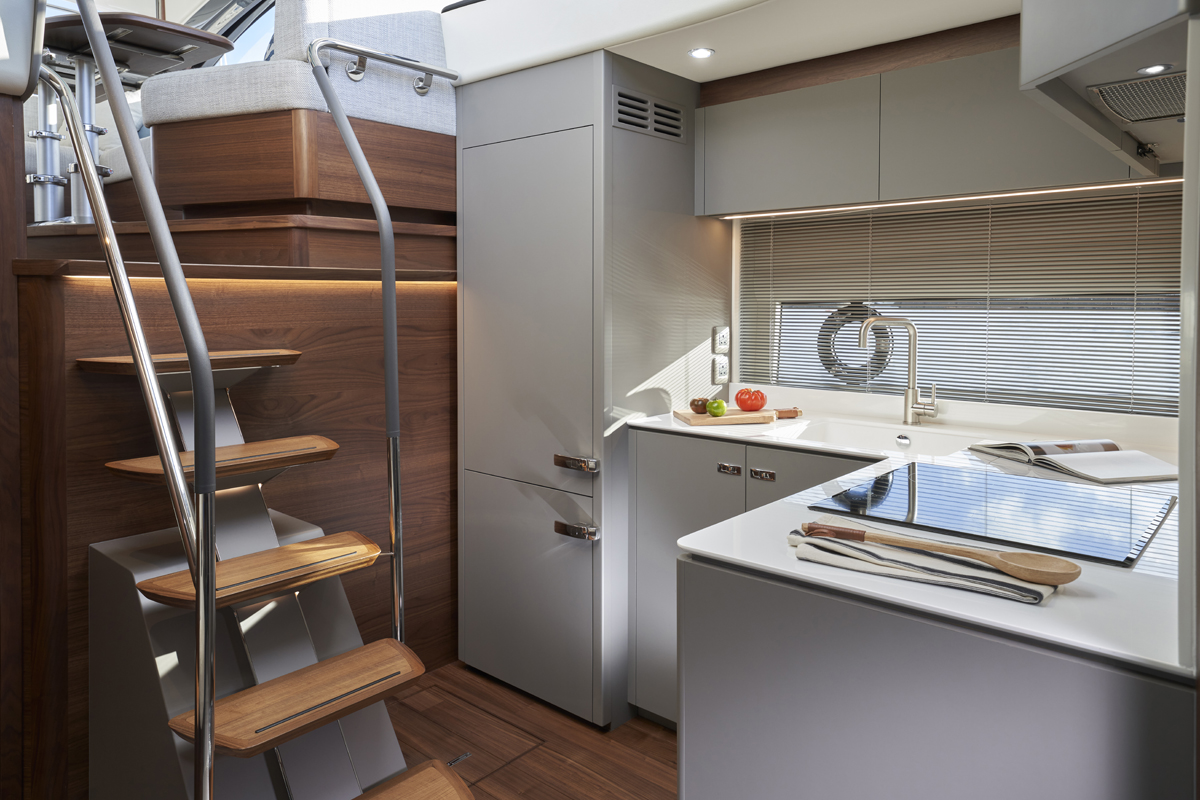

Galley
Sylmar white solid surface worktop
2-zone ceramic hob
Sylmar white solid surface sink with Monobloc mixer tap (remains white for all options)
Combination microwave/oven with grill
Full height fridge freezer (270l), with deep freeze drawers
Waste bin
High/low storage cupboards, drawers and lockers
Timber-laid flooring
Window with opening portlight
Manual tension venetian blind
Hob extractor fan
Cutlery and crockery storage
Chopping board
220/240v power outlets (4)
LED overhead task lighting (24v), concealed light and night lighting
Storage bin under galley sole

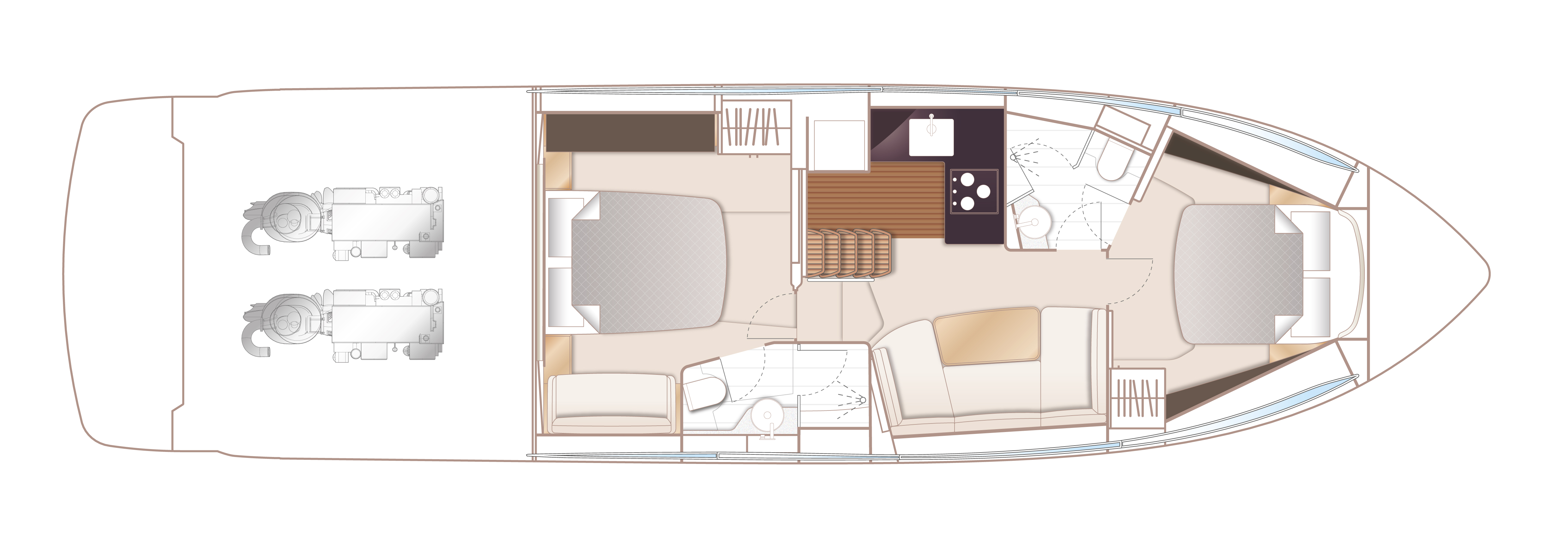

Accommodation
All cabins and bathrooms feature opening portholes
All cabins feature 220/240v power points
All bathrooms feature electric freshwater toilets and 240v shaver points

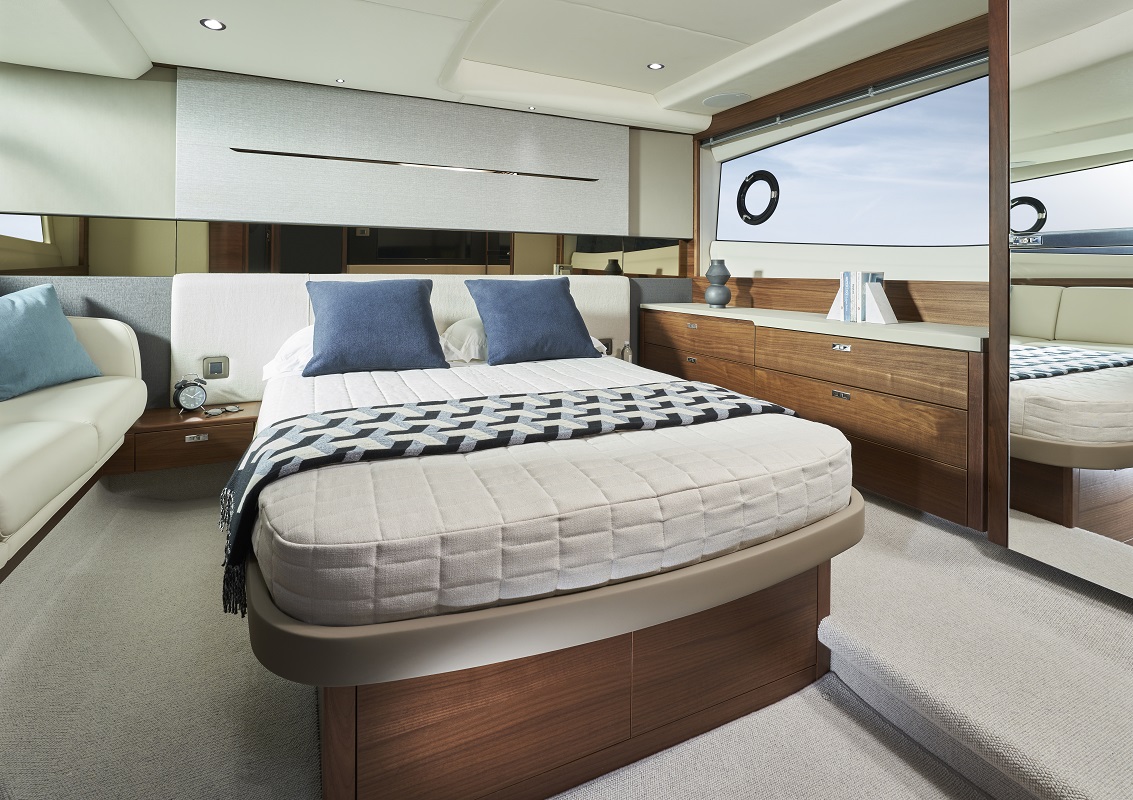

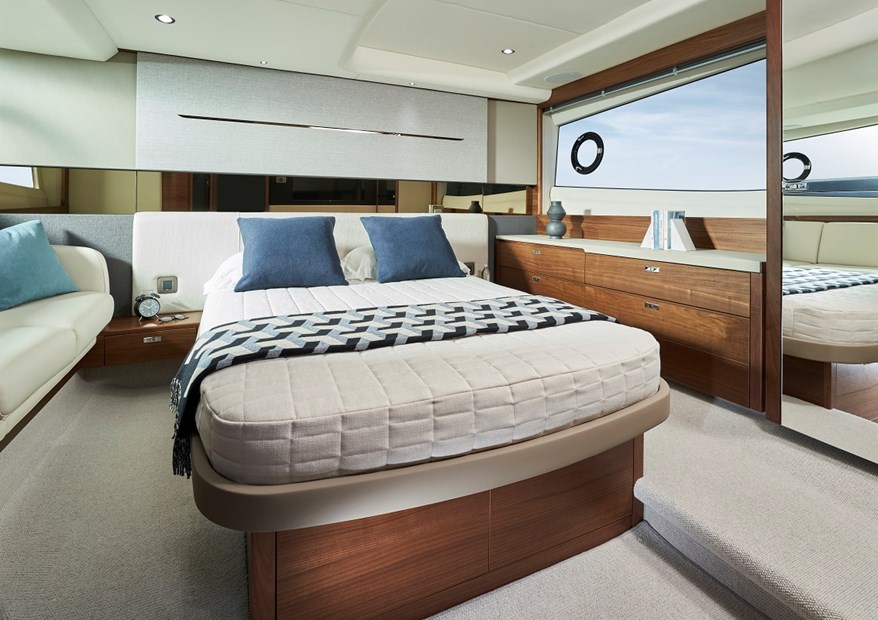

Owner’s stateroom
Large double bed with bedside tables and drawers below
Wardrobe with shelves and full-length mirror
Drawers and storage lockers
Sideboard
LED overhead and individual berth lights (24v)
Starboard side sofa
Panoramic windows in toughened glass with opening ports
Manual tension venetian blinds
Fitted carpet
220/240v outlets (2)
USB charging points (4)
EN-SUITE BATHROOM
Solid surface worktop
Wash basin with Monobloc mixer tap
Separate stall shower with extractor fan and auto pump out
Mirror
LED overhead and concealed lighting (24v)
Storage locker
Window with opening portlight
Manual tension venetian blinds
Solid surface flooring
Bathroom accessories
220/240v shaver socket
Forward stateroom
Large double bed with drawers below (option of scissor berths)
Wardrobe with full length mirror
Deck hatch
Storage lockers
LED overhead (24v)
Window with opening portlights
Manual tension venetian blinds
220/240v outlets (1)
USB charging points (2)
Fitted carpets
EN-SUITE BATHROOM
Solid surface worktops
Wash basin with Monobloc mixer tap
Separate stall shower with extractor fan and automatic pump out
Mirror
LED overhead and concealed lighting (24v)
Storage locker
Window with opening portlight
Manual tension venetian blinds
Solid surface flooring
Bathroom accessories
220/240v shaver socket
Power and drive systems
Twin Volvo IPS engines (driving contra rotating propellers via pod drive)
Power-assisted steering (electrical)
Electronic engine controls
Joystick manoeuvring system
Volvo active corrosion protection system for pod drive
Engine room extractor fans with electronic time delay
Volvo interceptor trim system integrated into Volvo engine system (integrated into Volvo/Garmin display)
Engine room lighting
Access from cockpit hatch
Fresh water supply point in engine room
Engine room insulation
High volume air intakes
Engine beds integrally moulded with hull for strength and vibration absorption
Bulkheads integrally bonded
Engines flexibly mounted
Automatic fire extinguisher with remote override
Automatic/manual bilge pumps
24v to 12v converters for certain navigation and radio circuits
Electrical systems
24 Volt:
4 x heavy-duty batteries for engine starting
4 x heavy-duty auxiliary batteries
Engine alternators charge via split charge relays to isolate engine start batteries from auxiliaries and ensure efficient charging of both battery banks
40-amp 24v float battery charger
Battery paralleling system (for engine start back-up)
Remote battery master switches with control switch at main panel
Circuit breakers on all circuits
Galvanic isolation system
220/240 Volt:
Shore support inlet (32A)
Power points in owner’s stateroom, forward guest cabin, galley, lower and upper saloon
Polarity check system
Earth leakage safety trip
Shaver points in both bathrooms
4kW generator
12v battery charger
Fuel system
Twin fuel tanks (in NS8 marine grade alloy) with interconnection system
Fuel fillers on both side decks
High-capacity duplex fuel filters with water traps with change-over valves, water contamination warning integrated into Volvo/Garmin display (integrated into Volvo/Garmin display)
Remote fuel cocks in cockpit seat locker for main engines and generator
Fuel gauges integrated into Volvo/Garmin display
Water system
Water capacity totalling 80 gal / 96 US gal / 364 l plus 11 gal /13 US gal / 50 l hot water calorifier
Water heated by engine and 240v immersion heater
Automatic water pump with filter
Pump main circuit breaker at AC/DC switch panel
Water level gauge
Deck filler
Electric quiet flush freshwater toilet system with holding tank, content gauge and low noise manual overboard discharge, as well as dockside discharge
Fire extinguishers
Automatic fire extinguisher in engine room and generator space
Hand-operated fire extinguishers (4) in: owner’s stateroom, forward guest cabin, galley and upper saloon
Bilge pumps
Automatic electric bilge pumps with manual override (3 in all)
High-capacity manual bilge pump in cockpit seat locker with valve system and suction points in engine room and accommodation space
Electric bilge pumps to have controls, warning lights with audible alarm and “pump out” isolation at helm
Other standard equipment
Fenders (6)
Mooring warps (4)
First aid kit
Boat hook
Quilted bedspreads for both cabins
Tool kit
Owner’s manual and engine manual
Anchor winch backup handle
Ensign staff
Set of towels
Ships document case
Finishes
Furniture finished in a choice of Rovere Oak and Alba Oak in satin finish as standard. Silver Oak or Walnut in satin or gloss finish available as an option
Galley and bathroom worktops in solid surface
Timber-laid galley, saloon and helm floors
Bathroom floors in solid surface
Manual tension venetian blinds to all windows and portholes, curtains to saloon doors
Choice of high-quality carpets and upholstery fabrics from extensive range
Close
Princess V50
Principal Dimensions
Details
V50
V50 Open
Disclaimer
Length overall (incl. pulpit)
52ft 7in (16.02m)
Length overall (excl. pulpit)
50ft 4in (15.35m)
Beam
13ft 4in (4.08m)
Draft
3ft 7in (1.09m)
Displacement approx.
15,898kg (35,049lbs)*
Fuel capacity
341 gal/410 US gal/1,550l
Water capacity (incl. calorifier)
91 gal/109 US gal/414l
Engines
Twin Volvo IPS 600 (2 x 440mhp)
TOP SPEED: 29-31 knots†
Length overall (incl. pulpit)
52ft 7in (16.02m)
Length overall (excl. pulpit)
50ft 4in (15.35m)
Beam
13ft 4in (4.08m)
Draft
3ft 7in (1.09m)
Displacement approx.
15,919kg (35,095lbs)*
Fuel capacity
341 gal/410 US gal/1,550 l
Water capacity (incl. calorifier)
91 gal/109 US gal/414 l
Engines
Twin Volvo IPS 650 (2 x 480mhp)
TOP SPEED: 30-32 knots†
* Displacements are calculated with 50% fuel and water with liferaft but with no optional equipment fitted or other gear.
† Maximum speeds will vary depending on cleanliness of hull, condition of sterngear, loading of craft, water and air temperatures, sea conditions and other factors. Speed estimates are therefore given in good faith but without warranty or liability on the part of Princess Yachts Limited. Craft illustrated in this brochure may be fitted with certain optional equipment. Specifications may be changed at any time without notice or liability. USA Specification
‡ Certain specifications, which vary by model, are upgraded on Princess yachts built for use in North America. Thus, specifications and equipment will vary from the information listed in the brochure for North American Princess yachts (e.g. air-conditioning and an upgraded generator will be included as standard for all North American models and electric cooking facilities will be supplied in place of gas systems). Please consult the USA Specification Brochure for full details regarding the North American specifications for individual models.
Principal Dimensions
Details
Deck fittings
6mm Teak-laid transom platform, transom steps, cockpit deck and steps to side deck
Lewmar reversible electric anchor winch with foredeck and helm position controls
Self-stowing anchor system incorporating one 20kg/44lb Lewmar Delta galvanised steel anchor with flush pin shackle fitted and 40m galvanised 9.5mm chain
Stemhead roller with automatic anchor launch and retrieve
Stainless steel bow, stern and spring cleats
Stainless steel bow fairleads
Stainless steel pulpit and guardrails
Stainless steel coach roof handrails
PVC rubbing band with stainless steel insert
Illuminated crown logo to transom
Full set of IMCO navigation lights
Riding light
Remote control searchlight
Single electric horn
Fuel and water fillers
Holding tank dockside discharge connection
Deck hatch access to chain locker with fender stowage rack
Foredeck escape hatch
Foredeck drinks holders (4)
Ensign socket
Cockpit and bathing platform
Self-draining
Upholstered aft U-shaped
Forward L-shaped seating/dining area (optional seat infill)
Cup holders to L-shaped seating (2)
Folding teak dining table
LED overhead and low deck level lighting
Cockpit cover
Stainless steel handrails
Lockable transom hatch to stern lazarette with gas strut assistance
Lockable access hatch to engine room
220/240v shore support inlet in locker
Life raft stowage locker
Transom bathing platform with integrated foldaway swimming ladder (with optional electro-hydraulic raise/lower mechanism – note when this option is selected it includes transom steps to access stern from bathing platform when in lowered position)
Port and starboard transom gates leading to bathing platform
Hot and cold transom shower
Storage lockers
Waterproof speakers linked to saloon sound system
Fender stowage rack in engine room/lazarette
Seat locker containing remote fuel cocks, manual bilge pump with valve chest and manual controls for automatic fire extinguisher
Cockpit and bathing platform (open)
Self-draining
Upholstered U-shaped seating/dining area
Folding teak dining table
LED Overhead and deck level lighting
Cockpit cover
Stainless steel handrails
Wet bar with sink, storage, refrigerated coolbox
Lockable access hatch to engine room
220/240v shore support inlet in locker
Life raft stowage locker
Transom platform with integrated swimming ladder (with electro-hydraulic raise/lower mechanism)
Transom steps to access stern from bathing platform when in lowered position
Aft sunbed with drinks holders (4)
Tender garage with electro-hydraulic door and electric winch for tender up to 3.25m
Transom door leading to bathing platform
Hot and cold transom shower
Storage lockers
Waterproof speakers linked to saloon Fusion Apollo MS-RA670 sound system
Fender stowage rack in engine room/lazarette
Cockpit locker containing remote fuel cocks, manual bilge pump with valve chest and manual controls for automatic fire extinguisher
Instrument console incorporating engine instruments and fuel gauges
Instruments and controls at helm position include: - Power-assisted electric steering system - Adjustable steering wheel - High speed magnetic compass - Electronic engine controls with integrated trim control - Joystick manoeuvring control - Electric anchor winch with remote control - Volvo/Garmin 16” MFD, incorporating GPS chart plotter, engine instrumentation, alarm warning system, autopilot control, fuel gauges, speed and distance log, echo sounder and steering angle indicator - VHF with DSC R/T with intercom - Single remote-control searchlight - Horn button to operate single electric horn
Twin windscreen wipers
Windscreen freshwater pressure wash
Bilge pump controls with audible and visual alarm for bilge pumps (3)
Electric drop window to starboard side
Engine room fire extinguisher warning system
Drinks holder (2) at console, with additional drink holder (1) at base of navigator seat
Toughened un-tinted glass screen
Black mesh sunscreens for exterior use
USB charging points
Riding light, helm and nav light control switches
Timber-laid flooring
Helm position (open)
Twin upholstered seats, manually adjustable helm seat (fore/aft) with sit/stand facility, fixed position navigator seat
J-shaped companionway seating with drinks holders (2)
Instrument console incorporating engine instruments and fuel gauges
Instruments and controls at helm position include: - Power-assisted steering - Adjustable steering wheel - High speed magnetic compass - Electronic engine controls with integrated trim control - Joystick manoeuvring control - Electric anchor winch with remote control - Volvo/Garmin 16” MFD, incorporating GPS chart plotter, engine instrumentation, alarm warning system, autopilot control, fuel gauges, speed and distance log, echo sounder and steering angle indicator - VHF with DSC R/T with intercom - Single remote-control searchlight - Horn button to operate single electric horn
Twin windscreen wipers
Windscreen freshwater pressure wash
Bilge pump controls with audible and visual alarm for bilge pumps (3)
Electric drop window to starboard side
Engine room fire extinguisher warning system
Drinks holder (2) at console, with additional drink holder (1) at base of navigator seat
Toughened un-tinted glass screen
Black mesh sunscreens for exterior use
USB charging points
Riding light, helm and nav light control switches
6mm teak-laid flooring
Deck saloon
U-shaped sofa with drawers
Dining table
Sideboard
Refrigerator
Curtains, blinds or sunscreens to all windows and doors
LED overhead downlighters
Access stairway to lower accommodation
Electric opening roof
Triple stainless steel framed sliding doors to cockpit
Fusion Apollo MS-RA670 audio unit (with external USB connection) with Wi-Fi and Bluetooth connected to saloon Fusion 6" CL602 speakers (2) and cockpit speakers
Timber flooring
220/240v outlets (2)
USB charging points (2)
Lower saloon
U-shaped sofa with single drawer and top loading storage (top loading storage is occupied by air conditioning unit when option is specified)
Table
Storage lockers
LED overhead downlighters
24/240v main electrical control panel with battery isolation switches
Fusion Apollo MS-RA670 audio unit (with external USB connection) with Fusion 6" CL602 speakers (2)
Window with opening portlight (1)
Manual tension venetian blinds
Thermal heat alarm
220/240v outlets (1)
USB charging points (2)
Lower saloon (open)
U-shaped sofa with single drawer and top loading storage (top loading storage is occupied by A/C unit when option is specified)
Table
Storage lockers
LED overhead downlighters
24/240v main electrical control panel with battery isolation switches
Skylight
Fusion Apollo MS-RA670 audio unit (with external USB connection) with Fusion 6” CL602 speakers (2)
Window with opening portlight (1)
Manual tension venetian blinds
Thermal heat alarm
220/240v outlets (1)
USB charging points (2)
Galley
Sylmar white solid surface worktop
2-zone ceramic hob
Sylmar white solid surface sink with Monobloc mixer tap (remains white for all options)
Combination microwave/oven with grill
Full height fridge freezer (270l), with deep freeze drawers
Waste bin
High/low storage cupboards, drawers and lockers
Timber-laid flooring
Window with opening portlight
Manual tension venetian blind
Hob extractor fan
Cutlery and crockery storage
Chopping board
220/240v power outlets (4)
LED overhead task lighting (24v), concealed light and night lighting
Storage bin under galley sole
Accommodation
All cabins and bathrooms feature opening portholes
All cabins feature 220/240v power points
All bathrooms feature electric freshwater toilets and 240v shaver points
Owner’s stateroom
Large double bed with bedside tables and drawers below
Wardrobe with shelves and full-length mirror
Drawers and storage lockers
Sideboard
LED overhead and individual berth lights (24v)
Starboard side sofa
Panoramic windows in toughened glass with opening ports
Manual tension venetian blinds
Fitted carpet
220/240v outlets (2)
USB charging points (4)
EN-SUITE BATHROOM
Solid surface worktop
Wash basin with Monobloc mixer tap
Separate stall shower with extractor fan and auto pump out
Mirror
LED overhead and concealed lighting (24v)
Storage locker
Window with opening portlight
Manual tension venetian blinds
Solid surface flooring
Bathroom accessories
220/240v shaver socket
Forward stateroom
Large double bed with drawers below (option of scissor berths)
Wardrobe with full length mirror
Deck hatch
Storage lockers
LED overhead (24v)
Window with opening portlights
Manual tension venetian blinds
220/240v outlets (1)
USB charging points (2)
Fitted carpets
EN-SUITE BATHROOM
Solid surface worktops
Wash basin with Monobloc mixer tap
Separate stall shower with extractor fan and automatic pump out
Mirror
LED overhead and concealed lighting (24v)
Storage locker
Window with opening portlight
Manual tension venetian blinds
Solid surface flooring
Bathroom accessories
220/240v shaver socket
Power and drive systems
Twin Volvo IPS engines (driving contra rotating propellers via pod drive)
Power-assisted steering (electrical)
Electronic engine controls
Joystick manoeuvring system
Volvo active corrosion protection system for pod drive
Engine room extractor fans with electronic time delay
Volvo interceptor trim system integrated into Volvo engine system (integrated into Volvo/Garmin display)
Engine room lighting
Access from cockpit hatch
Fresh water supply point in engine room
Engine room insulation
High volume air intakes
Engine beds integrally moulded with hull for strength and vibration absorption
Bulkheads integrally bonded
Engines flexibly mounted
Automatic fire extinguisher with remote override
Automatic/manual bilge pumps
24v to 12v converters for certain navigation and radio circuits
Electrical systems
24 Volt:
4 x heavy-duty batteries for engine starting
4 x heavy-duty auxiliary batteries
Engine alternators charge via split charge relays to isolate engine start batteries from auxiliaries and ensure efficient charging of both battery banks
40-amp 24v float battery charger
Battery paralleling system (for engine start back-up)
Remote battery master switches with control switch at main panel
Circuit breakers on all circuits
Galvanic isolation system
220/240 Volt:
Shore support inlet (32A)
Power points in owner’s stateroom, forward guest cabin, galley, lower and upper saloon
Polarity check system
Earth leakage safety trip
Shaver points in both bathrooms
4kW generator
12v battery charger
Fuel system
Twin fuel tanks (in NS8 marine grade alloy) with interconnection system
Fuel fillers on both side decks
High-capacity duplex fuel filters with water traps with change-over valves, water contamination warning integrated into Volvo/Garmin display (integrated into Volvo/Garmin display)
Remote fuel cocks in cockpit seat locker for main engines and generator
Fuel gauges integrated into Volvo/Garmin display
Water system
Water capacity totalling 80 gal / 96 US gal / 364 l plus 11 gal /13 US gal / 50 l hot water calorifier
Water heated by engine and 240v immersion heater
Automatic water pump with filter
Pump main circuit breaker at AC/DC switch panel
Water level gauge
Deck filler
Electric quiet flush freshwater toilet system with holding tank, content gauge and low noise manual overboard discharge, as well as dockside discharge
Fire extinguishers
Automatic fire extinguisher in engine room and generator space
Hand-operated fire extinguishers (4) in: owner’s stateroom, forward guest cabin, galley and upper saloon
Bilge pumps
Automatic electric bilge pumps with manual override (3 in all)
High-capacity manual bilge pump in cockpit seat locker with valve system and suction points in engine room and accommodation space
Electric bilge pumps to have controls, warning lights with audible alarm and “pump out” isolation at helm
Other standard equipment
Fenders (6)
Mooring warps (4)
First aid kit
Boat hook
Quilted bedspreads for both cabins
Tool kit
Owner’s manual and engine manual
Anchor winch backup handle
Ensign staff
Set of towels
Ships document case
Finishes
Furniture finished in a choice of Rovere Oak and Alba Oak in satin finish as standard. Silver Oak or Walnut in satin or gloss finish available as an option
Galley and bathroom worktops in solid surface
Timber-laid galley, saloon and helm floors
Bathroom floors in solid surface
Manual tension venetian blinds to all windows and portholes, curtains to saloon doors
Choice of high-quality carpets and upholstery fabrics from extensive range

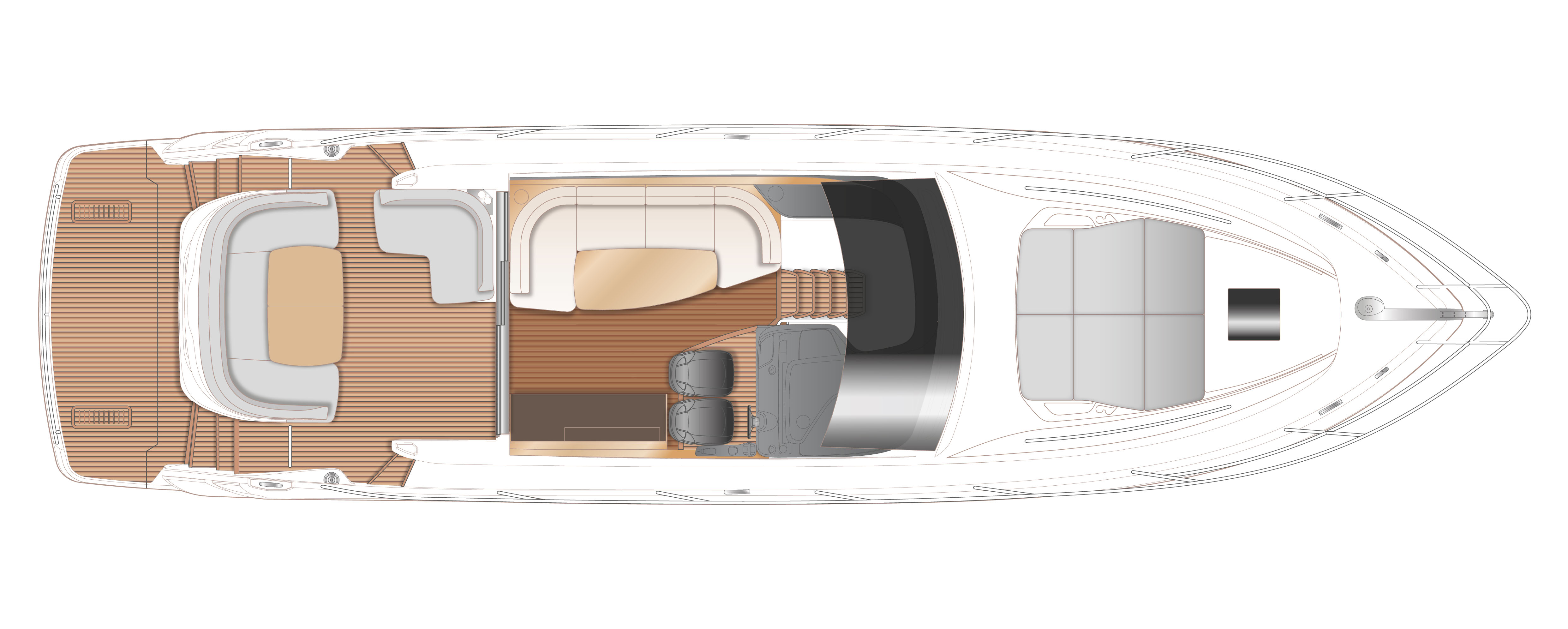

Main Deck Layout
Main Deck Layout (Open)
Lower Deck Layout
Lower Deck Layout (Open)

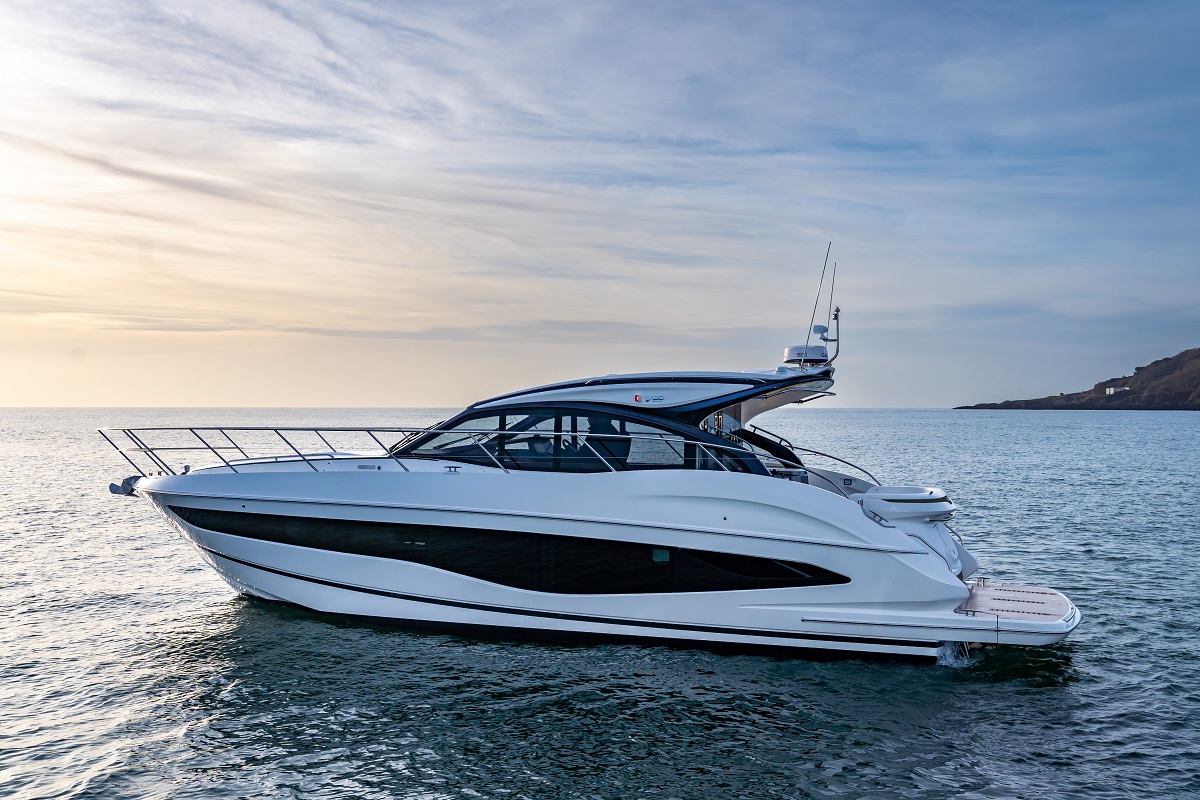

A true on-water adrenalin rush
The all-new V50 is installed with state-of-the-art technology to provide an ease of ownership which makes boating more accessible to new owners. An intuitive IPS system and joystick allows for easy piloting, whilst the addition of the fully integrated Volvo Penta assisted docking system can assist in the management of external factors such as wind, current and manoeuvring in crowded marinas. Additional technology includes premium audio from Naim; plus the new Garmin On-Deck smart boat system, an integrated remote connectivity solution which tracks, monitors and controls selected on-board systems from virtually anywhere via a smartphone app.

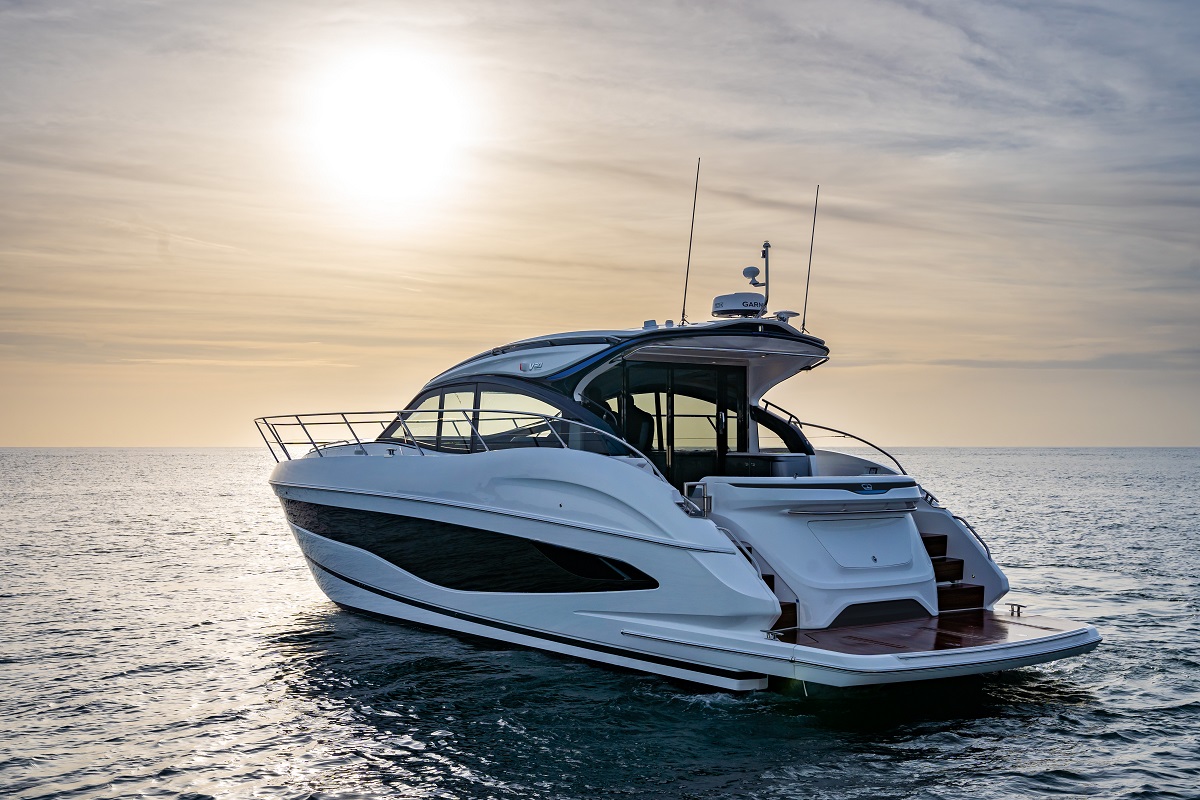

When entertaining, the extended cockpit provides exceptional outdoor living space in which to create unforgettable experiences. The elongated canopy provides a shaded area to escape the heat of the sun whilst being in a position to fully appreciate the yacht’s balanced performance.
Below deck, a bright, modern open galley sits opposite a sociable entertaining space. Four guests enjoy two beautifully appointed cabins that are filled with natural light from the extensive hull glazing, with a full-beam master stateroom situated amidships. The forward en-suite has additional access to the saloon for use as a day head when required.
