Water capacity (incl. calorifier)
71 gal/85 US gal/322l
Engines
Twin Volvo D6-340 (2 x 340mhp)
TOP SPEED: 34-36 knots†
* Displacements are calculated with 50% fuel and water with liferaft but with no optional equipment fitted or other gear.
† Maximum speeds will vary depending on cleanliness of hull, condition of sterngear, loading of craft, water and air temperatures, sea conditions and other factors. Speed estimates are therefore given in good faith but without warranty or liability on the part of Princess Yachts Limited. Craft illustrated in this brochure may be fitted with certain optional equipment. Specifications may be changed at any time without notice or liability. USA Specification
‡ Certain specifications, which vary by model, are upgraded on Princess yachts built for use in North America. Thus, specifications and equipment will vary from the information listed in the brochure for North American Princess yachts (e.g. air-conditioning and an upgraded generator will be included as standard for all North American models and electric cooking facilities will be supplied in place of gas systems). Please consult the USA Specification Brochure for full details regarding the North American specifications for individual models.
Deck fittings
Teak laid transom platform, cockpit deck and steps to side decks
Reversible electric anchor winch with helm position controls
Self-stowing (16 kg/35 lbs) Delta anchor with 30m of chain
Stemhead roller with automatic anchor launch and retrieve
Chain locker with stowage for 4 fenders (stowage for an additional 2 fenders in engine room)
Stainless steel bow, stern and spring cleats
Bow fairleads
Stainless steel pulpit and guardrails
Foredeck hatch with integrated skylight
Rubbing band with stainless steel insert
Full set of IMCO navigation lights
Riding light
Remote control searchlight
Twin electric horns
Fuel and water fillers

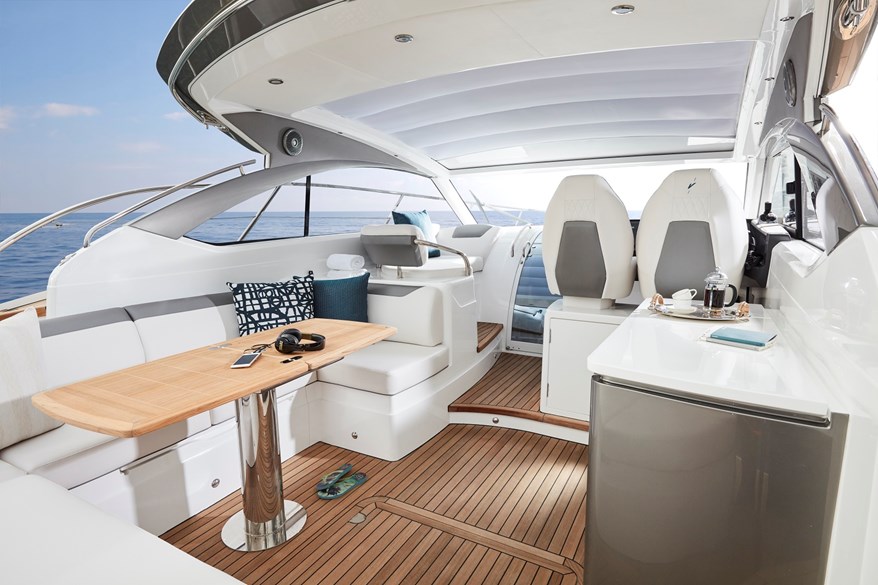

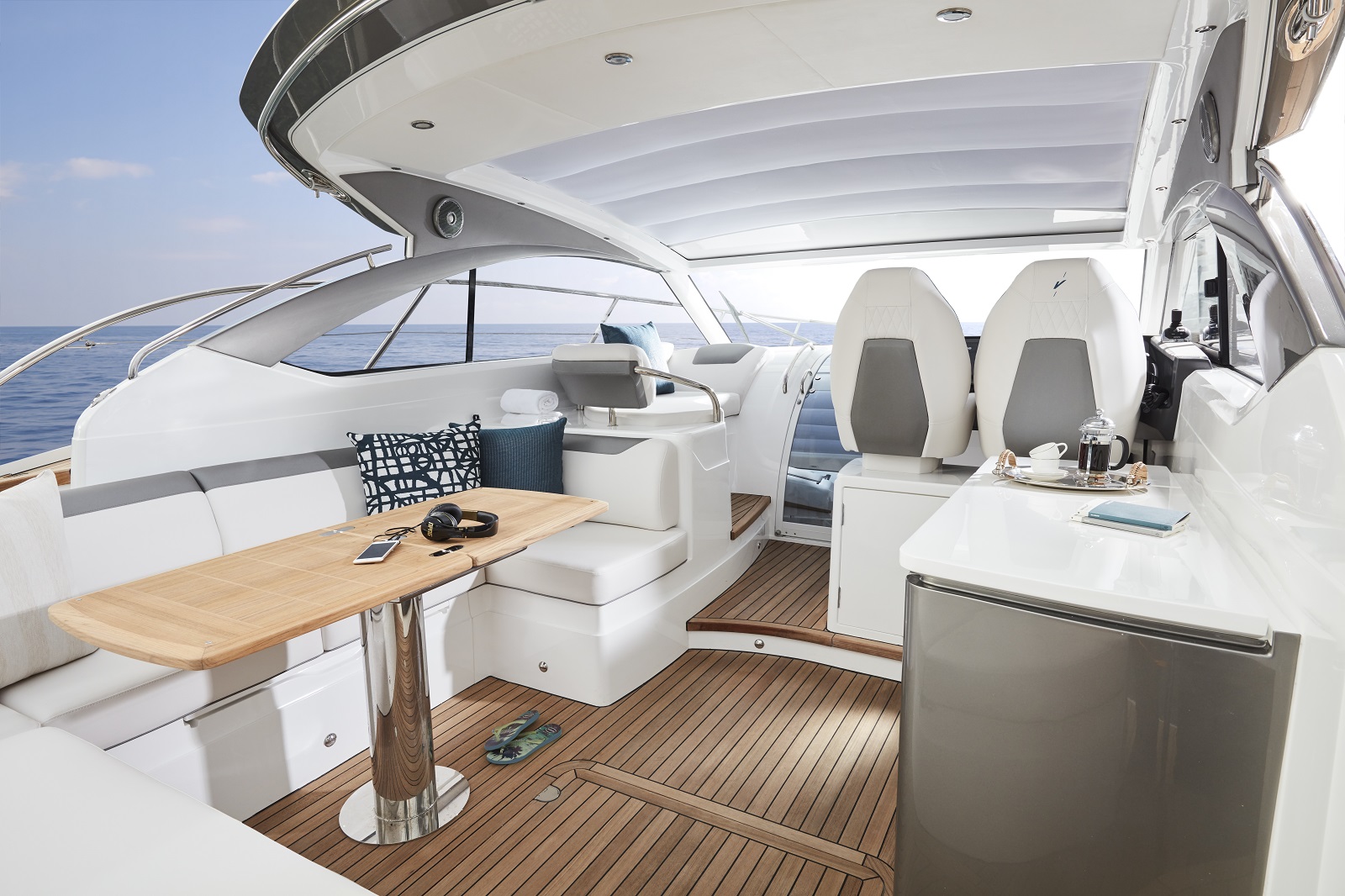

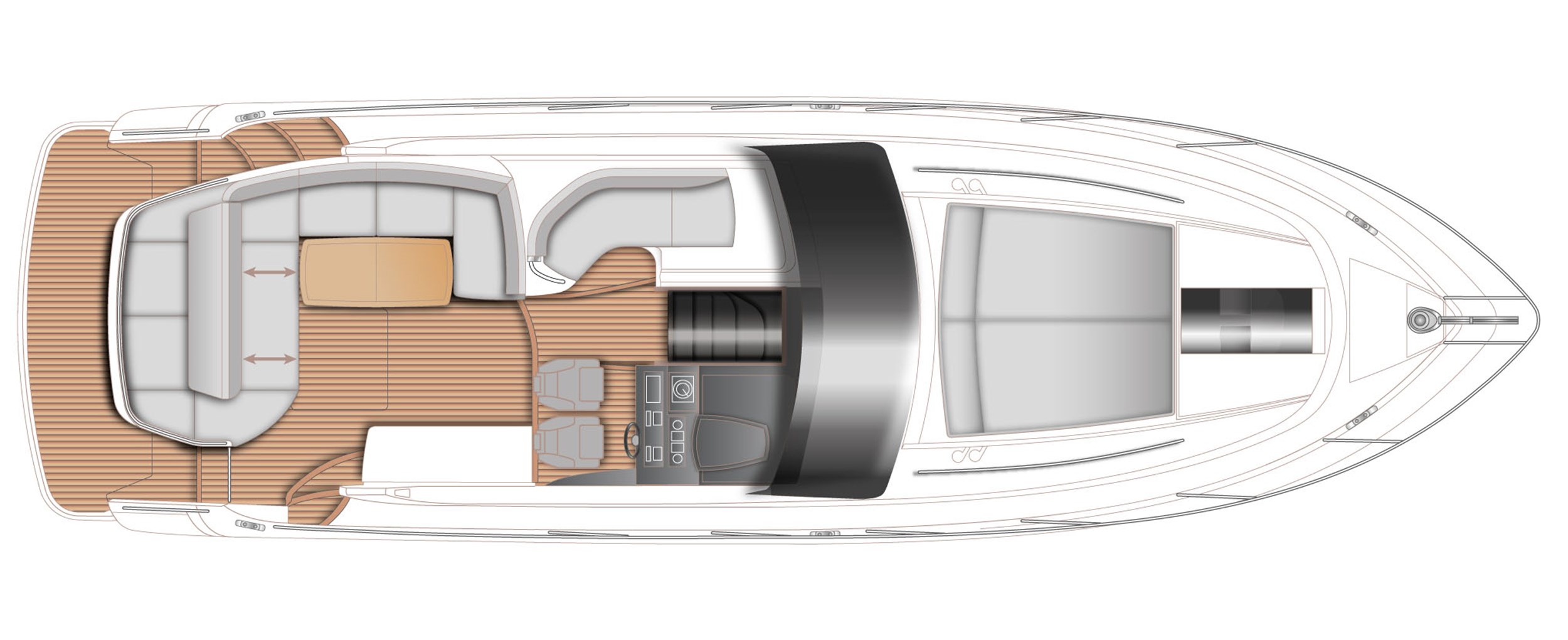

Cockpit
Self draining
L-shaped seat opposite helm position
U-shaped seating/dining area
Teak table (with optional conversion to double sunbed)
Cockpit lighting
Audio unit linked to saloon with local control, paired with Fusion 6" FR-602 speakers (2)
Sliding sun roof (electrically operated) within fixed GRP structure and integrated radar arch
Aft tonneau canvas cover
Stainless steel grabrails
Wetbar with sink, top loading cool box and optional electric barbecue
Locker with remote fuel cocks
220/240v shore support inlet
Life raft storage locker
Engine access hatch with gas strut support and storage for 2 fenders
Transom gate leading to integral bathing platform
Teak laid bath platform with retractable swimming ladder (manual), hot and cold transom shower, and space for tender
Large transom storage locker with access via transom doors and hatch in stern seat (will accept deflated dinghy and outboard engine)

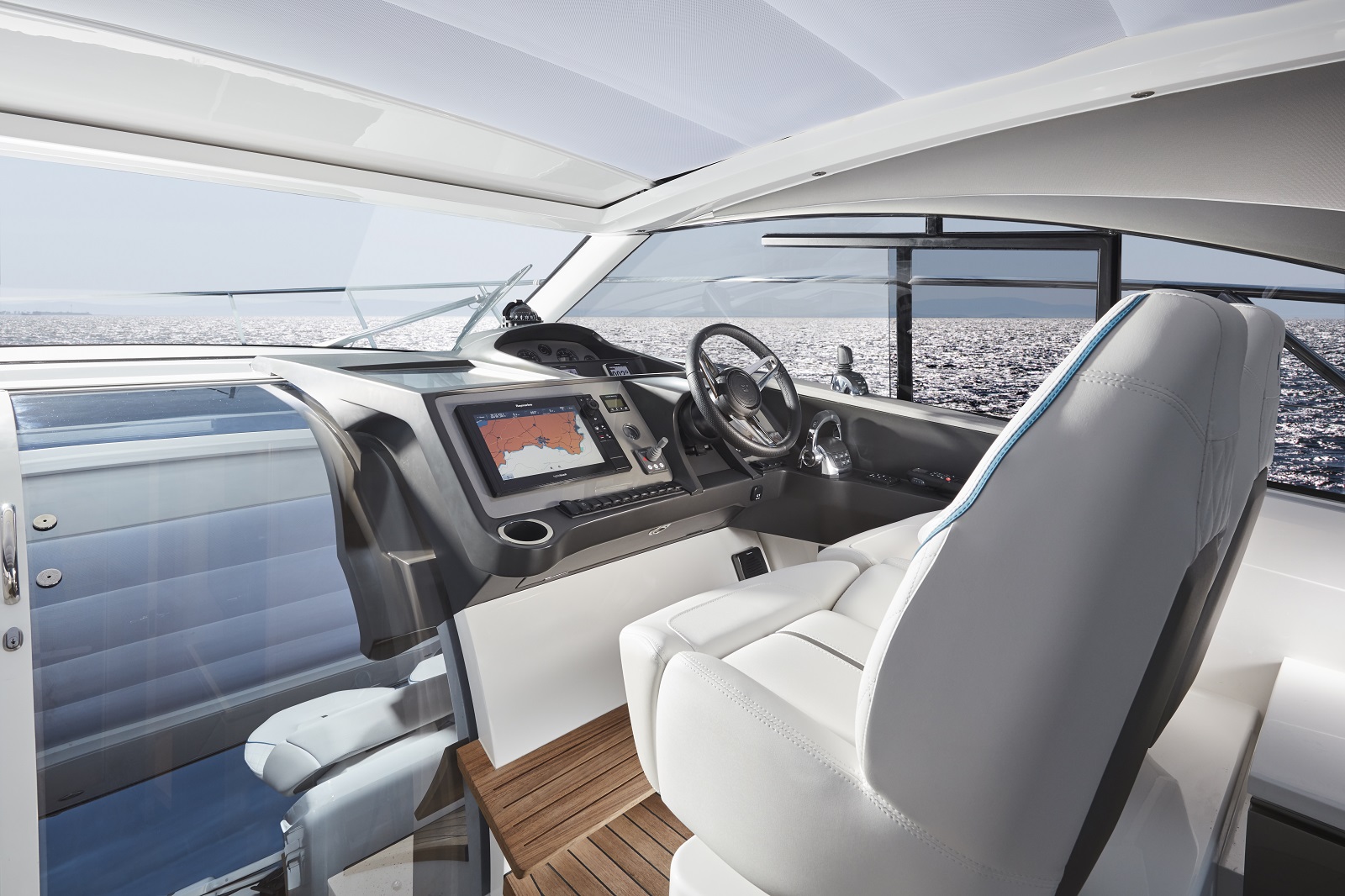

Helm position
Double helm seat with sit/stand facility
Instrument console incorporating engine instruments and fuel gauges
Instruments and controls at helm position: - Power-assisted electro-hydraulic steering - Adjustable steering wheel - Electric anchor winch remote control - Trim tab controls with indicators - Sterndrive trim controls - VHF with DSC R/T - Speed and distance log (with sea temperature) - Echo sounder with alarm - Remote control searchlight - High-speed compass - Horn button
Chart table
Windscreen wipers (2 speed)
Freshwater windscreen wash
Bilge pump controls with visual ‘pump running’ warnings

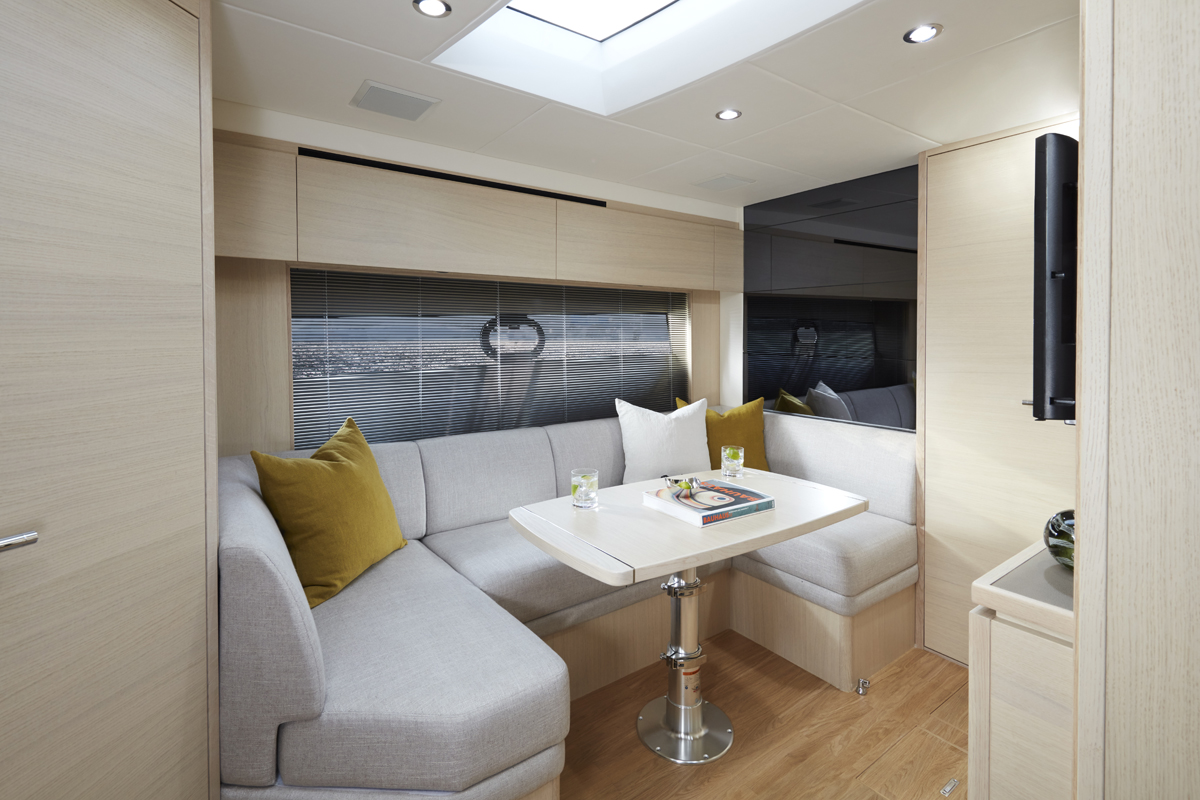

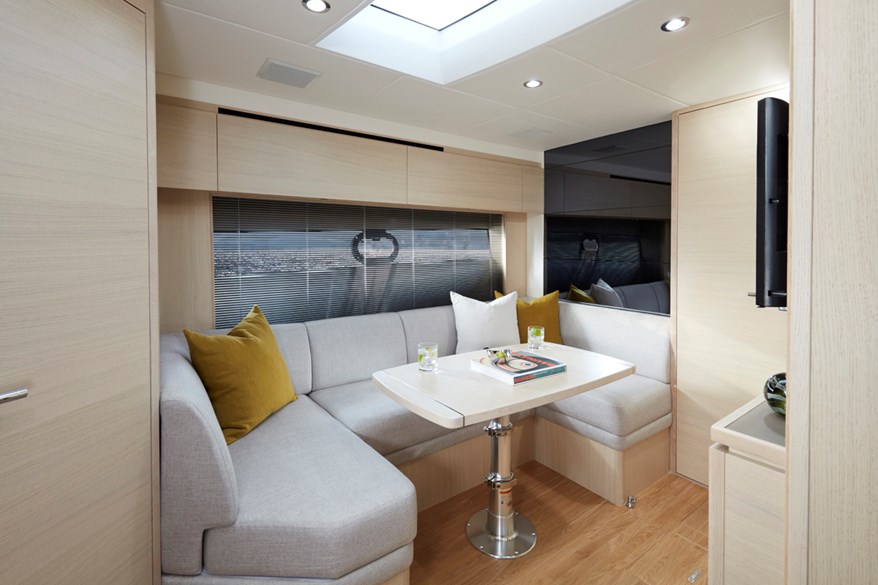

Saloon
U-shaped sofa, converting to double berth with built in stowage for infill cushions
Dining table
Cocktail cabinet
Cupboards and lockers
Fusion Apollo RA-670 audio unit with WiFi and Bluetooth connected to saloon Fusion 6" CL602 speakers and cockpit speakers (2)
Window with opening porthole
Manual tension venetian blind
LED overhead and concealed lighting (12v)
Access stairway to lower accommodation
Fitted carpet

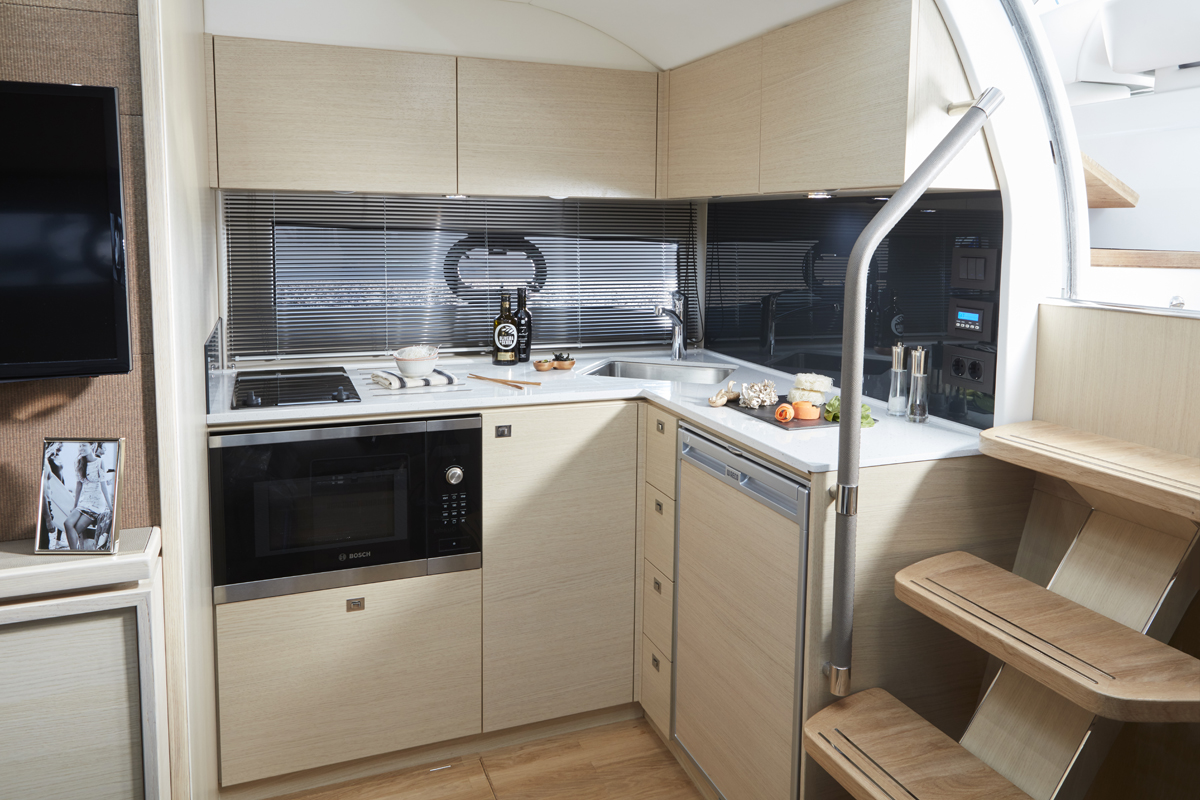

Galley
Solid surface worktop
2-zone gas hob with flame-failure device
Combination microwave/conventional oven with grill
Stainless steel sink with mixer tap
Waste bin
Drawers and storage cupboards
Refrigerator with freezer compartment
Window with opening porthole
Manual tension venetian blind
LED overhead and task lighting (12v)
220/240v outlets (4)
Timber flooring

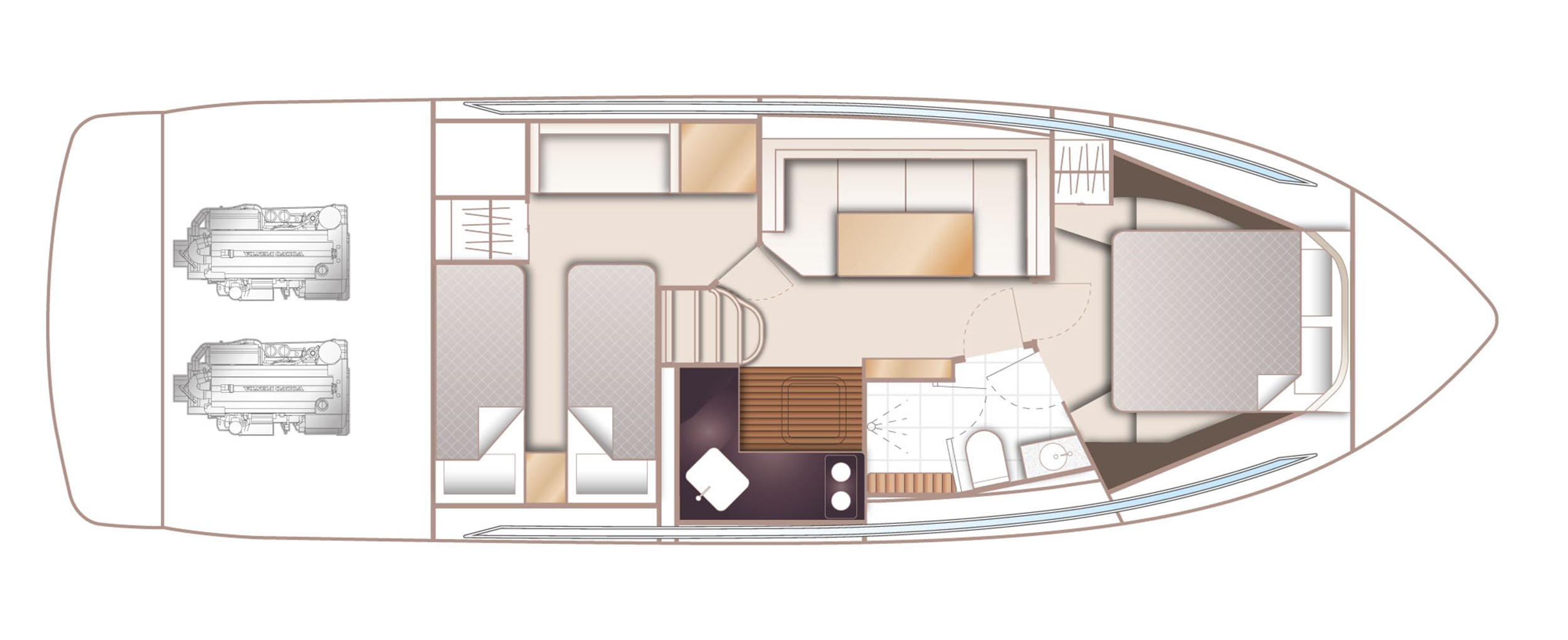

Accommodation
All cabins and bathrooms feature opening portholes
All cabins feature 220/240v power points
All bathrooms feature electric freshwater toilets and 240v shaver points

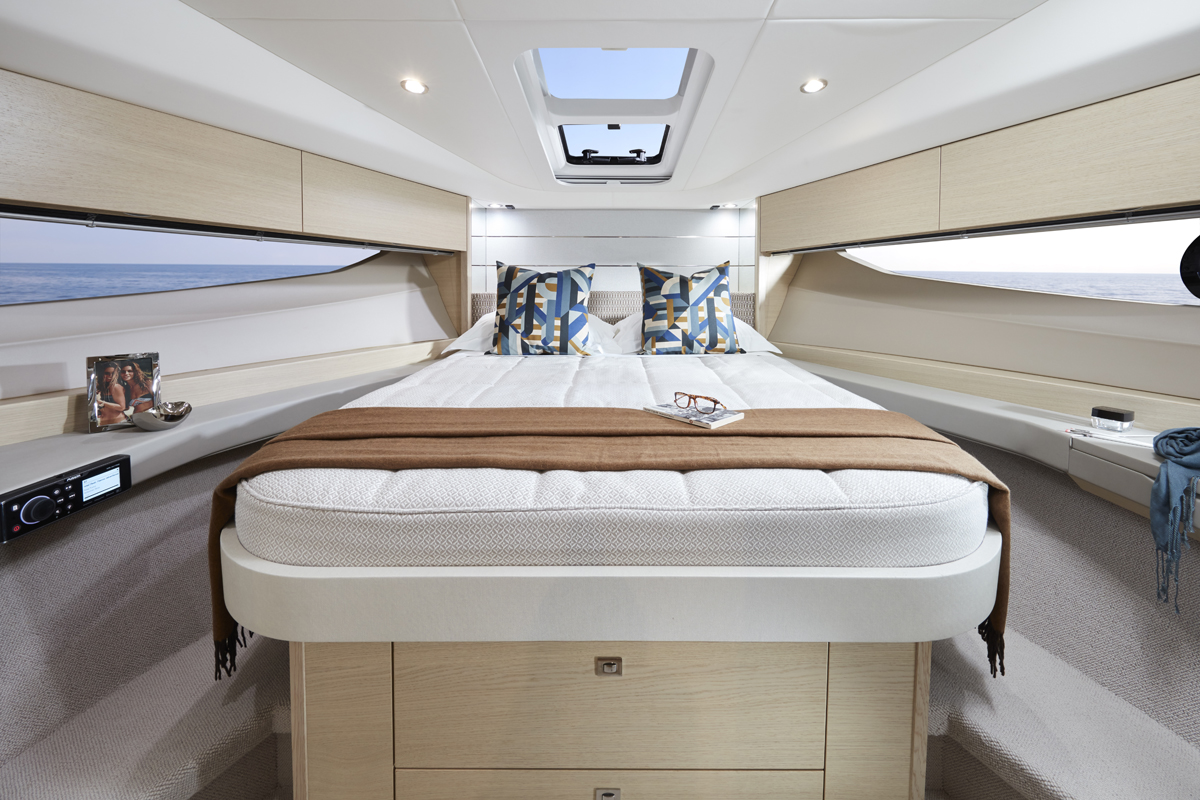

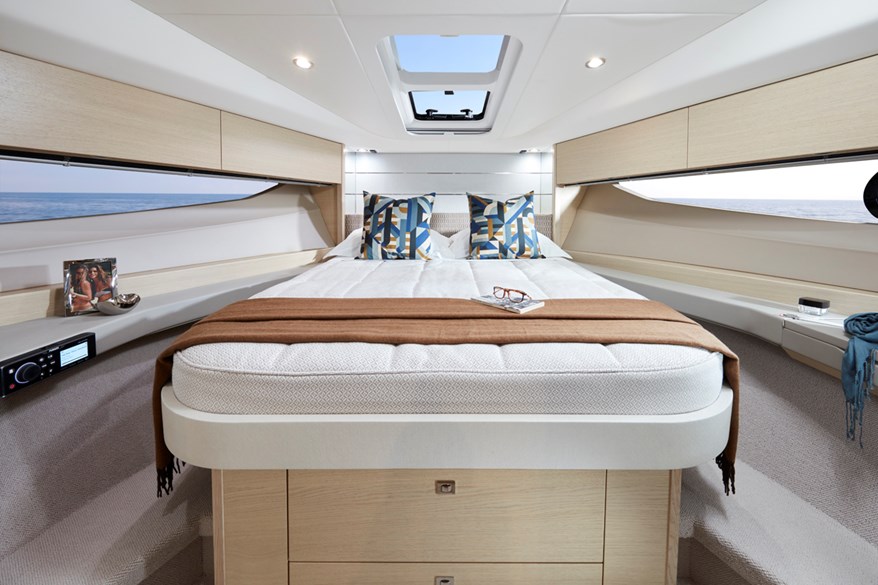

Owner’s cabin
Large double bed with drawers below
Wardrobe with shelves
Dressing table
Mirror
Storage lockers and drawers
Window with opening porthole
Manual tension venetian blind
Deck hatch with integrated skylight and blind
LED overhead and concealed lighting (12v)
Individual berth lights
220/240v outlets (2)
Fitted carpet

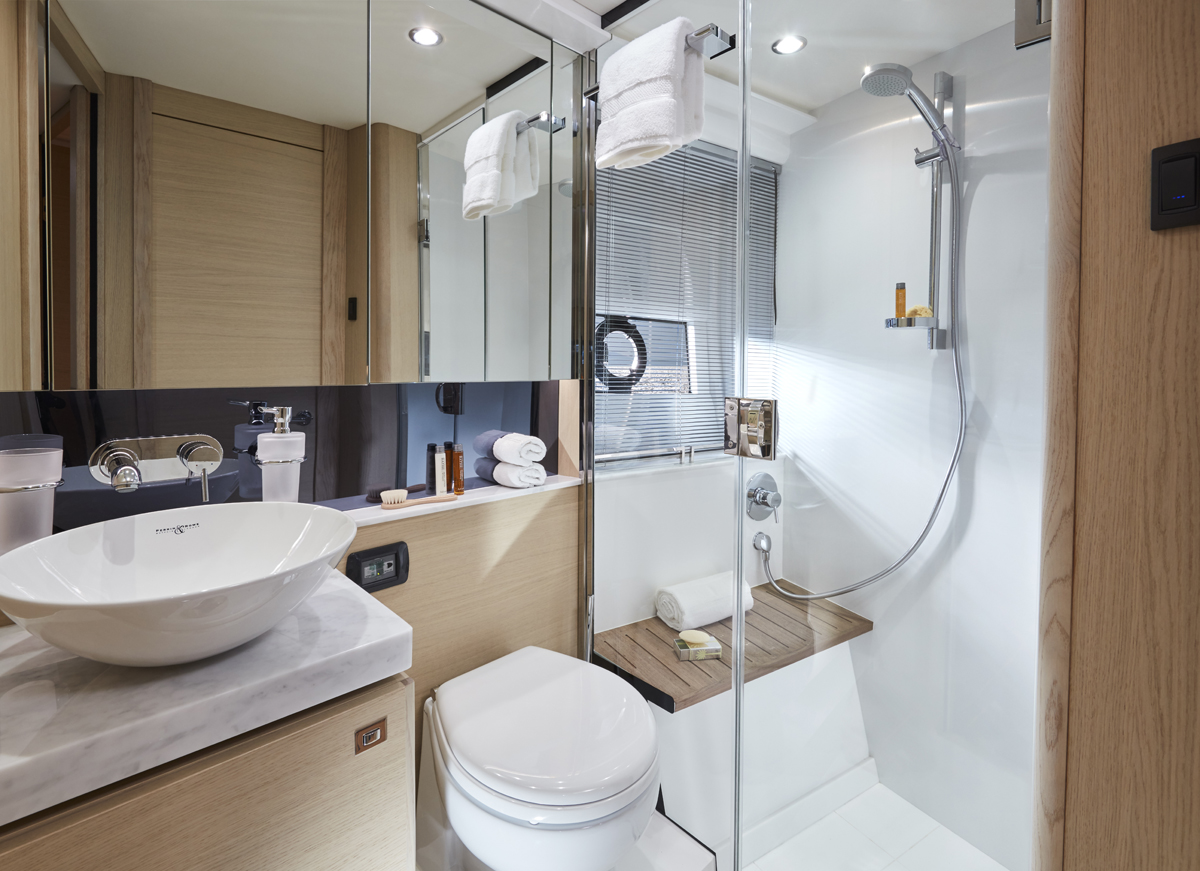

EN-SUITE BATHROOM
Wash basin with solid surface worktop
Mirror
Storage lockers
Shower compartment with automatic pump out
Window with opening porthole
Manual tension venetian blind
LED overhead and concealed lighting (12v)
Bathroom accessories
Solid surface flooring

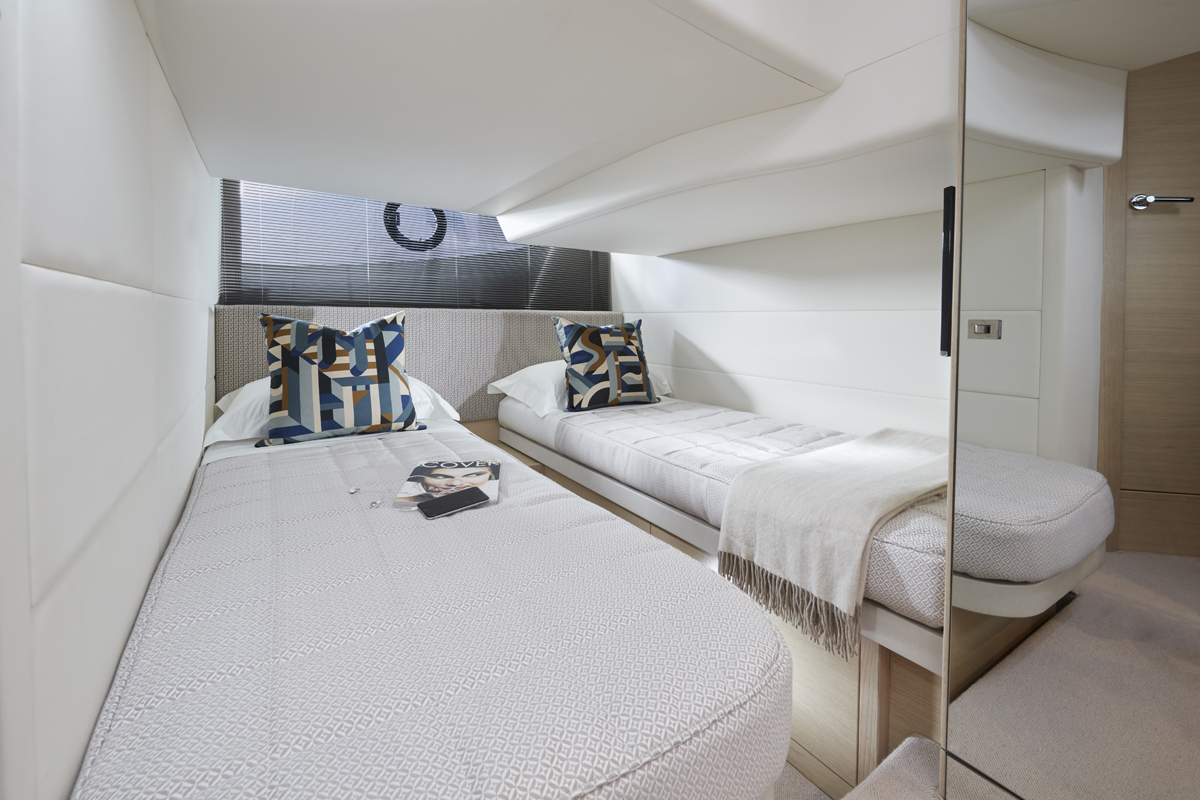

Guest cabin
Two single berths
Wardrobe with shelves
Mirror
Storage lockers
Panoramic with opening porthole
Manual tension venetian blind
LED overhead and concealed lighting (12v)
Individual berth lights
220/240v outlets (2)
Fitted carpet
Gas
Overboard vented and drained locker for 2 gas bottles
Copper gas line sheathed in PVC
Gas regulator
Gas low/system test meter
Power and drive systems
Twin duo-prop stern drives
Engine room lighting
Engine room access hatch and ladder
Power-assisted electro-hydraulic steering system
Trim tabs with indicators
Electronic engine and gear shift controls
Engine room extraction
Electrical systems
12 Volt:
2 x heavy duty batteries for engine starting
2 x heavy duty auxiliary batteries
Battery link facility with remote control at helm position
Both battery banks are charged using a voltage sensitive relay that parallels both battery banks when a charging source is present
75-amp 12v float battery charger
Remote battery master switches with control switch at main switch panel
Circuit breakers on all circuits
12v voltage dropper for certain navigation and radio circuits
220/240 Volt:
Automatic fire extinguisher
30-amp shore support inlet
Polarity check system
Earth leakage safety trip
Circuit breakers on all circuits
Power points in: owner’s cabin, guest cabin, galley and saloon area
Shaver point in bathroom
Fuel system
Twin fuel tanks (in NS8 marine grade alloy) with interconnection system giving 160 gal / 192 US gal / 730l capacity
Fuel fillers on port and starboard side decks
Volvo fuel filter/ water separator (one per engine) with water warning sensors connected to warning lights at helm position
Remote fuel cocks in cockpit locker
Fuel gauges at main helm console
Water system
Water tanks totalling 64 gal / 77 US gal / 290l plus 7 gal / 8.5 US gal / 32l hot water calorifier
Water heated by engines and 240v immersion heater
Automatic water pump with filter
Main circuit breaker at switch panel
Water level gauge
Deck filler
Fire extinguishers
Automatic/manual override fire extinguishers in engine room with warning system at helm position
Hand-operated fire extinguishers (4) in owner’s cabin, guest cabin, galley and helm position
Bilge pumps
Automatic/manual override electric bilge pumps in engine room (2), rudder area, lazarette and forward accommodation (6 in all)
High-capacity manual bilge pump with valve system and suction points in same areas
Electric bilge pumps have controls and warning lights at main helm and warning light with audible alarm at flybridge helm
Other standard equipment
Ensign staff
Fenders (6)
Mooring warps (4)
Boat hook
First-aid kit
Tool kit
Owner’s manual and engine manual
Quilted bedspreads supplied to both cabins
Ship’s document case
Anchor winch back up handle
Finishes
Teak-laid decks to transom platform, cockpit deck and steps to side decks
Timber-laid floor to galley area
Furniture in choice of Rovere Oak or Alba Oak in satin lacquer finish as standard. Silver Oak or Walnut in satin or gloss lacquer finish available as an option
Tiled floor in bathroom suite in guest accommodation
Solid surface wash basin counter tops in bathroom suite in guest accommodation
Galley worktop in solid surface finish
Choice of high-quality carpet and upholstery fabric from extensive range
Blinds or sunscreens to all windows and portholes
Close
Princess V40
Principal Dimensions
Details
Specification
Disclaimer
Length overall (incl. pulpit)
42ft 6in (12.98m)
Length overall (excl. pulpit)
41ft 6in (12.65m)
Beam
12ft 5in (3.81m)
Draft
3ft 4in (1.02m)
Displacement approx.
10,145kg (22,366lbs)*
Fuel capacity
160 gal/192 US gal/730l
Water capacity (incl. calorifier)
71 gal/85 US gal/322l
Engines
Twin Volvo D6-340 (2 x 340mhp)
TOP SPEED: 34-36 knots†
* Displacements are calculated with 50% fuel and water with liferaft but with no optional equipment fitted or other gear.
† Maximum speeds will vary depending on cleanliness of hull, condition of sterngear, loading of craft, water and air temperatures, sea conditions and other factors. Speed estimates are therefore given in good faith but without warranty or liability on the part of Princess Yachts Limited. Craft illustrated in this brochure may be fitted with certain optional equipment. Specifications may be changed at any time without notice or liability. USA Specification
‡ Certain specifications, which vary by model, are upgraded on Princess yachts built for use in North America. Thus, specifications and equipment will vary from the information listed in the brochure for North American Princess yachts (e.g. air-conditioning and an upgraded generator will be included as standard for all North American models and electric cooking facilities will be supplied in place of gas systems). Please consult the USA Specification Brochure for full details regarding the North American specifications for individual models.
Principal Dimensions
Details
Deck fittings
Teak laid transom platform, cockpit deck and steps to side decks
Reversible electric anchor winch with helm position controls
Self-stowing (16 kg/35 lbs) Delta anchor with 30m of chain
Stemhead roller with automatic anchor launch and retrieve
Chain locker with stowage for 4 fenders (stowage for an additional 2 fenders in engine room)
Stainless steel bow, stern and spring cleats
Bow fairleads
Stainless steel pulpit and guardrails
Foredeck hatch with integrated skylight
Rubbing band with stainless steel insert
Full set of IMCO navigation lights
Riding light
Remote control searchlight
Twin electric horns
Fuel and water fillers
Cockpit
Self draining
L-shaped seat opposite helm position
U-shaped seating/dining area
Teak table (with optional conversion to double sunbed)
Cockpit lighting
Audio unit linked to saloon with local control, paired with Fusion 6" FR-602 speakers (2)
Sliding sun roof (electrically operated) within fixed GRP structure and integrated radar arch
Aft tonneau canvas cover
Stainless steel grabrails
Wetbar with sink, top loading cool box and optional electric barbecue
Locker with remote fuel cocks
220/240v shore support inlet
Life raft storage locker
Engine access hatch with gas strut support and storage for 2 fenders
Transom gate leading to integral bathing platform
Teak laid bath platform with retractable swimming ladder (manual), hot and cold transom shower, and space for tender
Large transom storage locker with access via transom doors and hatch in stern seat (will accept deflated dinghy and outboard engine)
Helm position
Double helm seat with sit/stand facility
Instrument console incorporating engine instruments and fuel gauges
Instruments and controls at helm position: - Power-assisted electro-hydraulic steering - Adjustable steering wheel - Electric anchor winch remote control - Trim tab controls with indicators - Sterndrive trim controls - VHF with DSC R/T - Speed and distance log (with sea temperature) - Echo sounder with alarm - Remote control searchlight - High-speed compass - Horn button
Chart table
Windscreen wipers (2 speed)
Freshwater windscreen wash
Bilge pump controls with visual ‘pump running’ warnings
Saloon
U-shaped sofa, converting to double berth with built in stowage for infill cushions
Dining table
Cocktail cabinet
Cupboards and lockers
Fusion Apollo RA-670 audio unit with WiFi and Bluetooth connected to saloon Fusion 6" CL602 speakers and cockpit speakers (2)
Window with opening porthole
Manual tension venetian blind
LED overhead and concealed lighting (12v)
Access stairway to lower accommodation
Fitted carpet
Galley
Solid surface worktop
2-zone gas hob with flame-failure device
Combination microwave/conventional oven with grill
Stainless steel sink with mixer tap
Waste bin
Drawers and storage cupboards
Refrigerator with freezer compartment
Window with opening porthole
Manual tension venetian blind
LED overhead and task lighting (12v)
220/240v outlets (4)
Timber flooring
Accommodation
All cabins and bathrooms feature opening portholes
All cabins feature 220/240v power points
All bathrooms feature electric freshwater toilets and 240v shaver points
Owner’s cabin
Large double bed with drawers below
Wardrobe with shelves
Dressing table
Mirror
Storage lockers and drawers
Window with opening porthole
Manual tension venetian blind
Deck hatch with integrated skylight and blind
LED overhead and concealed lighting (12v)
Individual berth lights
220/240v outlets (2)
Fitted carpet
EN-SUITE BATHROOM
Wash basin with solid surface worktop
Mirror
Storage lockers
Shower compartment with automatic pump out
Window with opening porthole
Manual tension venetian blind
LED overhead and concealed lighting (12v)
Bathroom accessories
Solid surface flooring
Guest cabin
Two single berths
Wardrobe with shelves
Mirror
Storage lockers
Panoramic with opening porthole
Manual tension venetian blind
LED overhead and concealed lighting (12v)
Individual berth lights
220/240v outlets (2)
Fitted carpet
Gas
Overboard vented and drained locker for 2 gas bottles
Copper gas line sheathed in PVC
Gas regulator
Gas low/system test meter
Power and drive systems
Twin duo-prop stern drives
Engine room lighting
Engine room access hatch and ladder
Power-assisted electro-hydraulic steering system
Trim tabs with indicators
Electronic engine and gear shift controls
Engine room extraction
Electrical systems
12 Volt:
2 x heavy duty batteries for engine starting
2 x heavy duty auxiliary batteries
Battery link facility with remote control at helm position
Both battery banks are charged using a voltage sensitive relay that parallels both battery banks when a charging source is present
75-amp 12v float battery charger
Remote battery master switches with control switch at main switch panel
Circuit breakers on all circuits
12v voltage dropper for certain navigation and radio circuits
220/240 Volt:
Automatic fire extinguisher
30-amp shore support inlet
Polarity check system
Earth leakage safety trip
Circuit breakers on all circuits
Power points in: owner’s cabin, guest cabin, galley and saloon area
Shaver point in bathroom
Fuel system
Twin fuel tanks (in NS8 marine grade alloy) with interconnection system giving 160 gal / 192 US gal / 730l capacity
Fuel fillers on port and starboard side decks
Volvo fuel filter/ water separator (one per engine) with water warning sensors connected to warning lights at helm position
Remote fuel cocks in cockpit locker
Fuel gauges at main helm console
Water system
Water tanks totalling 64 gal / 77 US gal / 290l plus 7 gal / 8.5 US gal / 32l hot water calorifier
Water heated by engines and 240v immersion heater
Automatic water pump with filter
Main circuit breaker at switch panel
Water level gauge
Deck filler
Fire extinguishers
Automatic/manual override fire extinguishers in engine room with warning system at helm position
Hand-operated fire extinguishers (4) in owner’s cabin, guest cabin, galley and helm position
Bilge pumps
Automatic/manual override electric bilge pumps in engine room (2), rudder area, lazarette and forward accommodation (6 in all)
High-capacity manual bilge pump with valve system and suction points in same areas
Electric bilge pumps have controls and warning lights at main helm and warning light with audible alarm at flybridge helm
Other standard equipment
Ensign staff
Fenders (6)
Mooring warps (4)
Boat hook
First-aid kit
Tool kit
Owner’s manual and engine manual
Quilted bedspreads supplied to both cabins
Ship’s document case
Anchor winch back up handle
Finishes
Teak-laid decks to transom platform, cockpit deck and steps to side decks
Timber-laid floor to galley area
Furniture in choice of Rovere Oak or Alba Oak in satin lacquer finish as standard. Silver Oak or Walnut in satin or gloss lacquer finish available as an option
Tiled floor in bathroom suite in guest accommodation
Solid surface wash basin counter tops in bathroom suite in guest accommodation
Galley worktop in solid surface finish
Choice of high-quality carpet and upholstery fabric from extensive range

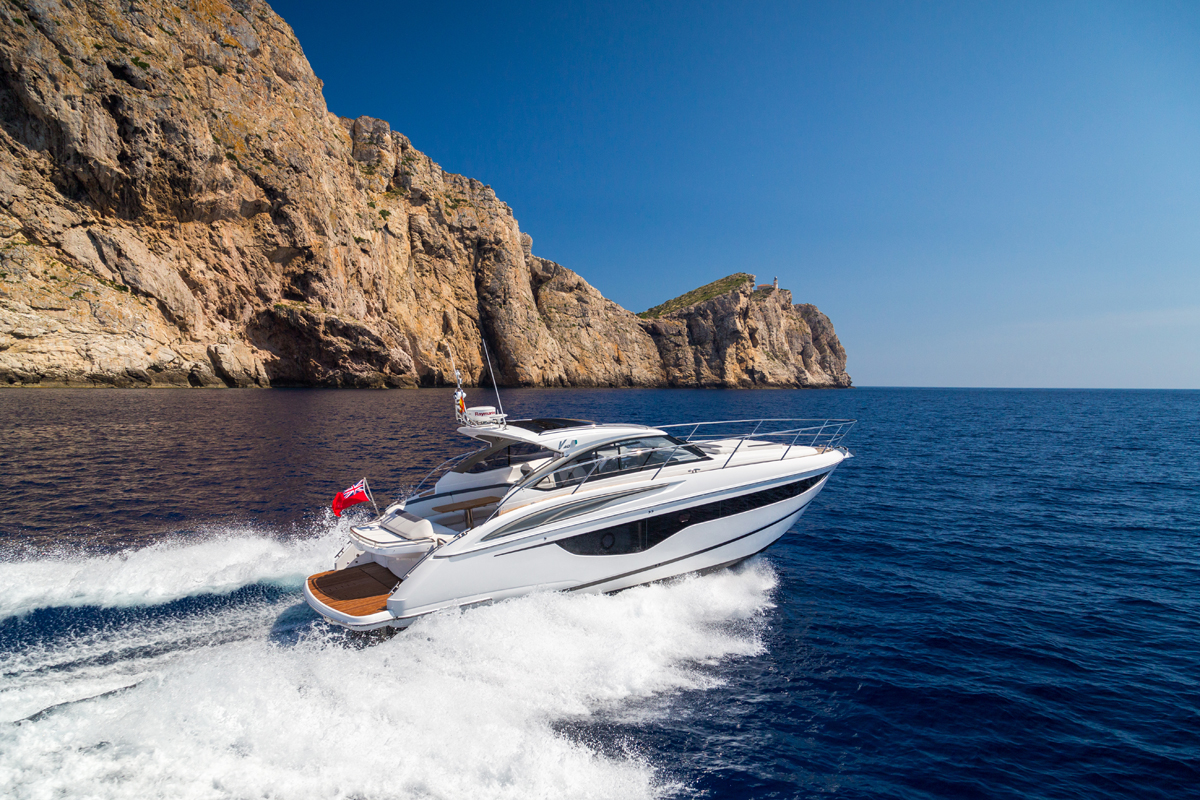

The V40 quintessentially showcases the dynamic exterior, performance and exceptional seakeeping of the Princess V Class range.
A breathtaking perspective
A breathtaking perspective
Exterior Interior
V40
A euphoric experience
The V40 quintessentially showcases the dynamic exterior, performance and exceptional seakeeping of the Princess V Class range.
A breathtaking perspective
Take a 360 virtual tour

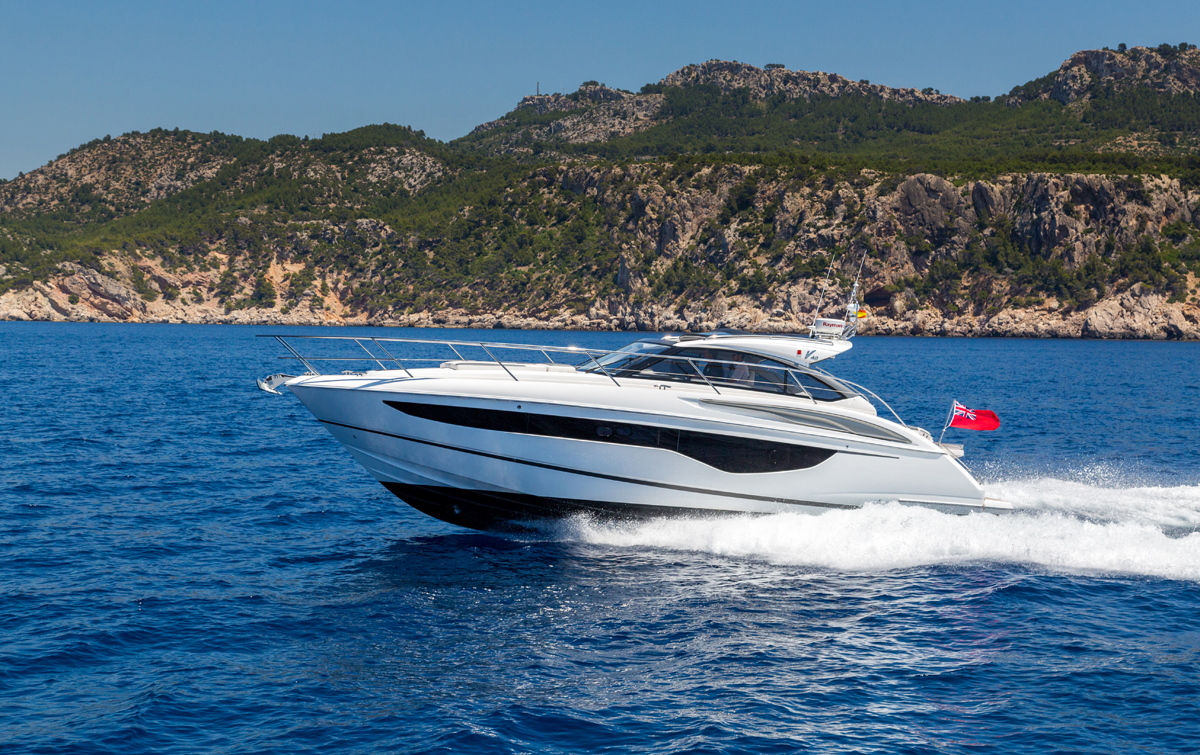

The V40 is the perfect compact sports yacht for socialising. Her port light windows cascade across the length of her deep-V hull, flooding the saloon and cabins with natural light.

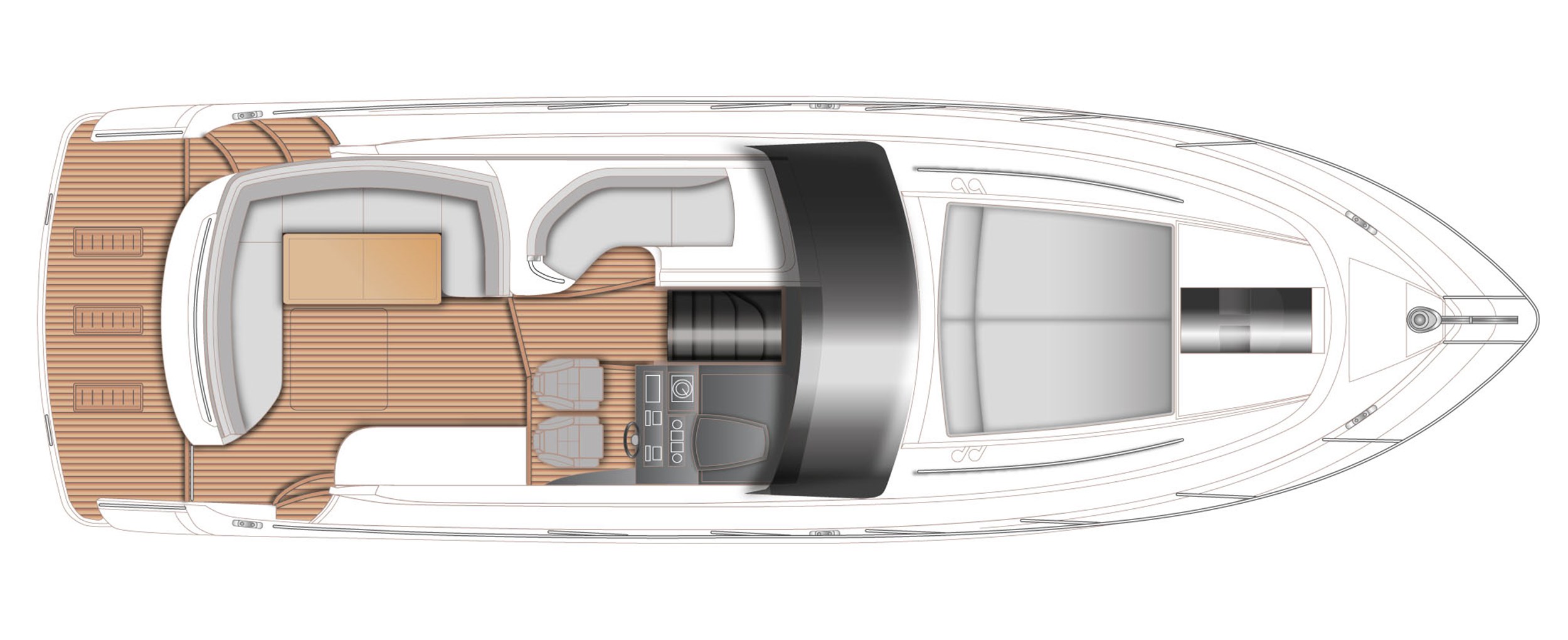

Main Deck Layout
Main Deck Layout (Optional)
Lower Deck Layout
Ultra-responsive handling and thrilling acceleration
When entertaining, her spacious cockpit with well-equipped wet-bar, provides the perfect setting to create unforgettable experiences with the option to specify a convertible sunbed aft.
Below deck, her interior design depicts the modern V Class look throughout. Her spacious saloon and well equipped galley combine for a highly sociable entertaining space. The forward cabin has an en-suite bathroom with secondary access to the saloon whilst the aft cabin can be fitted with optional sliding berths to provide easy conversion to a double bed when required.
