Draft (at full load) approx.
(half load) 66,848kg (147,375 lbs)*
Displacement approx.
49,500 kg (109,129 lbs)*
Fuel capacity
1,430 gal/1,717 US gal/7,000l
Water capacity (excl. calorifier)
308 gal / 370 US gal / 1,400l
Engines
Twin MAN V12 (2 x 1,900mhp)
TOP SPEED: Top Speed 31 - 33 knots†
Twin MAN V12 (2 x 2,000mhp)
TOP SPEED: Top Speed 32 - 34 knots†
* Displacements are calculated with 50% fuel and water with liferaft but with no optional equipment fitted or other gear.
† Maximum speeds will vary depending on cleanliness of hull, condition of sterngear, loading of craft, water and air temperatures, sea conditions and other factors. Speed estimates are therefore given in good faith but without warranty or liability on the part of Princess Yachts Limited. Craft illustrated in this brochure may be fitted with certain optional equipment. Specifications may be changed at any time without notice or liability. USA Specification
‡ Certain specifications, which vary by model, are upgraded on Princess yachts built for use in North America. Thus, specifications and equipment will vary from the information listed in the brochure for North American Princess yachts (e.g. air-conditioning and an upgraded generator will be included as standard for all North American models and electric cooking facilities will be supplied in place of gas systems). Please consult the USA Specification Brochure for full details regarding the North American specifications for individual models.
Deck fittings
Teak-laid transom platform, transom steps, cockpit deck, stairway to sportbridge, side decks, foredeck & sportbridge areas
Reversible hydraulic anchor winches with foredeck, main helm and sportbridge controls
Stemhead roller with automatic anchor launch and retrieve
Twin anchor system incorporating:
Primary anchor - 80kg galvanised Lewmar Claw anchor, with stainless steel Lewmar swivel and 100m of 14mm galvanised anchor chain
Secondary anchor - 50kg galvanised Lewmar Claw anchor, with stainless steel Lewmar swivel and 70m of 14mm galvanised anchor chain
Deck chain stoppers
Twin electric stern line mooring winches
Deck hatch access to chain locker, rope locker
Freshwater deck/anchor wash (with both fore and aft deck outlets)
Stainless steel foredeck fairleads (1 pair)
Stainless steel stern fairleads (2 pairs)
Stainless steel bow cleats (1 pair, port & starboard)
Stainless steel spring cleats (2 pairs, port & starboard)
Stainless steel stern cleats (2 pairs, port & starboard)
Stainless steel transom cleats (1 pair)
Stainless steel handrails to main deck side decks
PVC rubbing band with stainless-steel insert
LED deck level lighting
Full set of IMCO navigation lights
Twin beam searchlight with remote controls
Stern docking lights
Twin electric horns
Fuel and water fillers
Loudhailer
Ensign socket and staff
Holding tank dockside discharge connection
Stainless-steel guard rails to foredecks
Foredeck escape hatch
Twin coach roof lockers for storage of fenders and ropes
Foredeck forward-facing U-shaped seating area with optional coffee table
Foredeck aft-facing U-shaped seating area with storage locker with standard coffee table
Williams tender launch system (NB standard system is for tender up to TBC including motor), includes electric winch, rollers and non-slip pads
Williams Sportsjet 435 tender strapping for use in tender garage

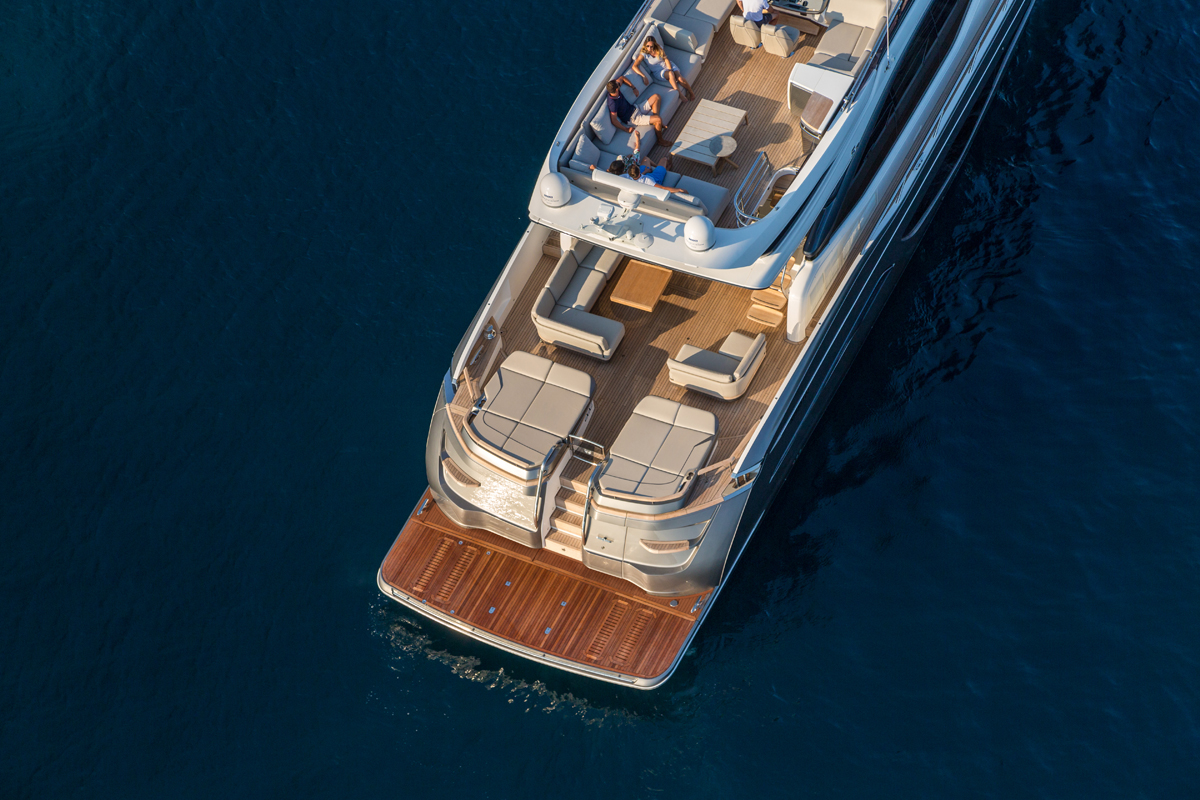

Cockpit and bathing platform
Self-draining teak laid deck
Princess logo in bathing platform teak
Electro-hydraulic teak laid raise/lower bathing platform (550kg SWL)
Retractable bathing ladder (manual) in side of bathing platform
Hot & cold transom shower
Garage fitout to include electro-hydraulic door and electric winch for tender up to 4.35m
Space below garage for optional Glendinning equipment
Single transom gate leading to bathing platform
Watertight top hinged door giving access from bathing platform into crew area/engine room
Remote control telescopic passerelle with automatic folding handrails (1.2m overhang)
Twin aft sun pads with cupholders and backrests/headrests
Twin forward facing seats
Twin upholstered aft facing bench seats which can be manually re-positioned if required
Life raft stowage in port aft sun pad
Engine room to cockpit escape hatch
Integral stairway to flybridge with teak step treads
Teak extendable dining table (extends from 6 to 8) with 8 chairs
Starboard side servery with sink and bin
Starboard locker containing remote fuel shut-off, manual bilge pump with valve chest and manual controls for automatic fire extinguishers
LED overhead and deck level lighting
Stainless-steel oval handrails
Canvas tonneau cover (Note: shortened to length of stowed cushion position to allow garage and crew access)
Illuminated crown logo on transom
220v/240v shore support inlets (2)
Sportbridge
Dual station instrument and controls console (see lower helm position)
Helm position
Twin upholstered seats with manual fore/aft adjustment for helmsman on moulded seat base
Drinks holders (2)
USB charging points (2) (1x USB-A and 1x USB-C)
Port and starboard companion seating
Stainless steel capped fly screen
Teak-laid deck
Aft U-shaped seating area with coffee table
Clear view hatch to aft cockpit
Access stairway to aft cockpit
Aft-facing moveable upholstered dining-height seat (can be locked in place when positioned behind helm seats), with top-hinge storage unit and countertop aft of helm/navigator seat
Portside servery with sink/tap, BBQ, and drawer fridge
LED deck level lighting
Radar mast
Twin matching whip aerials for VHF R/T radio
Covers to exterior furniture
Optional dining table
Optional GRP hardtop with dimmable LED lighting

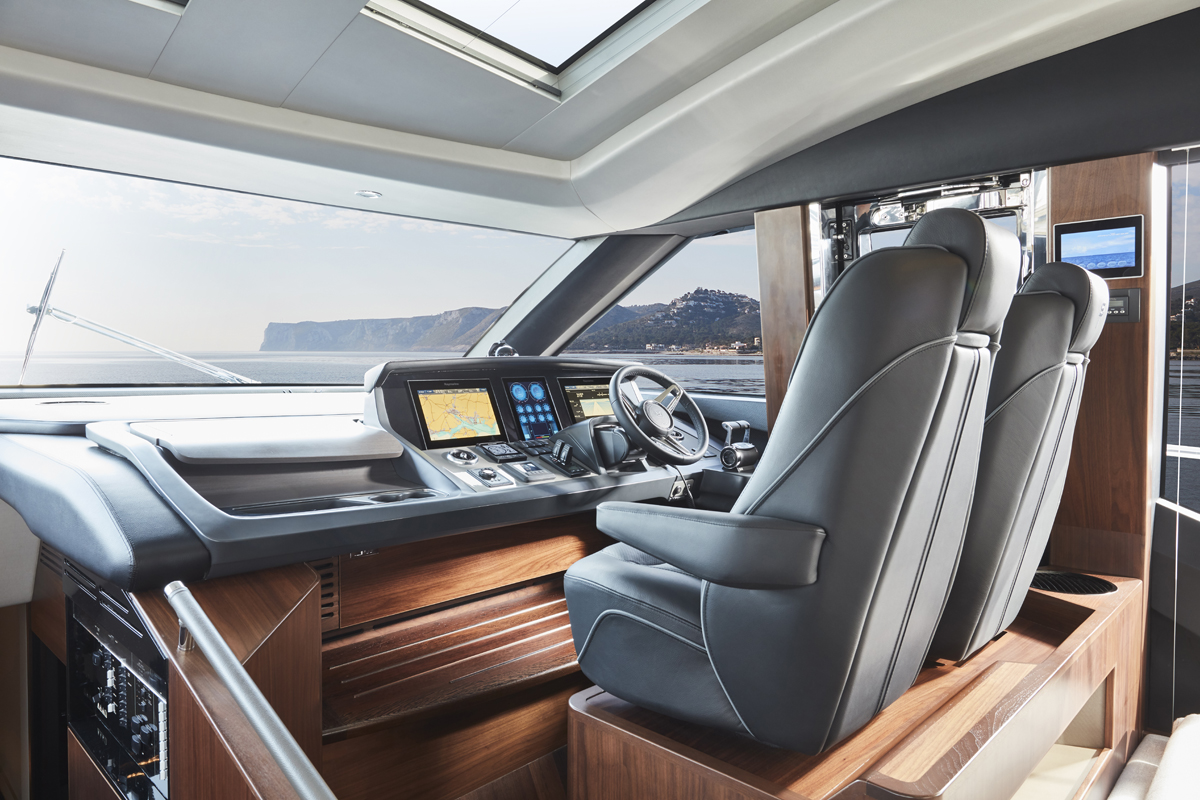

Helm position
Lower helm with fixed height captain’s leather upholstered seat with manual fore and aft adjustment.
Fixed navigator seat
Helm seats Incorporates manual fold down foot rest (Optional fixed third helm seat)

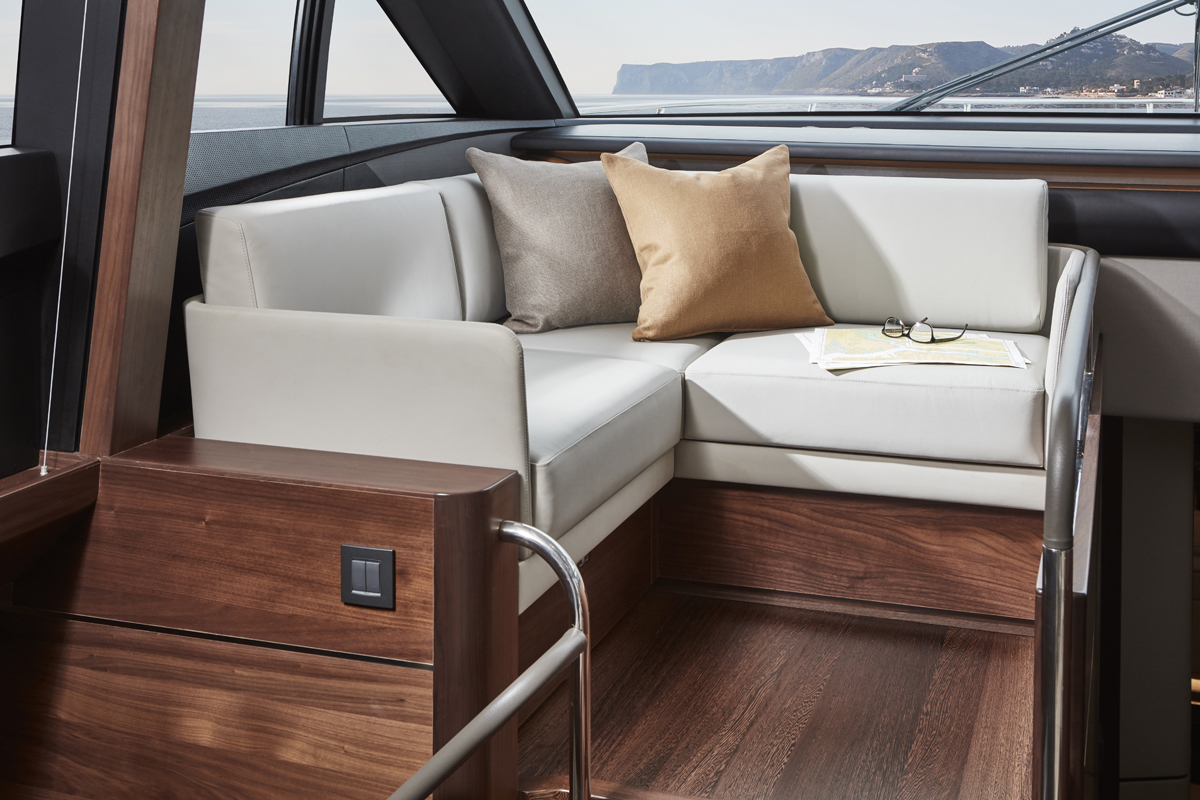

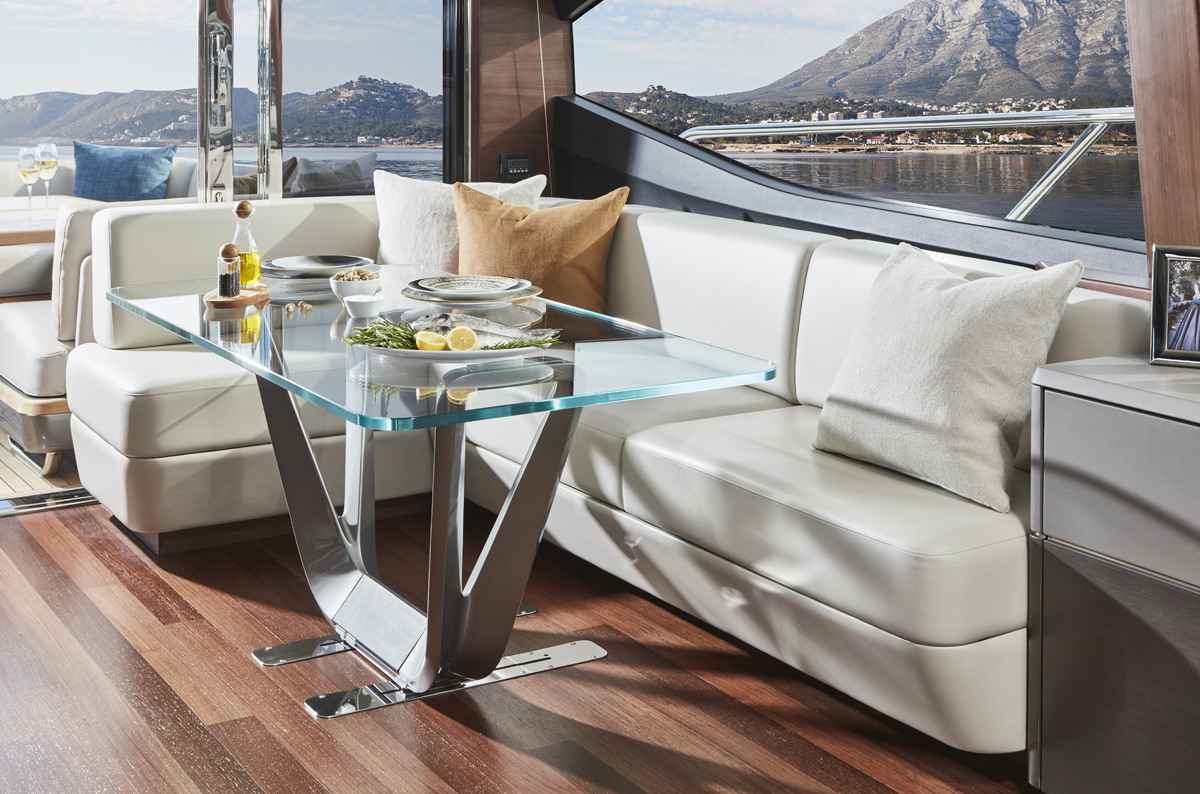

U-shaped companion seating to port with dining-height table
Instrument console with display incorporating engine instruments, optional CCTV, fuel gauges, alarms and rudder position indicator
Dual station instrument and controls console at lower helm position/sportbridge:
- audible and visual alarm for bilge pumps (via Böning)
- engine room fire extinguisher warning system
Automatic fog horn with loudhailer
Chart storage
Drink holders (2)
Toughened glass screen (clear for night vision) with windscreen de-mist system
Windscreen wipers with freshwater windscreen wash
Black mesh sunscreens
Bilge pump controls with visual pump running warnings
24v and 240v electrical control panel
Riding light, helm and navigation light control switches
Dimmable LED overhead/concealed lighting (24V) with night lighting & scene selection
V-groove planked timber-laid flooring (including steps to saloon)
220/240v outlets (1)
USB charging points (2) (1x USB-A and 1x USB-C)
Watertight pantograph door giving direct access from starboard side deck
Electric drop window to port

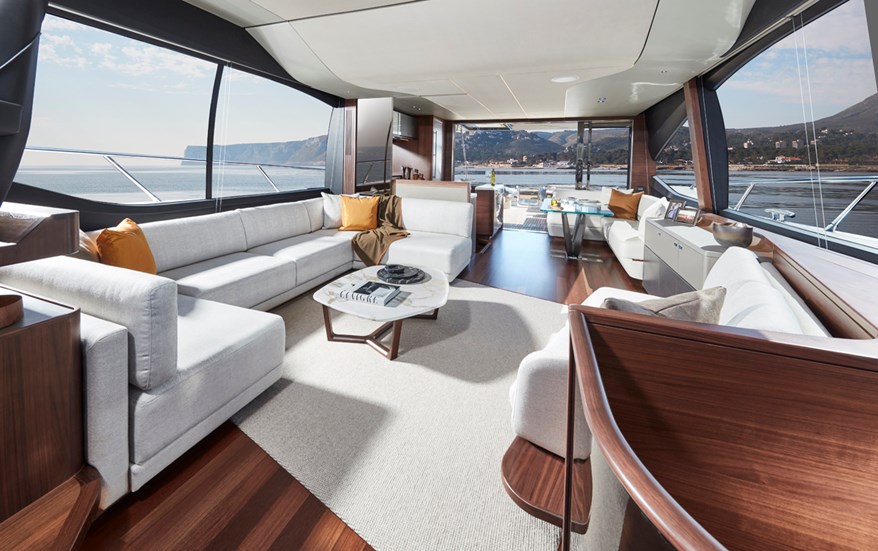

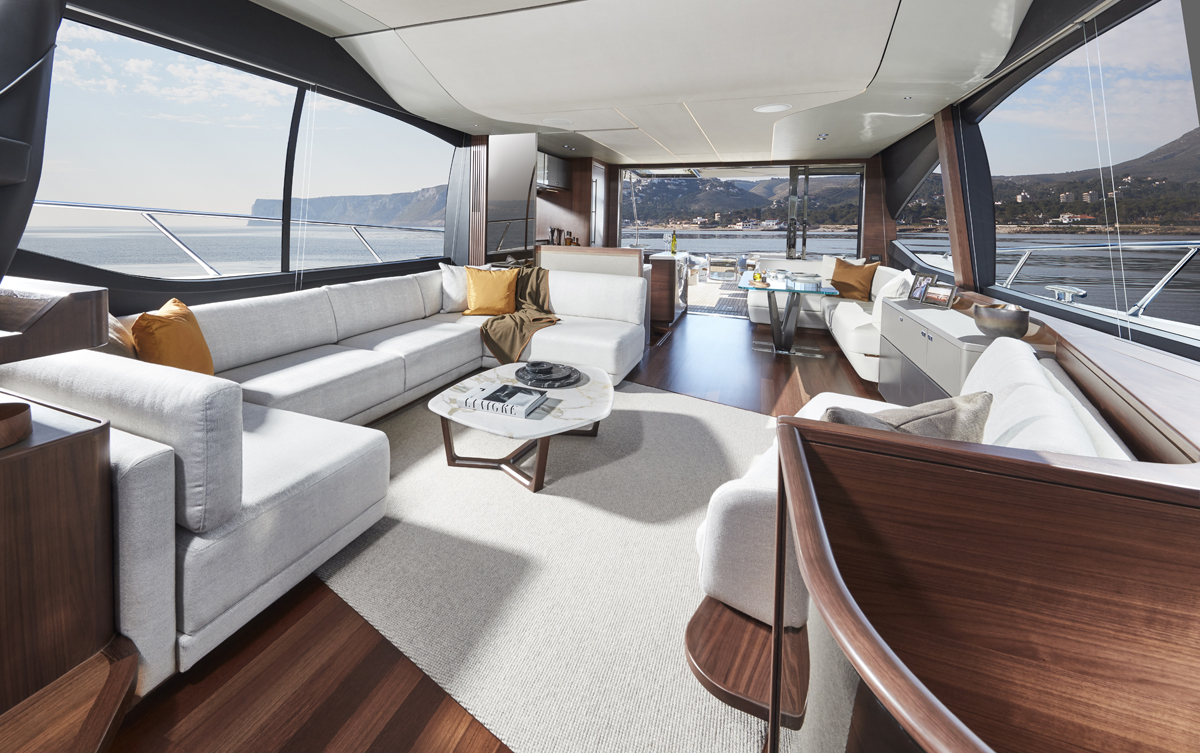

Saloon

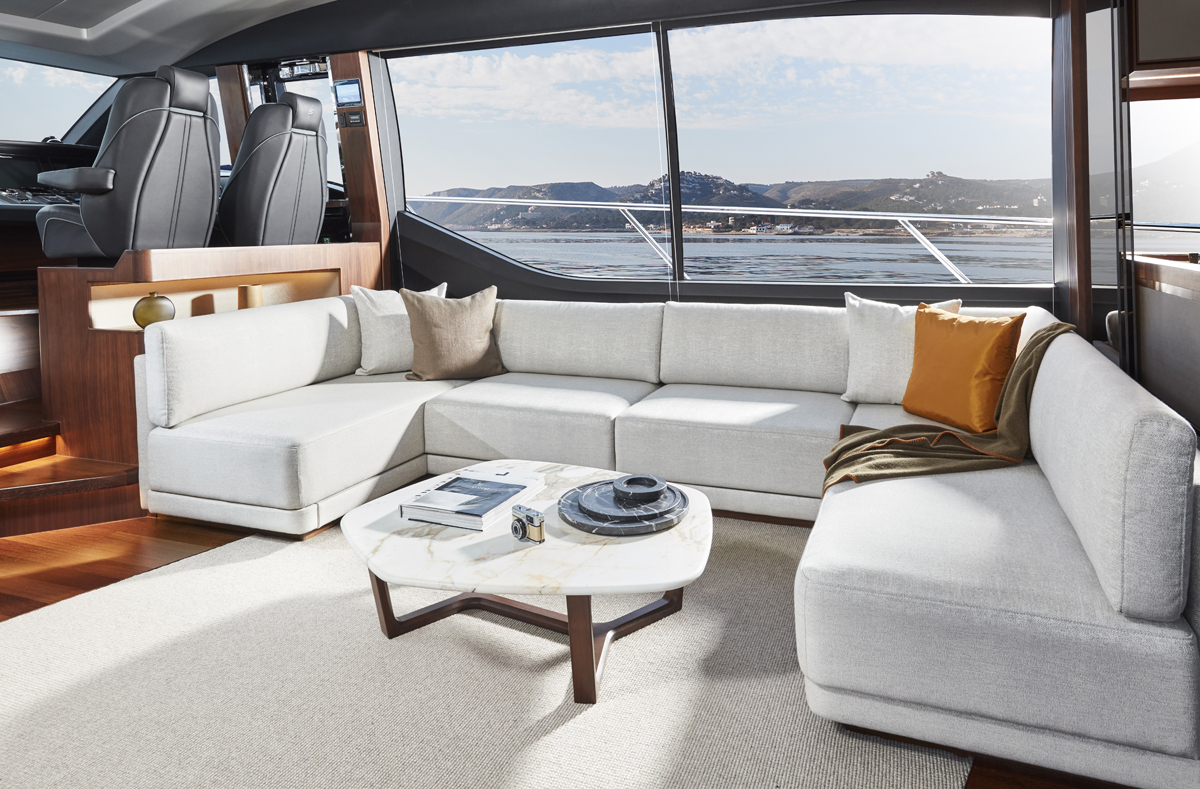

Large sofa to starboard with storage below
Sofa to port with crockery storage draw

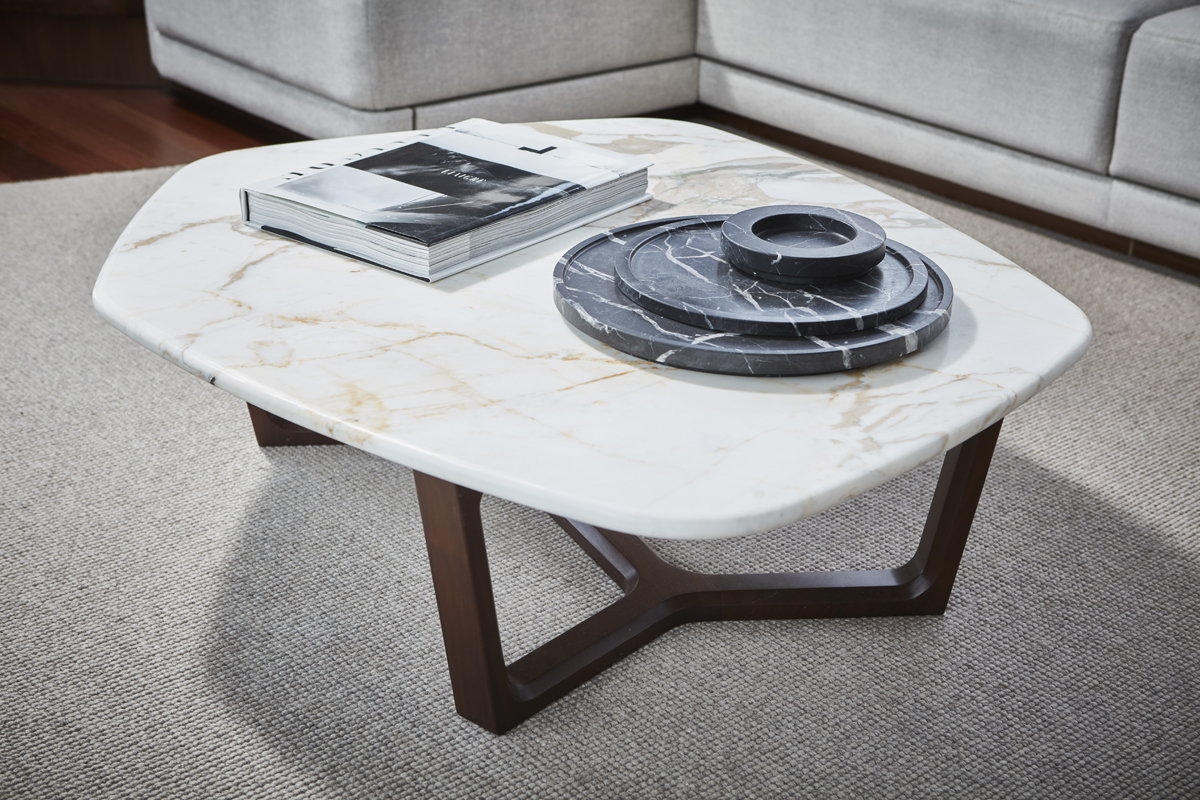

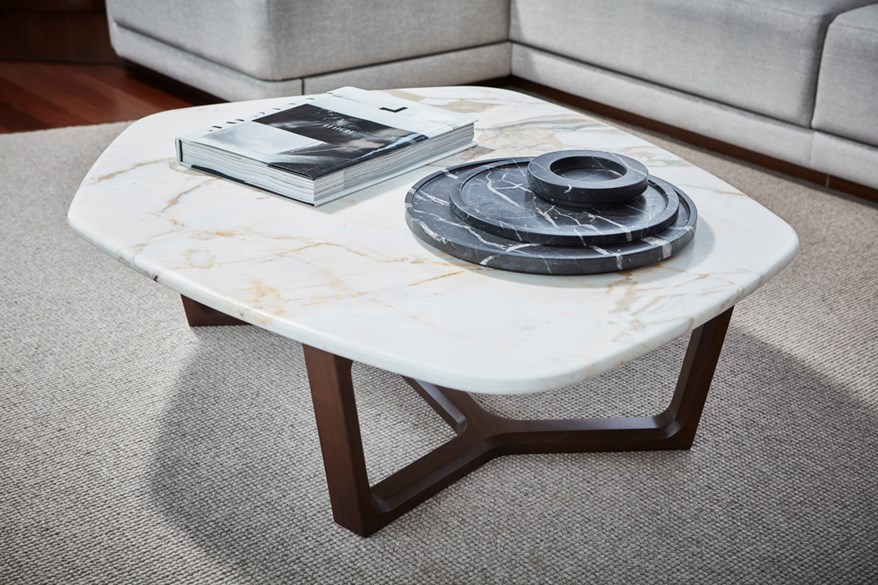

Coffee table
No skylight/skylight blinds to saloon area as standard
Panoramic tinted toughened glass windows port and starboard
Manual sheer roller blinds to all outboard windows (not including helm area)
55” LED TV on rise and fall
Naim Uniti Atom audio system with speakers (2) and subwoofer
Dimmable LED overhead/concealed lighting (24V) with scene selection
220/240v outlets (2)
USB charging points (4) (2x USB-A and 2x USB-C)
Onboard ethernet router & 4G internet modem
Access stairway to lower accommodation
Fitted carpet
Dining area
Optional dining table and chairs to convert starboard saloon space into dinette (NSO)

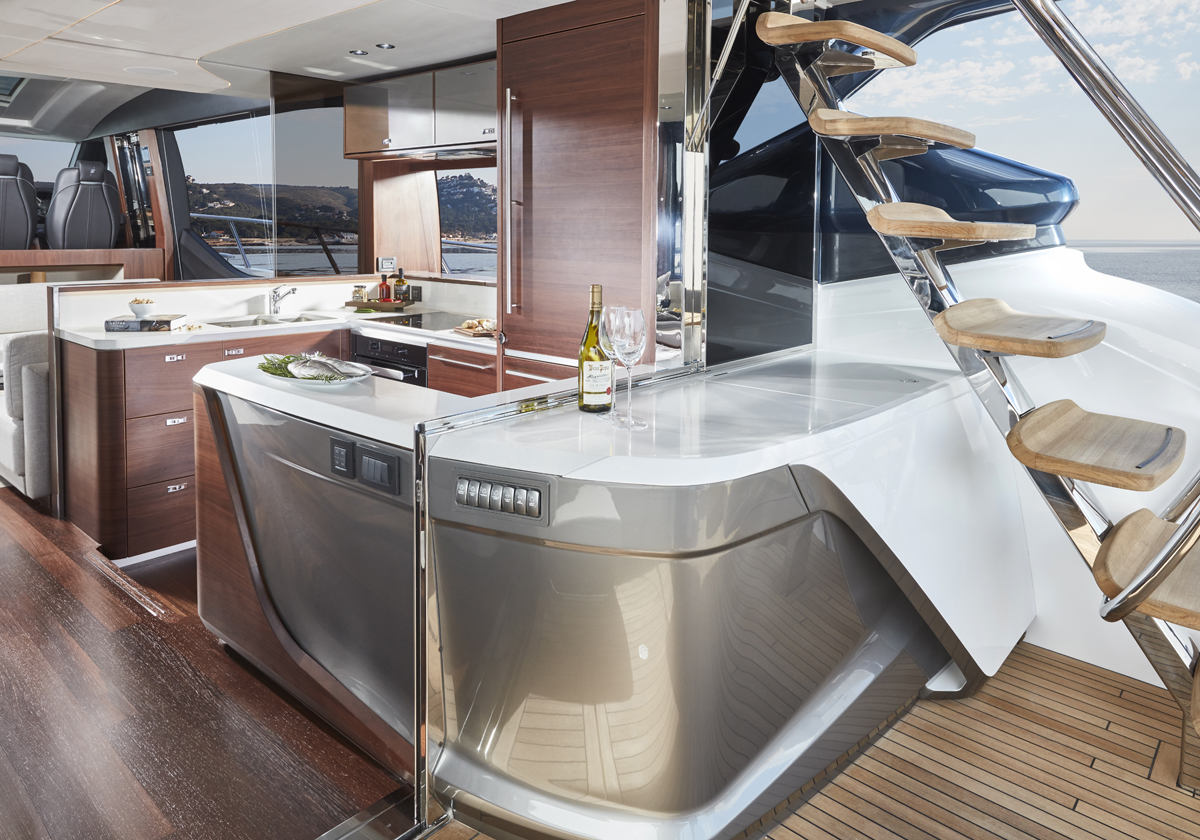

Galley
Granite/quartz worktop
Galley units in HPL
Miele 4-zone induction hob
Hob extractor fan
Miele combination convection oven with grill/microwave
Sub-zero single full height refrigeration units with deep freeze drawers
Miele slimline dishwasher
1.5 bowl stainless-steel sink with mixer tap
Chopping board & storage
Twin waste bin
High and low-level storage cupboards and drawers
Cutlery storage
220/240v power outlets (4)
LED overhead & task lighting (24V)
Manual sheer roller blinds to windows
V-groove planked timber-laid flooring
Starboard side sideboard containing storage units, glass storage, icemaker and additional refrigeration
3-panel stainless-steel framed cockpit doors, opening to starboard side, with port side window opening (TBC opening method)
Manual skysol blind aft patio doors and adjacent windows (As per S78)
Accommodation
All cabins and bathrooms feature opening portholes and air conditioning
All cabins feature 220/240v power points
All en-suites feature 240v shaver points
Lobby / passageway area
Linen cupboard below companionway stairs
Top-loading storage unit outboard in window side liner
Sideboard with mirror above
Combination washer/dryer located below companionway stairs
Dimmable LED overhead/concealed lighting (24V)
Fitted carpet

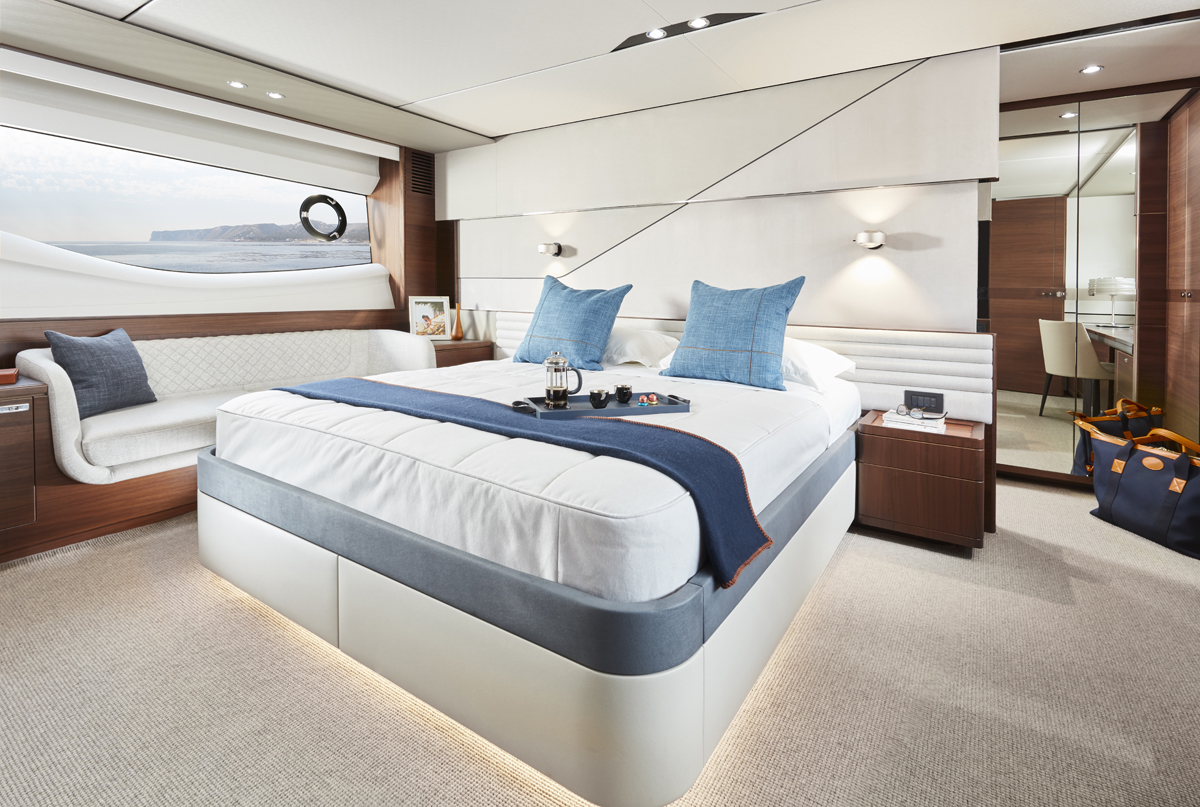

Owner’s stateroom
Large double bed with bedside tables and drawers below
Dressing area with full length mirror, hanging, shelf and drawer storage
Built-in safe

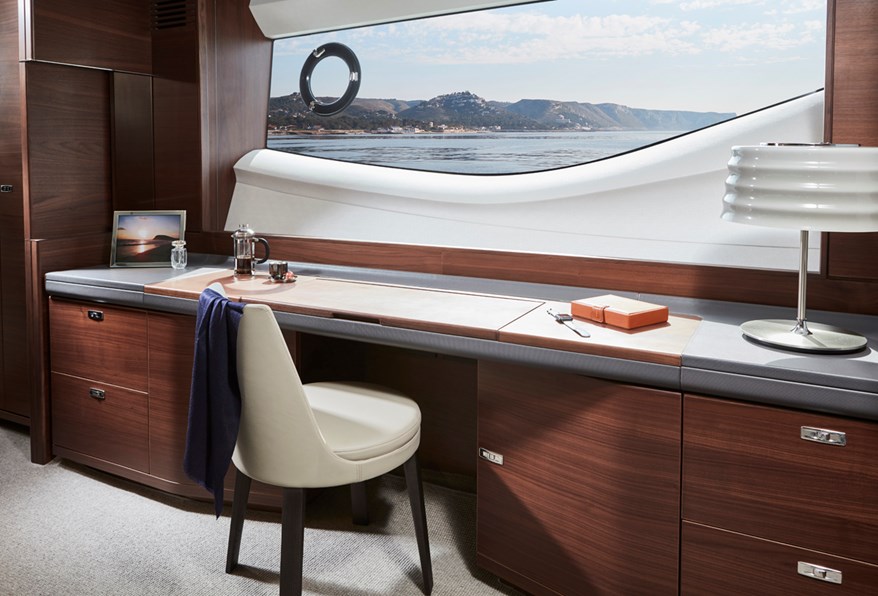

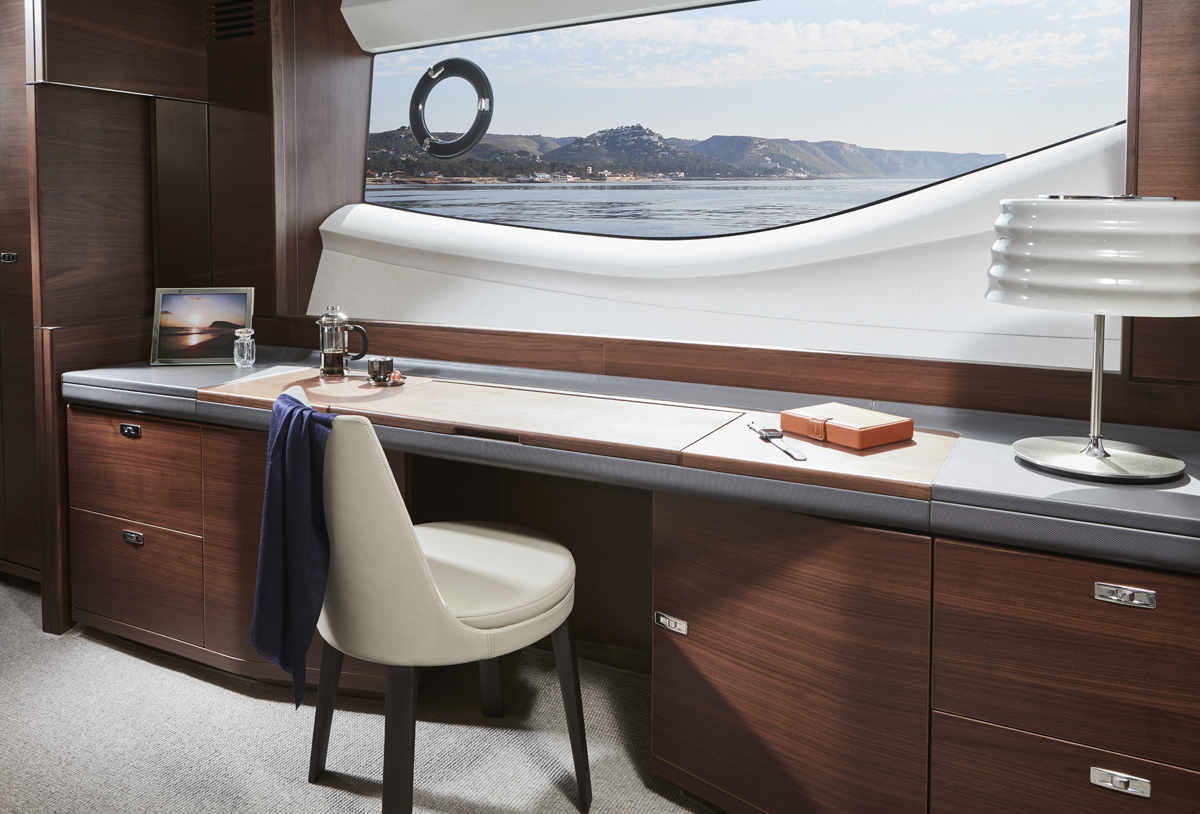

Port side dressing table with integrated mirror, chair, storage drawers and cupboards

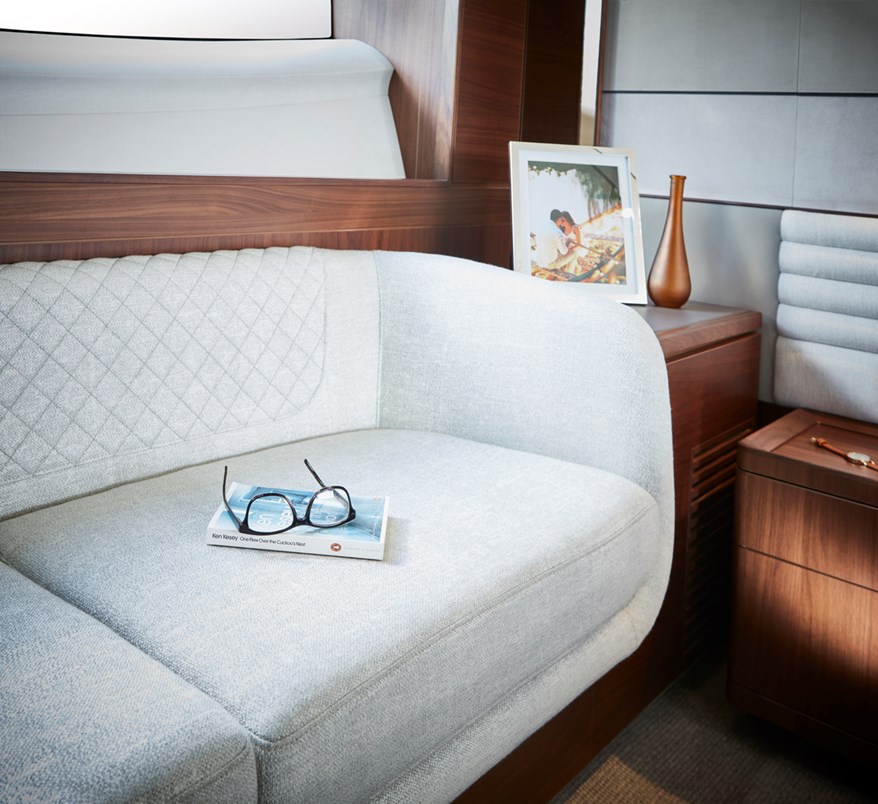

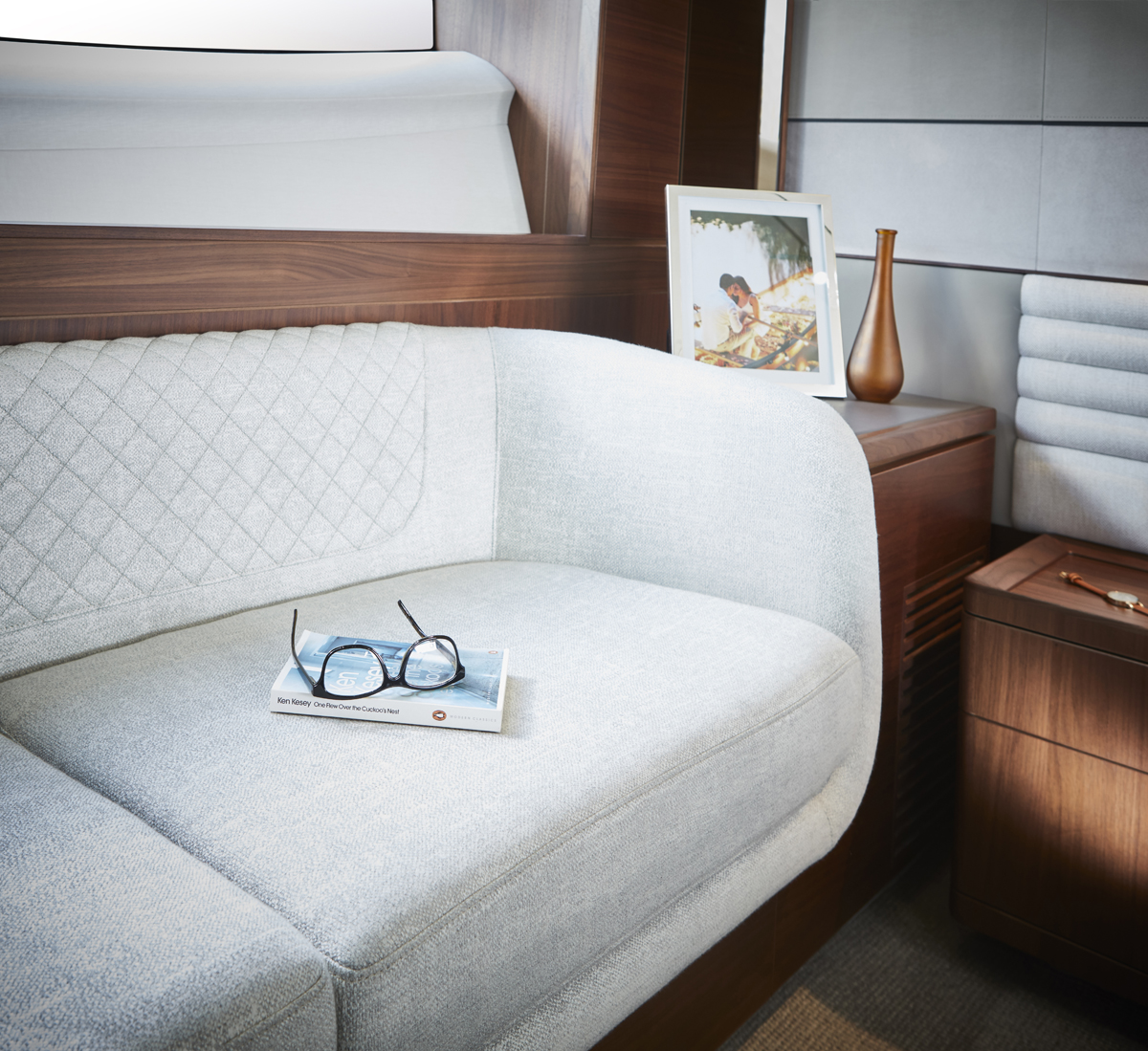

Starboard side sofa with storage drawers to forward bulkhead
55” LED TV
Naim Uniti Atom audio system with speakers (2) and subwoofer
Panoramic windows including opening portholes
Manual Venetian blinds to hull windows
Dimmable LED overhead/concealed lighting (24V) with scene selection
220/240v outlets (2)
USB charging points (4) (2x USB-A and 2x USB-C)
Fitted carpet

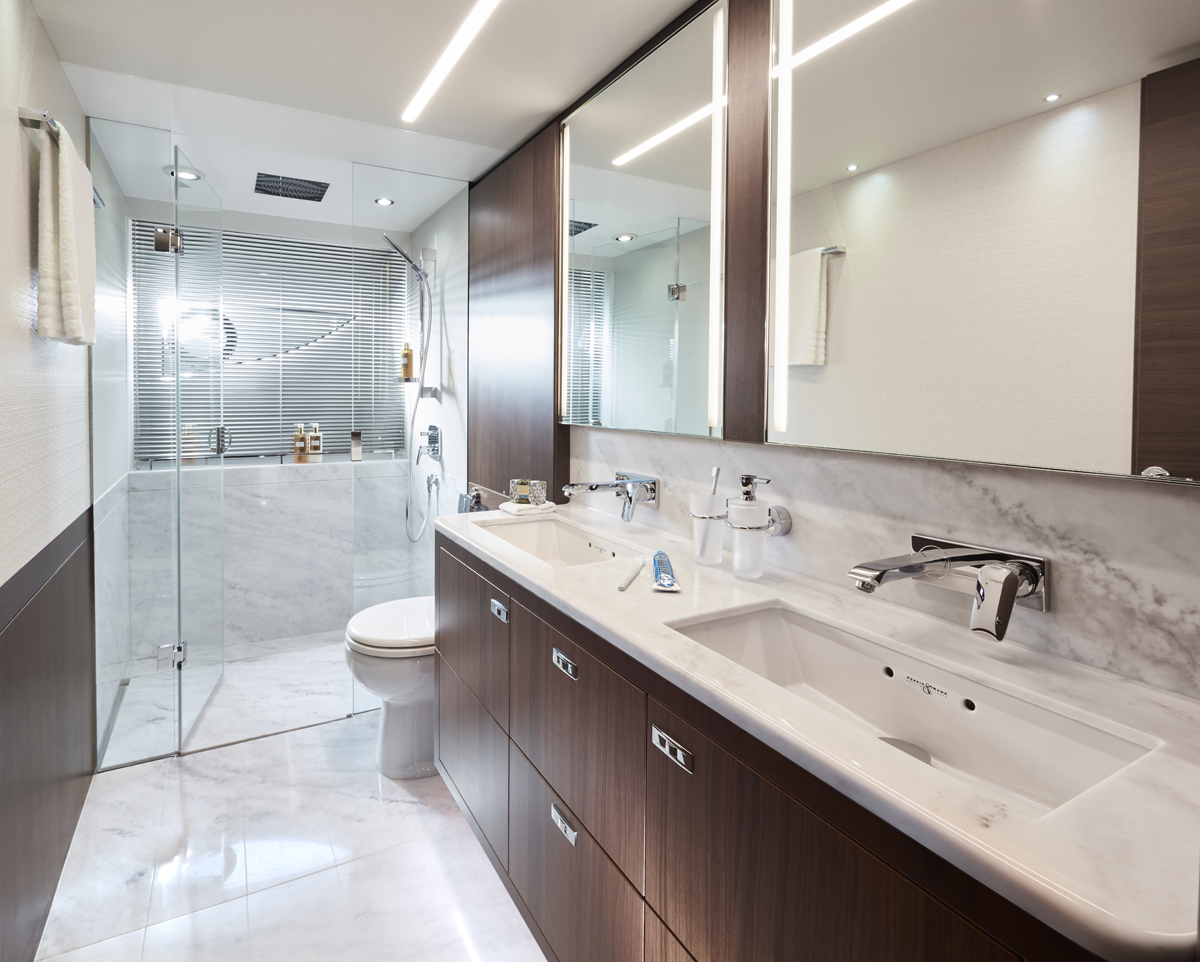

EN-SUITE BATHROOM
Electric freshwater toilet
Twin wash basins and vanity top in thermoformed Solid Surface
Bathroom cabinets in interior boat timber choice (please specify), with chrome bathroom hardware
Mirror
Storage lockers
Shower compartment with automatic pump out
Extractor fan
Heated towel rail
Window with opening porthole
Manual tension Venetian blind
LED overhead and concealed lighting (24V)
Bathroom accessories
Solid Surface flooring, with synthetic teak accents applied to feature shower bulkheads and shower floor
Forward stateroom
Large double bed with bedside tables and drawers below
Built-in safe
Twin double wardrobes
Port side dressing table with integrated mirror, stool and storage drawers
43” LED TV
Naim Uniti Atom audio system with speakers (2)
Panoramic windows including opening portholes
Manual Venetian blinds to hull windows
Dimmable LED overhead/concealed lighting (24V) with scene selection
220/240v outlets (2)
USB charging points (4) (2x USB-A and 2x USB-C)
Fitted carpet

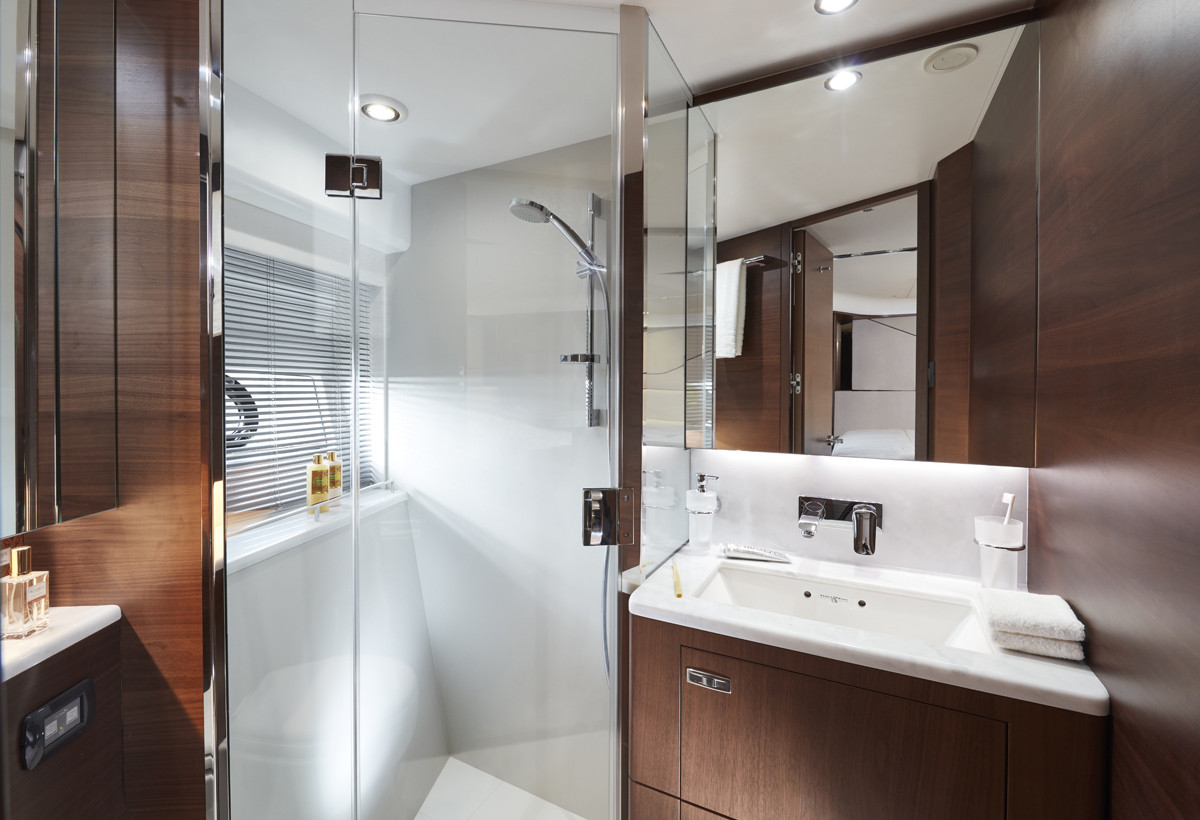

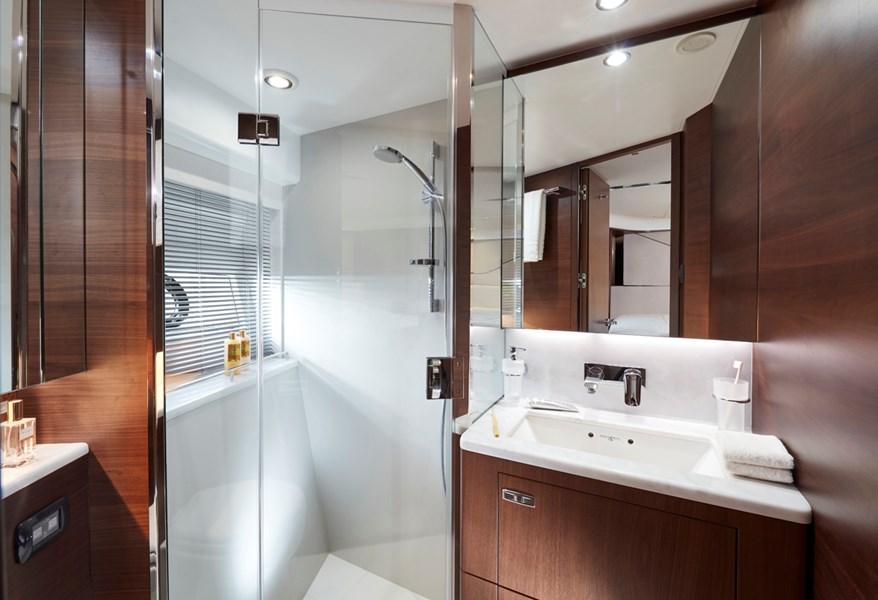

EN-SUITE BATHROOM
Electric freshwater toilet
Wash basin and vanity top in thermoformed Solid Surface
Bathroom cabinets in interior boat timber choice (please specify), with chrome bathroom hardware
Mirror
Storage lockers
Shower compartment with automatic pump out
Extractor fan
Window with opening porthole
Manual tension Venetian blind
LED overhead and concealed lighting (24V)
Bathroom accessories
Solid Surface flooring, with synthetic teak accents applied to feature shower bulkheads and shower floor

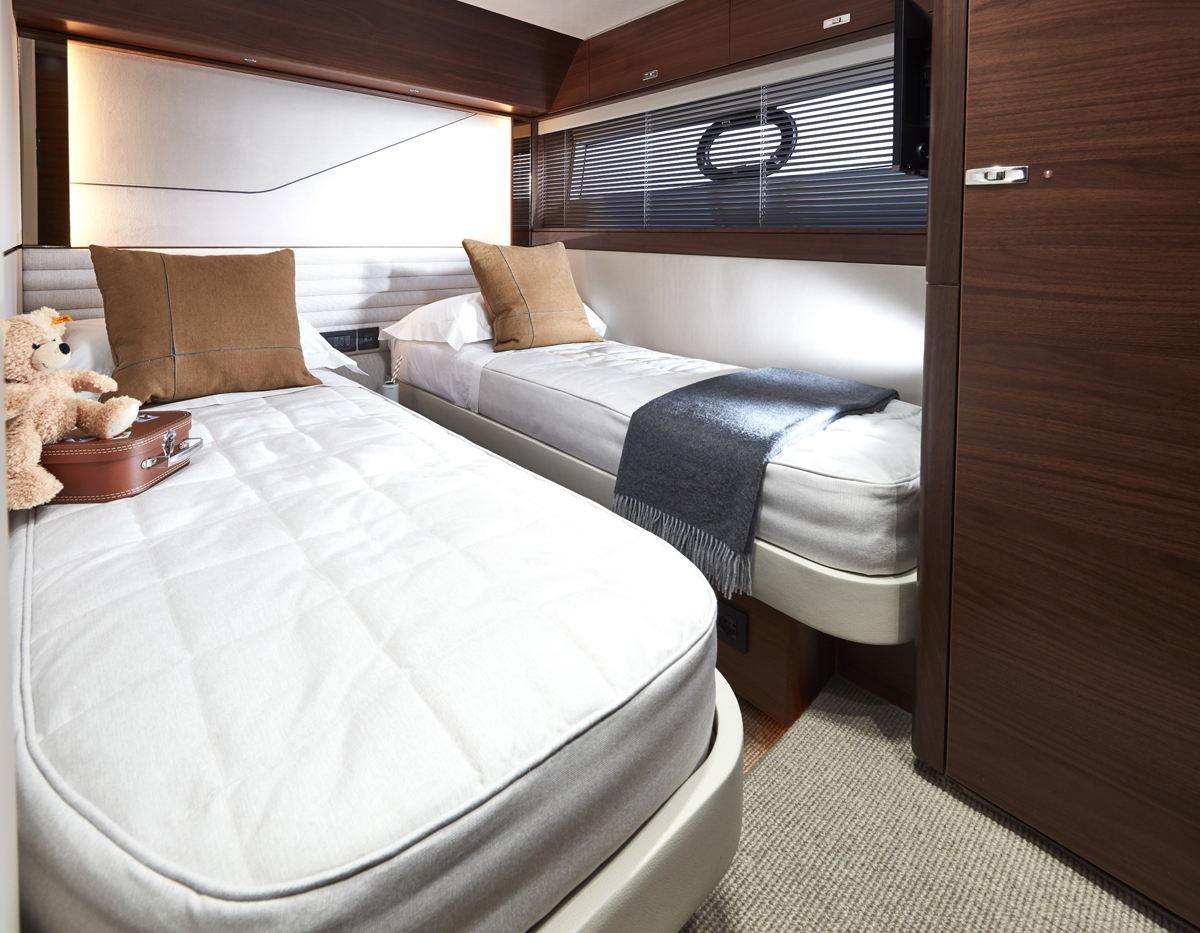

Port guest cabin
Two single beds with drawers below
Bedside table
Wardrobe with shelves
Mirror
Storage lockers
Window with opening portholes
Manual Venetian blinds to hull window
Dimmable LED overhead/concealed lighting (24V) with scene selection
Individual berth lights
220/240v outlets (1)
USB charging points (2) (1x USB-A and 1x USB-C)
Fitted carpet

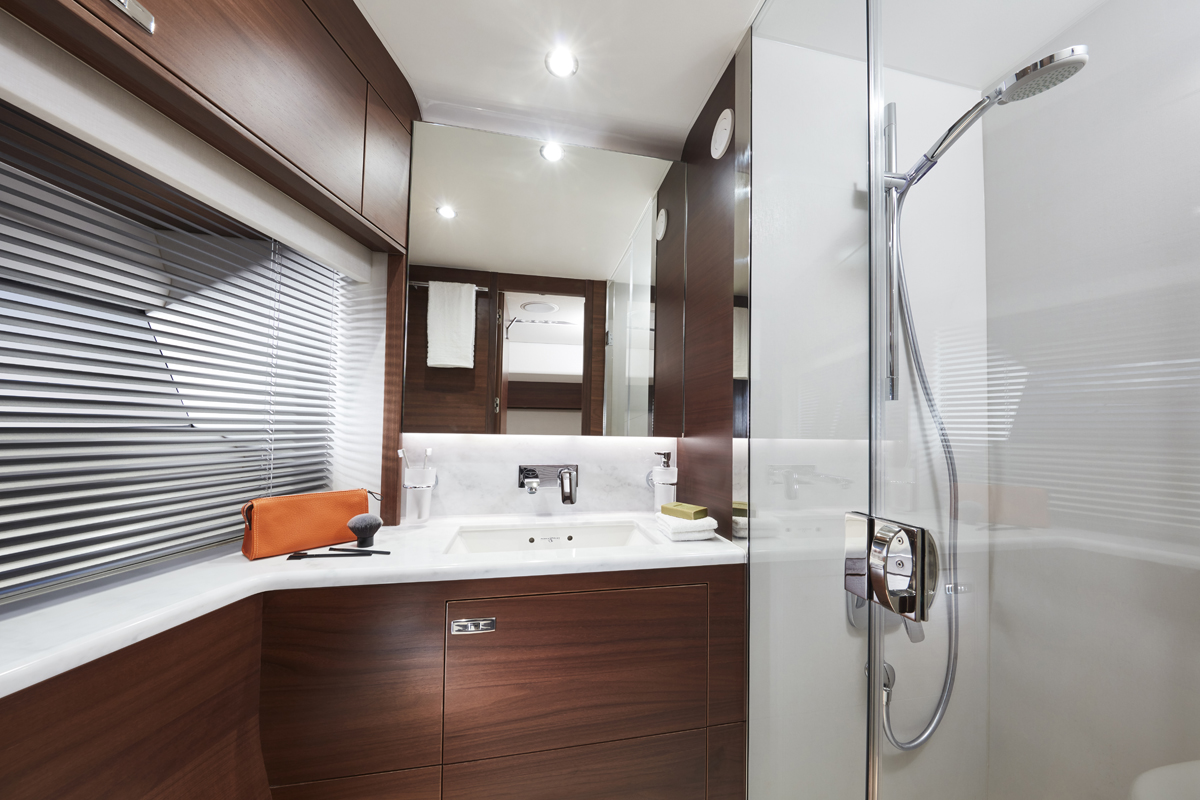

En-Suite Bathroom
Electric freshwater toilet
Wash basin and vanity top in thermoformed Solid Surface
Bathroom cabinets in interior boat timber choice (please specify), with chrome bathroom hardware
Mirror
Storage lockers
Shower compartment with automatic pump out
Extractor fan
Windows with opening porthole
Manual tension Venetian blind
LED overhead and concealed lighting (24V)
Bathroom accessories
Solid Surface flooring, with synthetic teak accents applied to feature shower bulkheads and shower floor

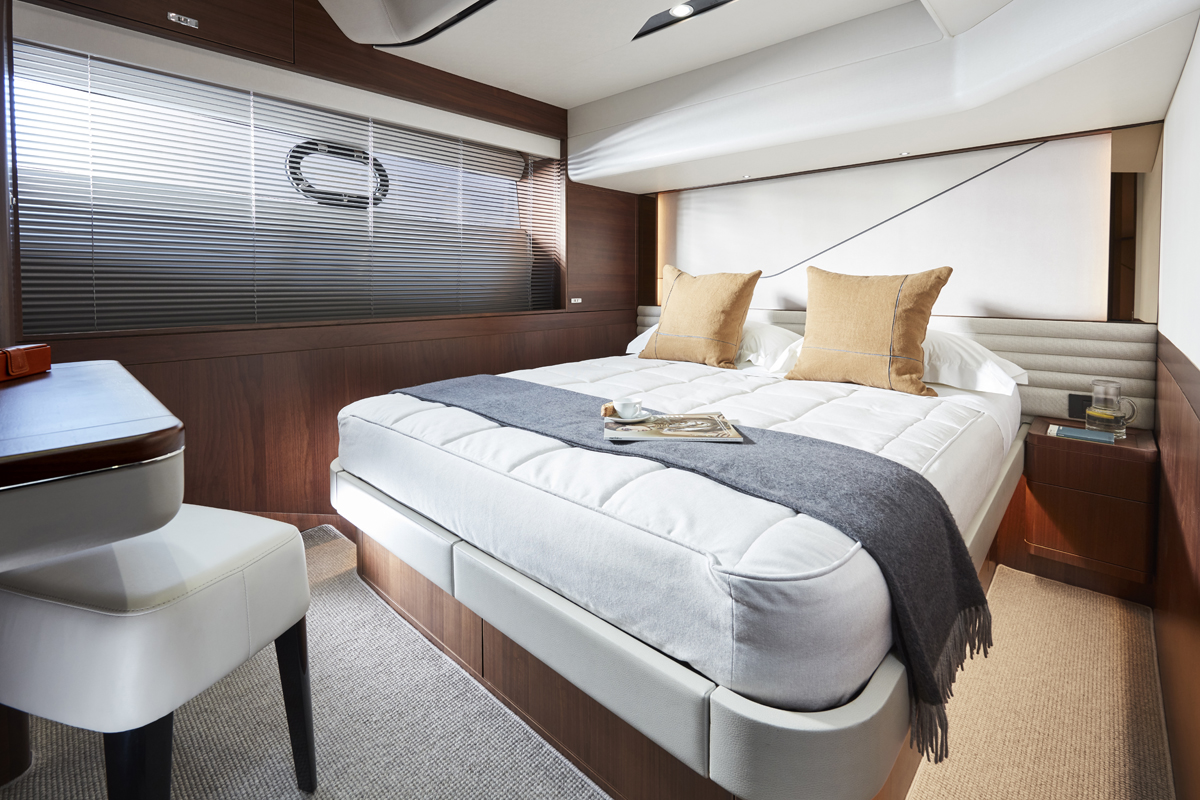

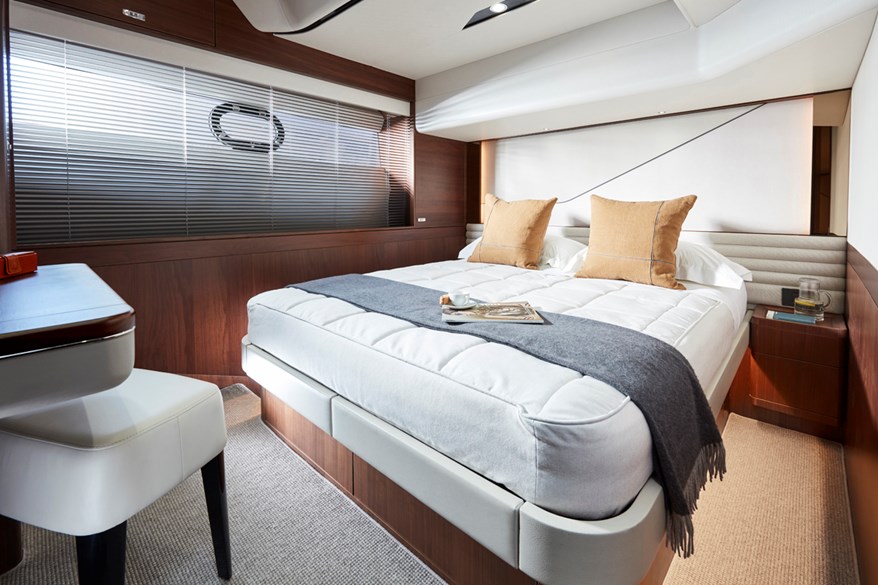

Starboard guest cabin
Double bed with drawers below
Bedside table
Dressing table with stool
Wardrobe with shelves
Mirror
Storage lockers
Window with opening portholes
Manual Venetian blinds to hull windows
Dimmable LED overhead/concealed lighting (24V) with scene selection
Individual berth lights
220/240v outlets (1)
USB charging points (2) (1x USB-A and 1x USB-C)
Fitted carpet

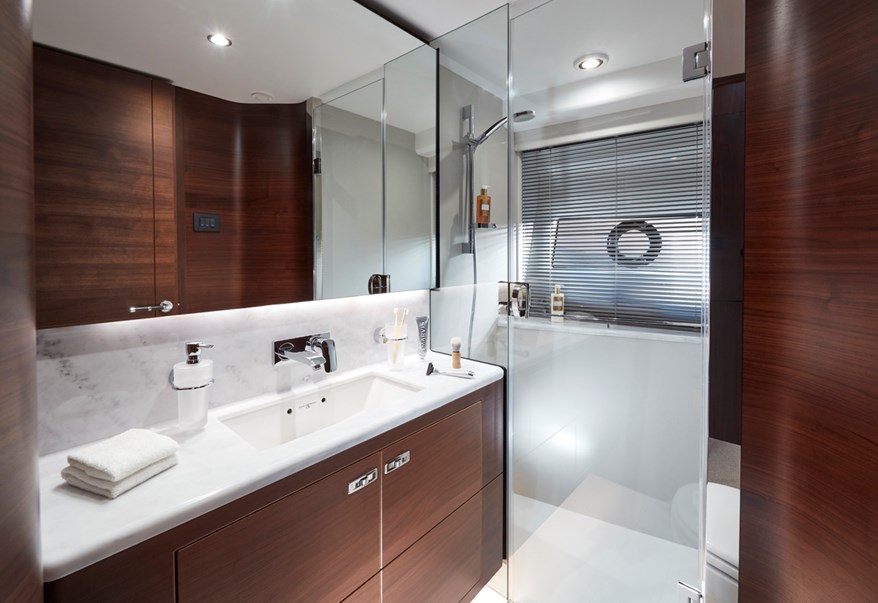

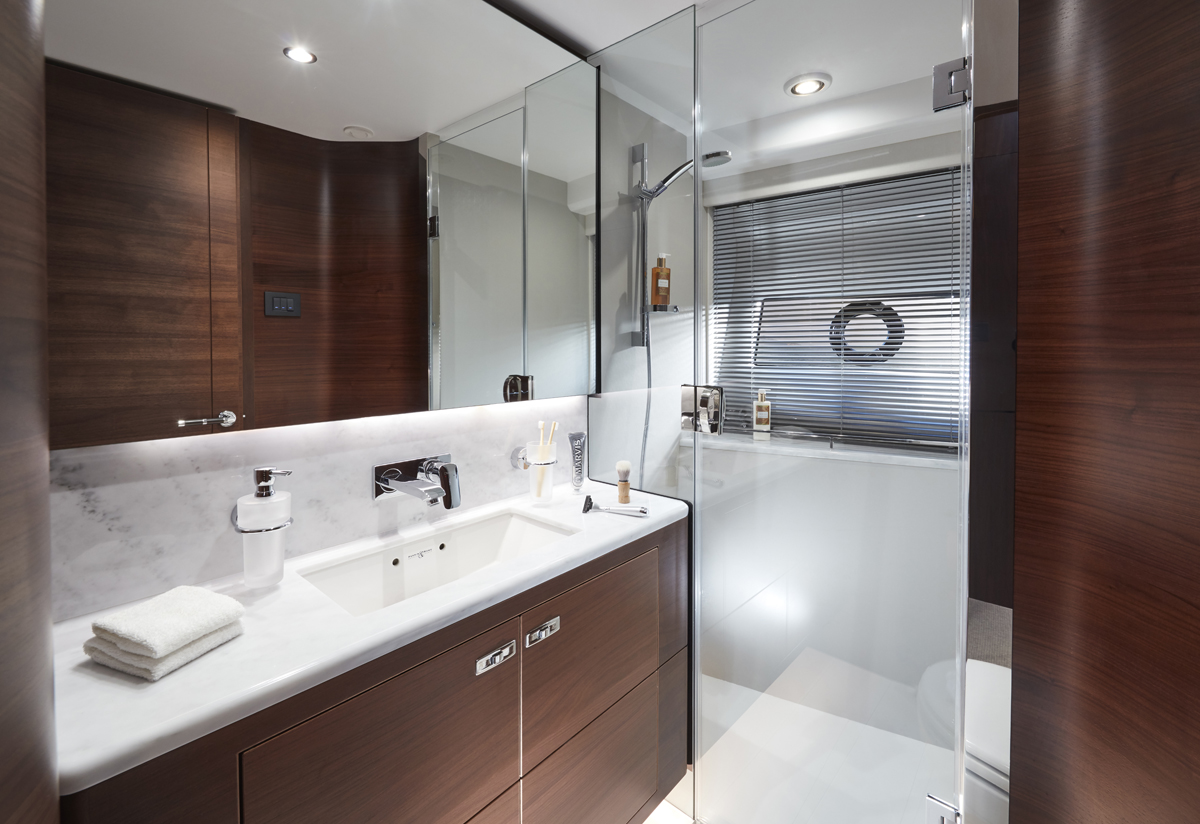

EN-SUITE BATHROOM
Electric freshwater toilet
Wash basin and vanity top in thermoformed Solid Surface
Bathroom cabinets in interior boat timber choice (please specify), with chrome bathroom hardware
Mirror
Storage lockers
Shower compartment with automatic pump out
Extractor fan
Windows with opening porthole
Manual tension Venetian blind
LED overhead and concealed lighting (24V)
Bathroom accessories
Solid Surface flooring, with synthetic teak accents applied to feature shower bulkheads and shower floor
Crew quarters
N.B. All lower crew furniture is in gloss white laminate, with Koko White Solid Surface (gloss finish) bathroom vanity unit tops and Koko White Solid Surface (satin finish) bathroom floors
Power and drive systems
Forward and aft engine room bulkheads and engine room deck head integrally bonded including insulation with acoustafoam layers (Ref: Development Standard DS876)
High volume air intakes
Engine room extractor fan with electronic time delay
Engine exhaust silencers and water-cooled exhausts
Engines flexibly mounted
Automatic fire extinguisher with remote override control
Automatic and manual bilge pumps
Propeller shafts in Marinemet
5-bladed propellers in nickel aluminium bronze
High speed balanced rudders
Cathodic protection for stern gear
Stern gear, engines, fuel tank fillers, etc all electrically bonded
LED Engine room lighting
Engine room access from transom (via crew area) and cockpit deck hatch
Power-assisted electro-hydraulic steering system
Electronic engine and gear shift controls
Bow thruster with dual-station controls (310KgF)
Fresh water supply point in engine room
Dripless self-aligning shaft seals
Electrical systems
24 Volt:
4x heavy duty engine start battery
6x heavy duty auxiliary batteries
2x heavy duty generator start batteries
Battery link facility with remote control at helm position
Remote battery isolator control switches at main switch panel position
Both battery banks are charged using a voltage sensitive relay that parallels both battery banks when a charging source is present
24v to 12v converters for certain navigation and radio circuits
24v to 240v/50Hz inverter for saloon a/v and galley fridge
Galvanic isolation system
220/240 Volt:
European specification: Standard 2x 27kW @ 50Hz with optional upgrade up to 2 x 28kW @ 50Hz diesel generators in own sound shields, water cooled and with specially silenced exhaust systems and with remote operation from main control panel
USA specification: Standard 2x 29kW @ 60Hz with optional upgrade up to 2 x 32kW @ 60Hz diesel generators in own sound shields, water cooled and with specially silenced exhaust systems and with remote operation from main control panel
220/240v shore power inlets (2x 63amp single phase)
Shore power/generator change over control operated from main control panel
Polarity check system
Earth leakage safety trip, circuit breakers on all circuits
Power points (240v) in all cabins and living areas, helm position and galley
240v shaver points in washrooms
2kW immersion heaters for fresh water (2)
Fuel system
Main fuel tank with a total of 7000 litres fuel capacity – (8800 litres if long range fuel tank is specified.)
Fuel fillers to port and starboard
High capacity duplex fuel filters/water traps with integral changeover valves and water sensors connected to alarms at helm position
Remote fuel isolation controls in cockpit locker for main engines and generators
Fuel gauges at helm position
Water system
Fresh water tanks giving 1400 litres capacity plus 200 litres hot water calorifier
Automatic water pump with filter (80l/min)
Water level gauge
Deck filler
Pump control at helm positions
Electric freshwater toilet system linked to 540 litres holding tank, content gauge and low noise electric overboard discharge, with macerator backup system as well as dockside discharge system
Optional grey water tank (1400 litres) to take waste water from sinks/showers, washing machine(s) and dishwasher. (Note: Not available when optional extended range fuel tank is selected)
Air conditioning
Air conditioning/heating reverse cycle (chilled water)
162,000 BTU fan capacity with 144,000 BTU chiller capacity suitable for temperatures to 40°C (tropical) incorporating a windscreen demist facility
Outlets in all areas
Fire extinguishers
Automatic engine room fire extinguisher system (with manual override) and warning system at helm position providing automatic shutdown of engines, generators and ventilation fans
Hand operated fire extinguishers in all guest cabins, galley, crew quarters and sportbridge
Smoke detector (and heat detector as required) on each deck (10-year battery life)
Automatic under helm fire extinguisher at lower helm
Bilge pumps
Automatic/manual override electric bilge pumps in engine room, lazarette area and forward accommodation
High capacity manual bilge system with suction points in the same areas
Electric bilge pumps have controls and warning lights with audible alarm at helm position
Other standard equipment
Ensign staff
Fenders (8)
Mooring warps (4)
First Aid Kit
Set of towels (8 large, 8 hand)
Bed cover supplied to all cabins (except crew cabin)
Complete set of Lucrezia crystal glassware (8 settings consisting of tumbler, highball and wine glasses)
Set of Sous Le Soleil crockery (8 settings consisting of plate, cake plate, dessert plate, bowl, cup & saucer)
Set of stainless-steel cutlery (8 settings of David Mellor “Paris” cutlery – 7 pieces)
Tool kit
Boat hook
Owner’s manual and engine manual
Ship’s document case
Finishes
Teak-laid decks to all external deck areas (including sportbridge)
V-groove planked timber-laid floor to galley and lower helm position
Furniture in choice of Alba oak, Rovere oak in satin finish as standard. Silver oak or walnut with satin or gloss finishes available as an option
Solid Surface floors in all bathroom suites in guest accommodation and optional day head
Thermoformed Solid Surface wash basin vanity tops in all bathroom suites in guest accommodation and optional day head
Bathroom cabinets in interior boat timber choice (please specify), with chrome bathroom hardware as standard in all guest bathrooms and optional day head (excluding crew bathroom)
Synthetic teak accents applied to feature shower bulkheads and shower floor
Galley counter top in granite or quartz
Choice of high-quality carpets and fabrics from an extensive range
Exterior upholstery to be selected from the Comfort Exterior fabric range (no contrast)
Blinds to all windows and portholes (excludes helm and pantograph doors)
All lower crew furniture is in gloss white laminate, with Solid Surface bathroom floor and vanity top
Crew cabins have non-slip safety flooring
Non-slip safety flooring to crew mess and passageway
Crew cabin
Access to engine room
Twin bunk beds with storage below
Wardrobe
Mirror
Storage locker
Opening porthole
Mono-command Venetian blind
LED overhead lighting (24V)
Individual berth light (2)
220/240v outlets (1)
USB charging points (2) (1x USB-A and 1x USB-C)
Non-slip safety flooring
Crew bathroom
Electric freshwater toilet
Washbasin with Koko White (gloss finish) Solid Surface vanity top
Mirror
Storage lockers
Shower compartment with automatic pump out
Extractor fan
LED overhead lighting (24V)
Bathroom accessories
Solid Surface flooring in Koko white (satin finish)
Crew area
Access from transom door
Hanging rails
Storage locker
LED overhead lighting (24V)
Non-slip safety flooring
Optional crew microwave and fridge (not available with SEABOB storage)
Optional SEABOB storage (not available with microwave and fridge)
Optional third berth
Crew area is in gloss white laminate finish
Close
Princess S80
Principal Dimensions
Details
Specification
Disclaimer
Length overall (incl. pulpit)
83ft 5in (25.43m)
Length overall (excl. pulpit)
82t 10in (25.26m)
Beam
19t 11in (6.07m)
Draft
5ft 10in (1.78m)
Draft (at full load) approx.
(half load) 66,848kg (147,375 lbs)*
Displacement approx.
49,500 kg (109,129 lbs)*
Fuel capacity
1,430 gal/1,717 US gal/7,000l
Water capacity (excl. calorifier)
308 gal / 370 US gal / 1,400l
Engines
Twin MAN V12 (2 x 1,900mhp)
TOP SPEED: Top Speed 31 - 33 knots†
Twin MAN V12 (2 x 2,000mhp)
TOP SPEED: Top Speed 32 - 34 knots†
* Displacements are calculated with 50% fuel and water with liferaft but with no optional equipment fitted or other gear.
† Maximum speeds will vary depending on cleanliness of hull, condition of sterngear, loading of craft, water and air temperatures, sea conditions and other factors. Speed estimates are therefore given in good faith but without warranty or liability on the part of Princess Yachts Limited. Craft illustrated in this brochure may be fitted with certain optional equipment. Specifications may be changed at any time without notice or liability. USA Specification
‡ Certain specifications, which vary by model, are upgraded on Princess yachts built for use in North America. Thus, specifications and equipment will vary from the information listed in the brochure for North American Princess yachts (e.g. air-conditioning and an upgraded generator will be included as standard for all North American models and electric cooking facilities will be supplied in place of gas systems). Please consult the USA Specification Brochure for full details regarding the North American specifications for individual models.
Principal Dimensions
Details
Deck fittings
Teak-laid transom platform, transom steps, cockpit deck, stairway to sportbridge, side decks, foredeck & sportbridge areas
Reversible hydraulic anchor winches with foredeck, main helm and sportbridge controls
Stemhead roller with automatic anchor launch and retrieve
Twin anchor system incorporating:
Primary anchor - 80kg galvanised Lewmar Claw anchor, with stainless steel Lewmar swivel and 100m of 14mm galvanised anchor chain
Secondary anchor - 50kg galvanised Lewmar Claw anchor, with stainless steel Lewmar swivel and 70m of 14mm galvanised anchor chain
Deck chain stoppers
Twin electric stern line mooring winches
Deck hatch access to chain locker, rope locker
Freshwater deck/anchor wash (with both fore and aft deck outlets)
Stainless steel foredeck fairleads (1 pair)
Stainless steel stern fairleads (2 pairs)
Stainless steel bow cleats (1 pair, port & starboard)
Stainless steel spring cleats (2 pairs, port & starboard)
Stainless steel stern cleats (2 pairs, port & starboard)
Stainless steel transom cleats (1 pair)
Stainless steel handrails to main deck side decks
PVC rubbing band with stainless-steel insert
LED deck level lighting
Full set of IMCO navigation lights
Twin beam searchlight with remote controls
Stern docking lights
Twin electric horns
Fuel and water fillers
Loudhailer
Ensign socket and staff
Holding tank dockside discharge connection
Stainless-steel guard rails to foredecks
Foredeck escape hatch
Twin coach roof lockers for storage of fenders and ropes
Foredeck forward-facing U-shaped seating area with optional coffee table
Foredeck aft-facing U-shaped seating area with storage locker with standard coffee table
Williams tender launch system (NB standard system is for tender up to TBC including motor), includes electric winch, rollers and non-slip pads
Williams Sportsjet 435 tender strapping for use in tender garage
Cockpit and bathing platform
Self-draining teak laid deck
Princess logo in bathing platform teak
Electro-hydraulic teak laid raise/lower bathing platform (550kg SWL)
Retractable bathing ladder (manual) in side of bathing platform
Hot & cold transom shower
Garage fitout to include electro-hydraulic door and electric winch for tender up to 4.35m
Space below garage for optional Glendinning equipment
Single transom gate leading to bathing platform
Watertight top hinged door giving access from bathing platform into crew area/engine room
Remote control telescopic passerelle with automatic folding handrails (1.2m overhang)
Twin aft sun pads with cupholders and backrests/headrests
Twin forward facing seats
Twin upholstered aft facing bench seats which can be manually re-positioned if required
Life raft stowage in port aft sun pad
Engine room to cockpit escape hatch
Integral stairway to flybridge with teak step treads
Teak extendable dining table (extends from 6 to 8) with 8 chairs
Starboard side servery with sink and bin
Starboard locker containing remote fuel shut-off, manual bilge pump with valve chest and manual controls for automatic fire extinguishers
LED overhead and deck level lighting
Stainless-steel oval handrails
Canvas tonneau cover (Note: shortened to length of stowed cushion position to allow garage and crew access)
Illuminated crown logo on transom
220v/240v shore support inlets (2)
Sportbridge
Dual station instrument and controls console (see lower helm position)
Helm position
Twin upholstered seats with manual fore/aft adjustment for helmsman on moulded seat base
Drinks holders (2)
USB charging points (2) (1x USB-A and 1x USB-C)
Port and starboard companion seating
Stainless steel capped fly screen
Teak-laid deck
Aft U-shaped seating area with coffee table
Clear view hatch to aft cockpit
Access stairway to aft cockpit
Aft-facing moveable upholstered dining-height seat (can be locked in place when positioned behind helm seats), with top-hinge storage unit and countertop aft of helm/navigator seat
Portside servery with sink/tap, BBQ, and drawer fridge
LED deck level lighting
Radar mast
Twin matching whip aerials for VHF R/T radio
Covers to exterior furniture
Optional dining table
Optional GRP hardtop with dimmable LED lighting
Helm position
Lower helm with fixed height captain’s leather upholstered seat with manual fore and aft adjustment.
Fixed navigator seat
Helm seats Incorporates manual fold down foot rest (Optional fixed third helm seat)
U-shaped companion seating to port with dining-height table
Instrument console with display incorporating engine instruments, optional CCTV, fuel gauges, alarms and rudder position indicator
Dual station instrument and controls console at lower helm position/sportbridge:
- audible and visual alarm for bilge pumps (via Böning)
- engine room fire extinguisher warning system
Automatic fog horn with loudhailer
Chart storage
Drink holders (2)
Toughened glass screen (clear for night vision) with windscreen de-mist system
Windscreen wipers with freshwater windscreen wash
Black mesh sunscreens
Bilge pump controls with visual pump running warnings
24v and 240v electrical control panel
Riding light, helm and navigation light control switches
Dimmable LED overhead/concealed lighting (24V) with night lighting & scene selection
V-groove planked timber-laid flooring (including steps to saloon)
220/240v outlets (1)
USB charging points (2) (1x USB-A and 1x USB-C)
Watertight pantograph door giving direct access from starboard side deck
Electric drop window to port
Saloon
Large sofa to starboard with storage below
Sofa to port with crockery storage draw
Coffee table
No skylight/skylight blinds to saloon area as standard
Panoramic tinted toughened glass windows port and starboard
Manual sheer roller blinds to all outboard windows (not including helm area)
55” LED TV on rise and fall
Naim Uniti Atom audio system with speakers (2) and subwoofer
Dimmable LED overhead/concealed lighting (24V) with scene selection
220/240v outlets (2)
USB charging points (4) (2x USB-A and 2x USB-C)
Onboard ethernet router & 4G internet modem
Access stairway to lower accommodation
Fitted carpet
Dining area
Optional dining table and chairs to convert starboard saloon space into dinette (NSO)
Galley
Granite/quartz worktop
Galley units in HPL
Miele 4-zone induction hob
Hob extractor fan
Miele combination convection oven with grill/microwave
Sub-zero single full height refrigeration units with deep freeze drawers
Miele slimline dishwasher
1.5 bowl stainless-steel sink with mixer tap
Chopping board & storage
Twin waste bin
High and low-level storage cupboards and drawers
Cutlery storage
220/240v power outlets (4)
LED overhead & task lighting (24V)
Manual sheer roller blinds to windows
V-groove planked timber-laid flooring
Starboard side sideboard containing storage units, glass storage, icemaker and additional refrigeration
3-panel stainless-steel framed cockpit doors, opening to starboard side, with port side window opening (TBC opening method)
Manual skysol blind aft patio doors and adjacent windows (As per S78)
Accommodation
All cabins and bathrooms feature opening portholes and air conditioning
All cabins feature 220/240v power points
All en-suites feature 240v shaver points
Lobby / passageway area
Linen cupboard below companionway stairs
Top-loading storage unit outboard in window side liner
Sideboard with mirror above
Combination washer/dryer located below companionway stairs
Dimmable LED overhead/concealed lighting (24V)
Fitted carpet
Owner’s stateroom
Large double bed with bedside tables and drawers below
Dressing area with full length mirror, hanging, shelf and drawer storage
Built-in safe
Port side dressing table with integrated mirror, chair, storage drawers and cupboards
Starboard side sofa with storage drawers to forward bulkhead
55” LED TV
Naim Uniti Atom audio system with speakers (2) and subwoofer
Panoramic windows including opening portholes
Manual Venetian blinds to hull windows
Dimmable LED overhead/concealed lighting (24V) with scene selection
220/240v outlets (2)
USB charging points (4) (2x USB-A and 2x USB-C)
Fitted carpet
EN-SUITE BATHROOM
Electric freshwater toilet
Twin wash basins and vanity top in thermoformed Solid Surface
Bathroom cabinets in interior boat timber choice (please specify), with chrome bathroom hardware
Mirror
Storage lockers
Shower compartment with automatic pump out
Extractor fan
Heated towel rail
Window with opening porthole
Manual tension Venetian blind
LED overhead and concealed lighting (24V)
Bathroom accessories
Solid Surface flooring, with synthetic teak accents applied to feature shower bulkheads and shower floor
Forward stateroom
Large double bed with bedside tables and drawers below
Built-in safe
Twin double wardrobes
Port side dressing table with integrated mirror, stool and storage drawers
43” LED TV
Naim Uniti Atom audio system with speakers (2)
Panoramic windows including opening portholes
Manual Venetian blinds to hull windows
Dimmable LED overhead/concealed lighting (24V) with scene selection
220/240v outlets (2)
USB charging points (4) (2x USB-A and 2x USB-C)
Fitted carpet
EN-SUITE BATHROOM
Electric freshwater toilet
Wash basin and vanity top in thermoformed Solid Surface
Bathroom cabinets in interior boat timber choice (please specify), with chrome bathroom hardware
Mirror
Storage lockers
Shower compartment with automatic pump out
Extractor fan
Window with opening porthole
Manual tension Venetian blind
LED overhead and concealed lighting (24V)
Bathroom accessories
Solid Surface flooring, with synthetic teak accents applied to feature shower bulkheads and shower floor
Port guest cabin
Two single beds with drawers below
Bedside table
Wardrobe with shelves
Mirror
Storage lockers
Window with opening portholes
Manual Venetian blinds to hull window
Dimmable LED overhead/concealed lighting (24V) with scene selection
Individual berth lights
220/240v outlets (1)
USB charging points (2) (1x USB-A and 1x USB-C)
Fitted carpet
En-Suite Bathroom
Electric freshwater toilet
Wash basin and vanity top in thermoformed Solid Surface
Bathroom cabinets in interior boat timber choice (please specify), with chrome bathroom hardware
Mirror
Storage lockers
Shower compartment with automatic pump out
Extractor fan
Windows with opening porthole
Manual tension Venetian blind
LED overhead and concealed lighting (24V)
Bathroom accessories
Solid Surface flooring, with synthetic teak accents applied to feature shower bulkheads and shower floor
Starboard guest cabin
Double bed with drawers below
Bedside table
Dressing table with stool
Wardrobe with shelves
Mirror
Storage lockers
Window with opening portholes
Manual Venetian blinds to hull windows
Dimmable LED overhead/concealed lighting (24V) with scene selection
Individual berth lights
220/240v outlets (1)
USB charging points (2) (1x USB-A and 1x USB-C)
Fitted carpet
EN-SUITE BATHROOM
Electric freshwater toilet
Wash basin and vanity top in thermoformed Solid Surface
Bathroom cabinets in interior boat timber choice (please specify), with chrome bathroom hardware
Mirror
Storage lockers
Shower compartment with automatic pump out
Extractor fan
Windows with opening porthole
Manual tension Venetian blind
LED overhead and concealed lighting (24V)
Bathroom accessories
Solid Surface flooring, with synthetic teak accents applied to feature shower bulkheads and shower floor
Crew quarters
N.B. All lower crew furniture is in gloss white laminate, with Koko White Solid Surface (gloss finish) bathroom vanity unit tops and Koko White Solid Surface (satin finish) bathroom floors
Power and drive systems
Forward and aft engine room bulkheads and engine room deck head integrally bonded including insulation with acoustafoam layers (Ref: Development Standard DS876)
High volume air intakes
Engine room extractor fan with electronic time delay
Engine exhaust silencers and water-cooled exhausts
Engines flexibly mounted
Automatic fire extinguisher with remote override control
Automatic and manual bilge pumps
Propeller shafts in Marinemet
5-bladed propellers in nickel aluminium bronze
High speed balanced rudders
Cathodic protection for stern gear
Stern gear, engines, fuel tank fillers, etc all electrically bonded
LED Engine room lighting
Engine room access from transom (via crew area) and cockpit deck hatch
Power-assisted electro-hydraulic steering system
Electronic engine and gear shift controls
Bow thruster with dual-station controls (310KgF)
Fresh water supply point in engine room
Dripless self-aligning shaft seals
Electrical systems
24 Volt:
4x heavy duty engine start battery
6x heavy duty auxiliary batteries
2x heavy duty generator start batteries
Battery link facility with remote control at helm position
Remote battery isolator control switches at main switch panel position
Both battery banks are charged using a voltage sensitive relay that parallels both battery banks when a charging source is present
24v to 12v converters for certain navigation and radio circuits
24v to 240v/50Hz inverter for saloon a/v and galley fridge
Galvanic isolation system
220/240 Volt:
European specification: Standard 2x 27kW @ 50Hz with optional upgrade up to 2 x 28kW @ 50Hz diesel generators in own sound shields, water cooled and with specially silenced exhaust systems and with remote operation from main control panel
USA specification: Standard 2x 29kW @ 60Hz with optional upgrade up to 2 x 32kW @ 60Hz diesel generators in own sound shields, water cooled and with specially silenced exhaust systems and with remote operation from main control panel
220/240v shore power inlets (2x 63amp single phase)
Shore power/generator change over control operated from main control panel
Polarity check system
Earth leakage safety trip, circuit breakers on all circuits
Power points (240v) in all cabins and living areas, helm position and galley
240v shaver points in washrooms
2kW immersion heaters for fresh water (2)
Fuel system
Main fuel tank with a total of 7000 litres fuel capacity – (8800 litres if long range fuel tank is specified.)
Fuel fillers to port and starboard
High capacity duplex fuel filters/water traps with integral changeover valves and water sensors connected to alarms at helm position
Remote fuel isolation controls in cockpit locker for main engines and generators
Fuel gauges at helm position
Water system
Fresh water tanks giving 1400 litres capacity plus 200 litres hot water calorifier
Automatic water pump with filter (80l/min)
Water level gauge
Deck filler
Pump control at helm positions
Electric freshwater toilet system linked to 540 litres holding tank, content gauge and low noise electric overboard discharge, with macerator backup system as well as dockside discharge system
Optional grey water tank (1400 litres) to take waste water from sinks/showers, washing machine(s) and dishwasher. (Note: Not available when optional extended range fuel tank is selected)
Air conditioning
Air conditioning/heating reverse cycle (chilled water)
162,000 BTU fan capacity with 144,000 BTU chiller capacity suitable for temperatures to 40°C (tropical) incorporating a windscreen demist facility
Outlets in all areas
Fire extinguishers
Automatic engine room fire extinguisher system (with manual override) and warning system at helm position providing automatic shutdown of engines, generators and ventilation fans
Hand operated fire extinguishers in all guest cabins, galley, crew quarters and sportbridge
Smoke detector (and heat detector as required) on each deck (10-year battery life)
Automatic under helm fire extinguisher at lower helm
Bilge pumps
Automatic/manual override electric bilge pumps in engine room, lazarette area and forward accommodation
High capacity manual bilge system with suction points in the same areas
Electric bilge pumps have controls and warning lights with audible alarm at helm position
Other standard equipment
Ensign staff
Fenders (8)
Mooring warps (4)
First Aid Kit
Set of towels (8 large, 8 hand)
Bed cover supplied to all cabins (except crew cabin)
Complete set of Lucrezia crystal glassware (8 settings consisting of tumbler, highball and wine glasses)
Set of Sous Le Soleil crockery (8 settings consisting of plate, cake plate, dessert plate, bowl, cup & saucer)
Set of stainless-steel cutlery (8 settings of David Mellor “Paris” cutlery – 7 pieces)
Tool kit
Boat hook
Owner’s manual and engine manual
Ship’s document case
Finishes
Teak-laid decks to all external deck areas (including sportbridge)
V-groove planked timber-laid floor to galley and lower helm position
Furniture in choice of Alba oak, Rovere oak in satin finish as standard. Silver oak or walnut with satin or gloss finishes available as an option
Solid Surface floors in all bathroom suites in guest accommodation and optional day head
Thermoformed Solid Surface wash basin vanity tops in all bathroom suites in guest accommodation and optional day head
Bathroom cabinets in interior boat timber choice (please specify), with chrome bathroom hardware as standard in all guest bathrooms and optional day head (excluding crew bathroom)
Synthetic teak accents applied to feature shower bulkheads and shower floor
Galley counter top in granite or quartz
Choice of high-quality carpets and fabrics from an extensive range
Exterior upholstery to be selected from the Comfort Exterior fabric range (no contrast)
Blinds to all windows and portholes (excludes helm and pantograph doors)
All lower crew furniture is in gloss white laminate, with Solid Surface bathroom floor and vanity top
Crew cabins have non-slip safety flooring
Non-slip safety flooring to crew mess and passageway
Crew cabin
Access to engine room
Twin bunk beds with storage below
Wardrobe
Mirror
Storage locker
Opening porthole
Mono-command Venetian blind
LED overhead lighting (24V)
Individual berth light (2)
220/240v outlets (1)
USB charging points (2) (1x USB-A and 1x USB-C)
Non-slip safety flooring
Crew bathroom
Electric freshwater toilet
Washbasin with Koko White (gloss finish) Solid Surface vanity top
Mirror
Storage lockers
Shower compartment with automatic pump out
Extractor fan
LED overhead lighting (24V)
Bathroom accessories
Solid Surface flooring in Koko white (satin finish)
Crew area
Access from transom door
Hanging rails
Storage locker
LED overhead lighting (24V)
Non-slip safety flooring
Optional crew microwave and fridge (not available with SEABOB storage)
Optional SEABOB storage (not available with microwave and fridge)
*Inspired by urban living, the S80 provides a sense of contemporary elegance, with a single level main deck, flowing furniture and sophisticated detailed interiors.
The all-new S80 delivers an excellent driving experience, with twin high performance V12 engines that smoothly tranisition from displacement to planning within seconds.
The sportbridge is perfect for entertaining, with an incredibly large U-shaped seating area, port and starboard companion seating, servery with sink, fridge and barbeque, plus the option of a dining table and triple seats to the helm station.

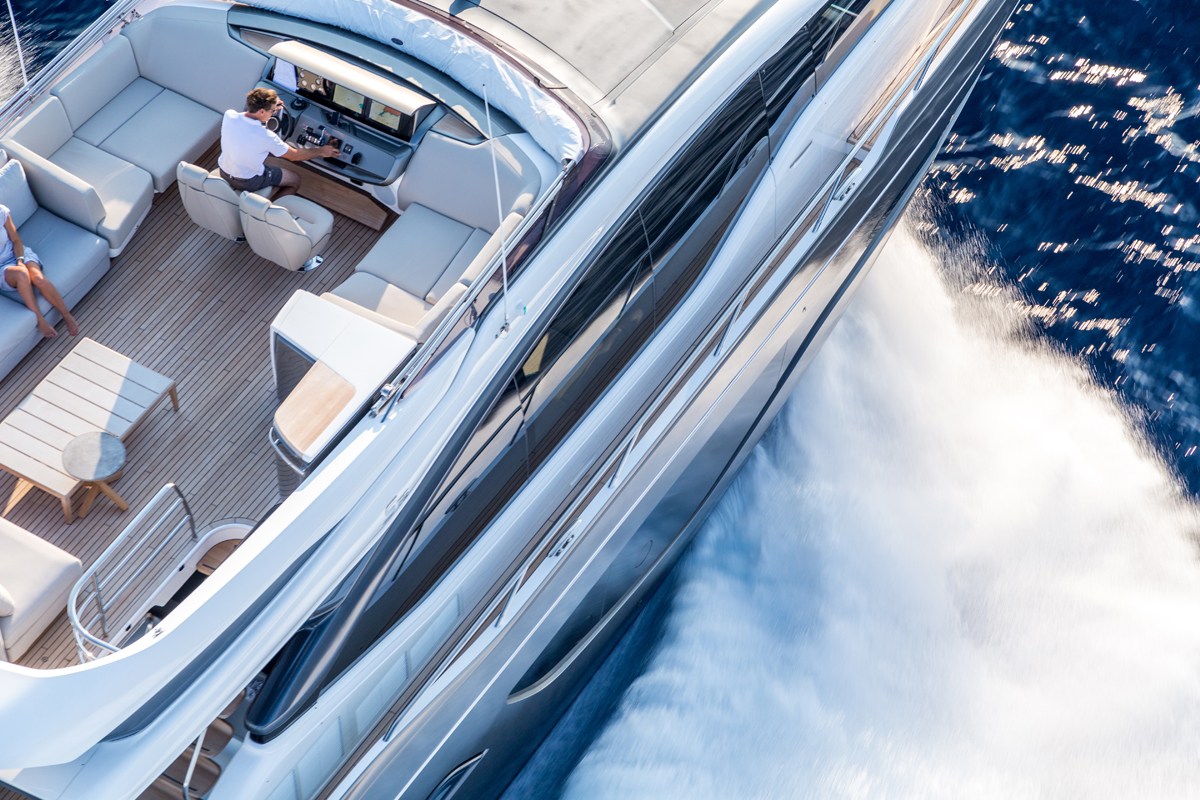

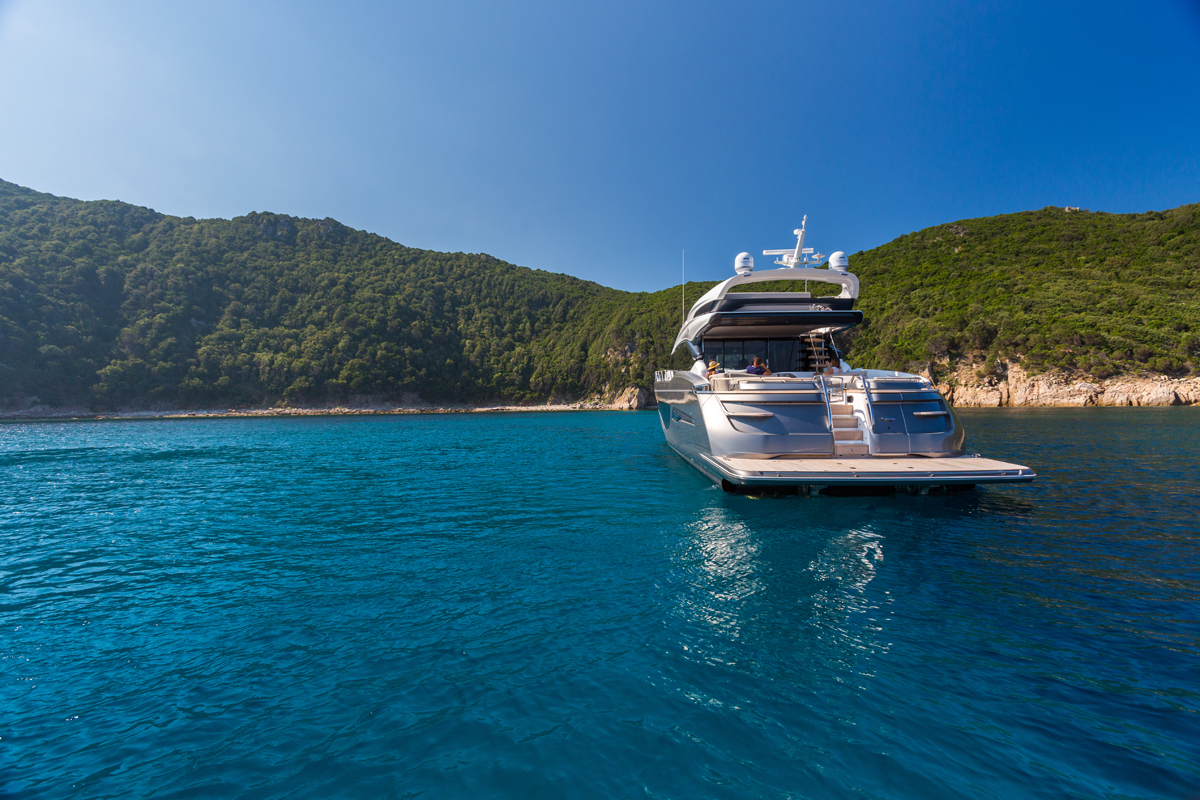

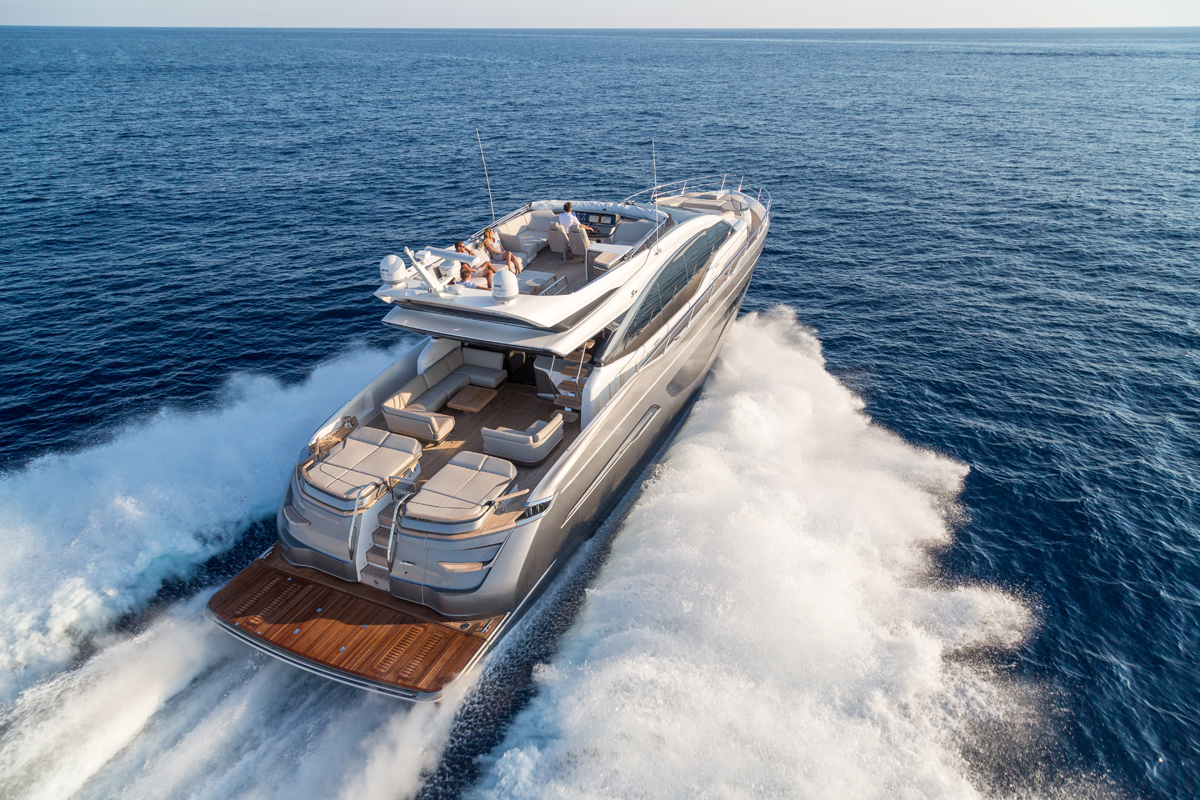

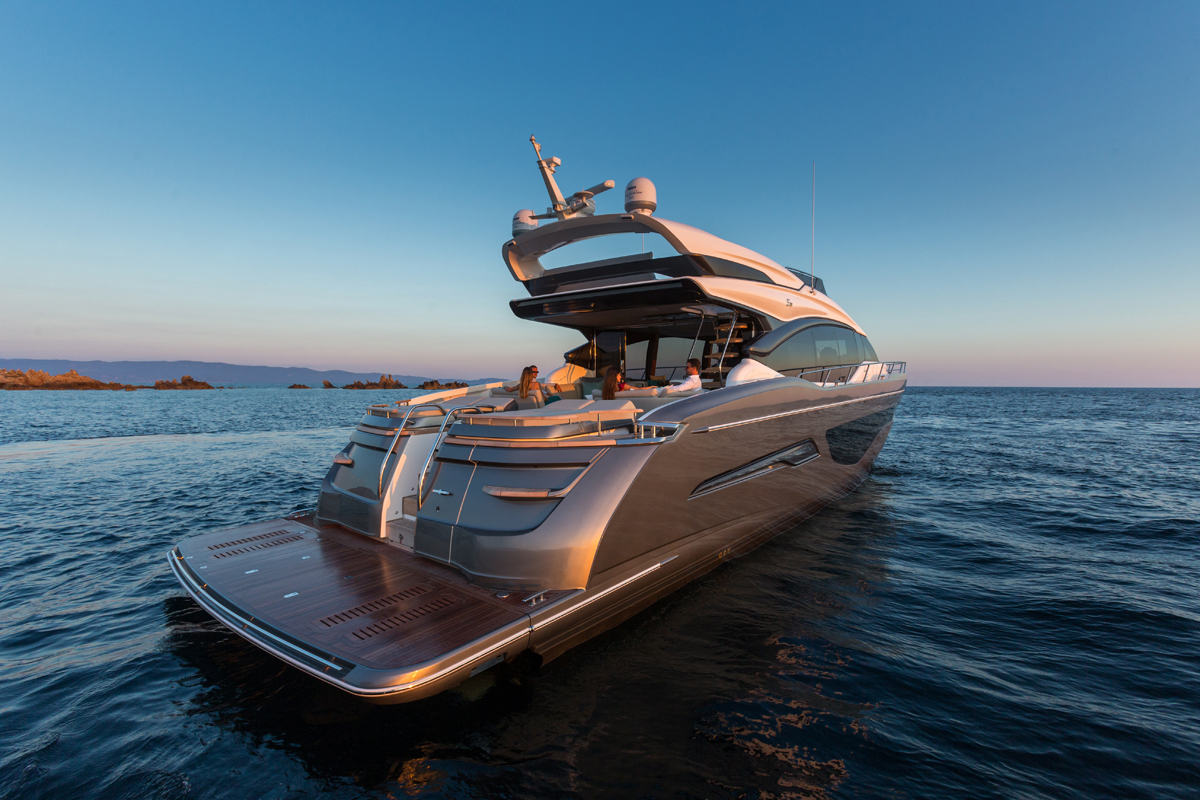

The cockpit offers unique versatility with configurable seating including adjustable twin upholstered L-shaped seats which can manually slide in-board, outboard and forward facing alongside twin coffee tables and twin aft sun pads which flank the teak-capped stairs leading to the spacious electro-hydraulic bathing platform.
Below deck, eight guests enjoy four beautifully appointed en-suite cabins, all bathed in natural light from elegant hull glazing, with a further twin cabin aft for occasional guests or crew. A dedicated staircase leads from the main deck to the full-beam owner’s stateroom amidships, via a private lobby area in the lower companion way.
