Water capacity (excl. calorifier)
253 gal / 304 US gal / 1,150l
Engines
Twin MAN V12 (2 x 1,900mhp)
TOP SPEED: 37 - 39 knots†
* Displacements are calculated with 50% fuel and water with liferaft but with no optional equipment fitted or other gear.
† Maximum speeds will vary depending on cleanliness of hull, condition of sterngear, loading of craft, water and air temperatures, sea conditions and other factors. Speed estimates are therefore given in good faith but without warranty or liability on the part of Princess Yachts Limited. Craft illustrated in this brochure may be fitted with certain optional equipment. Specifications may be changed at any time without notice or liability. USA Specification
‡ Certain specifications, which vary by model, are upgraded on Princess yachts built for use in North America. Thus, specifications and equipment will vary from the information listed in the brochure for North American Princess yachts (e.g. air-conditioning and an upgraded generator will be included as standard for all North American models and electric cooking facilities will be supplied in place of gas systems). Please consult the USA Specification Brochure for full details regarding the North American specifications for individual models.
Deck fittings
Teak-laid transom platform, cockpit deck, sportbridge, sportbridge stairway, side decks and foredeck walkthrough
Reversible electric anchor winch with foredeck, main helm and sportbridge controls
Stemhead roller with automatic anchor launch and retrieve
Self-stowing 50kg/110lbs Delta anchor with 100m of chain
Twin electric sternline mooring winches
Deck hatch access to chain locker
Bow rope stowage locker
Freshwater deck/anchor wash (with both fore and aft deck outlets)
Stainless steel bow and stern fairleads
Stainless steel bow, stern and spring cleats (2 pairs)
Stainless steel pulpit and guard rails
Stainless steel coachroof and sportbridge handrails
Foredeck escape hatch
Foredeck U-shaped seating area with cushion in reticulated foam
Foredeck sunbathing area with cushions in reticulated foam, integrated adjustable headrests and storage (converts to aft facing U-shaped seating area)
Twin coachroof lockers for storage of fenders, ropes and cushions
PVC rubbing band with stainless steel insert
LED deck level lighting
Full set of IMCO navigation lights
Riding light
Twin beam searchlight with dual station remote controls
Loudhailer
Stern docking lights
Twin electric horns
Fuel and water fillers
Telephone connection point
Cockpit and bathing platform
Self-draining
Configurable cockpit seating area with three predefined positions including deck mounting sockets
Folding teak dining table that converts to a coffee table
Twin aft sunbeds with lazarette space below
LED overhead and deck level lighting
Illuminated crown logo to transom
JL Audio M6-650X-L system with waterproof speakers (2)
Stainless steel handrails
Garage (to take tender up to 4.45m) with electro-hydraulic door and tender launch system with electric winch
Remote control 3.6m telescopic passarelle with folding handrails
Watertight pantograph door giving direct access from bathing platform to crew cabin/ engine room
Lockable gas strut assisted hatch to engine room
Liferaft stowage locker
Rope storage lockers
Locker containing remote fuel cocks, manual bilge pump with valve chest and manual controls for automatic fire extinguishers
Integral stairway to sportbridge with teak step treads
Central transom gate leading to bathing platform
Electro-hydraulic raise/lower teak laid bathing platform (550kg SWL)
Retractable bathing ladder (manual) in side of hydraulic platform
Transom steps to access stern from bathing platform when in lowered position
Dinghy chock system
Foldable carbon fibre hot and cold transom shower with deck mounting socket and stowage bag.
220/240v shore support inlet
Tonneau canvas cover

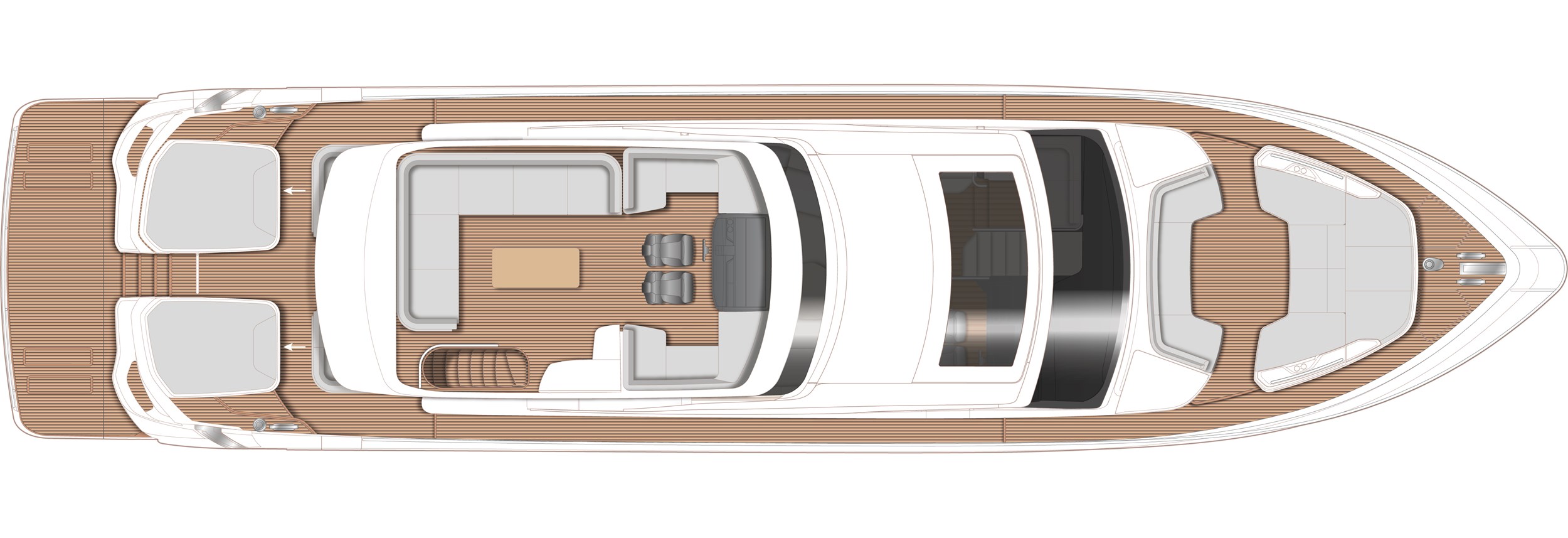

Sportbridge
Twin adjustable helm seats
Instrument console with dual station controls and LED display incorporating engine instruments, fuel gauges, alarms and rudder position indicator (see Lower Helm Position)
Power assisted electro-hydraulic steering with adjustable wheel
Port and starboard forward-facing L-shaped seating (converts to sunbeds)
Seating and sunbed cushions in reticulated foam
L-shaped free standing Roda sofas with coffee table
Free standing Roda pouffe
Free standing Roda small circular side table
Wetbar with barbecue, sink, top loading coolbox, waste bin and storage
Naim Uniti Atom Audio Unit with JL Audio M6-650X-L waterproof speakers (2)
Twin Nero Black leather upholstered helm seats with S Class quilting and contrast panelling in Chrome Grey
Fore and aft adjustment for helmsman.
Instrument console with LED display incorporating engine instruments, fuel gauges, alarms and rudder position indicator
Dual station instruments and controls at Sportbridge and Lower Helm Positions: - power-assisted electro-hydraulic steering - adjustable steering wheel - high-speed magnetic compass - electronic engine controls - trim tab controls with indicators - bow thruster control - electric anchor winch remote control - colour radar (with scanner) and GPS/chartploter (twin displays at Lower Helm) - autopilot - speed and distance log - echo sounder with alarm - VHF with DSC R/T with intercom - remote control searchlight - horn button
Intercom to sportbridge
Automatic fog horn with loudhailer
Chart storage
Drinks holders
Toughened glass screen (clear for night vision) with windscreen de-mist system
Windscreen wipers with freshwater windscreen wash
Black mesh windscreen covers
Skylights with reflecto-glass and sliding blinds (option of powered opening roof)
Bilge pump controls with visual pump running warnings
24v and 240v electrical control panel
Riding light, helm and navigation light control switches
USB charging point
LED overhead lighting (24v) and night lighting
Pantograph helmsman’s door to starboard side deck
Timber flooring

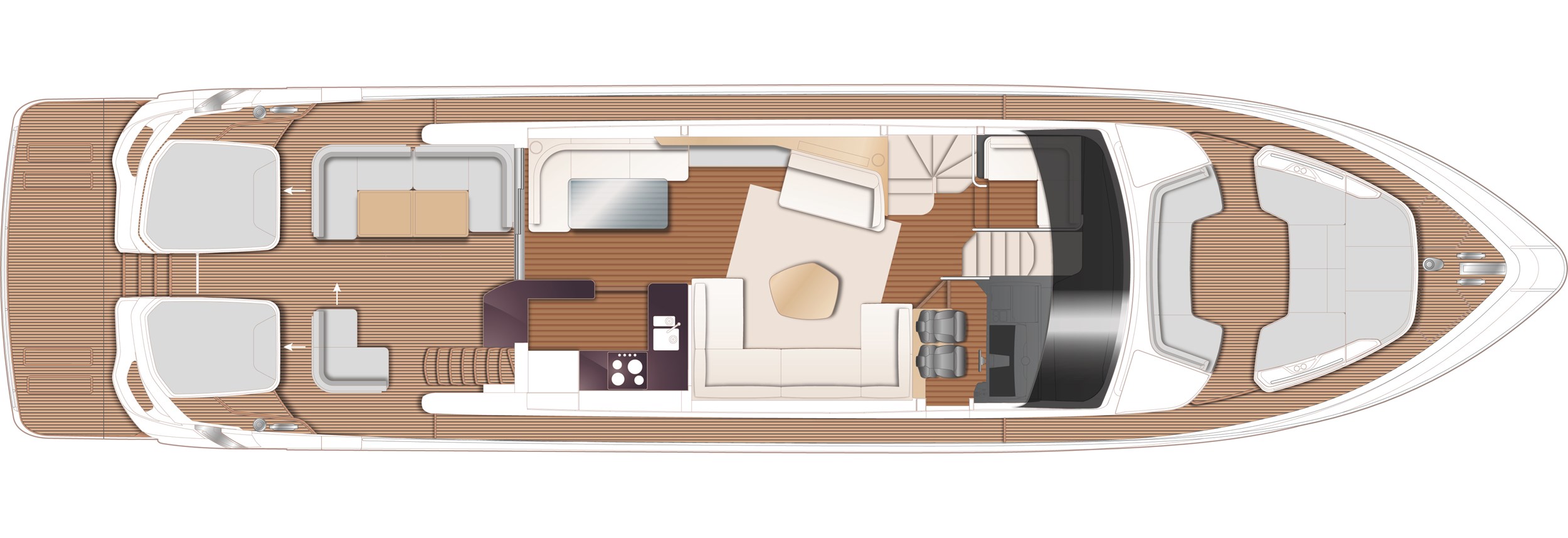

Saloon
U-shaped sofa
Coffee table
Two-seater chaise to port
L-shaped sofa opposite helm area
Electric drop window to port
Sideboard unit with bottle and glass storage
Refrigerator
55" UHD LED TV on rise and fall
DVD Blu-ray system with Naim audio system paired with speakers (2) and subwoofer
Electric roller blinds to all side windows
Dimmable LED overhead and concealed lighting (24v)
Access stairway to lower accommodation
Separate access stairway to owner's stateroom
Timber flooring with inlaid rug
Dining area
L-shaped sofa
Glass dining table (sliding mechanism allows table to be slid outboard)
Stainless steel framed sliding door to cockpit with integrated hinging window aft of galley
Electric roller blinds to all side windows
Manual Skysol blinds to aft patio door
Dimmable LED overhead and concealed lighting (24v)
Timber flooring
Galley
Galley worktop in choice of granite or quartz
4-zone induction hob
Extractor fan
Combination microwave/convection oven with grill
Twin-bowl stainless steel sink with mixer tap
Chopping board
Full height refrigerator/deep freeze
Icemaker
Dishwasher
Waste bin
Drawers and storage cupboards
Manual Skysol blind to aft opening window
Electric roller blind to starboard window
Powered sliding divider screen to forward end of galley
Dimmable LED overhead and task lighting (24v)
220/240v outlets (4)
Timber flooring

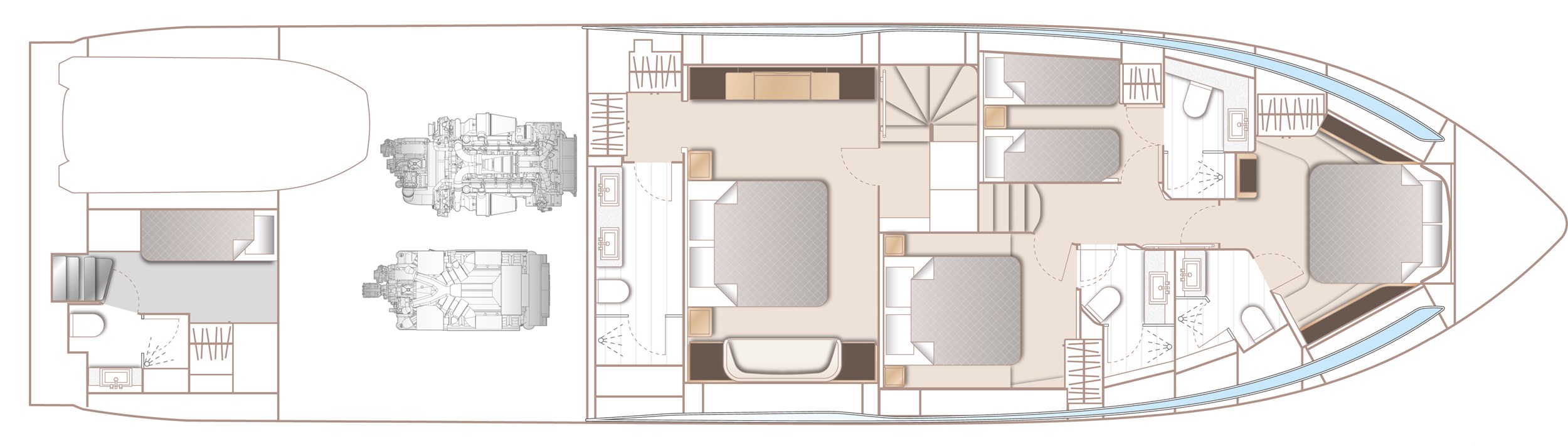

Accommodation
All cabins and bathrooms feature opening portholes and air conditioning
All cabins feature 220/240v power points
All bathrooms feature electric freshwater toilets and 240v shaver points
Owner’s stateroom lobby
Access stairway to master stateroom
Linen cupboard under stairway with washer dryer and space for separate washing machine and tumble dryer
Panoramic window with venetian blind
LED overhead and concealed lighting (24v)
Window with manual tension venetian blind
Fitted carpet
Owner’s stateroom
Large double bed with drawers below
Twin bedside tables
Dressing area with wardrobes and storage
Built-in safe
Dressing table with chair
Mirror
Sofa with integrated drawer below
Storage lockers and drawers
40" UHD LED TV
DVD Blu-ray system with Naim audio system paired with speakers (2) and subwoofer
Panoramic windows including opening portholes
Electric venetian blinds
Dimmable LED overhead and concealed lighting (24v)
Individual berth lights
220/240v outlets (2)
USB charging point
Fitted carpet
En-Suite Bathroom
Twin wash basins with solid surface worktop
Mirror
Storage lockers
Shower compartment with automatic pump out
Extractor fan
Window with opening porthole
Manual tension venetian blind
LED overhead and concealed lighting (24v)
Bathroom accessories
Solid surface flooring
Forward stateroom
Large double bed with drawers below
Wardrobe with shelves
Dressing table with stool
Mirror
Storage lockers
Naim Uniti Atom audio system, paired with Focal speakers (2)
Windows with opening portholes
Electric venetian blinds
Deck hatch
LED overhead and concealed lighting (24v)
Individual berth lights
220/240v outlets (2)
USB charging point
Fitted carpet
En-Suite Bathroom
Wash basin with solid surface worktop
Mirror
Storage lockers
Shower compartment with automatic pump out
Extractor fan
Window with opening porthole
Manual tension venetian blind
LED overhead and concealed lighting (24v)
Bathroom accessories
Solid surface flooring
Port guest cabin
Two single beds with drawers below (with option of double bed conversion)
Bedside table
Wardrobe with shelves
Mirror
Storage lockers
Window with opening portholes
Electric venetian blind
LED overhead and concealed lighting (24v)
Individual berth lights
220/240v outlets (2)
USB charging point
Fitted carpet
En-Suite Bathroom
Wash basin with solid surface worktop
Mirror
Storage lockers
Shower compartment with automatic pump out
Extractor fan
Window with opening porthole
Manual tension venetian blind
LED overhead and concealed lighting (24v)
Bathroom accessories
Solid surface flooring
Starboard guest cabin
Large double bed with drawers below (with option of two single beds which slide to form a double as required)
Twin bedside tables
Wardrobe with shelves
Dressing table with stool
Mirror
Storage lockers
Window with opening portholes
Electric venetian blind
LED overhead and concealed lighting (24v)
Individual berth lights
220/240v outlets (2)
USB charging point
Fitted carpet
En-Suite Bathroom
Wash basin with solid surface worktop
Mirror
Storage lockers
Shower compartment with automatic pump out
Extractor fan
Window with opening porthole
Manual tension venetian blind
LED overhead and concealed lighting (24v)
Bathroom accessories
Solid surface flooring
Day access door from passageway
Crew cabin
Access from transom door
Access to engine room
Two single bunk beds
Wardrobe with shelf
Mirror
Storage lockers
Microwave
Storage unit with solid surface worktop and space for optional fridge
Opening porthole and manual tension blind
LED overhead lighting (24v)
Individual berth lights
220/240v outlets (2)
USB charging point
Non-slip safety flooring
En-Suite Bathroom
Wash basin with solid surface worktop
Mirror
Storage lockers
Shower compartment with automatic pump out
Extractor fan
LED overhead lighting (24v)
Bathroom accessories
Non-slip flooring
Power and drive systems
Engine room soundproofed
High volume air intakes
Engine room extractor fan with electronic time delay
Engine exhaust silencers and water-cooled exhausts
Engine beds integrally moulded with hull for strength and vibration absorption
Forward and aft engine room bulkheads integrally bonded
Engines flexibly mounted
Automatic fire extinguisher with remote override control
Automatic and manual bilge pumps
Propeller shafts in Marinemet
5-bladed propellers in nickel aluminium bronze
High speed balanced rudders
Cathodic protection for sterngear
Sterngear, engines, fuel tank fillers, etc all electrically bonded
Engine room lighting
Engine room access from transom door and from cockpit deck
Power-assisted electro-hydraulic steering system
Trim tabs with indicators
Electronic engine and gear shift controls
Bow thruster (240kgf/529lbf) with dual-station controls
Fresh water supply point in engine room
Dripless self-aligning shaft seals
Electrical systems
24 Volt:
4 x heavy-duty batteries for engine starting and windlass operation
6 x heavy-duty auxiliary batteries
Battery link facility with remote control at helm position
Both battery banks are charged using a voltage sensitive relay that parallels both battery banks when a charging source is present
1 x 60-amp 24v battery chargers and 1x combination 3.5kW inverter/100-amp charger
Remote battery master switches with control switch at main switch panel
Circuit breakers on all circuits
12v voltage dropper for certain navigation and radio circuits
220/240 Volt:
22.5kW generator in own sound shield with water-cooled and specially silenced exhaust
2 x 63-amp shore support inlet
Generator/shore support change-over switch
Polarity check system
Earth leakage safety trip
Circuit breakers on all circuits
Power points (240v) in: owner’s stateroom, guest cabins, galley and saloon area
Shaver points in all bathrooms
Fuel system
Fuel tanks (in NS8 marine grade alloy) with interconnection system giving 1,320 gal/1,585 US gal/6,000l capacity
Fuel fillers on port and starboard side decks
High-capacity duplex fuel filters with water traps and change-over valves, water warning sensors connected to warning lights at lower helm
Remote fuel cocks in cockpit locker
Dual station fuel gauges on helm consoles
Water system
Water tanks totalling 253 gal/304 US gal/1,150l plus 44 gal/53 US gal/200l hot water calorifier
Water heated by engines and 240v immersion heater
Automatic water pump with filter
Main circuit breaker at switch panel
Water level gauge
Deck filler
Electric freshwater toilet system with 99 gal/119 US gal/450l holding tank, content gauge and low noise electric overboard discharge, with macerator backup system as well as dockside discharge system
Fire extinguishers
Automatic/manual override fire extinguishers in engine room with warning system at both helm positions and incorporating engine air vent closure system
Hand operated fire extinguishers (7) in owner’s stateroom, forward stateroom, port and starboard guest cabins, crew cabin, galley and lower helm position
Bilge pumps
Automatic/manual override electric bilge pumps in engine room (2), rudder area and forward accommodation (7 in all)
High-capacity manual bilge pump with valve system and suction points in same areas
Electric bilge pumps have controls and warning lights at main helm and warning light with audible alarm at sportbridge helm
Other standard equipment
Ensign staff
Fenders (8)
Mooring warps (4)
Boathook
First-aid kit
Tool kit
Owner’s manual and engine manual
Quilted bedspreads supplied to all cabins (except crew cabin)
Set of towels (8 large, 8 hand)
Set of crystal glassware (8 settings consisting of tumbler, highball and wine glasses)
Set of Princess china (8 settings consisting of plate, side plate, bowl, cup and saucer)
Set of cutlery (8 settings of David Mellor “Paris” cutlery 7 pieces)
Ship’s document case
Anchor winch back up handle
Finishes
Teak-laid decks to transom platform, cockpit deck, side decks, foredeck walk through, steps to sportbridge and sportbridge
Timber-laid floor to galley, saloon and helm
Furniture in choice Rovere Oak or Alba Oak in satin lacquer finish as standard. Silver Oak and Walnut in satin or gloss finishes available as an option.
Tiled floors in all bathroom suites in guest accommodation
Solid surface wash basin counter tops in all bathroom suites in master and guest accommodation
Galley worktop in granite/quartz
Choice of high-quality carpet and upholstery fabric from extensive range
Blinds or sunscreens to all windows and portholes
Crew cabin has non-slip safety flooring
Crew bathroom floor is non-slip with white solid surface countertops
Close
Princess S78
Principal Dimensions
Details
Specification
Disclaimer
Length overall (incl. pulpit)
80ft 11in (24.66m)
Length overall (excl. pulpit)
78t 10in (24.03m)
Beam
18ft 11in (5.76m)
Draft
5ft 10in (1.77m)
Displacement approx.
49,500 kg (109,129 lbs)*
Fuel capacity
1,320 gal/1,585 US gal/6,000l
Water capacity (excl. calorifier)
253 gal / 304 US gal / 1,150l
Engines
Twin MAN V12 (2 x 1,900mhp)
TOP SPEED: 37 - 39 knots†
* Displacements are calculated with 50% fuel and water with liferaft but with no optional equipment fitted or other gear.
† Maximum speeds will vary depending on cleanliness of hull, condition of sterngear, loading of craft, water and air temperatures, sea conditions and other factors. Speed estimates are therefore given in good faith but without warranty or liability on the part of Princess Yachts Limited. Craft illustrated in this brochure may be fitted with certain optional equipment. Specifications may be changed at any time without notice or liability. USA Specification
‡ Certain specifications, which vary by model, are upgraded on Princess yachts built for use in North America. Thus, specifications and equipment will vary from the information listed in the brochure for North American Princess yachts (e.g. air-conditioning and an upgraded generator will be included as standard for all North American models and electric cooking facilities will be supplied in place of gas systems). Please consult the USA Specification Brochure for full details regarding the North American specifications for individual models.
Principal Dimensions
Details
Deck fittings
Teak-laid transom platform, cockpit deck, sportbridge, sportbridge stairway, side decks and foredeck walkthrough
Reversible electric anchor winch with foredeck, main helm and sportbridge controls
Stemhead roller with automatic anchor launch and retrieve
Self-stowing 50kg/110lbs Delta anchor with 100m of chain
Twin electric sternline mooring winches
Deck hatch access to chain locker
Bow rope stowage locker
Freshwater deck/anchor wash (with both fore and aft deck outlets)
Stainless steel bow and stern fairleads
Stainless steel bow, stern and spring cleats (2 pairs)
Stainless steel pulpit and guard rails
Stainless steel coachroof and sportbridge handrails
Foredeck escape hatch
Foredeck U-shaped seating area with cushion in reticulated foam
Foredeck sunbathing area with cushions in reticulated foam, integrated adjustable headrests and storage (converts to aft facing U-shaped seating area)
Twin coachroof lockers for storage of fenders, ropes and cushions
PVC rubbing band with stainless steel insert
LED deck level lighting
Full set of IMCO navigation lights
Riding light
Twin beam searchlight with dual station remote controls
Loudhailer
Stern docking lights
Twin electric horns
Fuel and water fillers
Telephone connection point
Cockpit and bathing platform
Self-draining
Configurable cockpit seating area with three predefined positions including deck mounting sockets
Folding teak dining table that converts to a coffee table
Twin aft sunbeds with lazarette space below
LED overhead and deck level lighting
Illuminated crown logo to transom
JL Audio M6-650X-L system with waterproof speakers (2)
Stainless steel handrails
Garage (to take tender up to 4.45m) with electro-hydraulic door and tender launch system with electric winch
Remote control 3.6m telescopic passarelle with folding handrails
Watertight pantograph door giving direct access from bathing platform to crew cabin/ engine room
Lockable gas strut assisted hatch to engine room
Liferaft stowage locker
Rope storage lockers
Locker containing remote fuel cocks, manual bilge pump with valve chest and manual controls for automatic fire extinguishers
Integral stairway to sportbridge with teak step treads
Central transom gate leading to bathing platform
Electro-hydraulic raise/lower teak laid bathing platform (550kg SWL)
Retractable bathing ladder (manual) in side of hydraulic platform
Transom steps to access stern from bathing platform when in lowered position
Dinghy chock system
Foldable carbon fibre hot and cold transom shower with deck mounting socket and stowage bag.
220/240v shore support inlet
Tonneau canvas cover
Sportbridge
Twin adjustable helm seats
Instrument console with dual station controls and LED display incorporating engine instruments, fuel gauges, alarms and rudder position indicator (see Lower Helm Position)
Power assisted electro-hydraulic steering with adjustable wheel
Port and starboard forward-facing L-shaped seating (converts to sunbeds)
Seating and sunbed cushions in reticulated foam
L-shaped free standing Roda sofas with coffee table
Free standing Roda pouffe
Free standing Roda small circular side table
Wetbar with barbecue, sink, top loading coolbox, waste bin and storage
Naim Uniti Atom Audio Unit with JL Audio M6-650X-L waterproof speakers (2)
Twin Nero Black leather upholstered helm seats with S Class quilting and contrast panelling in Chrome Grey
Fore and aft adjustment for helmsman.
Instrument console with LED display incorporating engine instruments, fuel gauges, alarms and rudder position indicator
Dual station instruments and controls at Sportbridge and Lower Helm Positions: - power-assisted electro-hydraulic steering - adjustable steering wheel - high-speed magnetic compass - electronic engine controls - trim tab controls with indicators - bow thruster control - electric anchor winch remote control - colour radar (with scanner) and GPS/chartploter (twin displays at Lower Helm) - autopilot - speed and distance log - echo sounder with alarm - VHF with DSC R/T with intercom - remote control searchlight - horn button
Intercom to sportbridge
Automatic fog horn with loudhailer
Chart storage
Drinks holders
Toughened glass screen (clear for night vision) with windscreen de-mist system
Windscreen wipers with freshwater windscreen wash
Black mesh windscreen covers
Skylights with reflecto-glass and sliding blinds (option of powered opening roof)
Bilge pump controls with visual pump running warnings
24v and 240v electrical control panel
Riding light, helm and navigation light control switches
USB charging point
LED overhead lighting (24v) and night lighting
Pantograph helmsman’s door to starboard side deck
Timber flooring
Saloon
U-shaped sofa
Coffee table
Two-seater chaise to port
L-shaped sofa opposite helm area
Electric drop window to port
Sideboard unit with bottle and glass storage
Refrigerator
55" UHD LED TV on rise and fall
DVD Blu-ray system with Naim audio system paired with speakers (2) and subwoofer
Electric roller blinds to all side windows
Dimmable LED overhead and concealed lighting (24v)
Access stairway to lower accommodation
Separate access stairway to owner's stateroom
Timber flooring with inlaid rug
Dining area
L-shaped sofa
Glass dining table (sliding mechanism allows table to be slid outboard)
Stainless steel framed sliding door to cockpit with integrated hinging window aft of galley
Electric roller blinds to all side windows
Manual Skysol blinds to aft patio door
Dimmable LED overhead and concealed lighting (24v)
Timber flooring
Galley
Galley worktop in choice of granite or quartz
4-zone induction hob
Extractor fan
Combination microwave/convection oven with grill
Twin-bowl stainless steel sink with mixer tap
Chopping board
Full height refrigerator/deep freeze
Icemaker
Dishwasher
Waste bin
Drawers and storage cupboards
Manual Skysol blind to aft opening window
Electric roller blind to starboard window
Powered sliding divider screen to forward end of galley
Dimmable LED overhead and task lighting (24v)
220/240v outlets (4)
Timber flooring
Accommodation
All cabins and bathrooms feature opening portholes and air conditioning
All cabins feature 220/240v power points
All bathrooms feature electric freshwater toilets and 240v shaver points
Owner’s stateroom lobby
Access stairway to master stateroom
Linen cupboard under stairway with washer dryer and space for separate washing machine and tumble dryer
Panoramic window with venetian blind
LED overhead and concealed lighting (24v)
Window with manual tension venetian blind
Fitted carpet
Owner’s stateroom
Large double bed with drawers below
Twin bedside tables
Dressing area with wardrobes and storage
Built-in safe
Dressing table with chair
Mirror
Sofa with integrated drawer below
Storage lockers and drawers
40" UHD LED TV
DVD Blu-ray system with Naim audio system paired with speakers (2) and subwoofer
Panoramic windows including opening portholes
Electric venetian blinds
Dimmable LED overhead and concealed lighting (24v)
Individual berth lights
220/240v outlets (2)
USB charging point
Fitted carpet
En-Suite Bathroom
Twin wash basins with solid surface worktop
Mirror
Storage lockers
Shower compartment with automatic pump out
Extractor fan
Window with opening porthole
Manual tension venetian blind
LED overhead and concealed lighting (24v)
Bathroom accessories
Solid surface flooring
Forward stateroom
Large double bed with drawers below
Wardrobe with shelves
Dressing table with stool
Mirror
Storage lockers
Naim Uniti Atom audio system, paired with Focal speakers (2)
Windows with opening portholes
Electric venetian blinds
Deck hatch
LED overhead and concealed lighting (24v)
Individual berth lights
220/240v outlets (2)
USB charging point
Fitted carpet
En-Suite Bathroom
Wash basin with solid surface worktop
Mirror
Storage lockers
Shower compartment with automatic pump out
Extractor fan
Window with opening porthole
Manual tension venetian blind
LED overhead and concealed lighting (24v)
Bathroom accessories
Solid surface flooring
Port guest cabin
Two single beds with drawers below (with option of double bed conversion)
Bedside table
Wardrobe with shelves
Mirror
Storage lockers
Window with opening portholes
Electric venetian blind
LED overhead and concealed lighting (24v)
Individual berth lights
220/240v outlets (2)
USB charging point
Fitted carpet
En-Suite Bathroom
Wash basin with solid surface worktop
Mirror
Storage lockers
Shower compartment with automatic pump out
Extractor fan
Window with opening porthole
Manual tension venetian blind
LED overhead and concealed lighting (24v)
Bathroom accessories
Solid surface flooring
Starboard guest cabin
Large double bed with drawers below (with option of two single beds which slide to form a double as required)
Twin bedside tables
Wardrobe with shelves
Dressing table with stool
Mirror
Storage lockers
Window with opening portholes
Electric venetian blind
LED overhead and concealed lighting (24v)
Individual berth lights
220/240v outlets (2)
USB charging point
Fitted carpet
En-Suite Bathroom
Wash basin with solid surface worktop
Mirror
Storage lockers
Shower compartment with automatic pump out
Extractor fan
Window with opening porthole
Manual tension venetian blind
LED overhead and concealed lighting (24v)
Bathroom accessories
Solid surface flooring
Day access door from passageway
Crew cabin
Access from transom door
Access to engine room
Two single bunk beds
Wardrobe with shelf
Mirror
Storage lockers
Microwave
Storage unit with solid surface worktop and space for optional fridge
Opening porthole and manual tension blind
LED overhead lighting (24v)
Individual berth lights
220/240v outlets (2)
USB charging point
Non-slip safety flooring
En-Suite Bathroom
Wash basin with solid surface worktop
Mirror
Storage lockers
Shower compartment with automatic pump out
Extractor fan
LED overhead lighting (24v)
Bathroom accessories
Non-slip flooring
Power and drive systems
Engine room soundproofed
High volume air intakes
Engine room extractor fan with electronic time delay
Engine exhaust silencers and water-cooled exhausts
Engine beds integrally moulded with hull for strength and vibration absorption
Forward and aft engine room bulkheads integrally bonded
Engines flexibly mounted
Automatic fire extinguisher with remote override control
Automatic and manual bilge pumps
Propeller shafts in Marinemet
5-bladed propellers in nickel aluminium bronze
High speed balanced rudders
Cathodic protection for sterngear
Sterngear, engines, fuel tank fillers, etc all electrically bonded
Engine room lighting
Engine room access from transom door and from cockpit deck
Power-assisted electro-hydraulic steering system
Trim tabs with indicators
Electronic engine and gear shift controls
Bow thruster (240kgf/529lbf) with dual-station controls
Fresh water supply point in engine room
Dripless self-aligning shaft seals
Electrical systems
24 Volt:
4 x heavy-duty batteries for engine starting and windlass operation
6 x heavy-duty auxiliary batteries
Battery link facility with remote control at helm position
Both battery banks are charged using a voltage sensitive relay that parallels both battery banks when a charging source is present
1 x 60-amp 24v battery chargers and 1x combination 3.5kW inverter/100-amp charger
Remote battery master switches with control switch at main switch panel
Circuit breakers on all circuits
12v voltage dropper for certain navigation and radio circuits
220/240 Volt:
22.5kW generator in own sound shield with water-cooled and specially silenced exhaust
2 x 63-amp shore support inlet
Generator/shore support change-over switch
Polarity check system
Earth leakage safety trip
Circuit breakers on all circuits
Power points (240v) in: owner’s stateroom, guest cabins, galley and saloon area
Shaver points in all bathrooms
Fuel system
Fuel tanks (in NS8 marine grade alloy) with interconnection system giving 1,320 gal/1,585 US gal/6,000l capacity
Fuel fillers on port and starboard side decks
High-capacity duplex fuel filters with water traps and change-over valves, water warning sensors connected to warning lights at lower helm
Remote fuel cocks in cockpit locker
Dual station fuel gauges on helm consoles
Water system
Water tanks totalling 253 gal/304 US gal/1,150l plus 44 gal/53 US gal/200l hot water calorifier
Water heated by engines and 240v immersion heater
Automatic water pump with filter
Main circuit breaker at switch panel
Water level gauge
Deck filler
Electric freshwater toilet system with 99 gal/119 US gal/450l holding tank, content gauge and low noise electric overboard discharge, with macerator backup system as well as dockside discharge system
Fire extinguishers
Automatic/manual override fire extinguishers in engine room with warning system at both helm positions and incorporating engine air vent closure system
Hand operated fire extinguishers (7) in owner’s stateroom, forward stateroom, port and starboard guest cabins, crew cabin, galley and lower helm position
Bilge pumps
Automatic/manual override electric bilge pumps in engine room (2), rudder area and forward accommodation (7 in all)
High-capacity manual bilge pump with valve system and suction points in same areas
Electric bilge pumps have controls and warning lights at main helm and warning light with audible alarm at sportbridge helm
Other standard equipment
Ensign staff
Fenders (8)
Mooring warps (4)
Boathook
First-aid kit
Tool kit
Owner’s manual and engine manual
Quilted bedspreads supplied to all cabins (except crew cabin)
Set of towels (8 large, 8 hand)
Set of crystal glassware (8 settings consisting of tumbler, highball and wine glasses)
Set of Princess china (8 settings consisting of plate, side plate, bowl, cup and saucer)
Set of cutlery (8 settings of David Mellor “Paris” cutlery 7 pieces)
Ship’s document case
Anchor winch back up handle
Finishes
Teak-laid decks to transom platform, cockpit deck, side decks, foredeck walk through, steps to sportbridge and sportbridge
Timber-laid floor to galley, saloon and helm
Furniture in choice Rovere Oak or Alba Oak in satin lacquer finish as standard. Silver Oak and Walnut in satin or gloss finishes available as an option.
Tiled floors in all bathroom suites in guest accommodation
Solid surface wash basin counter tops in all bathroom suites in master and guest accommodation
Galley worktop in granite/quartz
Choice of high-quality carpet and upholstery fabric from extensive range
Blinds or sunscreens to all windows and portholes
Crew cabin has non-slip safety flooring
Crew bathroom floor is non-slip with white solid surface countertops
Distinctively cool whilst propelling you to an exhilarating 39 knots, the S78 is the flagship of the Princess S Class. Her sportbridge inspires relaxation with a range of exclusive furnishings to choose from.
Sportbridge Layout
Main Deck Layout
Lower Deck Layout
Distinctively cool
Her sportbridge inspires relaxation with a range of exclusive furnishings to choose from and seating areas that convert into sun loungers. Unique central access from her hydraulic bathing platform to the cockpit passes between twin sunpads whilst her foredeck features innovative seating with sunpads which can be converted to create additional aft facing seats. The perfect ambience is ensured across her sportbridge, saloon, cockpit and master cabin, where the world class NAIM Audio sound system comes installed as standard.
Experience traditional craftsmanship reinvented throughout her integrated interior. Ambient lighting plays a supporting role behind furniture, feature panels and through flooring. A cavernous main deck saloon seamlessly connects you to the world outside through full length side windows. Her well-equipped galley surpasses the highest of expectations whilst her dining area delivers a sense of versatile space with an ingenious sliding glass table. Below deck eight guests enjoy four beautifully appointed en suite cabins all bathed in natural light from the S78’s elegant and expansive glazing, with a further aft cabin for occasional guests or 2-3 crew. She’s more than everything you would expect from the largest Princess S Class.
