Water capacity (excl. calorifier)
192 gal/230 US gal/873l
Engines
Twin MAN V12-1400 (2 x 1,400mhp)
TOP SPEED: 36-38 knots†
* Displacements are calculated with 50% fuel and water with liferaft but with no optional equipment fitted or other gear.
† Maximum speeds will vary depending on cleanliness of hull, condition of sterngear, loading of craft, water and air temperatures, sea conditions and other factors. Speed estimates are therefore given in good faith but without warranty or liability on the part of Princess Yachts Limited. Craft illustrated in this brochure may be fitted with certain optional equipment. Specifications may be changed at any time without notice or liability. USA Specification
‡ Certain specifications, which vary by model, are upgraded on Princess yachts built for use in North America. Thus, specifications and equipment will vary from the information listed in the brochure for North American Princess yachts (e.g. air-conditioning and an upgraded generator will be included as standard for all North American models and electric cooking facilities will be supplied in place of gas systems). Please consult the USA Specification Brochure for full details regarding the North American specifications for individual models.
Deck fittings
Teak-laid transom platform, cockpit deck, sportbridge stairway, sportbridge and steps to side deck
Reversible electric anchor winch with foredeck and helm position controls
Stemhead roller with automatic anchor launch and retrieve
Self-stowing (40kg/88lb) Delta anchor with 60m of chain
Bow rope storage locker
Freshwater deck/anchor wash
Walk through coachroof seating area
Foredeck sunbathing area with cushions and integrated adjustable headrests
Deck storage lockers for fenders and foredeck sunbed cushions
Stainless steel bow, stern and spring cleats (8)
Stainless steel pulpit and guardrails
Stainless steel coachroof handrails
Foredeck hatch
PVC rubbing band with stainless steel insert
LED deck level lighting
Full set of IMCO navigation lights
Riding light
Searchlight with remote control
Illuminated crown logo to transom
Twin electric horns
Fuel and water fillers
Cockpit and bathing platform
Self-draining
U-shaped seating/dining area with folding teak table
Sunbed aft
LED overhead and deck level lighting
Stainless steel handrails
Garage (to take tender up to 3.3m) with electro-hydraulic door and tender launch system with electric winch
Liferaft stowage locker
Rope stowage lockers
Lockable gas strut assisted hatch to lazarette
Lockable gas strut assisted hatch to lazarette/optional crew cabin
Lockable gas strut assisted hatch to engine room
Locker containing remote fuel cocks, manual bilge pump with valve chest and manual controls for automatic fire extinguishers
Twin transom doors leading to bathing platform
Electro-hydraulic raise/lower teak laid bathing platform (550kg SWL)
Retractable bathing ladder (manual) in side of hydraulic platform
Transom steps to access stern from bathing platform when in lowered position
Hot and cold transom shower
Fusion Signature 6.5" (2) speakers linked to saloon with local control
220/240v shore support inlet in locker
Tonneau cover

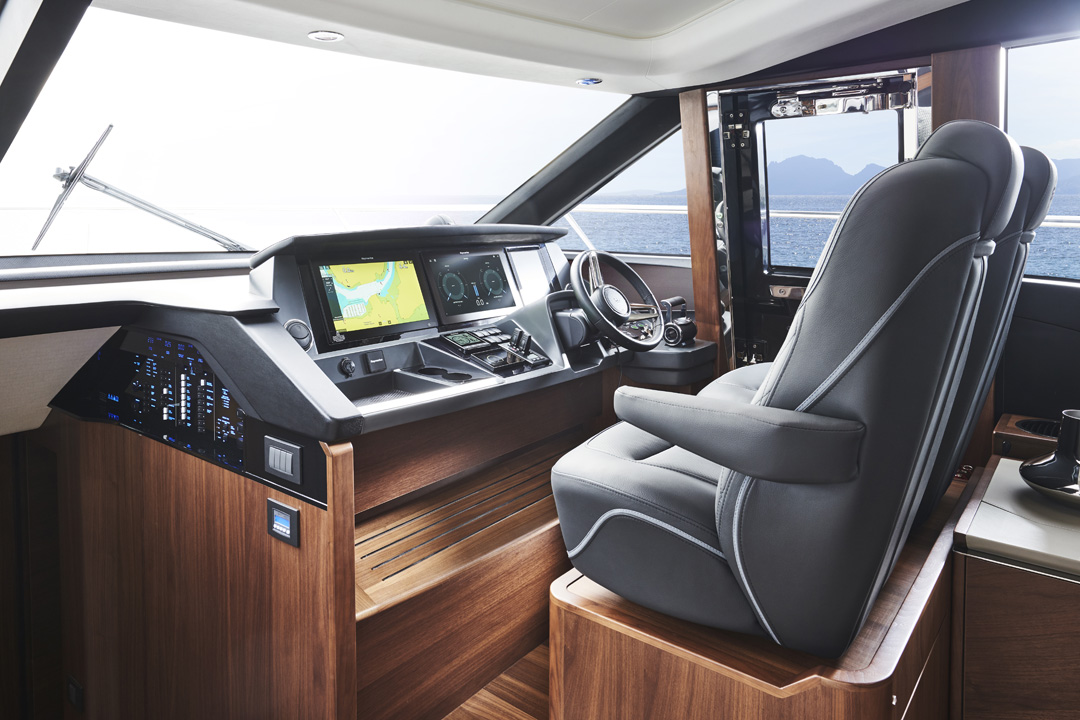

Helm position
Twin helm seats with fore and aft adjustment for helmsman
Instrument console with engine instruments and fuel gauges
Colour radar and GPS/chartplotter (2 x 12.1” HD screens)
Dual station instruments and controls at Sportbridge and Lower Helm Positions: - power-assisted electro-hydraulic steering - adjustable steering wheel - rudder position indicator - high-speed magnetic compass - electronic engine controls - trim tab controls with indicators - bow thruster control - electric anchor winch remote control - autopilot - speed and distance log - echo sounder with alarm - VHF with DSC R/T with intercom - remote control searchlight - horn button
Drinks holders
Toughened glass screen (clear for night vision)
Windscreen wipers with freshwater windscreen wash
Black mesh sunscreens
Bilge pump controls with visual pump running warnings
24v and 240v electrical control panel
Riding light, helm and navigation light control switches
12v outlet
LED overhead lighting (24v) and night lighting
Pantograph helmsman’s side door to starboard side deck
Timber flooring (planked)

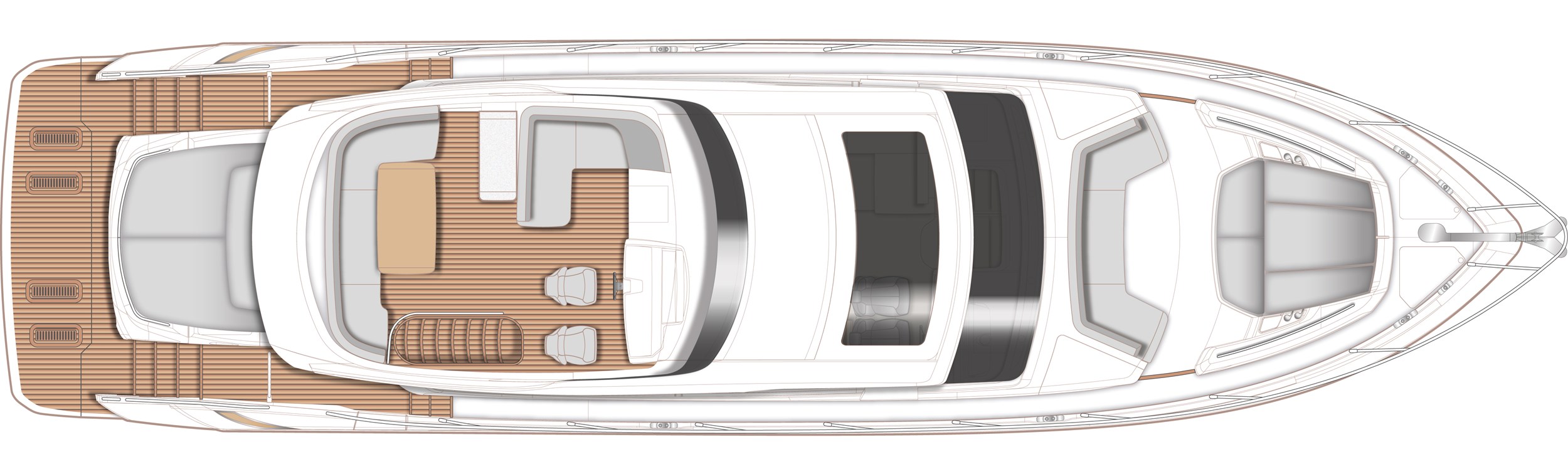

Sportbridge
Dual station instrumentation and controls (see Lower Helm Position)
Colour radar and GPS/Chart plotter (2 x 12.1” HD screens)
Adjustable steering wheel
Audible and visual alarm for bilge pumps
Twin helm seats with fore and aft adjustment for helmsman
Audio stereo system with Blu-ray player and speakers (4)
Electric drop window to port
Blinds or sunscreens to all windows and doors
LED overhead and concealed lighting (24v)
Access stairway to lower accommodation
Skylights with reflecto-glass and sliding blinds (option of powered opening roof)
Fitted carpet

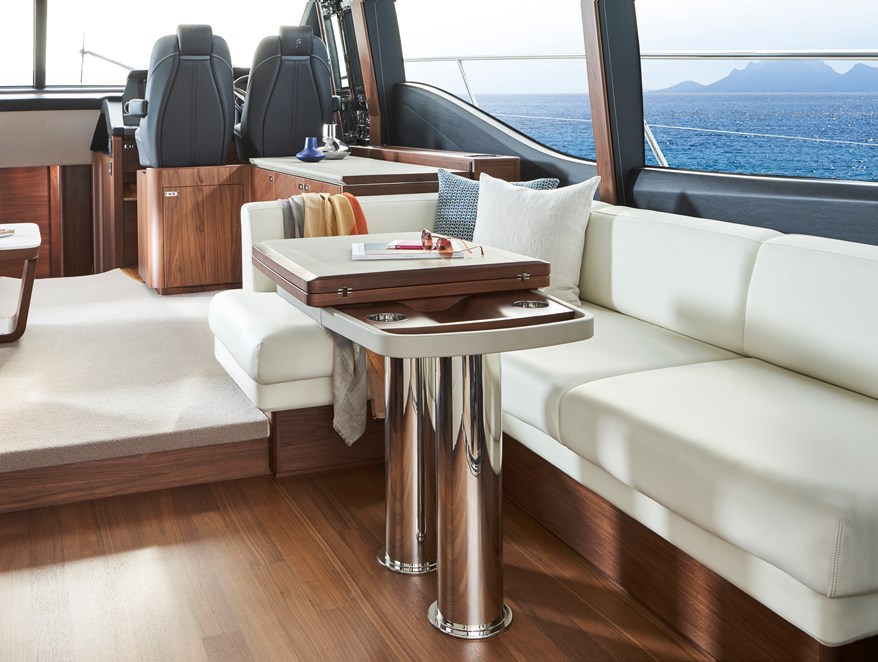

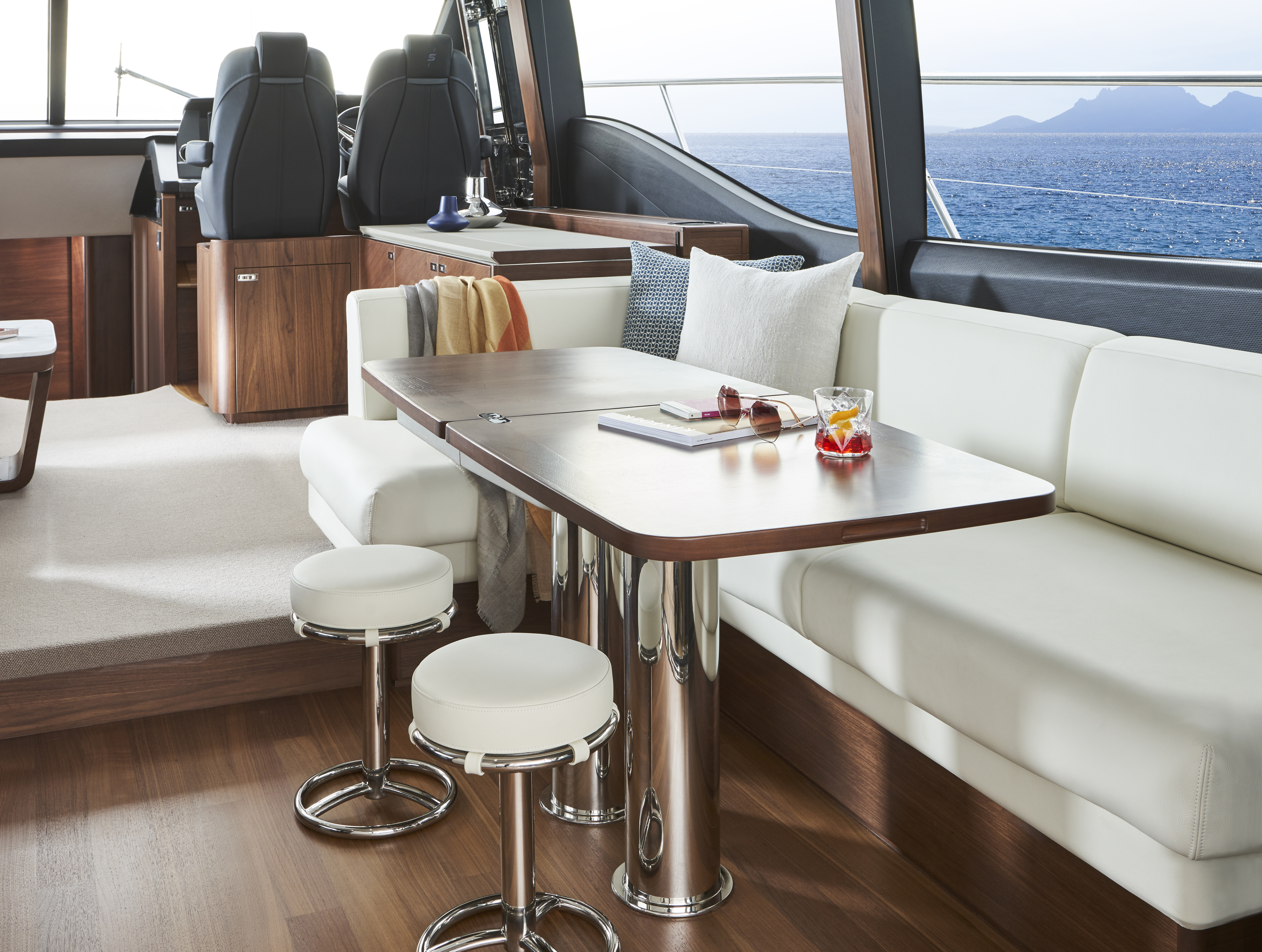

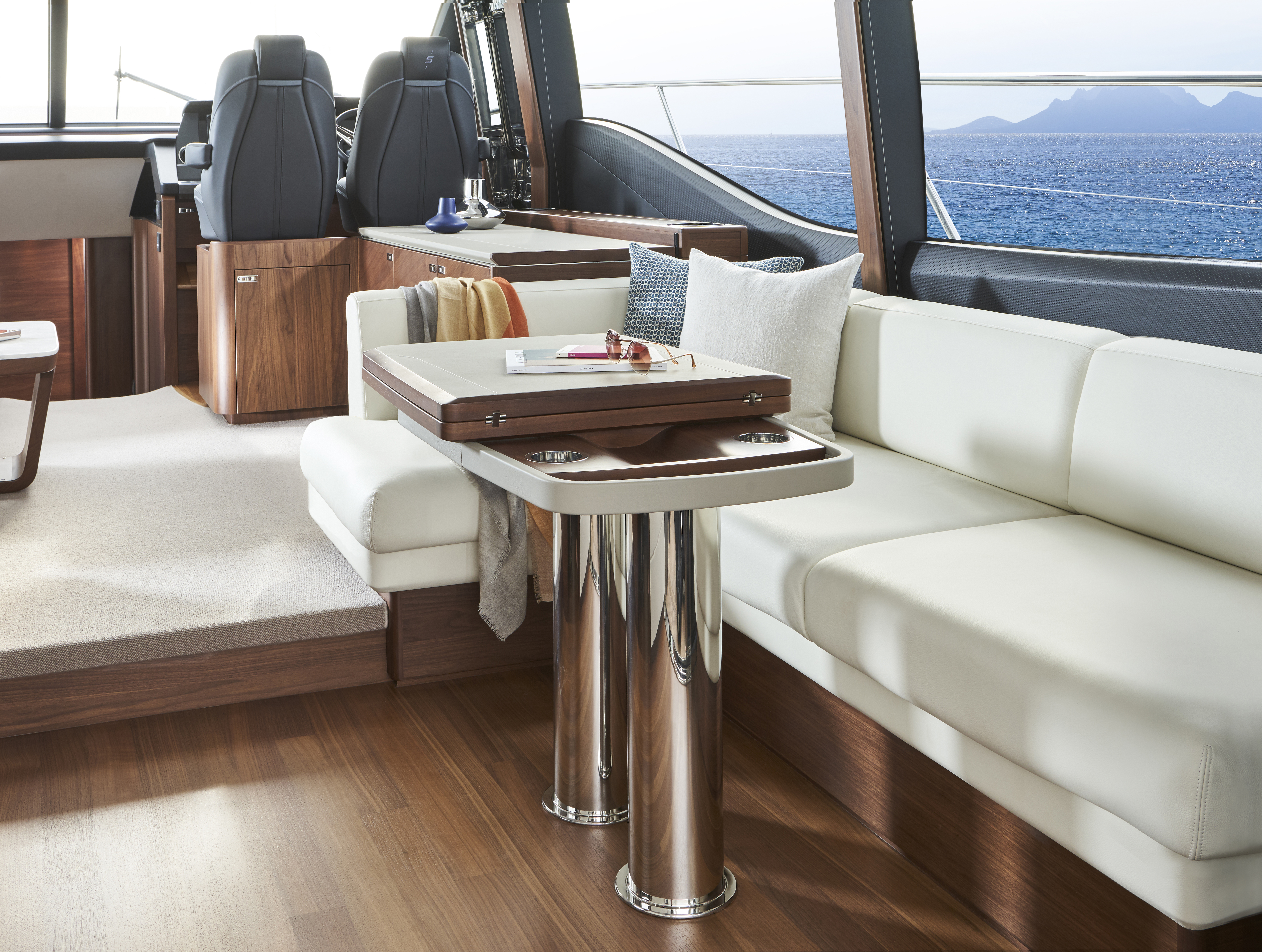

Dining area
L-shaped sofa
Folding dining table
Stainless steel framed sliding door to cockpit with integrated hinging window aft of galley
Blinds or sunscreens to all windows and doors
LED overhead and concealed lighting (24v)
Timber flooring (planked)

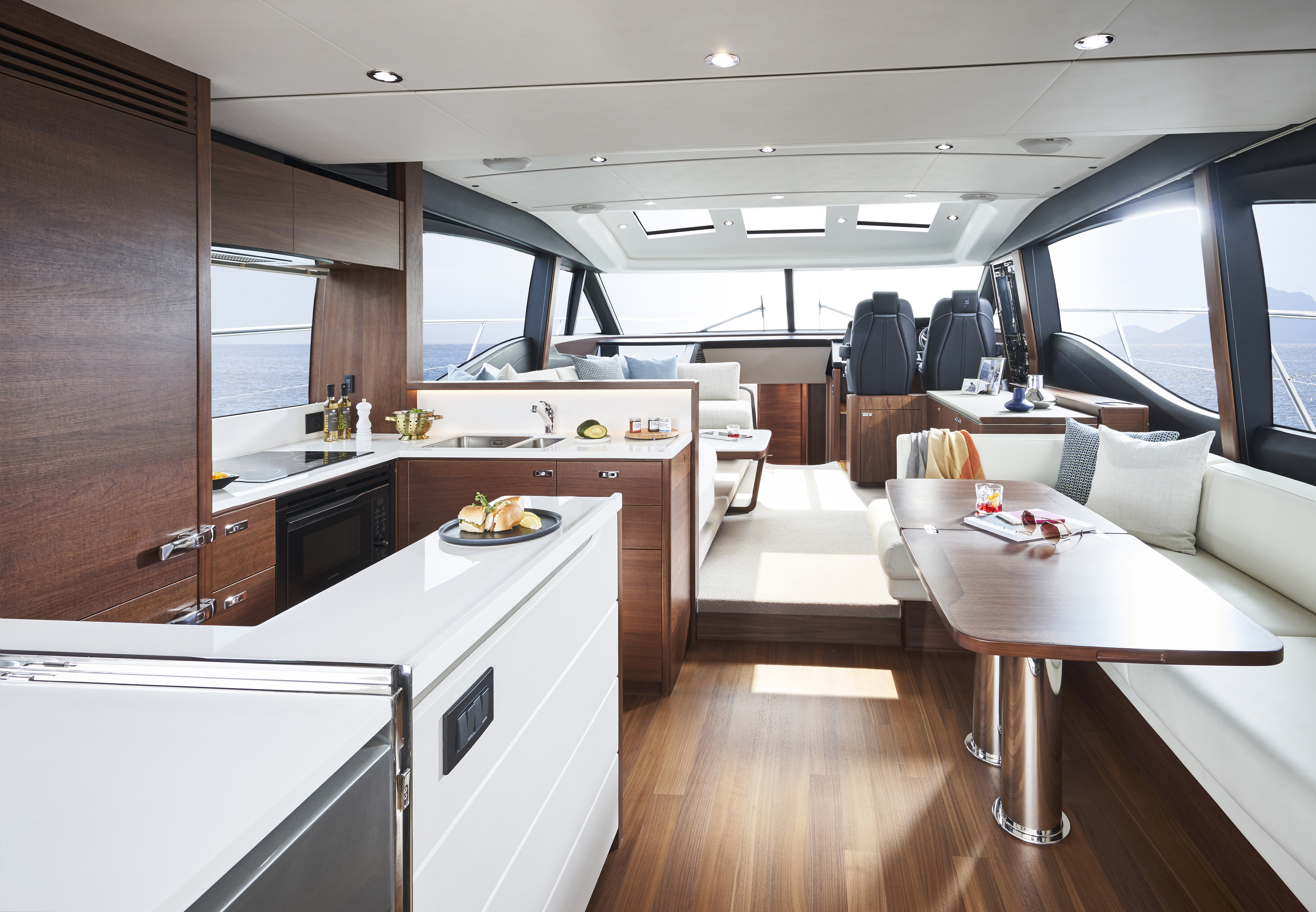

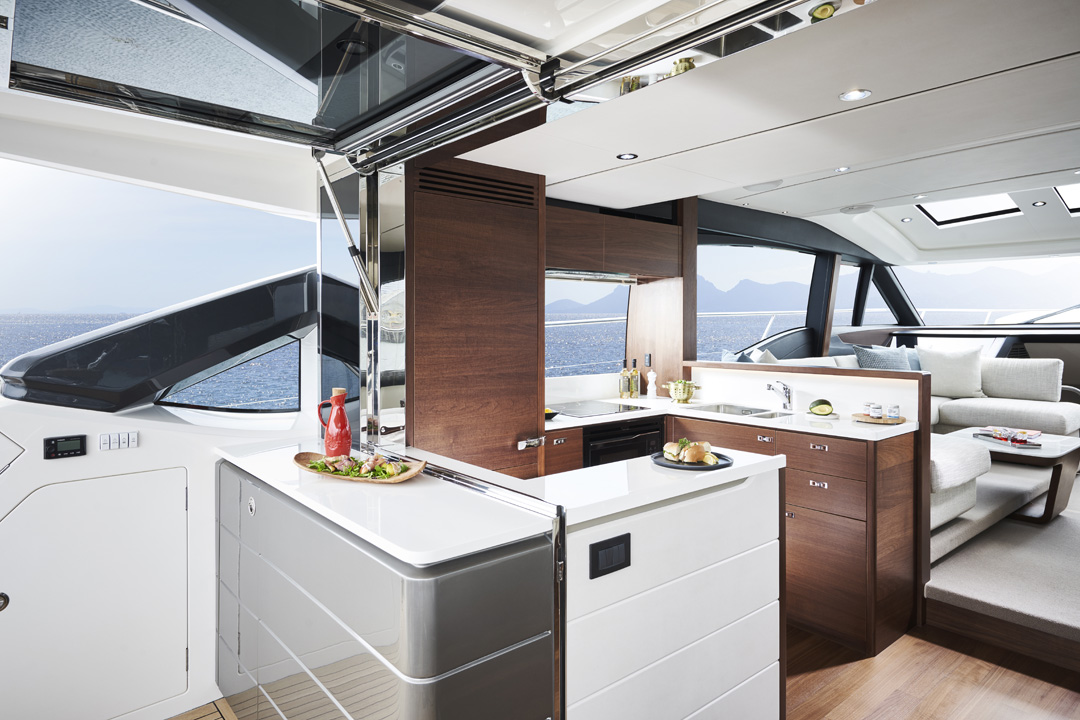

Galley
Solid surface worktop
Ceramic 4-zone hob
Hob extractor
Combination microwave/convection oven with grill
Twin-bowl stainless-steel sink with mixer tap
Dishwasher
Full height fridge/freezer (270l)
Waste bin
Drawers and storage cupboards
Blinds or sunscreens to all windows and doors
LED overhead and task lighting (24v)
220/240v outlets (4)
Timber flooring (planked)

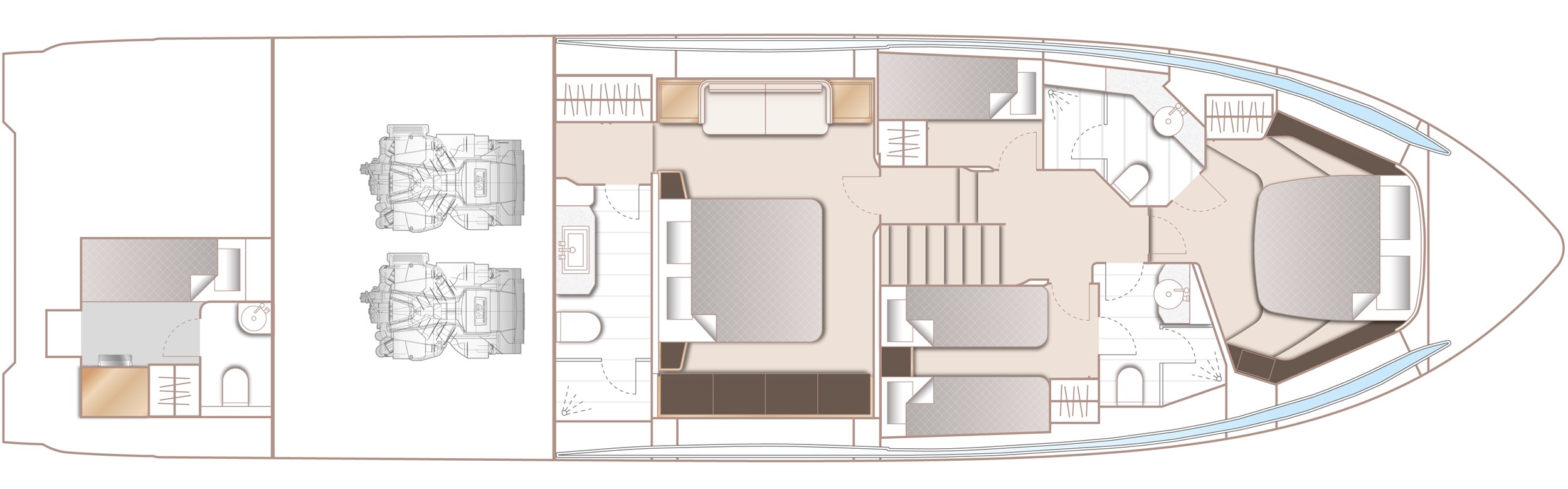

Accommodation
All cabins and bathrooms feature opening portholes
All cabins feature 220/240v power points
All bathrooms feature electric freshwater toilets and 240v shaver points

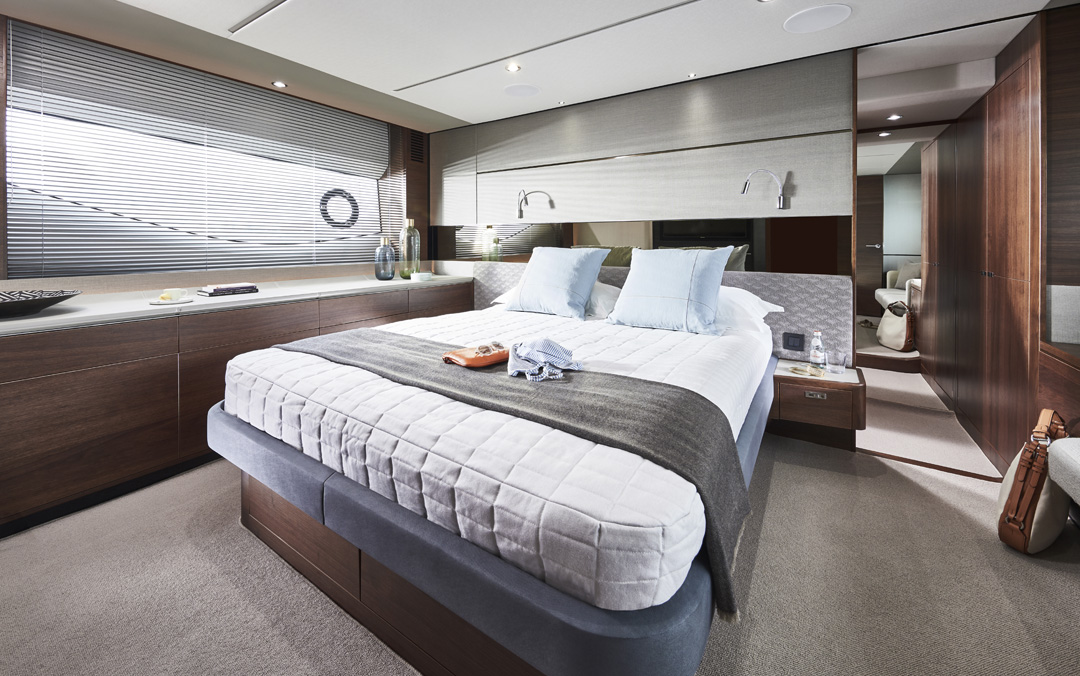

Owner’s stateroom
Large double bed with drawers below
Twin bedside tables
Wardrobes with hanging and drawer storage
Dressing table
Mirror

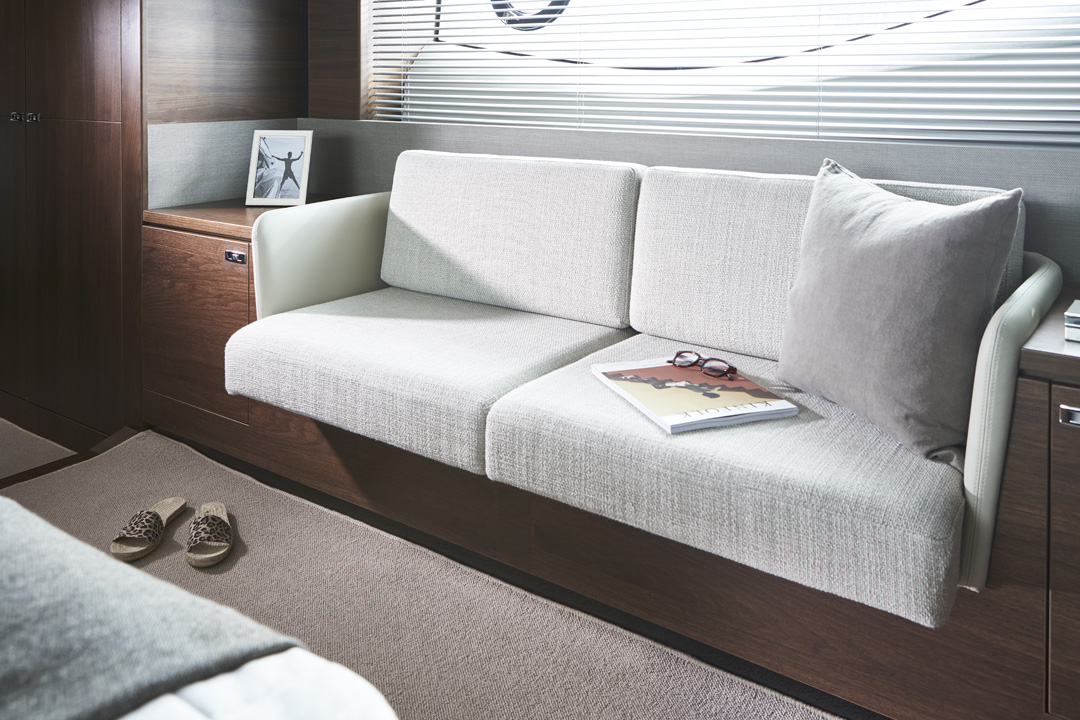

Sofa
Storage lockers and drawers
40" UHD LED TV
Audio stereo system with Blu-ray player and Focal 100 ICW6 speakers (4)
Panoramic windows including opening porthole with curtains or blinds
LED overhead and concealed lighting (24v)
Individual berth lights
220/240v outlets (2)
USB connection point
Fitted carpet

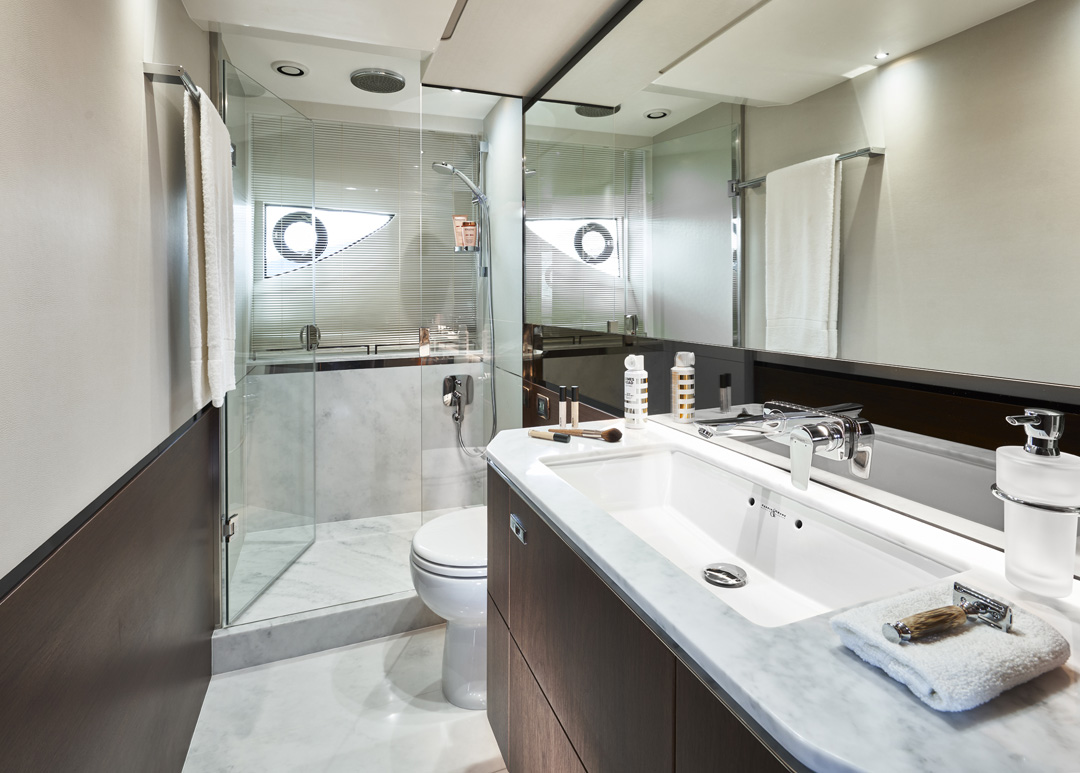

En-Suite Bathroom
Washbasin with solid surface worktop
Mirror
Storage lockers
Shower compartment with automatic pump out
Extractor fan
Window with opening porthole and venetian blind
LED overhead and concealed lighting (24v)
Bathroom accessories
Flooring in solid surface

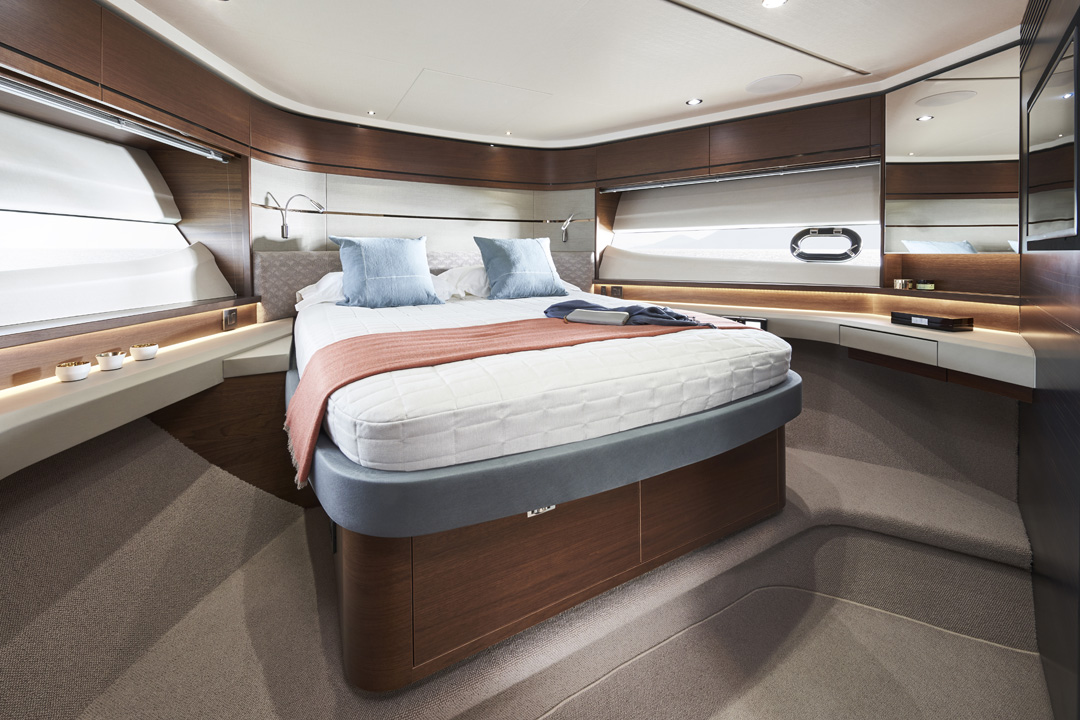

Forward stateroom
Large double bed with drawers below
Wardrobe with shelves
Dressing table
Mirror
Storage lockers
Window with opening porthole and venetian blind
Deck hatch
LED overhead and concealed lighting (24v)
Individual berth lights
220/240v outlets (2)
USB connection point
Fitted carpet

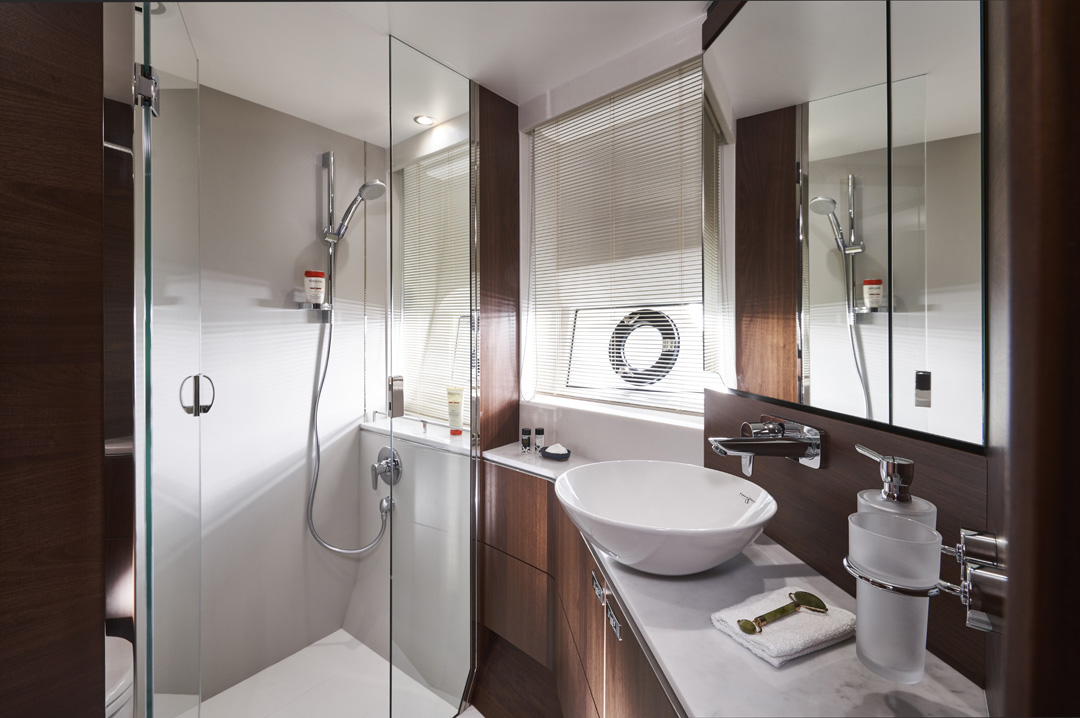

En-Suite Bathroom
Washbasin with solid surface worktop
Mirror
Storage lockers
Shower compartment with automatic pump out
Extractor fan
Window with opening porthole and venetian blind
LED overhead and concealed lighting (24v)
Bathroom accessories
Flooring in solid surface

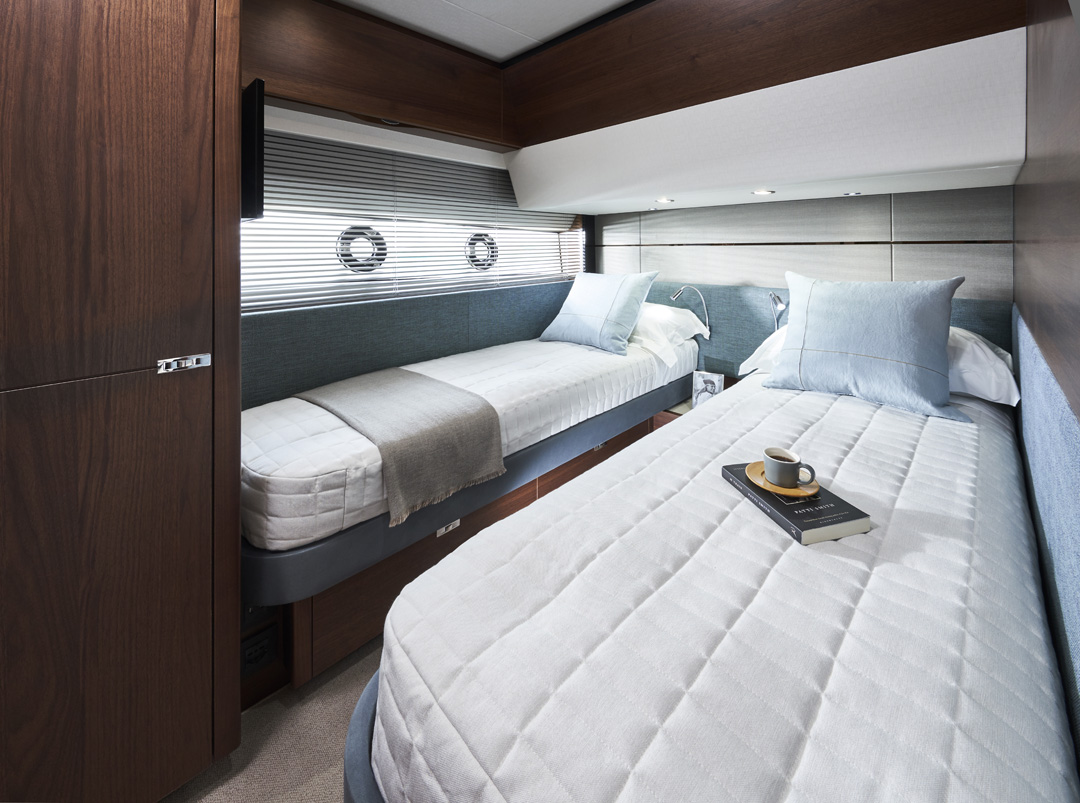

Starboard guest cabin
Two single beds with drawers below (with option of double bed convertion)
Bedside table
Wardrobe with shelves
Mirror
Storage lockers and drawers
Window with opening portholes and venetian blind
LED overhead and concealed lighting (24v)
Individual berth lights
220/240v outlets (2)
USB connection point
Fitted carpet

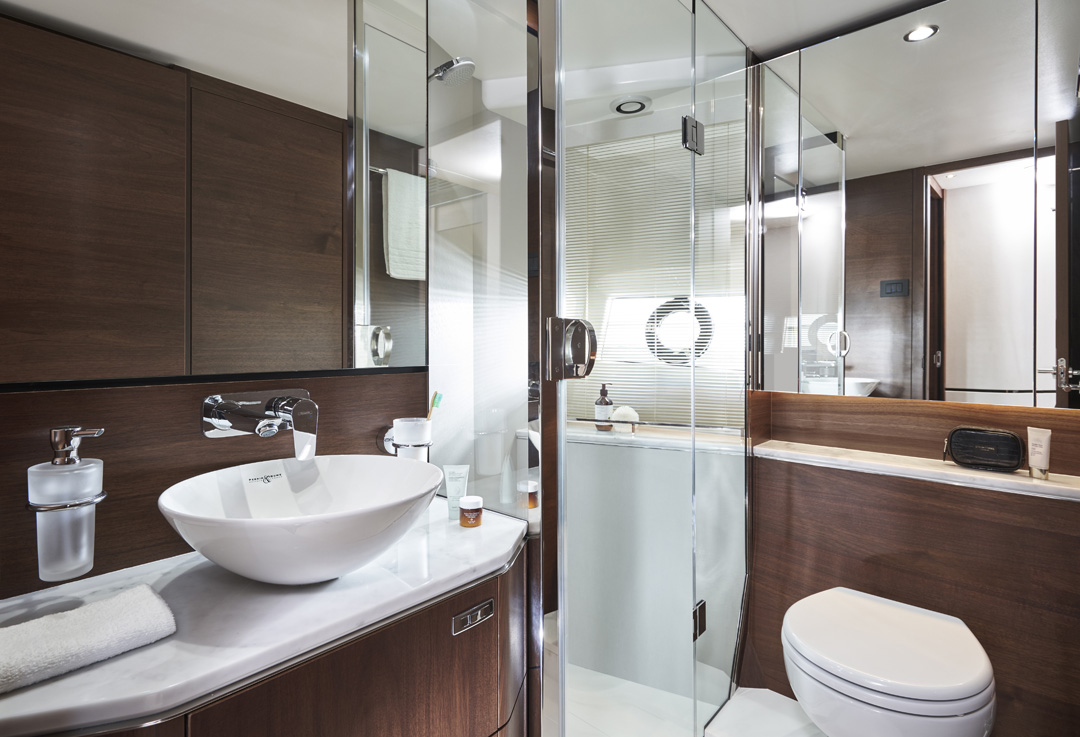

En-Suite Bathroom
Washbasin with solid surface worktop
Mirror
Storage lockers
Shower compartment with automatic pump out
Extractor fan
Window with opening porthole and venetian blind
LED overhead and concealed lighting (24v)
Bathroom accessories
Flooring in solid surface
Day access door from passageway
Port guest cabin
Two single beds
Wardrobe with shelf
Mirror
Storage lockers
Window with opening portholes and venetian blind
LED overhead and concealed lighting (24v)
Individual berth lights
220/240v outlet (1)
USB connection point
Fitted carpet
Lower accommodation lobby
Washer/dryer with storage area above located below companionway stairs (option of separate washing and drying machines if required)
Optional crew cabin (in place of aft lazarette)
Single bed with storage below
Wardrobe with shelf
Mirror
Opening porthole
LED overhead lighting (24v)
Individual berth light
220/240v outlet (1)
Non slip safety flooring
En-Suite Bathroom
Washbasin with solid surface worktop
Mirror
Storage lockers
Shower with automatic pump out
Extractor fan
LED overhead lighting (24v)
Bathroom accessories
Power and drive systems
5-bladed propellers in nickel aluminum bronze
Bow thruster (170kgf/375lbf) with dual-station controls
Engine room lighting
Engine room access hatch and ladder
Power-assisted electro-hydraulic steering system
Trim tabs with indicators
Electronic engine and gear shift controls
Engine room extractor fan with electronic time delay
Fresh water supply point in engine room
Dripless self-aligning shaft seals
Electrical systems
24 Volt:
4 x heavy duty batteries for engine starting
4 x heavy duty auxiliary batteries
Battery link facility with remote control at helm position
Both battery banks are charged using a voltage sensitive relay that parallels both battery banks when a charging source is present
80-amp battery charger
Remote battery master switches with control switch at main switch panel
Circuit breakers on all circuits
12v voltage dropper for certain navigation and radio circuits
220/240 Volt:
13.5Kw diesel generator in own sound shield with water cooled specially silenced exhaust
Automatic fire extinguisher situated by generator
63 amp shore support inlet
Generator/shore support change-over switch
Polarity check system
Earth leakage safety trip
Circuit breakers on all circuits
Power points in: Owner’s stateroom, guest cabins, galley and saloon area
Shaver points in all bathrooms
Fuel system
Twin fuel tanks (in NS8 marine grade alloy) with interconnection system giving 4,100 l/902 gal/1,083 US gal capacity
Fuel fillers on port and starboard side decks
High-capacity duplex fuel filters with water traps with change-over valves, water warning sensors connected to warning lights at lower helm
Remote fuel cocks in cockpit locker
Fuel gauges at main helm console
Water system
Water tanks totalling 800 l/176 gal/211 US gal plus 73l/16 gal/19 US gal hot water calorifier
Water heated by engines and 240v immersion heater
Automatic water pump with filter
Main circuit breaker at switch panel
Water level gauge
Deck filler
Electric freshwater toilet system with 272l/60 gal/72 US gal holding tank, content gauge and low noise electric overboard discharge, with macerator backup system as well as dockside discharge system
Bilge pumps
Automatic/manual override electric bilge pumps in engine room (2), ruder area, lazarette and forward accommodation (6 in all)
High-capacity manual bilge pump with valve system and suction points in same areas
Electric bilge pumps have controls and warning lights at main helm and warning light with audible alarm at sportbridge helm
Fire extinguishers
Automatic/manual override fire extinguishers in engine room with warning system at helm position
Hand-operated fire extinguishers (6) in owner’s stateroom, forward and starboard guest cabins, utility area, galley and helm position
Additional extinguisher fitted when optional aft cabin is specified
Other standard equipment
Ensign staff
Fenders (6)
Mooring warps (4)
Boat hook
First aid kit
Tool kit
Owner’s manual and engine manual
Quilted bed covers supplied to all cabins (except optional crew cabin)
Set of glassware (8 settings consisting of tumbler and wine glasses)
Set of Princess china (8 settings consisting of plate, side plate, bowl, cup and saucer)
Set of cutlery (8 settings of David Mellor “Paris” cutlery 7 pieces)
Ship’s document case
Anchor winch back up handle
Finishes
Teak-laid decks to transom platform, steps to side decks, cockpit deck steps to sportbridge, sportbridge and steps to side decks
Timber-laid floor to galley and dining area, planked
Furniture in choice of Rovere Oak or Alba Oak in satin lacquer finish as standard. Silver Oak or Walnut in satin or gloss lacquer finishes available as an option
Solid surface floors in all bathroom suites in guest accommodation
Solid surface wash hand basin counter tops in all bathroom suites in guest accommodation
Galley worktop in solid surface
Choice of high quality carpet and upholstery fabric from extensive range
Blinds or sunscreens to all windows and portholes
Optional crew cabin has non-slip safety flooring, crew bathroom has white solid surface countertops
Close
Princess S66
Principal Dimensions
Details
Specification
Disclaimer
Length overall (incl. pulpit)
66ft 10in (20.32m)
Length overall (excl. pulpit)
65ft 11in (20.03m)
Beam
16ft 9in (5.08m)
Draft
4ft 9in (1.47m)
Displacement approx.
30,500 kg (77,162lbs)*
Fuel capacity
902 gal/1,083 US gal/4,100l
Water capacity (excl. calorifier)
192 gal/230 US gal/873l
Engines
Twin MAN V12-1400 (2 x 1,400mhp)
TOP SPEED: 36-38 knots†
* Displacements are calculated with 50% fuel and water with liferaft but with no optional equipment fitted or other gear.
† Maximum speeds will vary depending on cleanliness of hull, condition of sterngear, loading of craft, water and air temperatures, sea conditions and other factors. Speed estimates are therefore given in good faith but without warranty or liability on the part of Princess Yachts Limited. Craft illustrated in this brochure may be fitted with certain optional equipment. Specifications may be changed at any time without notice or liability. USA Specification
‡ Certain specifications, which vary by model, are upgraded on Princess yachts built for use in North America. Thus, specifications and equipment will vary from the information listed in the brochure for North American Princess yachts (e.g. air-conditioning and an upgraded generator will be included as standard for all North American models and electric cooking facilities will be supplied in place of gas systems). Please consult the USA Specification Brochure for full details regarding the North American specifications for individual models.
Principal Dimensions
Details
Deck fittings
Teak-laid transom platform, cockpit deck, sportbridge stairway, sportbridge and steps to side deck
Reversible electric anchor winch with foredeck and helm position controls
Stemhead roller with automatic anchor launch and retrieve
Self-stowing (40kg/88lb) Delta anchor with 60m of chain
Bow rope storage locker
Freshwater deck/anchor wash
Walk through coachroof seating area
Foredeck sunbathing area with cushions and integrated adjustable headrests
Deck storage lockers for fenders and foredeck sunbed cushions
Stainless steel bow, stern and spring cleats (8)
Stainless steel pulpit and guardrails
Stainless steel coachroof handrails
Foredeck hatch
PVC rubbing band with stainless steel insert
LED deck level lighting
Full set of IMCO navigation lights
Riding light
Searchlight with remote control
Illuminated crown logo to transom
Twin electric horns
Fuel and water fillers
Cockpit and bathing platform
Self-draining
U-shaped seating/dining area with folding teak table
Sunbed aft
LED overhead and deck level lighting
Stainless steel handrails
Garage (to take tender up to 3.3m) with electro-hydraulic door and tender launch system with electric winch
Liferaft stowage locker
Rope stowage lockers
Lockable gas strut assisted hatch to lazarette
Lockable gas strut assisted hatch to lazarette/optional crew cabin
Lockable gas strut assisted hatch to engine room
Locker containing remote fuel cocks, manual bilge pump with valve chest and manual controls for automatic fire extinguishers
Twin transom doors leading to bathing platform
Electro-hydraulic raise/lower teak laid bathing platform (550kg SWL)
Retractable bathing ladder (manual) in side of hydraulic platform
Transom steps to access stern from bathing platform when in lowered position
Hot and cold transom shower
Fusion Signature 6.5" (2) speakers linked to saloon with local control
220/240v shore support inlet in locker
Tonneau cover
Helm position
Twin helm seats with fore and aft adjustment for helmsman
Instrument console with engine instruments and fuel gauges
Colour radar and GPS/chartplotter (2 x 12.1” HD screens)
Dual station instruments and controls at Sportbridge and Lower Helm Positions: - power-assisted electro-hydraulic steering - adjustable steering wheel - rudder position indicator - high-speed magnetic compass - electronic engine controls - trim tab controls with indicators - bow thruster control - electric anchor winch remote control - autopilot - speed and distance log - echo sounder with alarm - VHF with DSC R/T with intercom - remote control searchlight - horn button
Drinks holders
Toughened glass screen (clear for night vision)
Windscreen wipers with freshwater windscreen wash
Black mesh sunscreens
Bilge pump controls with visual pump running warnings
24v and 240v electrical control panel
Riding light, helm and navigation light control switches
12v outlet
LED overhead lighting (24v) and night lighting
Pantograph helmsman’s side door to starboard side deck
Timber flooring (planked)
Sportbridge
Dual station instrumentation and controls (see Lower Helm Position)
Colour radar and GPS/Chart plotter (2 x 12.1” HD screens)
Adjustable steering wheel
Audible and visual alarm for bilge pumps
Twin helm seats with fore and aft adjustment for helmsman
Audio stereo system with Blu-ray player and speakers (4)
Electric drop window to port
Blinds or sunscreens to all windows and doors
LED overhead and concealed lighting (24v)
Access stairway to lower accommodation
Skylights with reflecto-glass and sliding blinds (option of powered opening roof)
Fitted carpet
Dining area
L-shaped sofa
Folding dining table
Stainless steel framed sliding door to cockpit with integrated hinging window aft of galley
Blinds or sunscreens to all windows and doors
LED overhead and concealed lighting (24v)
Timber flooring (planked)
Galley
Solid surface worktop
Ceramic 4-zone hob
Hob extractor
Combination microwave/convection oven with grill
Twin-bowl stainless-steel sink with mixer tap
Dishwasher
Full height fridge/freezer (270l)
Waste bin
Drawers and storage cupboards
Blinds or sunscreens to all windows and doors
LED overhead and task lighting (24v)
220/240v outlets (4)
Timber flooring (planked)
Accommodation
All cabins and bathrooms feature opening portholes
All cabins feature 220/240v power points
All bathrooms feature electric freshwater toilets and 240v shaver points
Owner’s stateroom
Large double bed with drawers below
Twin bedside tables
Wardrobes with hanging and drawer storage
Dressing table
Mirror
Sofa
Storage lockers and drawers
40" UHD LED TV
Audio stereo system with Blu-ray player and Focal 100 ICW6 speakers (4)
Panoramic windows including opening porthole with curtains or blinds
LED overhead and concealed lighting (24v)
Individual berth lights
220/240v outlets (2)
USB connection point
Fitted carpet
En-Suite Bathroom
Washbasin with solid surface worktop
Mirror
Storage lockers
Shower compartment with automatic pump out
Extractor fan
Window with opening porthole and venetian blind
LED overhead and concealed lighting (24v)
Bathroom accessories
Flooring in solid surface
Forward stateroom
Large double bed with drawers below
Wardrobe with shelves
Dressing table
Mirror
Storage lockers
Window with opening porthole and venetian blind
Deck hatch
LED overhead and concealed lighting (24v)
Individual berth lights
220/240v outlets (2)
USB connection point
Fitted carpet
En-Suite Bathroom
Washbasin with solid surface worktop
Mirror
Storage lockers
Shower compartment with automatic pump out
Extractor fan
Window with opening porthole and venetian blind
LED overhead and concealed lighting (24v)
Bathroom accessories
Flooring in solid surface
Starboard guest cabin
Two single beds with drawers below (with option of double bed convertion)
Bedside table
Wardrobe with shelves
Mirror
Storage lockers and drawers
Window with opening portholes and venetian blind
LED overhead and concealed lighting (24v)
Individual berth lights
220/240v outlets (2)
USB connection point
Fitted carpet
En-Suite Bathroom
Washbasin with solid surface worktop
Mirror
Storage lockers
Shower compartment with automatic pump out
Extractor fan
Window with opening porthole and venetian blind
LED overhead and concealed lighting (24v)
Bathroom accessories
Flooring in solid surface
Day access door from passageway
Port guest cabin
Two single beds
Wardrobe with shelf
Mirror
Storage lockers
Window with opening portholes and venetian blind
LED overhead and concealed lighting (24v)
Individual berth lights
220/240v outlet (1)
USB connection point
Fitted carpet
Lower accommodation lobby
Washer/dryer with storage area above located below companionway stairs (option of separate washing and drying machines if required)
Optional crew cabin (in place of aft lazarette)
Single bed with storage below
Wardrobe with shelf
Mirror
Opening porthole
LED overhead lighting (24v)
Individual berth light
220/240v outlet (1)
Non slip safety flooring
En-Suite Bathroom
Washbasin with solid surface worktop
Mirror
Storage lockers
Shower with automatic pump out
Extractor fan
LED overhead lighting (24v)
Bathroom accessories
Power and drive systems
5-bladed propellers in nickel aluminum bronze
Bow thruster (170kgf/375lbf) with dual-station controls
Engine room lighting
Engine room access hatch and ladder
Power-assisted electro-hydraulic steering system
Trim tabs with indicators
Electronic engine and gear shift controls
Engine room extractor fan with electronic time delay
Fresh water supply point in engine room
Dripless self-aligning shaft seals
Electrical systems
24 Volt:
4 x heavy duty batteries for engine starting
4 x heavy duty auxiliary batteries
Battery link facility with remote control at helm position
Both battery banks are charged using a voltage sensitive relay that parallels both battery banks when a charging source is present
80-amp battery charger
Remote battery master switches with control switch at main switch panel
Circuit breakers on all circuits
12v voltage dropper for certain navigation and radio circuits
220/240 Volt:
13.5Kw diesel generator in own sound shield with water cooled specially silenced exhaust
Automatic fire extinguisher situated by generator
63 amp shore support inlet
Generator/shore support change-over switch
Polarity check system
Earth leakage safety trip
Circuit breakers on all circuits
Power points in: Owner’s stateroom, guest cabins, galley and saloon area
Shaver points in all bathrooms
Fuel system
Twin fuel tanks (in NS8 marine grade alloy) with interconnection system giving 4,100 l/902 gal/1,083 US gal capacity
Fuel fillers on port and starboard side decks
High-capacity duplex fuel filters with water traps with change-over valves, water warning sensors connected to warning lights at lower helm
Remote fuel cocks in cockpit locker
Fuel gauges at main helm console
Water system
Water tanks totalling 800 l/176 gal/211 US gal plus 73l/16 gal/19 US gal hot water calorifier
Water heated by engines and 240v immersion heater
Automatic water pump with filter
Main circuit breaker at switch panel
Water level gauge
Deck filler
Electric freshwater toilet system with 272l/60 gal/72 US gal holding tank, content gauge and low noise electric overboard discharge, with macerator backup system as well as dockside discharge system
Bilge pumps
Automatic/manual override electric bilge pumps in engine room (2), ruder area, lazarette and forward accommodation (6 in all)
High-capacity manual bilge pump with valve system and suction points in same areas
Electric bilge pumps have controls and warning lights at main helm and warning light with audible alarm at sportbridge helm
Fire extinguishers
Automatic/manual override fire extinguishers in engine room with warning system at helm position
Hand-operated fire extinguishers (6) in owner’s stateroom, forward and starboard guest cabins, utility area, galley and helm position
Additional extinguisher fitted when optional aft cabin is specified
Other standard equipment
Ensign staff
Fenders (6)
Mooring warps (4)
Boat hook
First aid kit
Tool kit
Owner’s manual and engine manual
Quilted bed covers supplied to all cabins (except optional crew cabin)
Set of glassware (8 settings consisting of tumbler and wine glasses)
Set of Princess china (8 settings consisting of plate, side plate, bowl, cup and saucer)
Set of cutlery (8 settings of David Mellor “Paris” cutlery 7 pieces)
Ship’s document case
Anchor winch back up handle
Finishes
Teak-laid decks to transom platform, steps to side decks, cockpit deck steps to sportbridge, sportbridge and steps to side decks
Timber-laid floor to galley and dining area, planked
Furniture in choice of Rovere Oak or Alba Oak in satin lacquer finish as standard. Silver Oak or Walnut in satin or gloss lacquer finishes available as an option
Solid surface floors in all bathroom suites in guest accommodation
Solid surface wash hand basin counter tops in all bathroom suites in guest accommodation
Galley worktop in solid surface
Choice of high quality carpet and upholstery fabric from extensive range
Blinds or sunscreens to all windows and portholes
Optional crew cabin has non-slip safety flooring, crew bathroom has white solid surface countertops
There is an undeniable presence about the new S66. Her slender streamlined form somehow also exudes a predatory air. A lightweight deep-V hull delivers on this promise with breath-taking agility up to 38 knots.
Her slender streamlined form somehow also exudes a predatory air. A lightweight deep-V hull delivers on this promise with breath-taking agility up to 38 knots.
A breathtaking perspective
A breathtaking perspective
Exterior Interior
S66
The new S66 has an undeniable presence
Her slender streamlined form somehow also exudes a predatory air. A lightweight deep-V hull delivers on this promise with breath-taking agility up to 38 knots.
A breathtaking perspective
Take a 360 virtual tour
With our 360 online tour, you can discover how the S66 is captivating on the outside, yet distinctively cool inside.
Experience her sociable galley aft arrangement, with opposing open-plan dining area, has sliding doors and a fully opening electric window leading out to the cockpit to create an al fresco bar.
Take a closer look below deck, where eight guests are accommodated across four cabins, three of which are en suite.
Sportbridge Layout

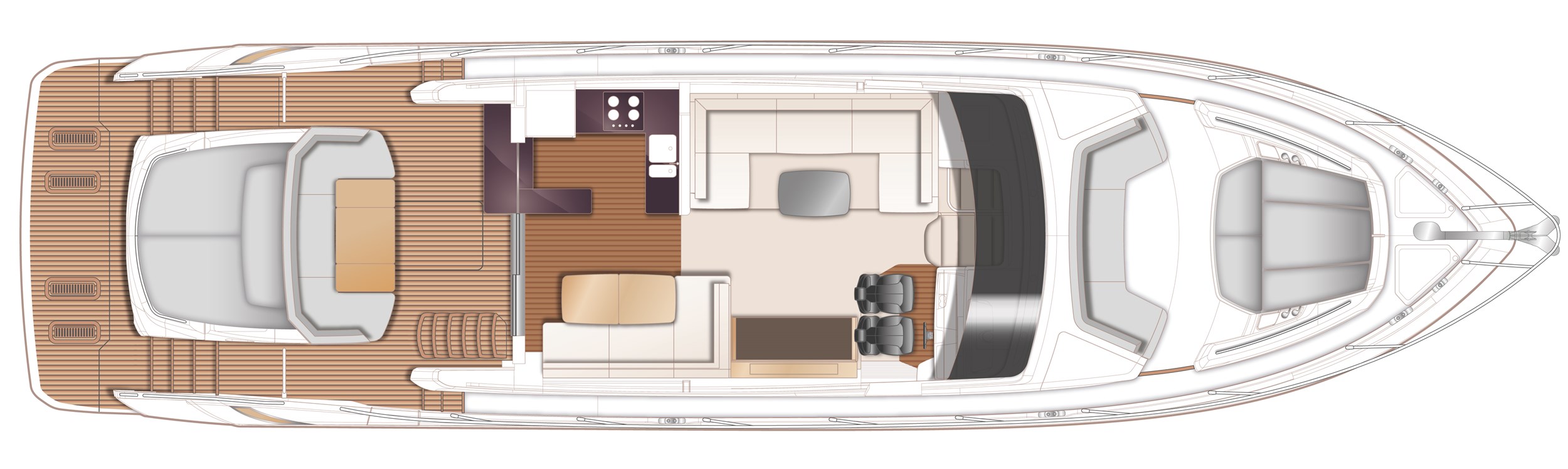

Main Deck Layout
Lower Deck Layout
An undeniable presence
When at anchor, peacefulness descends onto her generously appointed deck areas, which include a spacious foredeck seating area, whilst her hydraulic bathing platform and 3.3m tender garage become the perfect base for watersports.
Captivating on the outside, she is distinctively cool inside. Her sociable galley aft arrangement, with opposing open-plan dining area, has sliding doors and a fully opening electric window leading out to the cockpit to create an al fresco bar. Below deck eight guests are accommodated across four cabins, three of which are en-suite.
