Water capacity (incl. calorifier)
132 gal/159 US gal/603l
Engines
Twin MAN V8-1200 (2 x 1200mhp)
TOP SPEED: 36-38 knots
* Displacements are calculated with 50% fuel and water with liferaft but with no optional equipment fitted or other gear.
† Maximum speeds will vary depending on cleanliness of hull, condition of sterngear, loading of craft, water and air temperatures, sea conditions and other factors. Speed estimates are therefore given in good faith but without warranty or liability on the part of Princess Yachts Limited. Craft illustrated in this brochure may be fitted with certain optional equipment. Specifications may be changed at any time without notice or liability. USA Specification
‡ Certain specifications, which vary by model, are upgraded on Princess yachts built for use in North America. Thus, specifications and equipment will vary from the information listed in the brochure for North American Princess yachts (e.g. air-conditioning and an upgraded generator will be included as standard for all North American models and electric cooking facilities will be supplied in place of gas systems). Please consult the USA Specification Brochure for full details regarding the North American specifications for individual models.
Deck fittings
Teak-laid transom platform, cockpit deck, sportbridge stairway and steps to side deck
Reversible electric anchor winch with foredeck and helm position controls
Stemhead roller with automatic anchor launch and retrieve
Self-stowing (32kg/77lb) Delta anchor with 40m of chain
Bow rope storage locker
Freshwater deck/anchor wash
Walk through coach-roof seating area
Foredeck sunbathing area
Deck storage locker for fenders and ropes
Stainless steel bow, stern and spring cleats (8)
Stainless steel pulpit and guardrails
Stainless steel coach-roof handrails
Foredeck hatch
PVC rubbing band with stainless steel insert
LED deck level lighting
Full set of IMCO navigation lights
Riding light
Searchlight with remote control
Illuminated crown logo to transom
Twin electric horns
Fuel and water fillers
Ensign socket and staff
Cockpit and bathing platform
Self-draining
U-shaped seating/dining area with folding teak table
Sunbed aft
LED overhead and deck level lighting
Stainless steel handrails
Garage (to take tender up to 3.3m) with electro-hydraulic door and tender launch system with electric winch
Liferaft stowage locker
Rope stowage lockers
Lockable gas strut assisted hatch to lazarette
Lockable gas strut assisted hatch to lazarette/optional crew cabin
Lockable gas strut assisted hatch to engine room
Locker containing remote fuel cocks, manual bilge pump with valve chest and manual controls for automatic fire extinguishers
Twin transom doors leading to bathing platform
Electro-hydraulic raise/lower teak laid bathing platform (450kg SWL)
Retractable bathing ladder (manual) in side of hydraulic platform
Transom steps to access stern from bathing platform when in lowered position
Hot and cold transom shower
Marine audio system with radio and streaming capabilities with waterproof speakers
220/240v shore support inlet in locker
Tonneau canvas cover

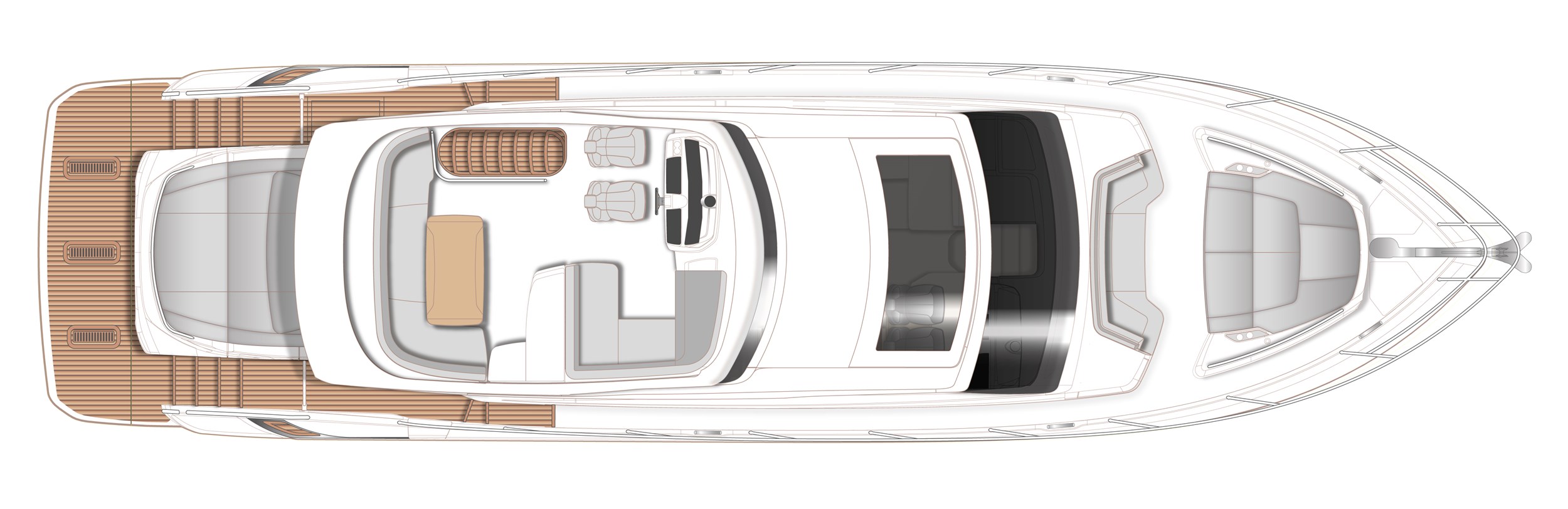

Sportbridge
Twin helm seats with fore and aft adjustment for helmsman
Instrument console with dual station controls and 9” colour multifunctional display incorporating engine instruments, fuel gauges, alarms and rudder position indicator (see Lower Helm Position)
16” colour mfd screen incorporating GPS/Chartplotter, log and echo sounder

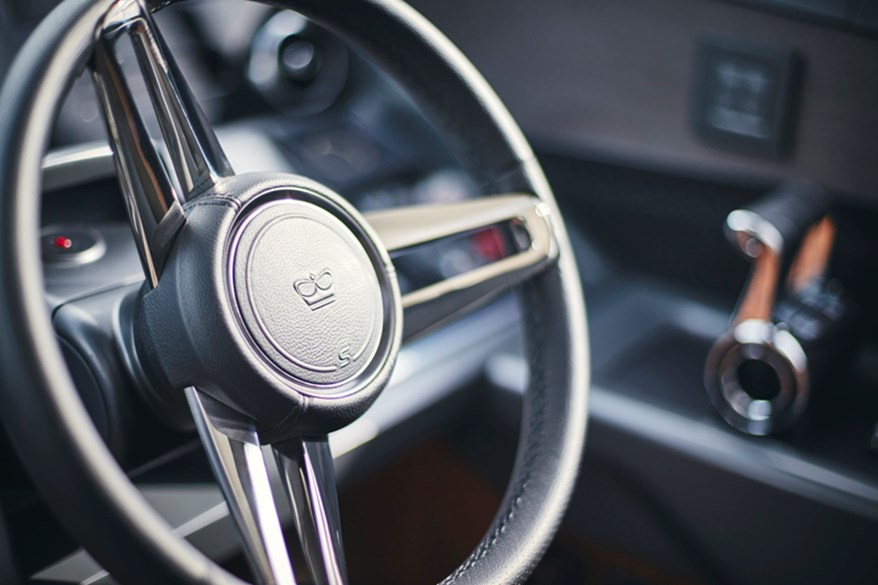

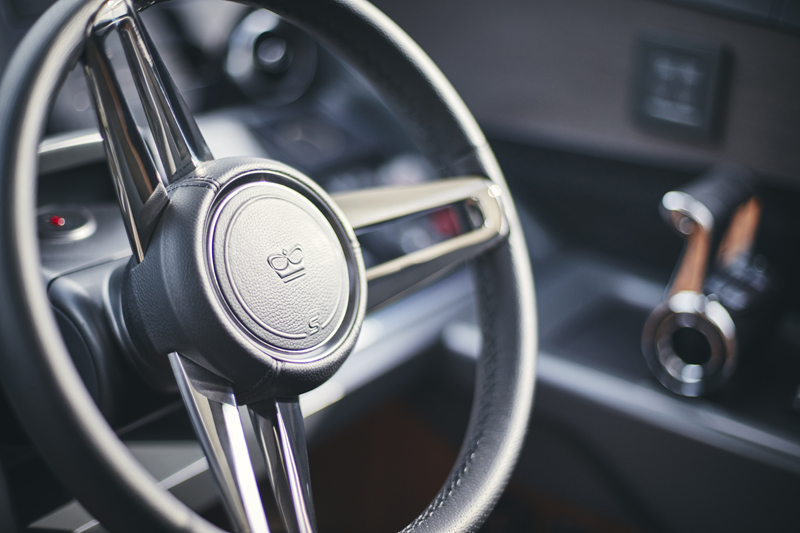

Adjustable steering wheel
Drinks holders
Wetbar with sink, storage, top loading coolbox and optional barbeque
Aft L-shaped upholstered seating
Teak folding table
Upholstered L-shaped companion seating (converts to sunpad)
Marine audio system with radio and streaming capabilities with waterproof speakers
Clear view hatch to aft cockpit
Wind deflector screens
Stainless steel handrails
LED deck level lighting
GRP radar arch
Matched whip aerials for VHF R/T and radio
Console and seat covers
Optional folding bimini with manual/ electro hydraulic operation

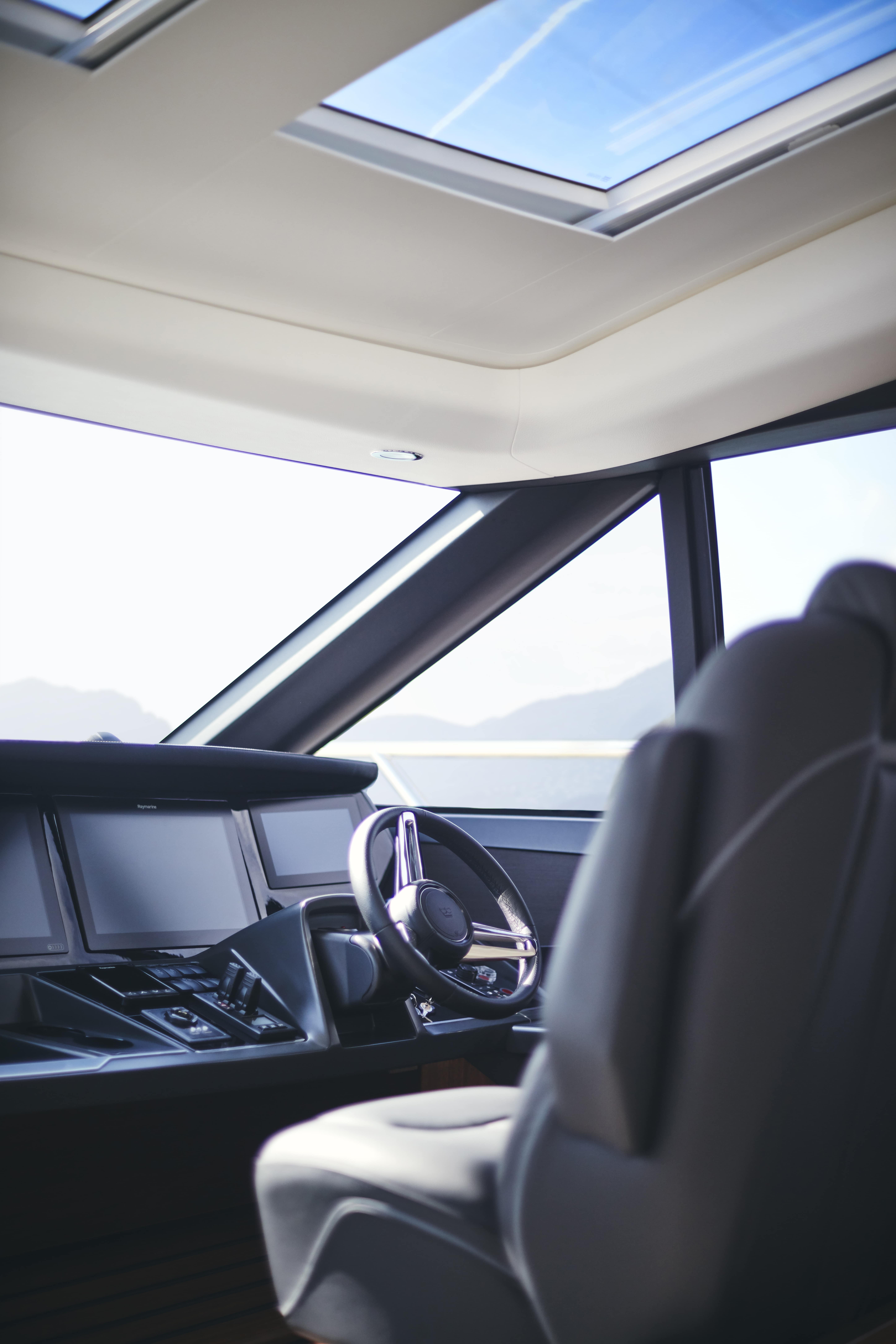

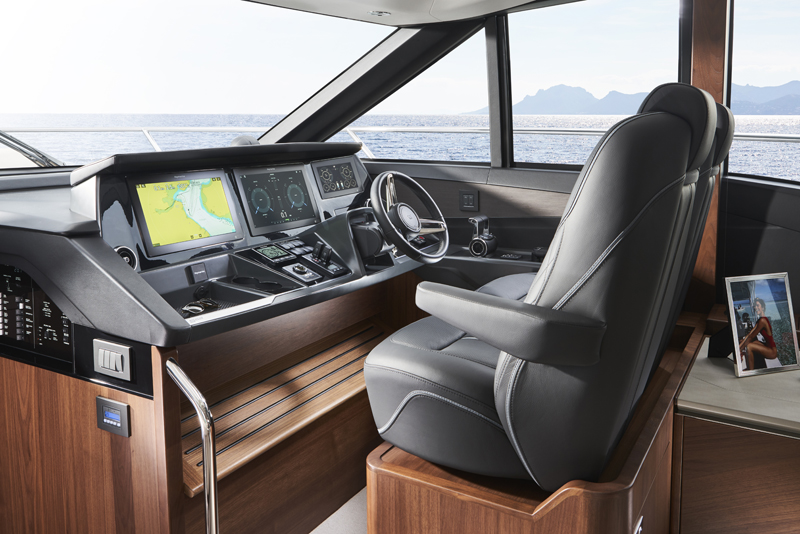

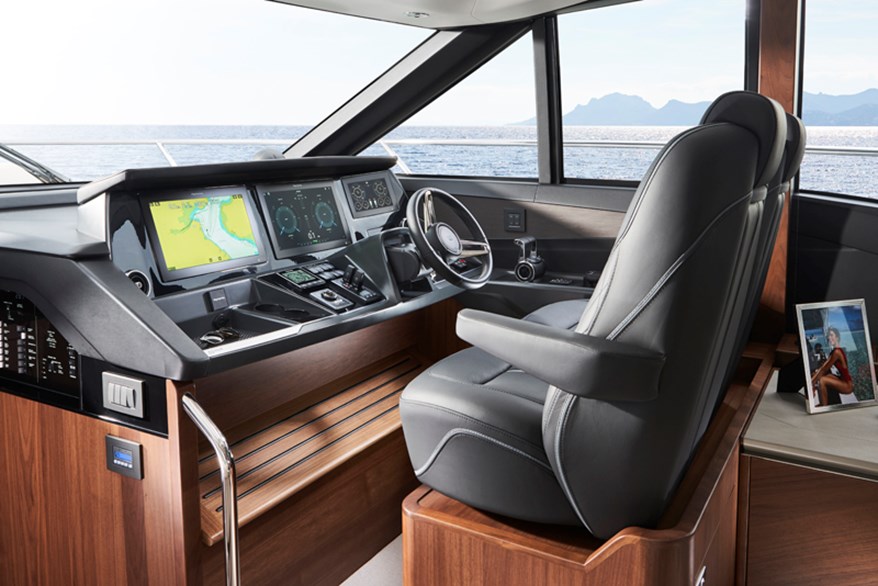

Helm position
Twin helm seats with fore and aft adjustment for helmsman
Instrument console with dual station controls and 9” colour multifunctional display incorporating engine instruments, fuel gauges, alarms and rudder position indicator
Dual station instruments and controls at Sportbridge and Lower Helm Positions: - power-assisted electro-hydraulic steering - adjustable steering wheel - rudder position indicator - high-speed magnetic compass - electronic engine controls - trim tab controls with indicators - bow thruster control - electric anchor winch remote control - autopilot - VHF with DSC R/T with intercom - remote control searchlight - horn button
Drinks holders
Toughened glass screen (clear for night vision)
Windscreen wipers with freshwater windscreen wash
Exterior black mesh windscreen covers
Bilge pump controls with visual pump running warnings
24v and 240v electrical control panel
Riding light, helm and navigation light control switches
USB connection point
LED overhead lighting (24v) and night lighting
Electric drop window
Timber flooring - V grooved planked

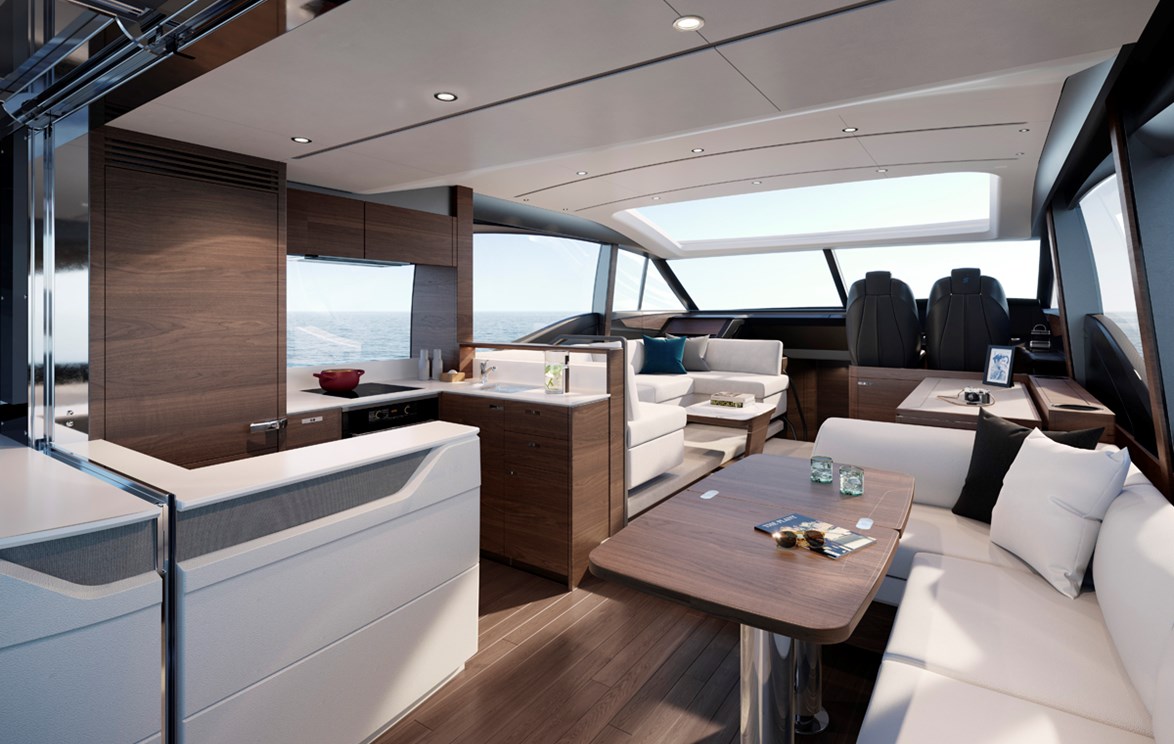

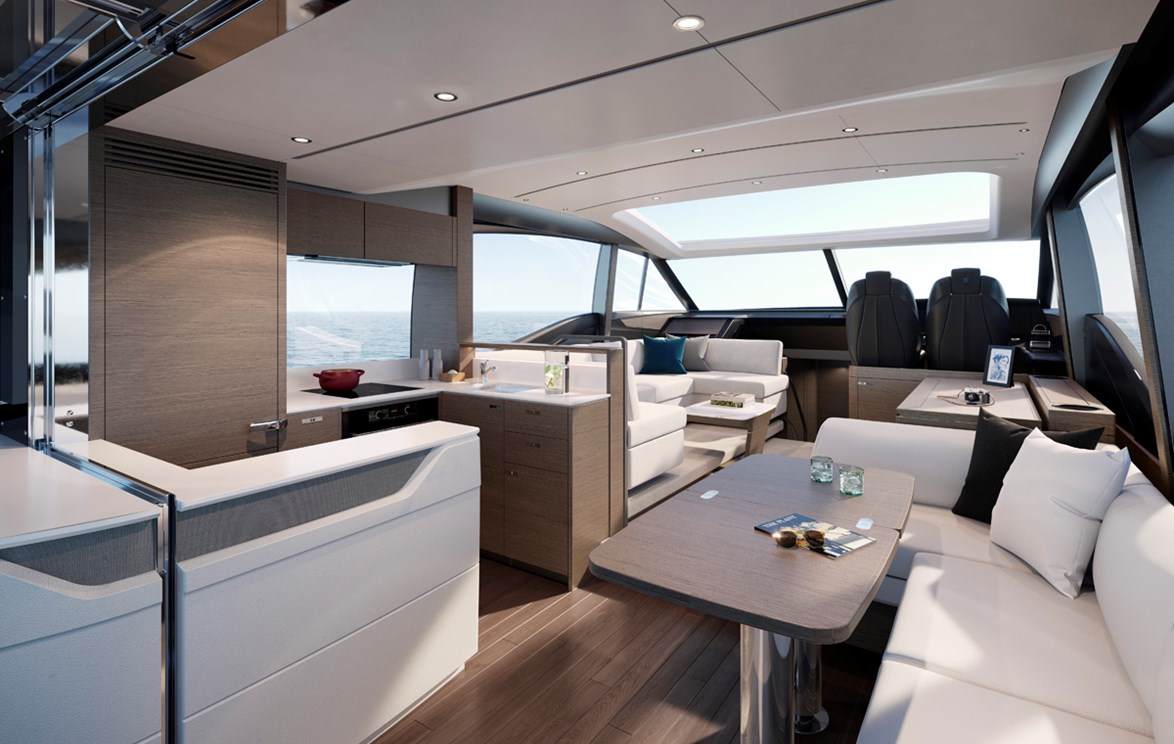

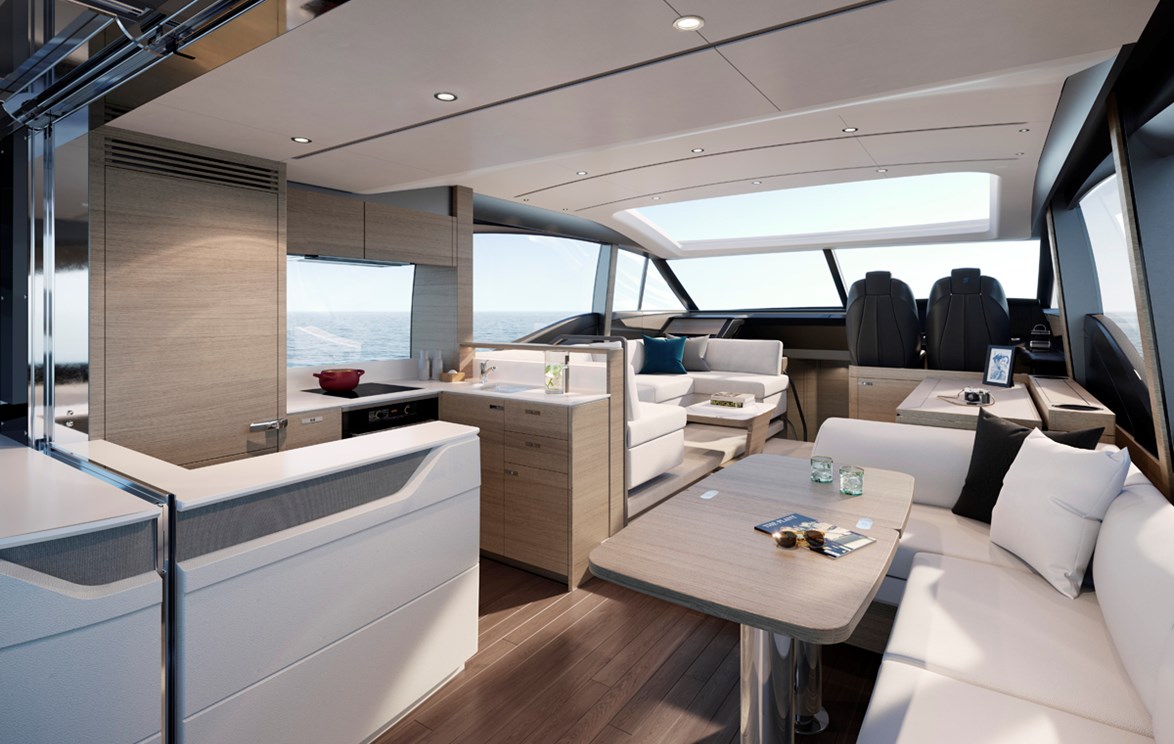

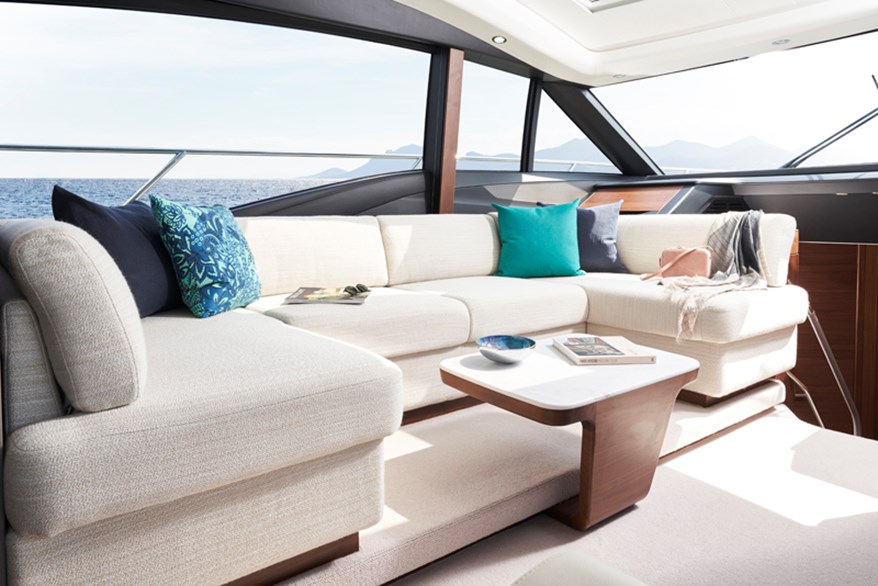

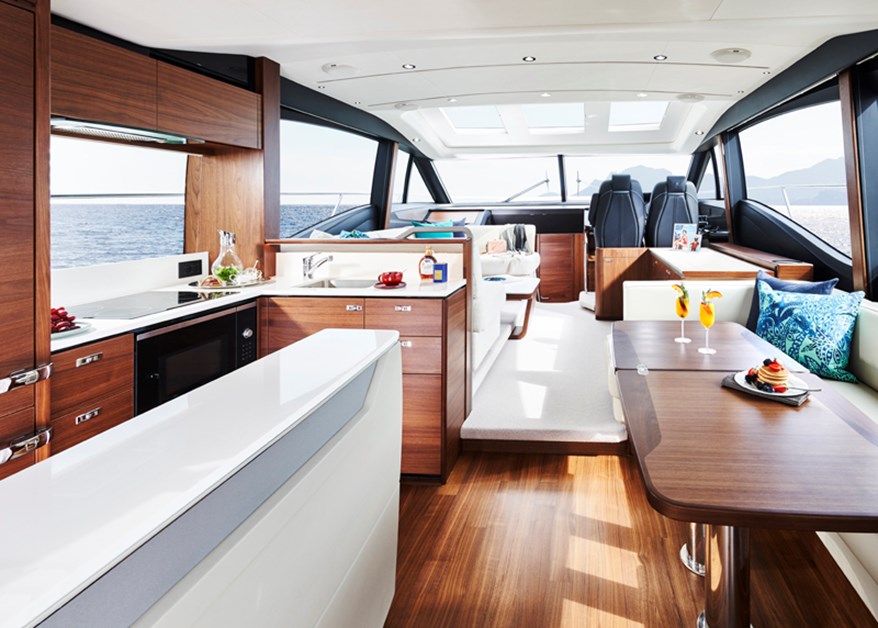

Saloon
U-shaped sofa
Coffee table

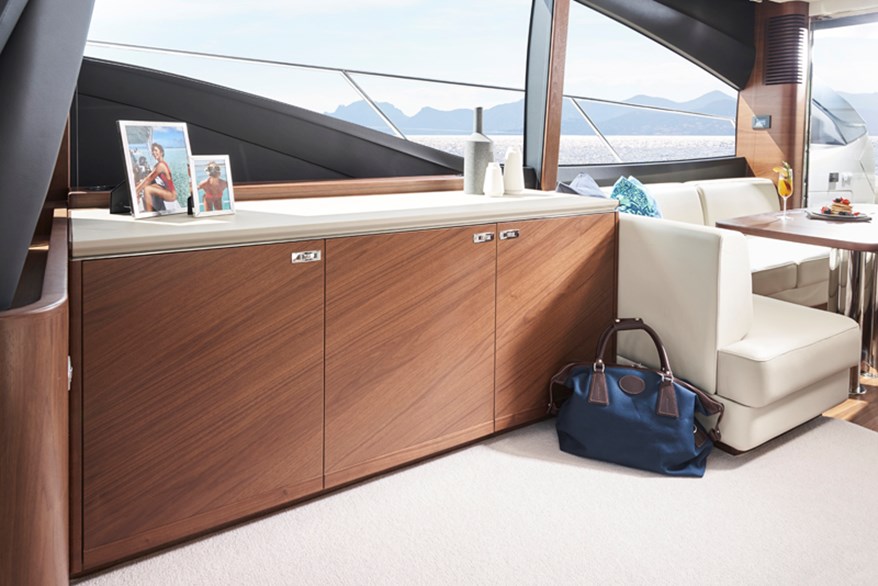

Sideboard unit with bottle and glass storage
Refrigerator
50” UHD LED TV on rise and fall
Fusion Apollo MS-RA770 Audio stereo system paired with Focal 100 ICW5 speakers (4)
Electric drop window to port
Blinds or sunscreens to all windows and doors
LED overhead and concealed lighting (24v)
Access stairway to lower accommodation
Skylights with reflecto-glass and sliding blinds (option of powered opening roof)
Fitted carpet

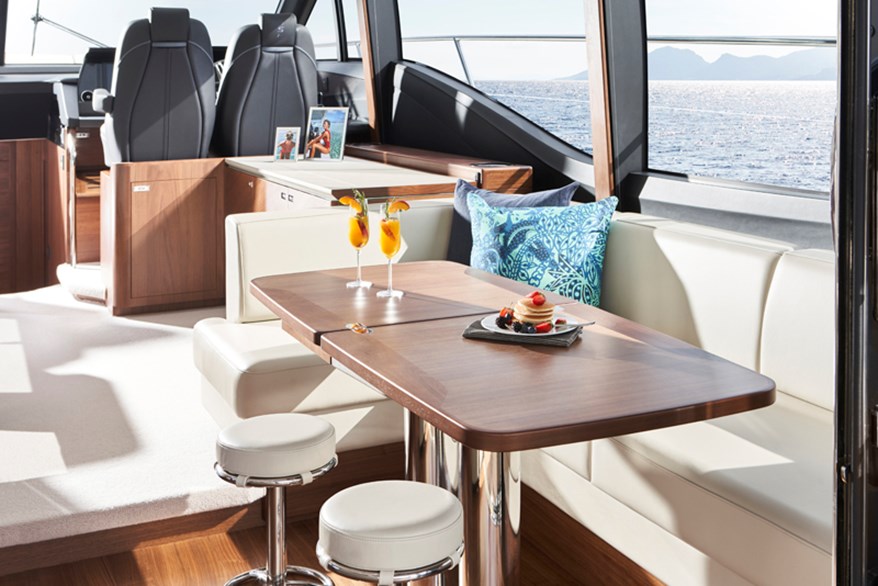

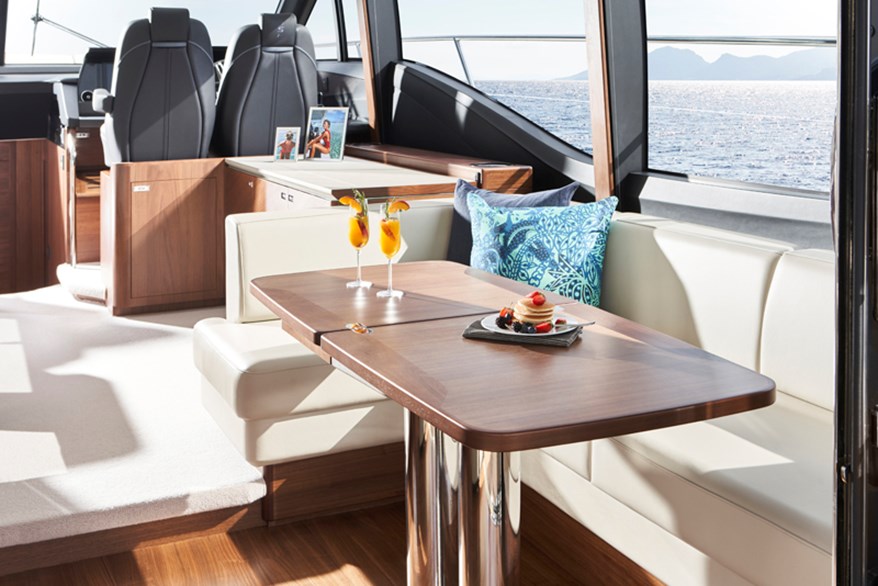

dining area
L-shaped sofa
Folding dining table
Stainless steel framed sliding door to cockpit with integrated hinging window aft of galley
Blinds or sunscreens to all windows and doors
LED overhead and concealed lighting (24v)
Timber flooring (planked)

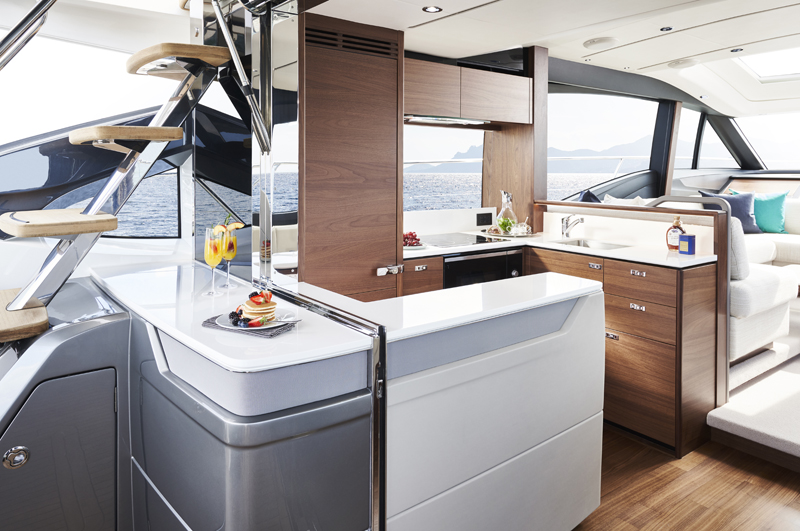

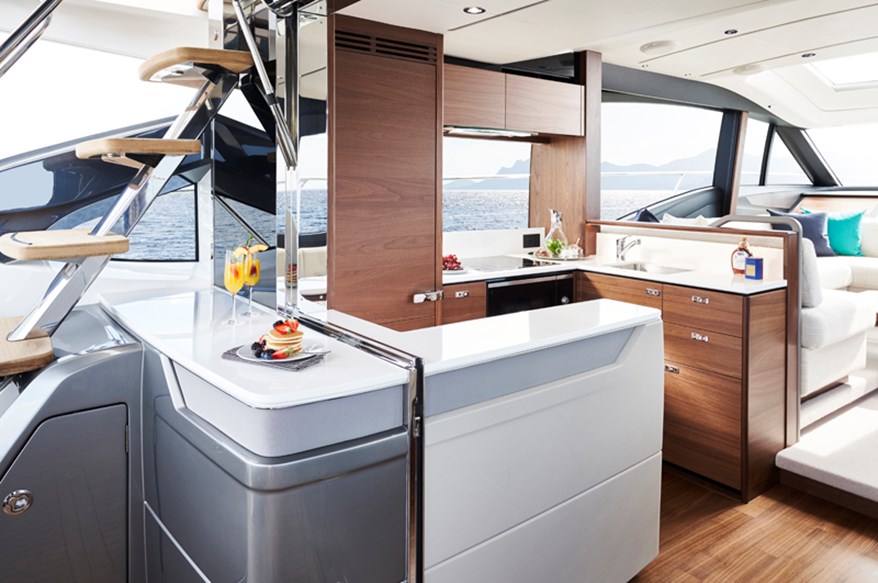

Galley
Solid surface counter top
4-zone ceramic hob
Extractor fan
Combination microwave/convection oven with grill
Stainless steel sink with mixer tap
Full height fridge/freezer (270l)
Waste bin
Drawers and storage cupboards
Blinds or sunscreens to all windows and doors
LED overhead and task lighting (24v)
220/240v outlets (4)
Timber flooring (planked)

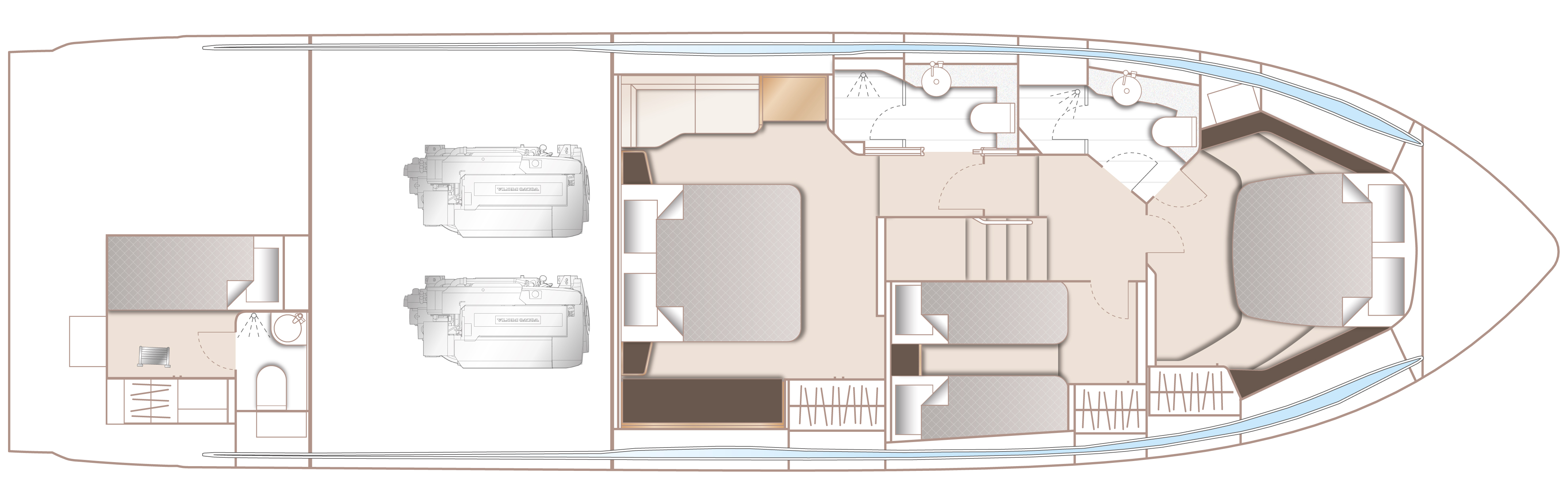

Accommodation
All cabins and bathrooms feature opening portholes
All cabins feature 220/240v power points
All bathrooms feature electric freshwater toilets and 240v shaver points

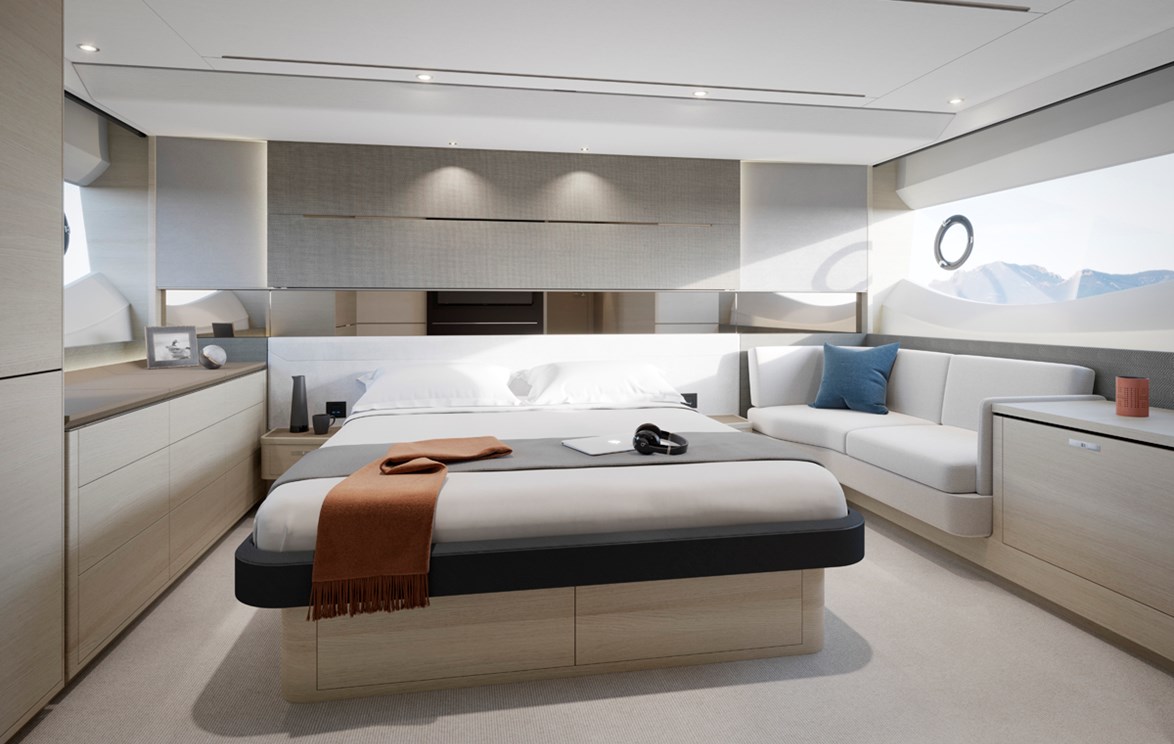

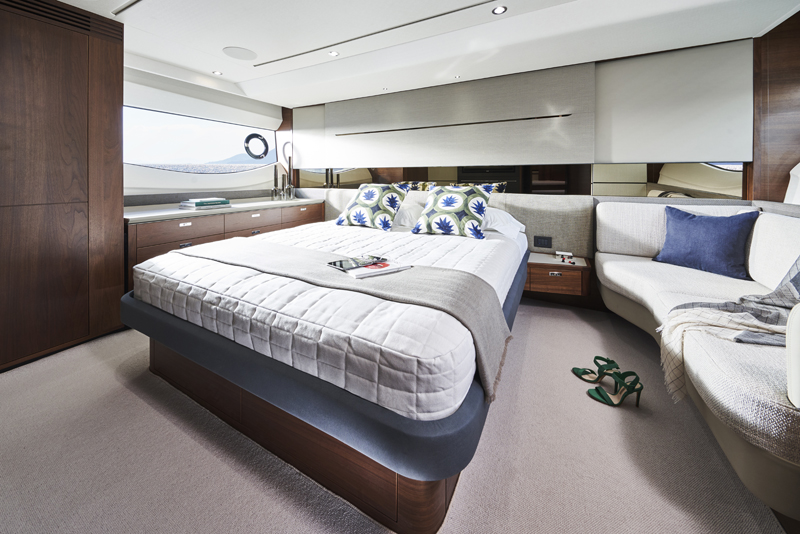

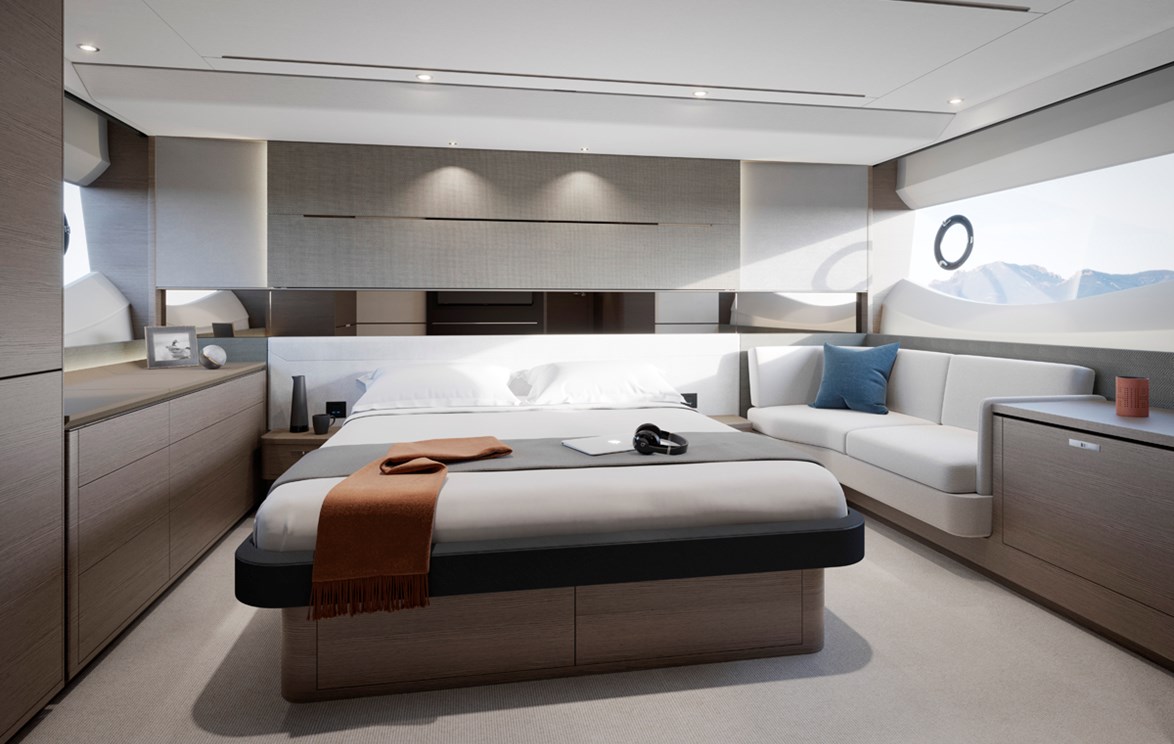

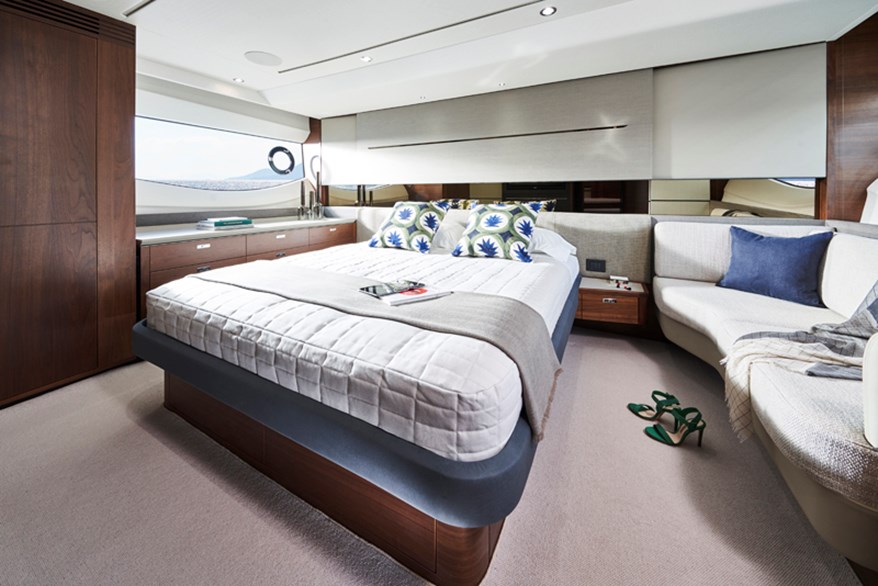

Owner’s stateroom
Large double bed with drawers below
Twin bedside tables
Wardrobes with hanging and drawer storage
Dressing table
Mirror

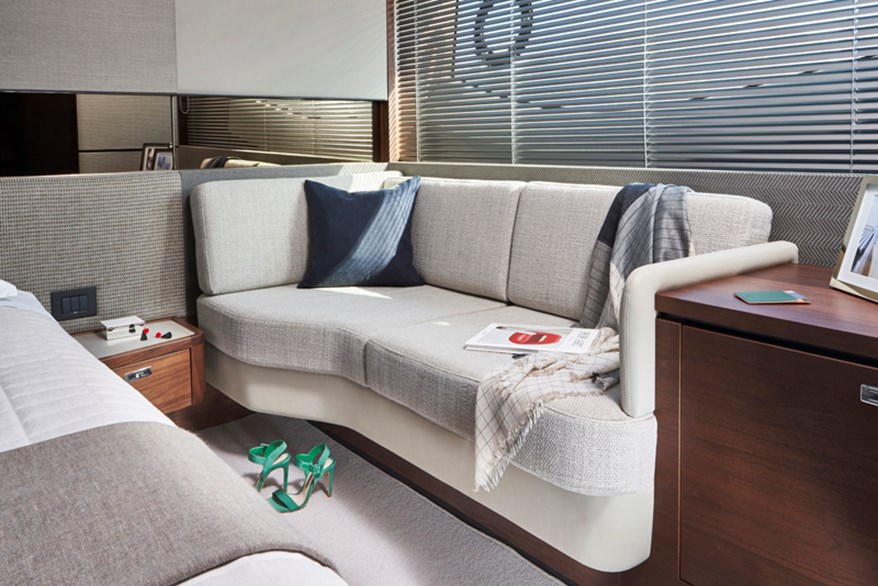

Sofa
Storage lockers and drawers
43” UHD LED TV
Fusion MS-RA670 audio system paired with Fusion 6" CL602 (2) speakers
Panoramic windows including opening porthole
Curtains or blinds
LED overhead and concealed lighting (24v)
Individual berth lights
220/240v outlets (2)
USB charging point
Fitted carpet
En-Suite Bathroom
Wash basin with solid surface counter top
Mirror
Storage lockers
Shower compartment with automatic pump out
Extractor fan
Window with opening porthole
Manual tension venetian blind
LED overhead and concealed lighting (24v)
Bathroom accessories
Solid surface flooring

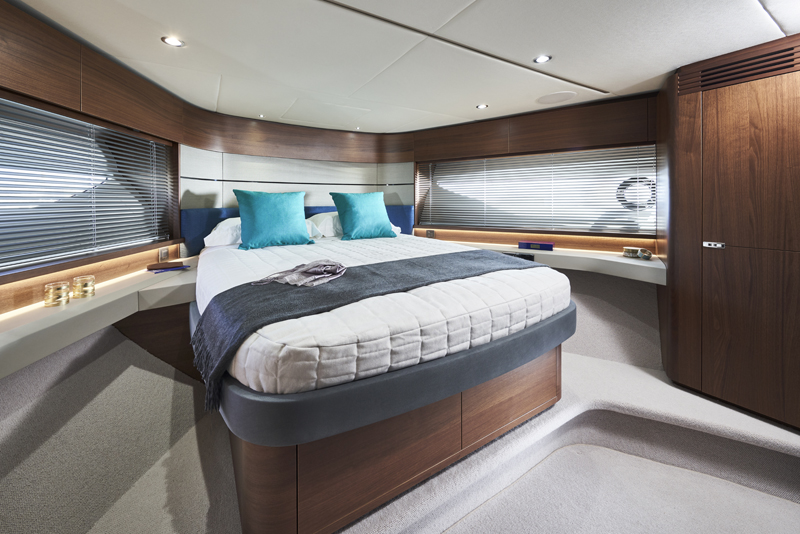

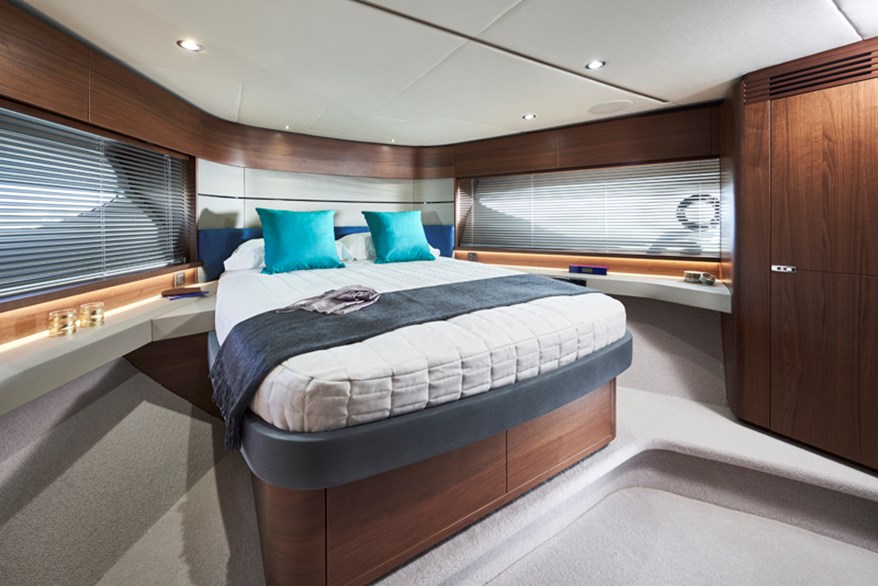

Forward stateroom
Large double bed with drawers below
Wardrobe with shelves
Dressing table
Mirror
Storage lockers
Window with opening porthole
Manual tension venetian blind
Deck hatch
LED overhead and concealed lighting (24v)
Individual berth lights
220/240v outlets (2)
USB charging point
Fitted carpet

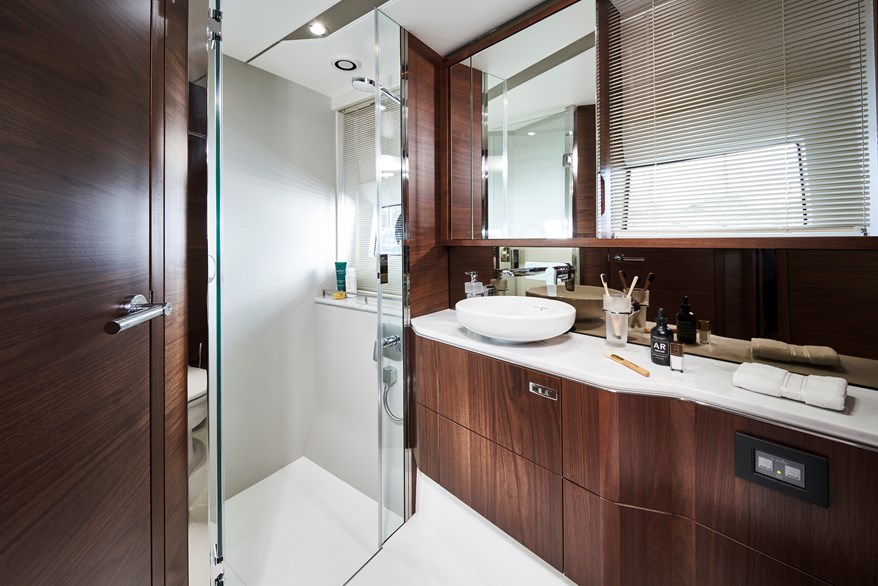

En-Suite Bathroom
Wash basin with solid surface counter top
Mirror
Storage lockers
Shower compartment with automatic pump out
Extractor fan
Window with opening porthole
Manual tension venetian blind
LED overhead and concealed lighting (24v)
Bathroom accessories
Solid surface flooring
Access door from passageway

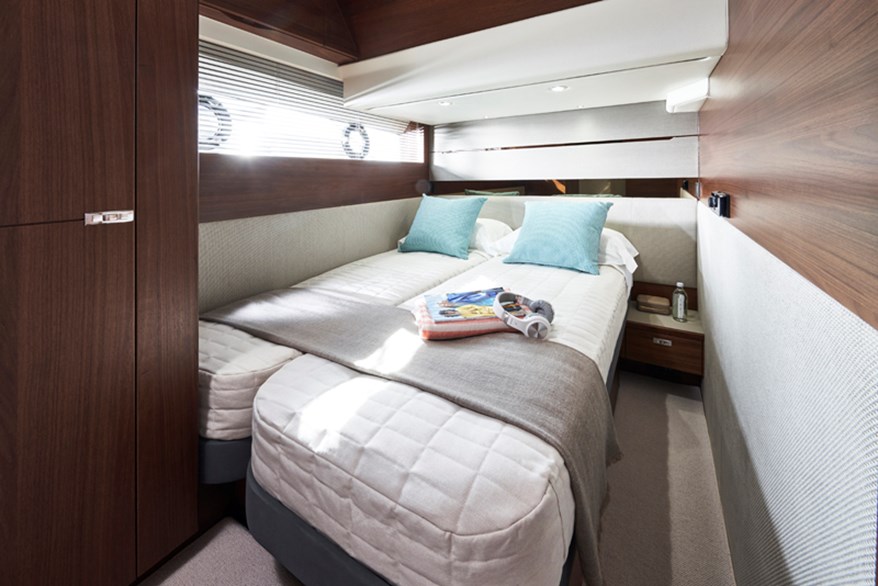

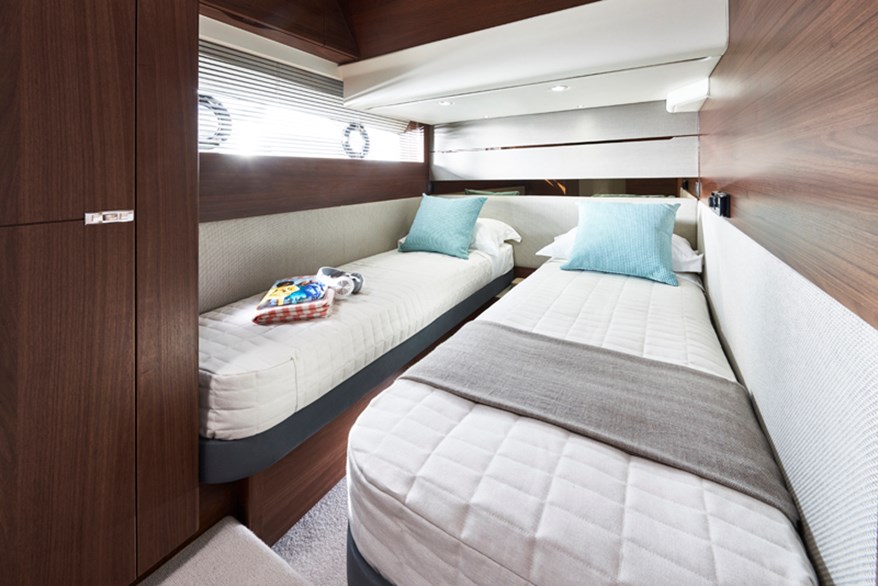

Starboard guest cabin
Two single beds with drawers below (with option of double bed conversion)
Bedside table
Wardrobe with shelves
Mirror
Storage lockers and drawers
Window with opening porthole
Manual tension venetian blind
LED overhead and concealed lighting (24v)
Individual berth lights
220/240v outlets (2)
USB charging point
Fitted carpet
Optional crew cabin (in place of aft lazarette)
Single bed with storage below
Wardrobe with shelf
Mirror
Wash basin with solid surface counter top
Storage lockers
Opening porthole
LED overhead lighting (24v)
Individual berth light
220/240v outlet (1)
Non-slip safety flooring
EN-SUITE BATHROOM
Shower with automatic pump out
Extractor fan
LED overhead lighting (24v)
Bathroom accessories
Power and drive systems
5-bladed propellers in nickel aluminium bronze
Bow thruster (130kgf/287lbf) with dual-station controls
Engine room lighting
Engine room access hatch and ladder
Power-assisted electro-hydraulic steering system
Trim tabs with indicators
Electronic engine and gear shift controls
Engine room extractor fan with electronic time delay
Fresh water supply point in engine room
Dripless self-aligning shaft seals
electrical systems
24 Volt:
4 x heavy duty batteries for engine starting
4 x heavy duty auxiliary batteries
1 x generator battery
Battery link facility with remote control at helm position
Both battery banks are charged using a voltage sensitive relay that parallels both battery banks when a charging source is present
60 amp battery charger charges both banks of batteries via an automatic switch charging system
Remote battery master switches with control switch at main switch panel
Circuit breakers on all circuits
12v voltage dropper for certain navigation and radio circuits
220/240 Volt:
11Kw diesel generator in own sound shield with water cooled specially silenced exhaust
Automatic fire extinguisher situated by generator
50 amp shore support inlet
Generator/shore support change-over switch
Polarity check system
Earth leakage safety trip
Circuit breakers on all circuits
Power points in: owner's stateroom, guest cabins, galley and saloon area
Shaver points in all bathrooms
Fuel system
Twin fuel tanks (in NS8 marine grade alloy) with interconnection system giving 715 gal / 858 US gal / 3,250l
Fuel fillers on port and starboard side decks
High-capacity duplex fuel filters with water traps with change-over valves, water warning sensors connected to warning lights at lower helm
Remote fuel cocks in cockpit locker
Fuel gauges at main helm console
Water system
Water tanks totalling 116 gal / 159 US gal / 530l plus 16 gal / 19 US gal / 73l hot water calorifier
Water heated by engines and 240v immersion heater
Automatic water pump with filter
Main circuit breaker at switch panel
Water level gauge
Deck filler
Electric freshwater toilet system with 55 gal / 66 US gal / 250l holding tank, content gauge and low noise manual overboard discharge, with macerator backup system as well as dockside discharge system
Fire extinguishers
Automatic/manual override fire extinguishers in engine room with warning system at helm position
Hand-operated fire extinguishers (5) in owner’s stateroom, forward and starboard guest cabins, galley and helm position
Additional extinguisher fitted when optional aft cabin is specified
Bilge pumps
Automatic/manual override electric bilge pumps in engine room (2), rudder area, lazarette and forward accommodation (6 in all)
High-capacity manual bilge pump with valve system and suction points in same areas
Electric bilge pumps have controls and warning lights at main helm and warning light with audible alarm at sportbridge helm
Other standard equipment
Ensign staff
Fenders (6)
Mooring warps (4)
Boat hook
First-aid kit
Tool kit
Owner’s manual and engine manual
Quilted bed covers supplied to all cabins (except optional crew cabin)
Ship’s document case
Anchor winch back up handle
Finishes
Teak-laid decks to transom platform, steps to side decks, cockpit deck steps to sportbridge, sportbridge and steps to side decks
Timber-laid floor to galley and dining area, planked
Furniture in choice of Rovere Oak or Alba Oak in satin lacquer finish as standard. Silver Oak or Walnut in satin or gloss lacquer finishes available as an option
Solid surface floors in all bathroom suites in guest accommodation
Solid surface counter tops in all bathroom suites in guest accommodation
Galley counter top in solid surface
Choice of high-quality carpet and upholstery fabric from extensive range
Blinds or sunscreens to all windows and portholes
Optional crew cabin has non-slip safety flooring, crew bathroom has white solid surface counter tops
Close

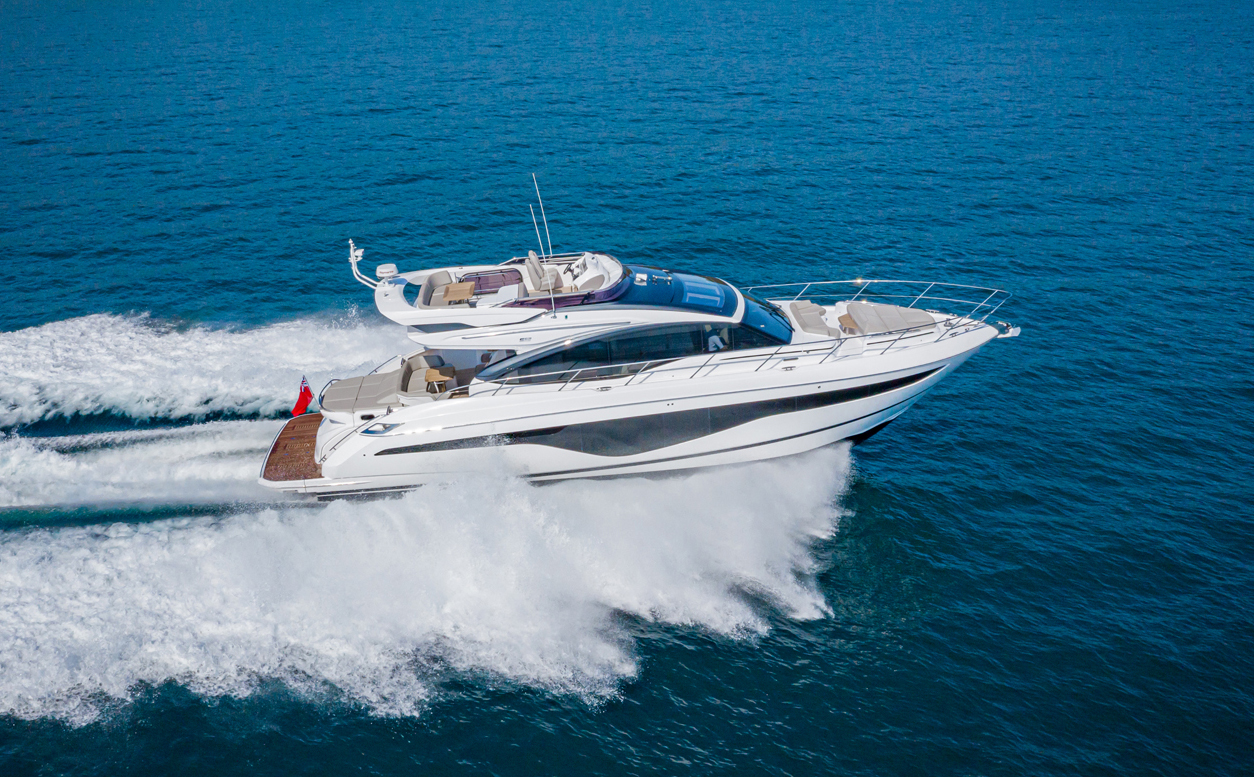

Princess S62
Principal Dimensions
Details
Specification
Disclaimer
Length overall (incl. pulpit)
62ft 11in (19.17m)
Length overall (excl. pulpit)
62ft 1in (18.92m)
Beam
16ft 0in (4.87m)
Draft
4ft 9in (1.46m)
Displacement approx.
27,200kg (59,957lbs)*
Fuel capacity
715 gal/858 US gal/3,250l
Water capacity (incl. calorifier)
132 gal/159 US gal/603l
Engines
Twin MAN V8-1200 (2 x 1200mhp)
TOP SPEED: 36-38 knots
* Displacements are calculated with 50% fuel and water with liferaft but with no optional equipment fitted or other gear.
† Maximum speeds will vary depending on cleanliness of hull, condition of sterngear, loading of craft, water and air temperatures, sea conditions and other factors. Speed estimates are therefore given in good faith but without warranty or liability on the part of Princess Yachts Limited. Craft illustrated in this brochure may be fitted with certain optional equipment. Specifications may be changed at any time without notice or liability. USA Specification
‡ Certain specifications, which vary by model, are upgraded on Princess yachts built for use in North America. Thus, specifications and equipment will vary from the information listed in the brochure for North American Princess yachts (e.g. air-conditioning and an upgraded generator will be included as standard for all North American models and electric cooking facilities will be supplied in place of gas systems). Please consult the USA Specification Brochure for full details regarding the North American specifications for individual models.
Principal Dimensions
Details
Deck fittings
Teak-laid transom platform, cockpit deck, sportbridge stairway and steps to side deck
Reversible electric anchor winch with foredeck and helm position controls
Stemhead roller with automatic anchor launch and retrieve
Self-stowing (32kg/77lb) Delta anchor with 40m of chain
Bow rope storage locker
Freshwater deck/anchor wash
Walk through coach-roof seating area
Foredeck sunbathing area
Deck storage locker for fenders and ropes
Stainless steel bow, stern and spring cleats (8)
Stainless steel pulpit and guardrails
Stainless steel coach-roof handrails
Foredeck hatch
PVC rubbing band with stainless steel insert
LED deck level lighting
Full set of IMCO navigation lights
Riding light
Searchlight with remote control
Illuminated crown logo to transom
Twin electric horns
Fuel and water fillers
Ensign socket and staff
Cockpit and bathing platform
Self-draining
U-shaped seating/dining area with folding teak table
Sunbed aft
LED overhead and deck level lighting
Stainless steel handrails
Garage (to take tender up to 3.3m) with electro-hydraulic door and tender launch system with electric winch
Liferaft stowage locker
Rope stowage lockers
Lockable gas strut assisted hatch to lazarette
Lockable gas strut assisted hatch to lazarette/optional crew cabin
Lockable gas strut assisted hatch to engine room
Locker containing remote fuel cocks, manual bilge pump with valve chest and manual controls for automatic fire extinguishers
Twin transom doors leading to bathing platform
Electro-hydraulic raise/lower teak laid bathing platform (450kg SWL)
Retractable bathing ladder (manual) in side of hydraulic platform
Transom steps to access stern from bathing platform when in lowered position
Hot and cold transom shower
Marine audio system with radio and streaming capabilities with waterproof speakers
220/240v shore support inlet in locker
Tonneau canvas cover
Sportbridge
Twin helm seats with fore and aft adjustment for helmsman
Instrument console with dual station controls and 9” colour multifunctional display incorporating engine instruments, fuel gauges, alarms and rudder position indicator (see Lower Helm Position)
16” colour mfd screen incorporating GPS/Chartplotter, log and echo sounder
Adjustable steering wheel
Drinks holders
Wetbar with sink, storage, top loading coolbox and optional barbeque
Aft L-shaped upholstered seating
Teak folding table
Upholstered L-shaped companion seating (converts to sunpad)
Marine audio system with radio and streaming capabilities with waterproof speakers
Clear view hatch to aft cockpit
Wind deflector screens
Stainless steel handrails
LED deck level lighting
GRP radar arch
Matched whip aerials for VHF R/T and radio
Console and seat covers
Optional folding bimini with manual/ electro hydraulic operation
Helm position
Twin helm seats with fore and aft adjustment for helmsman
Instrument console with dual station controls and 9” colour multifunctional display incorporating engine instruments, fuel gauges, alarms and rudder position indicator
Dual station instruments and controls at Sportbridge and Lower Helm Positions: - power-assisted electro-hydraulic steering - adjustable steering wheel - rudder position indicator - high-speed magnetic compass - electronic engine controls - trim tab controls with indicators - bow thruster control - electric anchor winch remote control - autopilot - VHF with DSC R/T with intercom - remote control searchlight - horn button
Drinks holders
Toughened glass screen (clear for night vision)
Windscreen wipers with freshwater windscreen wash
Exterior black mesh windscreen covers
Bilge pump controls with visual pump running warnings
24v and 240v electrical control panel
Riding light, helm and navigation light control switches
USB connection point
LED overhead lighting (24v) and night lighting
Electric drop window
Timber flooring - V grooved planked
Saloon
U-shaped sofa
Coffee table
Sideboard unit with bottle and glass storage
Refrigerator
50” UHD LED TV on rise and fall
Fusion Apollo MS-RA770 Audio stereo system paired with Focal 100 ICW5 speakers (4)
Electric drop window to port
Blinds or sunscreens to all windows and doors
LED overhead and concealed lighting (24v)
Access stairway to lower accommodation
Skylights with reflecto-glass and sliding blinds (option of powered opening roof)
Fitted carpet
dining area
L-shaped sofa
Folding dining table
Stainless steel framed sliding door to cockpit with integrated hinging window aft of galley
Blinds or sunscreens to all windows and doors
LED overhead and concealed lighting (24v)
Timber flooring (planked)
Galley
Solid surface counter top
4-zone ceramic hob
Extractor fan
Combination microwave/convection oven with grill
Stainless steel sink with mixer tap
Full height fridge/freezer (270l)
Waste bin
Drawers and storage cupboards
Blinds or sunscreens to all windows and doors
LED overhead and task lighting (24v)
220/240v outlets (4)
Timber flooring (planked)
Accommodation
All cabins and bathrooms feature opening portholes
All cabins feature 220/240v power points
All bathrooms feature electric freshwater toilets and 240v shaver points
Owner’s stateroom
Large double bed with drawers below
Twin bedside tables
Wardrobes with hanging and drawer storage
Dressing table
Mirror
Sofa
Storage lockers and drawers
43” UHD LED TV
Fusion MS-RA670 audio system paired with Fusion 6" CL602 (2) speakers
Panoramic windows including opening porthole
Curtains or blinds
LED overhead and concealed lighting (24v)
Individual berth lights
220/240v outlets (2)
USB charging point
Fitted carpet
En-Suite Bathroom
Wash basin with solid surface counter top
Mirror
Storage lockers
Shower compartment with automatic pump out
Extractor fan
Window with opening porthole
Manual tension venetian blind
LED overhead and concealed lighting (24v)
Bathroom accessories
Solid surface flooring
Forward stateroom
Large double bed with drawers below
Wardrobe with shelves
Dressing table
Mirror
Storage lockers
Window with opening porthole
Manual tension venetian blind
Deck hatch
LED overhead and concealed lighting (24v)
Individual berth lights
220/240v outlets (2)
USB charging point
Fitted carpet
En-Suite Bathroom
Wash basin with solid surface counter top
Mirror
Storage lockers
Shower compartment with automatic pump out
Extractor fan
Window with opening porthole
Manual tension venetian blind
LED overhead and concealed lighting (24v)
Bathroom accessories
Solid surface flooring
Access door from passageway
Starboard guest cabin
Two single beds with drawers below (with option of double bed conversion)
Bedside table
Wardrobe with shelves
Mirror
Storage lockers and drawers
Window with opening porthole
Manual tension venetian blind
LED overhead and concealed lighting (24v)
Individual berth lights
220/240v outlets (2)
USB charging point
Fitted carpet
Optional crew cabin (in place of aft lazarette)
Single bed with storage below
Wardrobe with shelf
Mirror
Wash basin with solid surface counter top
Storage lockers
Opening porthole
LED overhead lighting (24v)
Individual berth light
220/240v outlet (1)
Non-slip safety flooring
EN-SUITE BATHROOM
Shower with automatic pump out
Extractor fan
LED overhead lighting (24v)
Bathroom accessories
Power and drive systems
5-bladed propellers in nickel aluminium bronze
Bow thruster (130kgf/287lbf) with dual-station controls
Engine room lighting
Engine room access hatch and ladder
Power-assisted electro-hydraulic steering system
Trim tabs with indicators
Electronic engine and gear shift controls
Engine room extractor fan with electronic time delay
Fresh water supply point in engine room
Dripless self-aligning shaft seals
electrical systems
24 Volt:
4 x heavy duty batteries for engine starting
4 x heavy duty auxiliary batteries
1 x generator battery
Battery link facility with remote control at helm position
Both battery banks are charged using a voltage sensitive relay that parallels both battery banks when a charging source is present
60 amp battery charger charges both banks of batteries via an automatic switch charging system
Remote battery master switches with control switch at main switch panel
Circuit breakers on all circuits
12v voltage dropper for certain navigation and radio circuits
220/240 Volt:
11Kw diesel generator in own sound shield with water cooled specially silenced exhaust
Automatic fire extinguisher situated by generator
50 amp shore support inlet
Generator/shore support change-over switch
Polarity check system
Earth leakage safety trip
Circuit breakers on all circuits
Power points in: owner's stateroom, guest cabins, galley and saloon area
Shaver points in all bathrooms
Fuel system
Twin fuel tanks (in NS8 marine grade alloy) with interconnection system giving 715 gal / 858 US gal / 3,250l
Fuel fillers on port and starboard side decks
High-capacity duplex fuel filters with water traps with change-over valves, water warning sensors connected to warning lights at lower helm
Remote fuel cocks in cockpit locker
Fuel gauges at main helm console
Water system
Water tanks totalling 116 gal / 159 US gal / 530l plus 16 gal / 19 US gal / 73l hot water calorifier
Water heated by engines and 240v immersion heater
Automatic water pump with filter
Main circuit breaker at switch panel
Water level gauge
Deck filler
Electric freshwater toilet system with 55 gal / 66 US gal / 250l holding tank, content gauge and low noise manual overboard discharge, with macerator backup system as well as dockside discharge system
Fire extinguishers
Automatic/manual override fire extinguishers in engine room with warning system at helm position
Hand-operated fire extinguishers (5) in owner’s stateroom, forward and starboard guest cabins, galley and helm position
Additional extinguisher fitted when optional aft cabin is specified
Bilge pumps
Automatic/manual override electric bilge pumps in engine room (2), rudder area, lazarette and forward accommodation (6 in all)
High-capacity manual bilge pump with valve system and suction points in same areas
Electric bilge pumps have controls and warning lights at main helm and warning light with audible alarm at sportbridge helm
Other standard equipment
Ensign staff
Fenders (6)
Mooring warps (4)
Boat hook
First-aid kit
Tool kit
Owner’s manual and engine manual
Quilted bed covers supplied to all cabins (except optional crew cabin)
Ship’s document case
Anchor winch back up handle
Finishes
Teak-laid decks to transom platform, steps to side decks, cockpit deck steps to sportbridge, sportbridge and steps to side decks
Timber-laid floor to galley and dining area, planked
Furniture in choice of Rovere Oak or Alba Oak in satin lacquer finish as standard. Silver Oak or Walnut in satin or gloss lacquer finishes available as an option
Solid surface floors in all bathroom suites in guest accommodation
Solid surface counter tops in all bathroom suites in guest accommodation
Galley counter top in solid surface
Choice of high-quality carpet and upholstery fabric from extensive range
Blinds or sunscreens to all windows and portholes
Optional crew cabin has non-slip safety flooring, crew bathroom has white solid surface counter tops

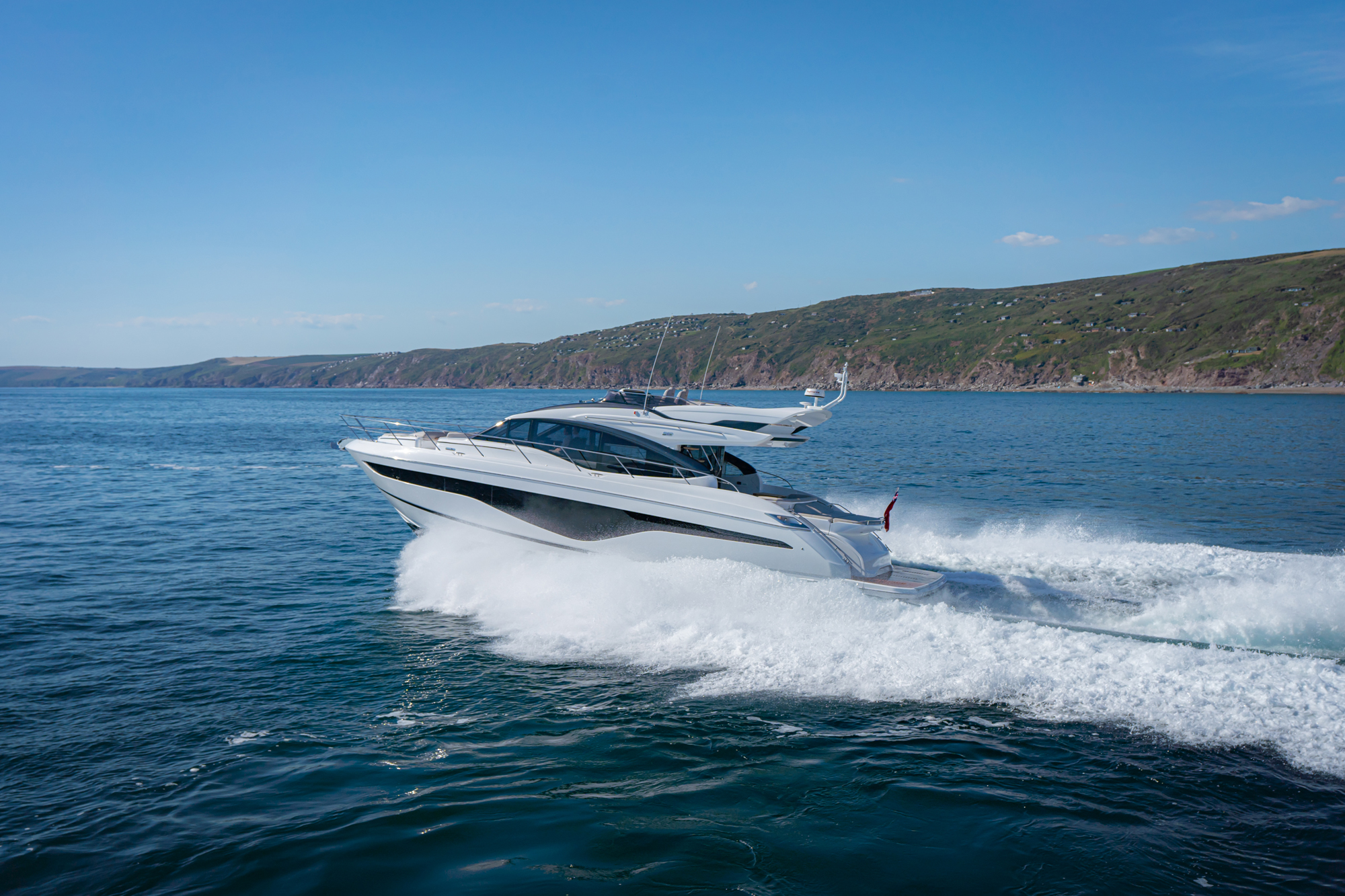

Powerful yet elegant, the new S62's sleek exterior styling presents a dynamic, agile stance. With an optimised hull form spearheading her efficiency, her MAN V8 1200 engines mean you can experience speeds up to 38 knots.
Sideboard unit with bottle and glass storage and refrigerator
L-shaped dining area with folding table
Twin adjustable helm seats
Sofa
finish
Choose your finish
Saloon
Stateroom
Owner’s stateroom
Owner’s stateroom
Choose your finish
Customise your yacht with a choice of 4 timber finishes. Choose from Alba Oak or Rovere Oak in a satin finish as standard. Alternatively you can select Silver Oak or Walnut in a choice of satin or gloss finishes as an option.
Sportbridge Layout

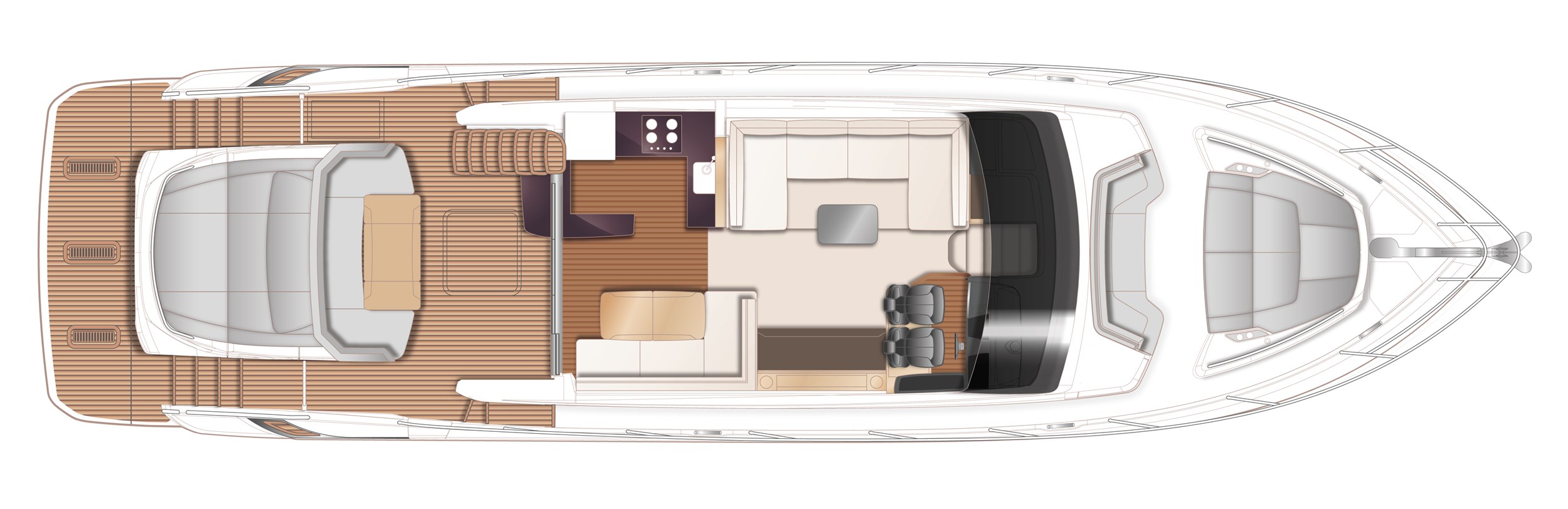

Main Deck Layout
Lower Deck Layout
Powerful yet elegant
When at anchor her electro-hydraulic bathing platform creates a convenient launch system for a 3.3m tender, a jet ski, or simply a secluded swimming platform. Her sociable galley aft arrangement features an open-plan dining area with sliding doors and a fully opening window leading out to the cockpit. Below deck, six guests are comfortably accommodated across an en suite full-beam owner’s stateroom and two further guest cabins with the option of an additional crew cabin aft.
