Water capacity (excl. calorifier)
31 gal/37 US gal/140l
Engines
Volvo Petrol V8 (2 x 430mhp)
TOP SPEED: 45-50 knots†
* Displacements are calculated with 50% fuel and water with liferaft but with no optional equipment fitted or other gear.
† Maximum speeds will vary depending on cleanliness of hull, condition of sterngear, loading of craft, water and air temperatures, sea conditions and other factors. Speed estimates are therefore given in good faith but without warranty or liability on the part of Princess Yachts Limited. Craft illustrated in this brochure may be fitted with certain optional equipment. Specifications may be changed at any time without notice or liability. USA Specification
‡ Certain specifications, which vary by model, are upgraded on Princess yachts built for use in North America. Thus, specifications and equipment will vary from the information listed in the brochure for North American Princess yachts (e.g. air-conditioning and an upgraded generator will be included as standard for all North American models and electric cooking facilities will be supplied in place of gas systems). Please consult the USA Specification Brochure for full details regarding the North American specifications for individual models.
Deck fittings
Esthec laid transom platform, cockpit deck, foredeck, steps to side decks and side decks with white caulking
Reversible electric anchor winch with helm position and foredeck controls
Self-stowing 16kg galvanised anchor mechanism with 30m of galvanised chain

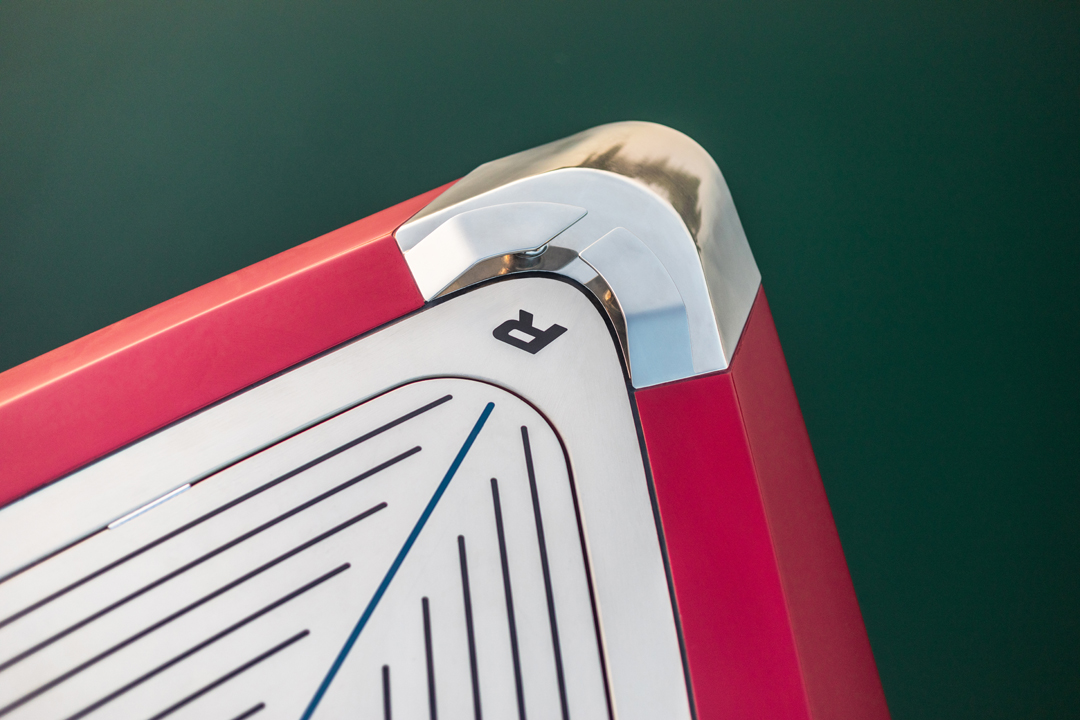

Discrete retractable stemhead roller with automatic anchor launch and retrieve
Chain locker hatch

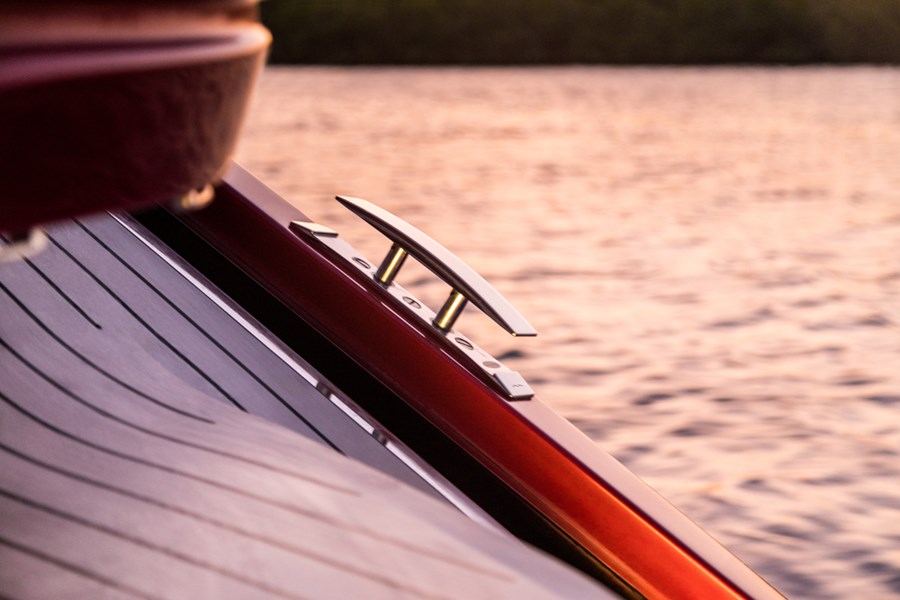

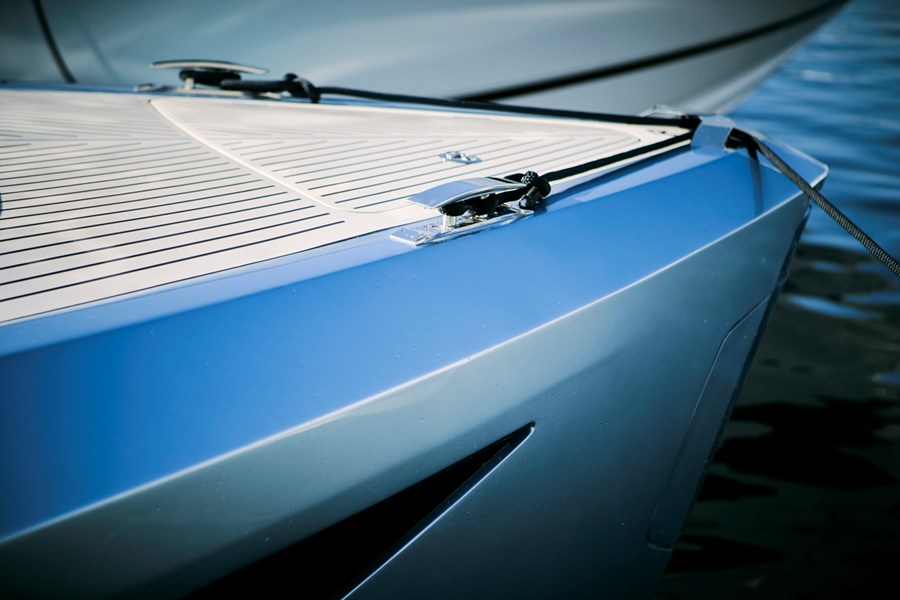

Stainless steel pop-up bow, stern and spring cleats
Stainless steel foredeck grabrail
Fender landings / deck mounted sockets
Foredeck glazing with integrated blind
Full set of IMCO navigation lights
Riding light

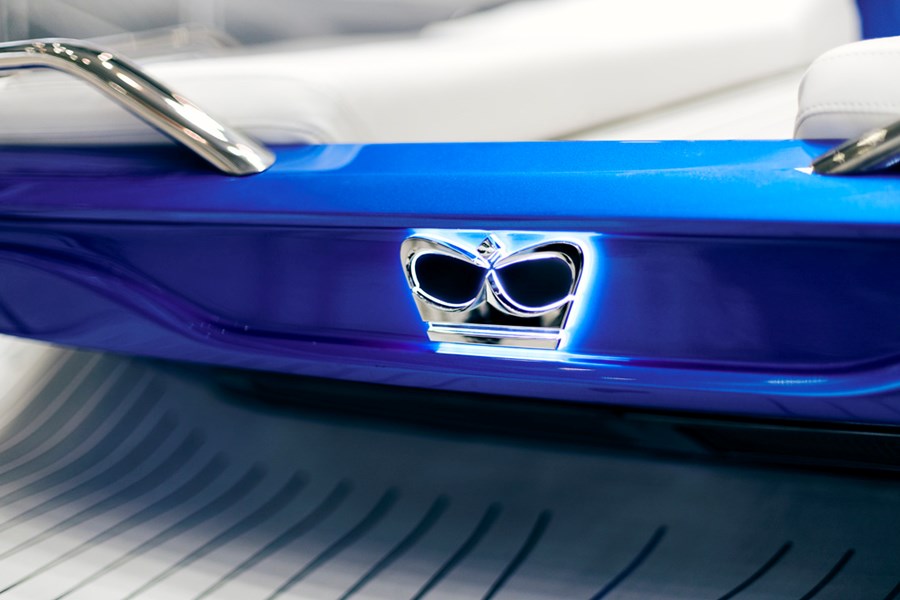

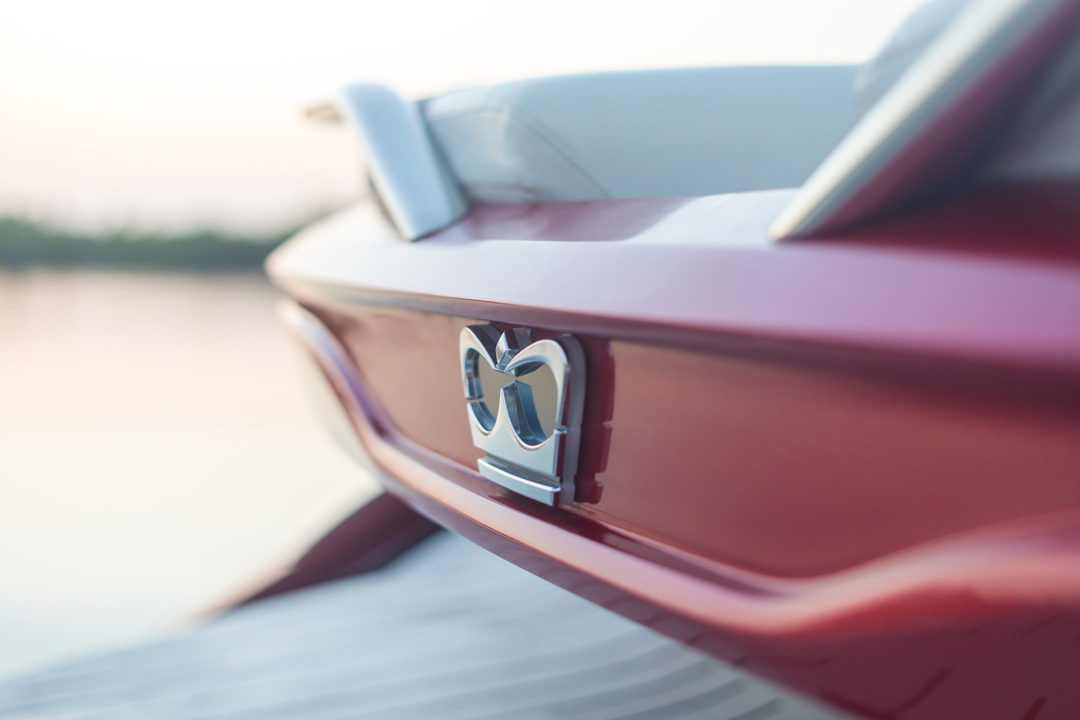

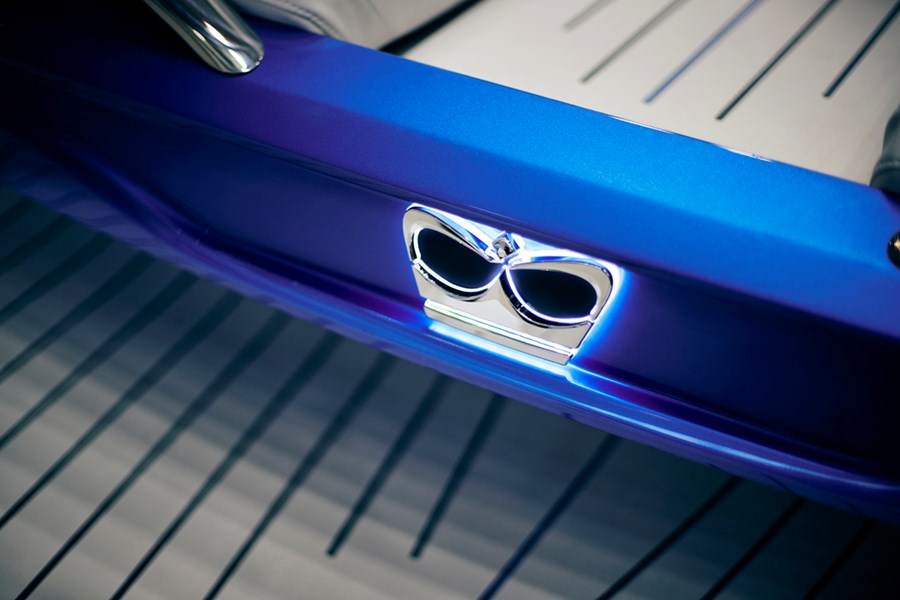

Illuminated crown logo to transom
Electric horn
Ensign socket and pole
Windscreen with wind deflector/grab rail
Fuel and water fillers

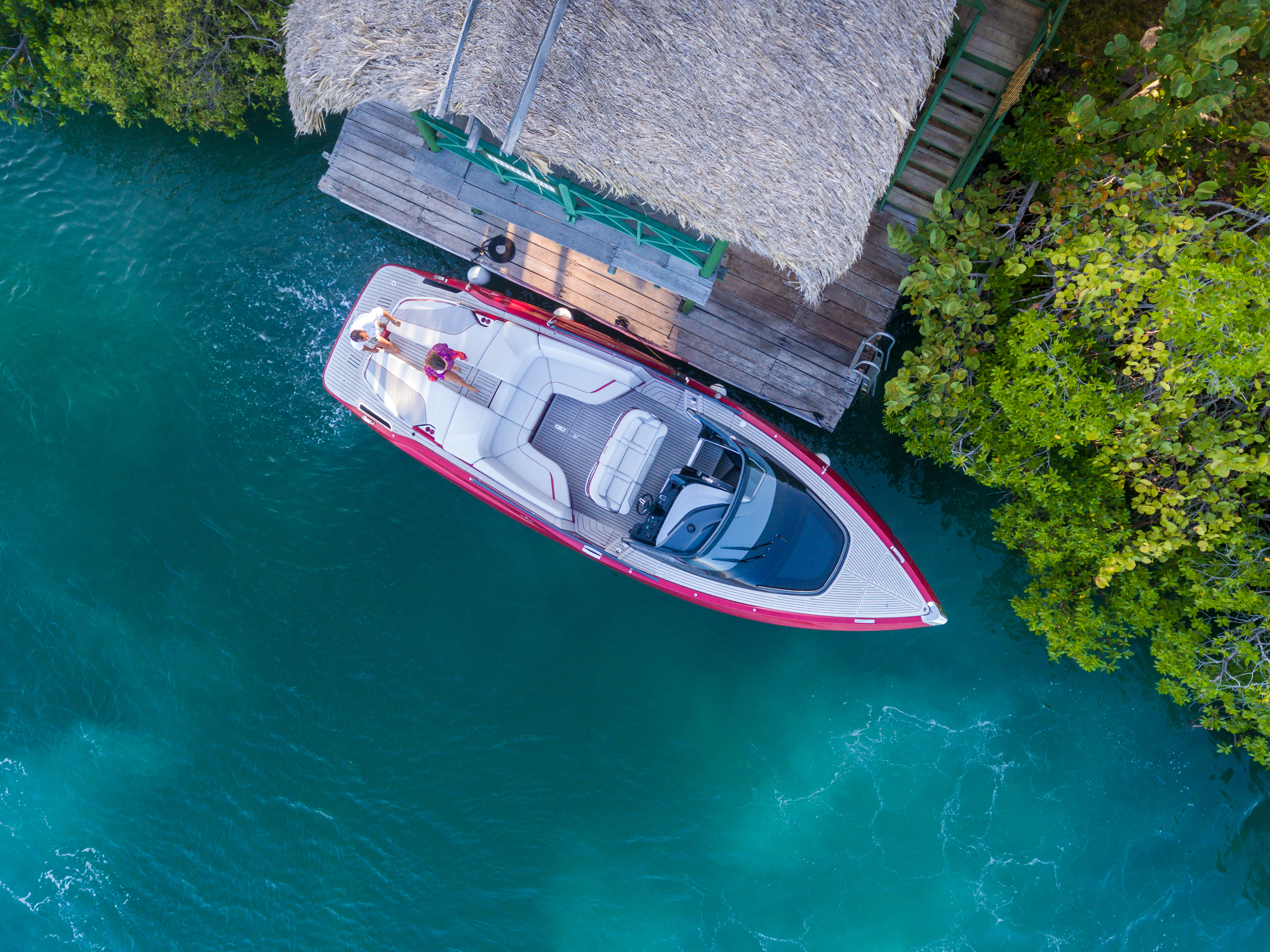

Cockpit
Self-draining
U-shaped upholstered seating/dining area with handholds and folding central section to reveal Esthec laid step to cockpit from transom with white caulking
Teak folding removable table with deck mounting sockets in two positions

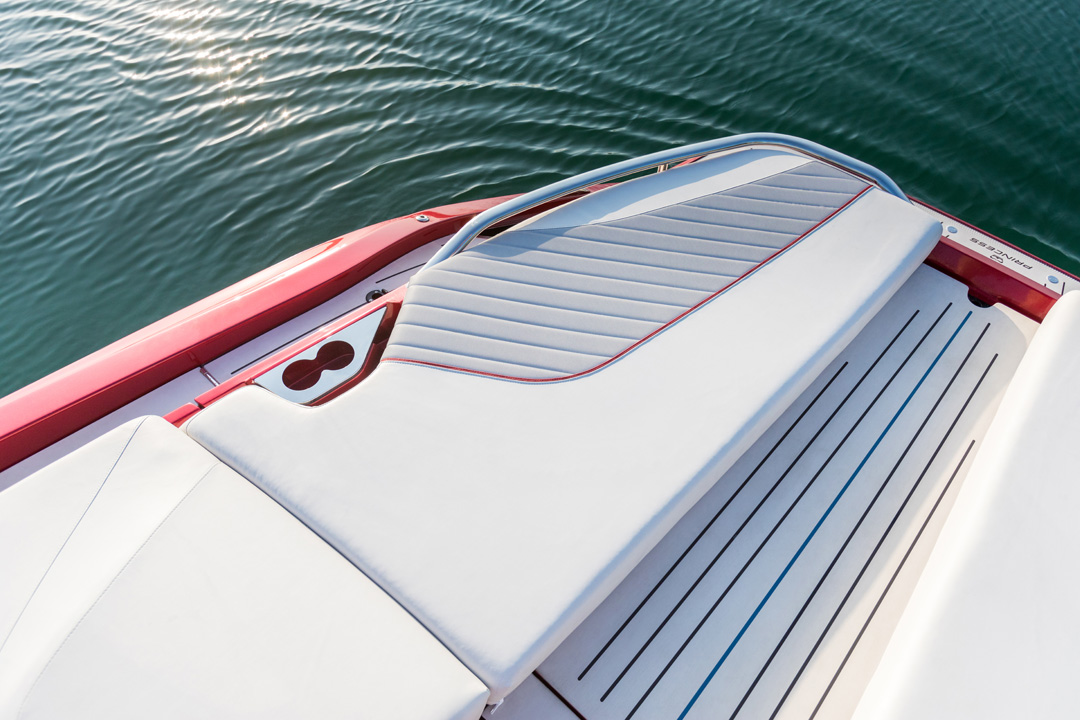

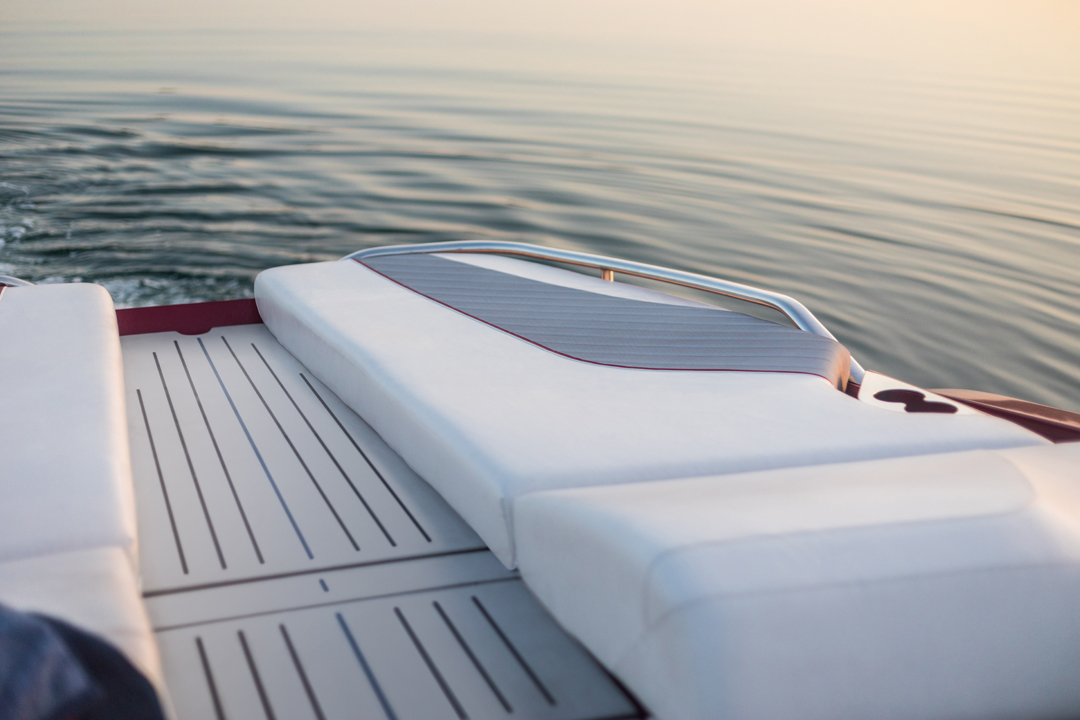

Aft sunbathing area with handrails aft and outboard
Exterior seating and sunbeds in reticulated foam
Steps to side decks
Stairway to lower accommodation with sliding companionway hatch
Storage lockers port and starboard
Fender storage in cockpit hatch
Rope storage locker
LED deck level lighting
Stainless steel grabrails
Storage compartment below helm seating
Locker with remote fire and fuel cocks
220/240v shore support inlet
12v exterior splash proof power point
JL Audio M6-650X-L waterproof speakers (2) linked to Naim audio system located in saloon
Life raft storage locker
Powered engine access hatch with storage rack system on underside
Lazarette access hatch with gas strut support
Esthec laid walkway below cockpit sunbed upholstery leading to bathing platform with white caulking
Retractable rescue ladder in bathing platform
Bathing ladder with deck mounting sockets
Hot and cold transom shower
Sunbrella tonneau cover
Helm

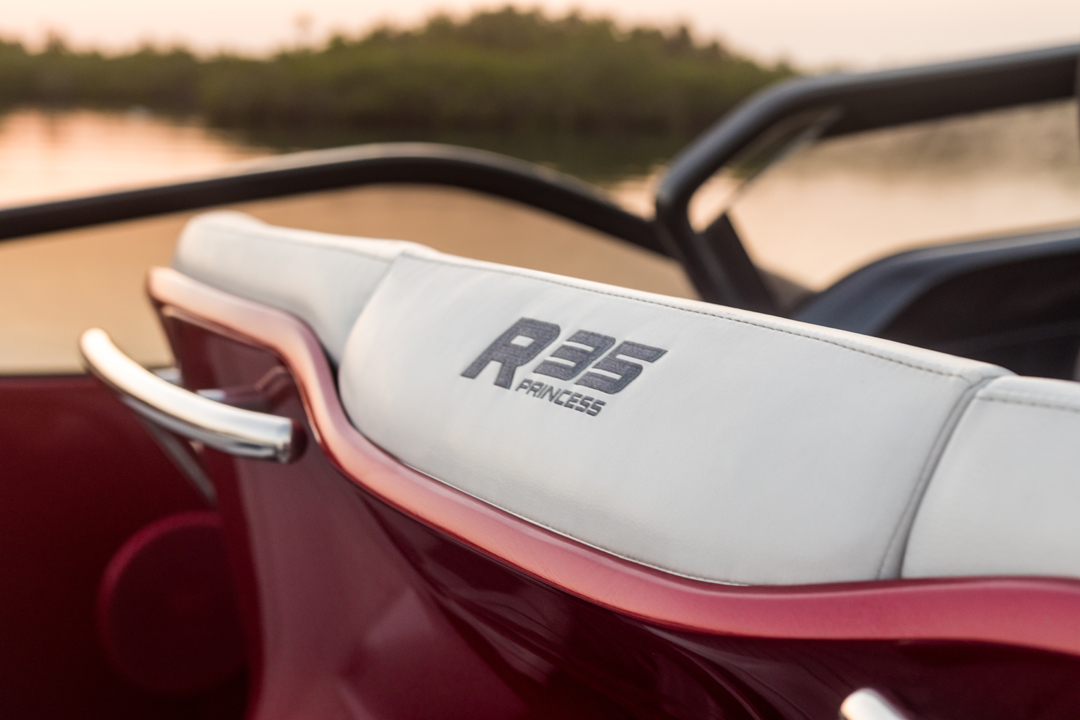

Triple helm seat with sit/stand facility for helmsman

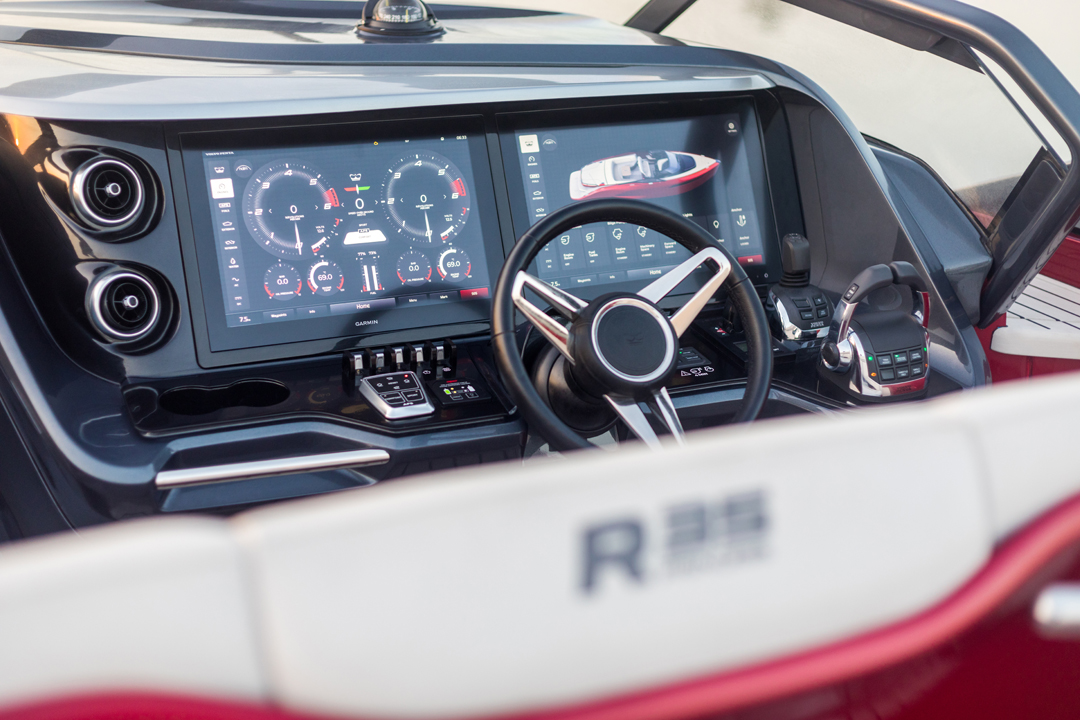

2 x 17” glassbridge displays incorporating GPS/chartplotter, full engine instrumentation, fuel gauges and engine controls
Autopilot
Electro hydraulic active foil and ride control interface

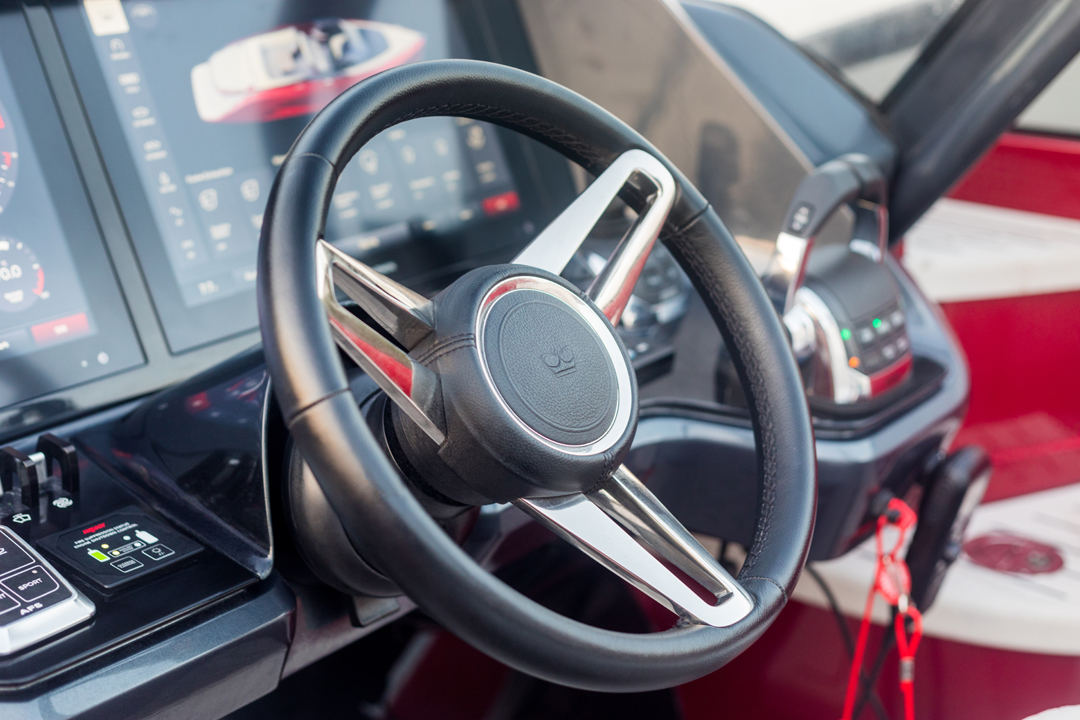

Power-assisted hydraulic steering system (adjustable steering wheel)
Remote control anchor winch
Sterndrive trim controls
VHF with DSC R/T
Speed and distance log (with sea temperature)
Echo sounder with alarm
High-speed compass
Horn control
Bilge pump controls with visual ‘pump running’ warnings
Waterproof USB charging point
Windscreen wipers with freshwater windscreen wash

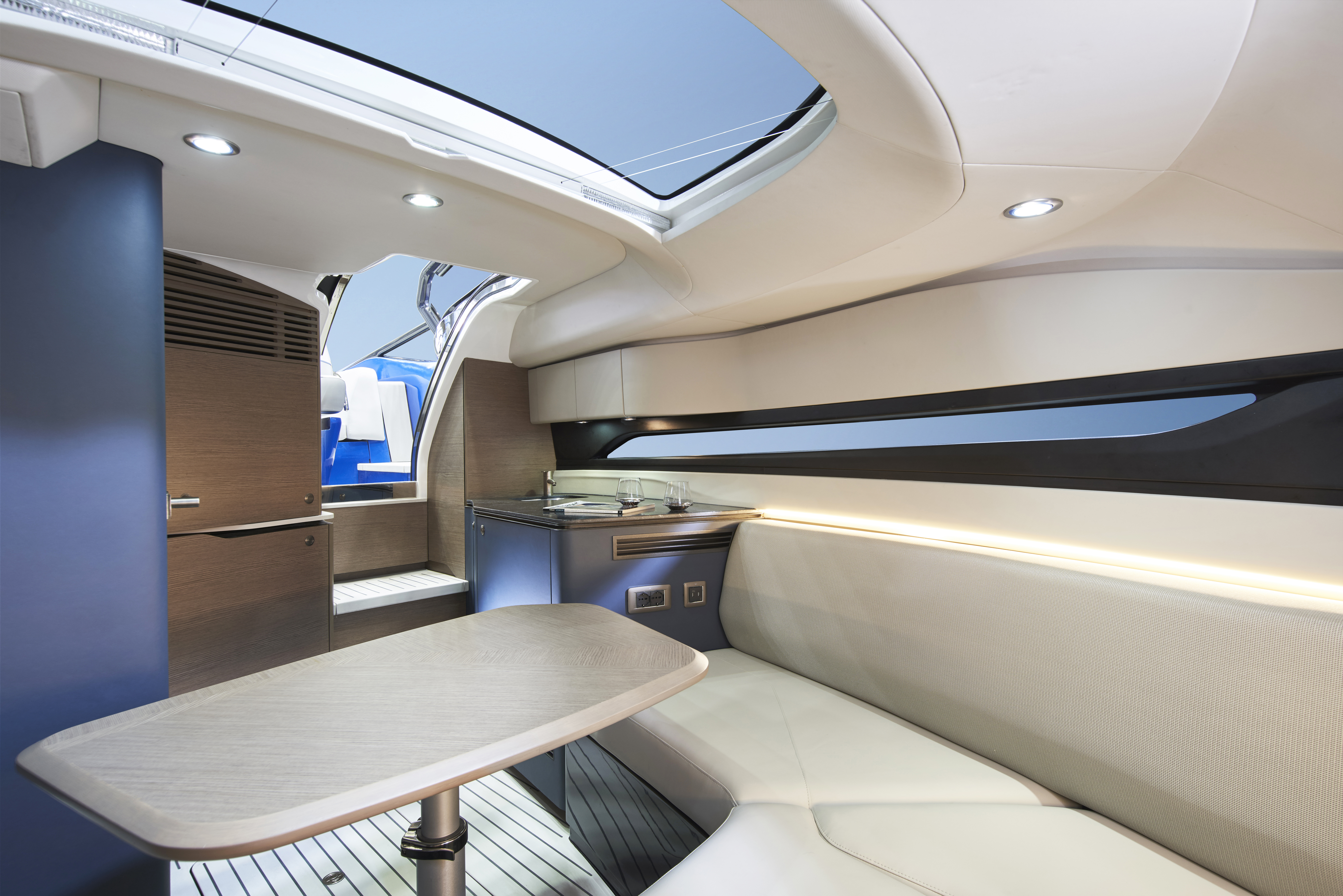

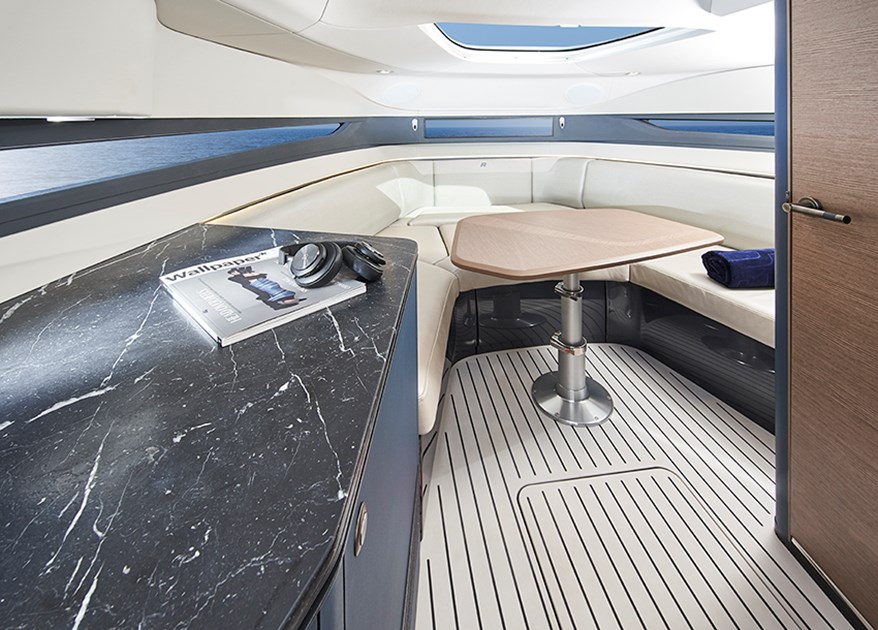

Saloon

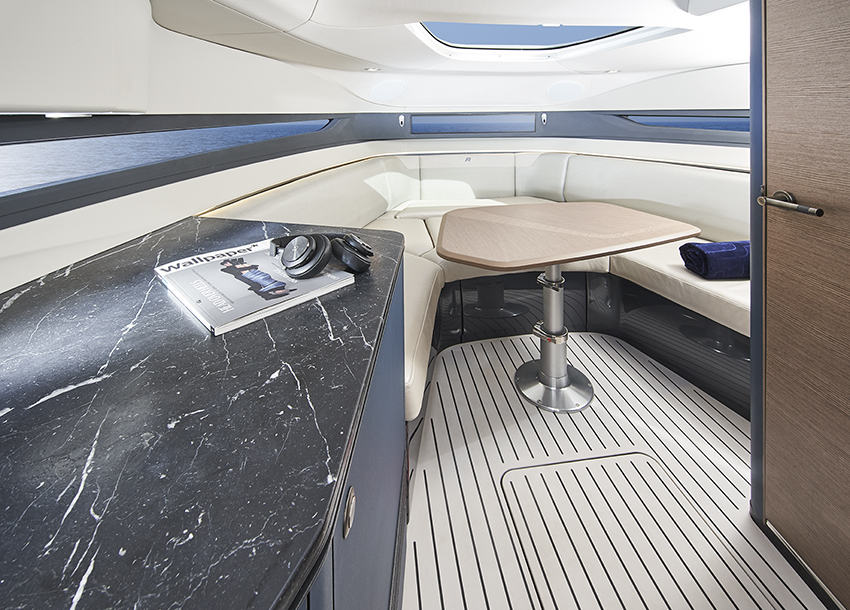

U-shaped sofa/dining area, converting to double berth with stowage for infill cushions
Dining table
Naim audio system linked to cockpit speakers
Skylight with integrated blinds
LED overhead and concealed lighting
Esthec flooring with white caulking
Hull windows

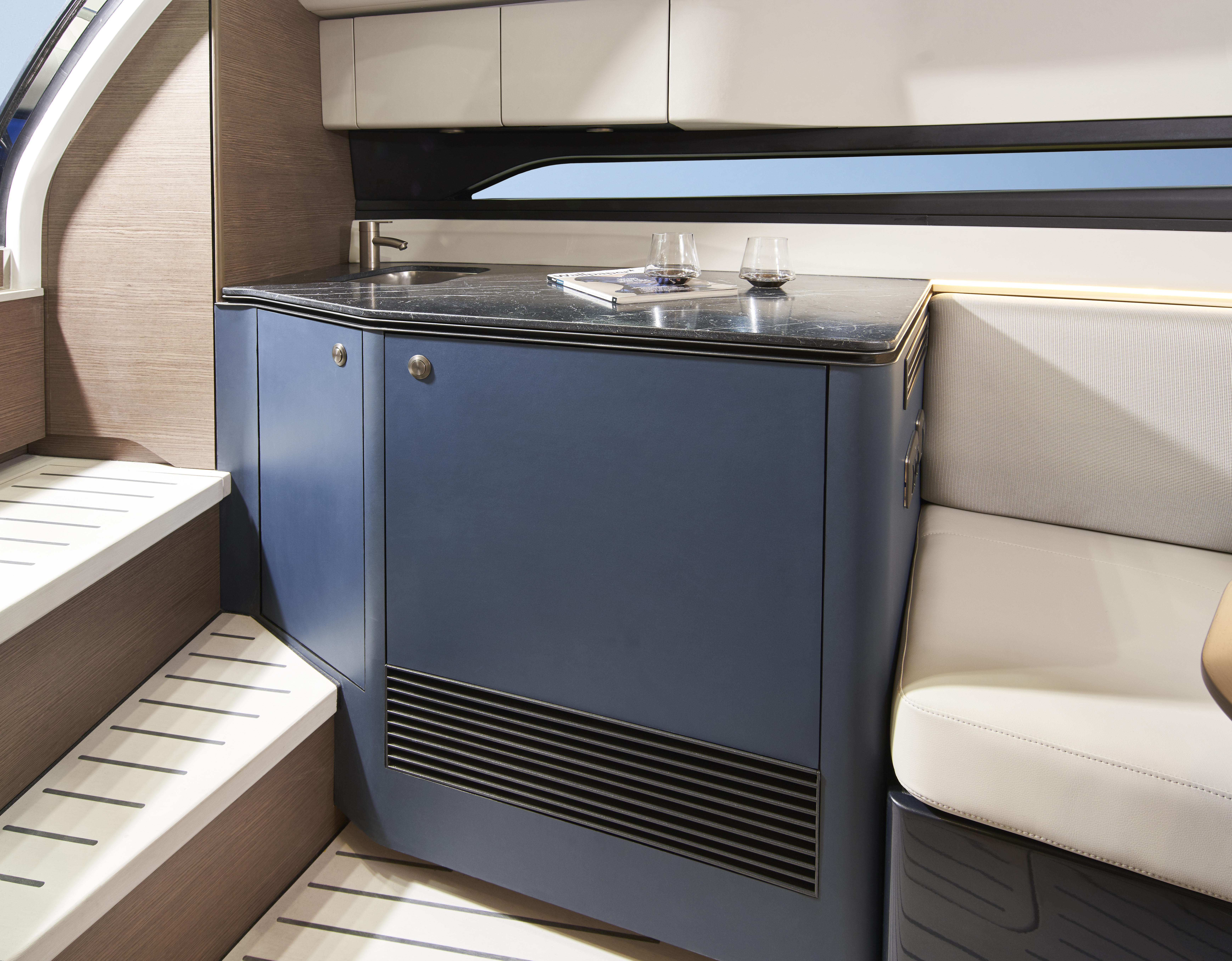

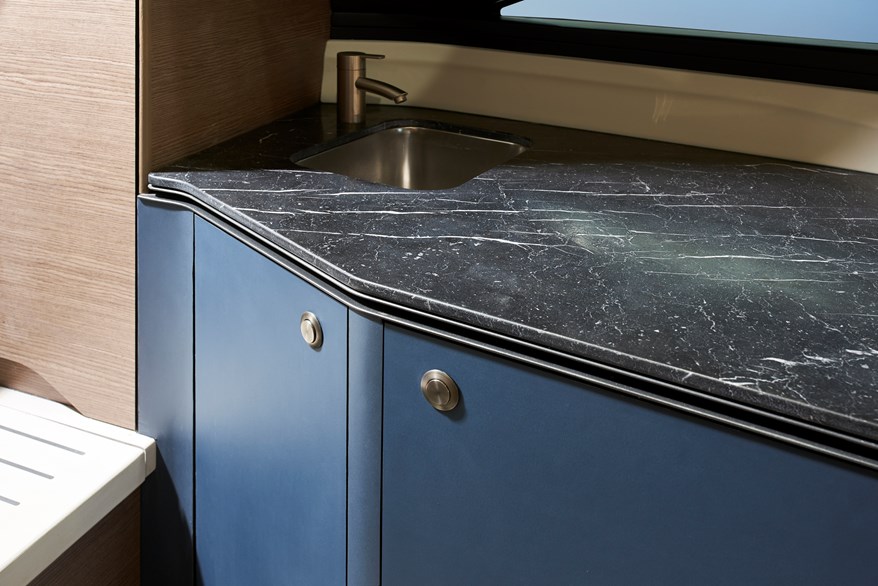

Galley

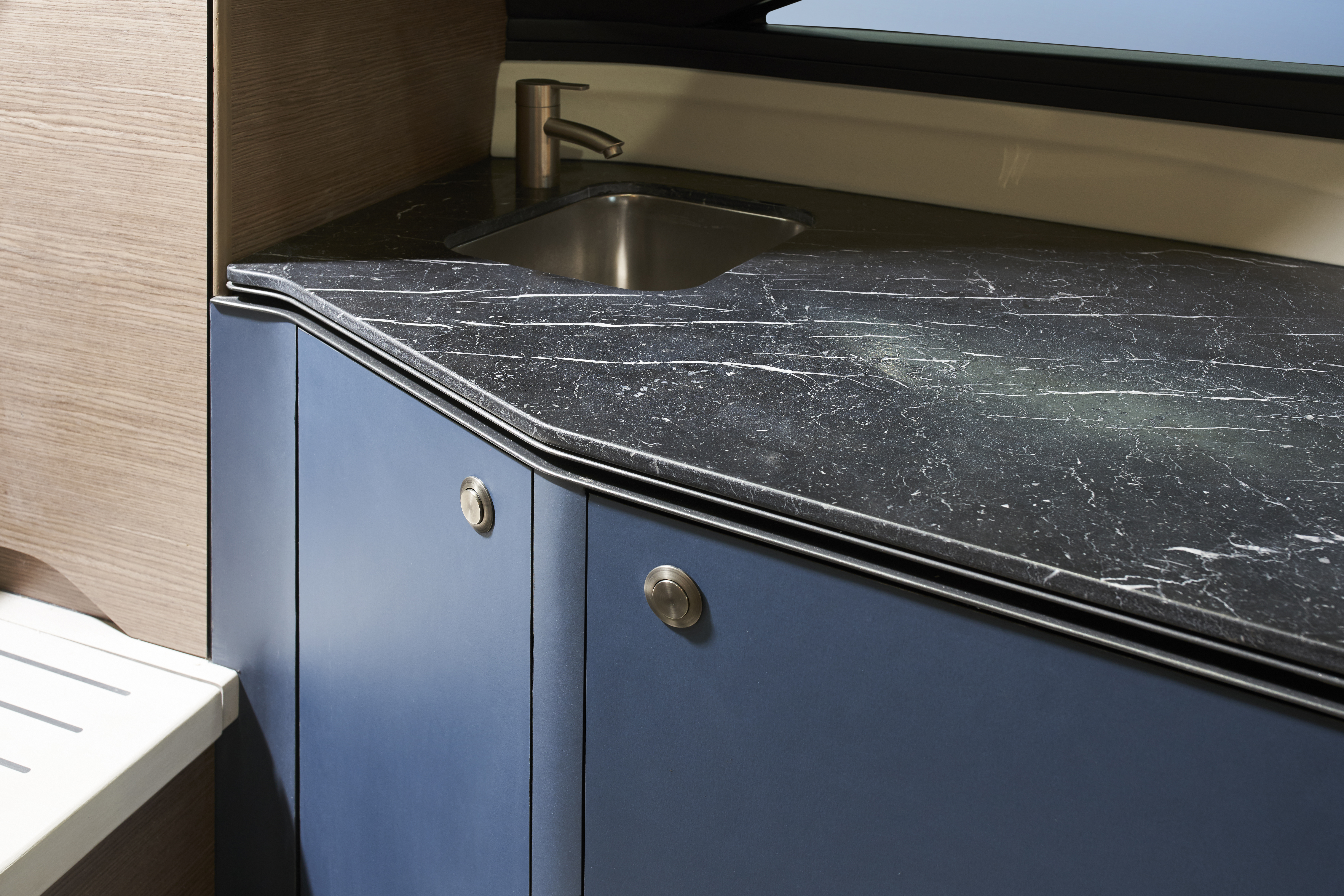

Worktop is in solid surface, Carrera Grey satin finish
Stainless steel sink with mixer tap
Waste bin
Drawers and storage cupboards
Fridge
LED overhead and task lighting
220/240v outlets (2)
USB charging point (1)
Esthec flooring with white caulking

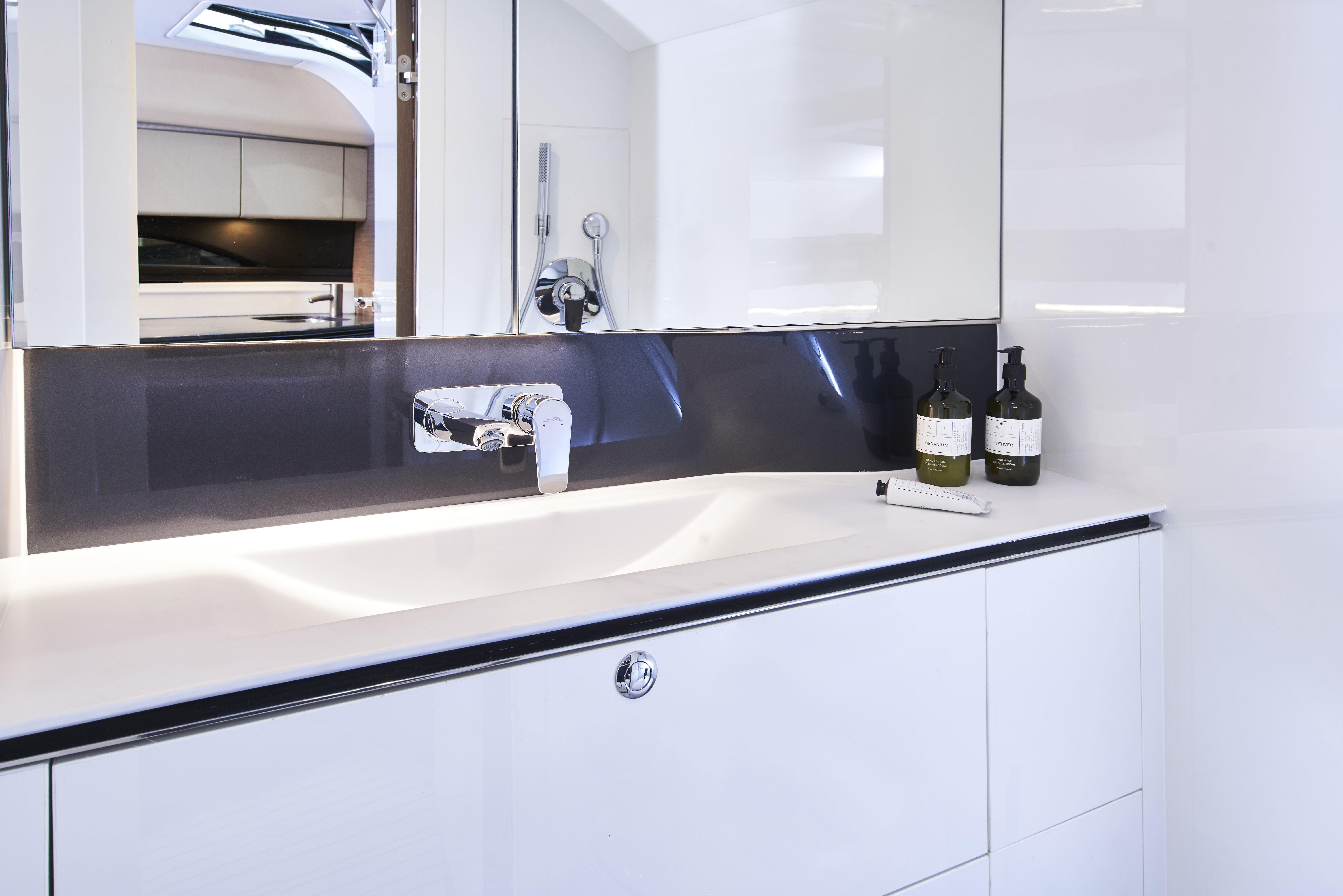

Bathroom
Wash basin with solid surface worktop
Mirror
Storage locker
Shower compartment with automatic pump out
Extraction ventilation
LED overhead and concealed lighting
Bathroom accessories
Esthec flooring with white caulking
Power and drive systems
Twin duo-prop stern drives
Engine room lighting
Powered engine room access hatch
Power-assisted electro-hydraulic steering system
Princess Active Foil System with interface at helm position
Electronic engine and gear shift controls
Engine room extraction
Lazarette extraction
Electrical systems
12 Volt:
2 x heavy duty batteries for engine starting
2 x heavy duty auxiliary batteries
Battery link facility between engine start batteries with remote control at helm position
Remote battery master switches at master switch panel
Circuit breakers on all circuits
220/240 Volt:
32 amp shore support inlet
Polarity check system
Earth leakage safety trip
Power points in: galley/saloon
Fuel system
Twin fuel tanks with interconnection system giving 132 gal / 159 US gal / 600l capacity (Installation includes vapour detectors with automatic extraction)
Fuel fillers on port and starboard side decks
High-capacity simplex fuel filters with water traps
Remote fuel cocks in cockpit locker
Fuel level indication at helm station
Water system
Water tanks totalling 31 gal/37 US gal/140l plus 8 gal/10 US gal/36l hot water calorifier
Water heated by engines and 240v immersion heater
Automatic water pump with filter
Deck filler
Electric freshwater toilet system with 18 gal/21 US gal/80l holding tank, content gauge and electric overboard discharge and dockside discharge system
Fire extinguishers
Automatic/manual override fire extinguishers in engine room and lazarette with warning system at helm position
Hand-operated fire extinguishers (2) in galley and helm position
Bilge pumps
Automatic/manual override electric bilge pumps in engine room, lazarette and forward accommodation (3 in all)
High-capacity manual bilge pump with valve system and suction points in same areas
Electric bilge pumps have controls and warning indication with audible alarm at helm position
Other standard equipment
Ensign staff
Fenders (4)
Mooring warps (2)
Boat hook
First aid kit
Tool kit
Digital manuals (including engine manuals)
Ship’s document case
Anchor winch back up handle
Finishes
Esthec laid decks to all deck areas with white caulking
Esthec laid floor to all areas in lower accommodation with white caulking
Furniture in Silver Oak (satin finish)
Thermoformed solid surface wash basin counter top in bathroom
Worktop is in solid surface Carrera Grey satin finish
A choice of Princess Design Studio, high tech styling schemes to complement the range of hull colours
Blinds or sunscreens to all windows
Close
Princess R35
Principal Dimensions
Details
Specification
Disclaimer
Length overall
35ft 9in (10.89m)
Beam
10ft 8in (3.27m)
Draft
2ft 6in (0.76m)
Displacement approx.
6,500kg (14,330lbs)*
Fuel capacity
132 gal/159 US gal/600l
Water capacity (excl. calorifier)
31 gal/37 US gal/140l
Engines
Volvo Petrol V8 (2 x 430mhp)
TOP SPEED: 45-50 knots†
* Displacements are calculated with 50% fuel and water with liferaft but with no optional equipment fitted or other gear.
† Maximum speeds will vary depending on cleanliness of hull, condition of sterngear, loading of craft, water and air temperatures, sea conditions and other factors. Speed estimates are therefore given in good faith but without warranty or liability on the part of Princess Yachts Limited. Craft illustrated in this brochure may be fitted with certain optional equipment. Specifications may be changed at any time without notice or liability. USA Specification
‡ Certain specifications, which vary by model, are upgraded on Princess yachts built for use in North America. Thus, specifications and equipment will vary from the information listed in the brochure for North American Princess yachts (e.g. air-conditioning and an upgraded generator will be included as standard for all North American models and electric cooking facilities will be supplied in place of gas systems). Please consult the USA Specification Brochure for full details regarding the North American specifications for individual models.
Principal Dimensions
Details
Deck fittings
Esthec laid transom platform, cockpit deck, foredeck, steps to side decks and side decks with white caulking
Reversible electric anchor winch with helm position and foredeck controls
Self-stowing 16kg galvanised anchor mechanism with 30m of galvanised chain
Discrete retractable stemhead roller with automatic anchor launch and retrieve
Chain locker hatch
Stainless steel pop-up bow, stern and spring cleats
Stainless steel foredeck grabrail
Fender landings / deck mounted sockets
Foredeck glazing with integrated blind
Full set of IMCO navigation lights
Riding light
Illuminated crown logo to transom
Electric horn
Ensign socket and pole
Windscreen with wind deflector/grab rail
Fuel and water fillers
Cockpit
Self-draining
U-shaped upholstered seating/dining area with handholds and folding central section to reveal Esthec laid step to cockpit from transom with white caulking
Teak folding removable table with deck mounting sockets in two positions
Aft sunbathing area with handrails aft and outboard
Exterior seating and sunbeds in reticulated foam
Steps to side decks
Stairway to lower accommodation with sliding companionway hatch
Storage lockers port and starboard
Fender storage in cockpit hatch
Rope storage locker
LED deck level lighting
Stainless steel grabrails
Storage compartment below helm seating
Locker with remote fire and fuel cocks
220/240v shore support inlet
12v exterior splash proof power point
JL Audio M6-650X-L waterproof speakers (2) linked to Naim audio system located in saloon
Life raft storage locker
Powered engine access hatch with storage rack system on underside
Lazarette access hatch with gas strut support
Esthec laid walkway below cockpit sunbed upholstery leading to bathing platform with white caulking
Retractable rescue ladder in bathing platform
Bathing ladder with deck mounting sockets
Hot and cold transom shower
Sunbrella tonneau cover
Helm
Triple helm seat with sit/stand facility for helmsman
2 x 17” glassbridge displays incorporating GPS/chartplotter, full engine instrumentation, fuel gauges and engine controls
Autopilot
Electro hydraulic active foil and ride control interface
Power-assisted hydraulic steering system (adjustable steering wheel)
Remote control anchor winch
Sterndrive trim controls
VHF with DSC R/T
Speed and distance log (with sea temperature)
Echo sounder with alarm
High-speed compass
Horn control
Bilge pump controls with visual ‘pump running’ warnings
Waterproof USB charging point
Windscreen wipers with freshwater windscreen wash
Saloon
U-shaped sofa/dining area, converting to double berth with stowage for infill cushions
Dining table
Naim audio system linked to cockpit speakers
Skylight with integrated blinds
LED overhead and concealed lighting
Esthec flooring with white caulking
Hull windows
Galley
Worktop is in solid surface, Carrera Grey satin finish
Stainless steel sink with mixer tap
Waste bin
Drawers and storage cupboards
Fridge
LED overhead and task lighting
220/240v outlets (2)
USB charging point (1)
Esthec flooring with white caulking
Bathroom
Wash basin with solid surface worktop
Mirror
Storage locker
Shower compartment with automatic pump out
Extraction ventilation
LED overhead and concealed lighting
Bathroom accessories
Esthec flooring with white caulking
Power and drive systems
Twin duo-prop stern drives
Engine room lighting
Powered engine room access hatch
Power-assisted electro-hydraulic steering system
Princess Active Foil System with interface at helm position
Electronic engine and gear shift controls
Engine room extraction
Lazarette extraction
Electrical systems
12 Volt:
2 x heavy duty batteries for engine starting
2 x heavy duty auxiliary batteries
Battery link facility between engine start batteries with remote control at helm position
Remote battery master switches at master switch panel
Circuit breakers on all circuits
220/240 Volt:
32 amp shore support inlet
Polarity check system
Earth leakage safety trip
Power points in: galley/saloon
Fuel system
Twin fuel tanks with interconnection system giving 132 gal / 159 US gal / 600l capacity (Installation includes vapour detectors with automatic extraction)
Fuel fillers on port and starboard side decks
High-capacity simplex fuel filters with water traps
Remote fuel cocks in cockpit locker
Fuel level indication at helm station
Water system
Water tanks totalling 31 gal/37 US gal/140l plus 8 gal/10 US gal/36l hot water calorifier
Water heated by engines and 240v immersion heater
Automatic water pump with filter
Deck filler
Electric freshwater toilet system with 18 gal/21 US gal/80l holding tank, content gauge and electric overboard discharge and dockside discharge system
Fire extinguishers
Automatic/manual override fire extinguishers in engine room and lazarette with warning system at helm position
Hand-operated fire extinguishers (2) in galley and helm position
Bilge pumps
Automatic/manual override electric bilge pumps in engine room, lazarette and forward accommodation (3 in all)
High-capacity manual bilge pump with valve system and suction points in same areas
Electric bilge pumps have controls and warning indication with audible alarm at helm position
Other standard equipment
Ensign staff
Fenders (4)
Mooring warps (2)
Boat hook
First aid kit
Tool kit
Digital manuals (including engine manuals)
Ship’s document case
Anchor winch back up handle
Finishes

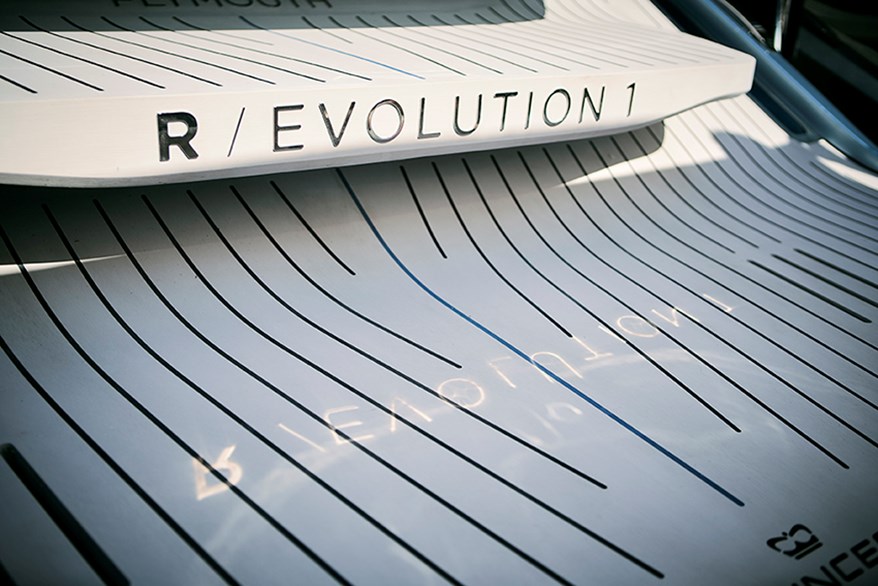

Esthec laid decks to all deck areas with white caulking
Esthec laid floor to all areas in lower accommodation with white caulking
Furniture in Silver Oak (satin finish)
Thermoformed solid surface wash basin counter top in bathroom
Worktop is in solid surface Carrera Grey satin finish
A choice of Princess Design Studio, high tech styling schemes to complement the range of hull colours

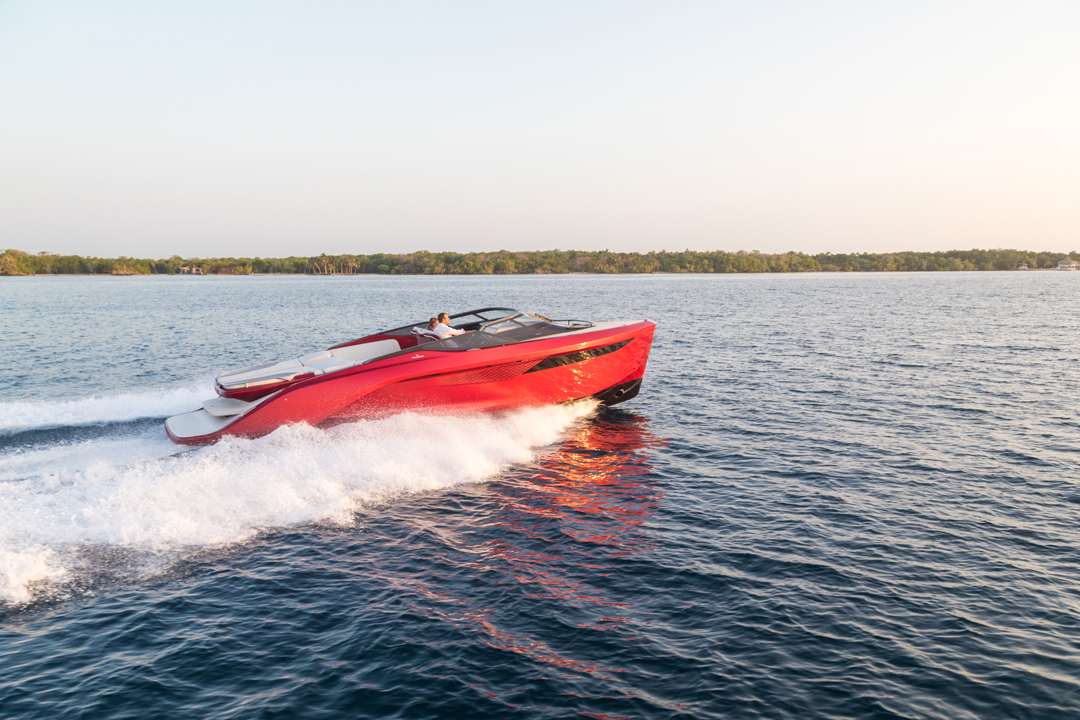

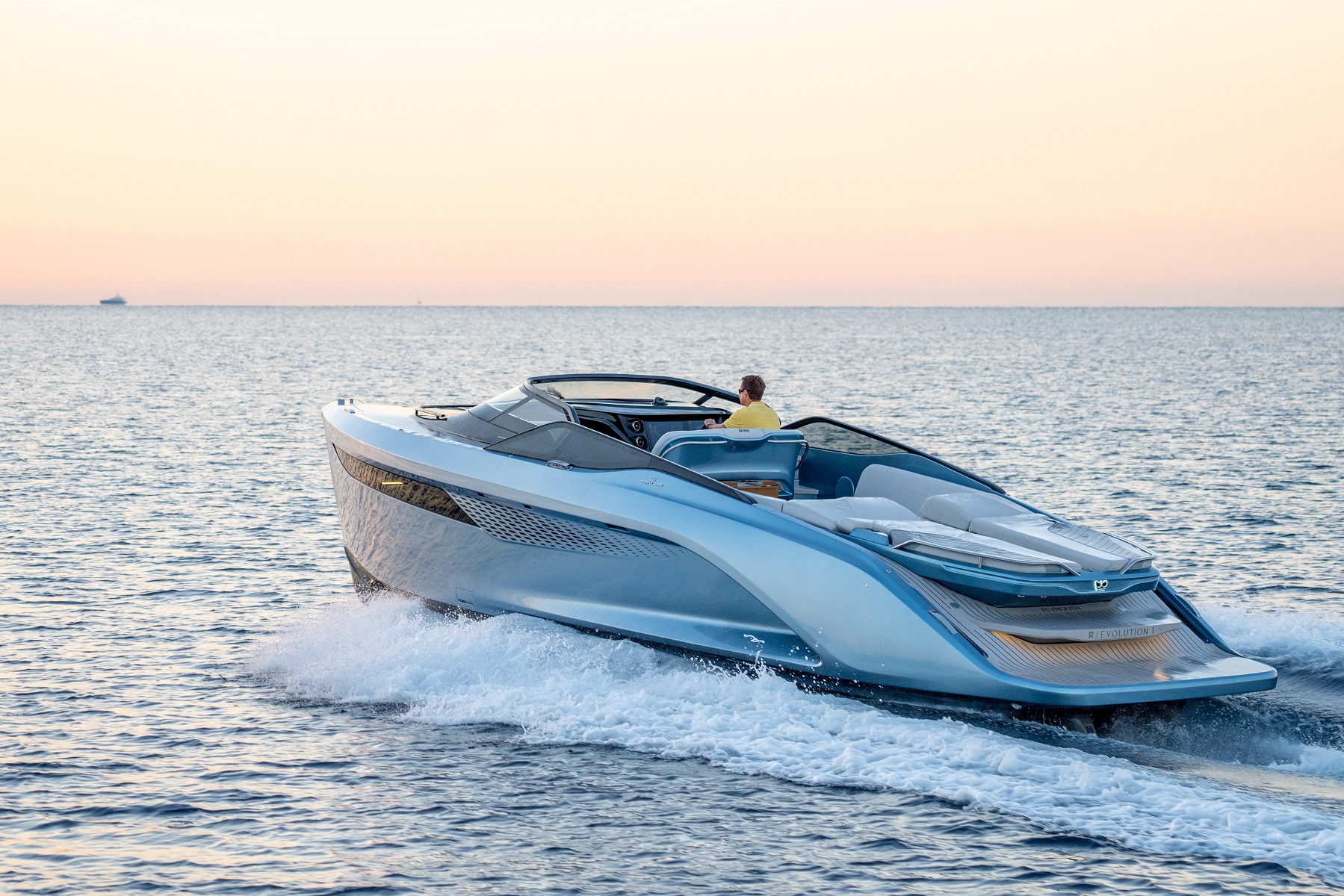

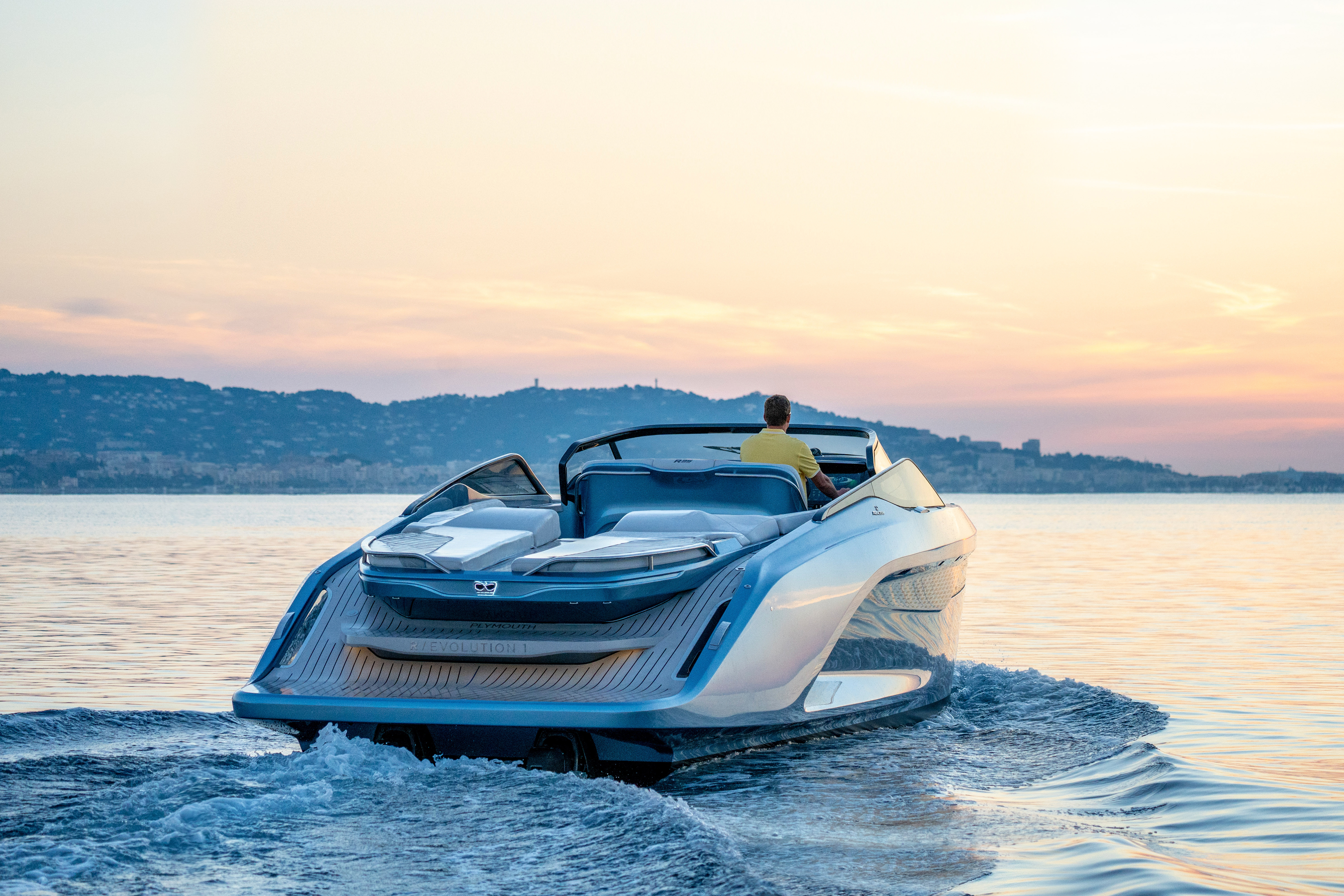

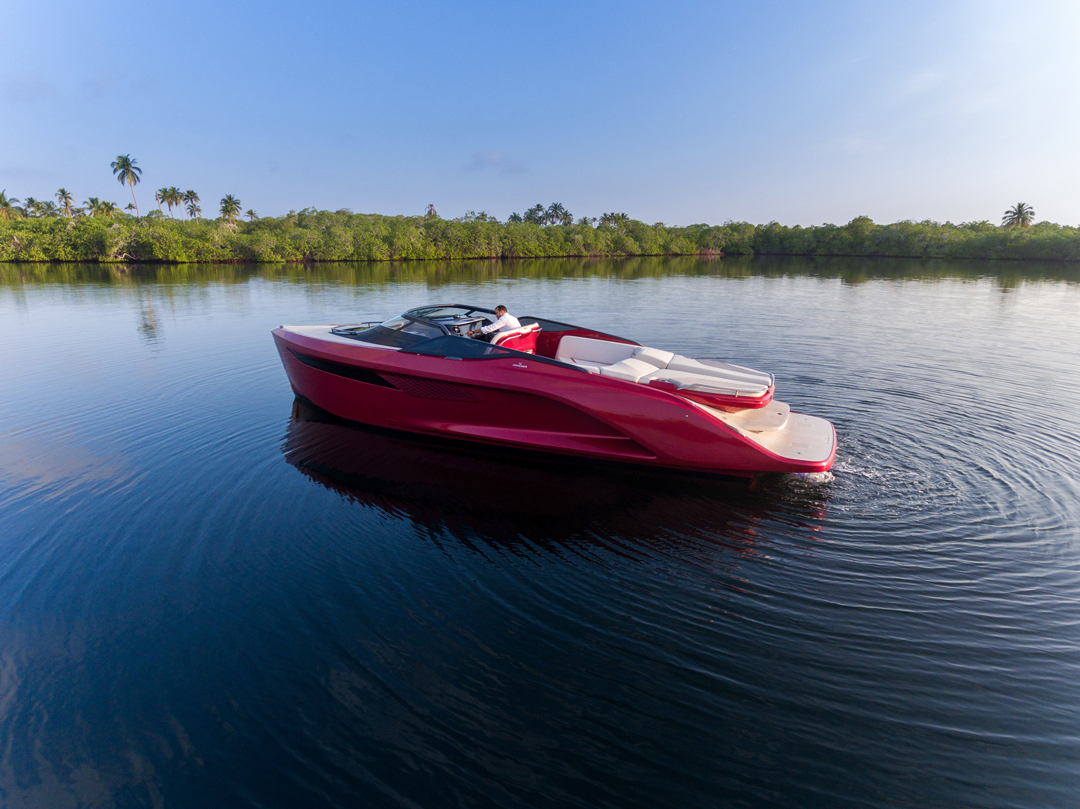

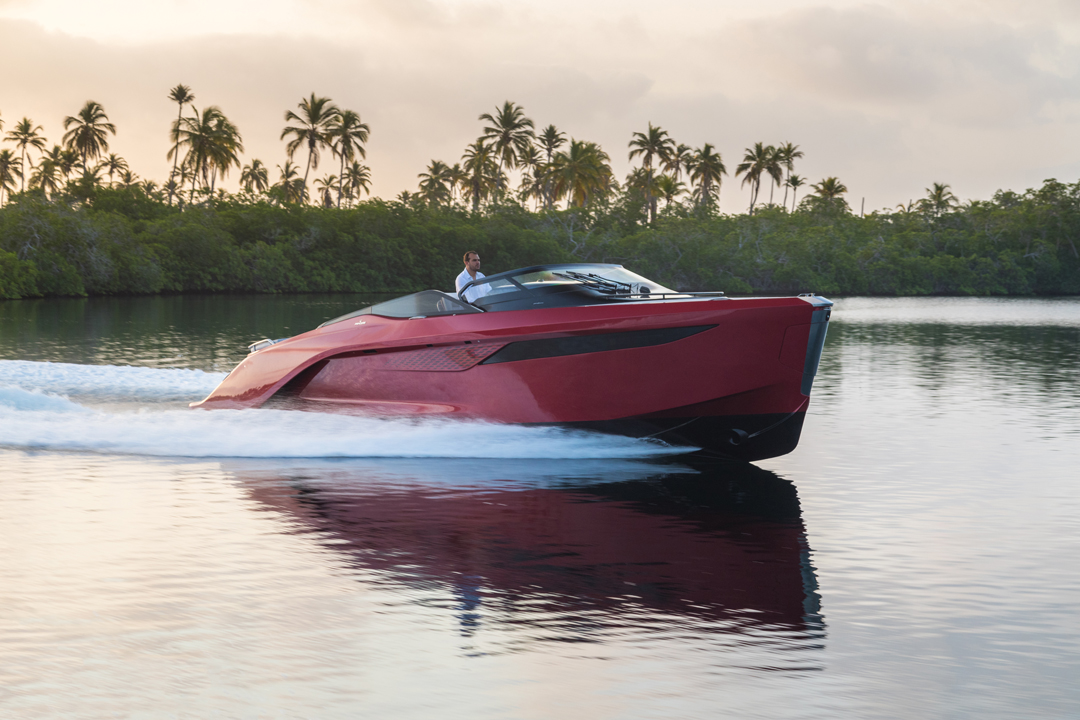

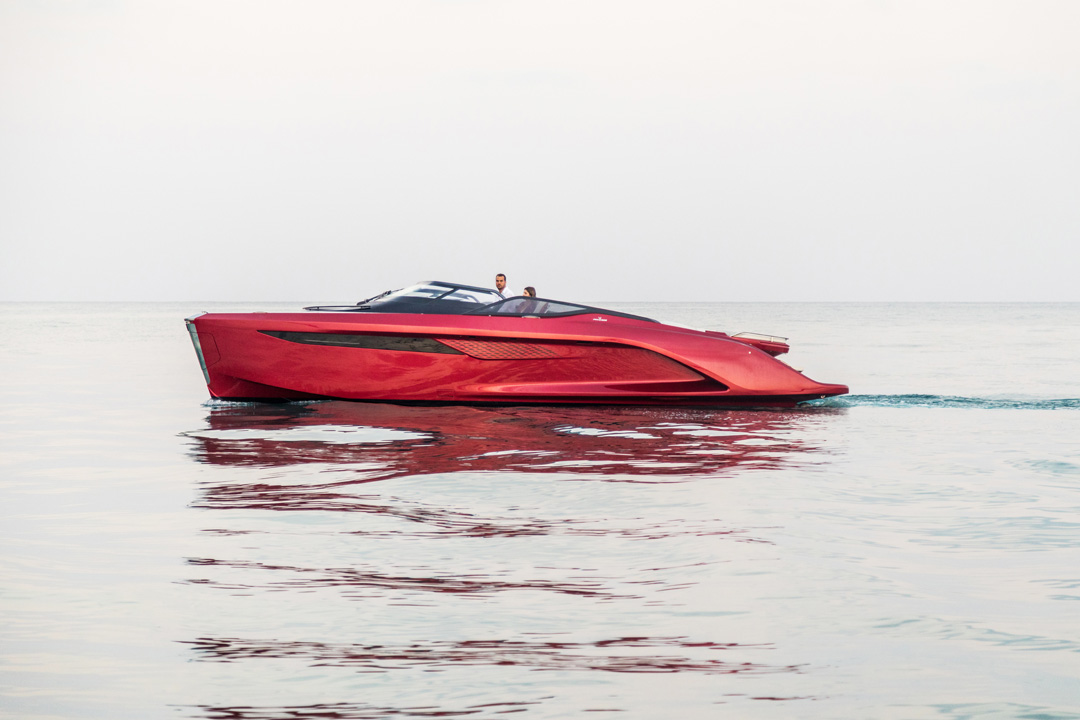

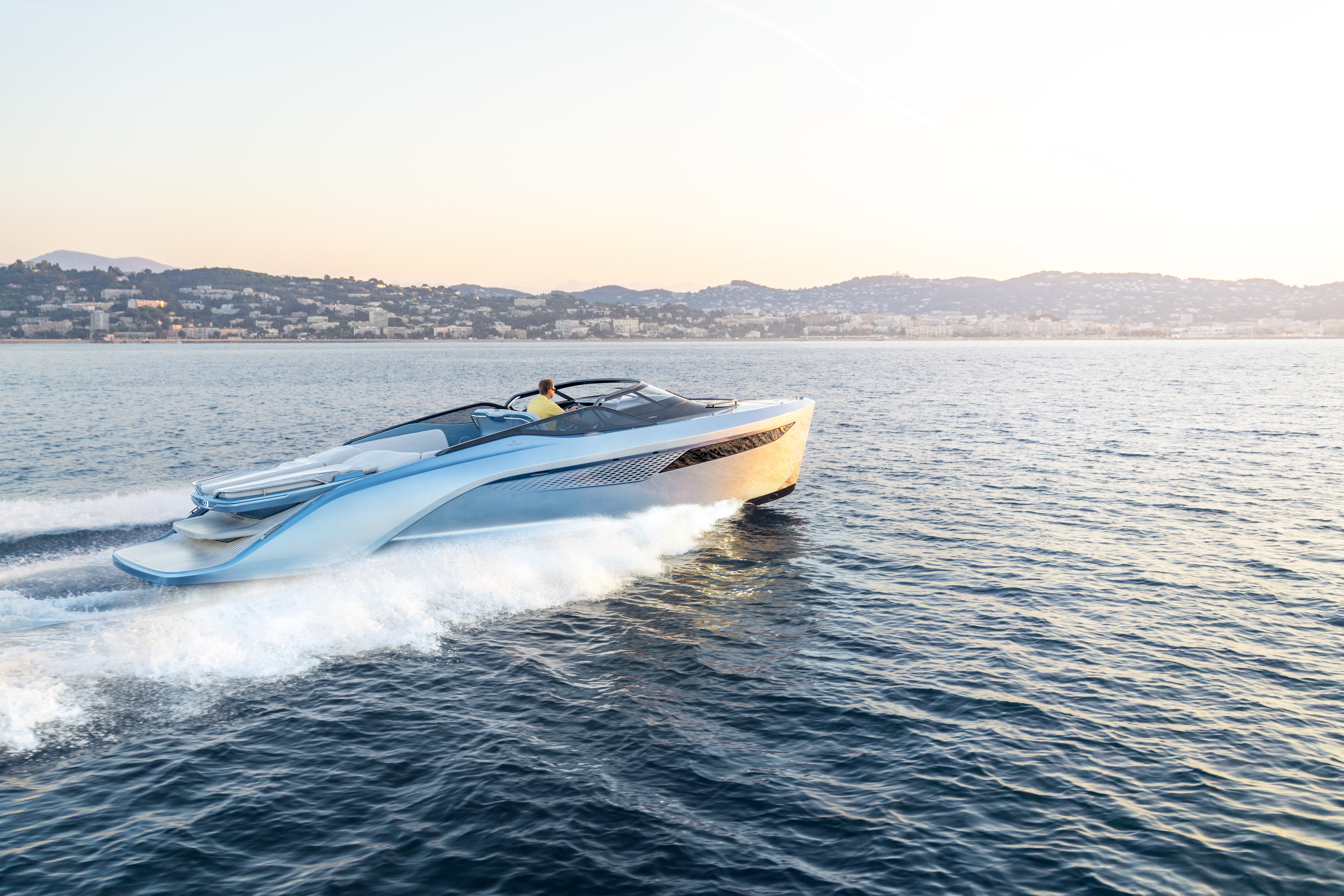

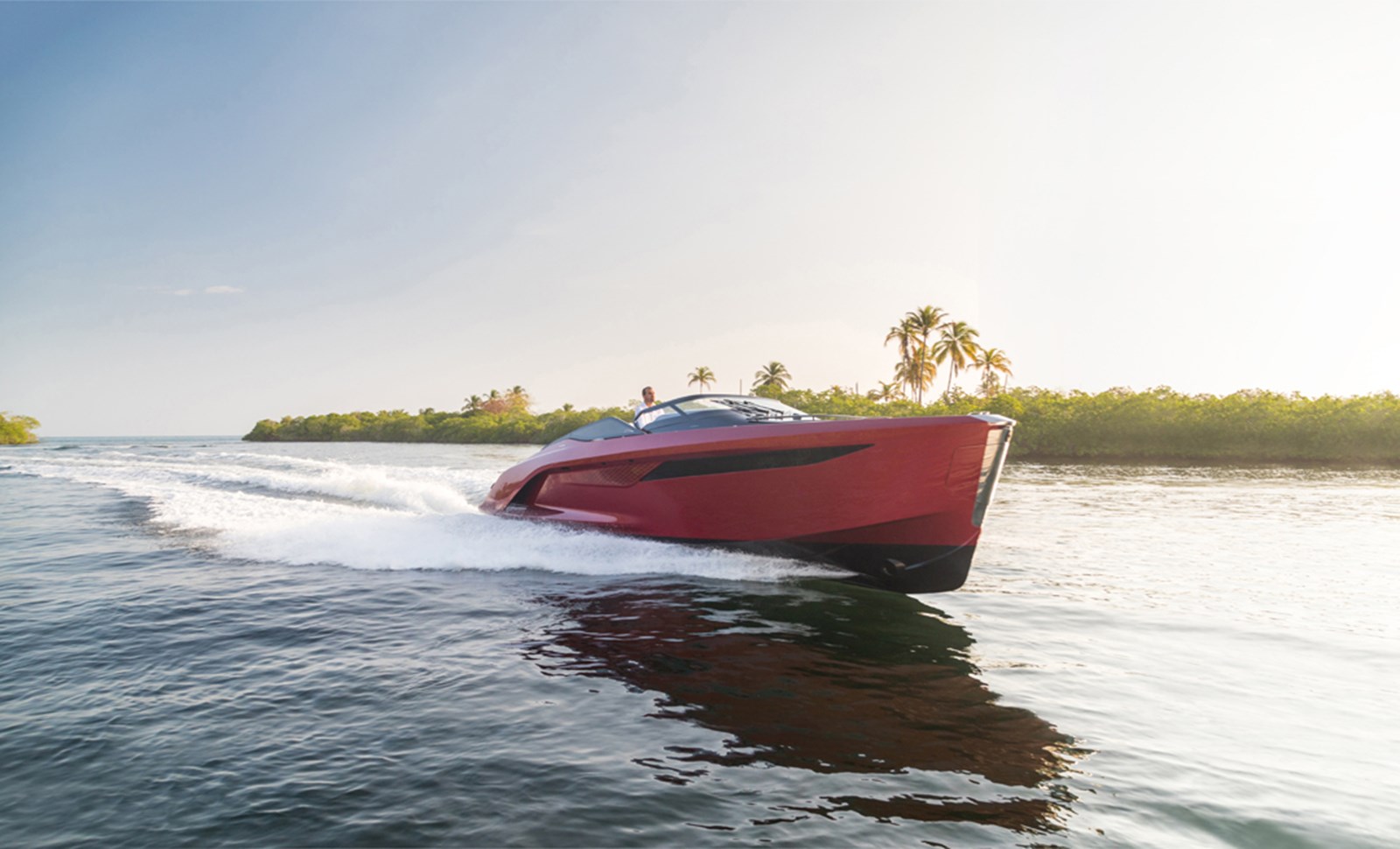

A combination of stunning design, quality and race-bred technology, the R35 is a revolutionary performance experience at all speeds. Twin direct injection V8 petrol engines with variable valve timing provide exceptional levels of torque and responsiveness to safely power her to an exhilarating 50 knots: the fastest-ever Princess.

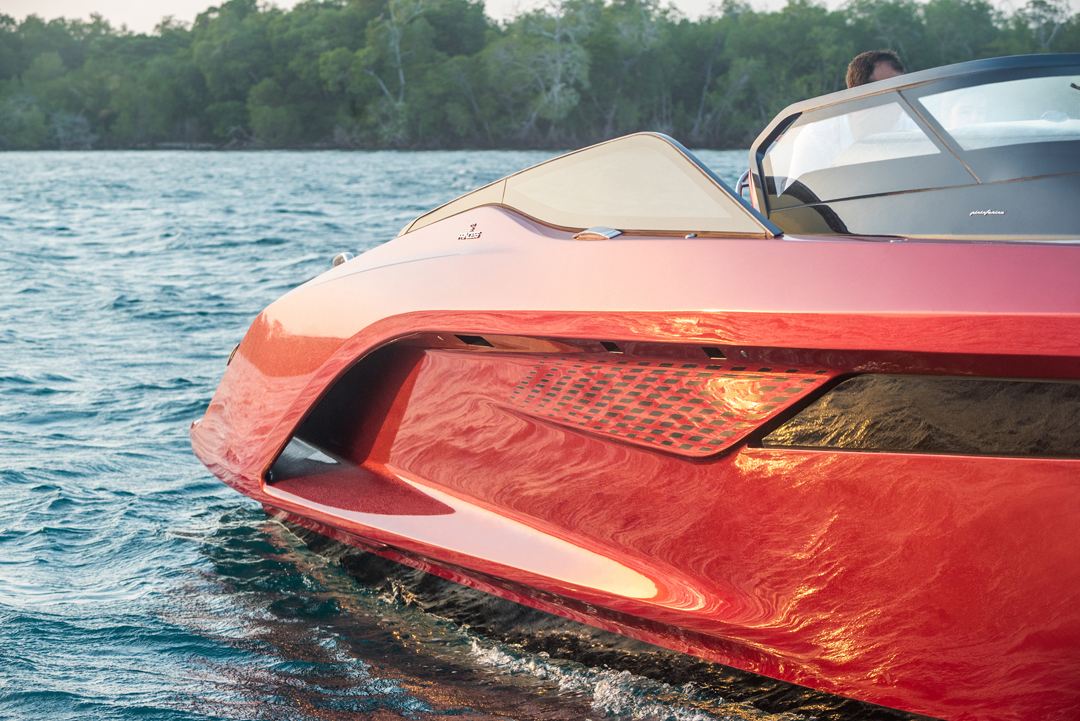

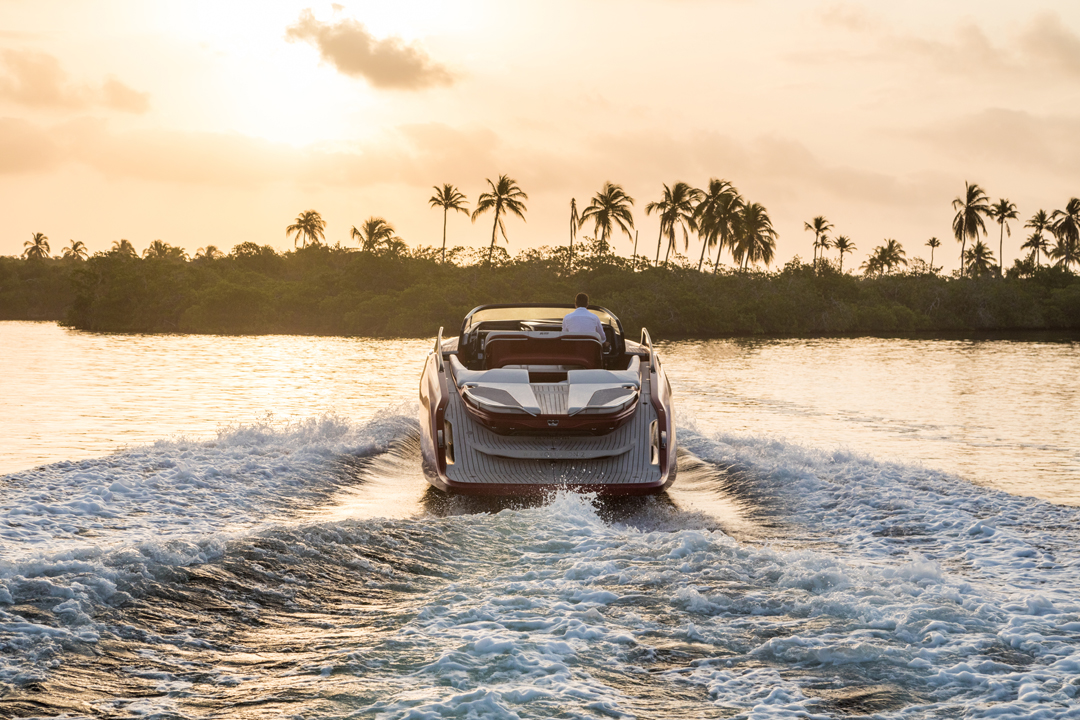

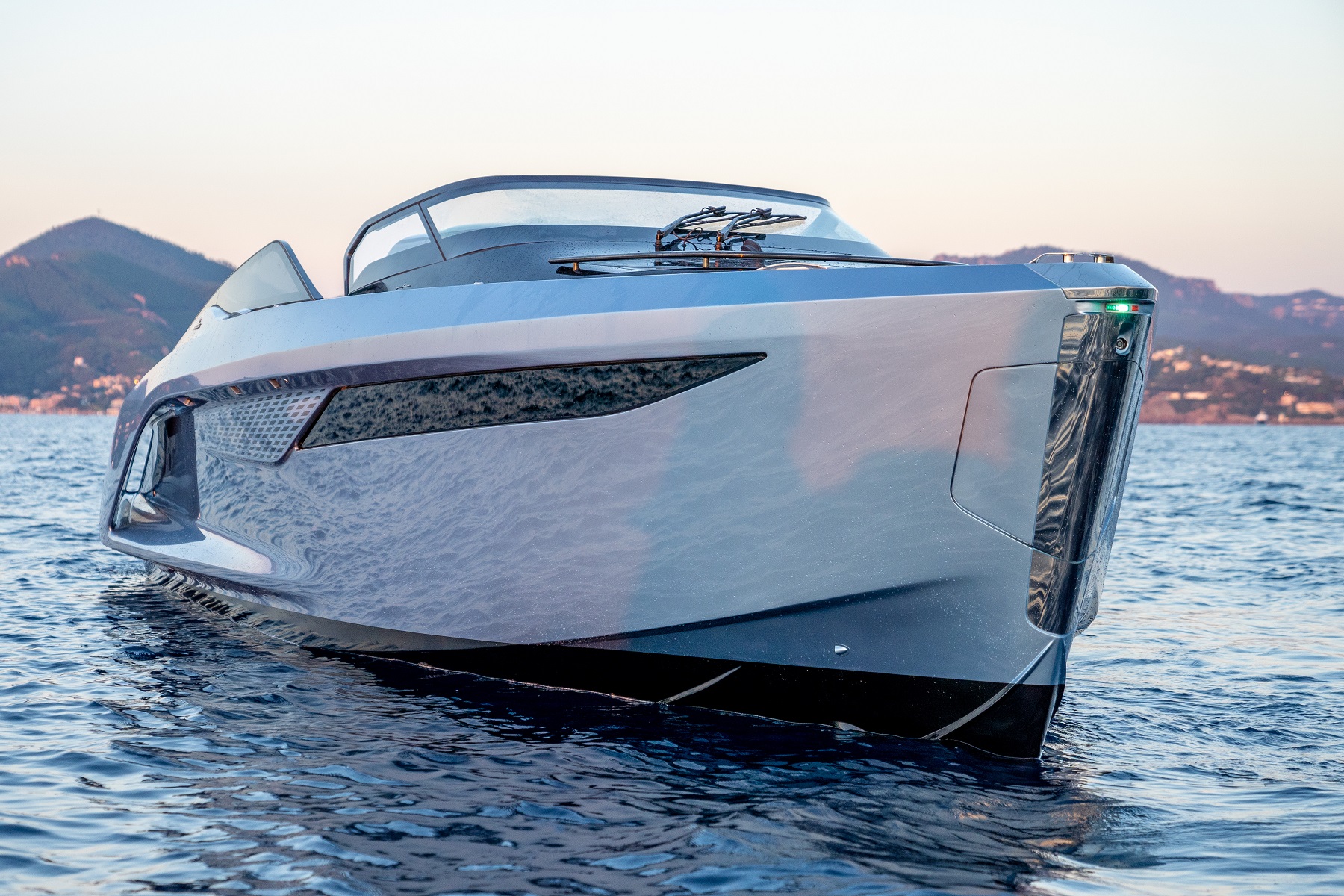

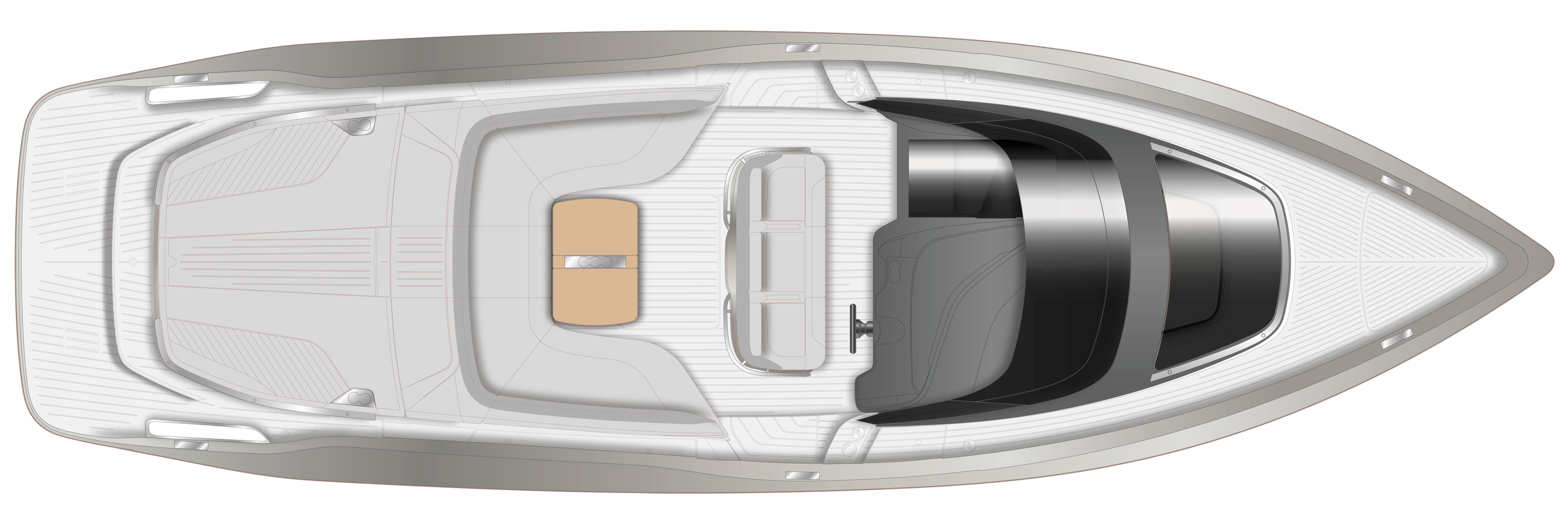

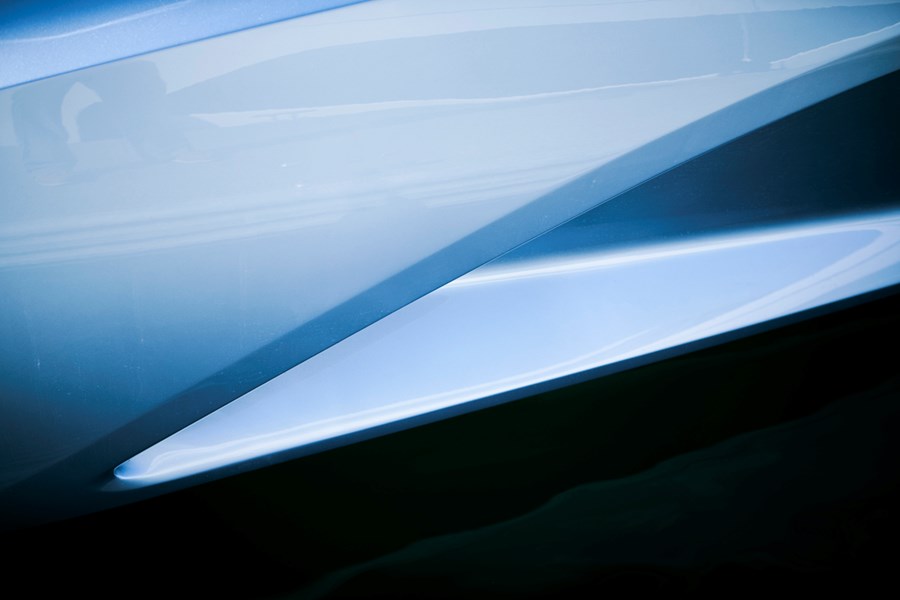

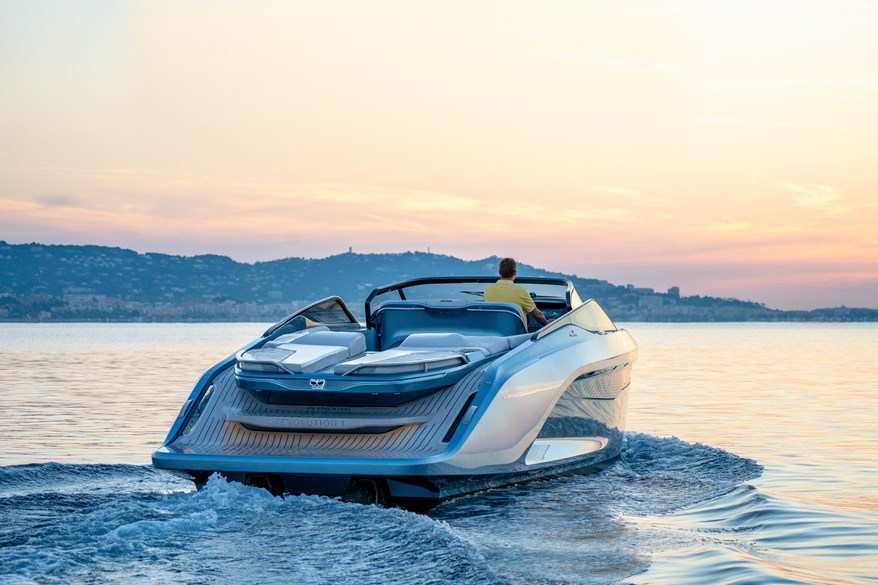

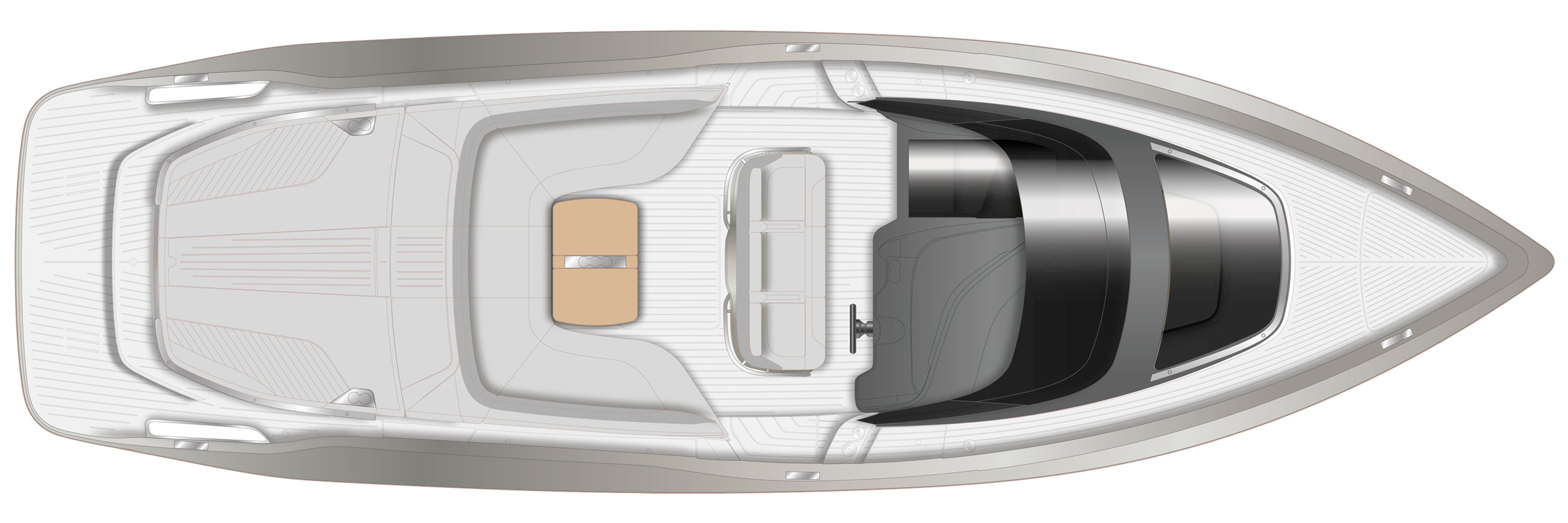

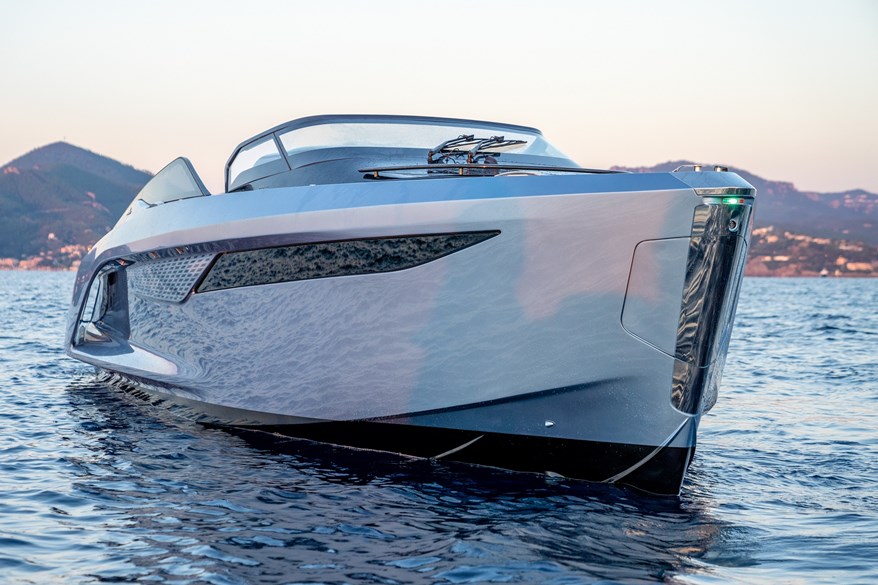

Her windshield is a sweep of curved glass, tuned using Computational Fluid Dynamics. Together with deployable side wind deflectors, the airflow moves cleanly above the cockpit and passengers’ head levels to create a neutral ‘bubble’ enabling you to ride, protected from the wind, without getting wet. The aerodynamically tuned twin air outlets on the transom help supress any back spray on the stern of the boat. Aft of the cockpit a sun-pad invites you to soak up the sunshine before you step down to the elegantly proportioned swim platform to cool off.

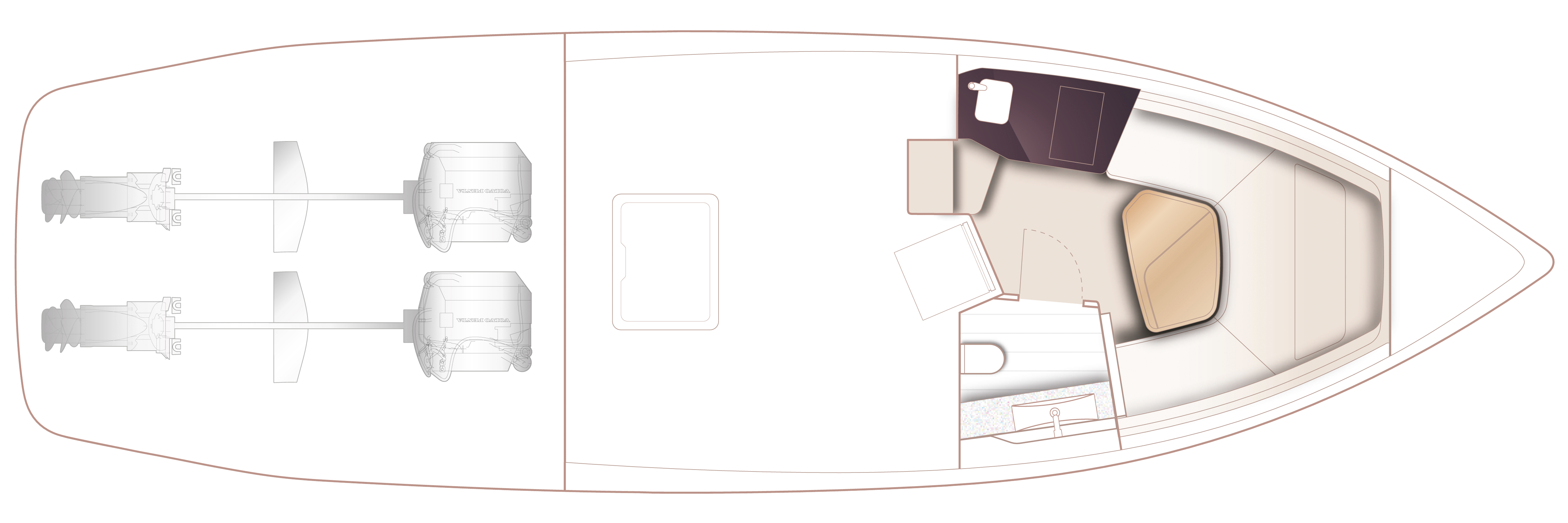

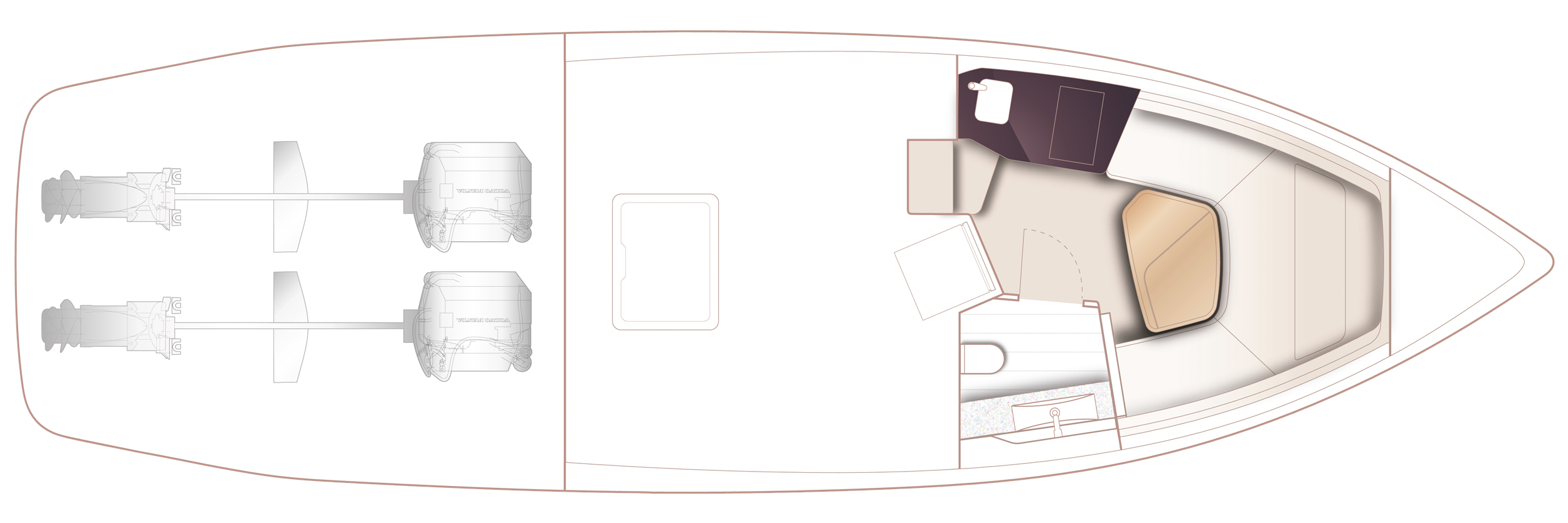

Inside, the Princess Design Studio has thought outside the box. Traditional materials and craftsmanship combine with state-of-the-art manufacturing techniques to deliver an unrivalled experience for up to 8 people. Triple hand-stitched helm seats place you before twin 17” bespoke touchscreens from which you assert command of all engine performance and onboard living data. Below deck, wrap-around windows with carefully considered aerospace beadlighting surround an innovative screen that displays a panoramic view from the bow. Her well-equipped galley is complimented with a U-shaped sofa and dining table that can be converted to a double berth.
