Water capacity (incl. calorifier)
134 gal/161 US gal/608l
Engines
Twin Volvo D13-900 (2 x 900mhp)
TOP SPEED: 30-32 knots†
* Displacements are calculated with 50% fuel and water with liferaft but with no optional equipment fitted or other gear.
† Maximum speeds will vary depending on cleanliness of hull, condition of sterngear, loading of craft, water and air temperatures, sea conditions and other factors. Speed estimates are therefore given in good faith but without warranty or liability on the part of Princess Yachts Limited. Craft illustrated in this brochure may be fitted with certain optional equipment. Specifications may be changed at any time without notice or liability. USA Specification
‡ Certain specifications, which vary by model, are upgraded on Princess yachts built for use in North America. Thus, specifications and equipment will vary from the information listed in the brochure for North American Princess yachts (e.g. air-conditioning and an upgraded generator will be included as standard for all North American models and electric cooking facilities will be supplied in place of gas systems). Please consult the USA Specification Brochure for full details regarding the North American specifications for individual models.
Deck fittings
6mm teak-laid transom platform, cockpit deck, flybridge stairway and steps to side deck
Lewmar reversible electric anchor winch with foredeck and helm position controls
Stemhead roller with automatic anchor launch and retrieve
Self-stowing (25kg/55lb) Delta anchor with 40m of 9.5mm chain
Bow rope storage locker
Freshwater deck/anchor wash
Deck storage locker for fenders and ropes
Stainless steel bow, stern and spring cleats (8)
Stainless steel pulpit and guardrails
Stainless steel coachroof handrails
Foredeck hatch
PVC rubbing band with stainless steel insert
LED deck level lighting
Illuminated crown logo to transom
Full set of IMCO navigation lights
Riding light
Searchlight with remote control
Twin electric horns
Loudhailer
Fuel and water fillers

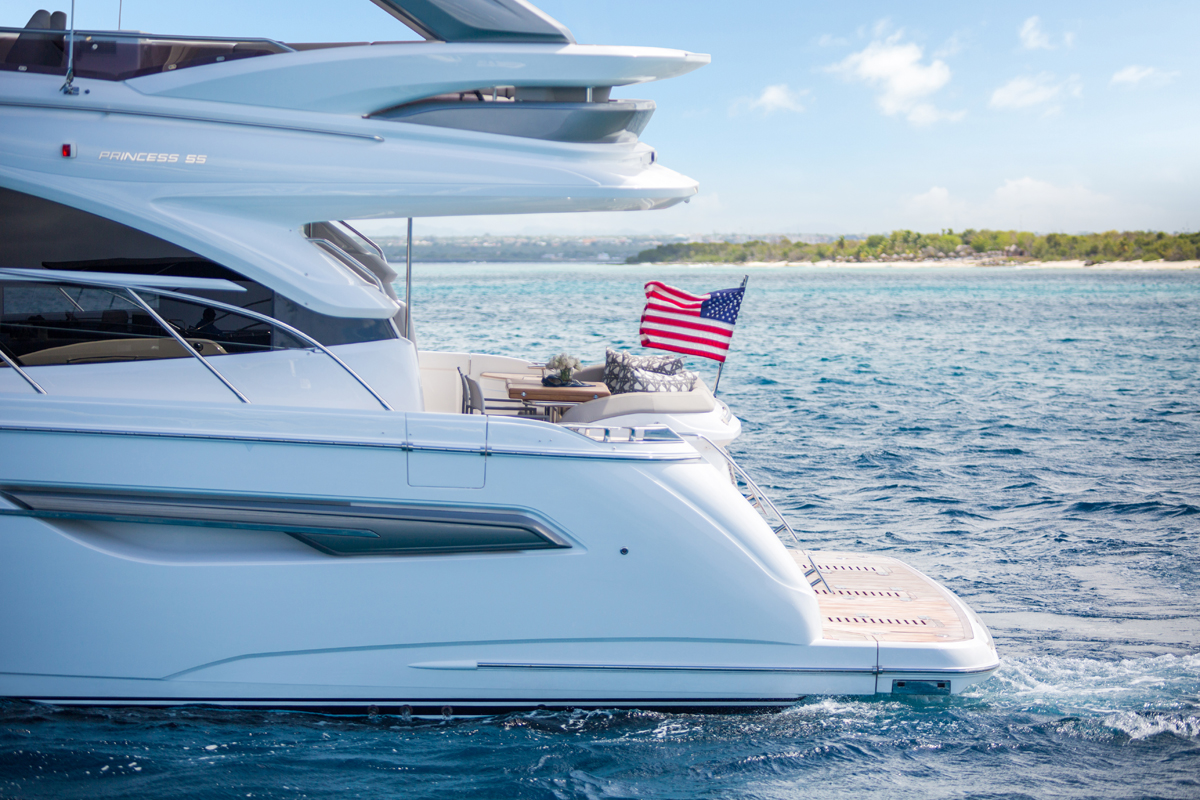

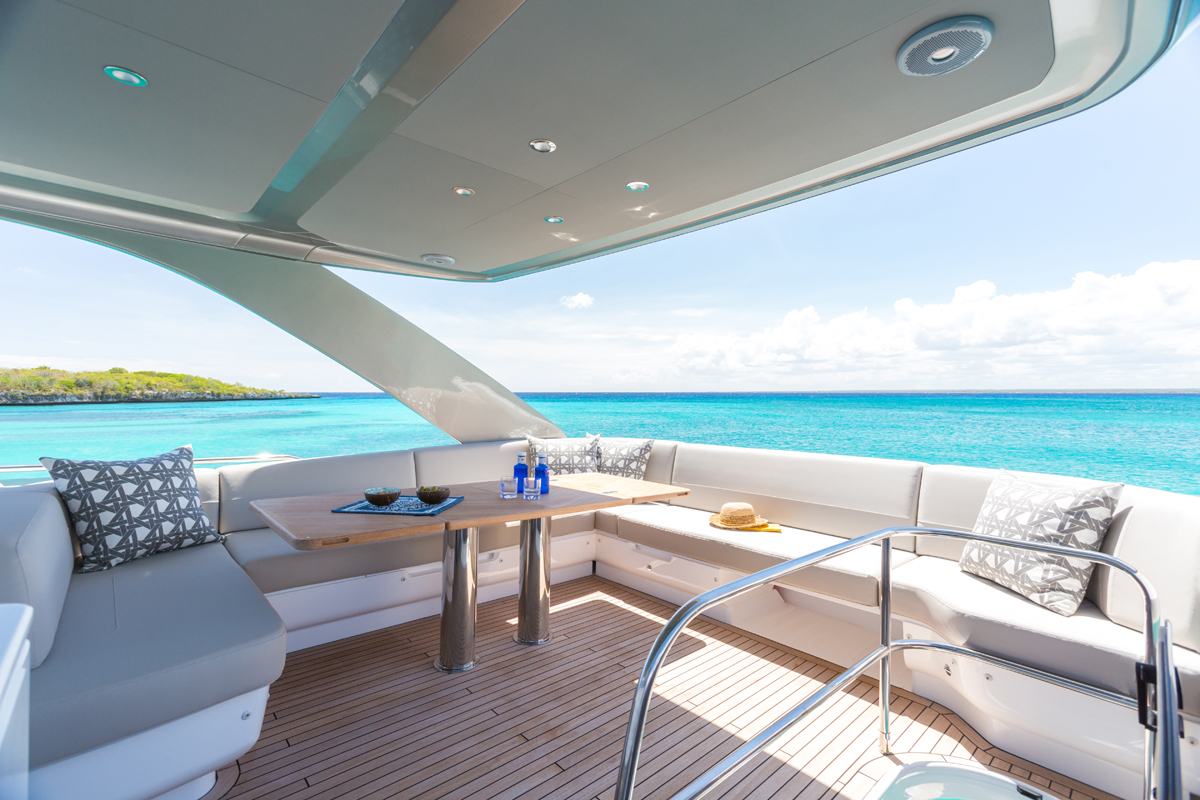

Cockpit and bathing platform
Self draining
U-shaped seating/dining area with folding teak table
LED overhead and deck level lighting
Stainless steel handrails
Rope stowage locker
Lockable gas strut assisted hatch to lazarette/engine room
Lockable gas strut assisted hatch to lazarette/optional crew cabin
Locker containing remote fuel cocks, manual bilge pump with valve chest and manual controls for automatic fire extinguishers
Twin transom doors leading to bathing platform
Retractable bathing ladder (manual) in side of bathing platform
Transom steps to access stern from bathing platform when in lowered position
Hot and cold transom shower
220/240v shore support inlet in locker
Cockpit cover

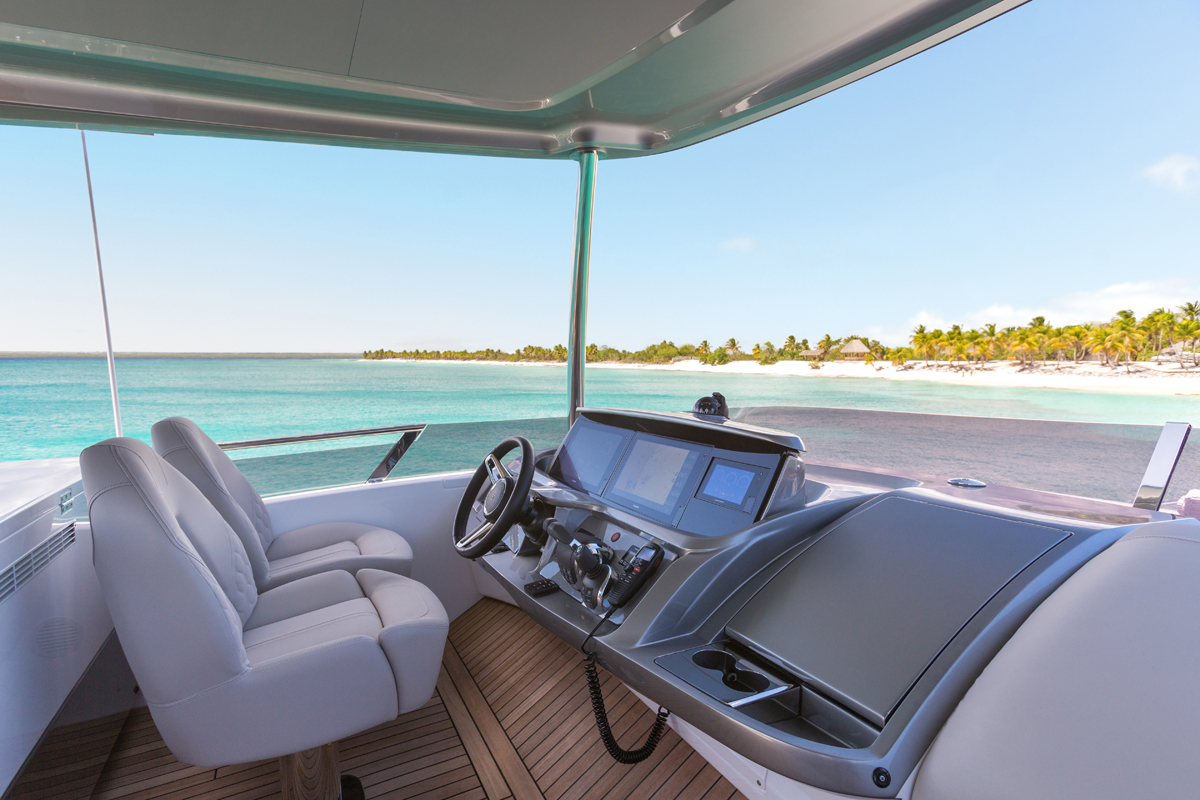

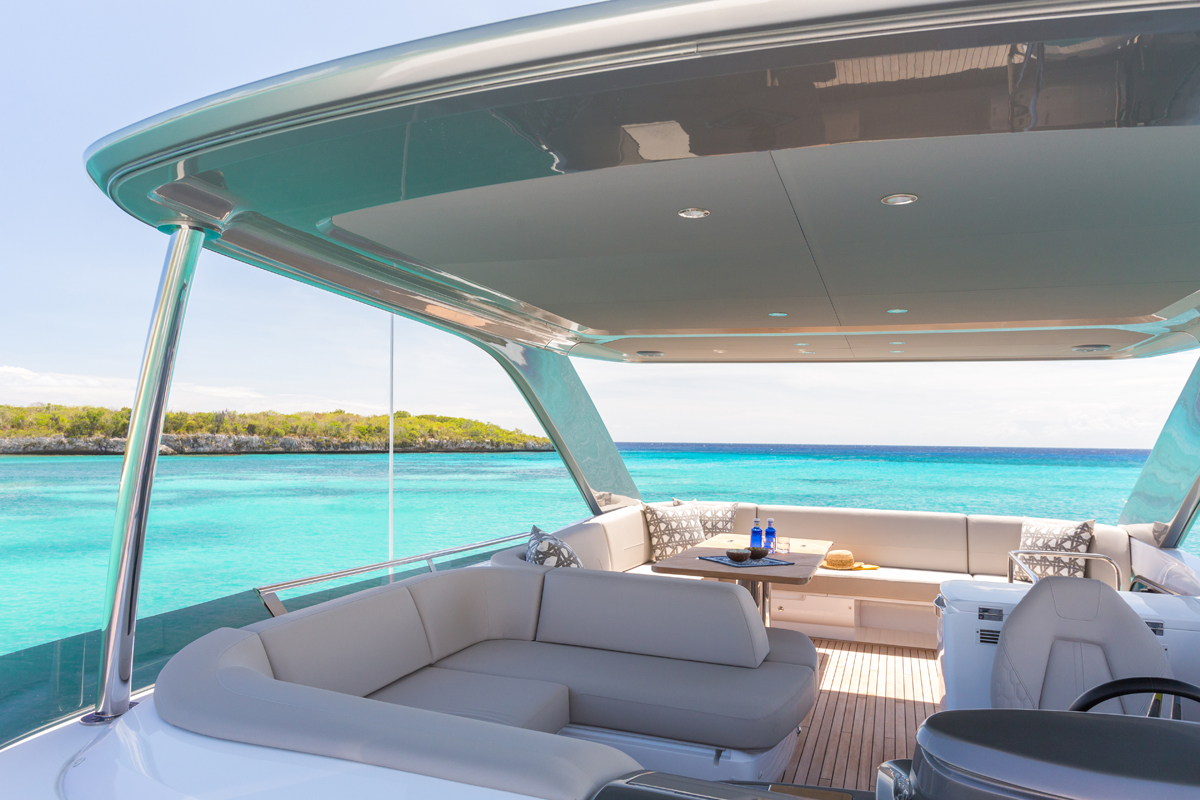

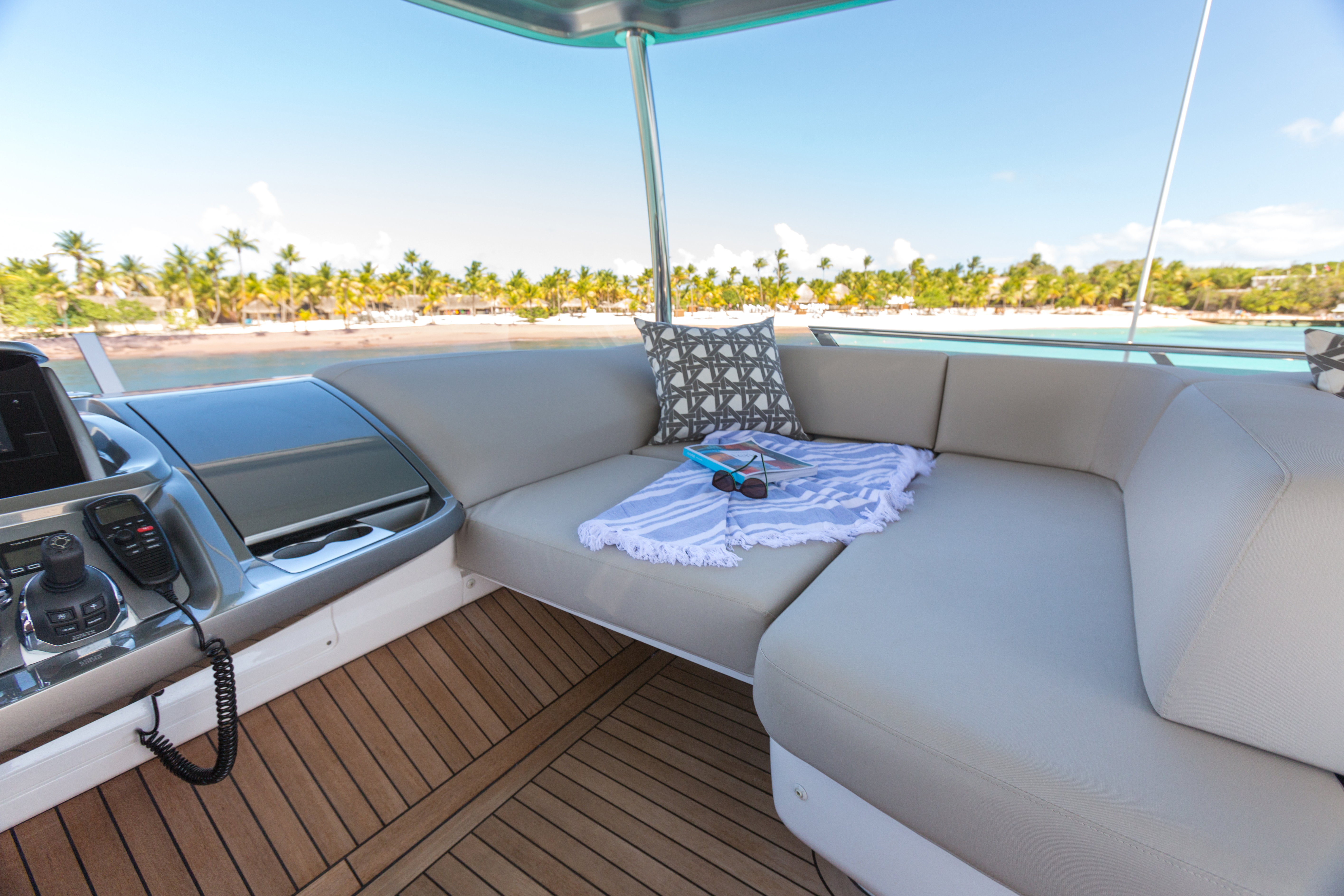

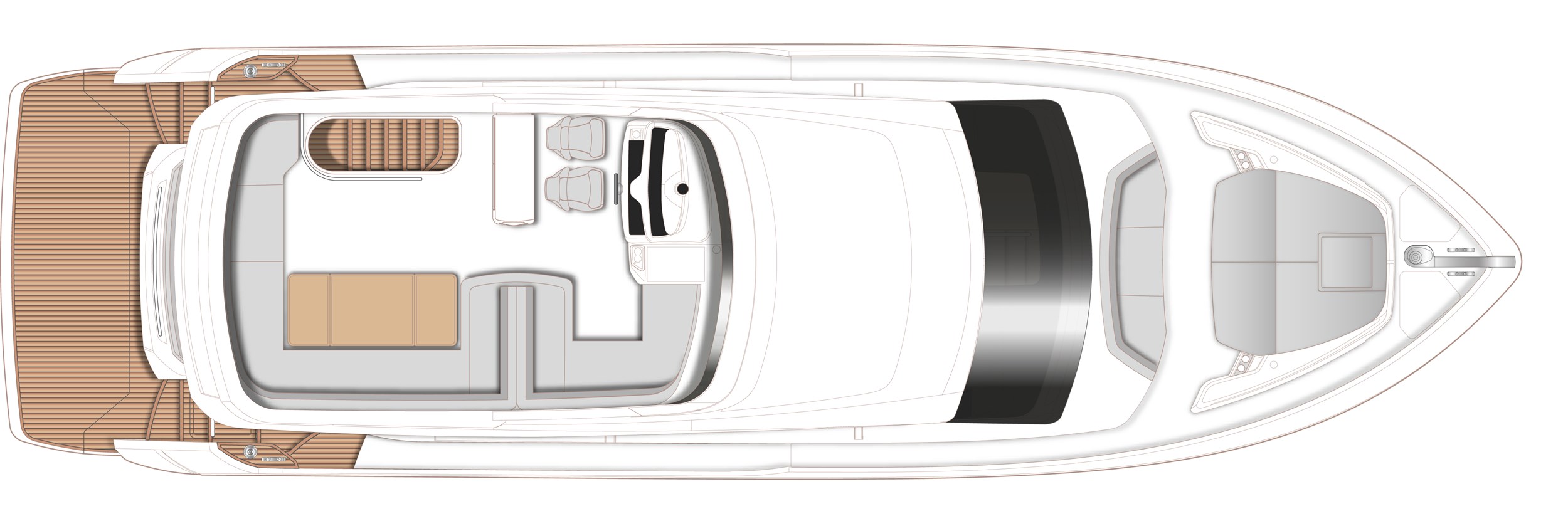

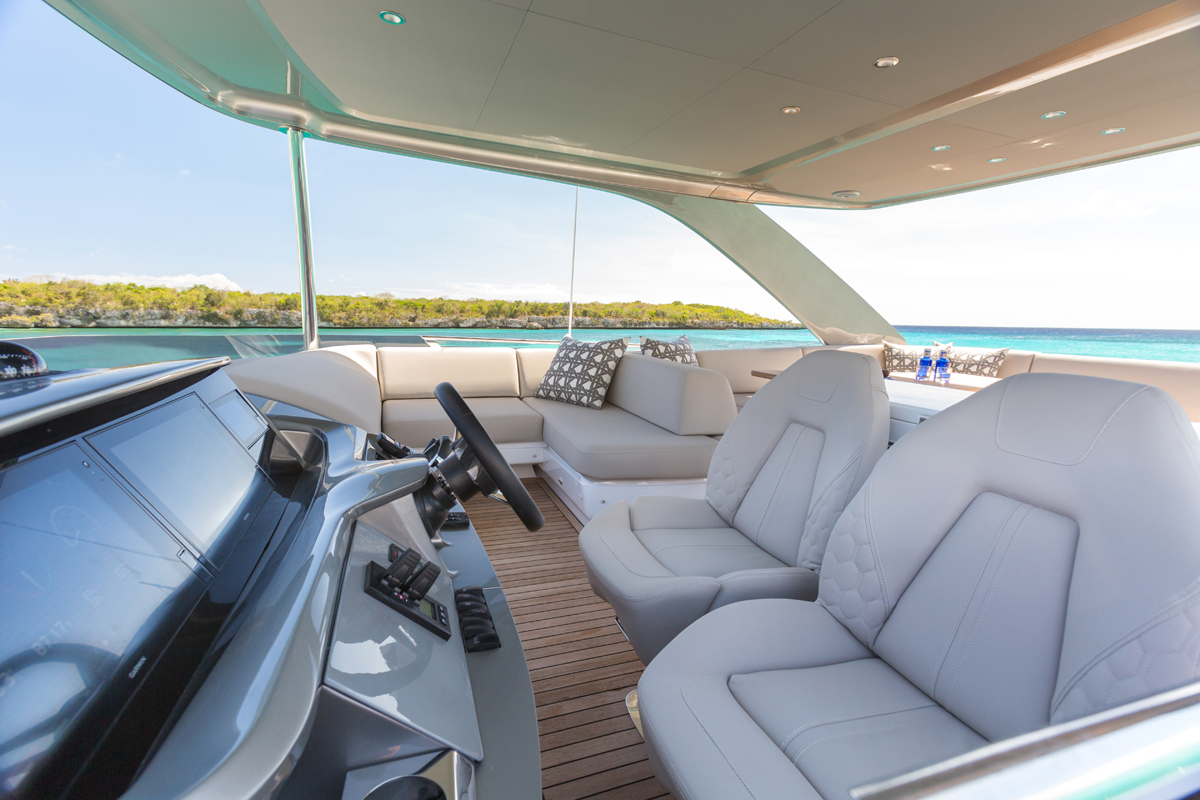

Flybridge
Dual station instrumentation and controls with 16” Garmin screen displaying engine instrumentation, fuel gauges, rudder position indicator and chartplotter (either individual or combined)
Volvo engines have a 7” display for engine instrumentation at both control positions. A 4” multifunction display for log, echo sounder and other instrumentation is also fitted although these can also be displayed on the main 16” display as required. The 16” screen incorporates Volvo software to allow engine instrumentation and autopilot function displays, (as well as the 7” display). If a second 16” screen is ordered the engine instrumentation display is fitted immediately in front of the helm position with the standard 16” screen to port
Adjustable steering wheel
Top loading coolbox adjacent to helm
Audible and visual alarm for bilge pumps
Twin helm seats with fore and aft adjustment for helmsman
L-shaped upholstered seating (converts to sunbed)
U-shaped upholstered seating area
Teak folding table
Radio/iPod/MP3 player with waterproof speakers

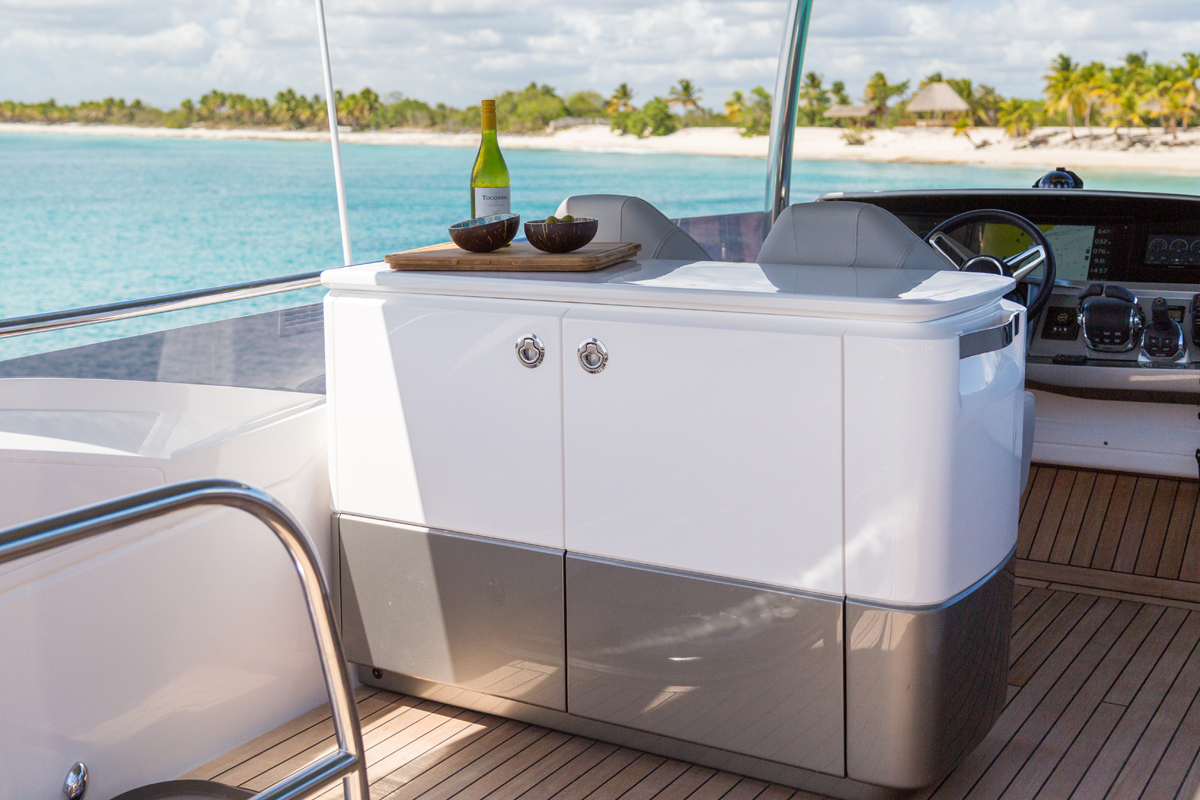

Wetbar including sink, stowage and optional electric barbecue

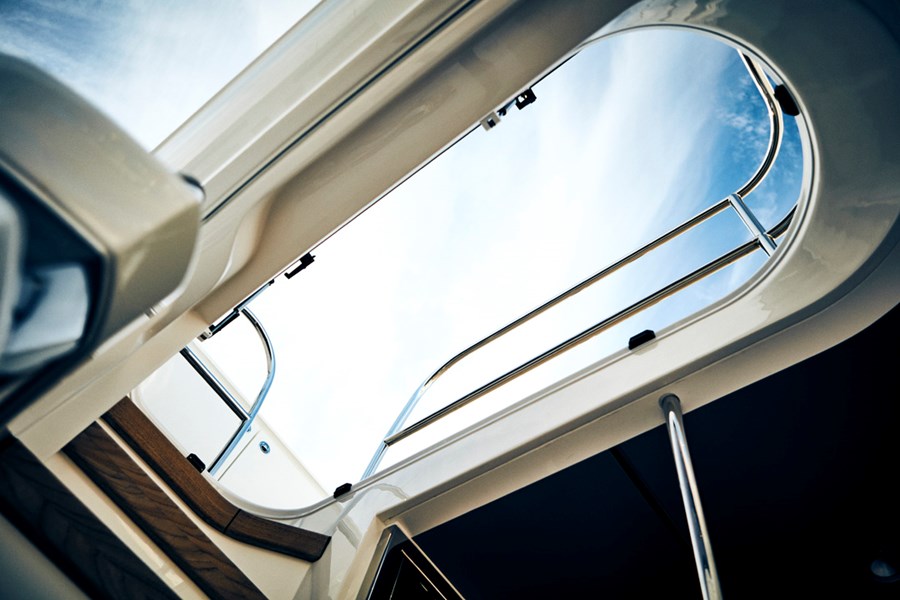

Clear view hatch to aft cockpit
Wind deflector screens
Stainless steel handrails
LED deck level lighting
GRP radar arch
Matched whip aerials for VHF R/T and radio
Liferaft stowage
Console and seat covers
Optional GRP hardtop with/without electric opening section (or optional folding bimini with optional electro-hydraulic operation

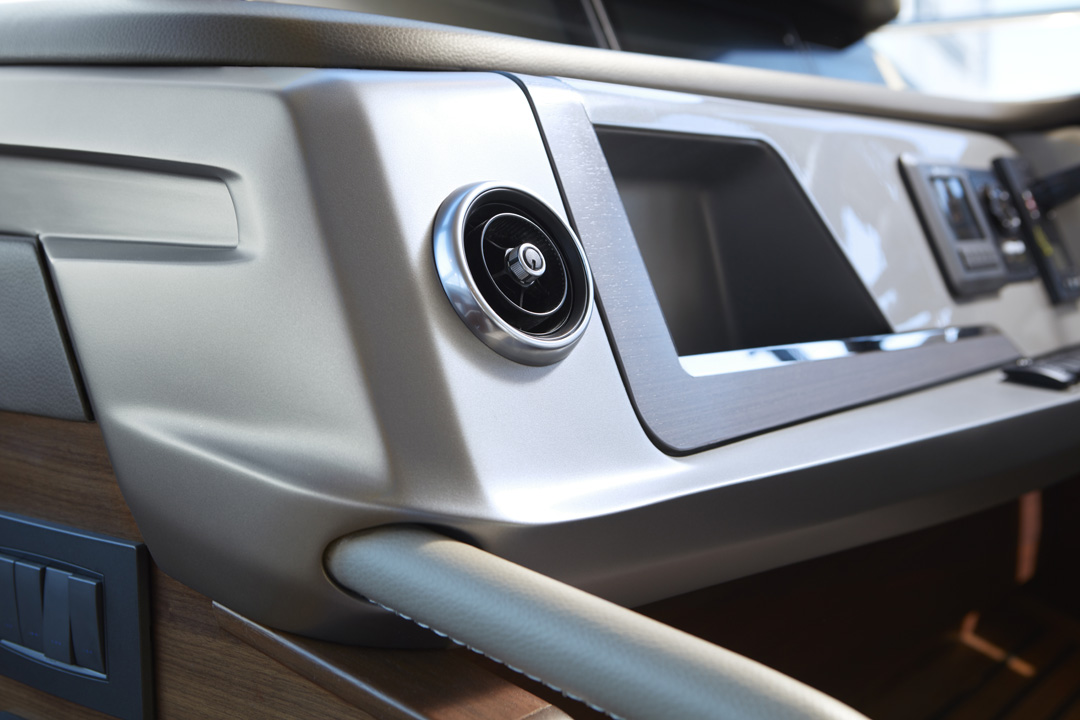

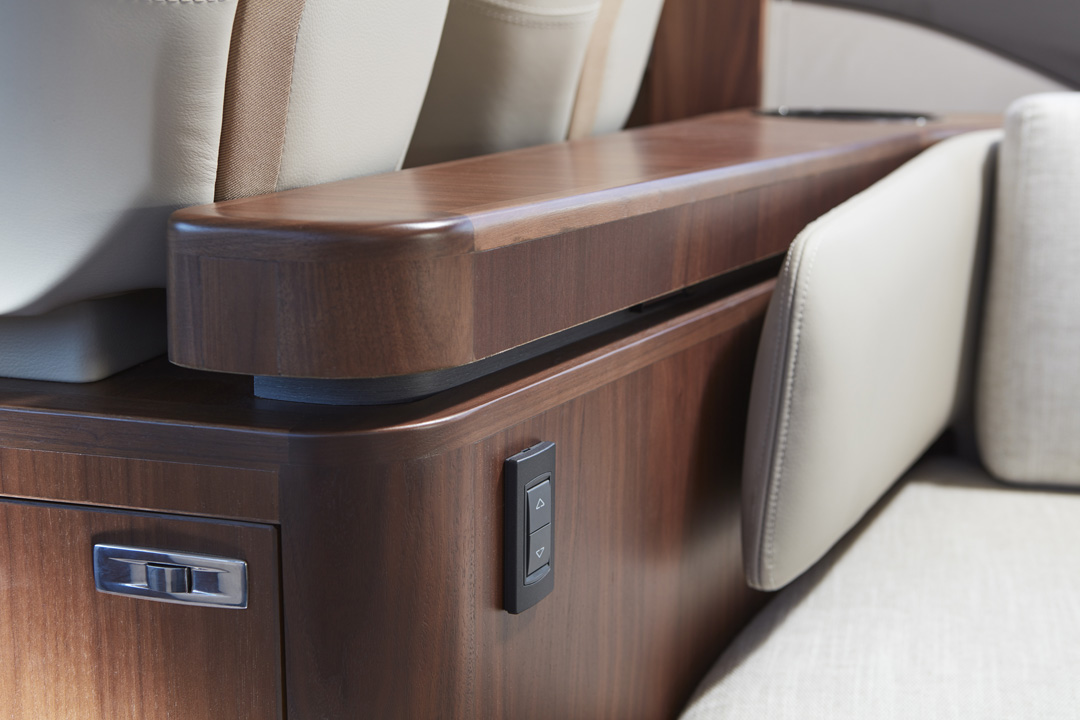

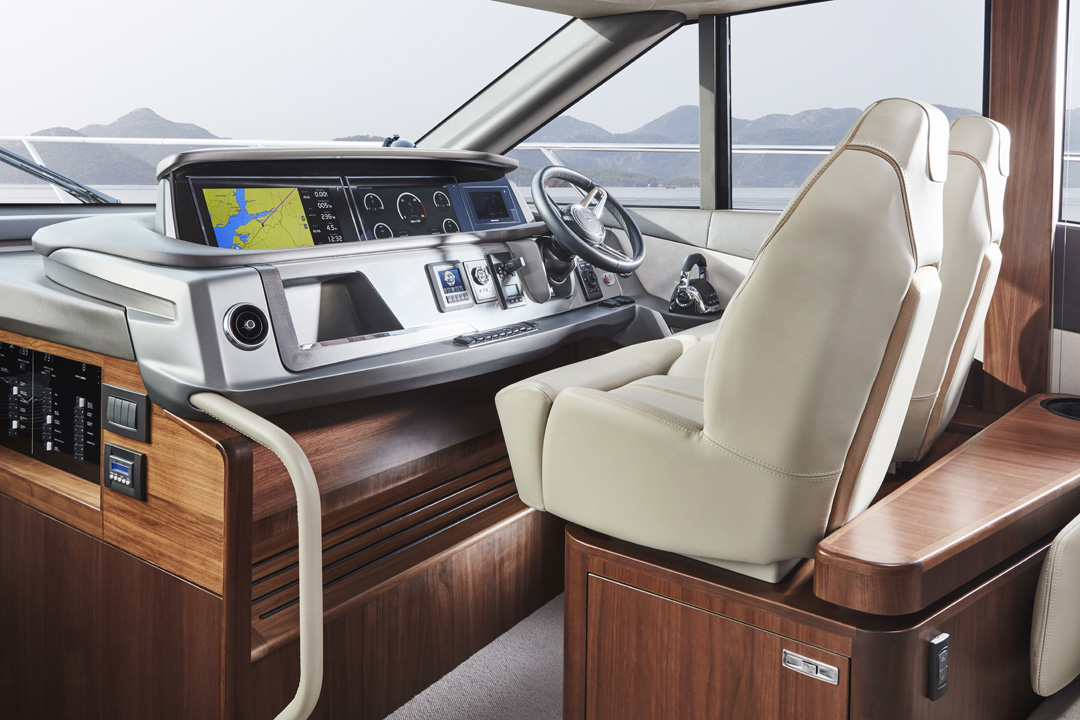

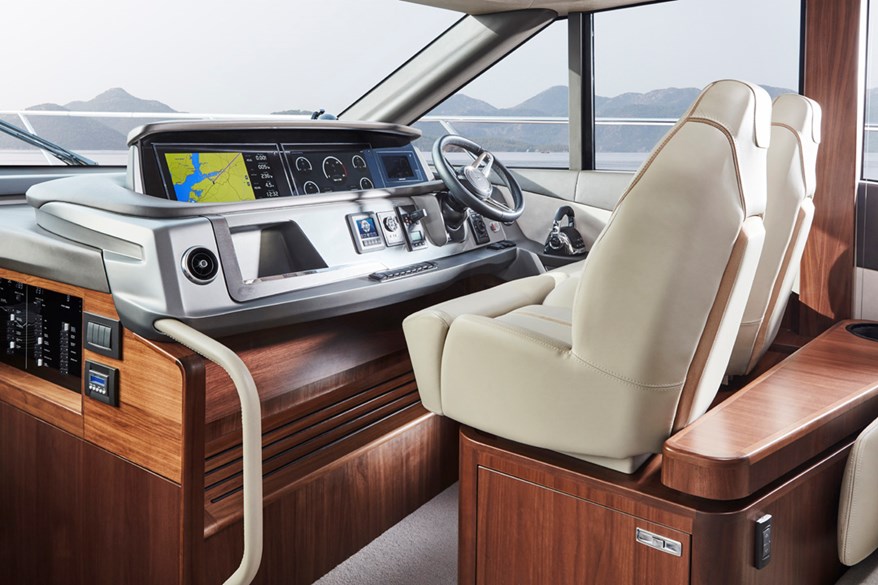

Helm position
Twin leather-upholstered helm seats with manual fore and aft adjustment for helmsman
Instrument console with 16” Garmin screen displaying engine instrumentation, fuel gauges, rudder position indicator, autopilot functions and chartplotter
7” Volvo display for engine instrumentation and autopilot functions. If a second 16” screen is ordered it will be fitted immediately in front of the helm position with the engine instrumentation display to starboard
Dual station instruments and controls at Flybridge and Lower Helm Positions: - power-assisted electric steering with Volvo joystick control - adjustable steering wheel - high-speed magnetic compass - electronic engine controls - trim tab controls with indicators - bow thruster control - electric anchor winch remote control - autopilot - speed and distance log - echo sounder with alarm - VHF with DSC R/T with intercom - remote control searchlight - horn button -teak footrest
Drinks holders
Toughened glass screen (clear for night vision)
Windscreen wipers with freshwater windscreen wash
Exterior black mesh sunscreens windscreen covers
Bilge pump controls with visual pump running warnings
24v and 240v electrical control panel
Riding light, helm and navigation light control switches
USB charging point (1)
LED overhead lighting (24v) and night lighting
Electric drop window
Fitted carpet

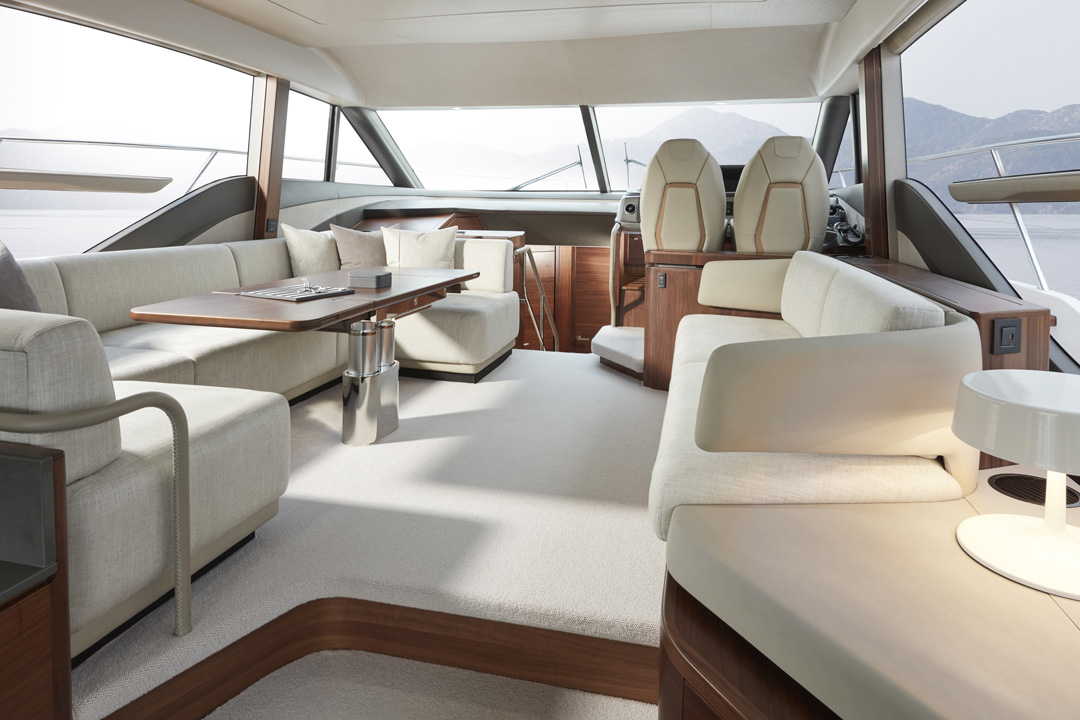

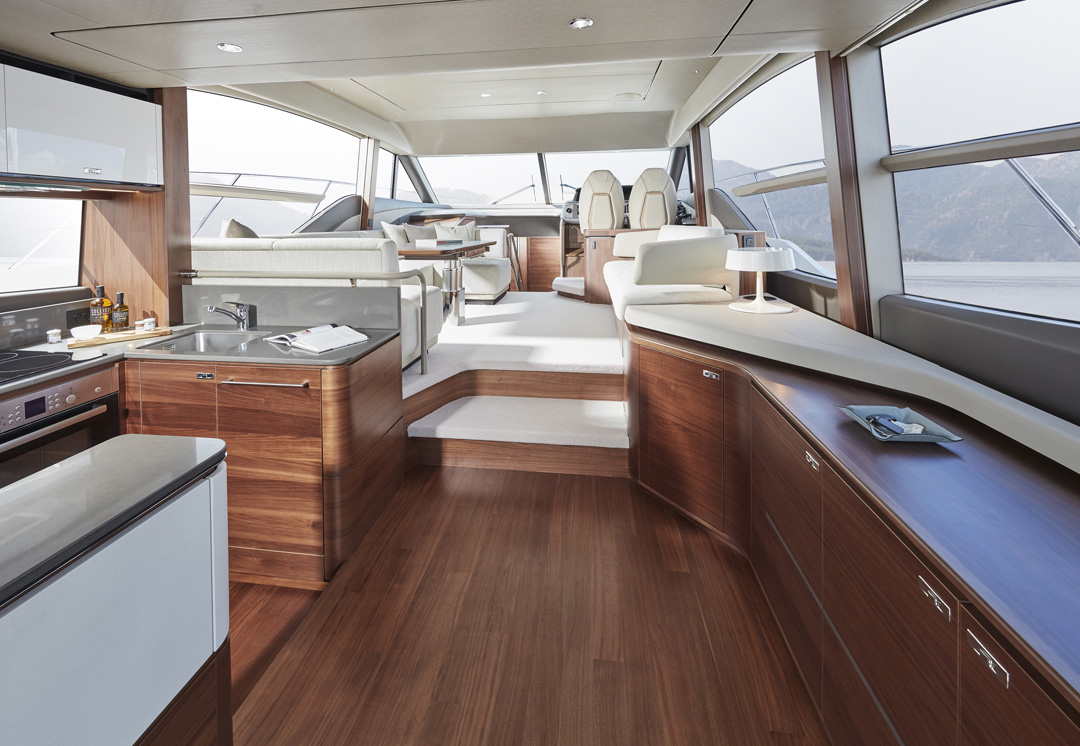

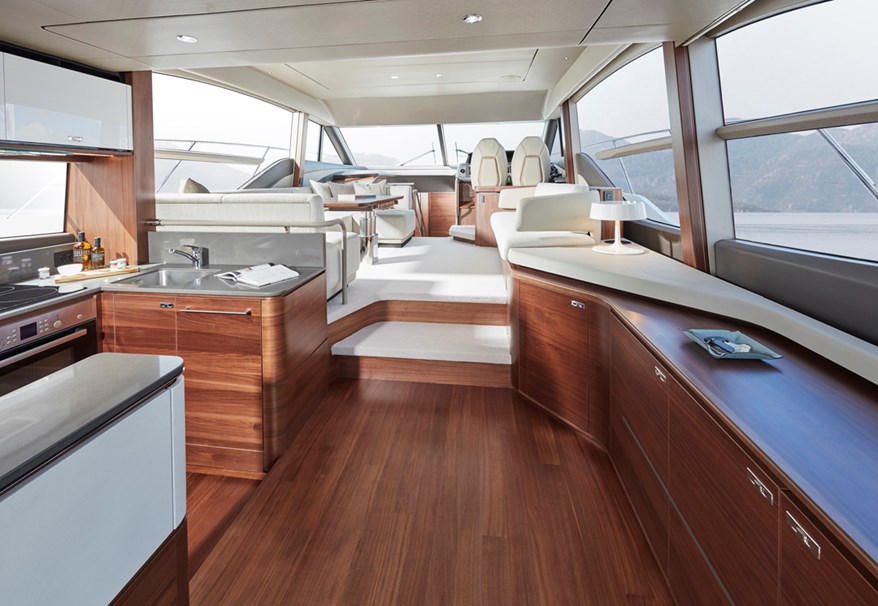

Saloon
U-shaped sofa
Electric drop window to port
Folding leaf dining table or coffee table

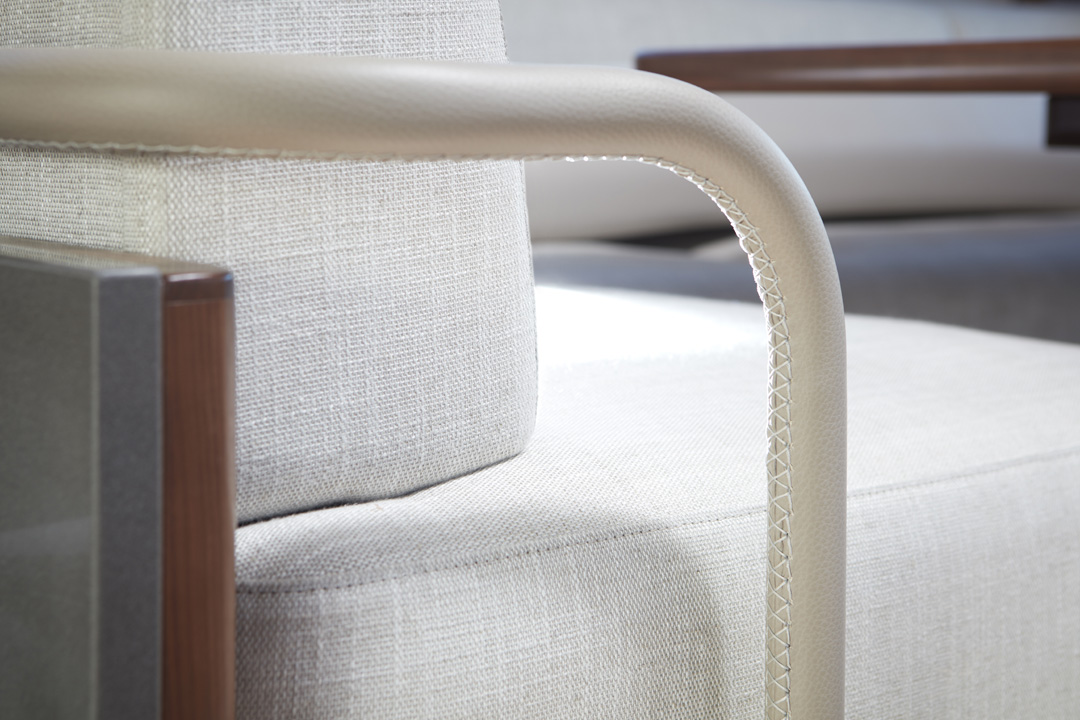

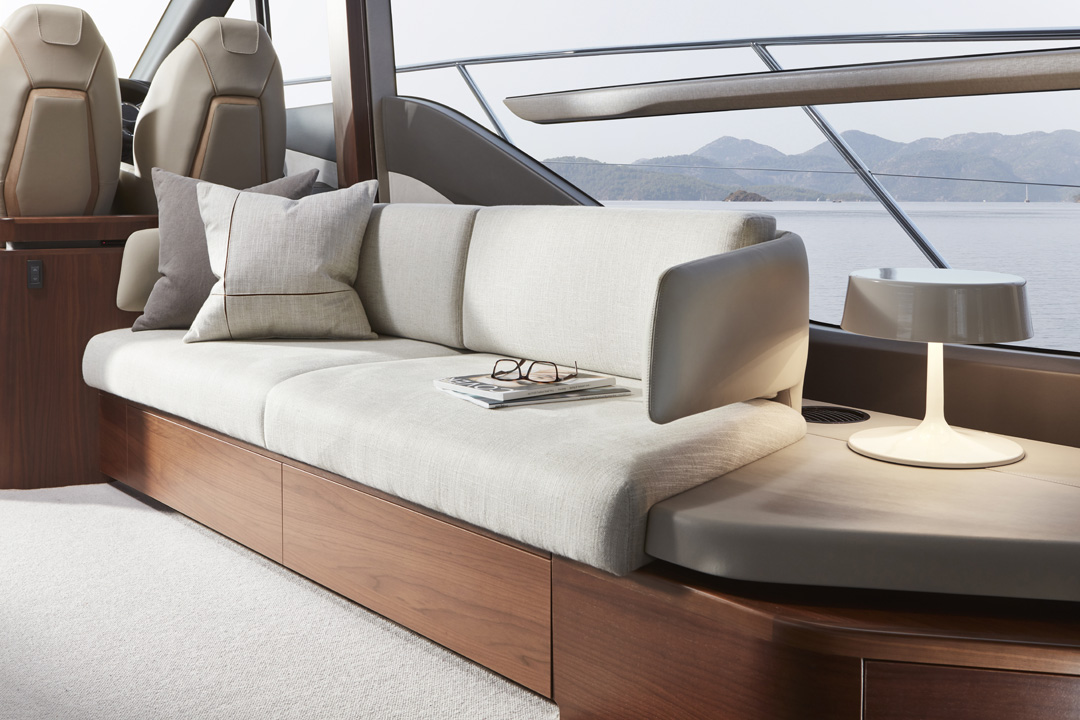

Two-seater sofa
Crockery storage drawer
Sideboard unit
49” UHD LED TV on rise and fall
Radio/DVD/MP3 player connected to Fusion 6” speakers (2)
Blinds or sunscreens to all windows and doors
LED overhead and concealed lighting (24v)
Stairway to lower accommodation
Fitted carpet

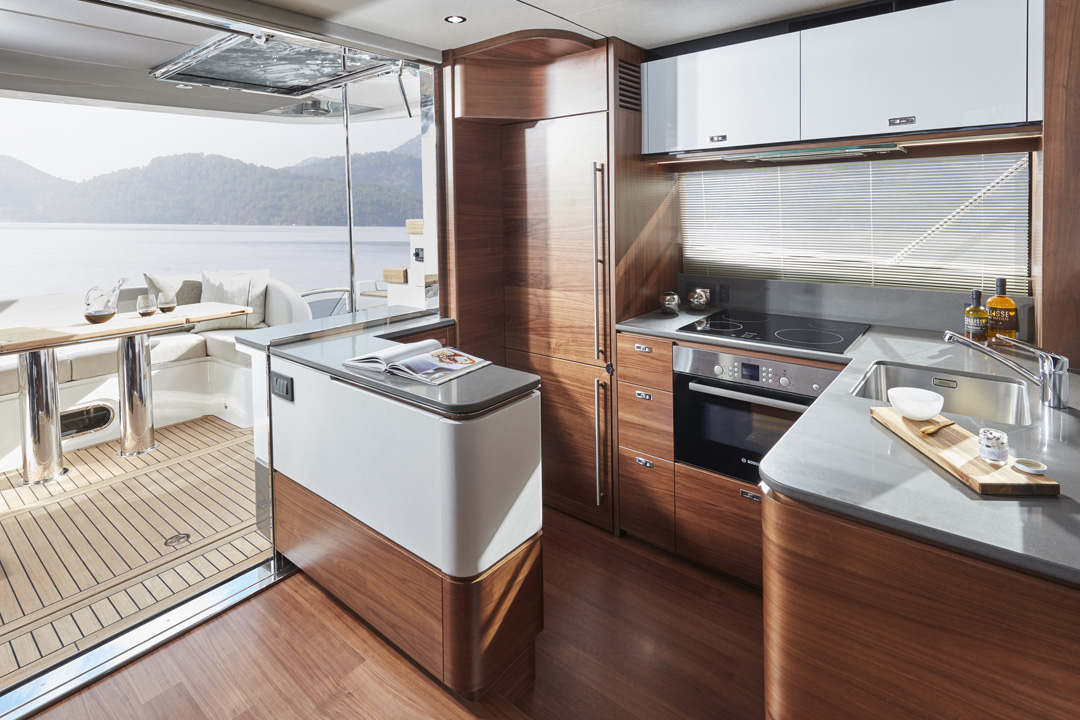

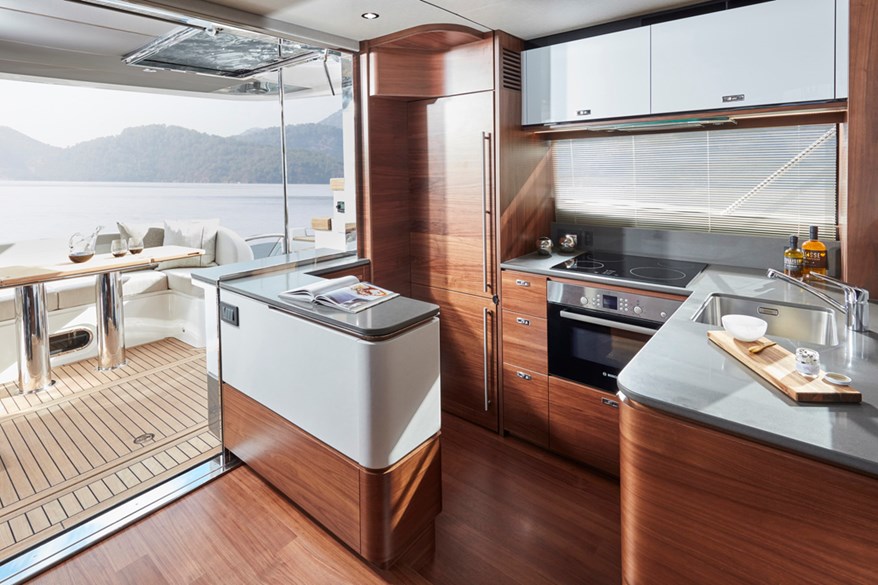

Galley
Solid surface worktop in Sylmar White
4-zone ceramic hob
Hob extractor fan
Combination microwave/convection oven with grill
Stainless steel sink with mixer tap
Full height fridge/freezer (270l)
Waste bin

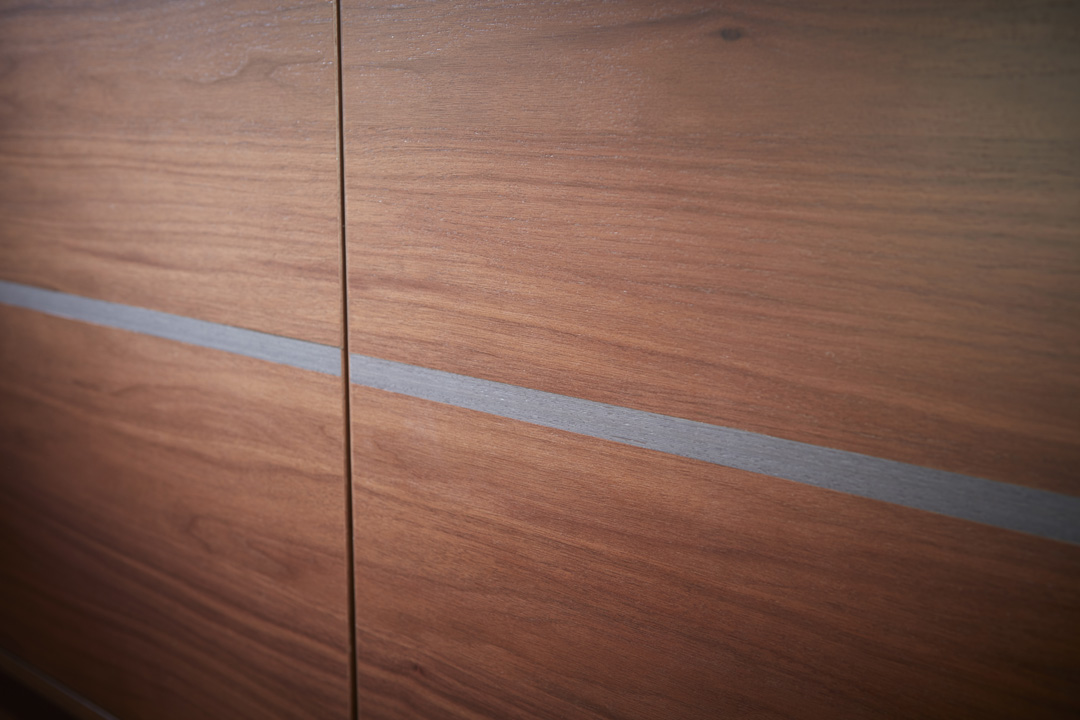

Drawers and storage cupboards
Sideboard unit with bottle and glass storage
Refrigerator
Stainless steel framed sliding door to cockpit with integrated hinging window aft of galley
Blinds or sunscreens to all windows and doors
LED overhead and task lighting (24v)
220/240v outlets (4)
Planked timber flooring

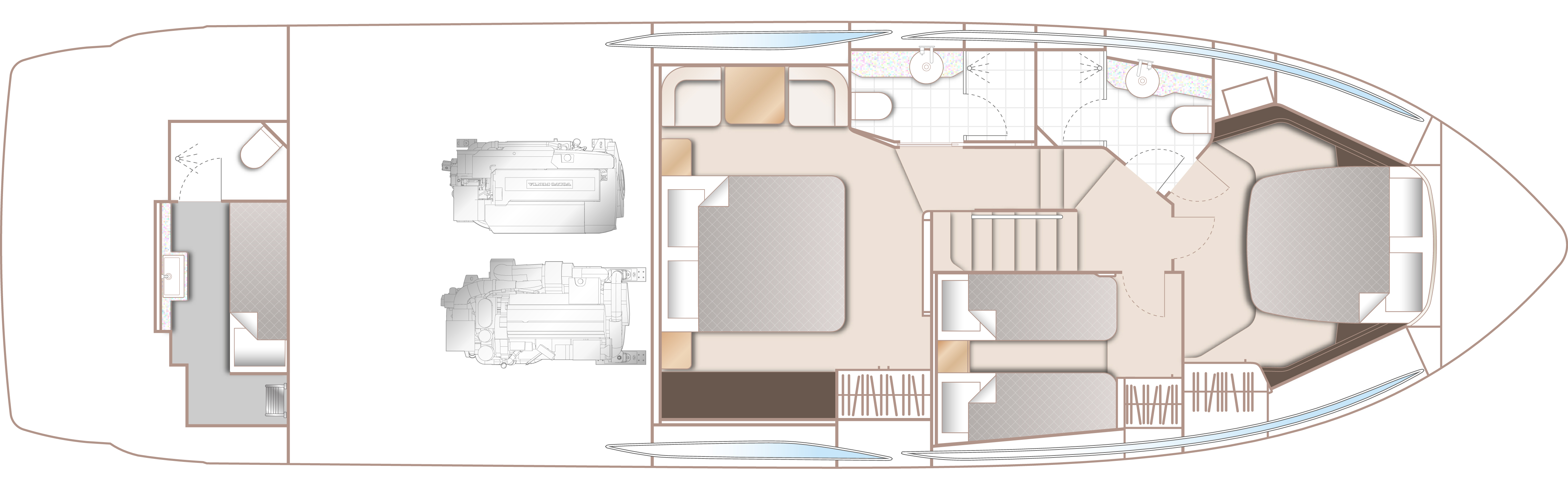

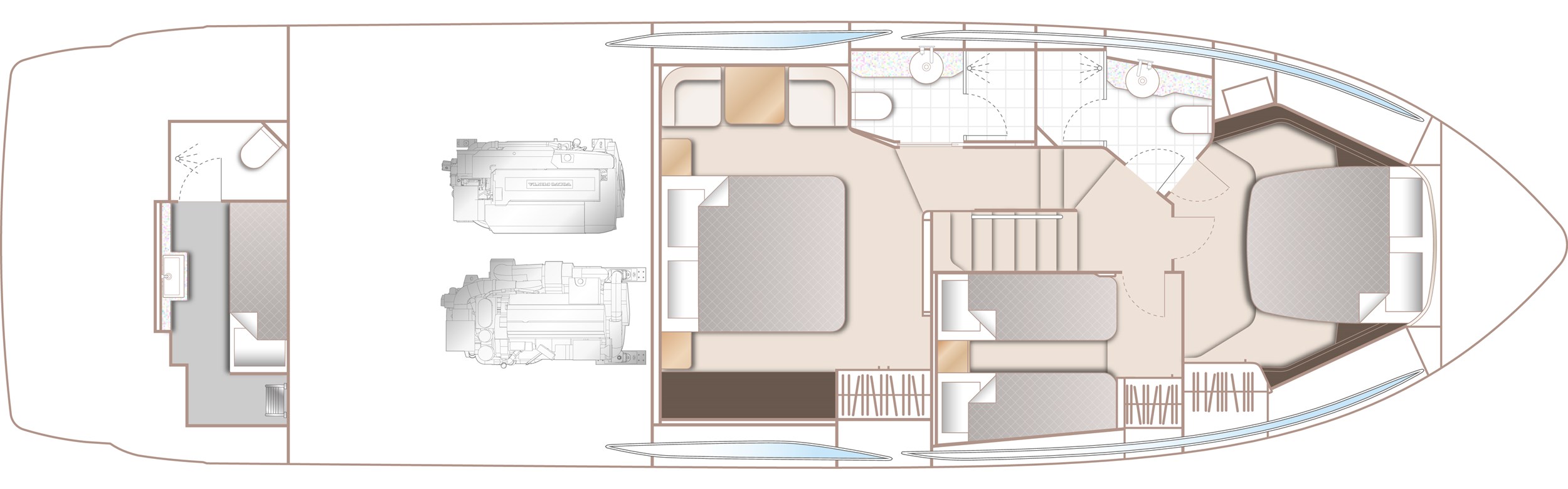

Accommodation
All cabins and bathrooms feature opening portholes
All cabins feature 220/240v power points
All bathrooms feature electric freshwater toilets and 240v shaver points

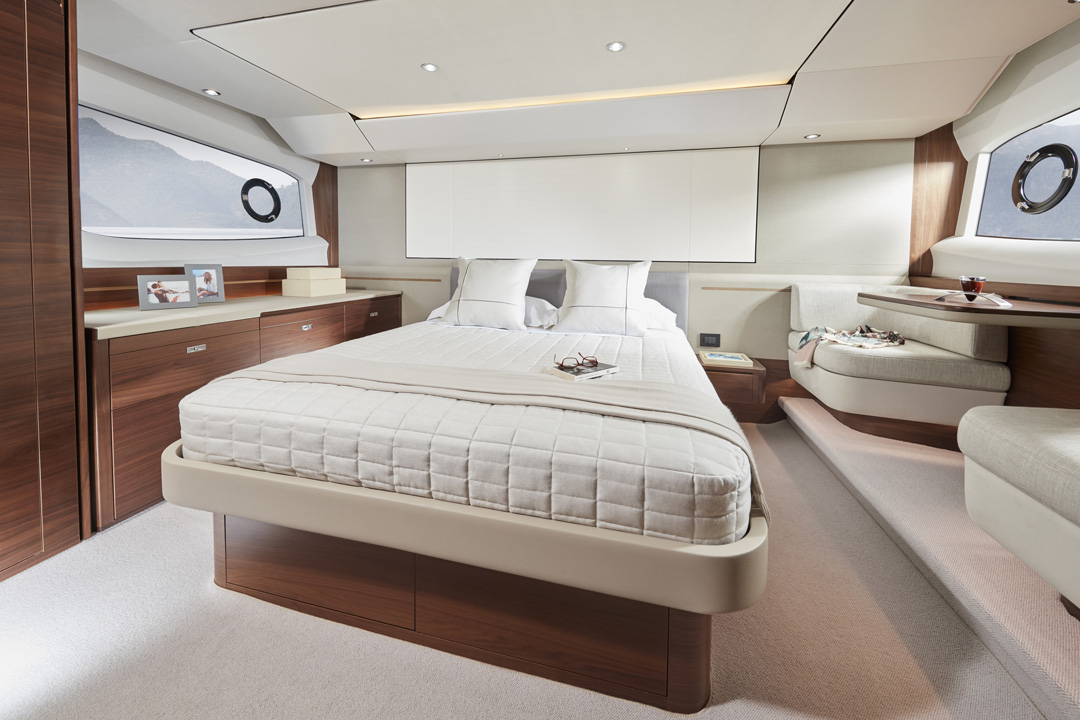

Owner’s stateroom
Large double bed with drawers below
Twin bedside tables
Wardrobe with shelves and mirror
Dressing table
Pull out mirror to vanity unit
Occasional table with seats fore and aft
Storage lockers and drawers
Radio/ Wi-Fi/Bluetooth player connected to Fusion 6” speakers (2)
Panoramic windows including opening porthole
Manual tension venetian blinds to hull windows
LED overhead and concealed lighting (24v)
Individual berth lights
220/240v outlets (2)
USB charging point (1)
Fitted carpet

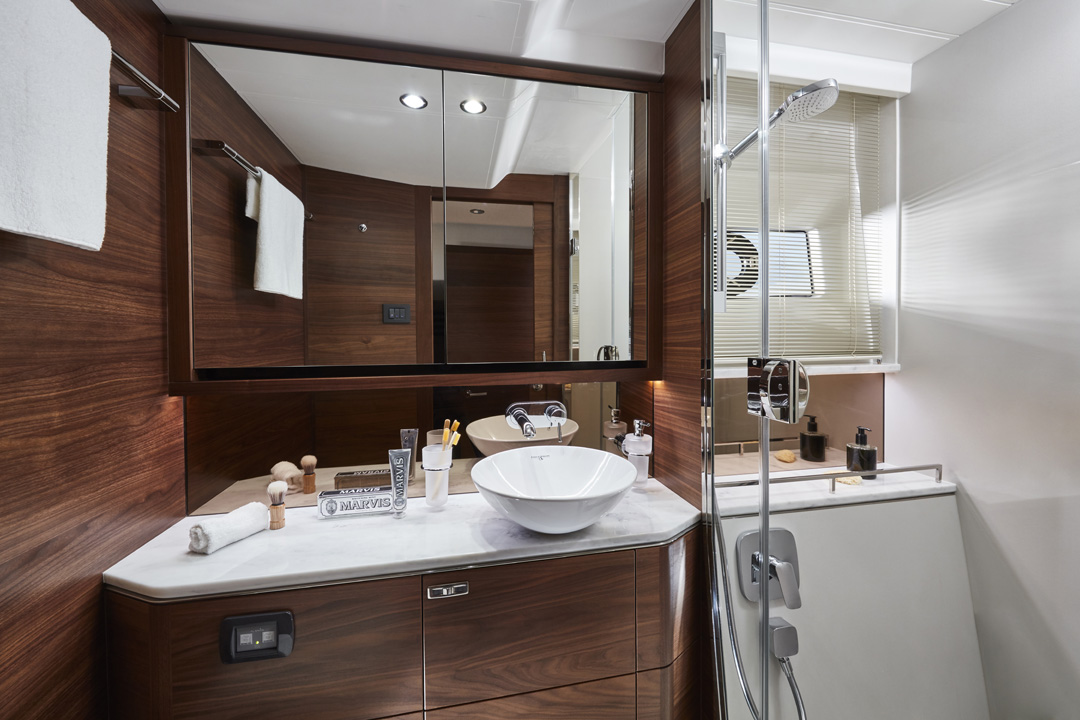

En-Suite Bathroom
Washbasin with solid surface worktop
Mirror
Storage lockers
Shower compartment with automatic pump out
Extractor fan
Window with opening porthole
Manual tension venetian blind
LED overhead and concealed lighting (24v)
Bathroom accessories
Solid surface flooring

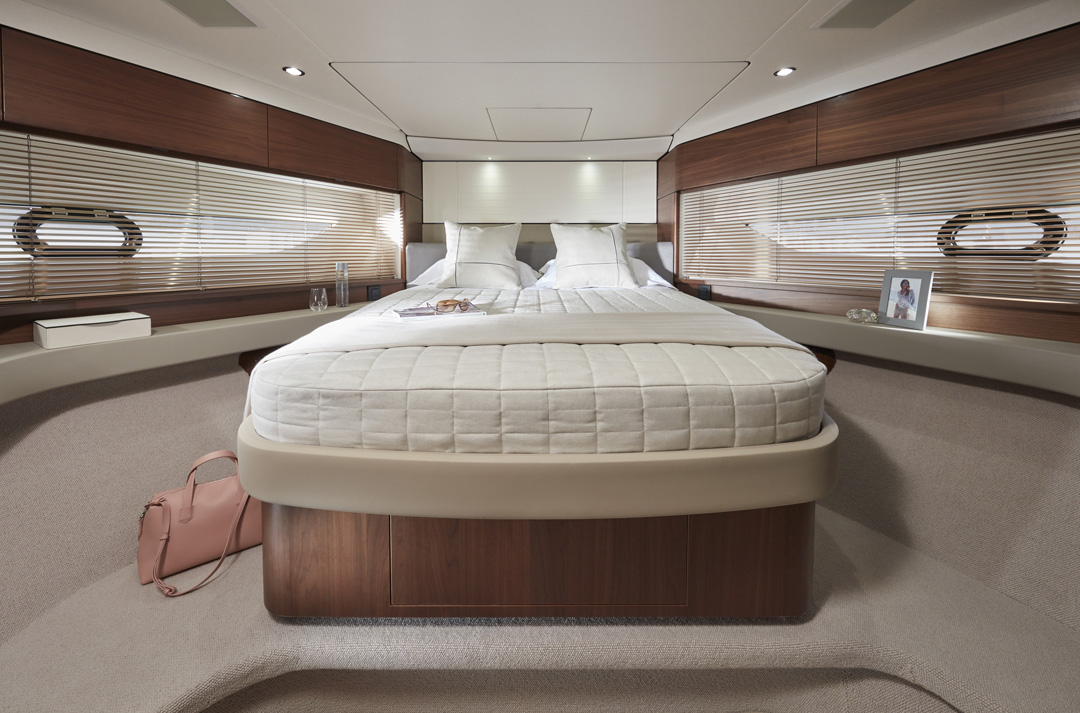

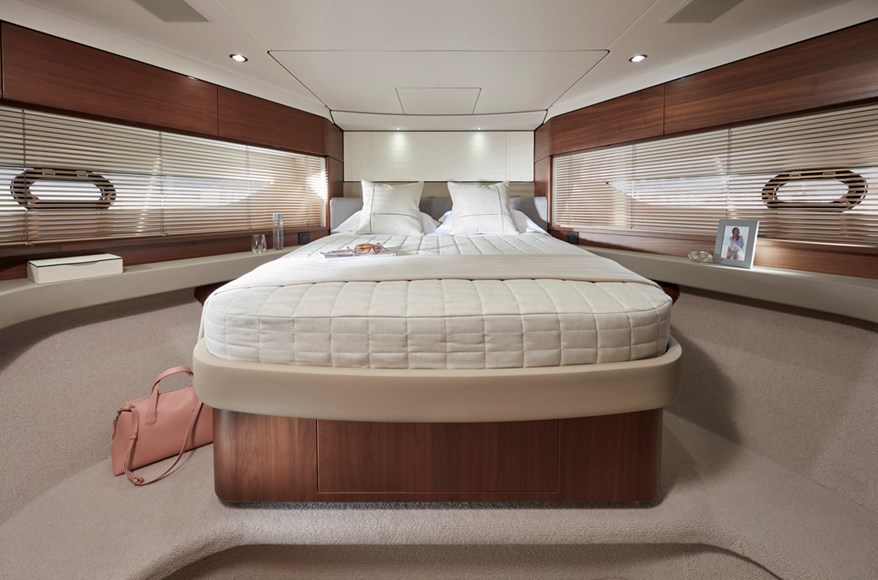

Forward stateroom
Large double bed with drawers below
Wardrobe with shelves and mirror
Dressing table
Mirror to vanity unit
Storage lockers
Window with opening porthole
Manual tension venetian blind
Deck hatch
LED overhead and concealed lighting (24v)
Individual berth lights
220/240v outlets (2)
USB charging point (1)
Fitted carpet

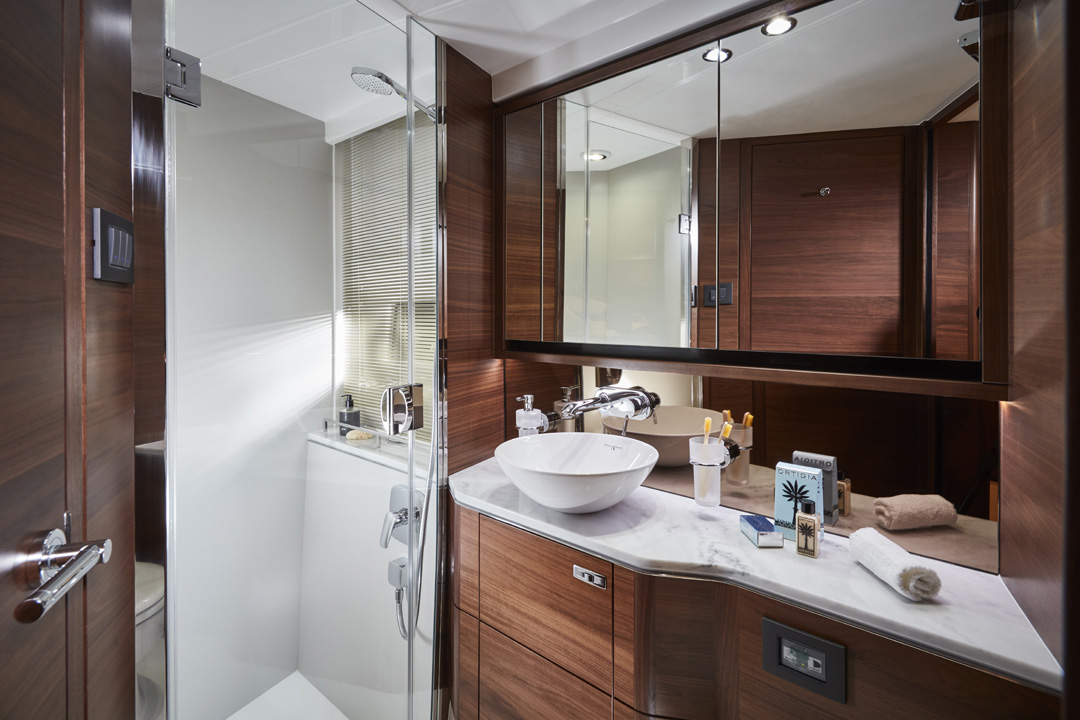

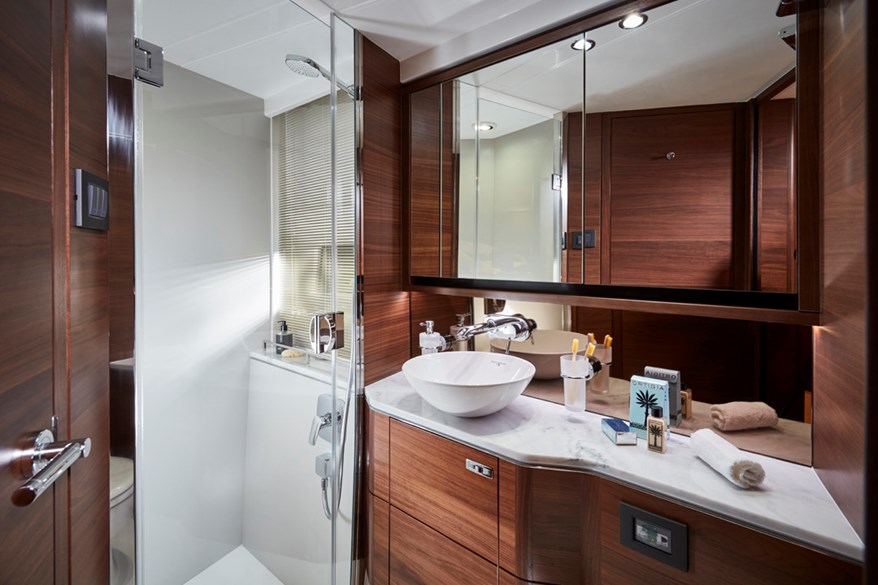

En-Suite Bathroom
Washbasin with solid surface worktop
Mirror
Storage lockers
Shower compartment with automatic pump out
Extractor fan
Window with opening porthole and
Manual tension venetian blind
LED overhead and concealed lighting (24v)
Bathroom accessories
Solid surface flooring

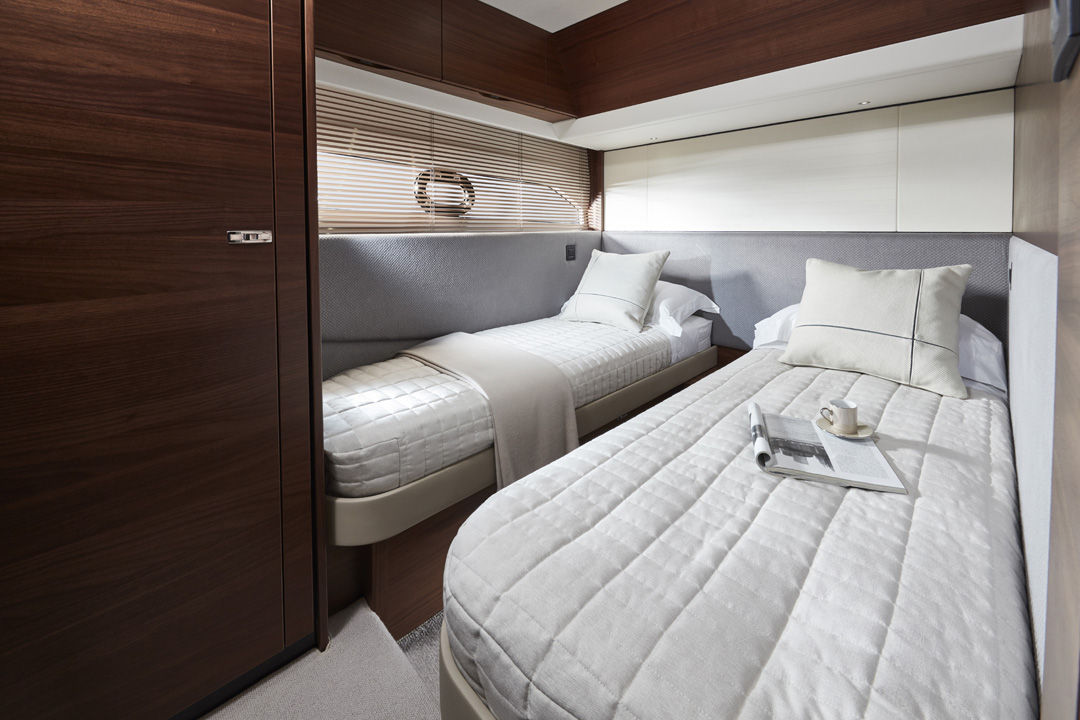

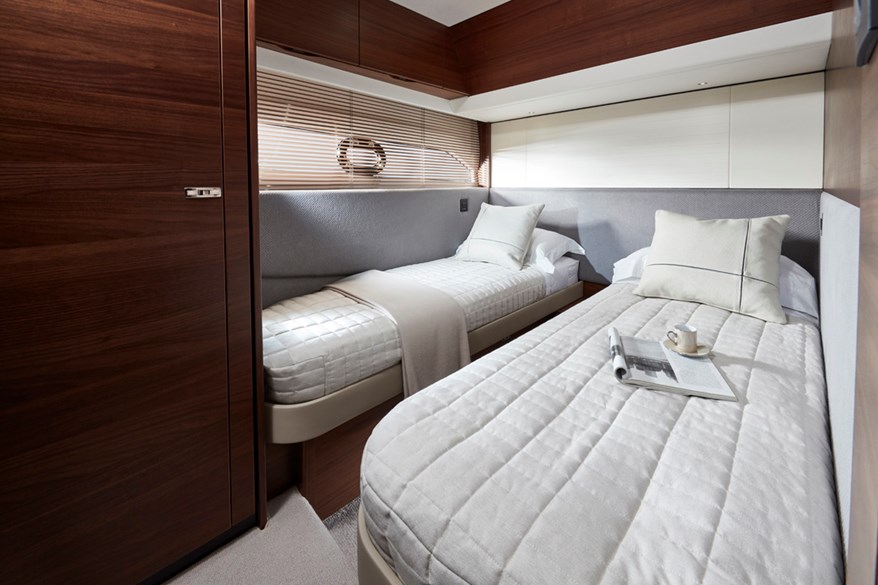

Starboard guest cabin
Two single beds with drawers below (with option of double bed conversion)
Bedside table
Wardrobe with shelves
Mirror
Storage lockers and drawers
Window with opening portholes and
Manual tension venetian blind
LED overhead and concealed lighting (24v)
Individual berth lights
220/240v outlets (2)
USB charging point (1)
Fitted carpet

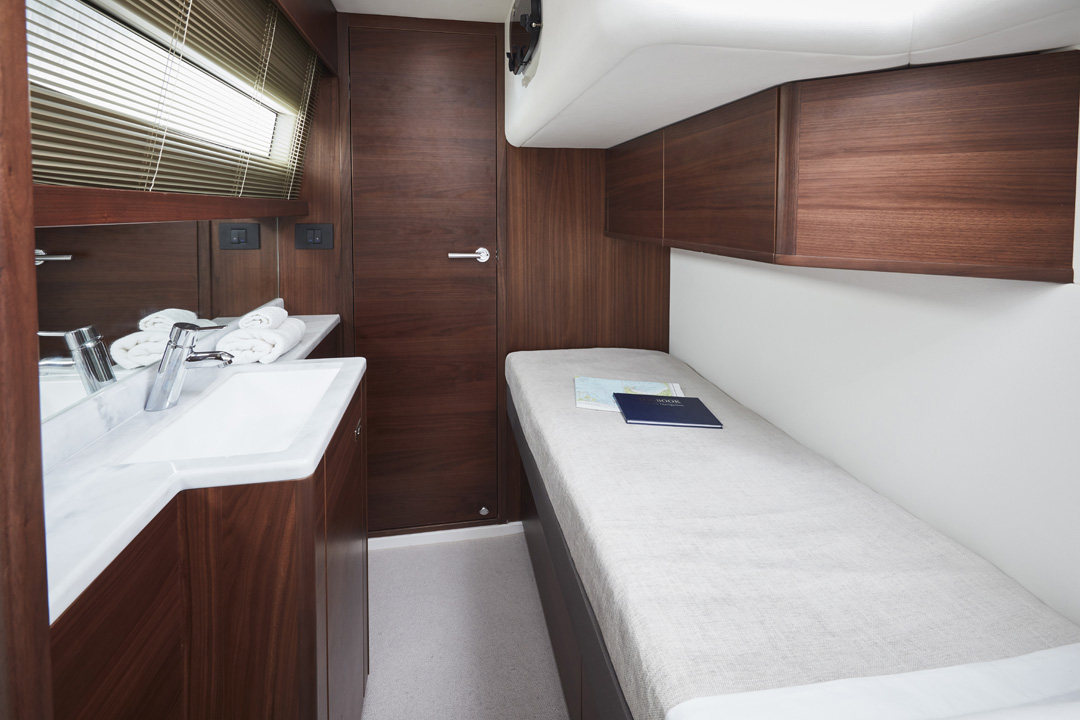

Optional aft cabin (in place of aft lazarette)
Single bed with storage below
Wardrobe with shelf
Mirror
LED overhead lighting (24v)
Individual berth lights
220/240v outlet (1)
Fitted carpet
En-Suite Bathroom
Washbasin with solid surface worktop (in main cabin area)
Storage lockers
Opening porthole
Shower with automatic pump out
Extractor fan
LED overhead lighting (24v)
Bathroom accessories
Power and drive systems
5-bladed propellers in nickel aluminum bronze
Bow thruster is (130kgF/286lbF) with dual-station controls
Engine room lighting
Engine room access hatch and ladder
Power-assisted electro-hydraulic steering system
Trim tabs with indicators
Electronic engine and gear shift controls
Engine room extractor fans with electronic time delay
Fresh water supply point in engine room
Dripless self aligning shaft seals
Electrical systems
24 Volt:
4 x heavy duty batteries for engine starting
4 x heavy duty auxiliary batteries
Battery link facility with remote control at helm position
Both battery banks are charged using a voltage sensitive relay that parallels both battery banks when a charging source is present
60 amp battery charger
Remote battery master switches with control switch at main switch panel
Circuit breakers on all circuits
12v voltage dropper for certain navigation and radio circuits
220/240 Volt:
9.5Kw diesel generator in own sound shield with water cooled specially silenced exhaust
Automatic fire extinguisher situated in the Engine room
50-amp shore support inlet
Generator/shore support change-over switch
Polarity check system
Earth leakage safety trip
Circuit breakers on all circuits
Power points in: owner’s stateroom, guest cabins, galley and saloon area
Shaver points in all bathrooms
Fuel system
Twin fuel tanks (in NS8 marine grade alloy) with interconnection system giving 605gal / 726 US gal / 2,750l capacity
Fuel fillers on port and starboard side decks
High-capacity duplex fuel filters with water traps with change-over valves
Water warning sensors connected to warning lights at lower helm
Remote fuel cocks in cockpit locker
Fuel gauges at main helm console
Water system
Water tanks totalling 118 gal / 141 US gal / 535l plus 16 gal /19 US gal / 73l hot water calorifier
Water heated by engines and 240v immersion heater
Automatic water pump with filter
Main circuit breaker at switch panel
Water level gauge
Deck filler
Electric freshwater toilet system with 69 gal / 83 US gal / 315l holding tank, content gauge and manual overboard discharge, with macerator backup system as well as dockside discharge system
Fire extinguishers
Automatic/manual override fire extinguishers in engine room with warning system at helm position
Hand-operated fire extinguishers (5) in owner’s stateroom, forward and starboard guest cabin, galley and helm position
Additional extinguisher fitted when optional aft cabin is specified
Bilge pumps
Automatic/manual override electric bilge pumps in engine room (2), lazarette and forward accommodation (5 in all)
High-capacity manual bilge pump with valve system and suction points in same areas
Electric bilge pumps have controls and warning lights at main helm and warning light with audible alarm at flybridge helm
Other standard equipment
Ensign staff
Fenders (6)
Mooring warps (4)
Boat hook
First Aid kit
Tool kit
Owner’s manual and engine manual
Quilted bedspreads supplied to all cabins (except optional crew cabin)
Ship’s document case
Anchor winch back up handle
Finishes
Teak-laid decks to transom platform, steps to side decks, cockpit deck and steps to flybridge
Timber-laid floor to galley area
Furniture in choice of Rovere Oak or Alba Oak in satin lacquer finish as standard. Silver Oak or Walnut in satin or gloss lacquer finishes available as an option.
Solid surface floors in all bathroom suites in guest accommodation
Solid surface wash hand basin and counter tops in all bathrooms
Galley worktop in solid surface finish
Choice of high-quality carpet and upholstery fabric from extensive range
Blinds or sunscreens to all windows and portholes
Optional crew cabin has non-slip safety flooring with carpet and crew bathroom has white solid surface countertops
Close
Princess F55
Principal Dimensions
Details
Specification
Disclaimer
Length overall (incl. pulpit)
57ft 9in (17.6m)
Length overall (excl. pulpit)
56ft 7in (17.24m)
Beam
16ft 0in (4.87m)
Draft
4ft 10in (1.46m)
Displacement approx.
29,582kg (65,217lbs)
Fuel capacity
605 gal/726 US gal/2,750l
Water capacity (incl. calorifier)
134 gal/161 US gal/608l
Engines
Twin Volvo D13-900 (2 x 900mhp)
TOP SPEED: 30-32 knots†
* Displacements are calculated with 50% fuel and water with liferaft but with no optional equipment fitted or other gear.
† Maximum speeds will vary depending on cleanliness of hull, condition of sterngear, loading of craft, water and air temperatures, sea conditions and other factors. Speed estimates are therefore given in good faith but without warranty or liability on the part of Princess Yachts Limited. Craft illustrated in this brochure may be fitted with certain optional equipment. Specifications may be changed at any time without notice or liability. USA Specification
‡ Certain specifications, which vary by model, are upgraded on Princess yachts built for use in North America. Thus, specifications and equipment will vary from the information listed in the brochure for North American Princess yachts (e.g. air-conditioning and an upgraded generator will be included as standard for all North American models and electric cooking facilities will be supplied in place of gas systems). Please consult the USA Specification Brochure for full details regarding the North American specifications for individual models.
Principal Dimensions
Details
Deck fittings
6mm teak-laid transom platform, cockpit deck, flybridge stairway and steps to side deck
Lewmar reversible electric anchor winch with foredeck and helm position controls
Stemhead roller with automatic anchor launch and retrieve
Self-stowing (25kg/55lb) Delta anchor with 40m of 9.5mm chain
Bow rope storage locker
Freshwater deck/anchor wash
Deck storage locker for fenders and ropes
Stainless steel bow, stern and spring cleats (8)
Stainless steel pulpit and guardrails
Stainless steel coachroof handrails
Foredeck hatch
PVC rubbing band with stainless steel insert
LED deck level lighting
Illuminated crown logo to transom
Full set of IMCO navigation lights
Riding light
Searchlight with remote control
Twin electric horns
Loudhailer
Fuel and water fillers
Cockpit and bathing platform
Self draining
U-shaped seating/dining area with folding teak table
LED overhead and deck level lighting
Stainless steel handrails
Rope stowage locker
Lockable gas strut assisted hatch to lazarette/engine room
Lockable gas strut assisted hatch to lazarette/optional crew cabin
Locker containing remote fuel cocks, manual bilge pump with valve chest and manual controls for automatic fire extinguishers
Twin transom doors leading to bathing platform
Retractable bathing ladder (manual) in side of bathing platform
Transom steps to access stern from bathing platform when in lowered position
Hot and cold transom shower
220/240v shore support inlet in locker
Cockpit cover
Flybridge
Dual station instrumentation and controls with 16” Garmin screen displaying engine instrumentation, fuel gauges, rudder position indicator and chartplotter (either individual or combined)
Volvo engines have a 7” display for engine instrumentation at both control positions. A 4” multifunction display for log, echo sounder and other instrumentation is also fitted although these can also be displayed on the main 16” display as required. The 16” screen incorporates Volvo software to allow engine instrumentation and autopilot function displays, (as well as the 7” display). If a second 16” screen is ordered the engine instrumentation display is fitted immediately in front of the helm position with the standard 16” screen to port
Adjustable steering wheel
Top loading coolbox adjacent to helm
Audible and visual alarm for bilge pumps
Twin helm seats with fore and aft adjustment for helmsman
L-shaped upholstered seating (converts to sunbed)
U-shaped upholstered seating area
Teak folding table
Radio/iPod/MP3 player with waterproof speakers
Wetbar including sink, stowage and optional electric barbecue
Clear view hatch to aft cockpit
Wind deflector screens
Stainless steel handrails
LED deck level lighting
GRP radar arch
Matched whip aerials for VHF R/T and radio
Liferaft stowage
Console and seat covers
Optional GRP hardtop with/without electric opening section (or optional folding bimini with optional electro-hydraulic operation
Helm position
Twin leather-upholstered helm seats with manual fore and aft adjustment for helmsman
Instrument console with 16” Garmin screen displaying engine instrumentation, fuel gauges, rudder position indicator, autopilot functions and chartplotter
7” Volvo display for engine instrumentation and autopilot functions. If a second 16” screen is ordered it will be fitted immediately in front of the helm position with the engine instrumentation display to starboard
Dual station instruments and controls at Flybridge and Lower Helm Positions: - power-assisted electric steering with Volvo joystick control - adjustable steering wheel - high-speed magnetic compass - electronic engine controls - trim tab controls with indicators - bow thruster control - electric anchor winch remote control - autopilot - speed and distance log - echo sounder with alarm - VHF with DSC R/T with intercom - remote control searchlight - horn button -teak footrest
Drinks holders
Toughened glass screen (clear for night vision)
Windscreen wipers with freshwater windscreen wash
Exterior black mesh sunscreens windscreen covers
Bilge pump controls with visual pump running warnings
24v and 240v electrical control panel
Riding light, helm and navigation light control switches
USB charging point (1)
LED overhead lighting (24v) and night lighting
Electric drop window
Fitted carpet
Saloon
U-shaped sofa
Electric drop window to port
Folding leaf dining table or coffee table
Two-seater sofa
Crockery storage drawer
Sideboard unit
49” UHD LED TV on rise and fall
Radio/DVD/MP3 player connected to Fusion 6” speakers (2)
Blinds or sunscreens to all windows and doors
LED overhead and concealed lighting (24v)
Stairway to lower accommodation
Fitted carpet
Galley
Solid surface worktop in Sylmar White
4-zone ceramic hob
Hob extractor fan
Combination microwave/convection oven with grill
Stainless steel sink with mixer tap
Full height fridge/freezer (270l)
Waste bin
Drawers and storage cupboards
Sideboard unit with bottle and glass storage
Refrigerator
Stainless steel framed sliding door to cockpit with integrated hinging window aft of galley
Blinds or sunscreens to all windows and doors
LED overhead and task lighting (24v)
220/240v outlets (4)
Planked timber flooring
Accommodation
All cabins and bathrooms feature opening portholes
All cabins feature 220/240v power points
All bathrooms feature electric freshwater toilets and 240v shaver points
Owner’s stateroom
Large double bed with drawers below
Twin bedside tables
Wardrobe with shelves and mirror
Dressing table
Pull out mirror to vanity unit
Occasional table with seats fore and aft
Storage lockers and drawers
Radio/ Wi-Fi/Bluetooth player connected to Fusion 6” speakers (2)
Panoramic windows including opening porthole
Manual tension venetian blinds to hull windows
LED overhead and concealed lighting (24v)
Individual berth lights
220/240v outlets (2)
USB charging point (1)
Fitted carpet
En-Suite Bathroom
Washbasin with solid surface worktop
Mirror
Storage lockers
Shower compartment with automatic pump out
Extractor fan
Window with opening porthole
Manual tension venetian blind
LED overhead and concealed lighting (24v)
Bathroom accessories
Solid surface flooring
Forward stateroom
Large double bed with drawers below
Wardrobe with shelves and mirror
Dressing table
Mirror to vanity unit
Storage lockers
Window with opening porthole
Manual tension venetian blind
Deck hatch
LED overhead and concealed lighting (24v)
Individual berth lights
220/240v outlets (2)
USB charging point (1)
Fitted carpet
En-Suite Bathroom
Washbasin with solid surface worktop
Mirror
Storage lockers
Shower compartment with automatic pump out
Extractor fan
Window with opening porthole and
Manual tension venetian blind
LED overhead and concealed lighting (24v)
Bathroom accessories
Solid surface flooring
Starboard guest cabin
Two single beds with drawers below (with option of double bed conversion)
Bedside table
Wardrobe with shelves
Mirror
Storage lockers and drawers
Window with opening portholes and
Manual tension venetian blind
LED overhead and concealed lighting (24v)
Individual berth lights
220/240v outlets (2)
USB charging point (1)
Fitted carpet
Optional aft cabin (in place of aft lazarette)
Single bed with storage below
Wardrobe with shelf
Mirror
LED overhead lighting (24v)
Individual berth lights
220/240v outlet (1)
Fitted carpet
En-Suite Bathroom
Washbasin with solid surface worktop (in main cabin area)
Storage lockers
Opening porthole
Shower with automatic pump out
Extractor fan
LED overhead lighting (24v)
Bathroom accessories
Power and drive systems
5-bladed propellers in nickel aluminum bronze
Bow thruster is (130kgF/286lbF) with dual-station controls
Engine room lighting
Engine room access hatch and ladder
Power-assisted electro-hydraulic steering system
Trim tabs with indicators
Electronic engine and gear shift controls
Engine room extractor fans with electronic time delay
Fresh water supply point in engine room
Dripless self aligning shaft seals
Electrical systems
24 Volt:
4 x heavy duty batteries for engine starting
4 x heavy duty auxiliary batteries
Battery link facility with remote control at helm position
Both battery banks are charged using a voltage sensitive relay that parallels both battery banks when a charging source is present
60 amp battery charger
Remote battery master switches with control switch at main switch panel
Circuit breakers on all circuits
12v voltage dropper for certain navigation and radio circuits
220/240 Volt:
9.5Kw diesel generator in own sound shield with water cooled specially silenced exhaust
Automatic fire extinguisher situated in the Engine room
50-amp shore support inlet
Generator/shore support change-over switch
Polarity check system
Earth leakage safety trip
Circuit breakers on all circuits
Power points in: owner’s stateroom, guest cabins, galley and saloon area
Shaver points in all bathrooms
Fuel system
Twin fuel tanks (in NS8 marine grade alloy) with interconnection system giving 605gal / 726 US gal / 2,750l capacity
Fuel fillers on port and starboard side decks
High-capacity duplex fuel filters with water traps with change-over valves
Water warning sensors connected to warning lights at lower helm
Remote fuel cocks in cockpit locker
Fuel gauges at main helm console
Water system
Water tanks totalling 118 gal / 141 US gal / 535l plus 16 gal /19 US gal / 73l hot water calorifier
Water heated by engines and 240v immersion heater
Automatic water pump with filter
Main circuit breaker at switch panel
Water level gauge
Deck filler
Electric freshwater toilet system with 69 gal / 83 US gal / 315l holding tank, content gauge and manual overboard discharge, with macerator backup system as well as dockside discharge system
Fire extinguishers
Automatic/manual override fire extinguishers in engine room with warning system at helm position
Hand-operated fire extinguishers (5) in owner’s stateroom, forward and starboard guest cabin, galley and helm position
Additional extinguisher fitted when optional aft cabin is specified
Bilge pumps
Automatic/manual override electric bilge pumps in engine room (2), lazarette and forward accommodation (5 in all)
High-capacity manual bilge pump with valve system and suction points in same areas
Electric bilge pumps have controls and warning lights at main helm and warning light with audible alarm at flybridge helm
Other standard equipment
Ensign staff
Fenders (6)
Mooring warps (4)
Boat hook
First Aid kit
Tool kit
Owner’s manual and engine manual
Quilted bedspreads supplied to all cabins (except optional crew cabin)
Ship’s document case
Anchor winch back up handle
Finishes
Teak-laid decks to transom platform, steps to side decks, cockpit deck and steps to flybridge
Timber-laid floor to galley area
Furniture in choice of Rovere Oak or Alba Oak in satin lacquer finish as standard. Silver Oak or Walnut in satin or gloss lacquer finishes available as an option.
Solid surface floors in all bathroom suites in guest accommodation
Solid surface wash hand basin and counter tops in all bathrooms
Galley worktop in solid surface finish
Choice of high-quality carpet and upholstery fabric from extensive range
Blinds or sunscreens to all windows and portholes
Optional crew cabin has non-slip safety flooring with carpet and crew bathroom has white solid surface countertops
This oasis of calm can then be propelled to a top speed approaching 33 knots, and all with nimble composure. Magnificent performance and uncompromising comfort in equal measure.
Despite her generous interior, the award-winning F55 can be managed by only two people whilst comfortably catering for six guests.
A breathtaking perspective
A breathtaking perspective
Exterior Interior
F55
Timelessly elegant and technically advanced
Despite her generous interior, the award-winning F55 can be managed by only two people whilst comfortably catering for six guests.
A breathtaking perspective
Take a 360 virtual tour
The F55 interior has an architectural presence and elegantly uses contrasting surfaces whilst retaining the elegance that Princess interiors are renowned for.
Flybridge Layout

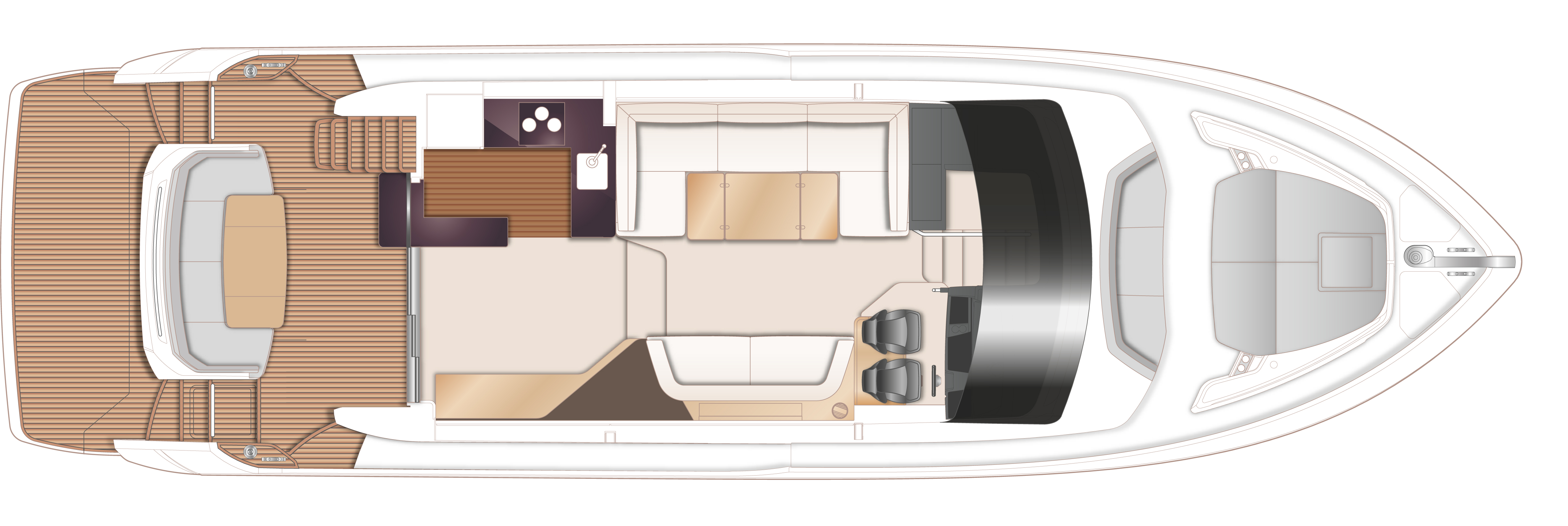

Main Deck Layout
Lower Deck Layout
Timelessly elegant
The award-winning Princess F55's 17.80m2 flybridge enjoys a convertible sunbed, twin helm seats, a wetbar and ergonomic dining areas. Vast panoramic saloon windows and signature wrap around front screens offer uninterrupted vistas from the main deck whilst expansive hull windows generously flood her accommodation areas with light.
The F55 interior has an architectural presence and elegantly uses contrasting surfaces whilst retaining the elegance that Princess interiors are renowned for. Her spacious saloon features a U-shaped sofa opposite a twin sofa with the option of a folding leaf dining or coffee table in between. Below, both the master stateroom and forward cabin feature large double beds whilst the starboard guest cabin with two single beds can also be converted into a double. There is also the option for a single bed aft cabin.
