Water capacity (excl. calorifier)
90 gal/108 US gal/410l
Engines
Twin Volvo IPS 800 (2x600mhp)
TOP SPEED: 34-36 knots†
* Displacements are calculated with 50% fuel and water with liferaft but with no optional equipment fitted or other gear.
† Maximum speeds will vary depending on cleanliness of hull, condition of sterngear, loading of craft, water and air temperatures, sea conditions and other factors. Speed estimates are therefore given in good faith but without warranty or liability on the part of Princess Yachts Limited. Craft illustrated in this brochure may be fitted with certain optional equipment. Specifications may be changed at any time without notice or liability. USA Specification
‡ Certain specifications, which vary by model, are upgraded on Princess yachts built for use in North America. Thus, specifications and equipment will vary from the information listed in the brochure for North American Princess yachts (e.g. air-conditioning and an upgraded generator will be included as standard for all North American models and electric cooking facilities will be supplied in place of gas systems). Please consult the USA Specification Brochure for full details regarding the North American specifications for individual models.
Deck fittings
6mm teak-laid transom platform, cockpit deck, flybridge stairway and steps to side deck
Lewmar reversible electric anchor winch with foredeck, main helm and flybridge controls
Stemhead roller with automatic anchor launch and retrieve
Self-stowing 20kg/44lbs Delta anchor with 40m of chain
Deck hatch access to chain locker
Fender storage
Stainless steel bow and stern fairleads
Stainless steel bow, stern and spring cleats
Stainless steel pulpit and guard rails
Stainless steel coachroof and flybridge handrails
Foredeck hatch
PVC rubbing band with stainless steel insert
LED deck level lighting
Illuminated crown logo to transom
Full set of IMCO navigation lights
Riding light
Twin beam searchlight with dual station remote controls
Twin electric horns
Fuel and water fillers
Foredeck sunpad recess
Cockpit and bathing platform
Self-draining
Upholstered seat with stowage space below
Teak table
LED overhead and deck level lighting
Stainless steel handrails
Lockable gas strut assisted hatch to engine room/lazarette
Liferaft stowage locker
Storage lockers
Locker containing remote fuel cocks, manual bilge pump with valve chest and manual controls for automatic fire extinguishers
Integral stairway to flybridge with teak step treads
Twin transom gates leading to bathing platform
Hot and cold transom shower
220/240v shore support inlet
Cockpit canvas cover
Transom hatch to stern lazarette
Transom bathing platform with fold away swimming ladder
Electro-hydraulic raise/lower mechanism for transom platform (450kg SWL) is optionally available

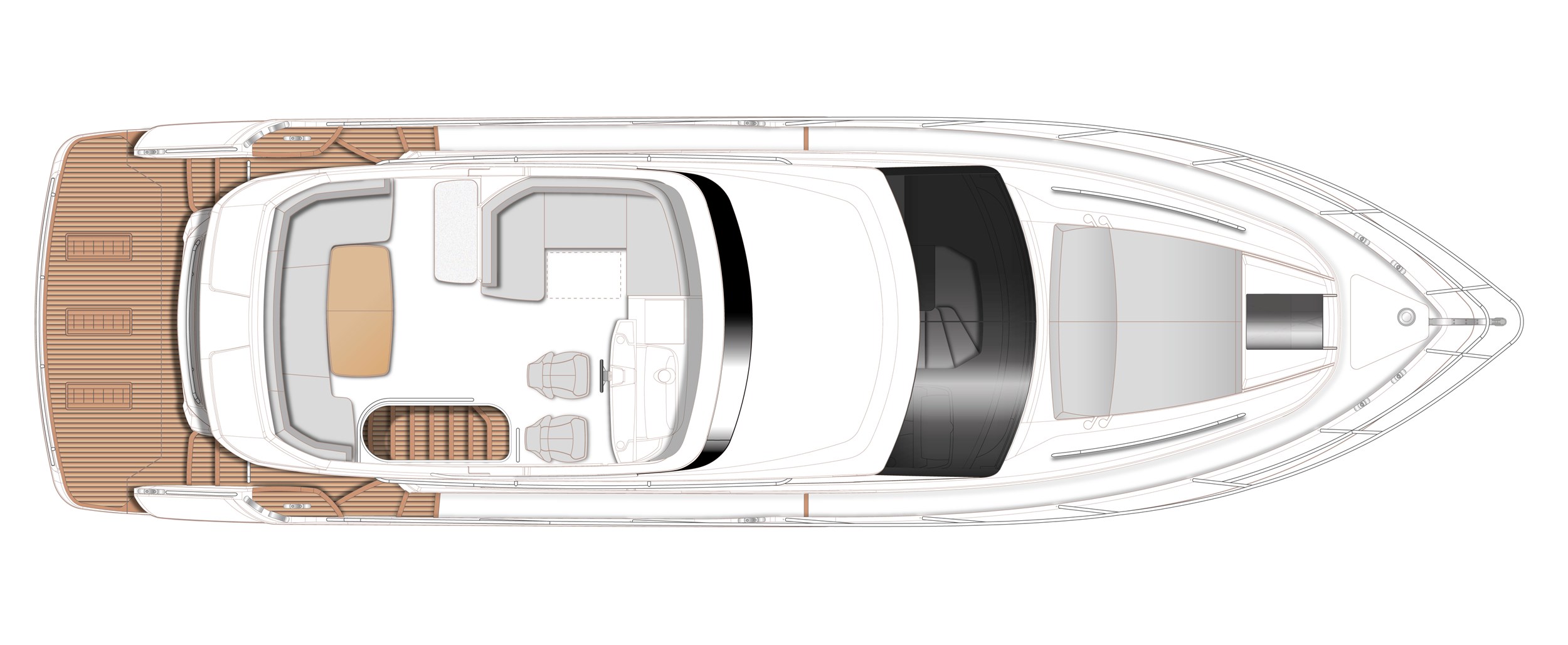

Flybridge
Dual station instruments and controls
Autopilot controls.

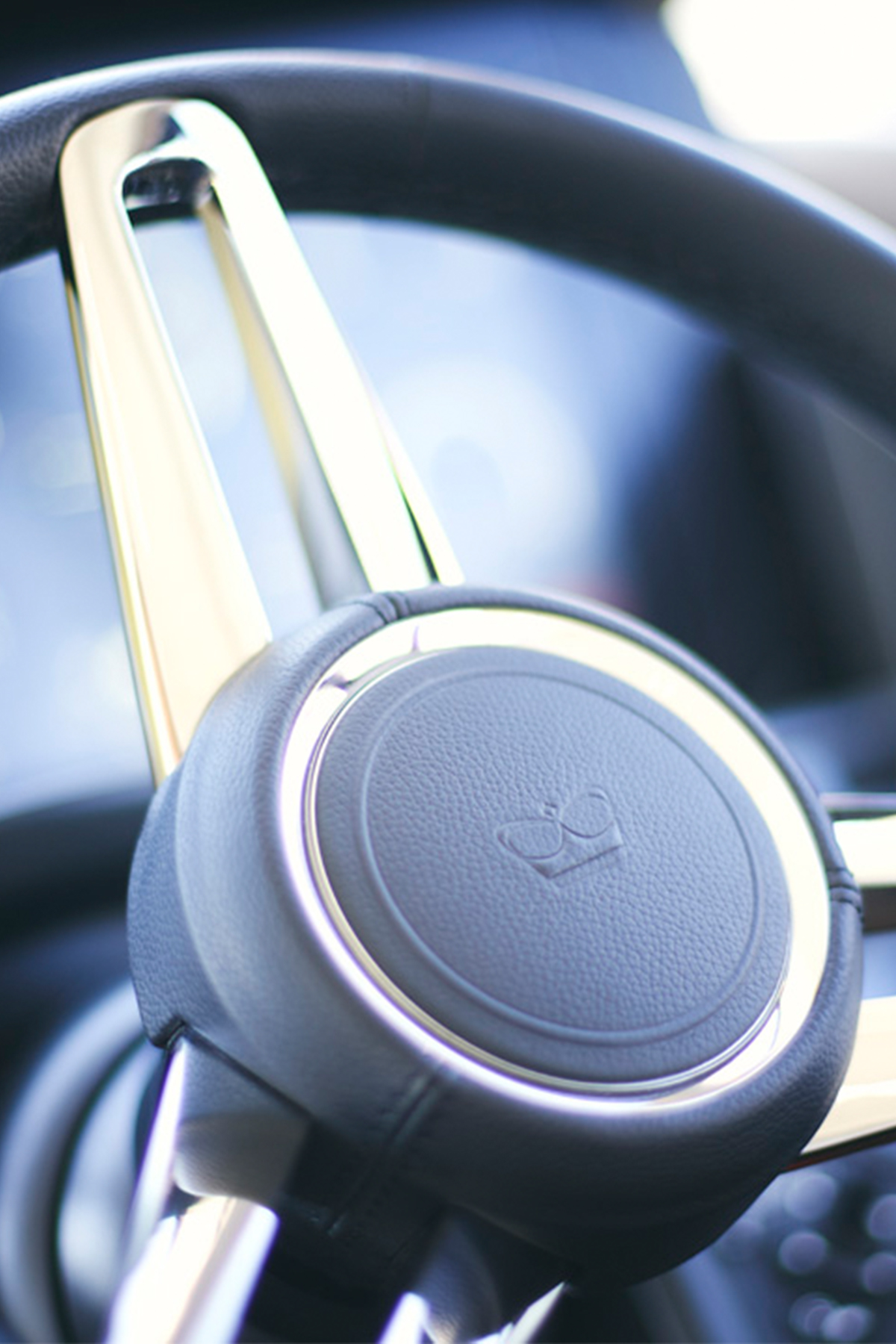

Adjustable steering wheel
Audible and visual alarm for bilge pumps and water in fuel
Twin helm seats with fore and aft adjustment for helmsman
Refrigerated top loading coolbox
Large U-shaped upholstered seating
Folding teak table
L-shaped seat (converts to sunbed)
Fusion Apollo marine stereo system connected to Fusion 7.7” waterproof speakers (2)
Clear view hatch to aft cockpit
Wind deflector screens
Stainless steel handrails
LED deck level lighting
GRP radar arch
Twin matching whip aerials for VHF R/T and radio
Console and seat covers
Optional wetbar with barbecue, sink, waste bin and storage
Optional bimini

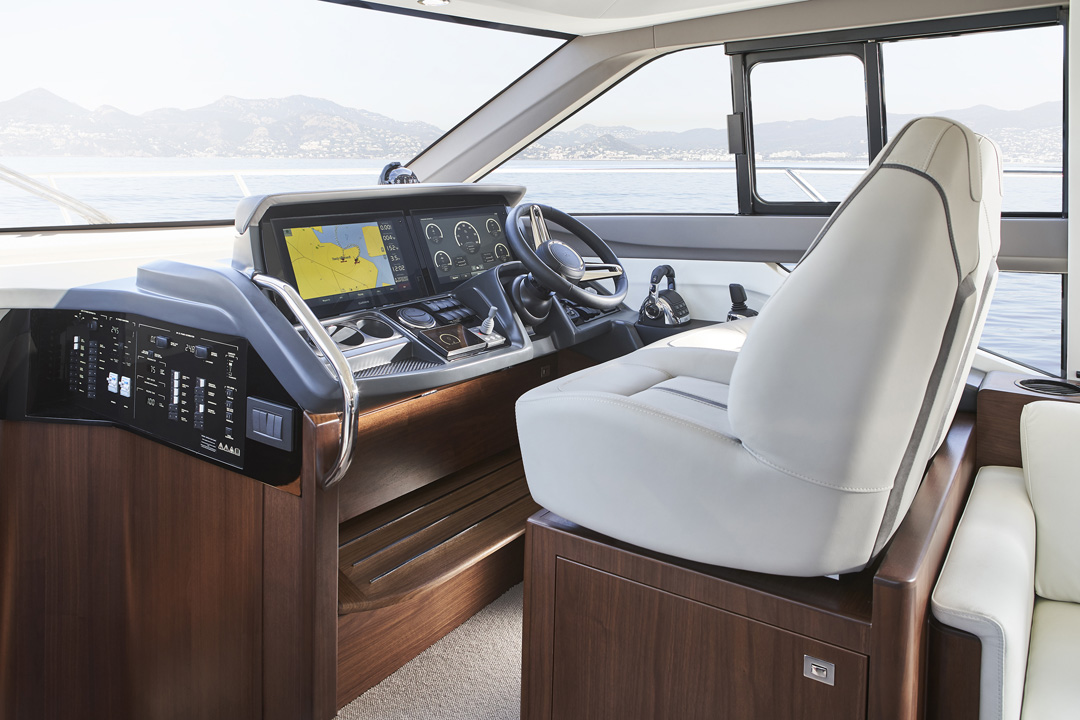

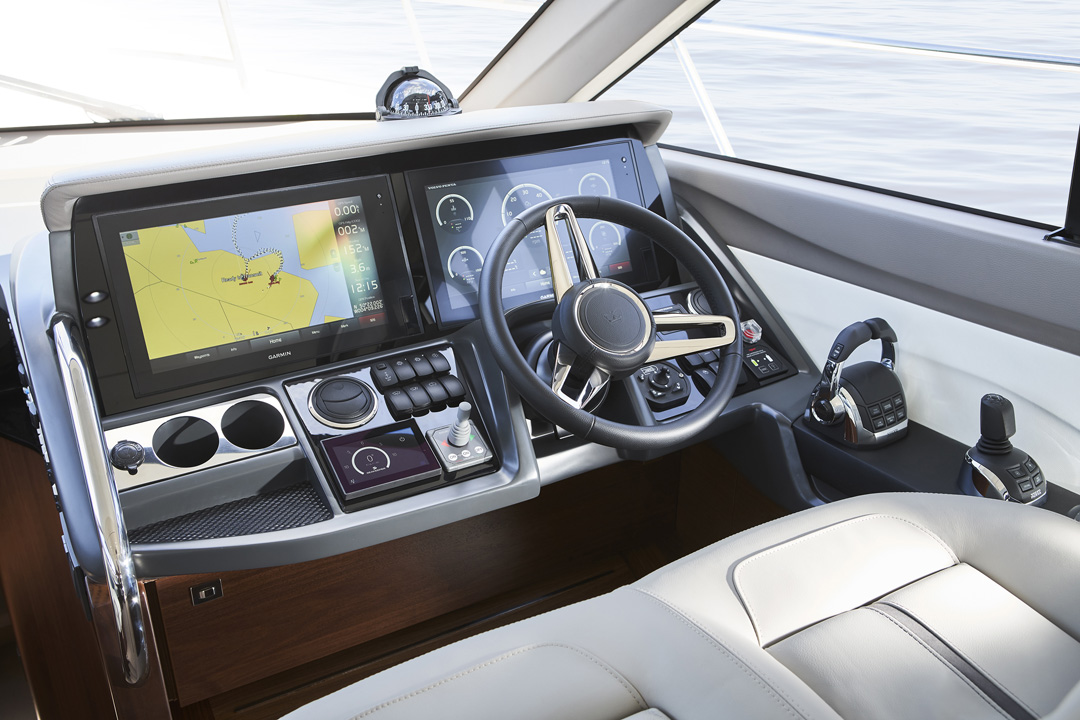

Helm position
Double leather upholstered helm seats with manual fore and aft adjustment for helmsman
Instrument console with 16in Volvo/Garmin display incorporating engine instruments and chartplotter
Dual station instruments and controls at flybridge and lower helm positions: - power-assisted steering - adjustable steering wheel - rudder position indicator - high-speed magnetic compass - electronic engine controls - joystick control - trim tab controls with indicators - electric anchor winch remote control - speed and distance log (incorporated into 16in screen at lower control position) - echo sounder with alarm (incorporated into 16in screen at lower control position) - autopilot - VHF with DSC R/T and intercom - remote control searchlight - horn button
Drinks holders
Toughened glass screen (clear for night vision)
Windscreen wipers with freshwater windscreen wash
Exterior black mesh windscreen covers
Bilge pump controls with visual pump running warnings
24v and 240v electrical control panel
Riding light, helm and navigation light control switches
USB connection point (1)
LED overhead lighting (24v) and night lighting
Opening window adjacent to helmsman
Fitted carpet

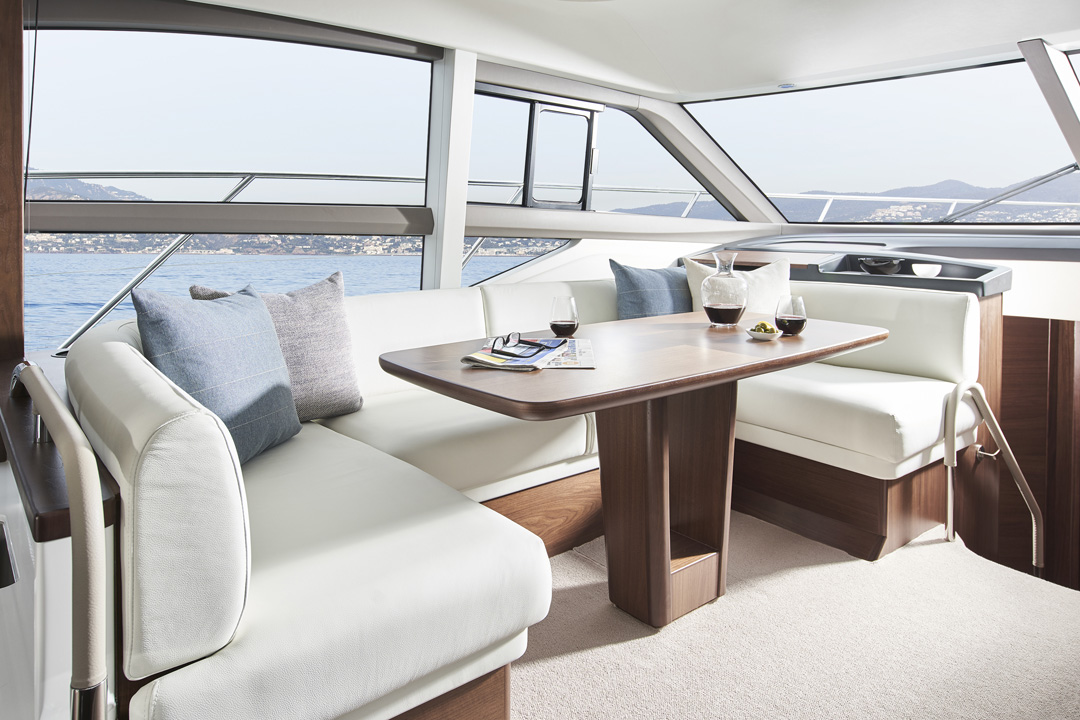

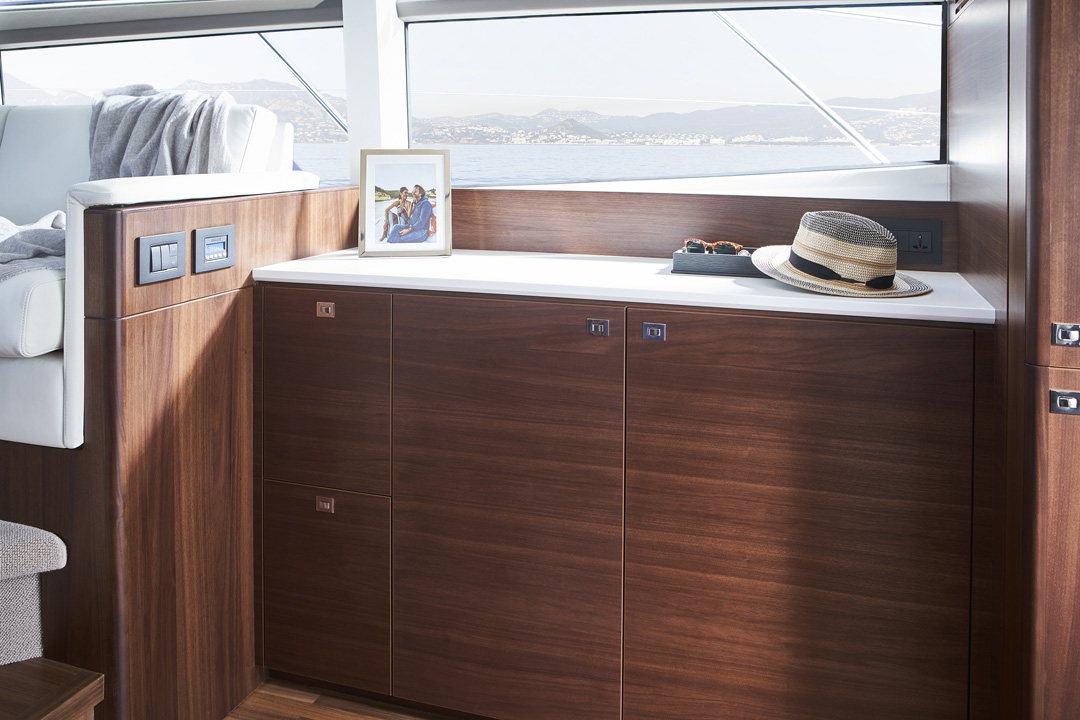

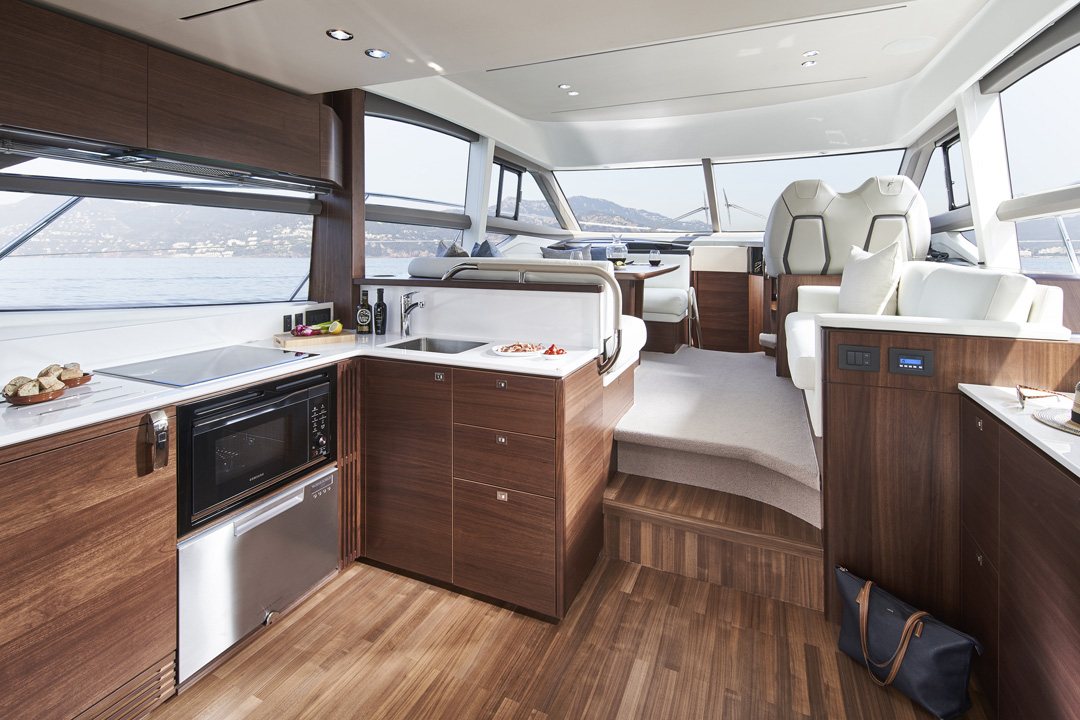

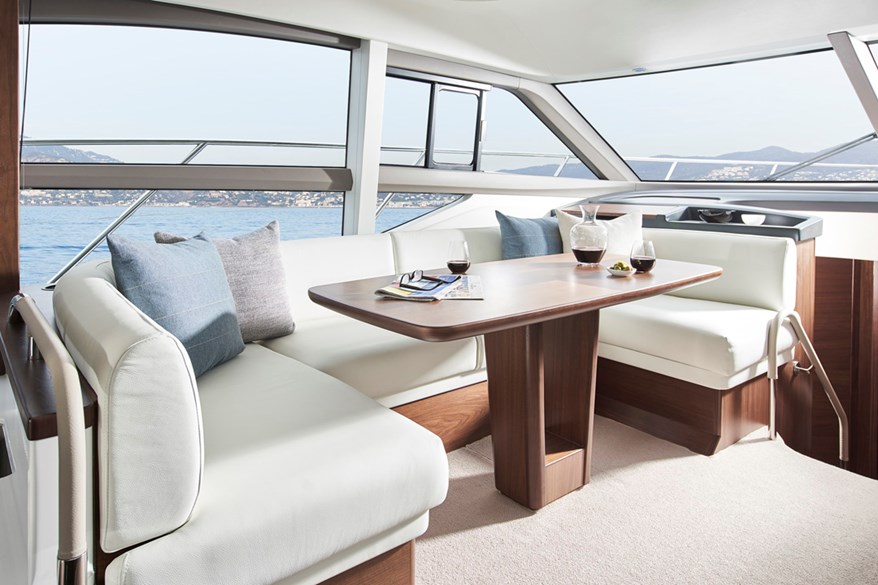

Saloon
Triple stainless steel framed sliding door to cockpit
U-shaped sofa to port
Dining table
Two-seater sofa to starboard
Fusion Apollo marine audio system connected to Fusion 6" CL602 speakers (2)
Manual tension Venetian blinds or curtains to all windows
LED overhead lighting (24v)
Stairway to lower accommodation
Fitted carpet

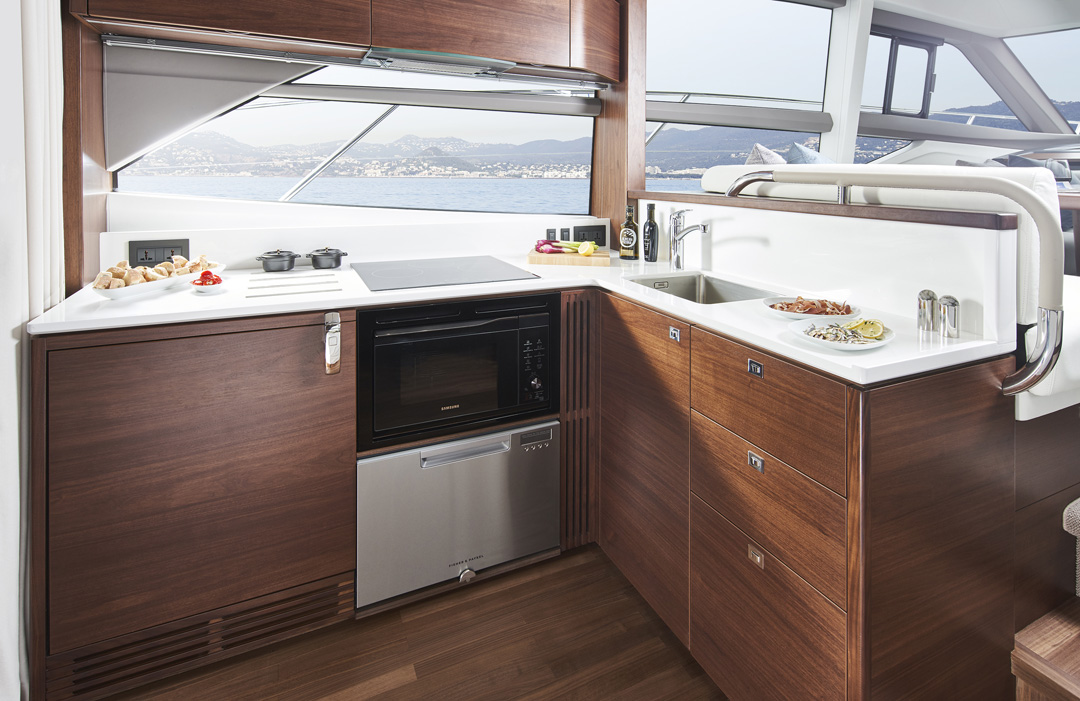

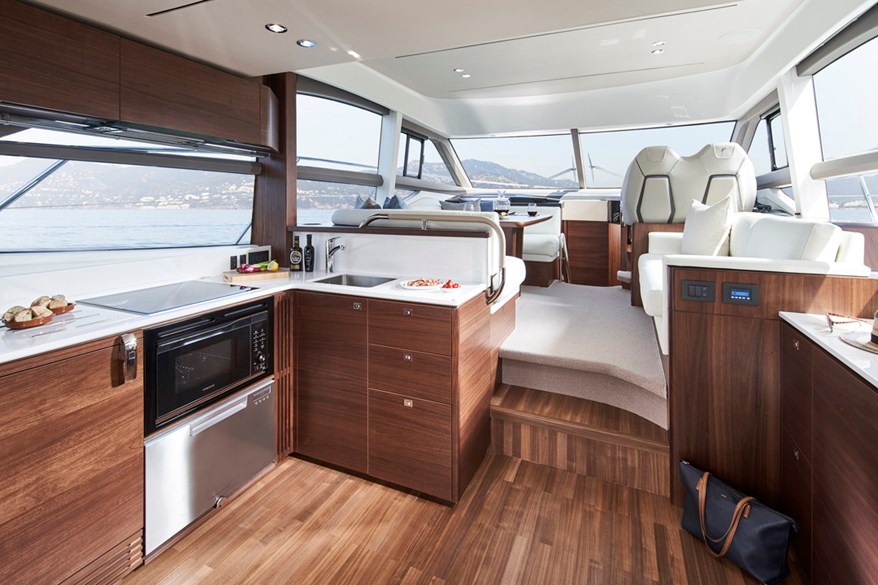

Galley
Solid surface worktop
3-zone ceramic hob
Extractor fan
Combination microwave/convection oven with grill
Stainless steel sink with mixer tap
Chopping board
Refrigerator with freezer compartment (155l)
Optional full height fridge/freezer (270l)
Waste bin
Drawers and storage cupboards
Dedicated crockery and cutlery storage
Full height larder unit
Sideboard with storage, drinks fridge and provision for optional ice maker
Bottle and glassware storage
Manual tension venetian blinds or curtains to all windows and doors
LED overhead and task lighting (24v)
220/240v outlets (4)
Timber planked flooring

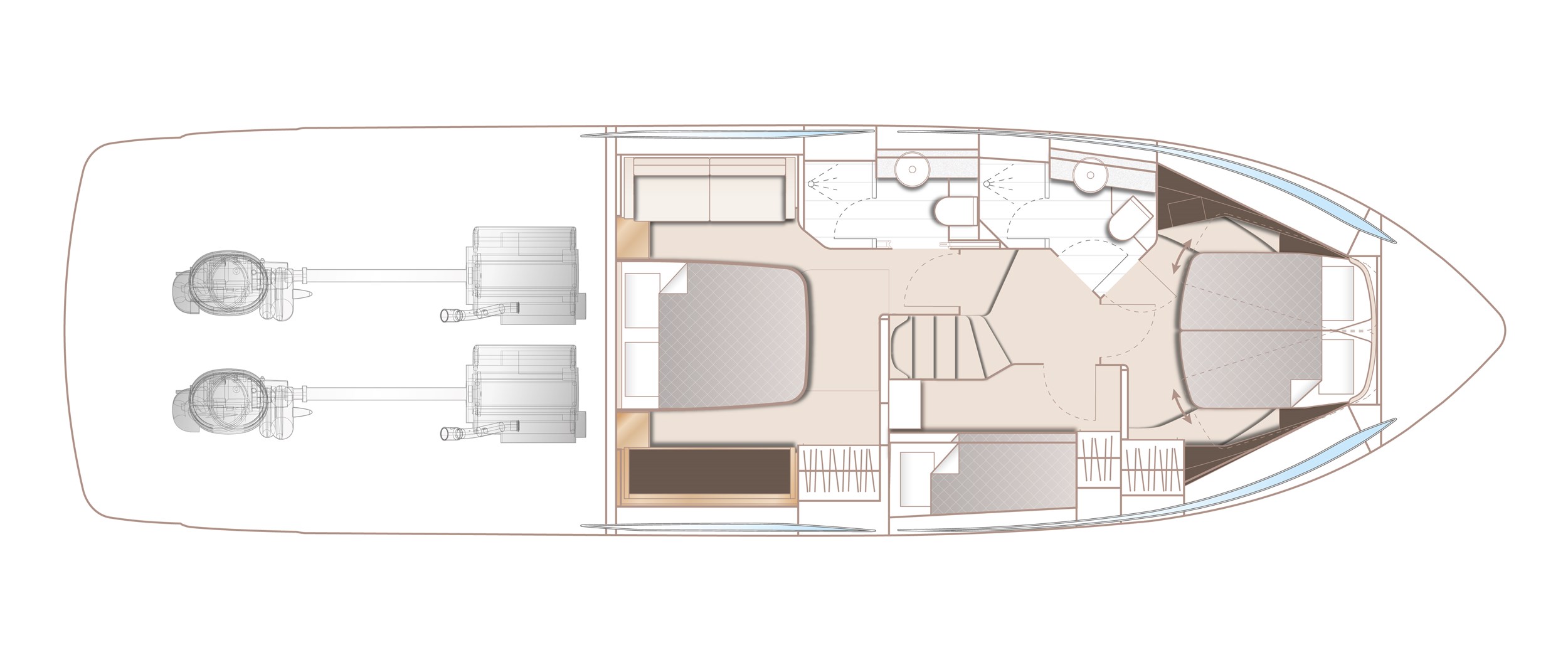

Accommodation
All cabins and bathrooms feature opening portholes
All cabins feature 220/240v power points
All bathrooms feature electric freshwater toilets and 240v shaver points
Main companionway has storage space below with option for combination washer/dryer

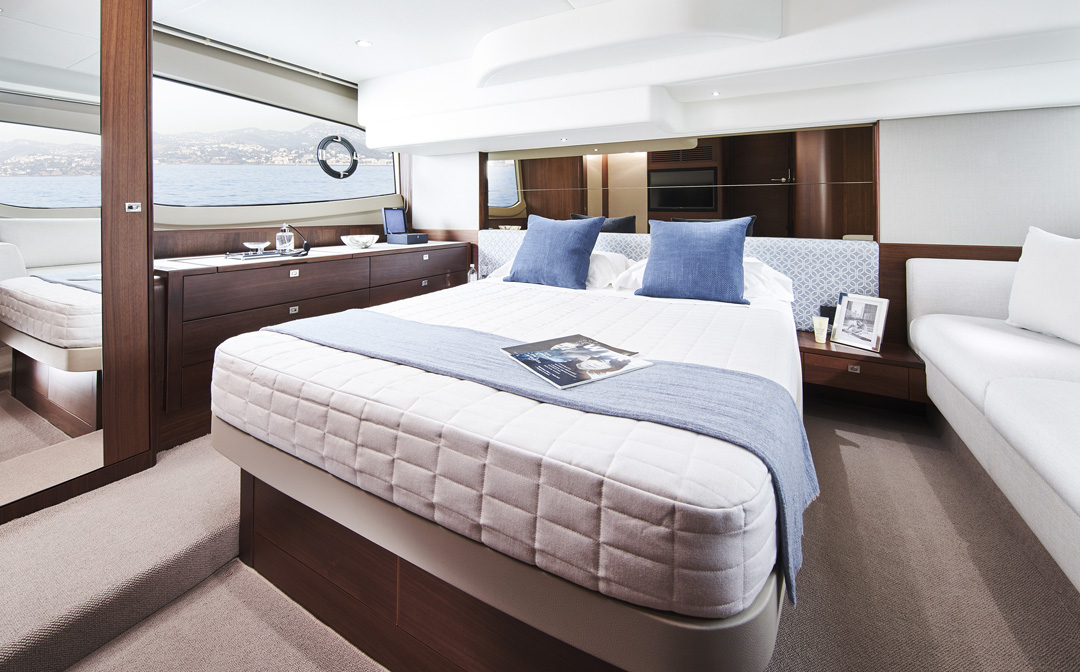

Owner’s stateroom
Large double bed with drawers below
Twin bedside tables
Wardrobe with shelves
Dressing table
Mirror

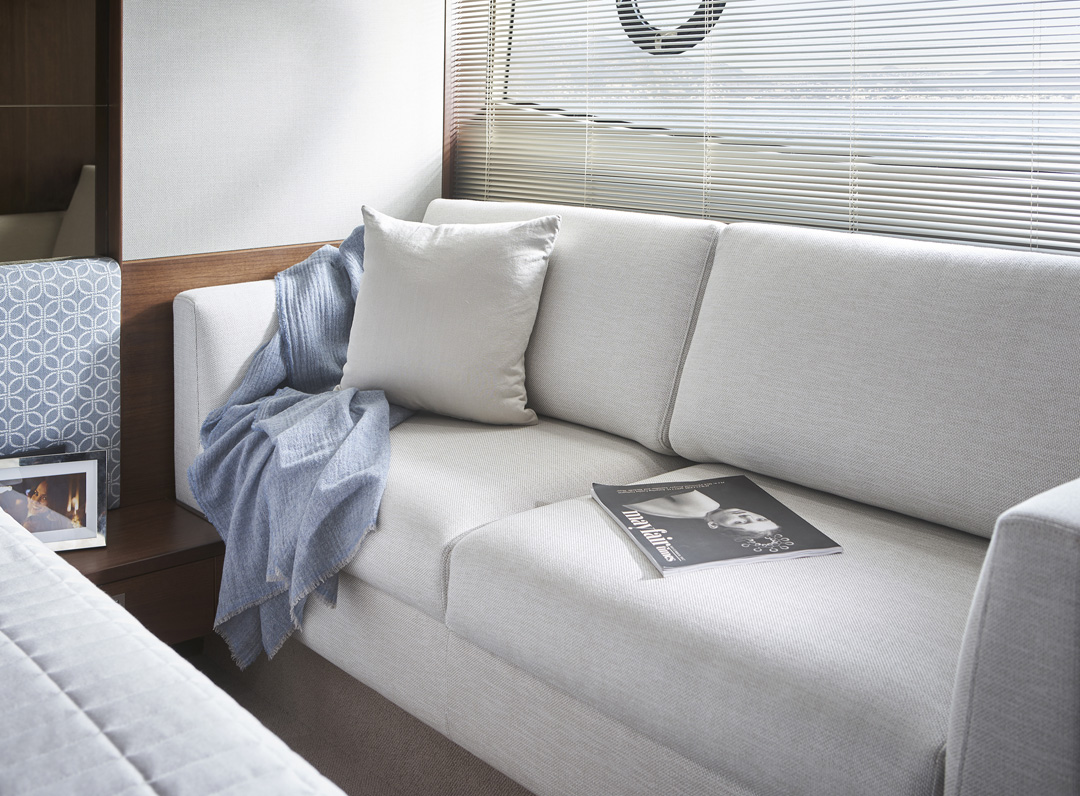

Sofa
Storage lockers and drawers
Panoramic windows including opening portholes
Curtains or manual tension blinds to hull windows
LED overhead lighting (24v)
Individual berth lights
220/240v outlets (2)
Fitted carpet

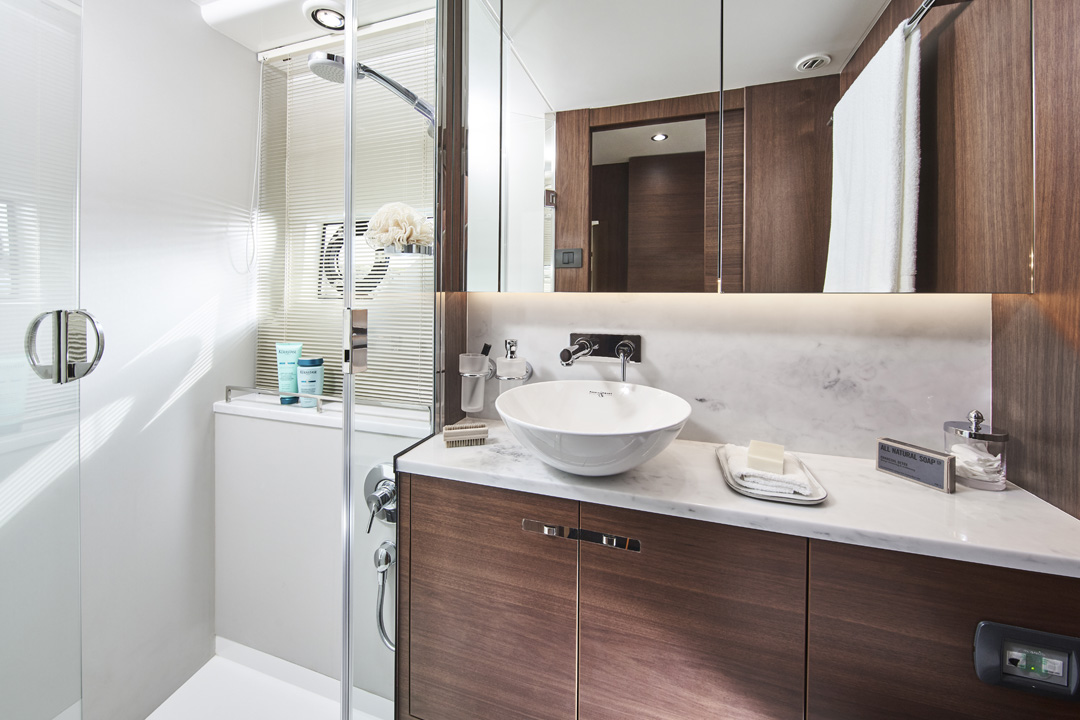

En-Suite Bathroom
Washbasin with solid surface worktop
Mirror
Storage lockers
Shower compartment with automatic pump out
Extractor fan
Opening porthole and venetian blind
LED overhead lighting (24v)
Bathroom accessories
Solid surface flooring

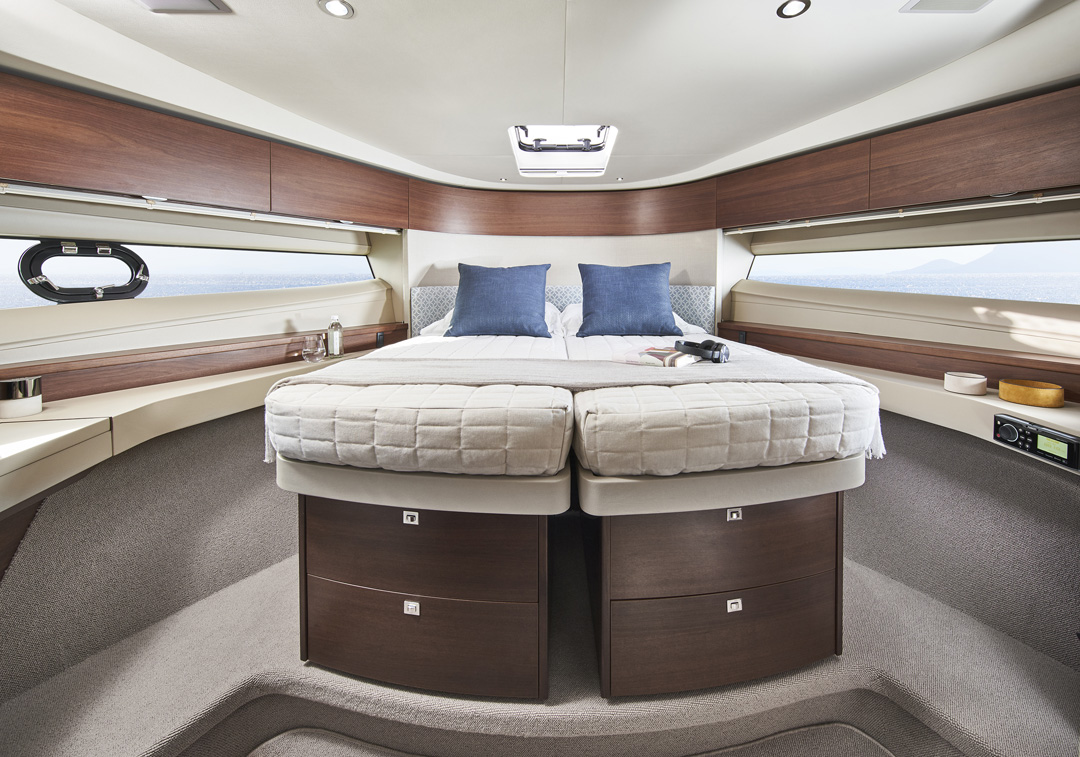

Forward stateroom
Large double bed with drawers below (option of scissor berths)
Wardrobe with shelves
Dressing table
Mirror
Storage lockers and drawers
Windows with opening portholes and venetian blind
Deck hatch with integrated skylight
Manual tension venetian blinds
LED overhead lighting (24v)
Individual berth lights
220/240v outlets (2)
Fitted carpet

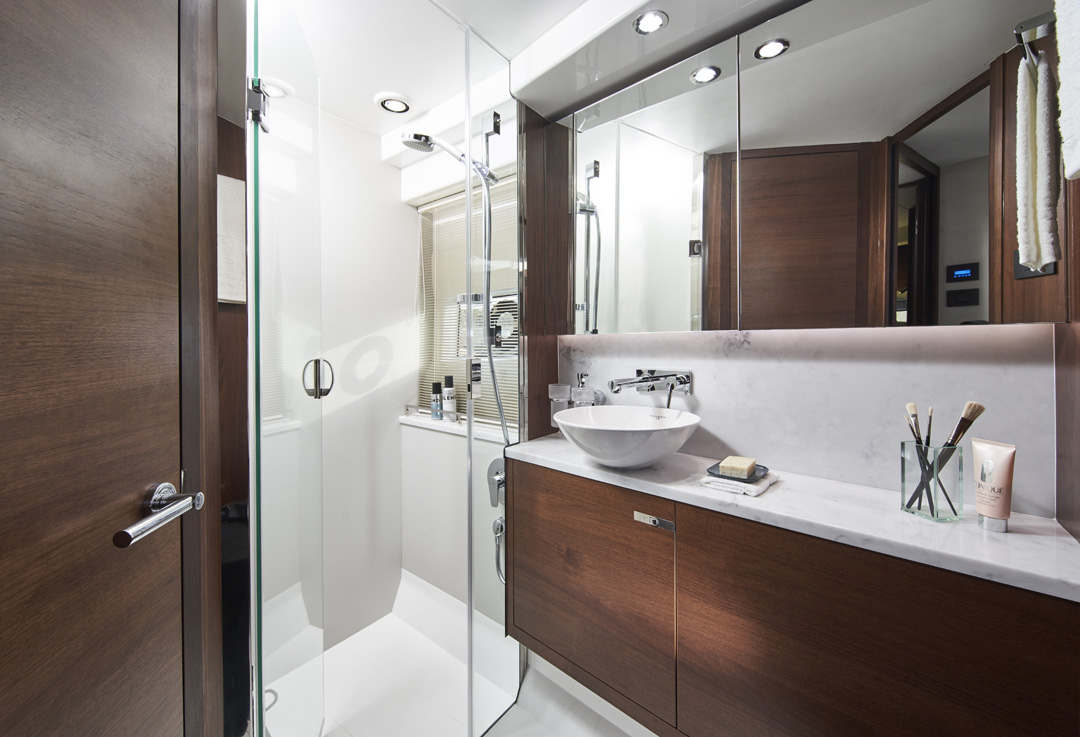

En-Suite Bathroom
Washbasin with solid surface worktop
Mirror
Storage lockers
Shower compartment with automatic pump out
Extractor fan
Opening porthole
Manual tension venetian blind
LED overhead lighting (24v)
Bathroom accessories
Solid surface flooring
Starboard guest cabin
Two single bunk beds
Wardrobe with shelves
Mirror
Storage lockers
Opening portholes and
Manual tension venetian blind
LED overhead lighting (24v)
Individual berth lights
220/240v outlets (2)
Fitted carpet
Power and drive systems
Twin Volvo IPS contra rotating propellers via pod drive
Engine room lighting
Engine room access hatch and ladder
Power-assisted electronic steering system with hydraulic back-up
Trim tabs with indicators
Electronic engine controls
Joystick manoeuvring system
Volvo IPS active corrosion protection system for pod drive
Engine room extractor fan with electronic time delay
Electrical systems
24 Volt:
4 x heavy-duty batteries for engine starting
4 x heavy-duty auxiliary batteries
Battery link facility with remote control at helm position
Both battery banks are charged using a voltage sensitive relay that parallels both battery banks when a charging source is present
40-amp 24v battery charger
Remote battery master switches with control switch at main switch panel
Circuit breakers on all circuits
12v voltage dropper for certain navigation and radio circuits
220/240 Volt:
4 kW generator in own sound shield with water cooled specially silenced exhaust
Automatic fire extinguisher
50-amp shore support inlet
Polarity check system
Earth leakage safety trip
Circuit breakers on all circuits
Power points (240v) in: owner’s stateroom, guest cabins, galley and saloon area
Shaver points in all bathrooms
Fuel system
Fuel tanks (in NS8 marine grade alloy) with interconnection system giving 407 gal /488 US gal / 1,850l capacity
Fuel fillers on port and starboard side decks
High-capacity Simplex fuel filters with water traps and change-over valves, water warning sensors connected to audible and visual warning lights at both helm stations
Remote fuel cocks in cockpit locker
Fuel gauges at both helm stations
Water system
Water tanks totalling 90 gal /108 US gal /410l plus 11 gal /13 US gal /50l hot water calorifier
Water heated by engines and 240v immersion heater
Automatic water pump with filter
Main circuit breaker at switch panel
Water level gauge
Deck filler
Electric freshwater toilet system with 33 gal / 40 US gal /150l holding tank, contents gauge and manual overboard discharge as well as dockside discharge system
Fire extinguishers
Automatic/manual override fire extinguishers in engine room with warning system at flybridge and lower helm positions
Hand operated fire extinguishers (5) in owners’ stateroom, forward stateroom, starboard guest cabin, galley and lower helm position
Bilge pumps
Automatic/manual override electric bilge pumps in engine room (2) and forward accommodation (4 in all)
High-capacity manual bilge pump with valve system and suction points in same areas
Electric bilge pumps have controls and warning lights at main helm and warning light with audible alarm at flybridge helm
Other standard equipment
Ensign staff
Fenders (4)
Mooring warps (4)
First aid kit
Tool kit
Owner’s manual and engine manual
Quilted bedspreads supplied to all cabins
Ship’s document case
Anchor winch back up handle
Finishes
Teak-laid decks to transom platform, cockpit deck, steps to side decks, steps to flybridge
Timber-laid floor to galley
Furniture in choice of Rovere Oak or Alba Oak wood with satin lacquer finish as standard. Silver Oak or Walnut wood with satin or gloss lacquer finishes available as an option
Solid surface floors in all bathroom suites in guest accommodation
White solid surface wash hand basin counter tops in all bathroom suites in guest accommodation
White solid surface galley worktop
Choice of high-quality carpet and upholstery fabric from extensive range
Curtains, manual tension blinds or sunscreens to all windows and portholes
Close
Princess F50
Principal Dimensions
Details
Specification
Disclaimer
Length overall (incl. pulpit)
51ft 0in (15.55m)
Length overall (excl. pulpit)
50ft 2in (15.30m)
Beam
14ft 3in (4.34m)
Draft
4ft 1in (1.25m)
Displacement approx.
23,200kg (51,147 lbs)*
Fuel capacity
407 gal/488 US gal/1,850l
Water capacity (excl. calorifier)
90 gal/108 US gal/410l
Engines
Twin Volvo IPS 800 (2x600mhp)
TOP SPEED: 34-36 knots†
* Displacements are calculated with 50% fuel and water with liferaft but with no optional equipment fitted or other gear.
† Maximum speeds will vary depending on cleanliness of hull, condition of sterngear, loading of craft, water and air temperatures, sea conditions and other factors. Speed estimates are therefore given in good faith but without warranty or liability on the part of Princess Yachts Limited. Craft illustrated in this brochure may be fitted with certain optional equipment. Specifications may be changed at any time without notice or liability. USA Specification
‡ Certain specifications, which vary by model, are upgraded on Princess yachts built for use in North America. Thus, specifications and equipment will vary from the information listed in the brochure for North American Princess yachts (e.g. air-conditioning and an upgraded generator will be included as standard for all North American models and electric cooking facilities will be supplied in place of gas systems). Please consult the USA Specification Brochure for full details regarding the North American specifications for individual models.
Principal Dimensions
Details
Deck fittings
6mm teak-laid transom platform, cockpit deck, flybridge stairway and steps to side deck
Lewmar reversible electric anchor winch with foredeck, main helm and flybridge controls
Stemhead roller with automatic anchor launch and retrieve
Self-stowing 20kg/44lbs Delta anchor with 40m of chain
Deck hatch access to chain locker
Fender storage
Stainless steel bow and stern fairleads
Stainless steel bow, stern and spring cleats
Stainless steel pulpit and guard rails
Stainless steel coachroof and flybridge handrails
Foredeck hatch
PVC rubbing band with stainless steel insert
LED deck level lighting
Illuminated crown logo to transom
Full set of IMCO navigation lights
Riding light
Twin beam searchlight with dual station remote controls
Twin electric horns
Fuel and water fillers
Foredeck sunpad recess
Cockpit and bathing platform
Self-draining
Upholstered seat with stowage space below
Teak table
LED overhead and deck level lighting
Stainless steel handrails
Lockable gas strut assisted hatch to engine room/lazarette
Liferaft stowage locker
Storage lockers
Locker containing remote fuel cocks, manual bilge pump with valve chest and manual controls for automatic fire extinguishers
Integral stairway to flybridge with teak step treads
Twin transom gates leading to bathing platform
Hot and cold transom shower
220/240v shore support inlet
Cockpit canvas cover
Transom hatch to stern lazarette
Transom bathing platform with fold away swimming ladder
Electro-hydraulic raise/lower mechanism for transom platform (450kg SWL) is optionally available
Flybridge
Dual station instruments and controls
Autopilot controls.
Adjustable steering wheel
Audible and visual alarm for bilge pumps and water in fuel
Twin helm seats with fore and aft adjustment for helmsman
Refrigerated top loading coolbox
Large U-shaped upholstered seating
Folding teak table
L-shaped seat (converts to sunbed)
Fusion Apollo marine stereo system connected to Fusion 7.7” waterproof speakers (2)
Clear view hatch to aft cockpit
Wind deflector screens
Stainless steel handrails
LED deck level lighting
GRP radar arch
Twin matching whip aerials for VHF R/T and radio
Console and seat covers
Optional wetbar with barbecue, sink, waste bin and storage
Optional bimini
Helm position

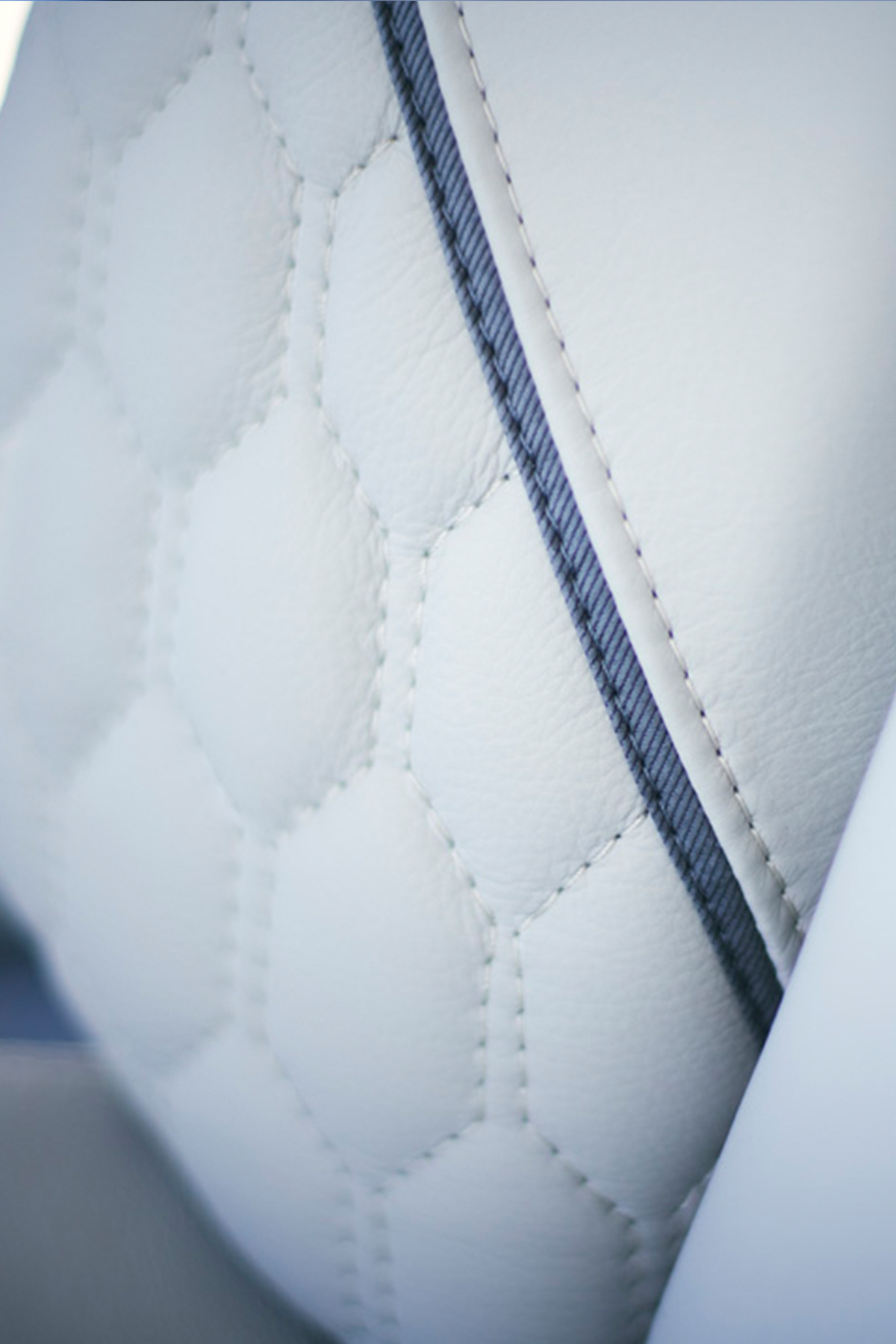

Double leather upholstered helm seats with manual fore and aft adjustment for helmsman
Instrument console with 16in Volvo/Garmin display incorporating engine instruments and chartplotter
Dual station instruments and controls at flybridge and lower helm positions: - power-assisted steering - adjustable steering wheel - rudder position indicator - high-speed magnetic compass - electronic engine controls - joystick control - trim tab controls with indicators - electric anchor winch remote control - speed and distance log (incorporated into 16in screen at lower control position) - echo sounder with alarm (incorporated into 16in screen at lower control position) - autopilot - VHF with DSC R/T and intercom - remote control searchlight - horn button
Drinks holders
Toughened glass screen (clear for night vision)
Windscreen wipers with freshwater windscreen wash
Exterior black mesh windscreen covers
Bilge pump controls with visual pump running warnings
24v and 240v electrical control panel
Riding light, helm and navigation light control switches
USB connection point (1)
LED overhead lighting (24v) and night lighting
Opening window adjacent to helmsman
Fitted carpet
Saloon
Triple stainless steel framed sliding door to cockpit
U-shaped sofa to port
Dining table
Two-seater sofa to starboard
Fusion Apollo marine audio system connected to Fusion 6" CL602 speakers (2)
Manual tension Venetian blinds or curtains to all windows
LED overhead lighting (24v)
Stairway to lower accommodation
Fitted carpet
Galley
Solid surface worktop
3-zone ceramic hob
Extractor fan
Combination microwave/convection oven with grill
Stainless steel sink with mixer tap
Chopping board
Refrigerator with freezer compartment (155l)
Optional full height fridge/freezer (270l)
Waste bin
Drawers and storage cupboards
Dedicated crockery and cutlery storage
Full height larder unit
Sideboard with storage, drinks fridge and provision for optional ice maker
Bottle and glassware storage
Manual tension venetian blinds or curtains to all windows and doors
LED overhead and task lighting (24v)
220/240v outlets (4)
Timber planked flooring
Accommodation
All cabins and bathrooms feature opening portholes
All cabins feature 220/240v power points
All bathrooms feature electric freshwater toilets and 240v shaver points
Main companionway has storage space below with option for combination washer/dryer
Owner’s stateroom
Large double bed with drawers below
Twin bedside tables
Wardrobe with shelves
Dressing table
Mirror
Sofa
Storage lockers and drawers
Panoramic windows including opening portholes
Curtains or manual tension blinds to hull windows
LED overhead lighting (24v)
Individual berth lights
220/240v outlets (2)
Fitted carpet
En-Suite Bathroom
Washbasin with solid surface worktop
Mirror
Storage lockers
Shower compartment with automatic pump out
Extractor fan
Opening porthole and venetian blind
LED overhead lighting (24v)
Bathroom accessories
Solid surface flooring
Forward stateroom
Large double bed with drawers below (option of scissor berths)
Wardrobe with shelves
Dressing table
Mirror
Storage lockers and drawers
Windows with opening portholes and venetian blind
Deck hatch with integrated skylight
Manual tension venetian blinds
LED overhead lighting (24v)
Individual berth lights
220/240v outlets (2)
Fitted carpet
En-Suite Bathroom
Washbasin with solid surface worktop
Mirror
Storage lockers
Shower compartment with automatic pump out
Extractor fan
Opening porthole
Manual tension venetian blind
LED overhead lighting (24v)
Bathroom accessories
Solid surface flooring
Starboard guest cabin
Two single bunk beds
Wardrobe with shelves
Mirror
Storage lockers
Opening portholes and
Manual tension venetian blind
LED overhead lighting (24v)
Individual berth lights
220/240v outlets (2)
Fitted carpet
Power and drive systems
Twin Volvo IPS contra rotating propellers via pod drive
Engine room lighting
Engine room access hatch and ladder
Power-assisted electronic steering system with hydraulic back-up
Trim tabs with indicators
Electronic engine controls
Joystick manoeuvring system
Volvo IPS active corrosion protection system for pod drive
Engine room extractor fan with electronic time delay
Electrical systems
24 Volt:
4 x heavy-duty batteries for engine starting
4 x heavy-duty auxiliary batteries
Battery link facility with remote control at helm position
Both battery banks are charged using a voltage sensitive relay that parallels both battery banks when a charging source is present
40-amp 24v battery charger
Remote battery master switches with control switch at main switch panel
Circuit breakers on all circuits
12v voltage dropper for certain navigation and radio circuits
220/240 Volt:
4 kW generator in own sound shield with water cooled specially silenced exhaust
Automatic fire extinguisher
50-amp shore support inlet
Polarity check system
Earth leakage safety trip
Circuit breakers on all circuits
Power points (240v) in: owner’s stateroom, guest cabins, galley and saloon area
Shaver points in all bathrooms
Fuel system
Fuel tanks (in NS8 marine grade alloy) with interconnection system giving 407 gal /488 US gal / 1,850l capacity
Fuel fillers on port and starboard side decks
High-capacity Simplex fuel filters with water traps and change-over valves, water warning sensors connected to audible and visual warning lights at both helm stations
Remote fuel cocks in cockpit locker
Fuel gauges at both helm stations
Water system
Water tanks totalling 90 gal /108 US gal /410l plus 11 gal /13 US gal /50l hot water calorifier
Water heated by engines and 240v immersion heater
Automatic water pump with filter
Main circuit breaker at switch panel
Water level gauge
Deck filler
Electric freshwater toilet system with 33 gal / 40 US gal /150l holding tank, contents gauge and manual overboard discharge as well as dockside discharge system
Fire extinguishers
Automatic/manual override fire extinguishers in engine room with warning system at flybridge and lower helm positions
Hand operated fire extinguishers (5) in owners’ stateroom, forward stateroom, starboard guest cabin, galley and lower helm position
Bilge pumps
Automatic/manual override electric bilge pumps in engine room (2) and forward accommodation (4 in all)
High-capacity manual bilge pump with valve system and suction points in same areas
Electric bilge pumps have controls and warning lights at main helm and warning light with audible alarm at flybridge helm
Other standard equipment
Ensign staff
Fenders (4)
Mooring warps (4)
First aid kit
Tool kit
Owner’s manual and engine manual
Quilted bedspreads supplied to all cabins
Ship’s document case
Anchor winch back up handle
Finishes
Teak-laid decks to transom platform, cockpit deck, steps to side decks, steps to flybridge
Timber-laid floor to galley
Furniture in choice of Rovere Oak or Alba Oak wood with satin lacquer finish as standard. Silver Oak or Walnut wood with satin or gloss lacquer finishes available as an option
Solid surface floors in all bathroom suites in guest accommodation
White solid surface wash hand basin counter tops in all bathroom suites in guest accommodation
White solid surface galley worktop
Choice of high-quality carpet and upholstery fabric from extensive range
Curtains, manual tension blinds or sunscreens to all windows and portholes

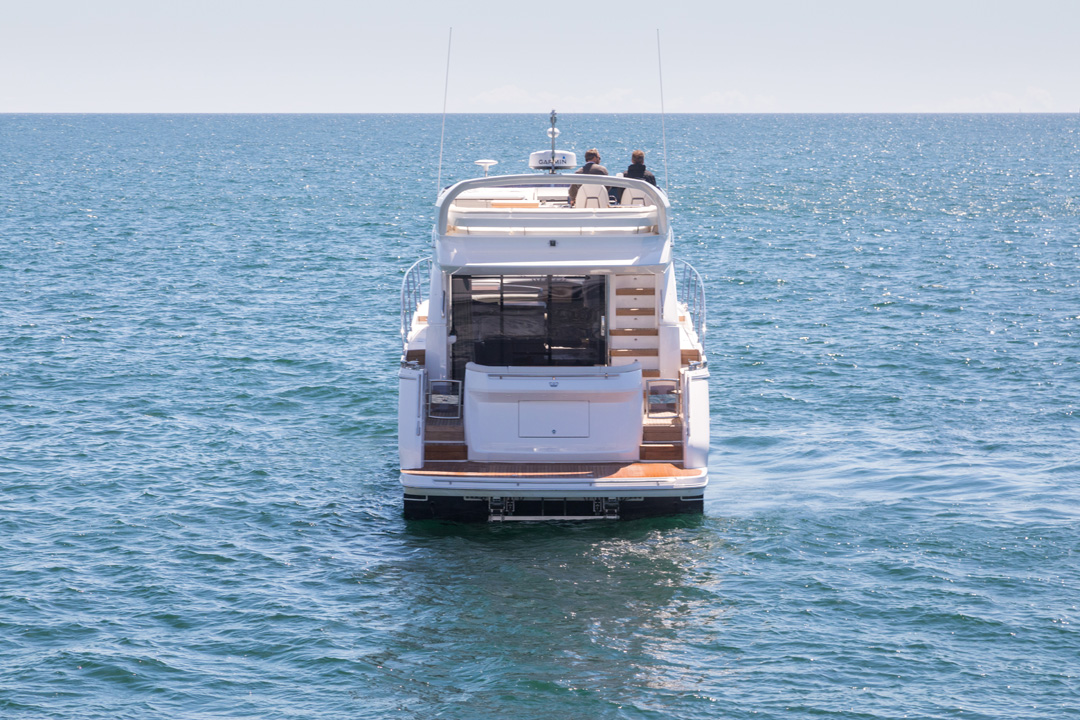

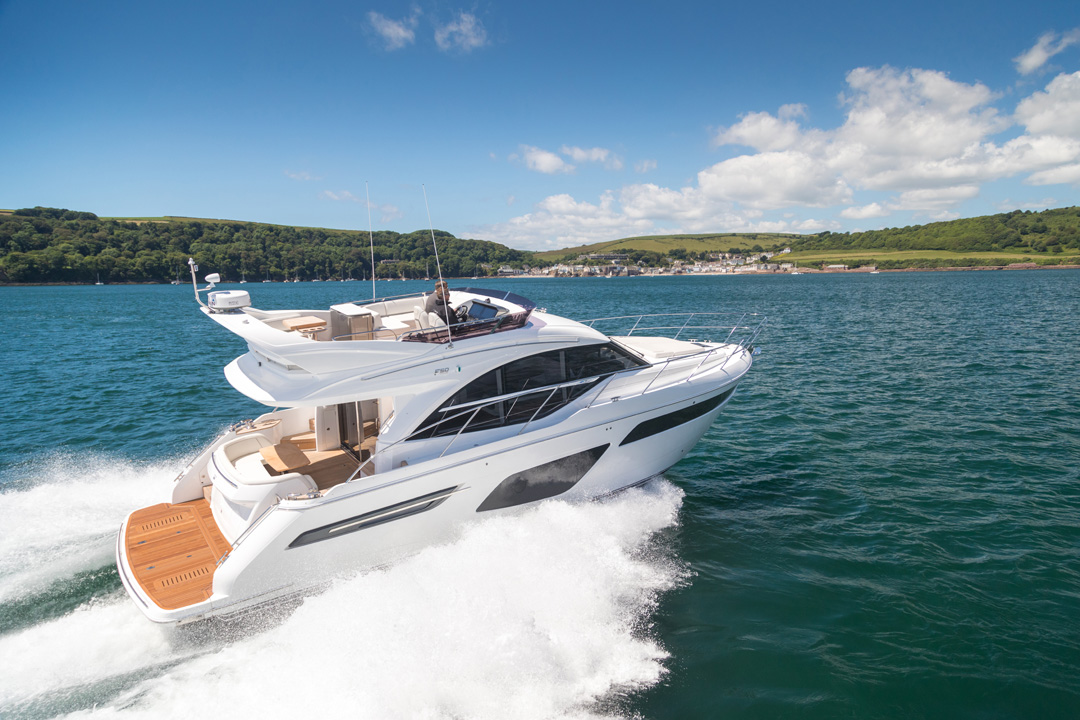

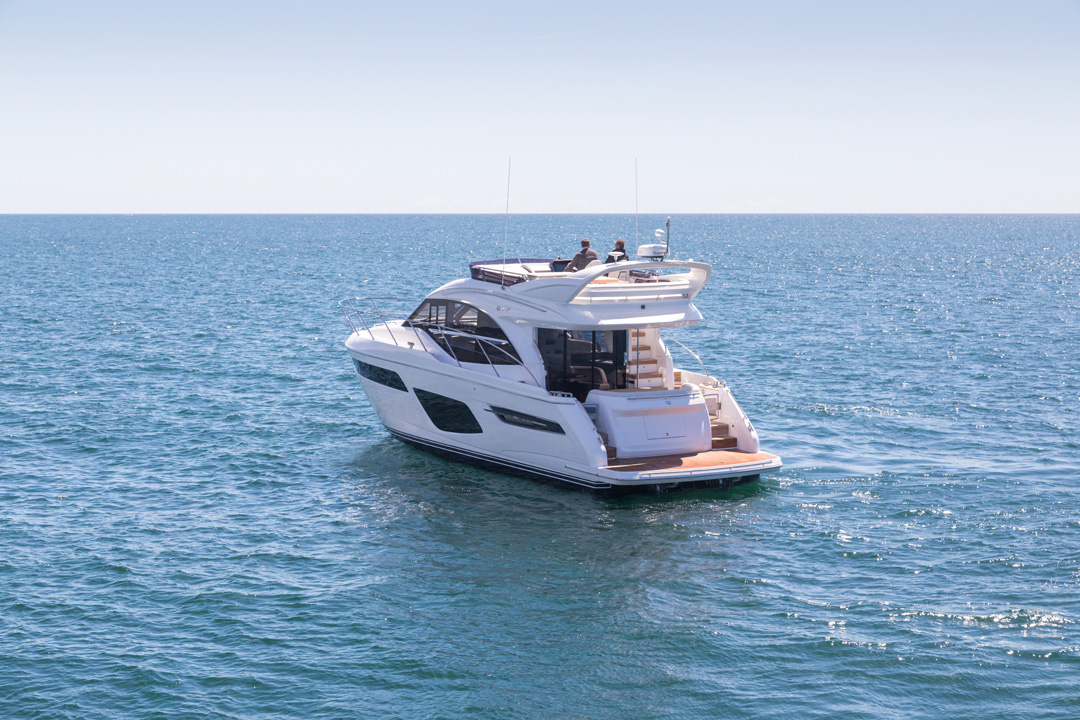

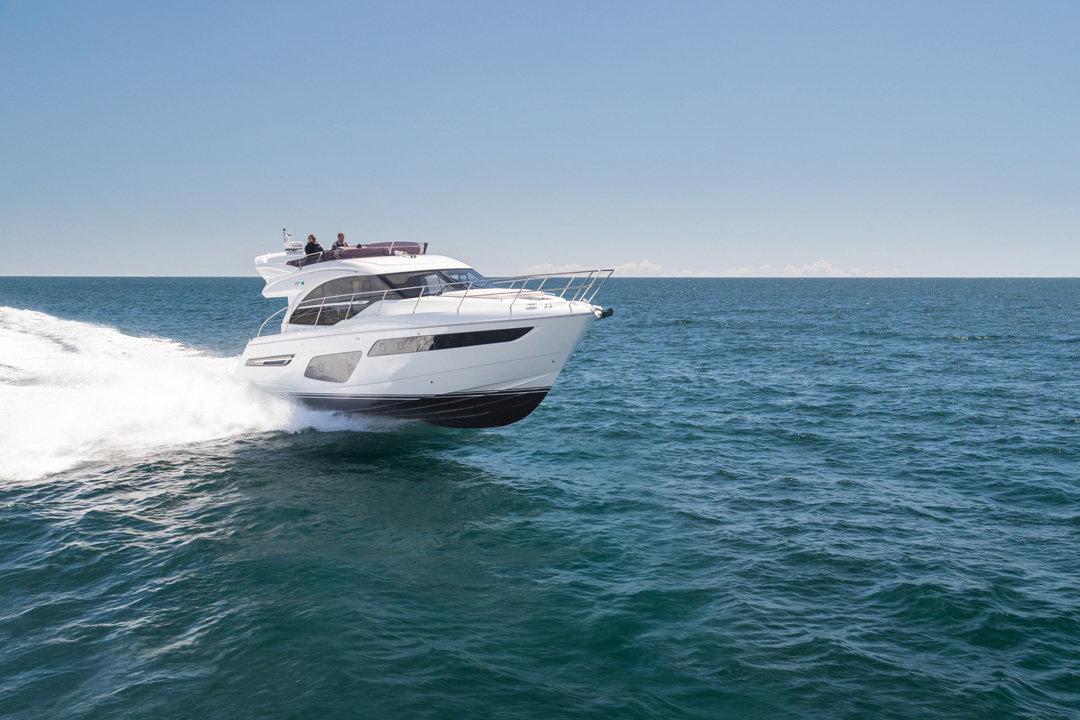

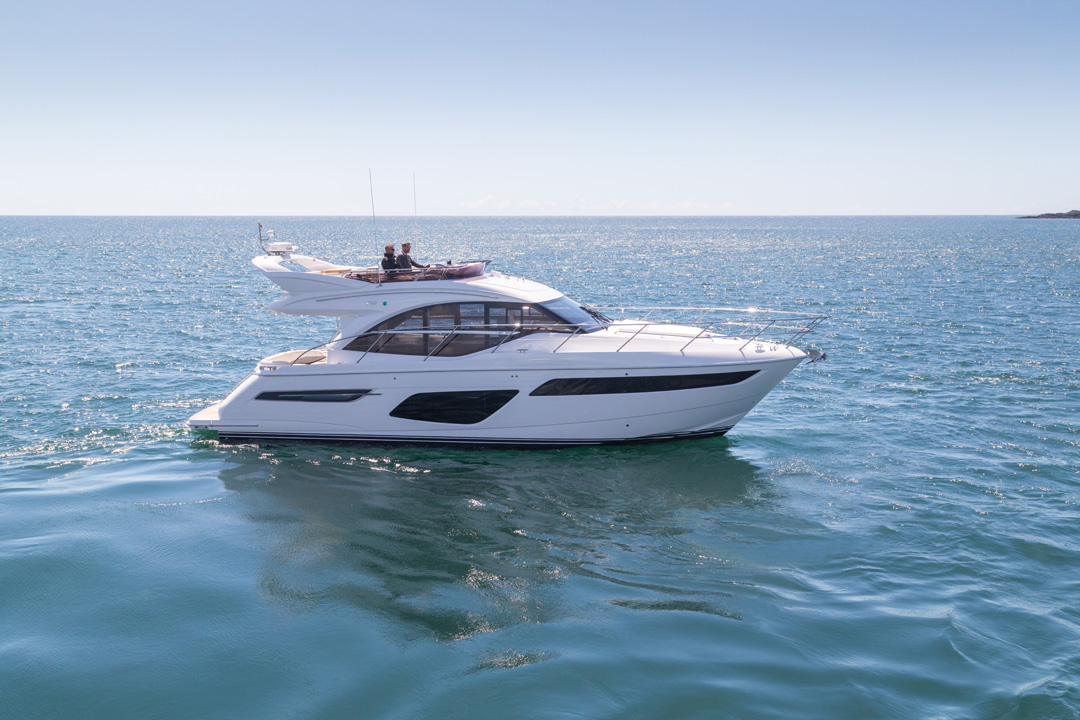

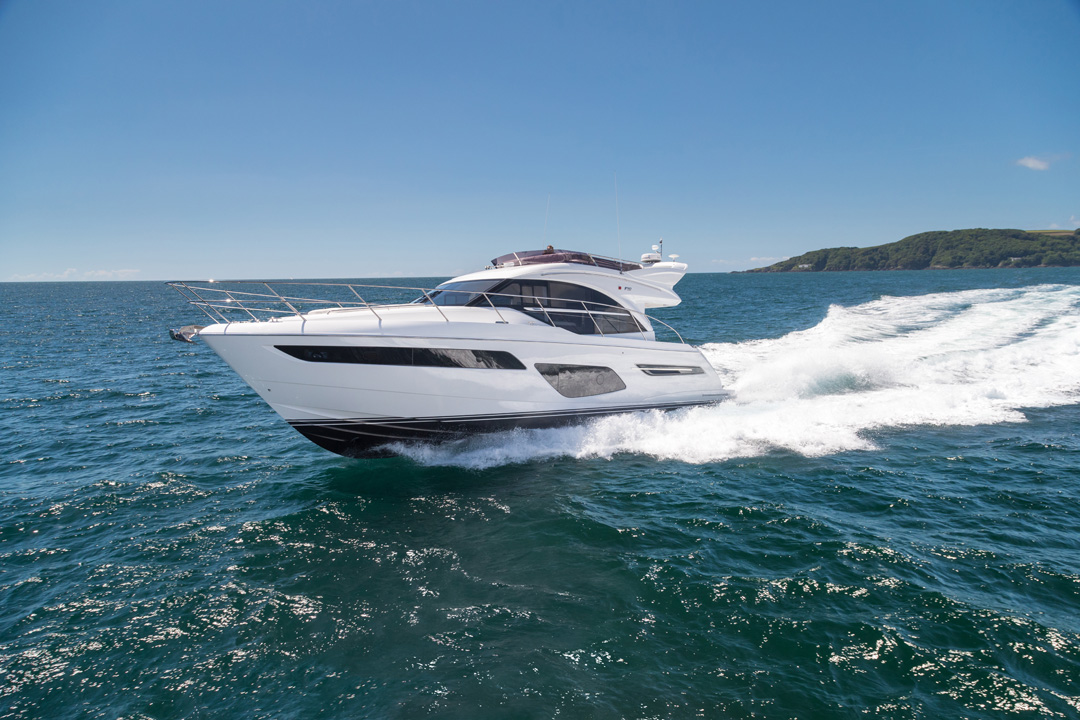

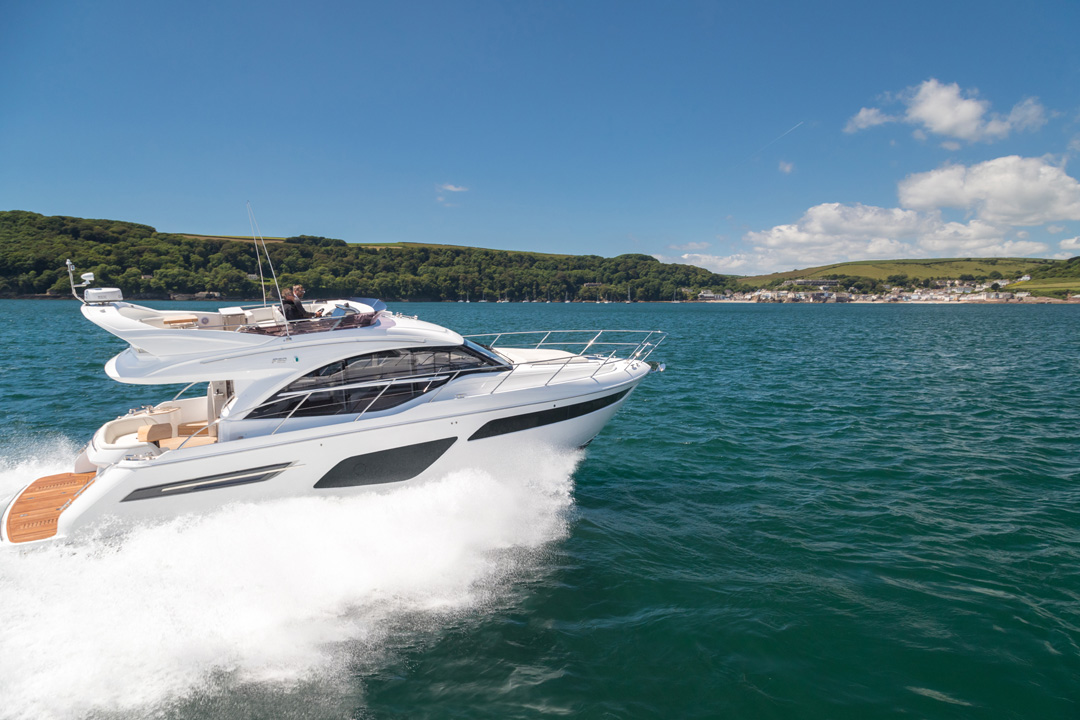

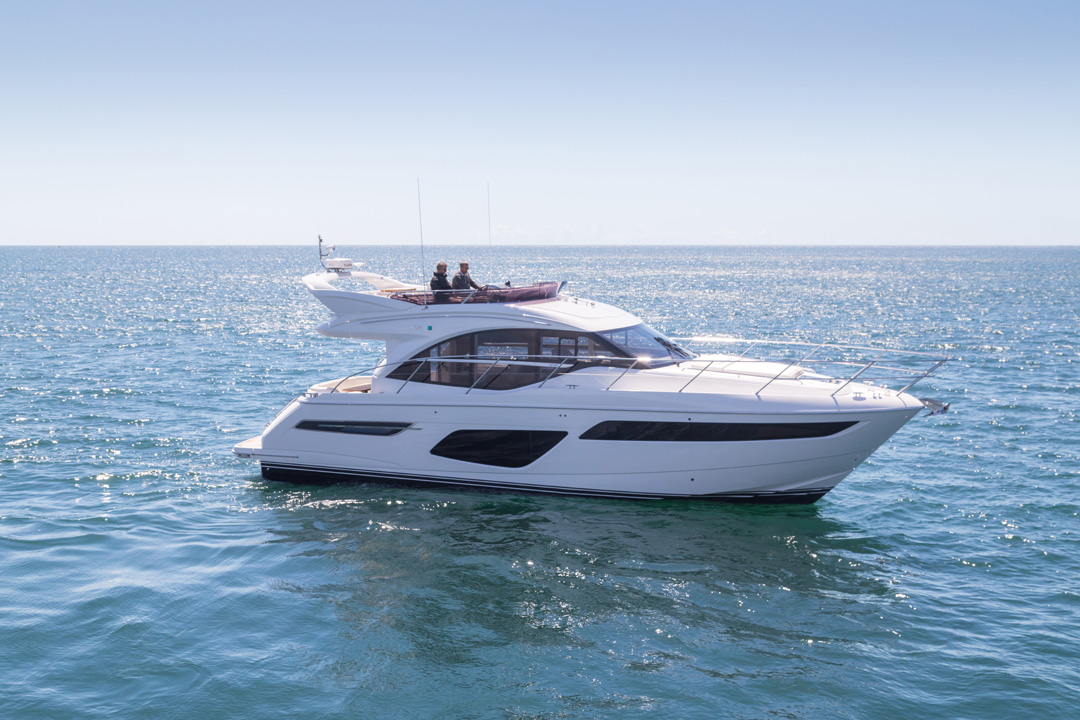

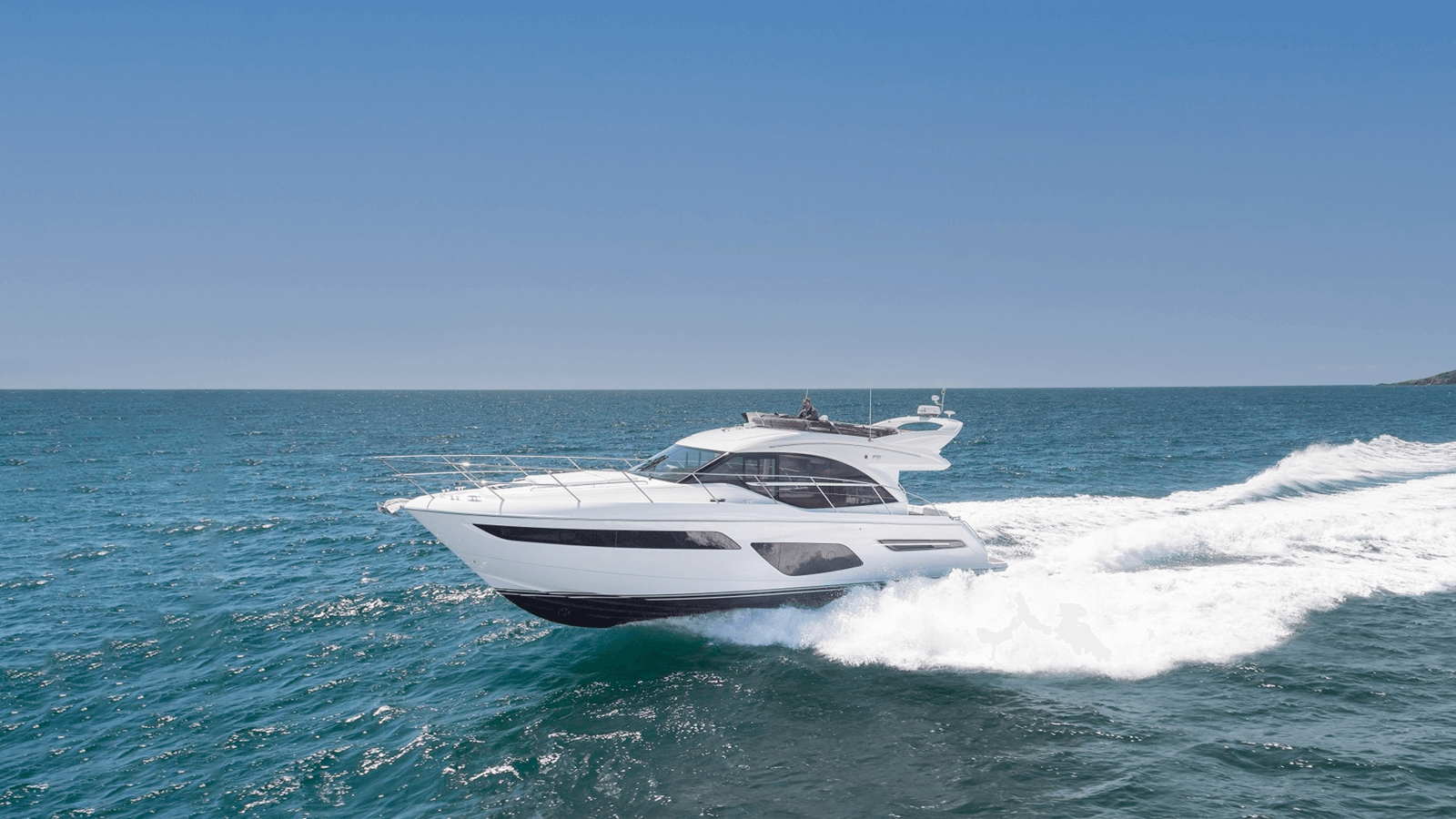

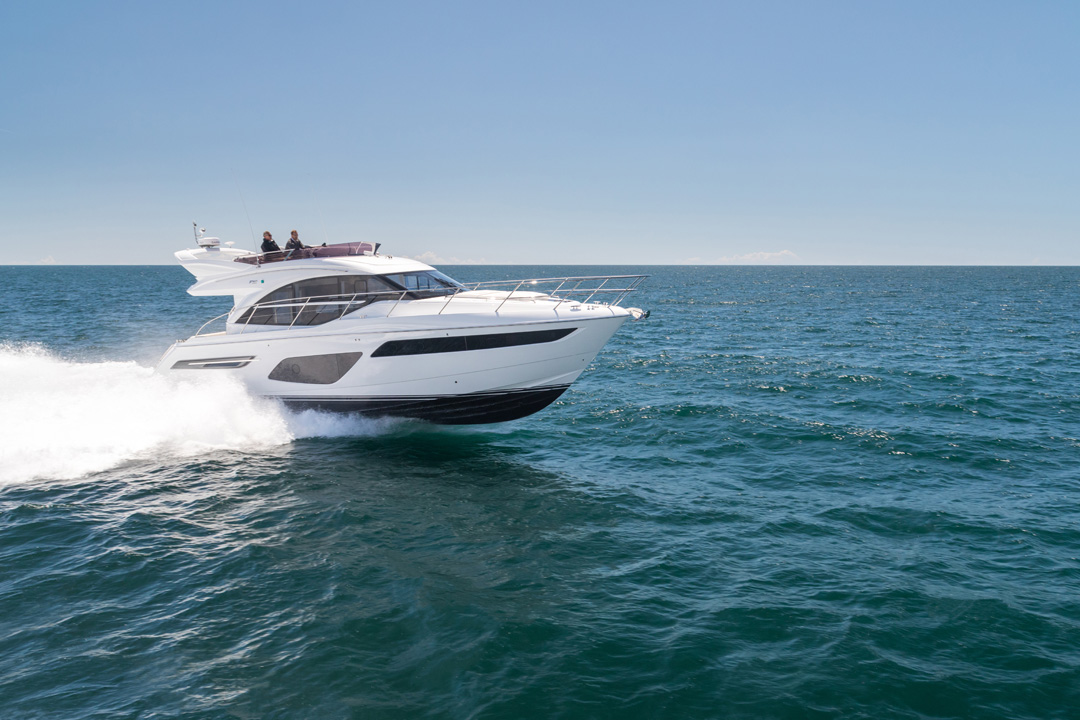

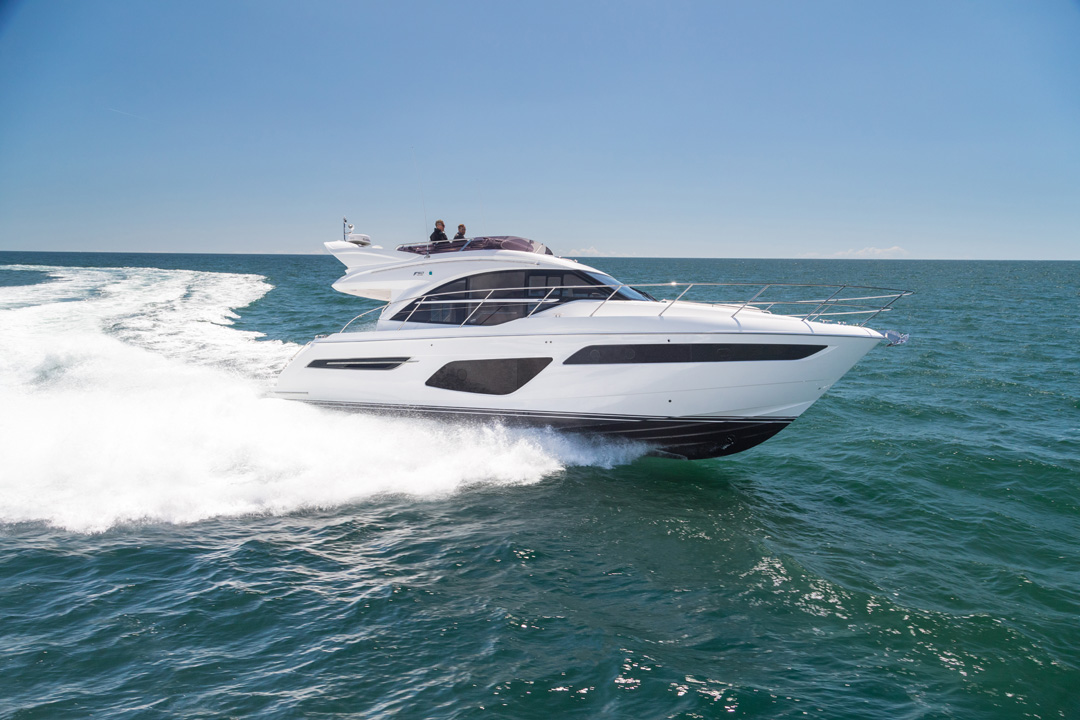

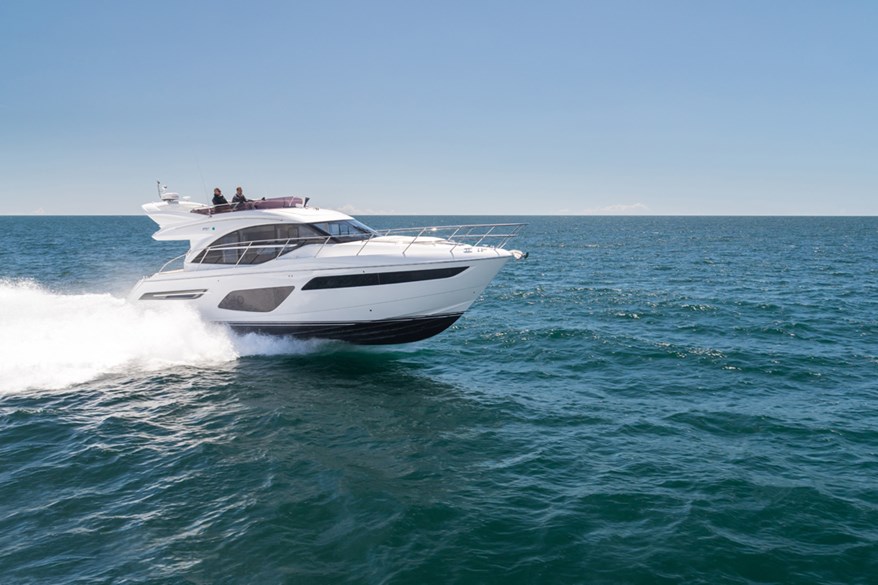

Slicing through waves at 36 knots, the Princess F50 delivers the ultimate on-water experience for a flybridge yacht, with an extreme focus on the use of space and dynamic performance.
An extreme focus on the use of space and dynamic performance
Designed with on-deck living in mind, easy transitioning between exterior and interior invites guests to move seamlessly from indoors to out. Twin Volvo IPS 800's slice through waves at 36 knots to delivers the ultimate on-water experience.
A breathtaking perspective
A breathtaking perspective
Exterior Interior
F50
An extreme focus on the use of space and dynamic performance
Designed with on-deck living in mind, easy transitioning between exterior and interior invites guests to move seamlessly from indoors to out. Twin Volvo IPS 800's slice through waves at 36 knots to delivers the ultimate on-water experience.
An exceptinal on-water experience for a compact flybridge yacht

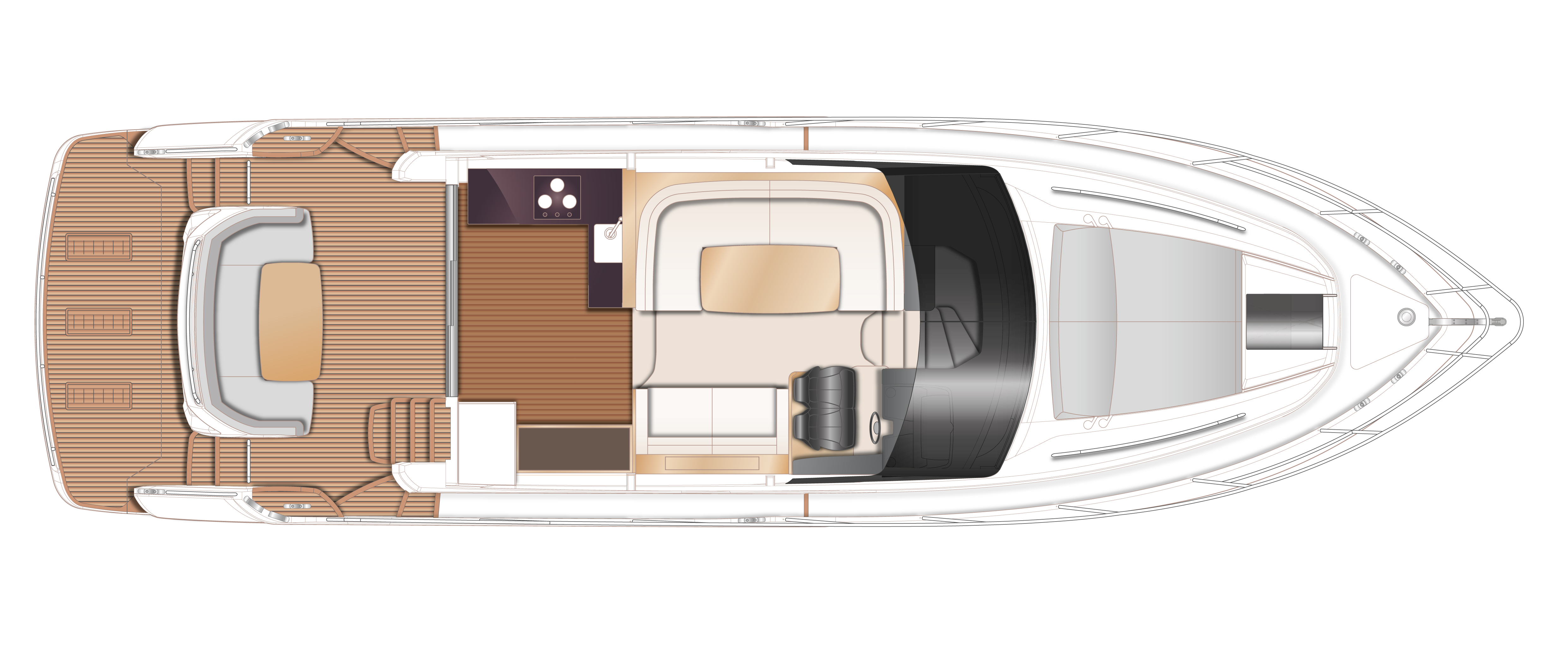

Her saloon features a U-shaped sofa and dining table for six guests which can also convert to a comfortable double berth as required, whilst her foredeck boasts a luxurious sunpad, perfect for relaxing in a secluded bay. Her flybridge features a spacious aft U-shaped seating area, forward L-shaped seating to port, which converts to a sunbed, and twin helm seats. The dual-station instrumentation and latest Volvo-Garmin navigation and control systems enable her to be helmed from both the main deck and flybridge for precision manoeuvring.
Below deck, up to six guests can enjoy three beautifully appointed, spacious cabins, two of which are en-suite. All are filled with natural light from her sweeping hull glazing. The generous full beam master stateroom features a large double bed whilst the forward stateroom has the option of scissor berths that easily convert into a double berth for added flexibility. A further twin guest cabin completes her spacious accommodation.
